Save 9%

Santa Cruz

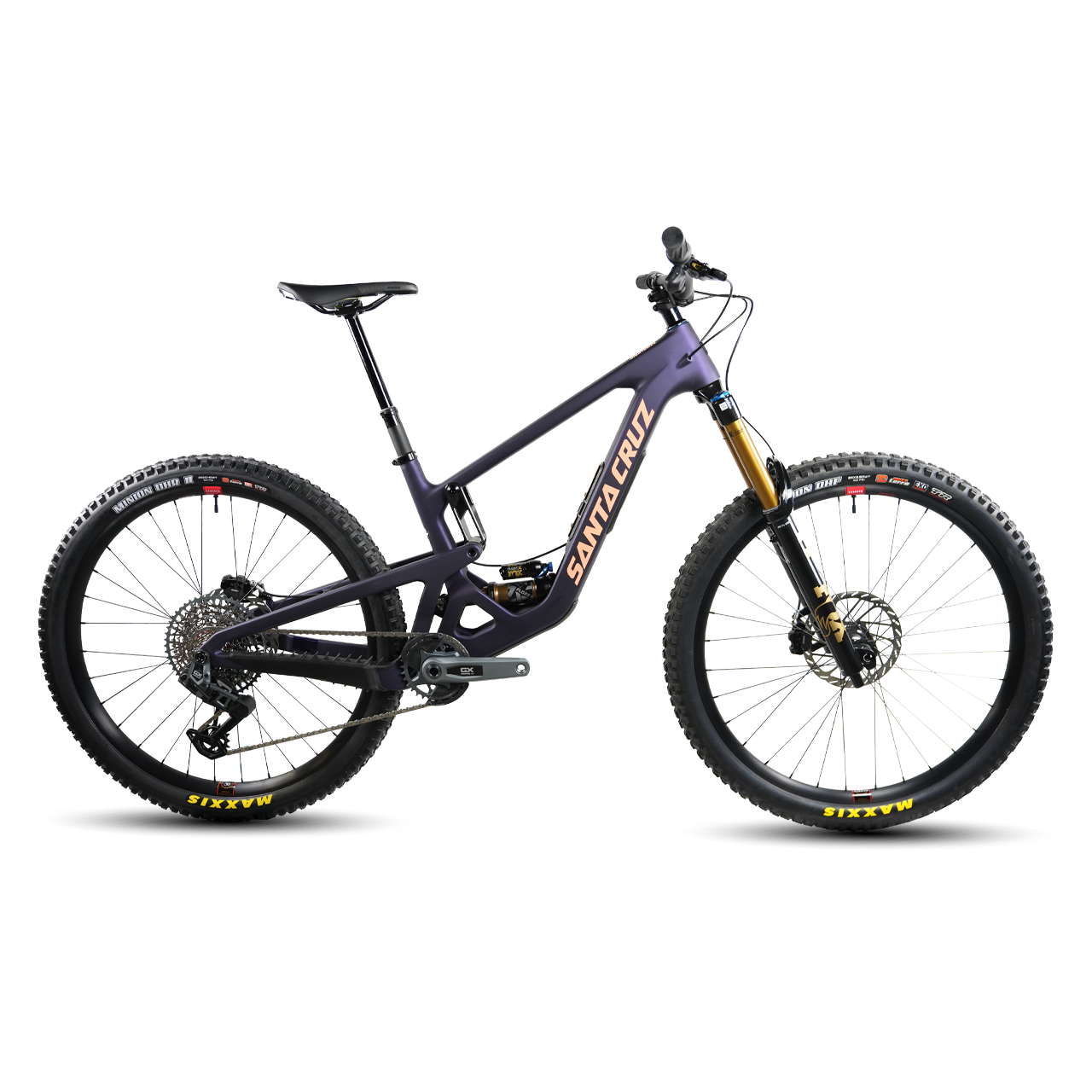

2025 | Hightower 4 29 CC Custom GX T-Type

$9,499.00

$9,499.00 ~~$10,499.00~~

Shipping calculated at checkout.

Color: Matte Deep Purple

Size: Medium

Medium

SKU:SAN57396895M

Shipping & Returns

We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.

Canadian shipping charges:

Sale bikes: $200
Standard pedal bikes over $1250: Free
Standard pedal bikes under $1250: $100
Electric bikes: $200
Fat bikes: $200
Kid's bikes: $60

Insurance charge: 1.5% insured value

We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details

Bike Specifications

Specifications are subject to change without notice

Drivetrain

Cassette Sram GX XS-1275 10-52t

Chain Sram Gx T-Type Flattop

Chainring 32t

Crankset Sram GX T-Type 165mm, 32t

Rear derailleur Sram GX T-Type AXS

Brakes

Brakeset Sram Maven Silver B1

Brake rotor Sram HS2

Rotor size 200mm

Cockpit

Grips tape Oneup Thick Lock on

Handlebars Oneup Carbon V2 800mm, 35mm Rise

Saddle Specialized Bridge Comp Mimic 143mm

Seatpost Oneup V3 31.6mmx180mm

Stem Oneup 35mm

Wheels

Tires Maxxis Minion DHF 29x2.5 EXO // Maxxis Minion DHR 29x2.4 EXO+

Wheels Reserve 30 AL HD MX DT 350 DEG DF

Wheel size 29"

Suspension

Fork Fox Factory 36 Grip X2

Fork brand Fox

Fork travel 160mm

Shock Fox Factory Float X 150mm

Shock brand Fox

Frame

Bottom bracket Sram Dub BSA

Frame material Carbon

Platform wheel size 29"

Seatpost 31.6mm

Description

Big on wheels, short on fuss, this is the pinnacle of go-anywhere-anytime bikes. A balance of travel, wheel size and attitude makes this a true MTB for modern mountain biking. Whether that includes the rarefied air of the alpine or just local trailheads, built and burly trails or sublime natural singletrack, the Hightower is an all-terrain thriller.

Geometry Chart

Shock Position

Measurement	Medium High · 29"	Medium Low · 29
Reach (mm)	460	457
Stack (mm)	632	634
Head Tube Angle (°)	64.2°	63.9°
Seat Tube Angle (°)	77.9°	77.6°
Wheelbase (mm)	1237	1237
Head Tube Length (mm)	120	120
Seat Tube Length (mm)	405	405
BB Drop (mm)	32	32
BB Height (mm)	344	341
Front Center (mm)	800	800
Standover Height (mm)	723	723

Part Numbers

SKUSAN57396895M

Size Chart

Santa Cruz | Mountain

Size	Rider height (in)	Rider height (cm)
Small	5'1" - 5'5"	154cm - 165cm
Medium	5'5" - 5'9"	165cm - 175cm
Large	5'9" - 6'1"	175cm - 185cm
X-Large	6'1" - 6'4"	185cm - 193cm
XX-Large	6'4" - 6'7"	193cm - 200cm

If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.

A larger size frame will be more stable, and will give you more room to move without upsetting the weight-balance of the bike. The larger size will put the front wheel further in front of you, which gives the feeling of security and conversely, it will require more significant body movements when you WANT to shift the weight-bias of the bike. Think hard about your riding style and how active/intuitive you want it to be vs stable and speedy. You'll need to work a bit harder to muscle the larger bike around.

Not all bodies at a given height are the same. If you have longer legs and a shorter torso than the average person your height, that may push you towards the smaller of the recommended sizes. If you're all torso and arms, most likely you'll want to size up.

2025 | Hightower 4 29 CC Custom GX T-Type
