Sold out

Specialized

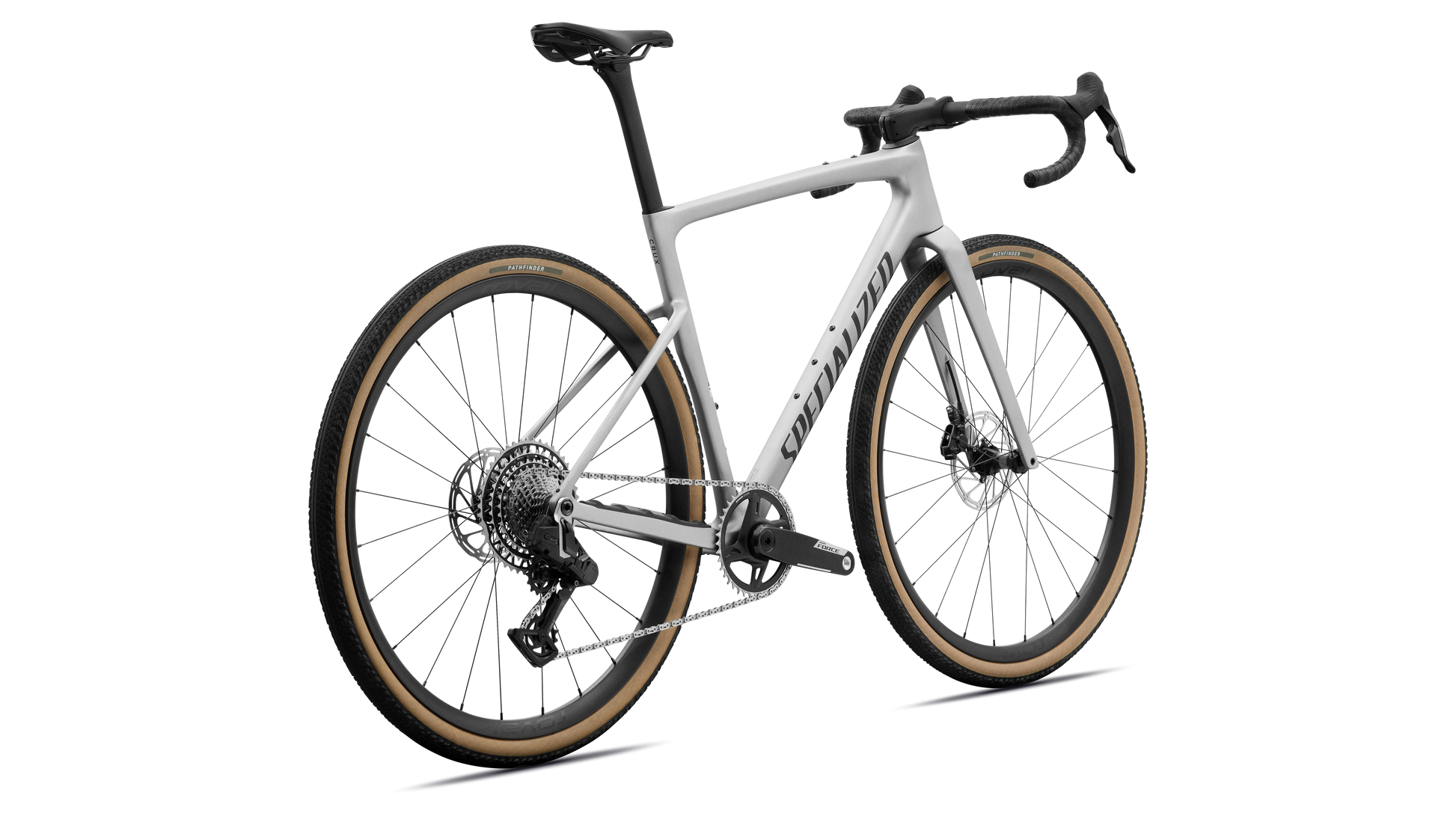

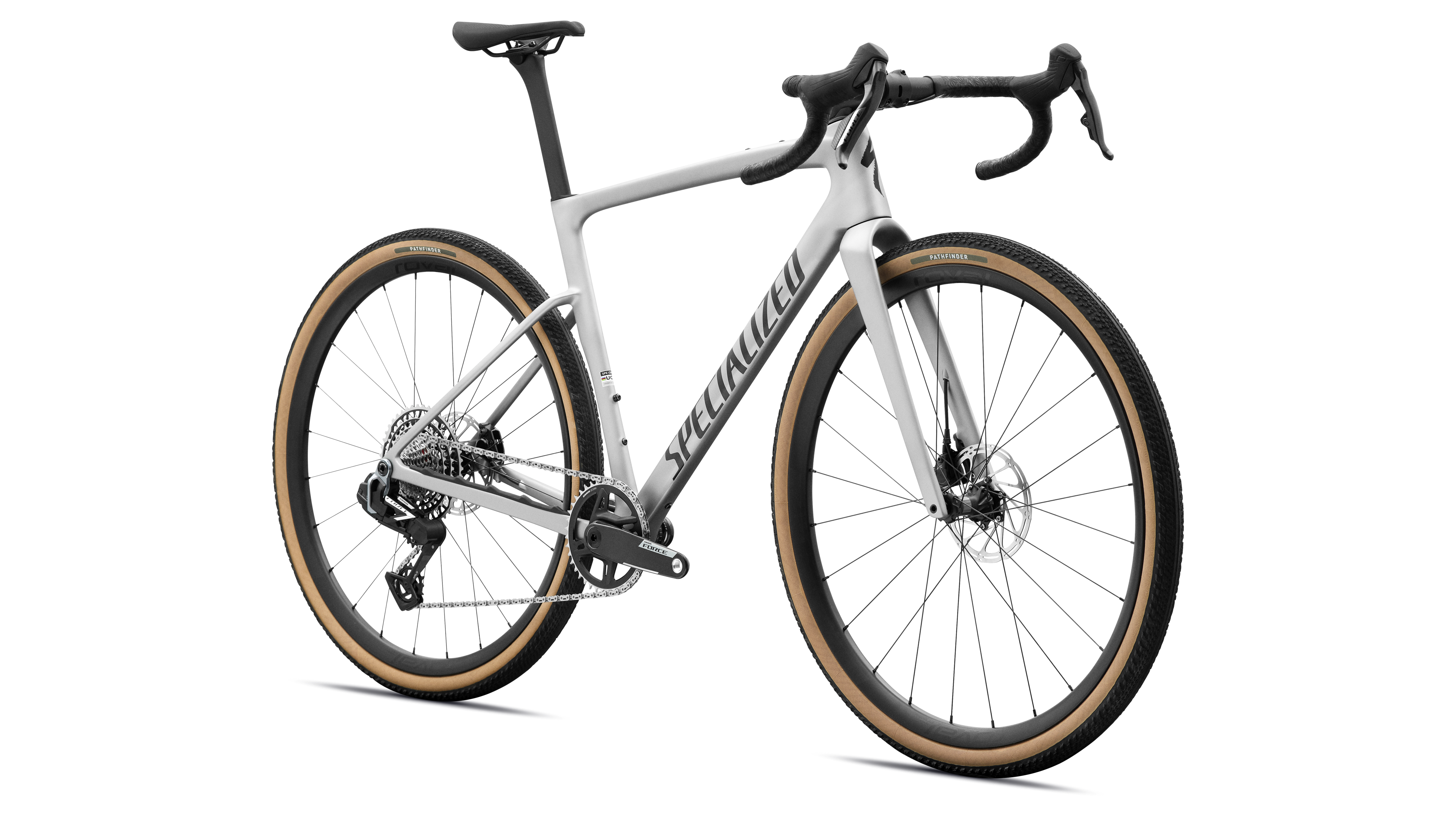

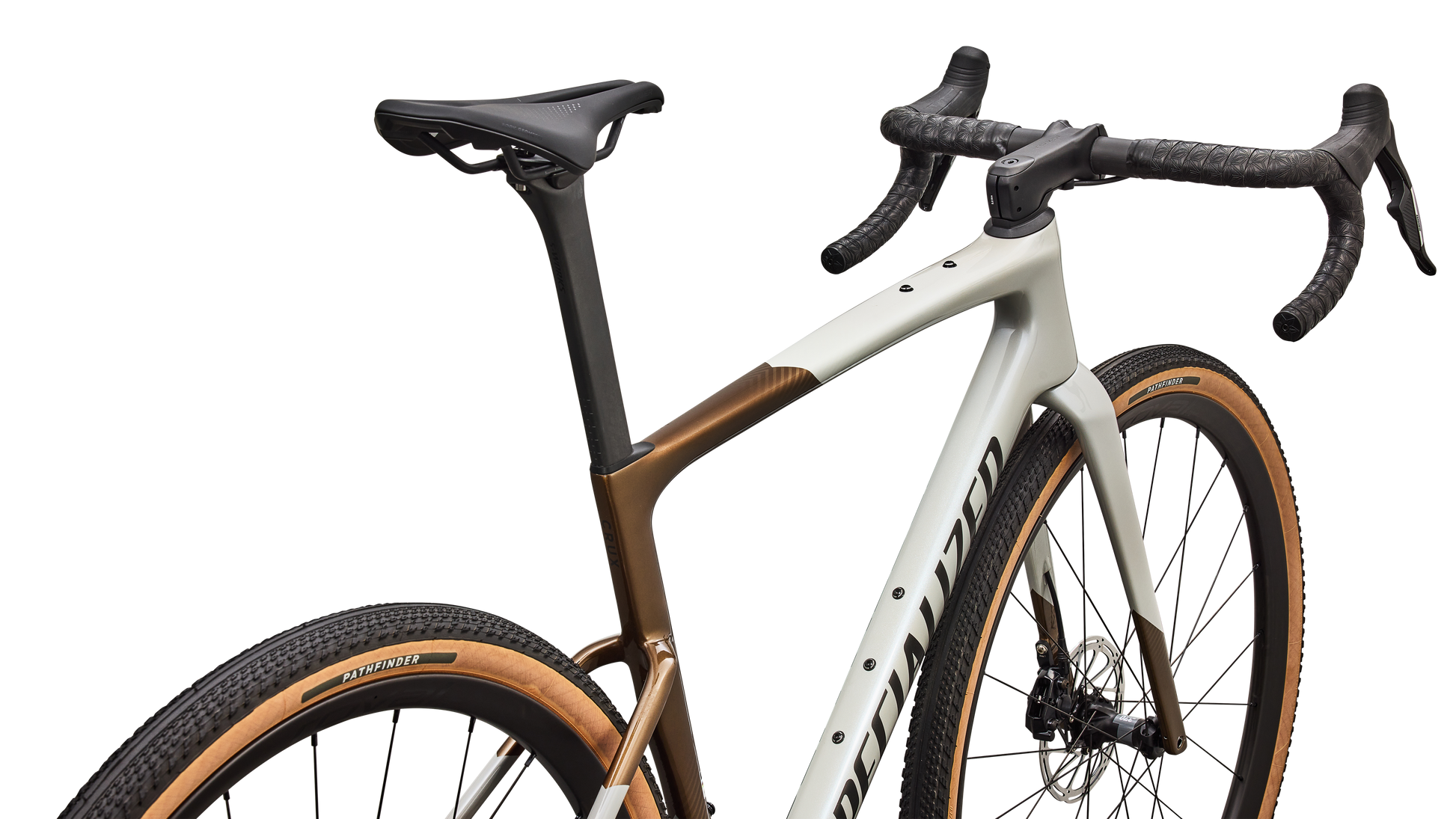

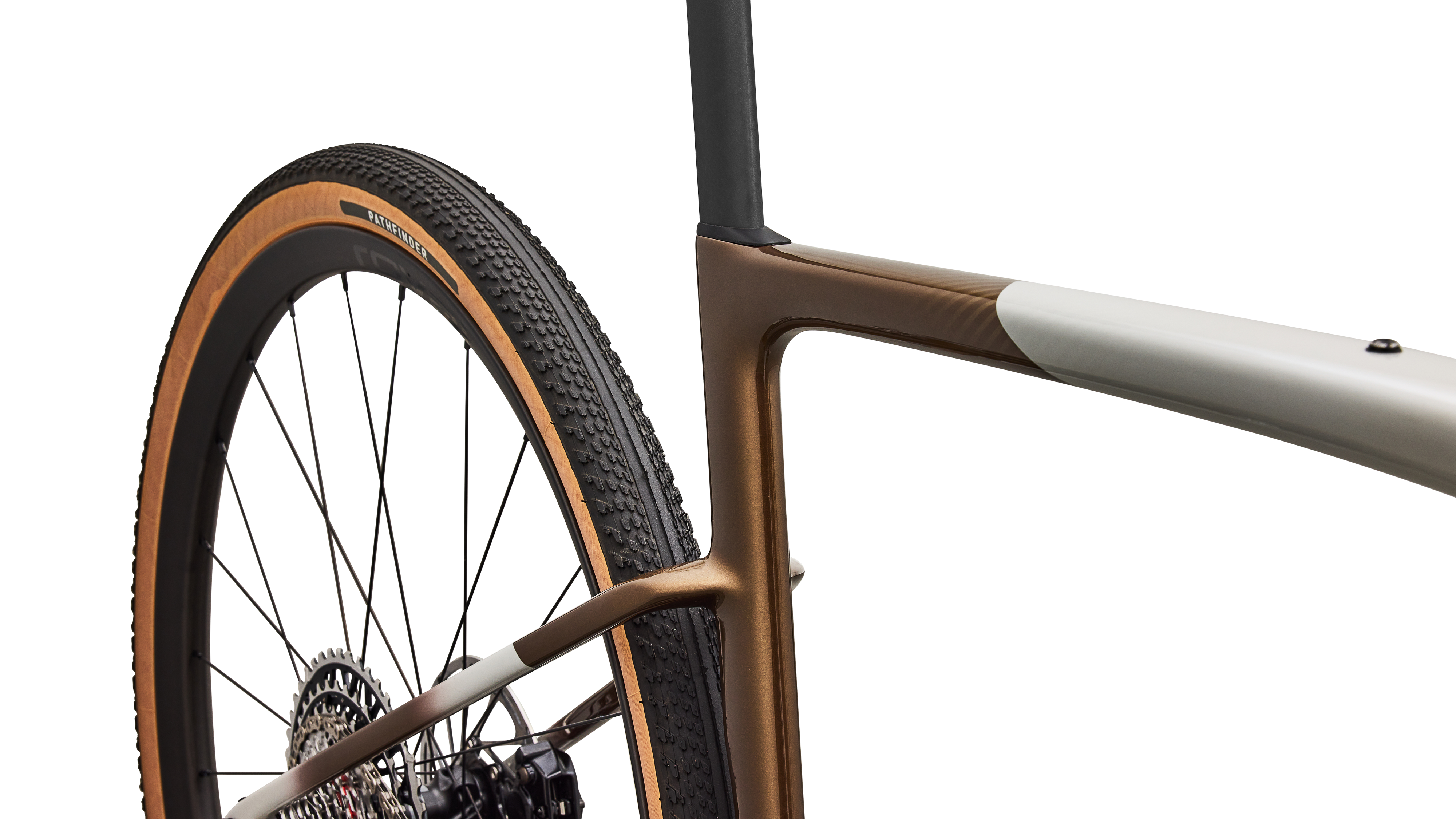

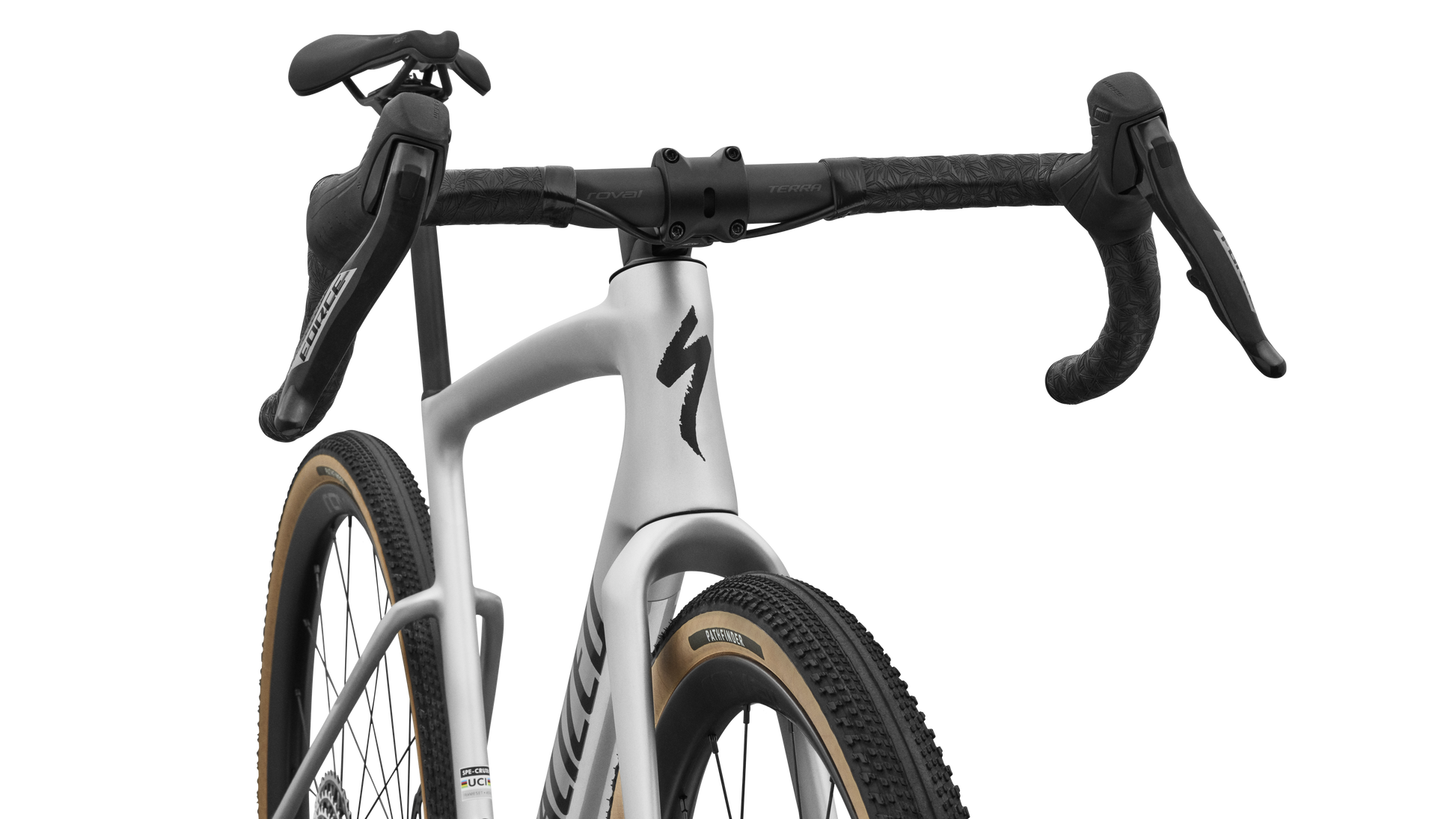

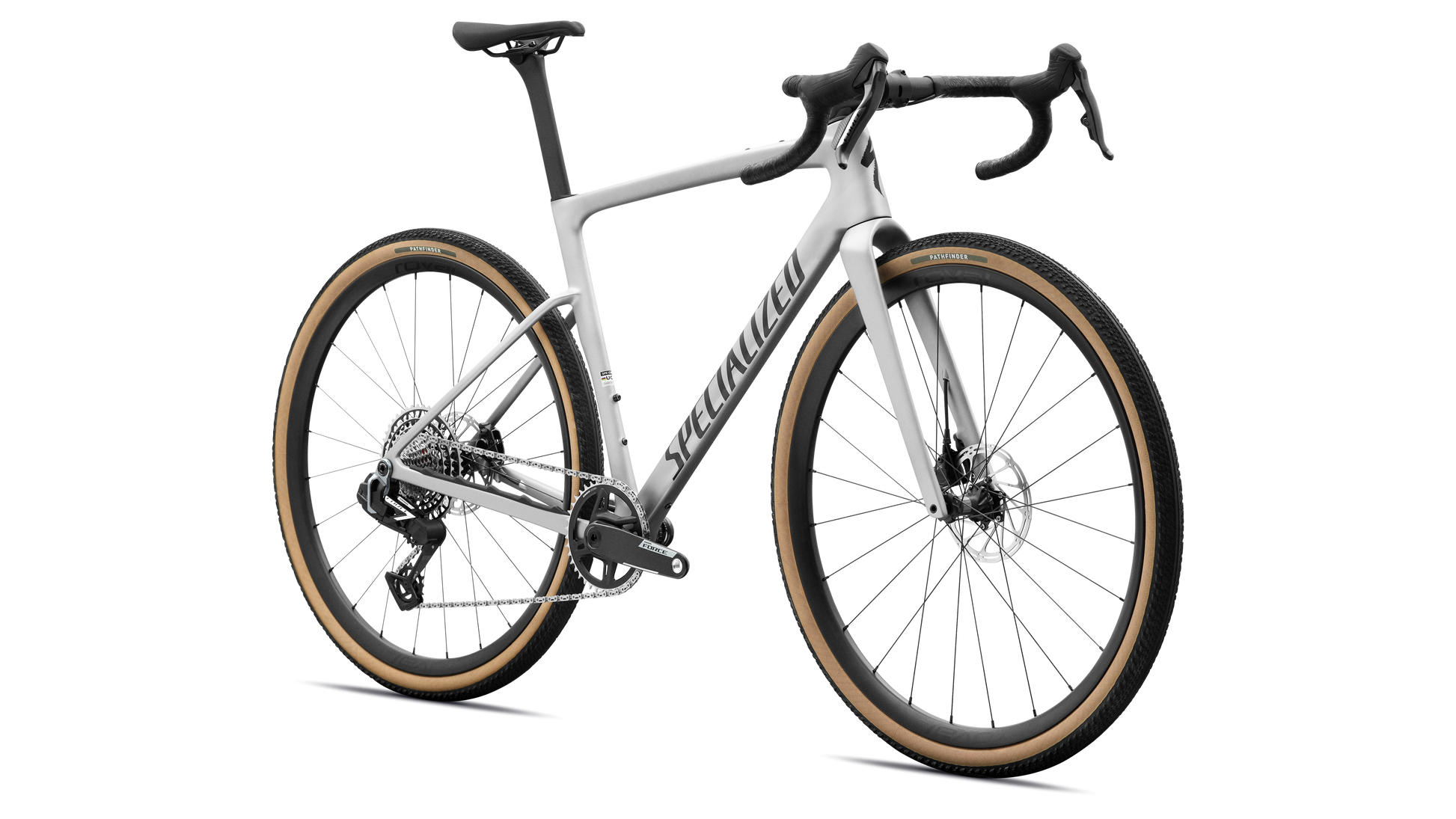

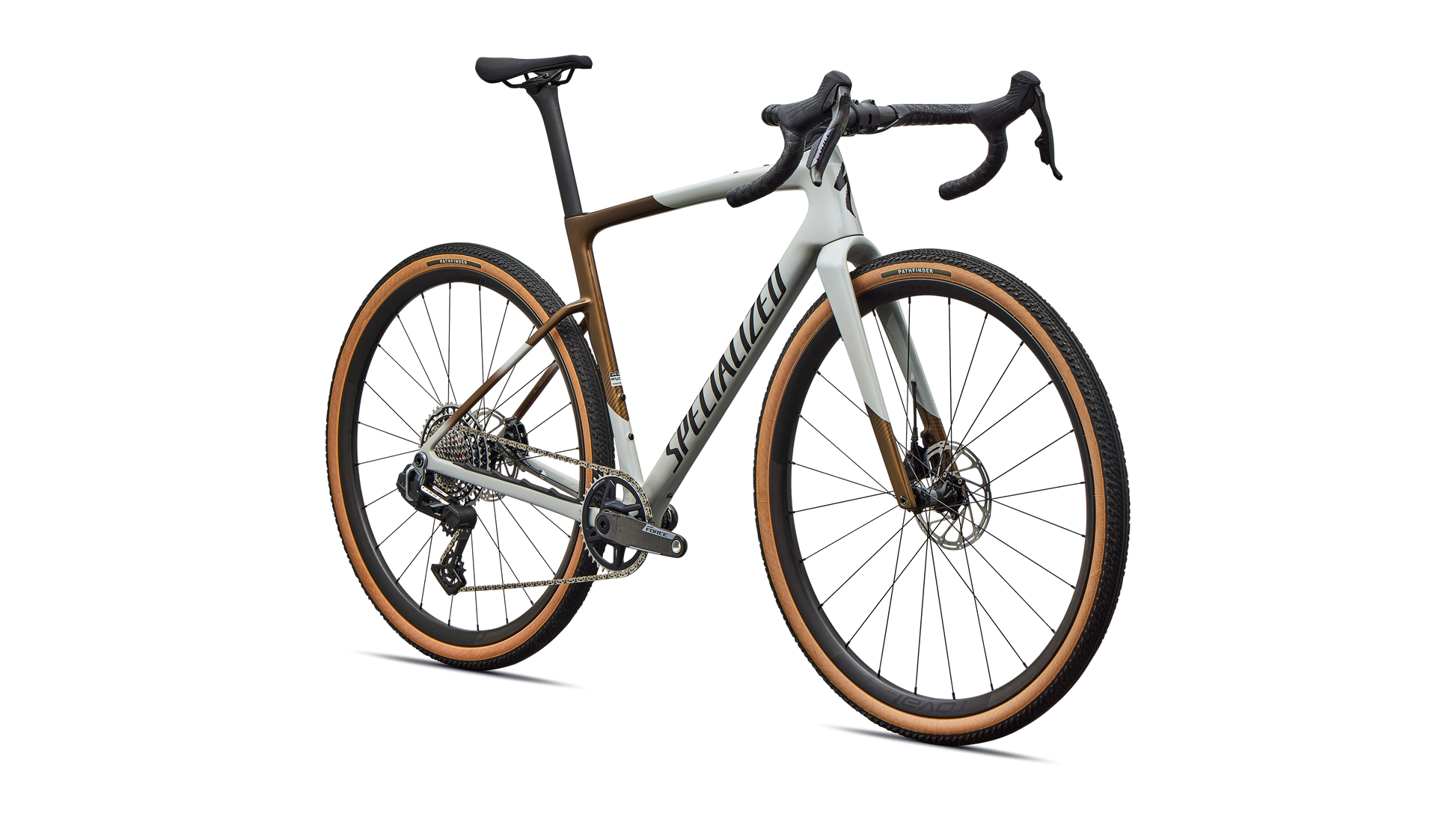

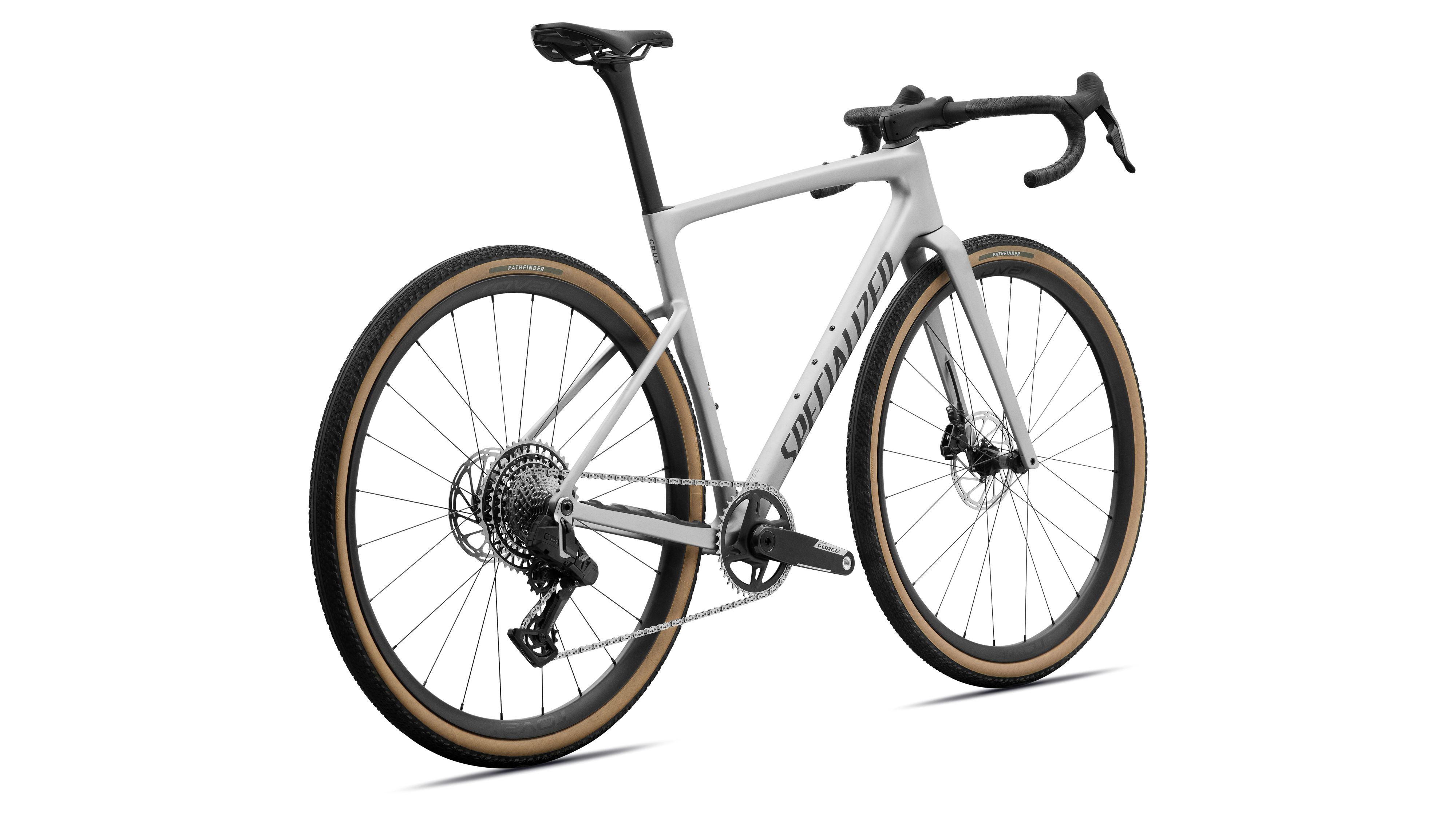

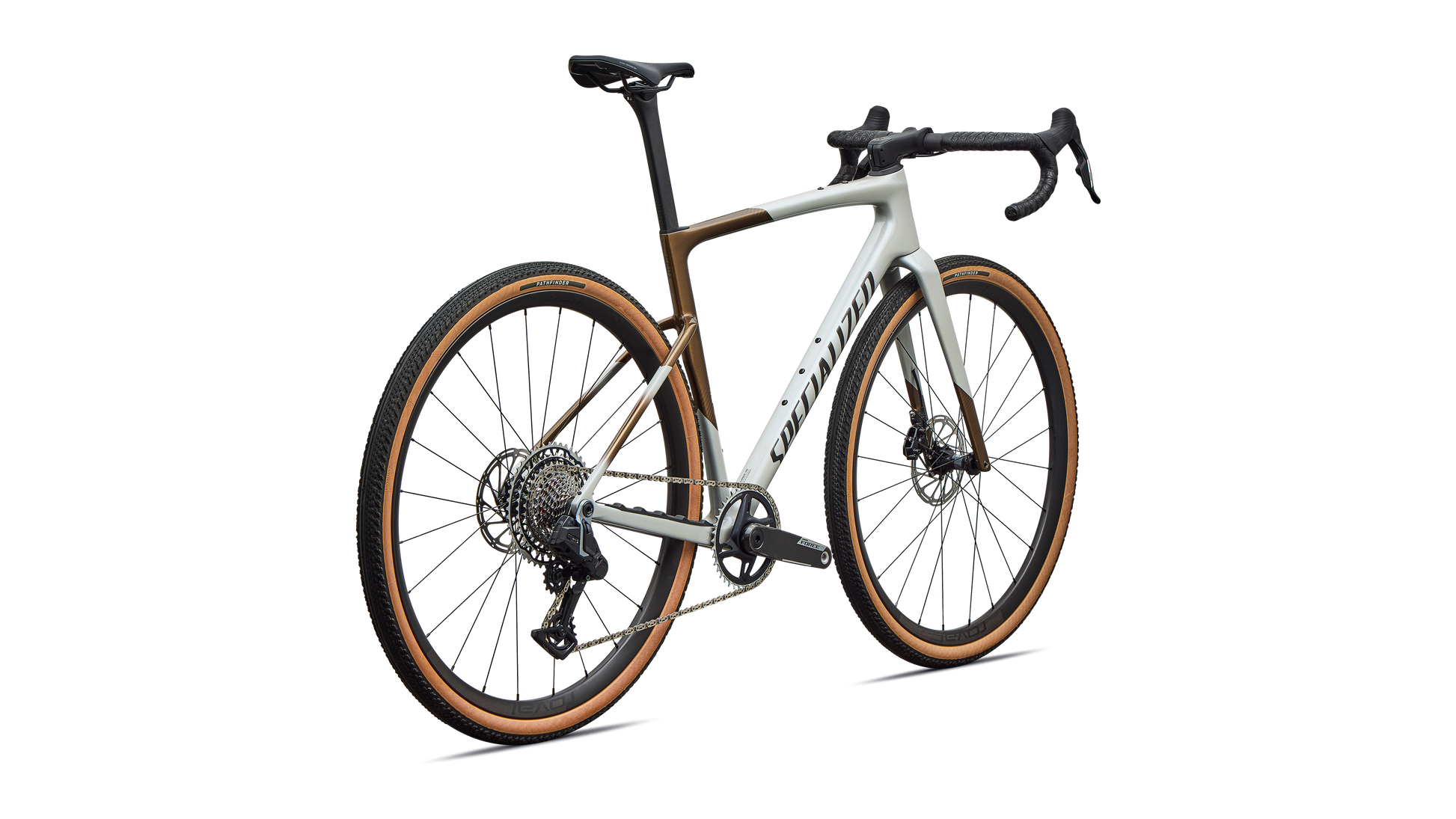

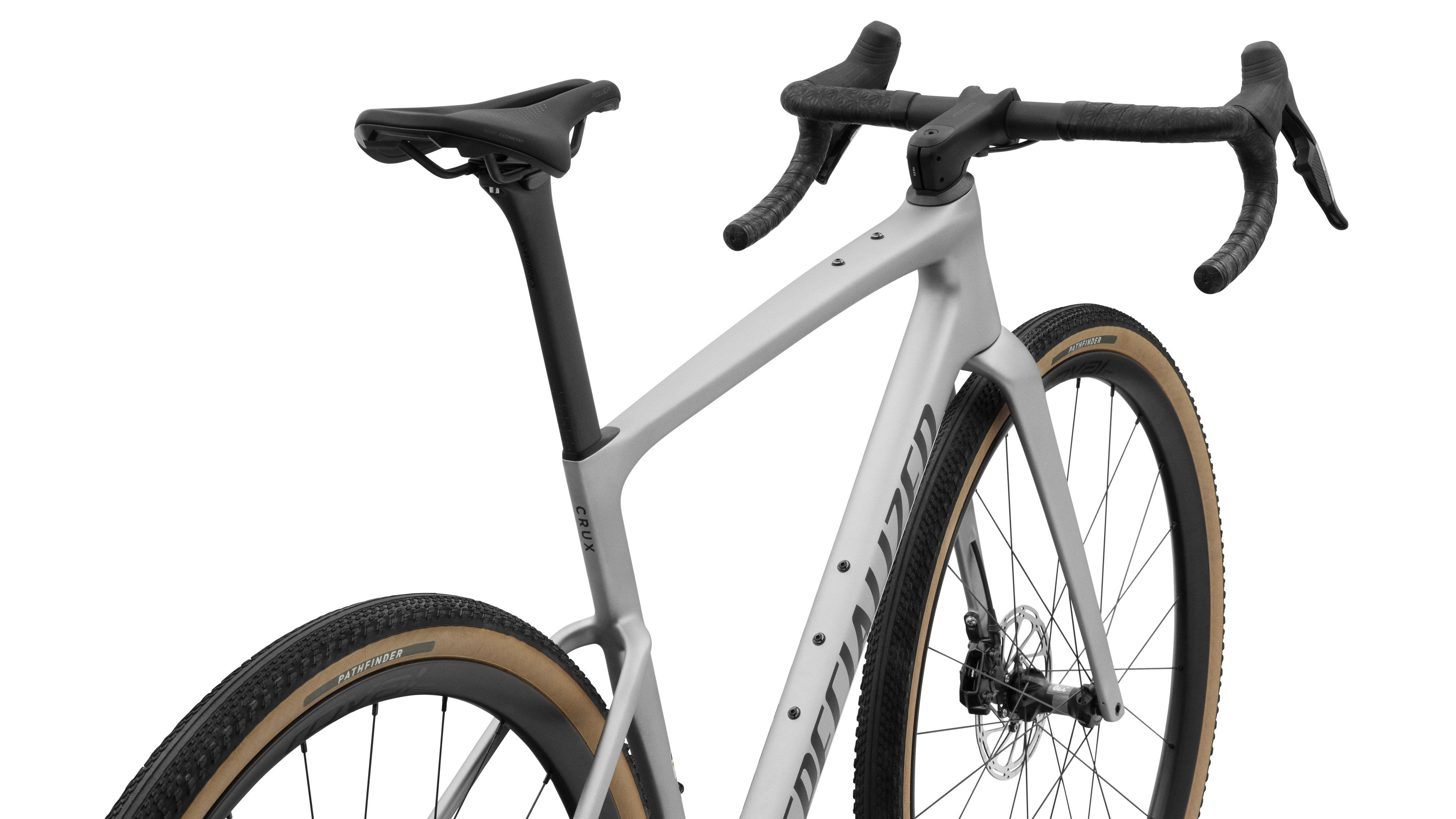

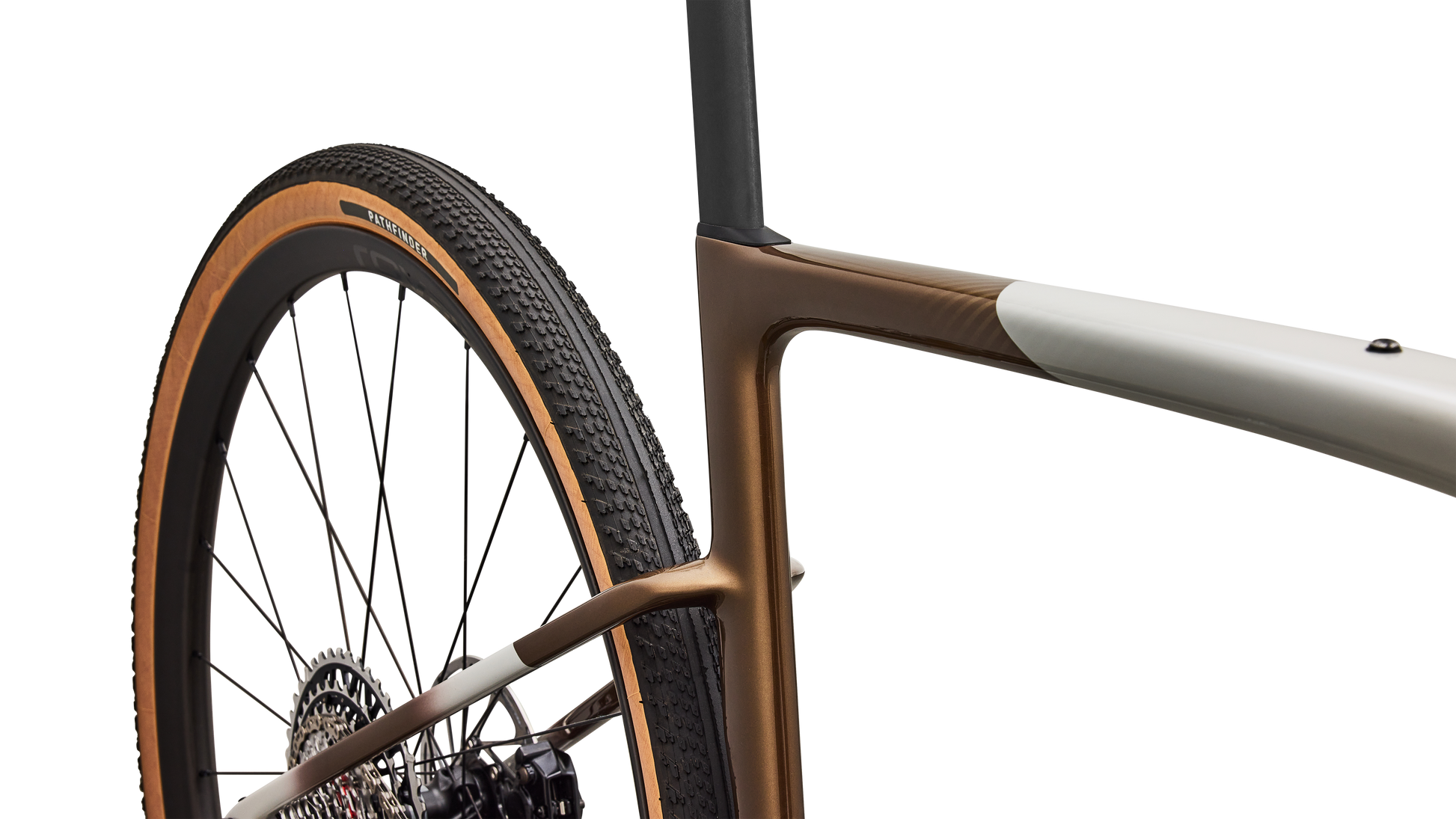

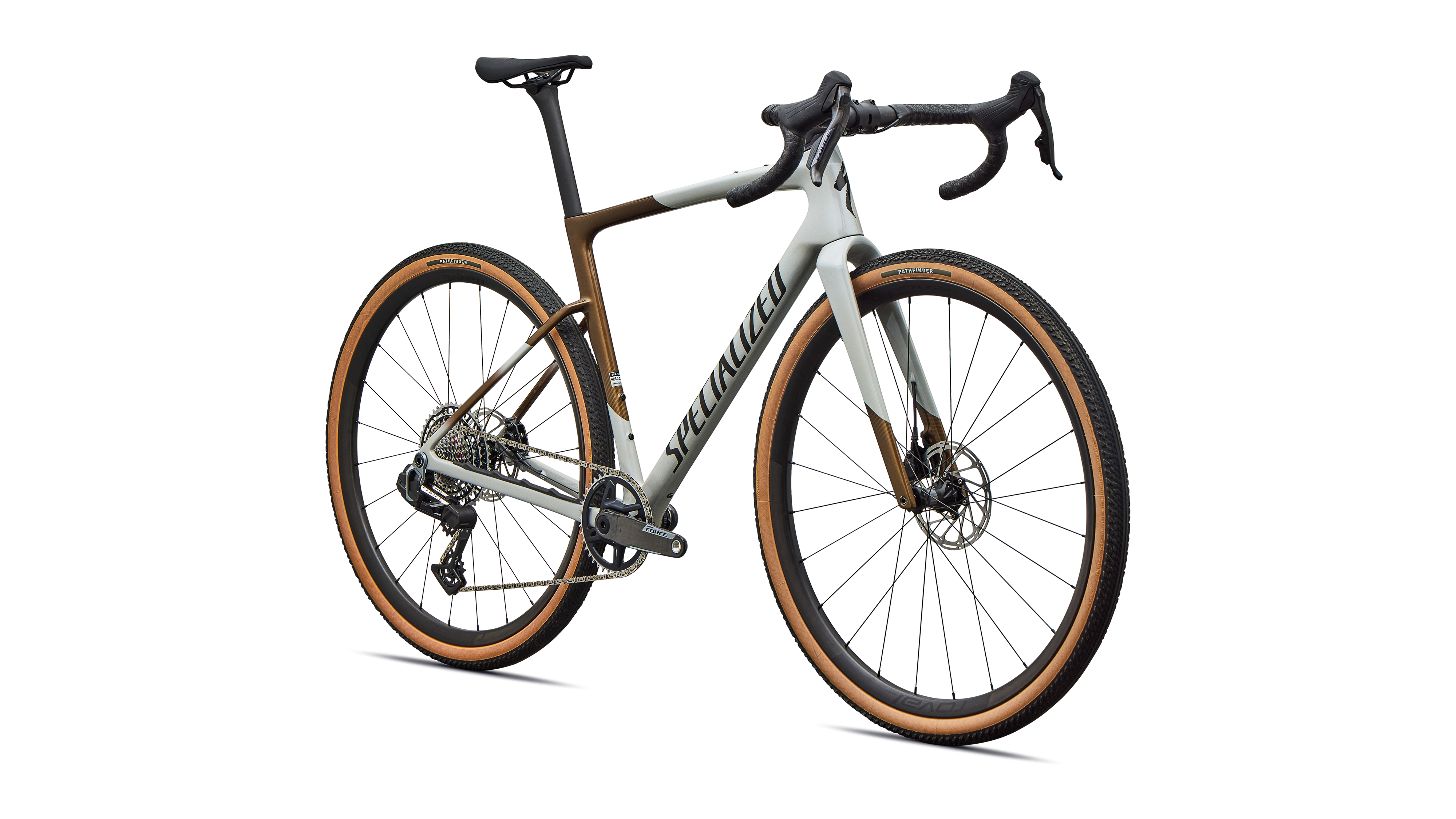

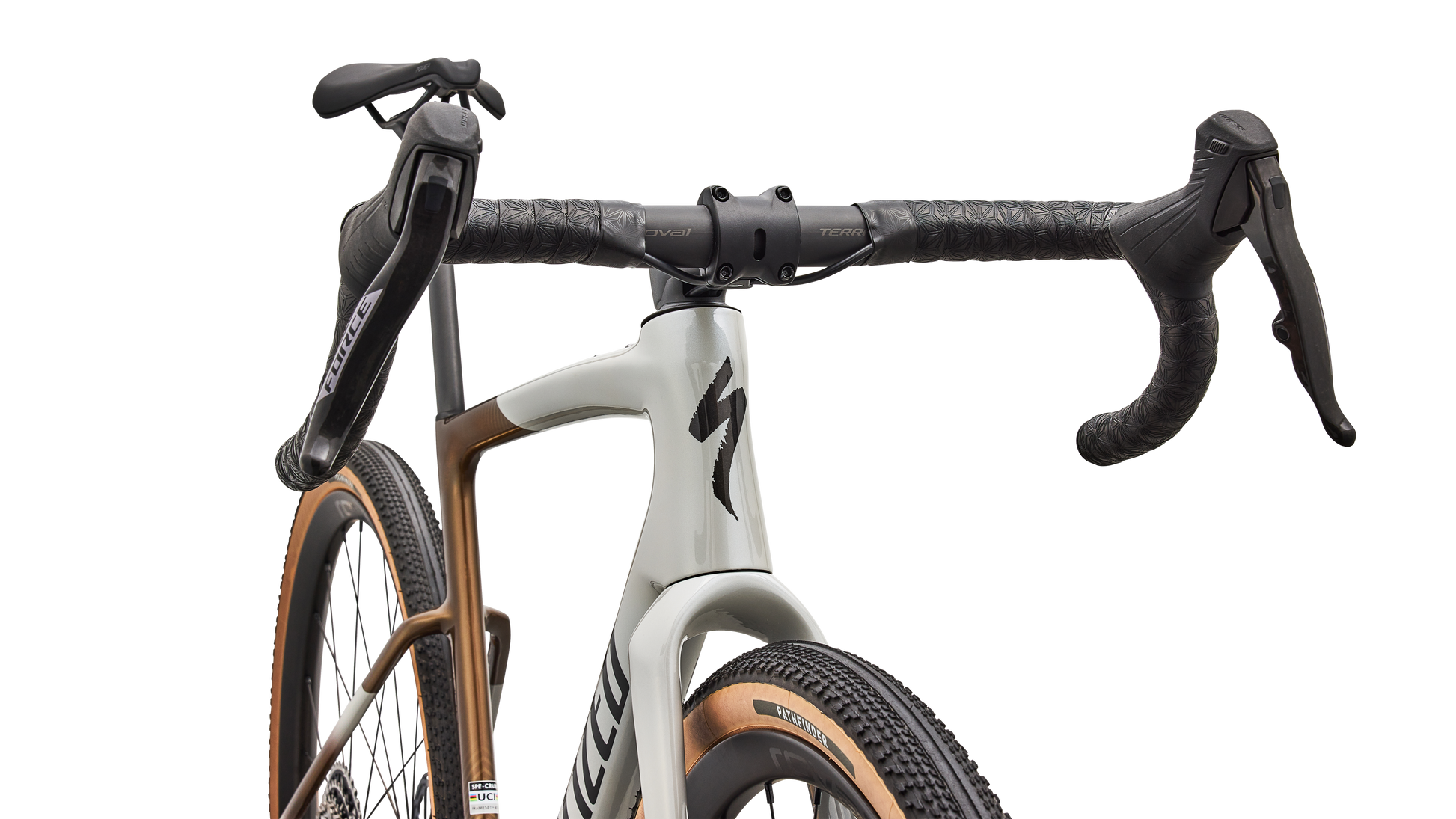

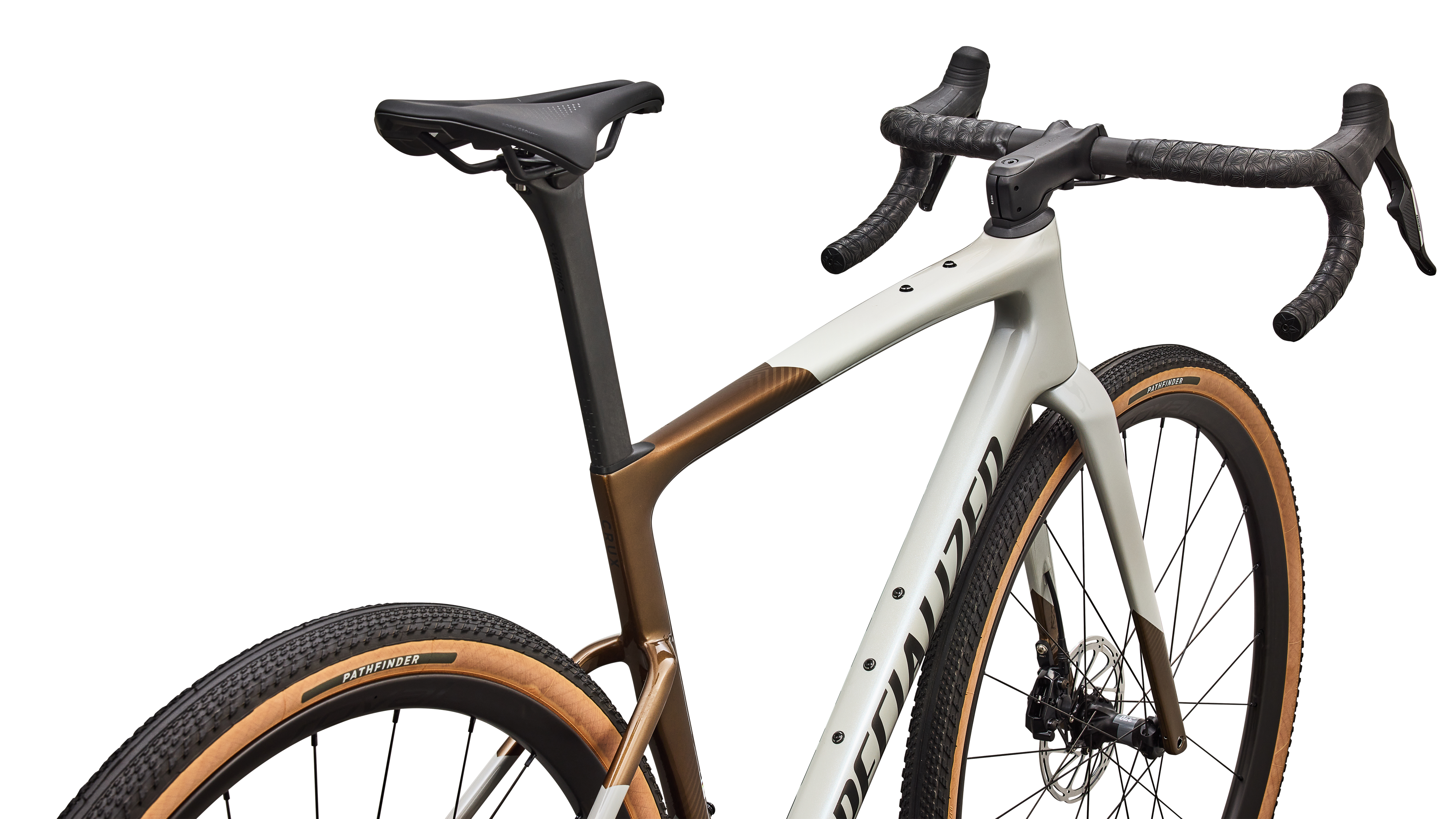

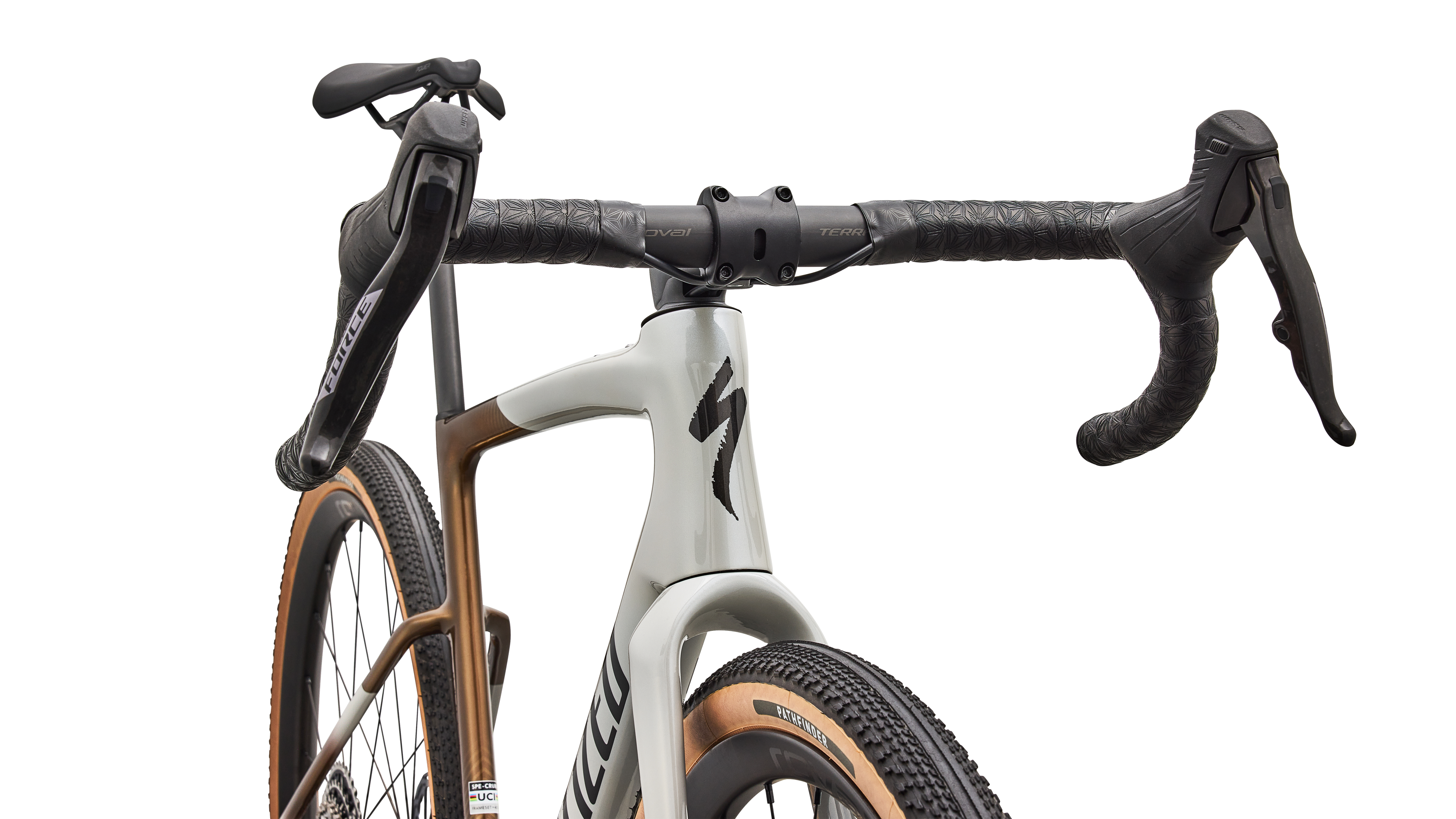

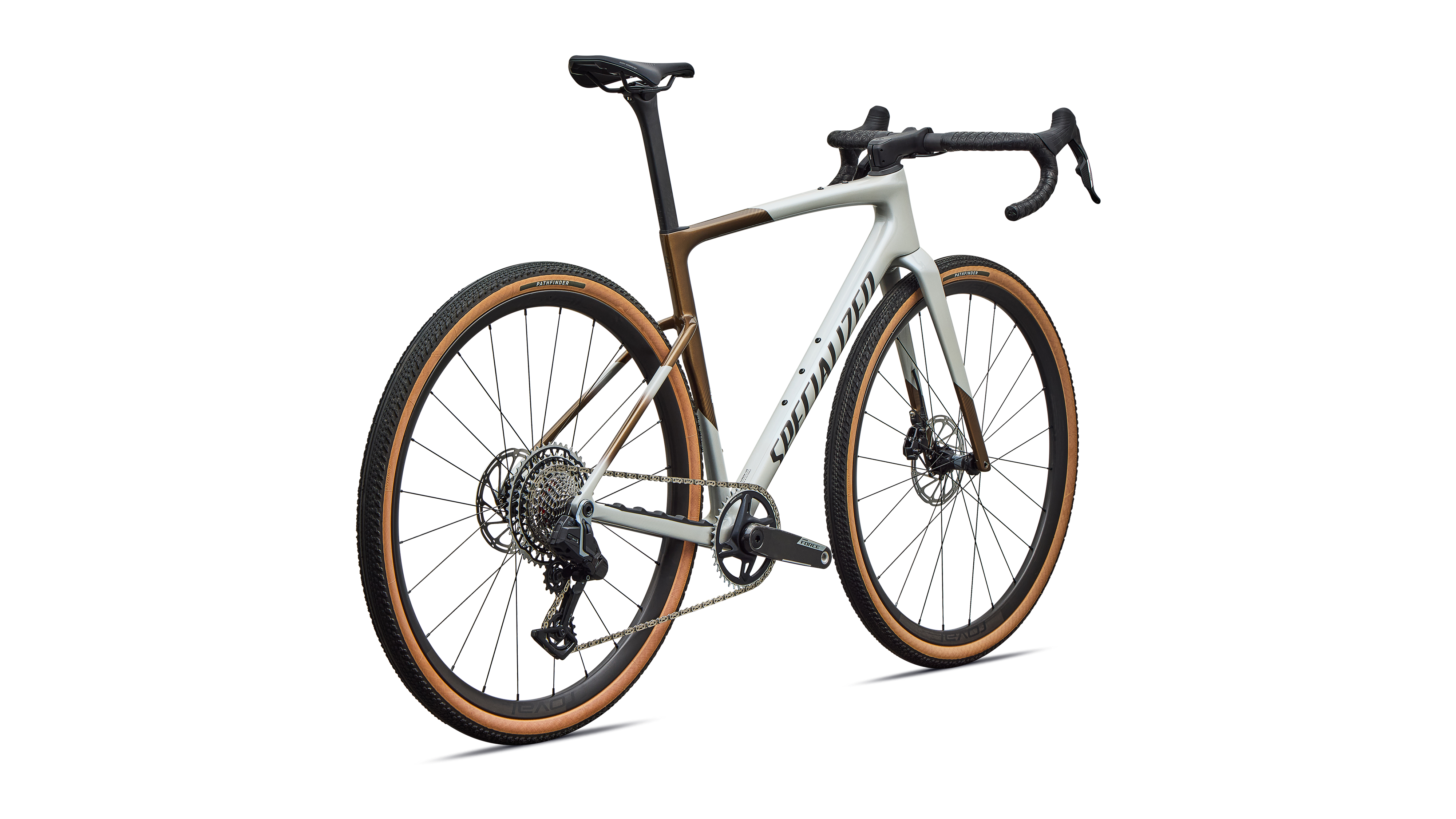

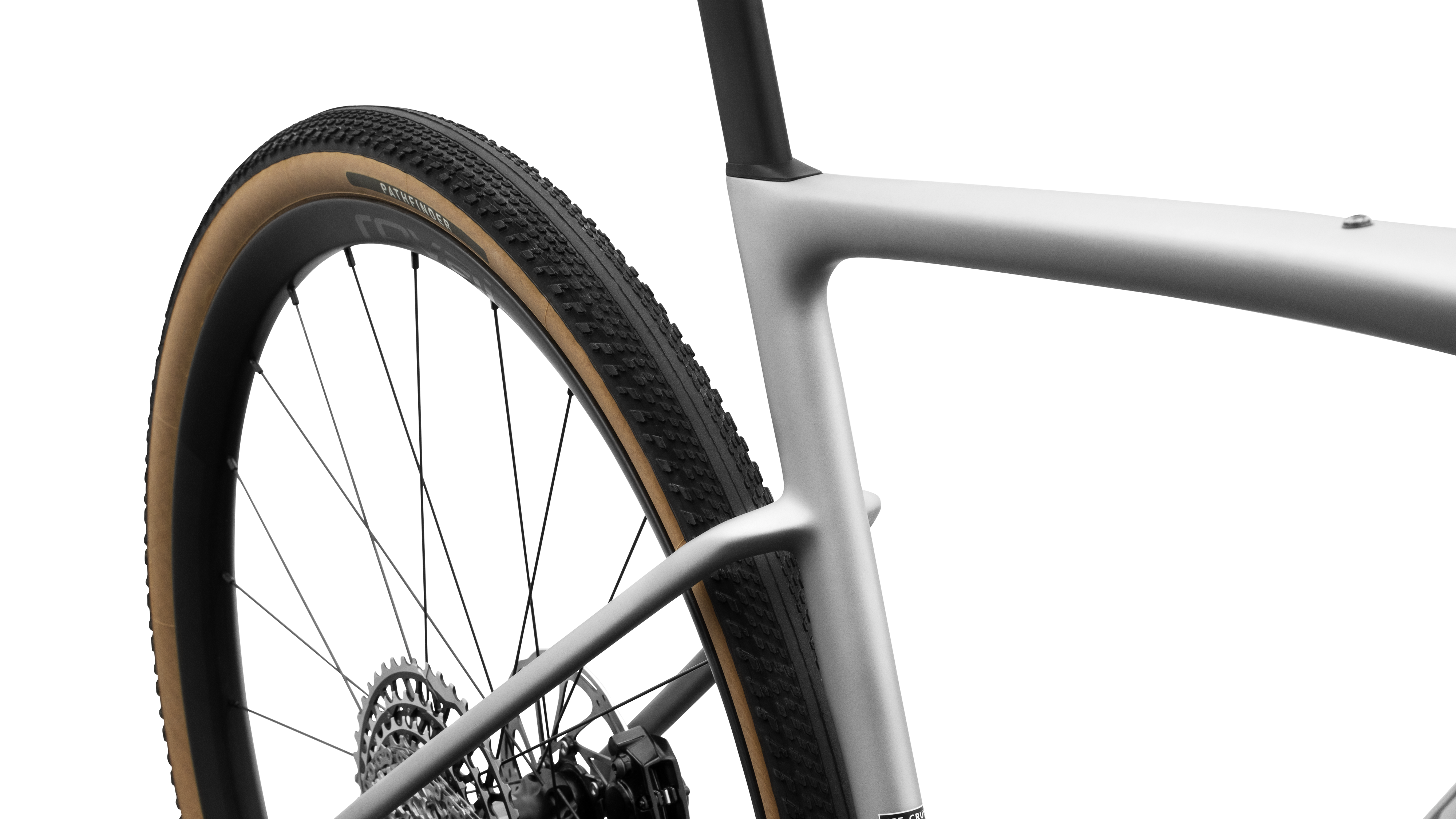

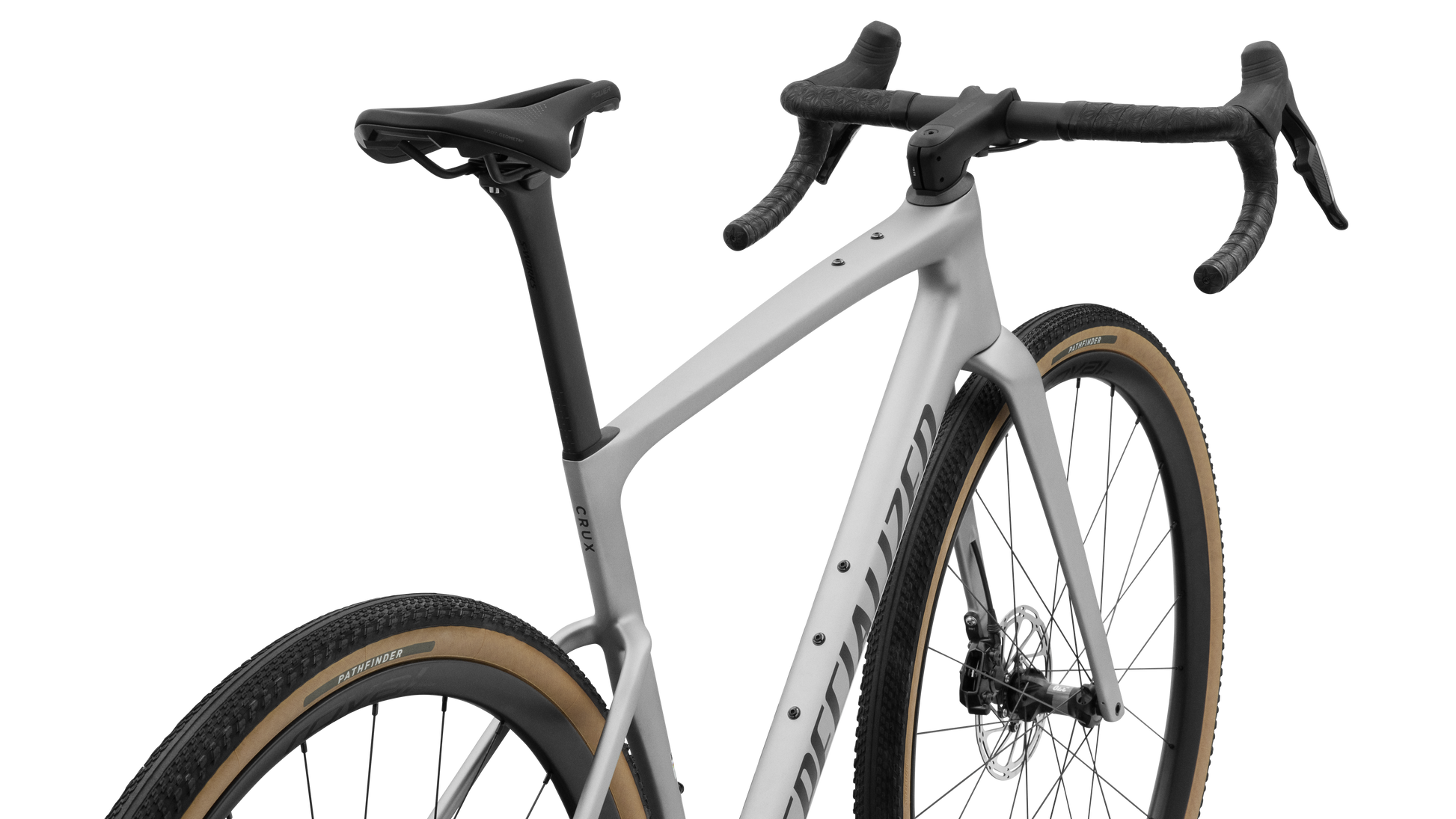

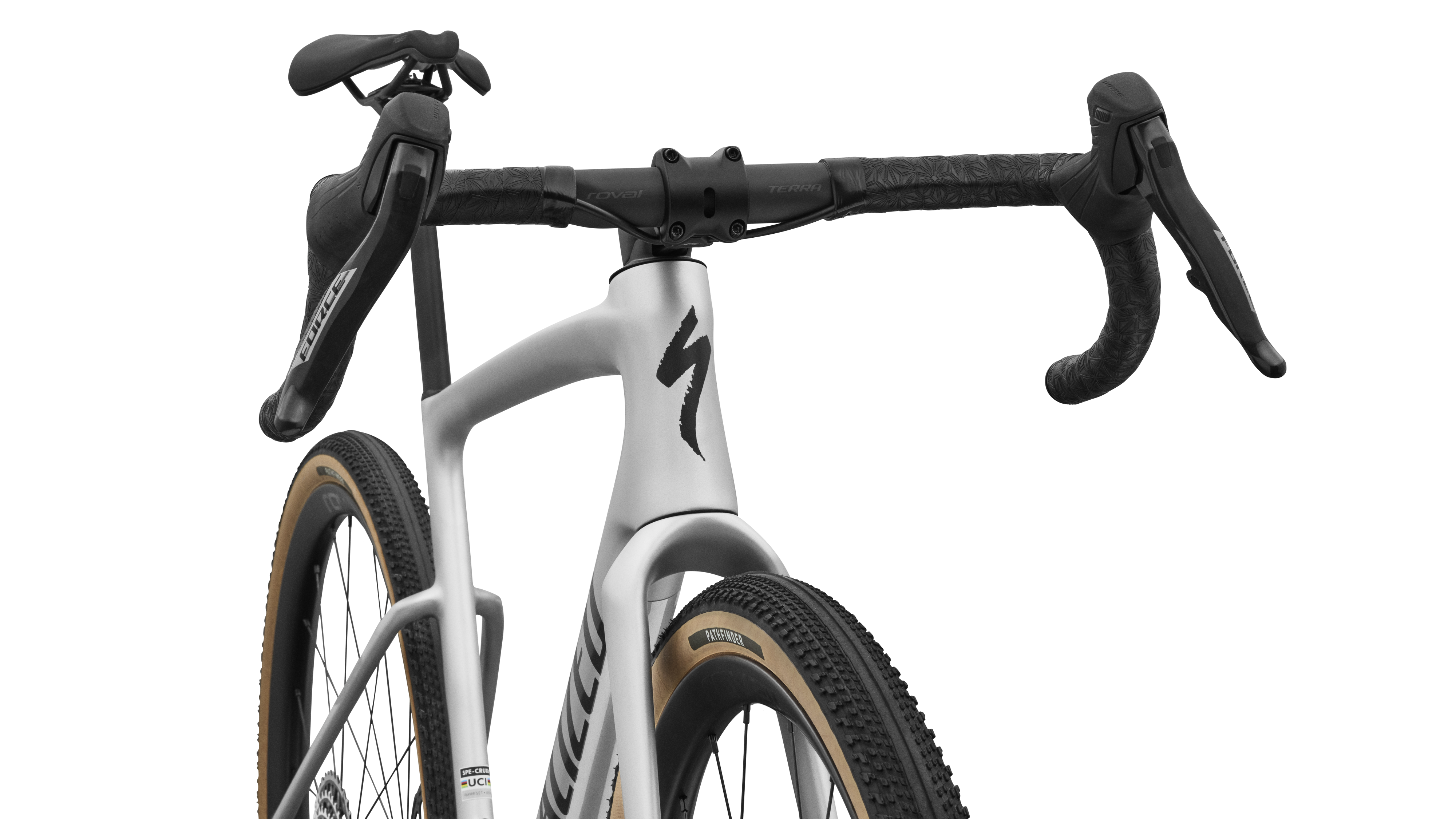

2027 | Crux 5 Expert AXS

$9,499.00

Shipping calculated at checkout.

Color: Burnt Gold/Dolomite Metallic/Obsidian Metallic

Size: 49cm

49cm 52cm 54cm 56cm 58cm 61cm

SKU:SPE50218734D

Shipping & Returns

We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.

Canadian shipping charges:

Sale bikes: $200
Standard pedal bikes over $1250: Free
Standard pedal bikes under $1250: $100
Electric bikes: $200
Fat bikes: $200
Kid's bikes: $60

Insurance charge: 1.5% insured value

We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details

Bike Specifications

Specifications are subject to change without notice

Drivetrain

Cassette SRAM Force E1 XPLR, 13-speed, 10-46t

Chain SRAM Force Flattop E1

Crankset SRAM Force E1 XPLR, DUB Wide, 40t

Rear derailleur SRAM Force AXS E1 XPLR, 13-speed

Shifter SRAM Force AXS E1, hydraulic disc

Brakes

Brakeset SRAM Force E1, hydraulic disc

Cockpit

Grips tape Supacaz Super Sticky Kush

Handlebars Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare

Saddle Body Geometry Power Expert

Seatpost S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset

Seat collar Integrated Wedge

Stem Roval Rapide, alloy, 4 bolt, -6 degrees

Wheels

Tires Pathfinder 700x45, Tubeless Ready

Valves 700x32-50mm, 40mm Presta valve

Wheels F: Roval Terra C III, 27mm inner width carbon rim, tubeless ready, 25.5mm depth, DT 370 hub, 24h, Sapim D-Light spokes | R: DRoval Terra C III, 27mm inner width carbon rim, tubeless ready, 25.5mm depth, DT 370 hub, 24h, Sapim D-Light spokes

Wheel size 700c

Suspension

Fork S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc

Frame

Bottom bracket SRAM DUB BSA 68 Wide

Frame Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout

Frame material Carbon

Platform wheel size 700C

Seatpost Roval Alpinist Carbon Seatpost

Weight as spec d 8.22 kg (18 lb, 2.0 oz) in a 56cm

Description

The Crux 5 was born from the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated across real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.

Use - Gravel Racing
Frame - FACT 10r Carbon: 897 grams
Wheels - Roval Terra C III
Cockpit - Roval Terra Handlebar and Rapide Stem
Drivetrain - SRAM Force AXS SPLR
Weight - 8.22 kg

Geometry Chart

Measurement	49cm	52cm	54cm	56cm	58cm	61cm
Reach (mm)	375	382	388	400	412	425
Stack (mm)	530	547	560	578	598	621
Head Tube Angle (°)	70.5°	70.75°	71°	71.5°	71.5°	71.5°
Seat Tube Angle (°)	75.5°	74.5°	74.5°	74°	74°	74°
Wheelbase (mm)	1008	1016	1026	1039	1057	1078
Chainstay Length (mm)	425	425	425	425	425	425
Head Tube Length (mm)	95	110	125	142	163	188
Seat Tube Length (mm)	445	456	473	497	515	545
BB Drop (mm)	80	80	78	78	78	78
BB Height (mm)	278	278	280	280	280	280
Rake (mm)	51	51	51	51	51	51
Trail (mm)	72	71	69	66	66	66
Front Center (mm)	594	604	613	626	644	665
Standover Height (mm)	753	766	781	803	823	849

Part Numbers

Size	Burnt Gold/Dolomite Metallic/Obsidian Metallic	Shadow Silver/Obsidian Metallic
49cm	SKUSPE50218734D VPN71427-0349 UPC196625298752 MPN71427-0349	SKUSPE45823591D UPC196625298387
52cm	SKUSPE50907142D UPC196625298790	SKUSPE45321184D UPC196625298639
54cm	SKUSPE59798880C VPN71427-0354 UPC196625298530 MPN71427-0354	SKUSPE45669518D UPC196625298868
56cm	SKUSPE56497622R VPN71427-0356 UPC196625298622 MPN71427-0356	SKUSPE45525441D UPC196625298943
58cm	SKUSPE50171383D VPN71427-0358 UPC196625298325 MPN71427-0358	SKUSPE45831069D UPC196625298677
61cm	VPN71427-0361 MPN71427-0361	—

Size Chart

Specialized Crux Sizing

Size	Rider height (in)	Rider height (cm)
49	61-64	155-158
52	64-66	163-168
54	66-69	168-175
56	69-72	175-183
58	72-75	183-191
61	75-78	191-198
