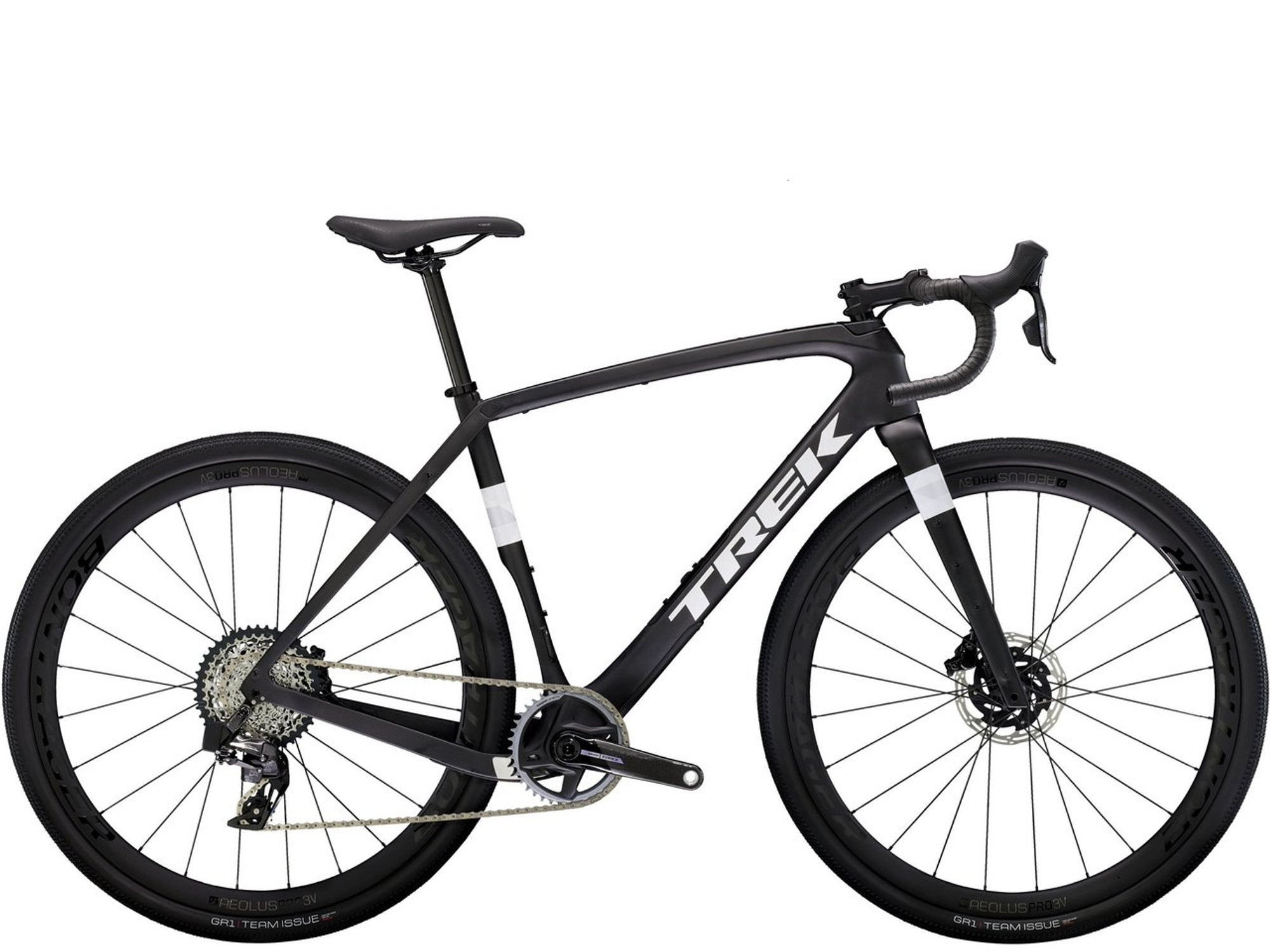

Checkpoint SL 7 AXS Gen 2 pairs a light OCLV Carbon gravel frame with IsoSpeed and high-tech parts picked for performance and incredible ride quality on the toughest and roughest gravel adventures. A nimble, yet stable progressive geometry, a smart and smooth 1x12 SRAM Force XPLR AXS D2 wireless electronic drivetrain, carbon wheels, and internal storage give you the comfort and capability you need to tackle your next serious gravel, dirt, or all-road adventure.
| SKU | Trek_41394 |
|---|---|
| Frame | 500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, dropper post compatible, 142x12mm thru axle |
| Frame Material | Carbon |
| Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
| Weight as Spec'd | 56 - 9.16 kg / 20.2 lbs (with TLR sealant, no tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
| Battery | SRAM eTap battery pack (with charger) |
| E-Bike - Primary Battery Type | Li-Ion 300mAh 7.4 Volt |
| Brake - Brand | SRAM |
| Brake Type | Hydraulic disc |
| Brake | SRAM Force AXS hydraulic disc, flat mount |
| Brake Rotor | SRAM CenterLine X, centerlock, round edge, 160mm |
| Handlebar | Bontrager Elite Gravel, 42 cm width |
| Stem | Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
| Saddle | Bontrager P3 Verse Comp, steel rails, 145 mm width |
| Seatpost | Bontrager carbon, 27.2mm, 8mm offset, 330mm length |
| Drivetrain - Brand | SRAM |
| Rear Derailleur | SRAM Force XPLR AXS D2, 44T max cog |
| Crank | SRAM Force 1 D2, 40T, DUB, 172.5mm length |
| Shifter | SRAM Force AXS D2, 12 speed // SRAM Force AXS D2, 12 speed |
| Cassette | SRAM XG-1271, 10-44, 12 speed |
| Chain | SRAM Force, 12 speed |
| Fork - Brand | Trek |
| Fork | Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle |
| Wheel Size | 700C | 622 |
| Wheel - Front | Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, 100x12mm thru axle / |
| Wheel - Rear | Bontrager Aeolus Pro 37V, OCLV Carbon, Tubeless Ready, 25mm rim width, 142x12mm thru axle |
| Tires | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40mm |
| Tire Size | 700x40c |
| Skewer - Front | Bontrager Switch thru axle, removable lever |
| Skewer - Rear | Bontrager Switch thru axle, removable lever |
| Rim Strip | Bontrager TLR |
| Small Parts | Bontrager TLR sealant, 180 ml/6 oz |
| _shipping-groups | FBPY-SRXL |
| BS Product Type | Endurance Gravel |
| Restricted | At this time Trek restricts the shipment of their bicycles directly to consumers. Please reach out to us via Email, or our chat, to help complete your purchase. |
| Bike Type | Endurance |
| Discipline | Gravel |
| Platform | Checkpoint |
