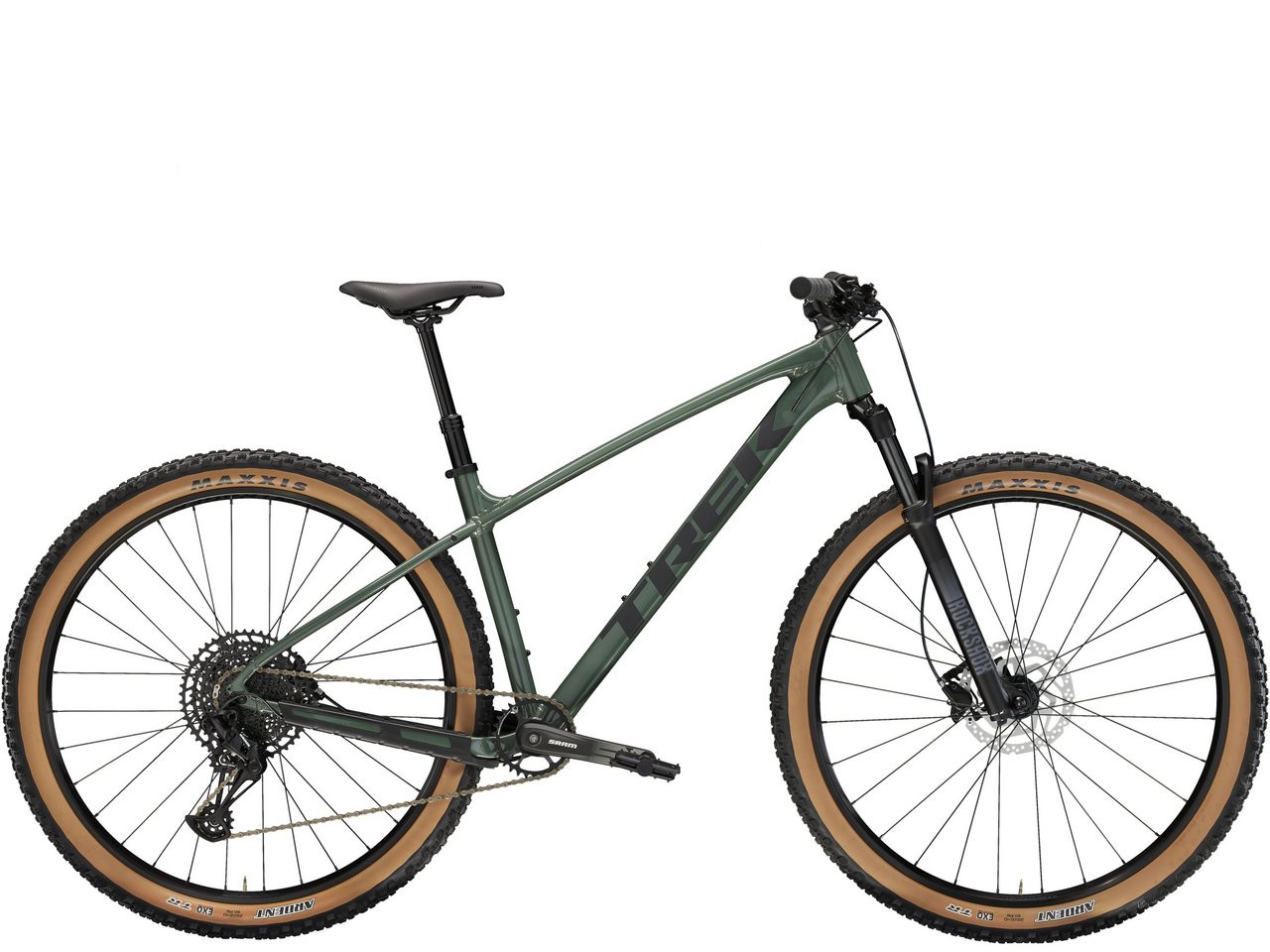

Marlin 7 is your best friend on the trail and wherever else you roll thanks to its confidence-boosting trail geometry. It finds the perfect balance between price and performance with an upgraded RockShox suspension fork that makes quick work of rocks and bumps in your path, and the huge gearing range of a SRAM 12-speed SX Eagle drivetrain.
| SKU | Trek_41217 |
|---|---|
| Frame | Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew |
| Frame Material | Aluminum |
| Headset | Semi-integrated, 1-1/8" |
| Bottom Bracket | Truvativ Powerspline, 73mm, threaded cartridge, 118mm spindle |
| Weight as Spec'd | M - 15.03 kg / 33.14 lbs (with TLR sealant, no tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
| Brake - Brand | Shimano |
| Brake Type | Hydraulic disc |
| Brake | Shimano MT200 hydraulic disc |
| Brake Rotor | Shimano RT26, 6-bolt,160 mm |
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise, 720mm width |
| Stem | Bontrager Comp, 31.8mm, 7 degree, 35mm length |
| Grips | Bontrager XR Trail Comp, nylon lock-on // Bontrager XR Trail Comp, nylon lock-on |
| Pedals | VP-536 nylon platform |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Seatpost | TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length |
| Drivetrain - Brand | SRAM |
| Rear Derailleur | SRAM SX Eagle |
| Crank | SRAM SX Eagle, 30T steel ring (49mm chainline), 170 mm length |
| Shifter | SRAM SX Eagle, 12 speed |
| Cassette | SRAM PG-1210 Eagle, 11-50, 12 speed |
| Chain | SRAM SX Eagle, 12 speed |
| Fork - Brand | RockShox |
| Fork | RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 100 mm QR, 100 mm travel |
| Wheel Size | 26" - (XXS) | 27.5" - (XS-S) | 29" - (M-XXL) |
| Wheel - Front | / |
| Tires | Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60tpi, 27.5x2.40" |
| Tire Size | 27.5x2.40" |
| Hub - Front | Formula DC-20 LW, alloy, 6-bolt, 5x100mm QR |
| Hub - Rear | Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer - Rear | 173x5mm QR |
| Rims | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve |
| _shipping-groups | ACYP-ECY |
| BS Product Type | Trail Hardtails |
| Bike Type | Trail |
| Discipline | Mountain |
| Platform | Marlin |
