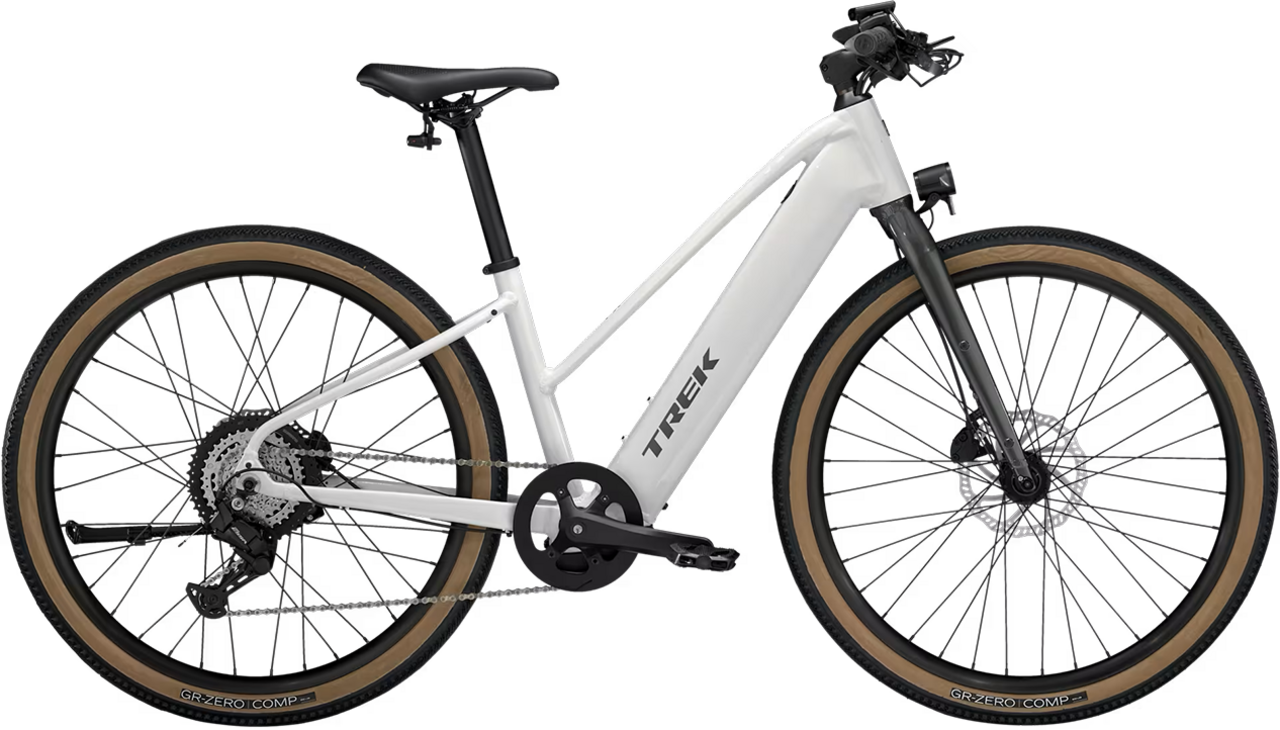

FX+ 1 Mid-step is a versatile and fast throttle e-bike built for cruising through town with an ear-to-ear grin. Its handlebar throttle makes getting up to speed a breeze, and pedal assist gives you a smooth boost while you ride. Plus, an EasyMag magnetic charger with a sleek, portable wall-mounted system makes charging between rides easier than ever.
| SKU | Trek_53352MS |
|---|---|
| Frame | Alpha Platinum Aluminum, internal cable routing, dealer removable battery, rack & fender mounts, post mount disc, kickstand mount |
| Frame Material | Aluminum |
| Weight as Spec'd | M - 22.10 kg / 48.73 lbs |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
| Motor | Hub drive motor, 60 Nm, 500W, 36H |
| Motor Power | 60nm | 500W |
| Battery | 540Wh, integrated in down tube |
| E-Bike - Primary Battery Type | 360WH |
| Brake - Brand | Rush |
| Brake Type | Hydraulic disc |
| Brake | Rush BH-286 hydraulic disc, 180mm rotor |
| Brake Rotor Size | Max brake rotor sizes: 180mm front & rear |
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise 690mm S,M | 720mm l., XL |
| Grips | Bontrager XR Endurance Comp, lock-on |
| Pedals | Bontrager City pedals |
| Saddle | Bontrager Sport |
| Seatpost | Bontrager alloy, 31.6mm, 12mm offset |
| Drivetrain - Brand | Shimano |
| Rear Derailleur | Shimano ESSA U2000 |
| Crank | Alloy, 40T steel chainring, 170mm length |
| Shifter | Shimano M315, 8 speed |
| Cassette | Shimano HG400, 11-45, 8 speed |
| Chain | KMC Z8.3 |
| Fork - Brand | Trek |
| Fork | FX+ 7, carbon legs, hidden fender mounts, flat mount disc, internal routing, 100x12 thru axle |
| Wheel Size | 650B |
| Tire Size - Max | 650x50mm |
| Wheel - Front | / |
| Tires | Bontrager GR0 Comp, wire bead, 60 tpi, 650x50mm |
| Tire Size | 650x50mm |
| Hub - Front | Alloy low-flange w/6-bolt disc, 36h, w/QR |
| Hub - Rear | Hub drive motor, 60 Nm, 500W, 36H, black |
| Skewer - Front | 132x5mm QR, ThruSkew |
| Rims | Bontrager Paradigm, Tubeless Ready, 32-hole, 21mm width, Presta valve |
| Light | Sate-Lite M-15 with turn signal and brake light function |
| Kickstand | Alloy, rear mount |
| _shipping-groups | ACYP-ECY |
| BS Product Type | Urban - Full Pedal Assist w/Throttle |
