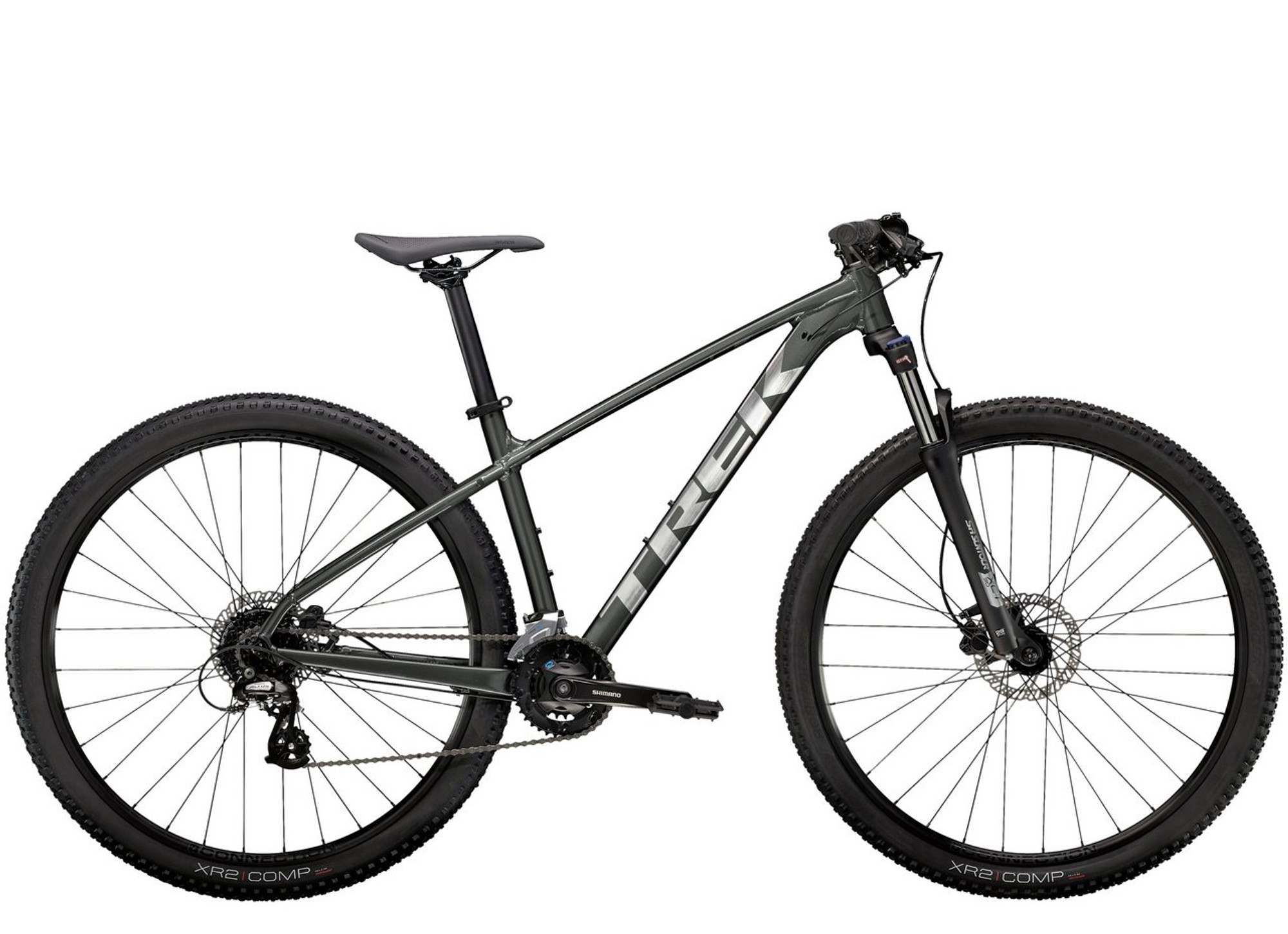

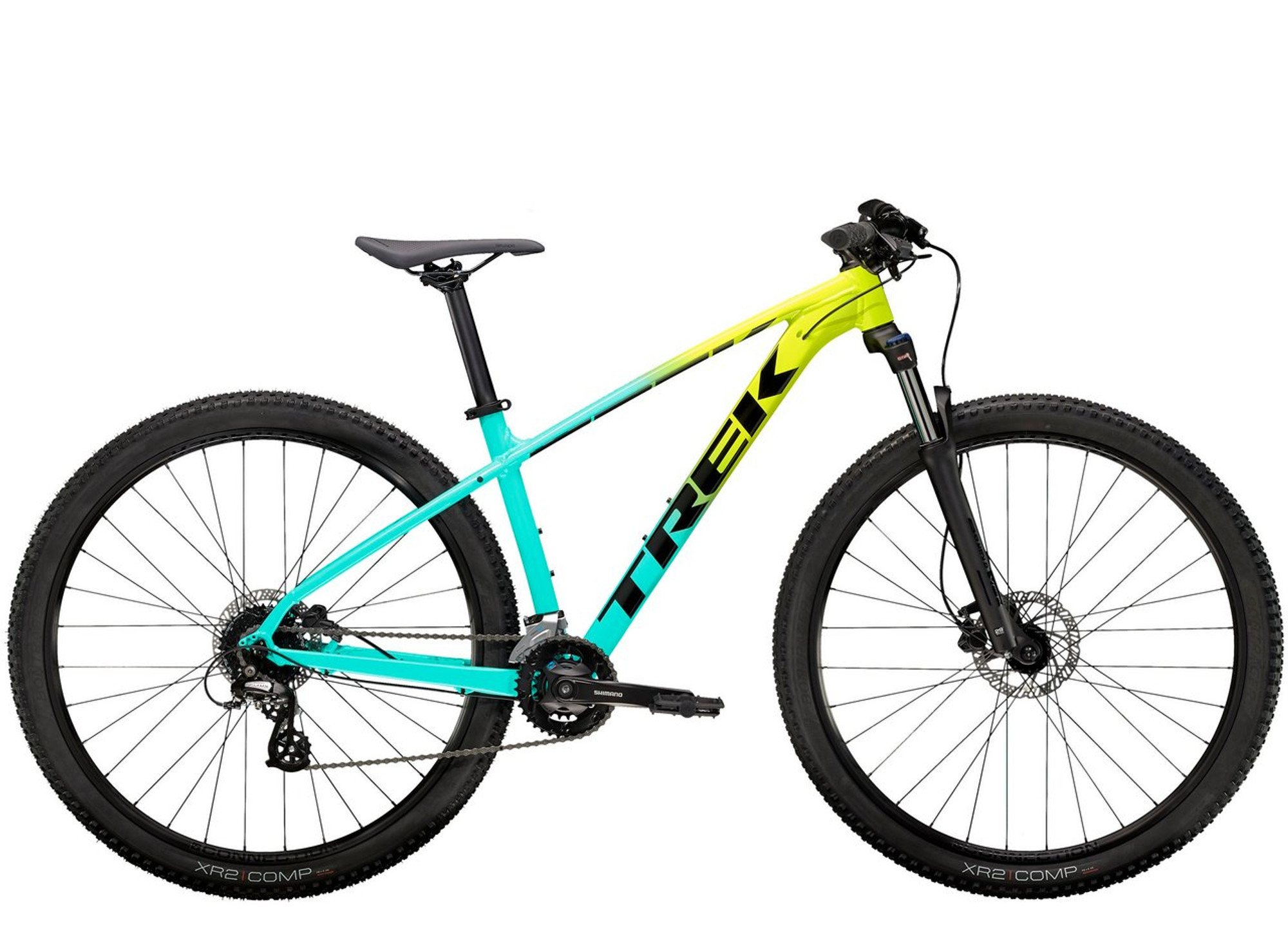

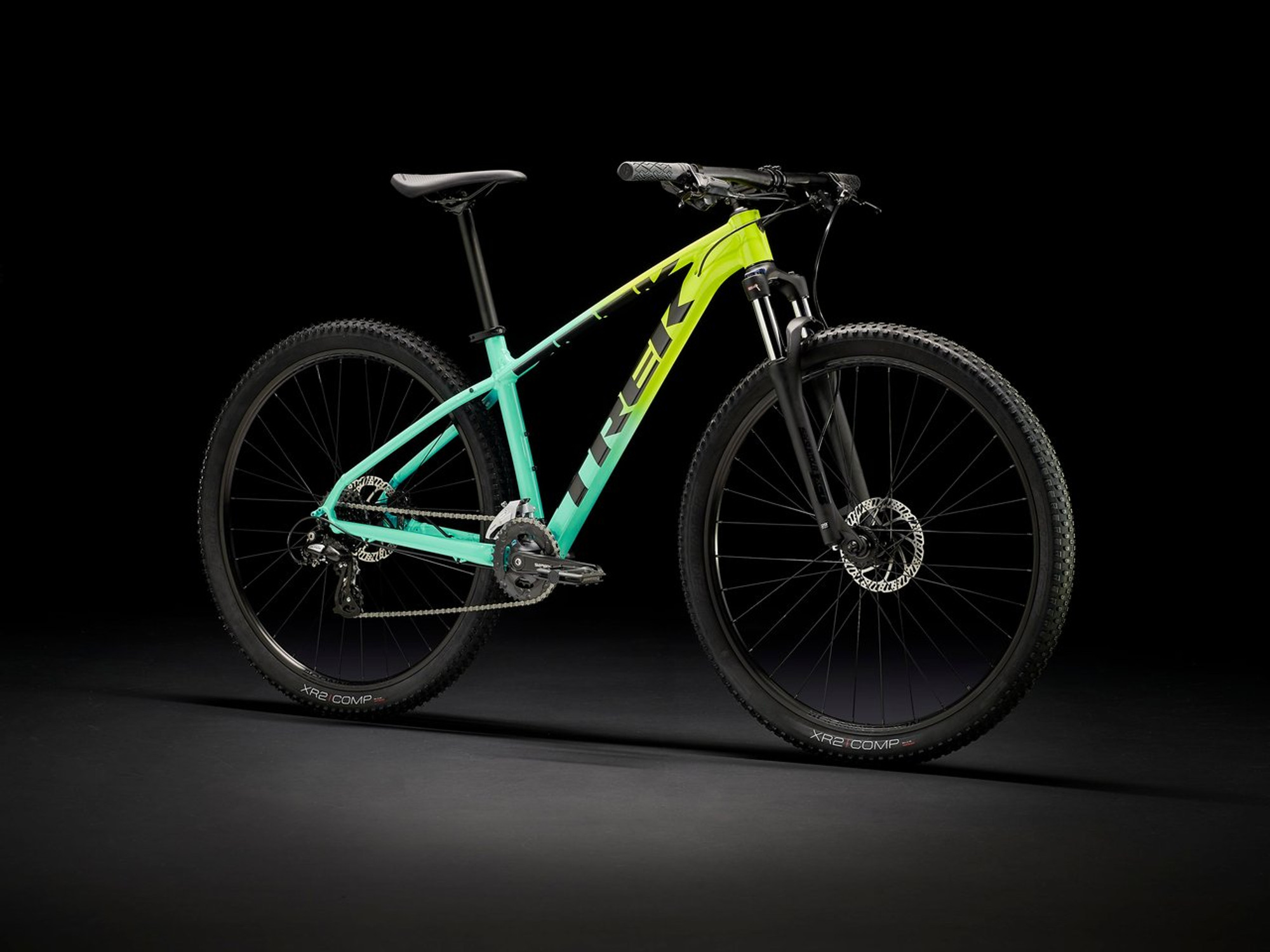

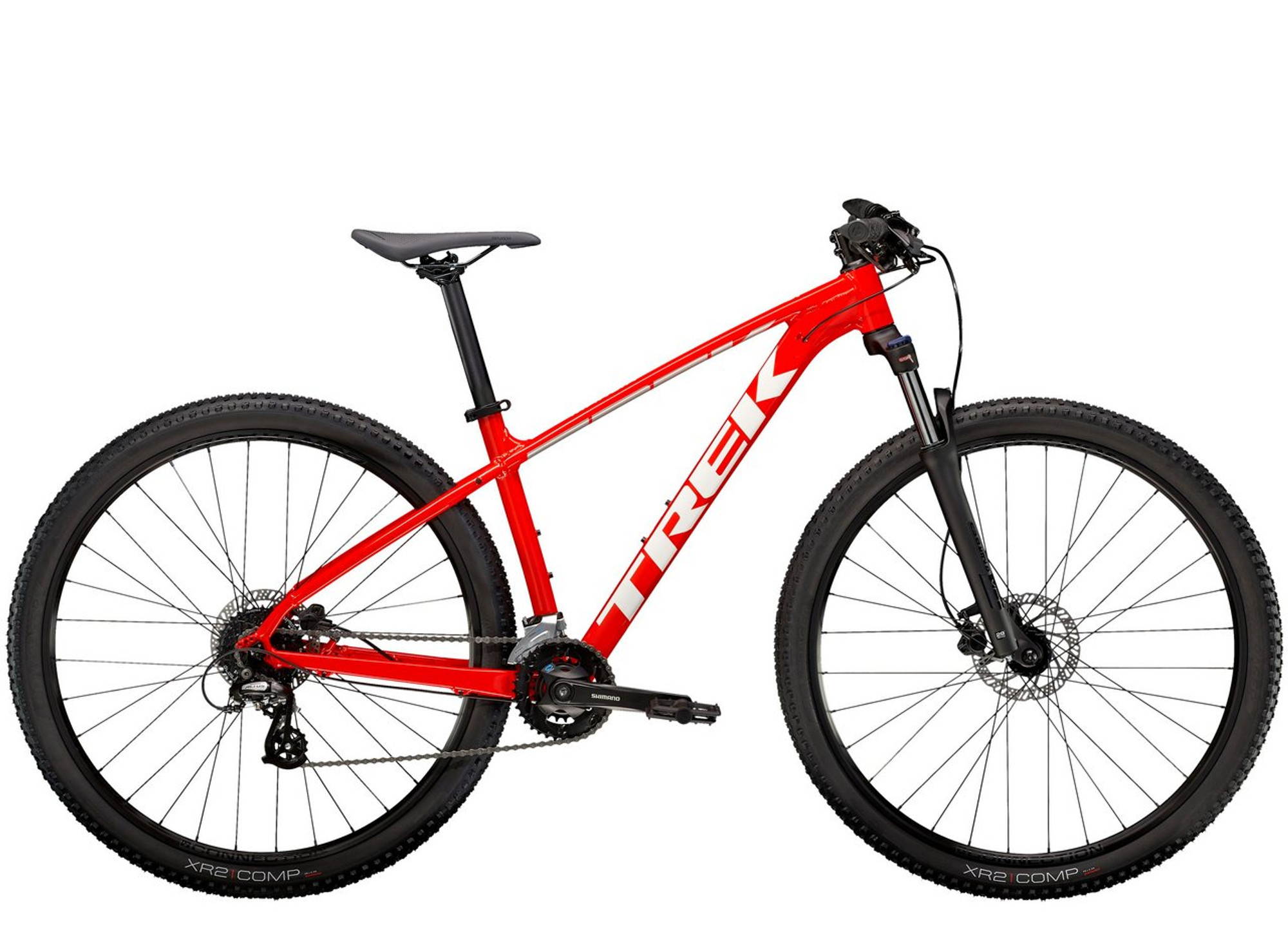

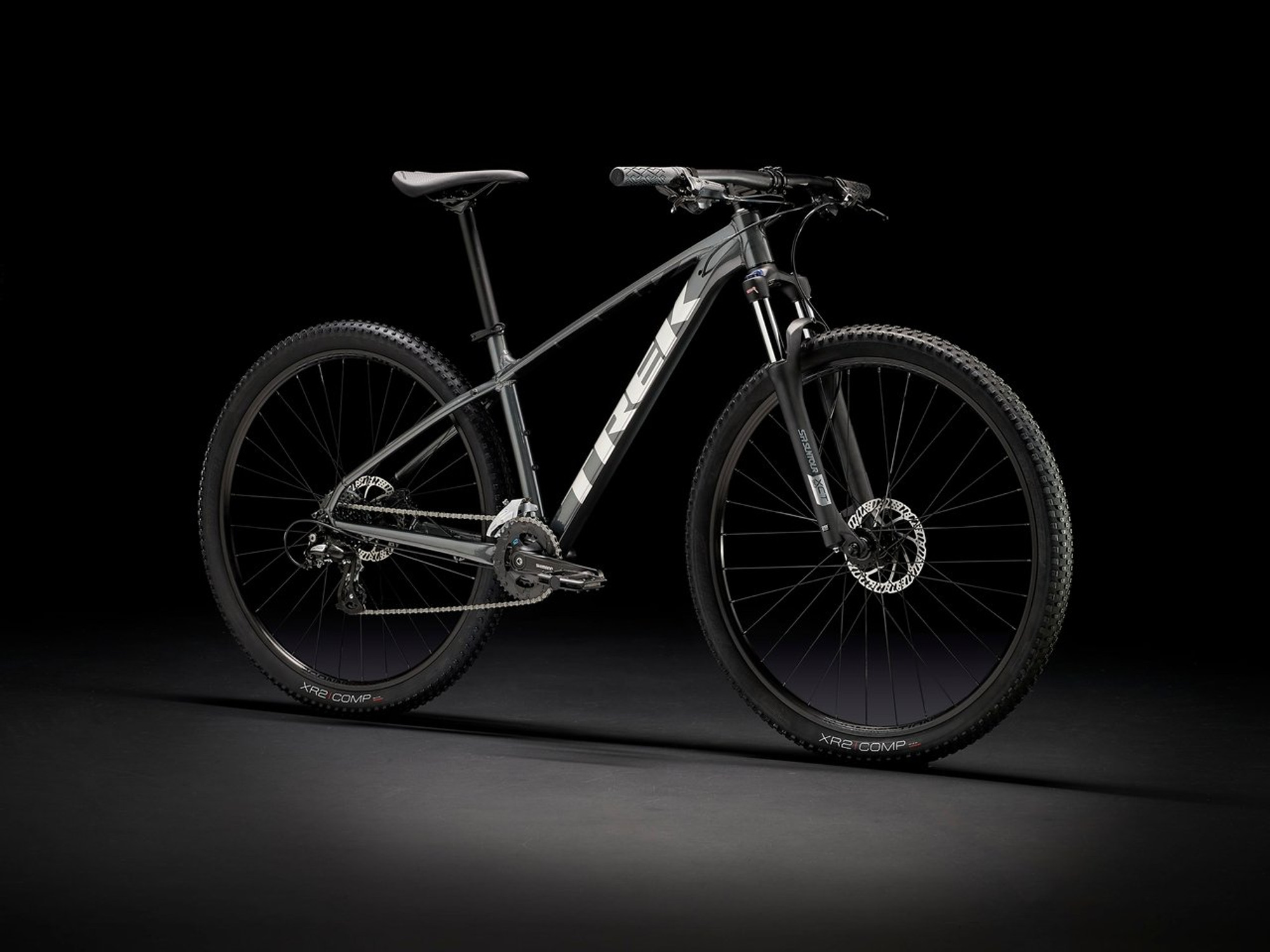

Marlin 4 is the gateway mountain bike that will take you from rail trails to singletrack. It's ideal for riders who want a mountain bike with knobby tires that can double as a rugged commuter. Disc brakes, front suspension, Shimano 14-speed shifting, and mounts for a rack and fenders make this a great bike for trail riders and campus commuters alike.
| SKU | Trek_41613 |
|---|---|
| Frame | Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR |
| Frame Material | Aluminum |
| Headset | Semi-integrated, 1-1/8" |
| Bottom Bracket | VP BC73, 73mm, threaded cartridge |
| Weight as Spec'd | M - 14.60 kg / 32.19 lbs |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
| Brake Type | Hydraulic disc |
| Brake | Power BH-M286TF hydraulic disc, 180mm rotor // Power BH-M286TF hydraulic disc, 160mm rotor |
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| Stem | Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 80mm length |
| Grips | Bontrager XR Endurance Comp, lock-on |
| Pedals | VP-536 nylon platform |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Seatpost | Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
| Drivetrain - Brand | Shimano |
| Front Derailleur | Shimano Altus M315, 34.9mm clamp, top swing, dual pull |

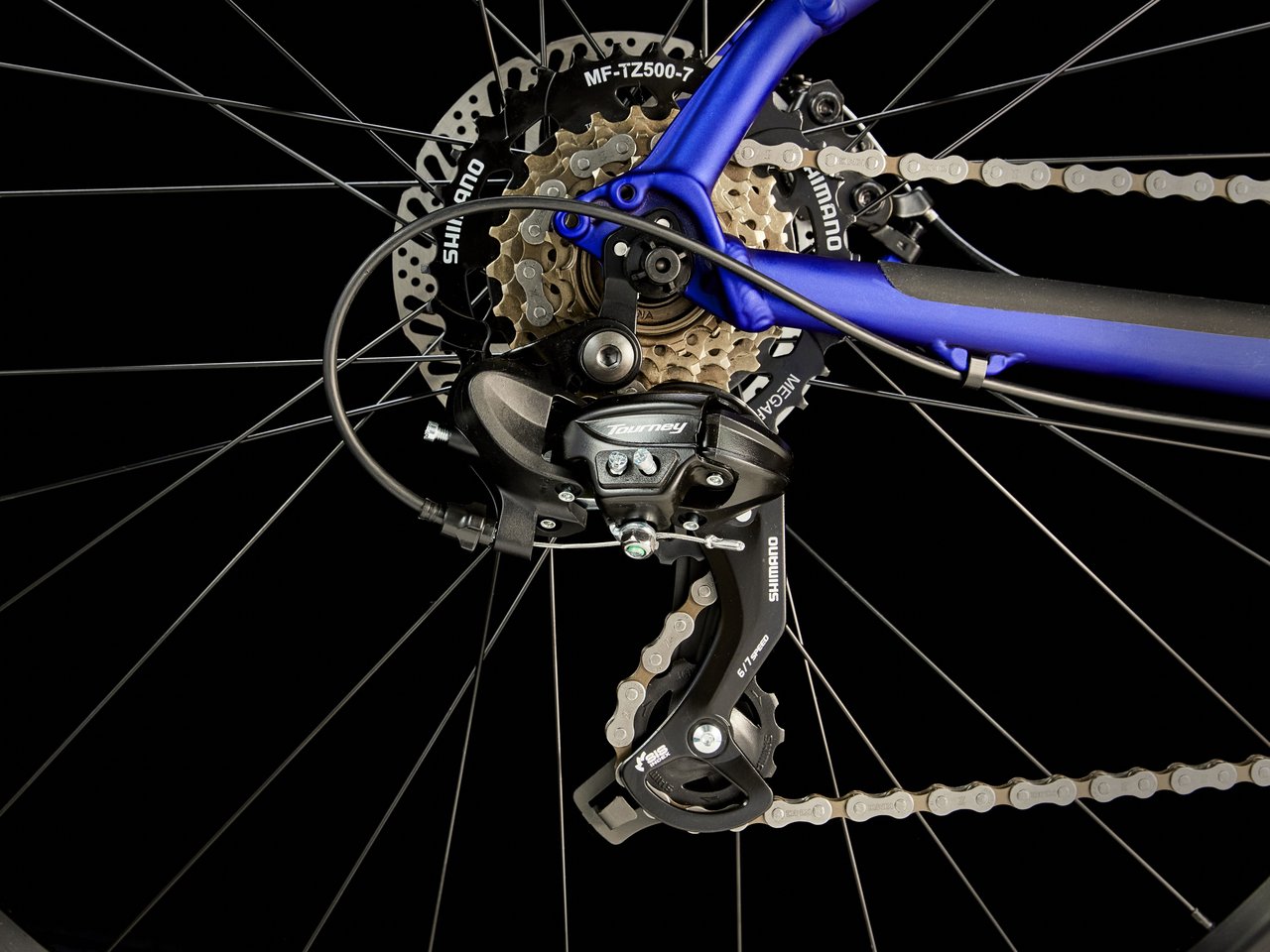

| Rear Derailleur | Shimano Tourney TY300 |
| Crank | ProWheel TM-CY10, 36/22, 175mm length |
| Shifter | Shimano EF500, 2 speed // Shimano Altus EF500, 7 speed |
| Cassette | Shimano TZ500, 14-34, 7 speed |
| Chain | KMC Z7, 7 speed |
| Fork - Brand | SR Suntour |
| Fork | SR Suntour XCE 28, coil spring, preload, 46mm offset for 29' wheel, 100mm QR, 100mm travel |
| Wheel Size | 26" - (XXS) | 27.5" - (XS-S) | 29" - (M-XXL) |
| Wheel - Front | / |
| Hub - Front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
| Hub - Rear | Formula DC-31, alloy, 6-bolt, 6/7/8-speed freewheel, 135x5 mm QR |
| Skewer - Rear | 152x5mm QR |
| Rims | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Spokes | 14g stainless steel, black |
| _shipping-groups | Restricted |
| BS Product Type | Trail Hardtails |
| Restricted | At this time Trek restricts the shipment of their bicycles directly to consumers. Please reach out to us via Email, or our chat, to help complete your purchase. |
| Bike Type | Trail |
| Discipline | Mountain |
| Platform | Marlin |
