Top Fuel 9.8 GX AXS Gen 4 is a lightweight carbon trail bike built to rip up climbs and stay playful on descents. It gives you the confidence you want through roots and rocks, thanks to a 120mm/130mm RockShox suspension package with a Pike Select+ fork and Deluxe Ultimate shock. Plus, you can shift easy even under load with a SRAM GX Eagle AXS wireless transmission.
| SKU | Trek_46147 |
|---|---|
| Frame | OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, alloy rocker link, 4-way Mino Link, ABP, Boost148, 120mm travel |
| Frame Material | Carbon |
| Bottom Bracket | SRAM DUB MTB Wide, 73mm, BSA threaded |
| Weight as Spec'd | M - 13.10 kg / 28.89 lbs (with TLR sealant, no tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
| Battery | SRAM eTap battery pack (with charger) |
| E-Bike - Primary Battery Type | Li-Ion 300mAh 7.4 Volt |
| Brake - Brand | SRAM |
| Brake Type | Hydraulic disc |
| Brake | SRAM Level Bronze 4-piston hydraulic disc // SRAM Level Bronze 4-piston hydraulic disc |
| Brake Rotor | SRAM CenterLine, 6-bolt, round edge, 180mm |

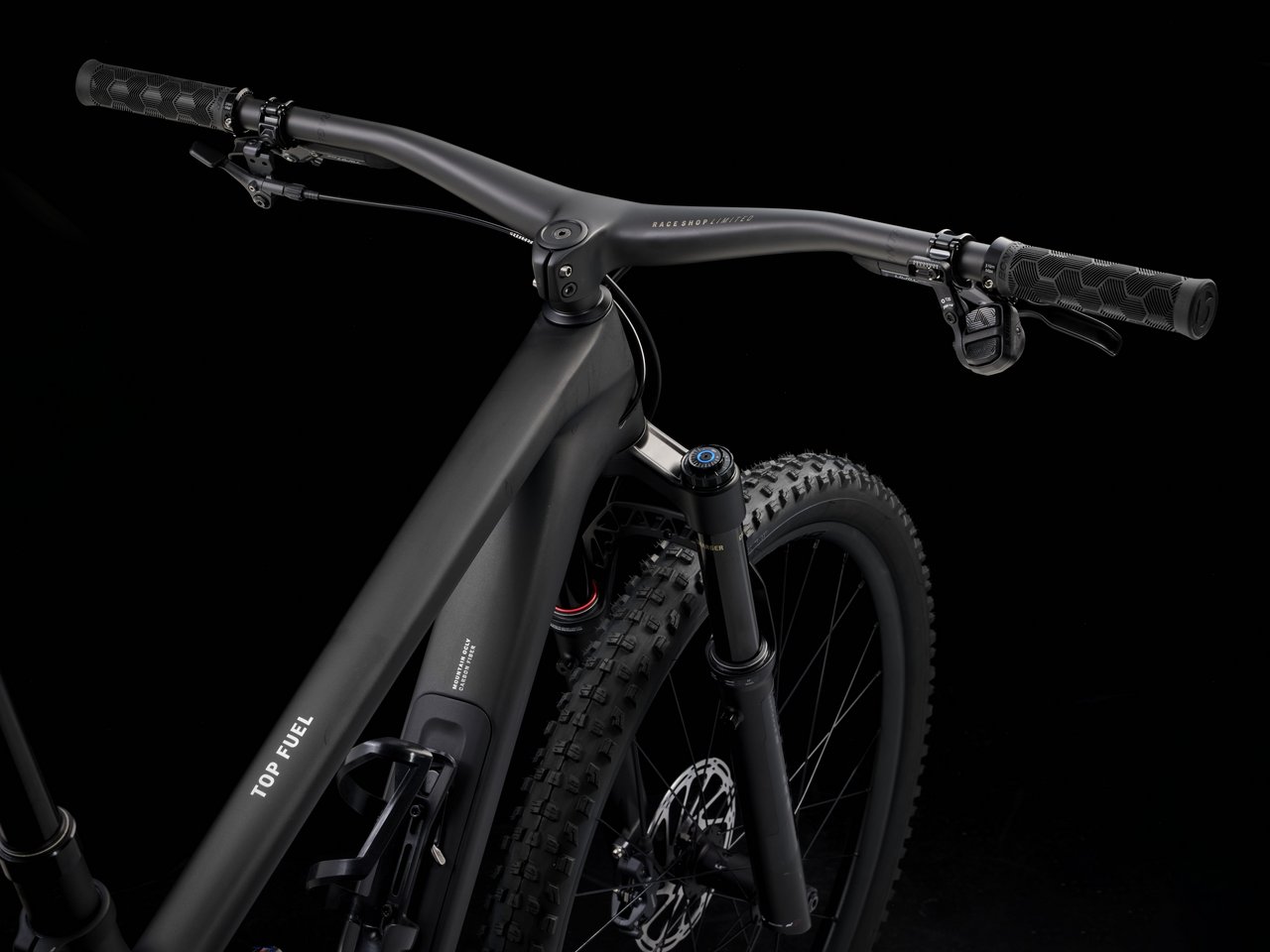

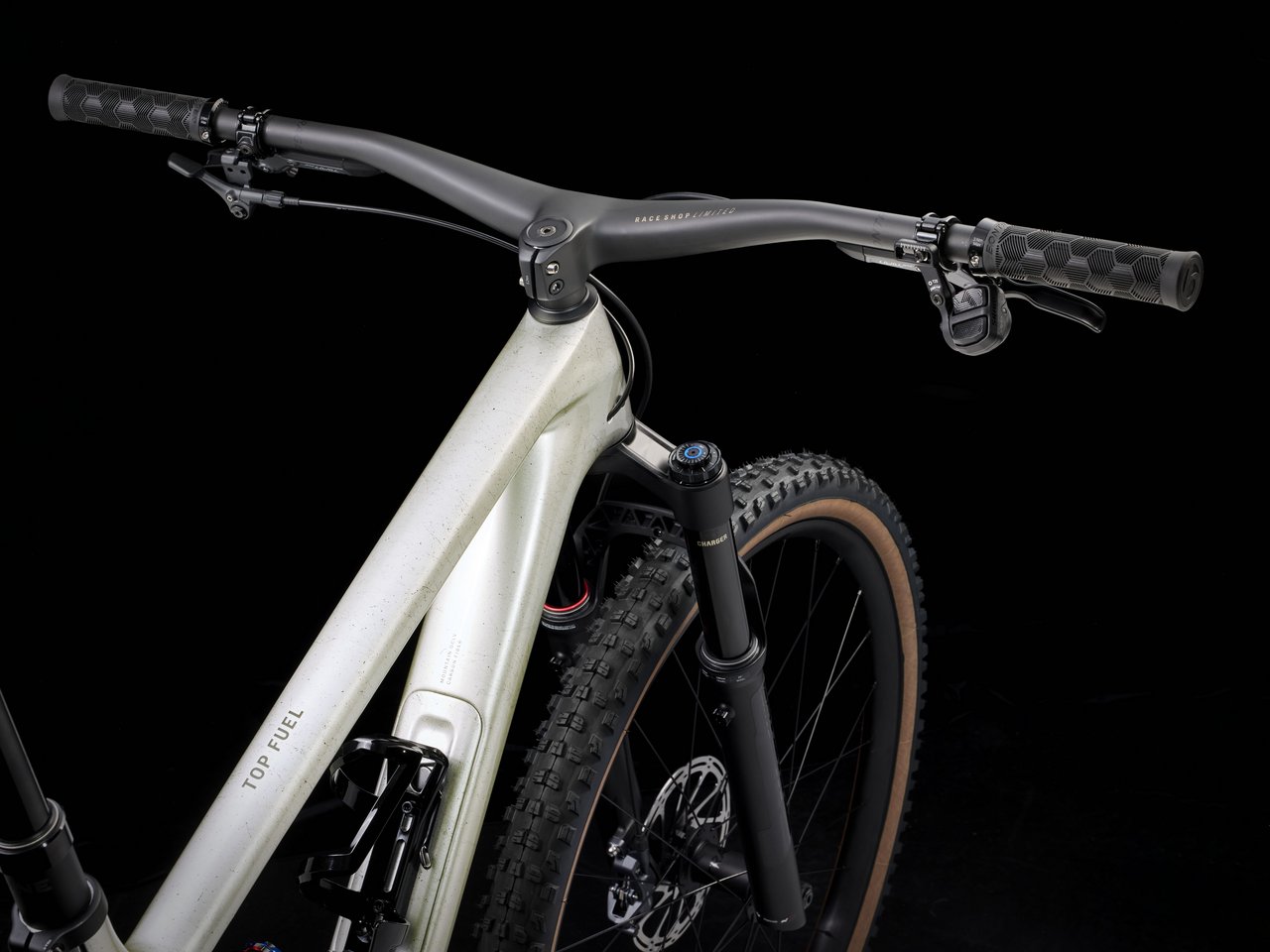

| Handlebar | Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5mm handlebar rise, 820mm width, 0 degree stem rise, 45mm stem length |
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Saddle | Verse Short Comp, steel rails, 145mm width |
| Seatpost | Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 4500mm length |
| Drivetrain - Brand | SRAM |

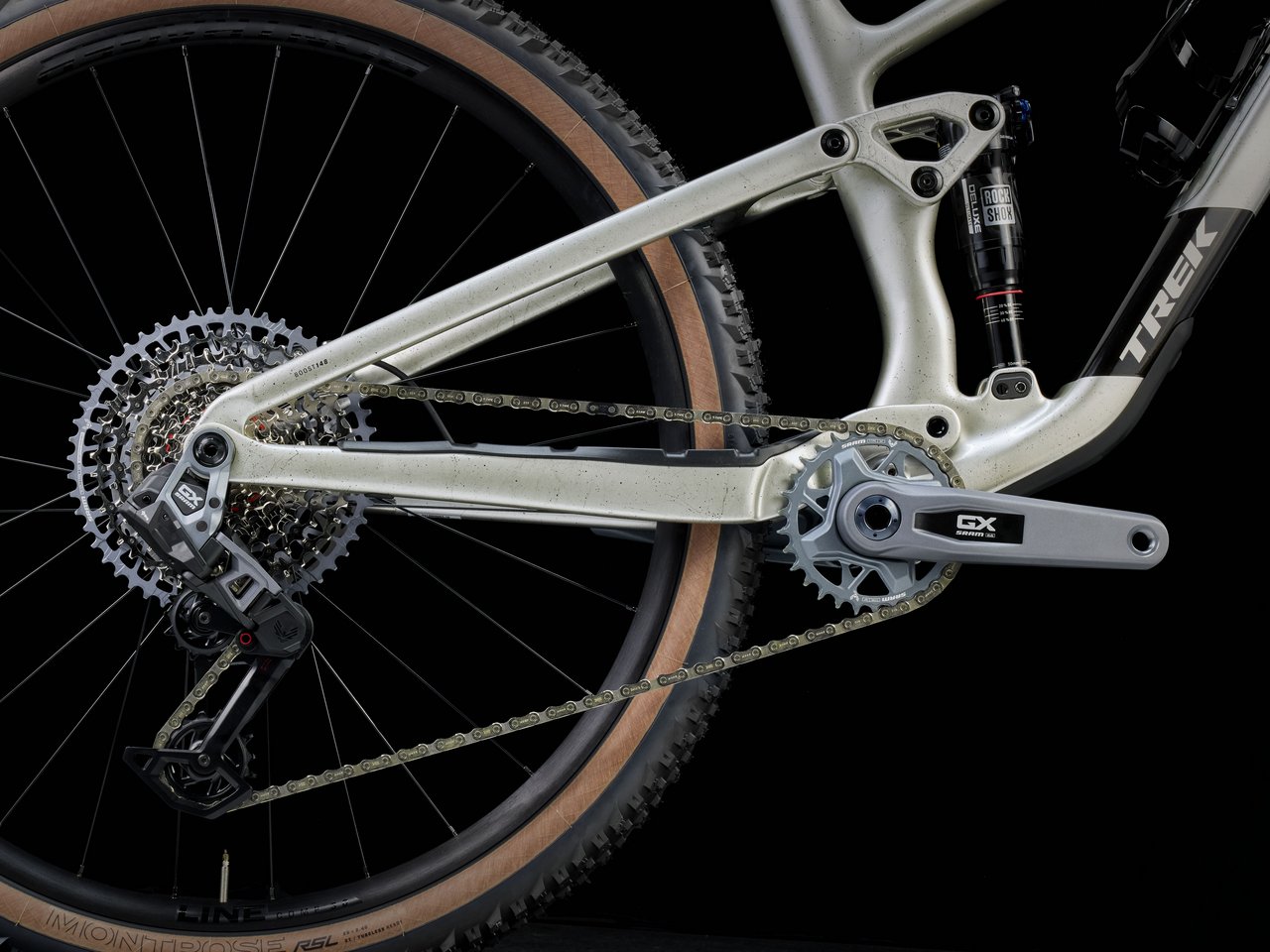

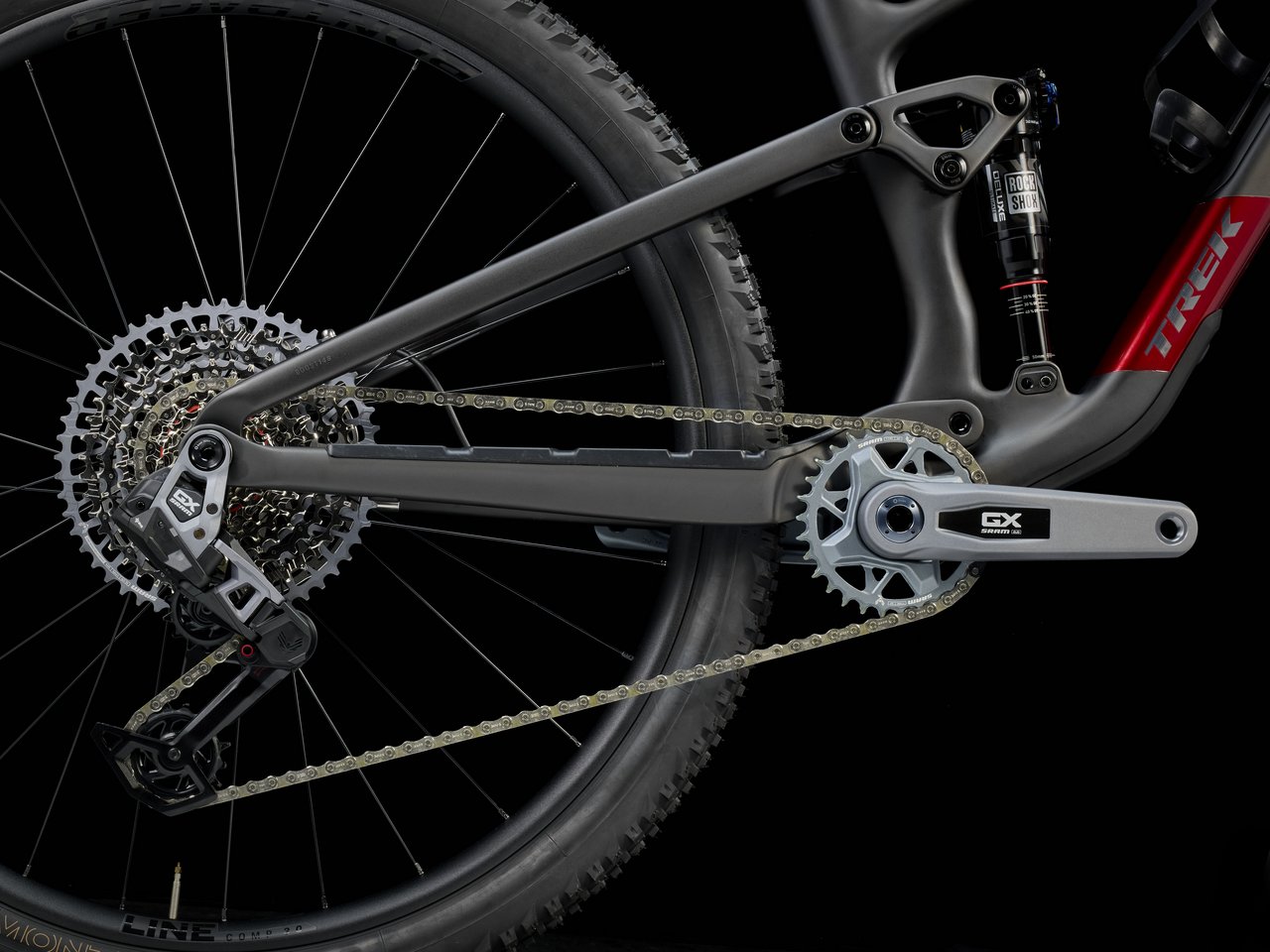

| Rear Derailleur | SRAM GX Eagle AXS, T-Type |
| Crank | SRAM GX Eagle, T-Type, DUB, 30T, 55mm chainline, 170mm length |
| Shifter | SRAM AXS POD |
| Cassette | SRAM Eagle XS-1275, T-Type, 10-52, 12 speed |
| Chain | SRAM GX Eagle, T-Type, 12 speed |
| Fork - Brand | RockShox |
| Fork | RockShox Pike Select+, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 130mm travel |
| Shock - Brand | RockShox |

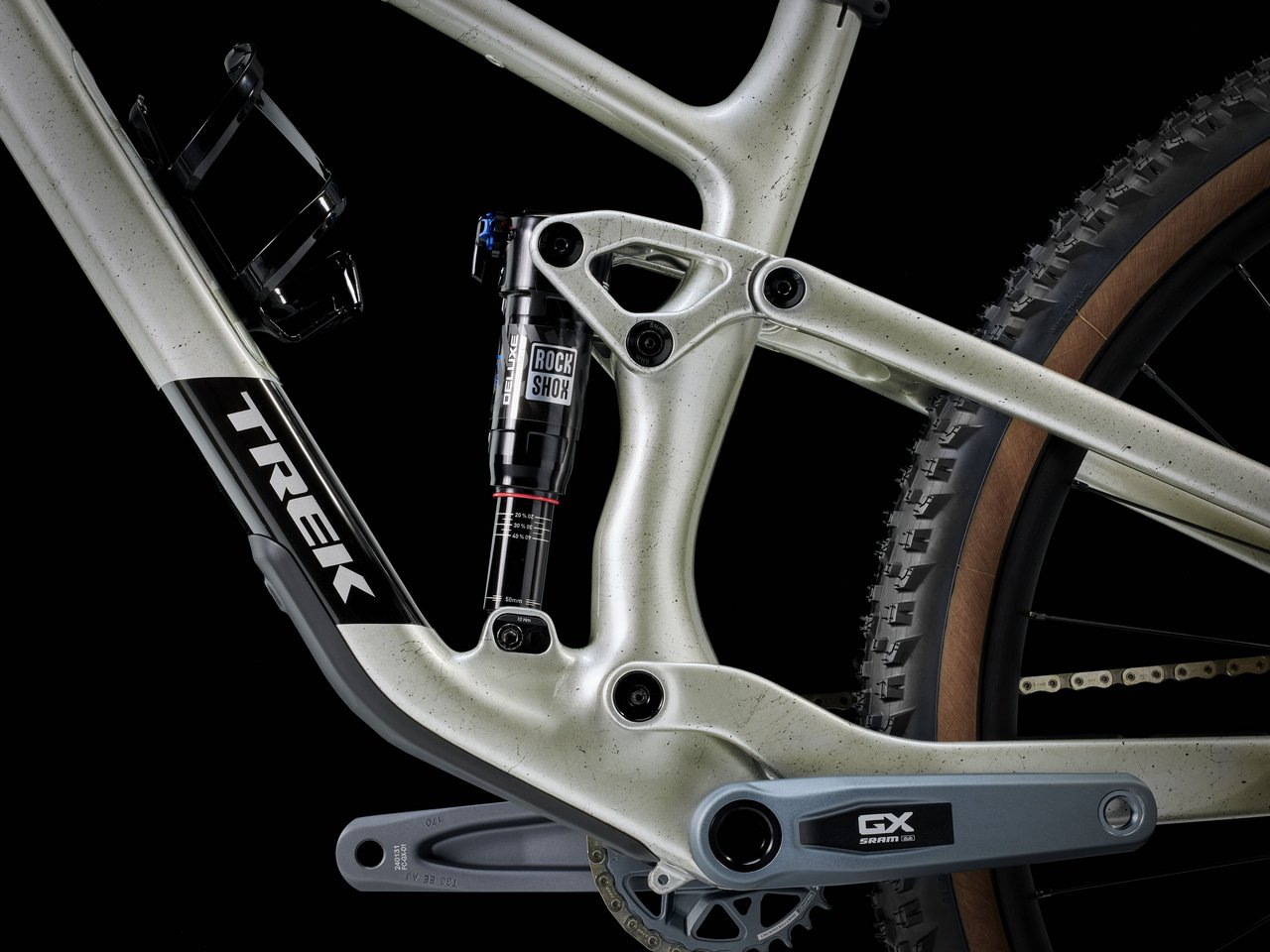

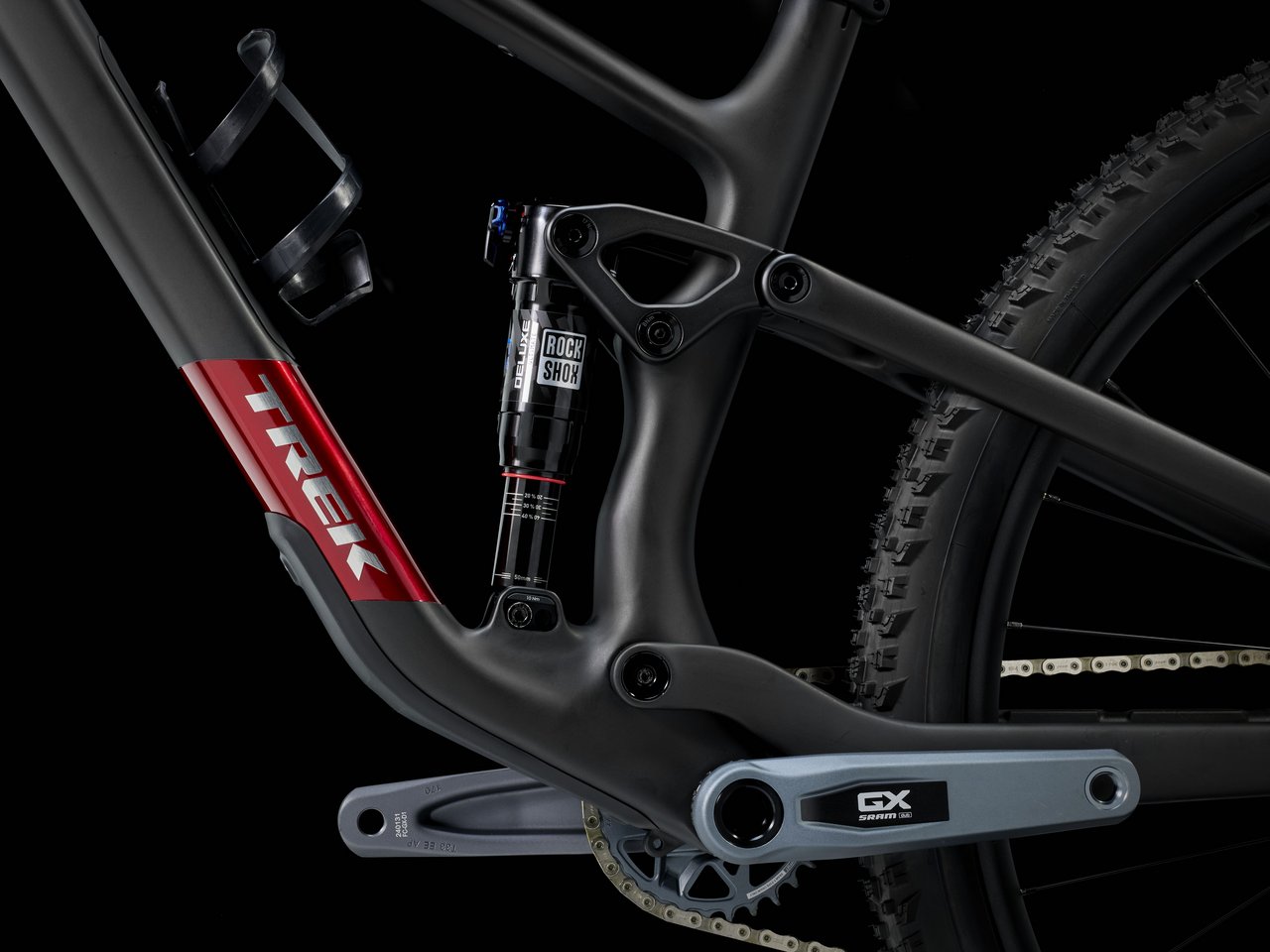

| Shock | RockShox Deluxe Ultimate RCT, 185mm x 50mm |
| Wheel Size | 29" |
| Wheel - Front | Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29' / |
| Wheel - Rear | Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29' |
| Tires | Bontrager Montrose RSL XT, Tubeless Ready, triple compound, aramid bead, 120 tpi, 29x2.40' // Bontrager Gunnison RSL XT, Tubeless Ready, triple compound, aramid bead, 120 tpi, 29x2.40' |
| Tire Size | 29x2.40" |
| Skewer - Rear | Bontrager Switch thru axle, removable lever |
| Rim Strip | Bontrager TLR |
| Small Parts | Bontrager TLR sealant, 180 ml/6 oz |
| _shipping-groups | ACYP-ECY |
| BS Product Type | XC Dual Suspension |
| Restricted | At this time Trek restricts the shipment of their bicycles directly to consumers. Please reach out to us via Email, or our chat, to help complete your purchase. |
| Bike Type | XC |
| Discipline | Mountain |
| Platform | Top Fuel |
