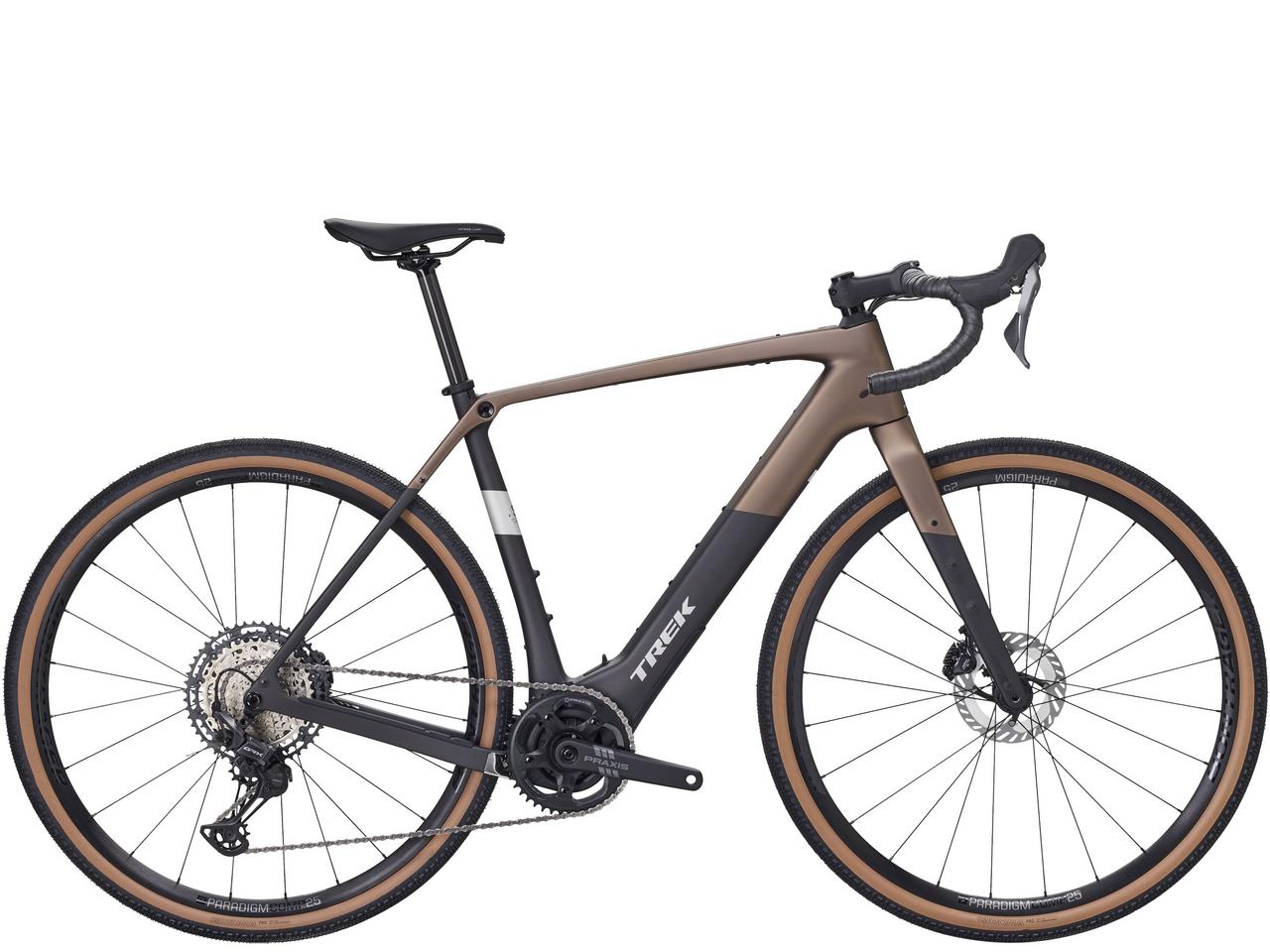

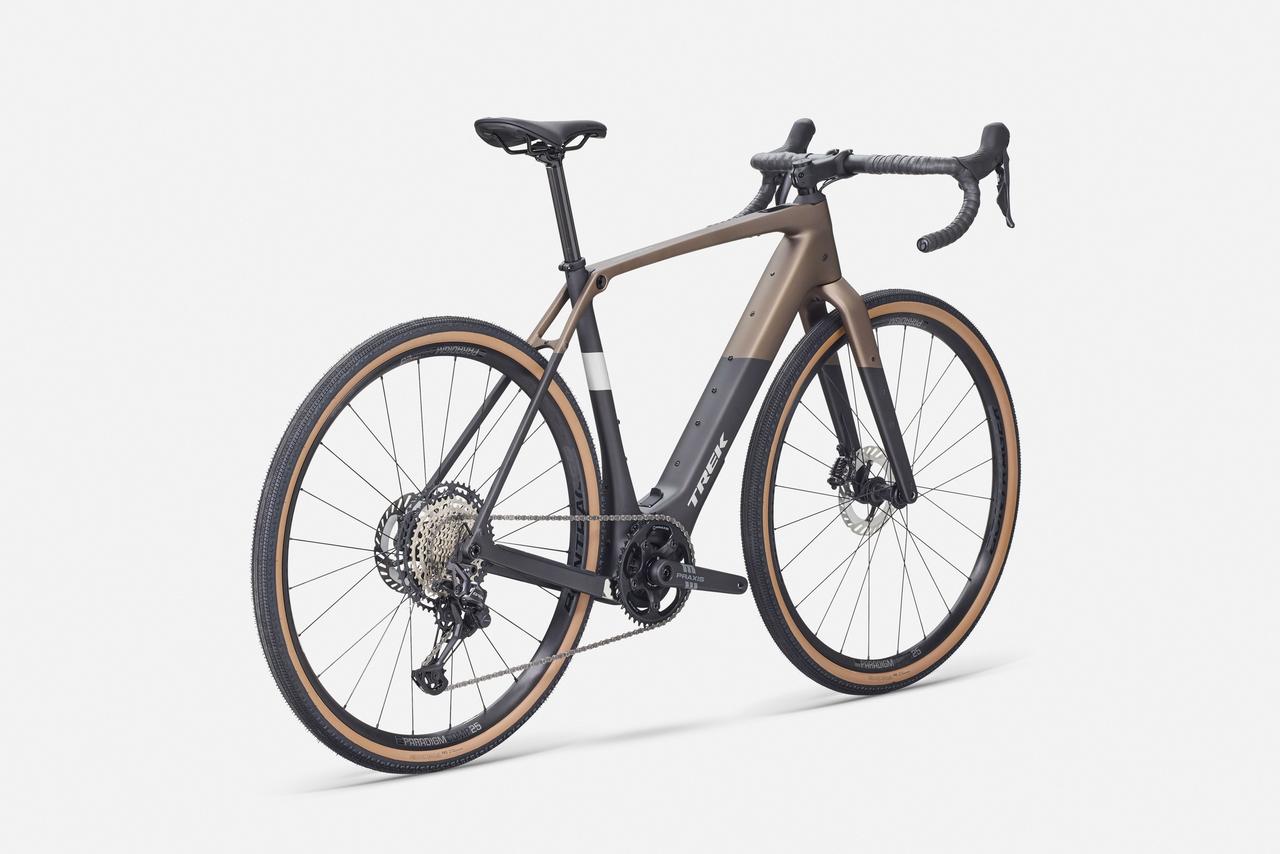

Checkpoint+ SL 5 is an electric gravel bike built to take you the distance. You get a TQ HPR60 motor with a smooth and quiet boost and a 360Wh battery that keeps going on your biggest rides. It comes ready to roll with an OCLV Carbon frame, durable alloy wheels, 12-speed Shimano GRX 1x shifting, and endurance geometry to keep you comfortable for the long haul.
| SKU | Trek_58102 |
|---|---|
| Frame | 500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle |
| Frame Material | Carbon |
| Weight as Spec'd | ML - 13.81 kg / 30.45 lbs (with TLR sealant, no tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
| Motor | TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power |
| Battery | TQ 360Wh |
| E-Bike - Primary Battery Type | 360WH |
| Brake Type | Hydraulic disc |
| Brake Lever | Shimano GRX RX820, 12 speed |
| Brake Rotor | Shimano CL800, centerlock, 160mm // Shimano CL800, centerlock, 160mm |
| Brake Rotor Size | Max brake rotor sizes: 180mm front & rear |
| Handlebar | Bontrager Elite Gravel, alloy, 40cm width |
| Stem | Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length |
| Saddle | Verse Short Comp, steel rails, 145mm width |
| Seatpost | Bontrager carbon, 27.2mm, 8mm offset, 330mm length |
| Drivetrain - Brand | Shimano |
| Rear Derailleur | Shimano GRX RX822, 51T max cog |

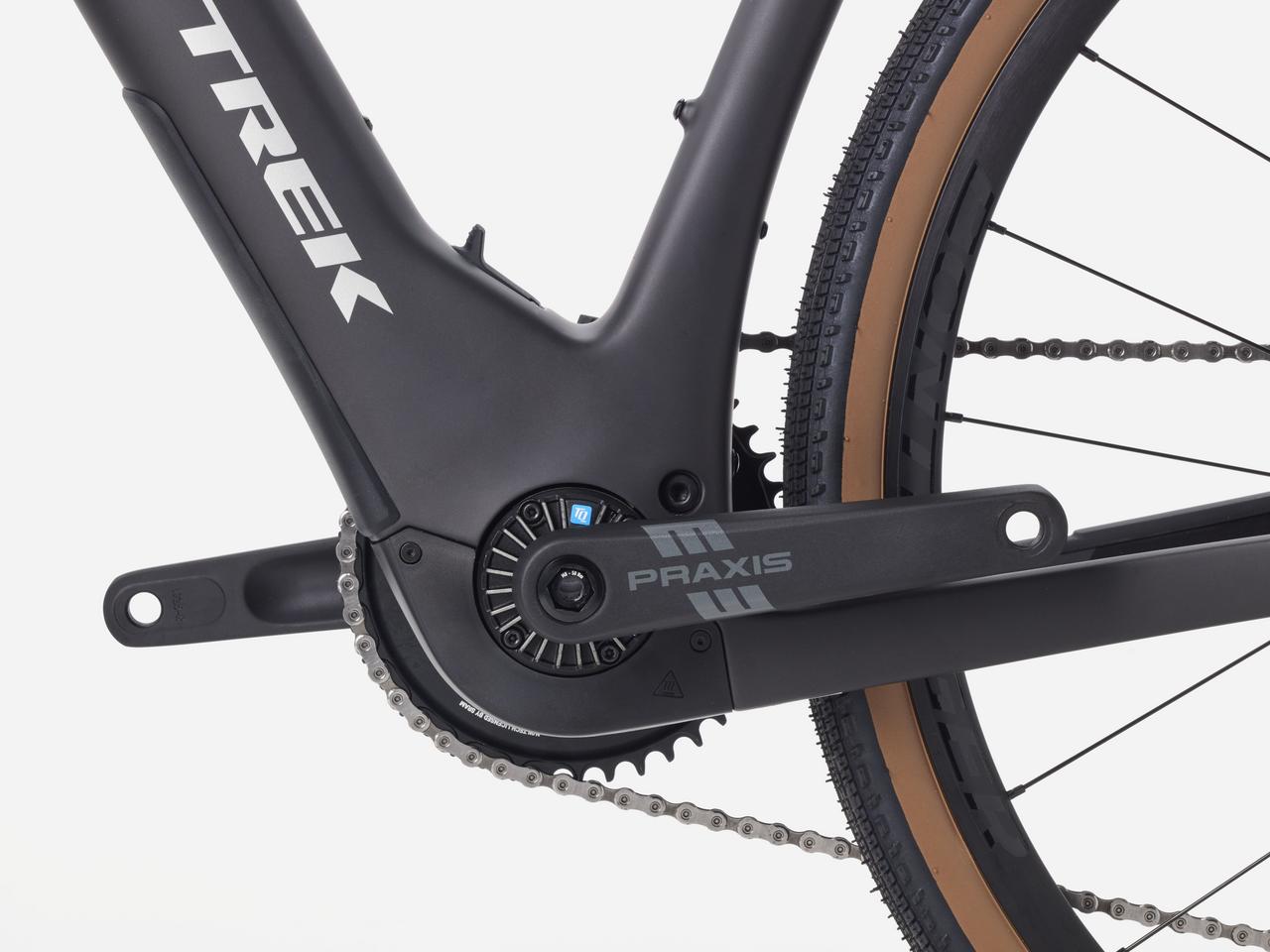

| Crank | Praxis Alloy, 165mm length |
| Shifter | Shimano GRX RX820, 12 speed |
| Cassette | Shimano XT M8100, 10-51, 12 speed |
| Chain | Shimano XT M8100, 12 speed |
| Fork - Brand | Trek |

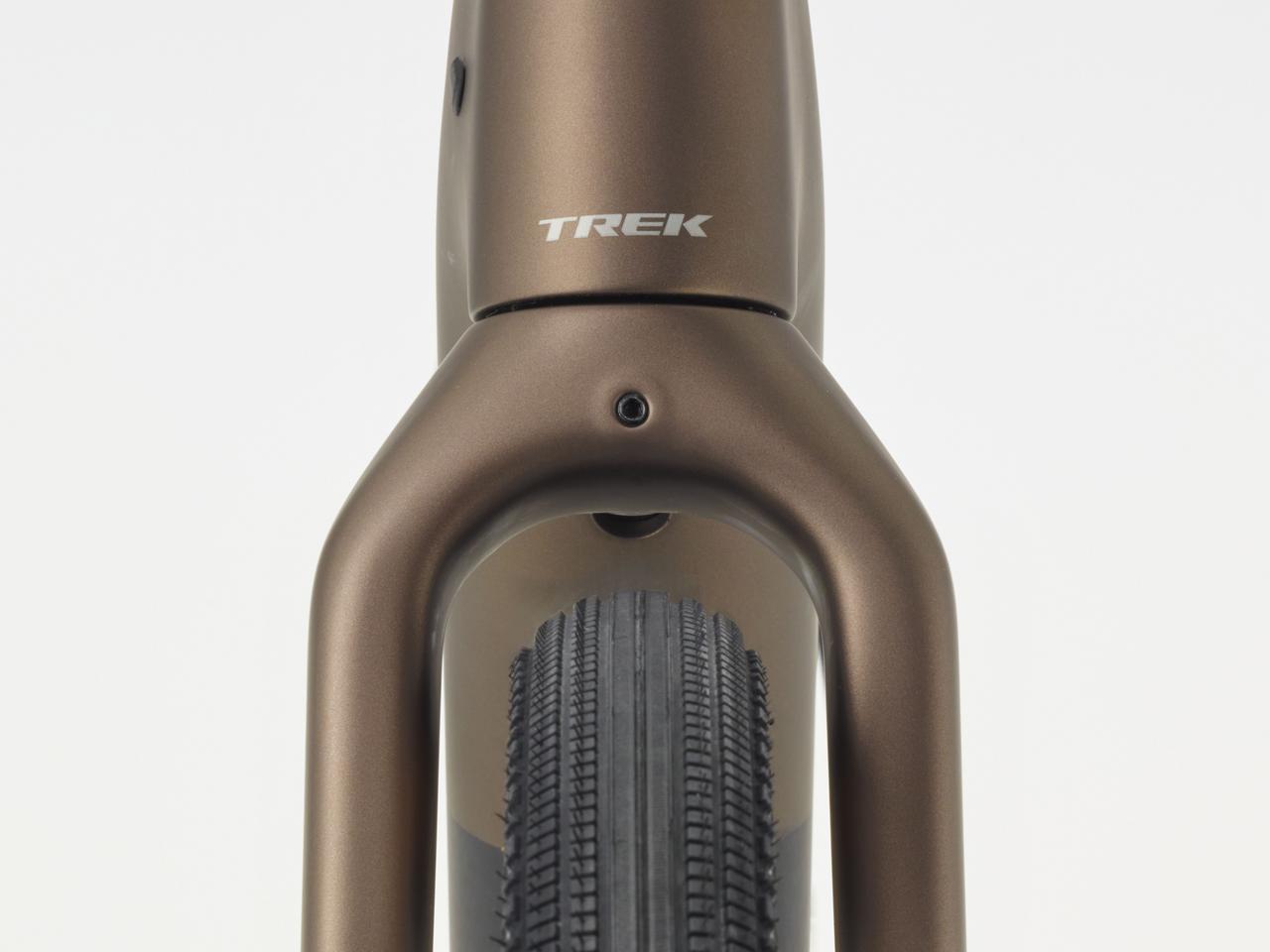

| Fork | Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle |
| Fork - Travel | 40 mm (XS: compatible with rigid fork only) See Checkpoint SL Gen 3 FAQ for compatible options |
| Wheel Size | 700C |
| Tire Size - Max | 50mm without fenders, 42mm with fenders (as measured, see manual for details) |
| Wheel - Front | Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle / |
| Wheel - Rear | Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, Shimano Micro Spline freehub, 142x12 thru axle |
| Tires | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm |
| Skewer - Front | Bontrager Switch chamfered thru axle |
| Skewer - Rear | Bontrager Switch chamfered thru axle, removable lever |
| Rim Strip | Bontrager TLR |
| Small Parts | Bontrager TLR sealant, 180 ml/6 oz |
| _shipping-groups | ACYP-ECY |
| Model Year | 2026 |
| BS Product Type | Gravel - Light Assist |
| DG code | UN3481 |
