2027 | Checkpoint+ SL 7 AXS

$9,999.99
Available To Ship
Available For Pickup
View Store Details
Not Available
View Store Details
Low Stock
View Store Details

Product Info

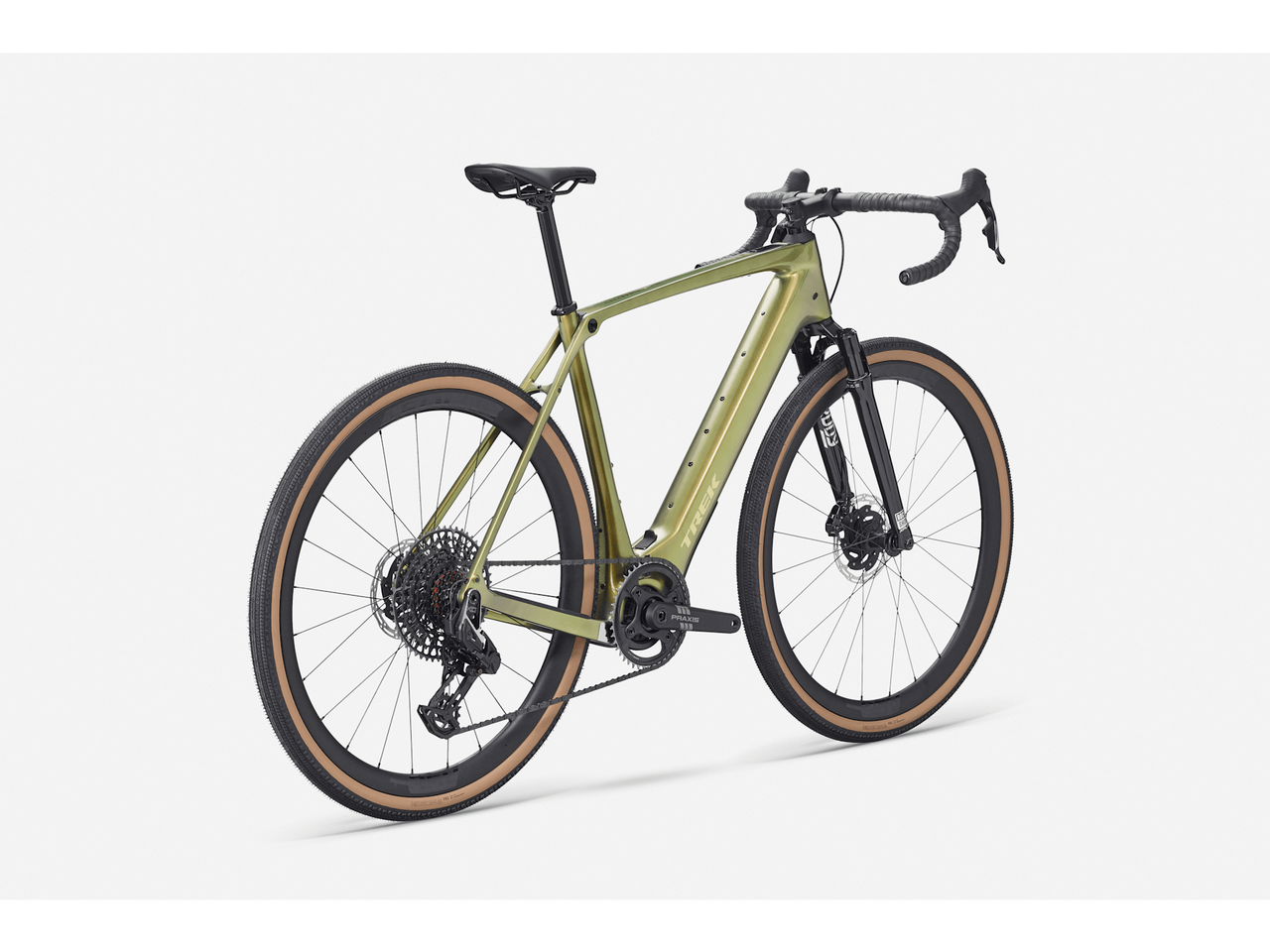

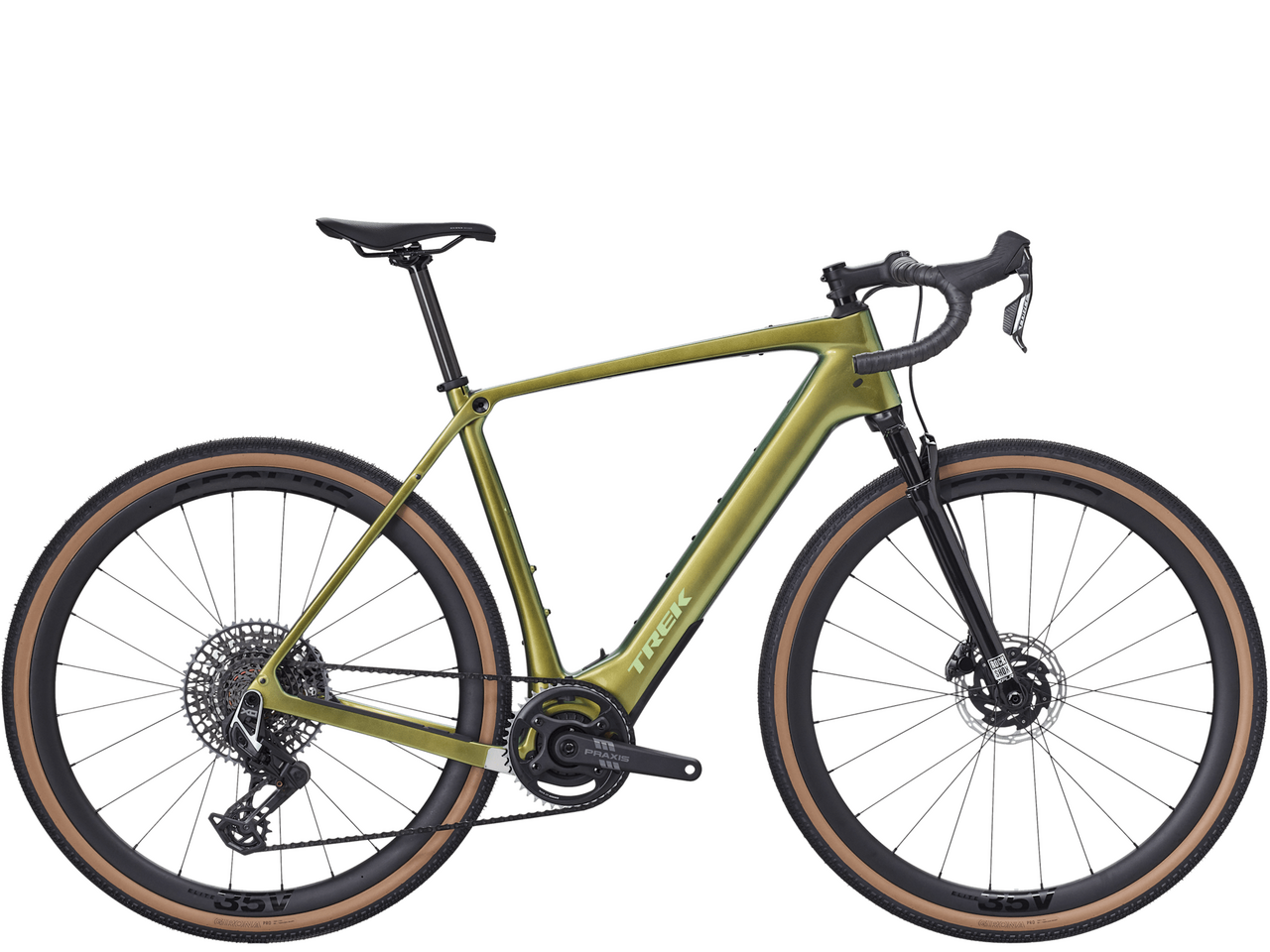

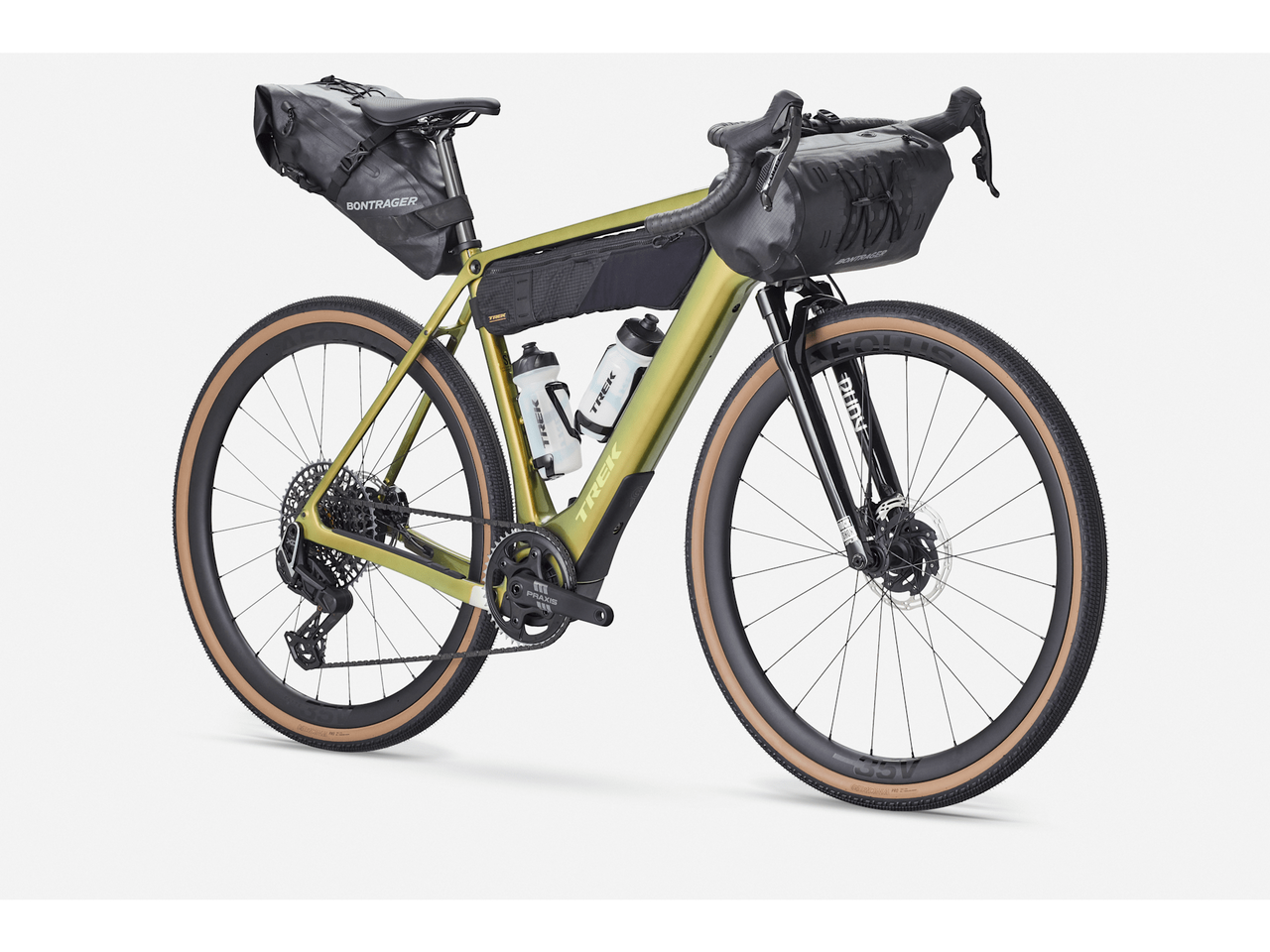

Say yes to adventure with the Checkpoint+ SL electric gravel bike. No more stopping where the pavement ends. No more opting out of the scenic route. No mo' FOMO. Get all the tire clearance, mounts, and capability you need for long gravel adventures, plus an ultra-quiet, lightweight TQ motor with a natural-feeling 28mph assist to help you venture even farther. Plus, a carbon frame with IsoSpeed comfort tech helps you roll smoothly over the rough stuff.

Checkpoint+ SL 7 AXS is an electric gravel bike built to take you on your most far-out adventures. An OCLV Carbon frame keeps things light, a TQ HPR60 motor provides a smooth boost, while a 40mm RockShox Rudy XPLR suspension fork keeps handling confident and relaxed on the roughest roads. SRAM's Force AXS 12-speed drivetrain delivers smooth, wireless shifting, and OCLV Carbon Bontrager Aeolus Elite 35V wheels and a carbon seatpost damp vibrations while keeping the weight down.

  • Frame 500 Series OCLV Carbon
  • Drivetrain SRAM Force AXS, 1x13
  • Wheels Bontrager Aeolus Elite 35V, OCLV Carbon
  • Weight ML - 14.05 kg / 30.98 lbs (with TLR sealant, no tubes)
  • SKU Trek | 2026 | Checkpoint+ SL 7
    Frame 500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle
    Weight as Spec'd ML - 14.05 kg / 30.98 lbs (with TLR sealant, no tubes)
    Weight Limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
    Motor TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
    Battery TQ 360Wh

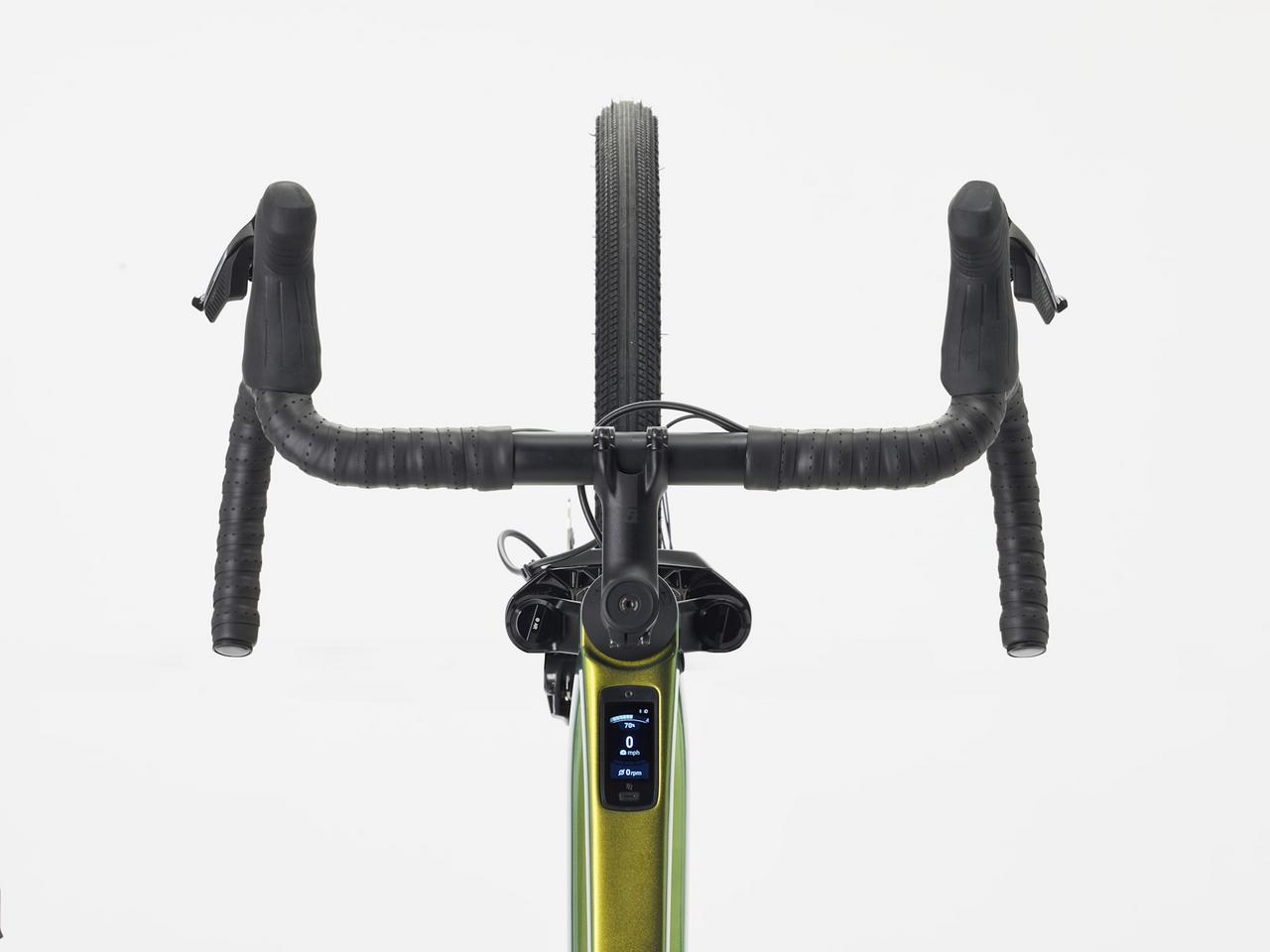

    Controller TQ color LED display with Bluetooth & ANT+ connectivity
    Brake Rotor SRAM CenterLine X, centerlock, round edge, 160mm
    Brake Rotor Size Max brake rotor sizes: 180mm front & rear
    Handlebar Size: S Bontrager Pro Gravel, 40cm width | Size: M, ML Bontrager Pro Gravel, 42cm width | Size: L Bontrager Pro Gravel, 44cm width | Size: XL Bontrager Pro Gravel, 46cm width
    Stem Size: S, M Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length | Size: ML, L Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length | Size: XL Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length
    Grips Bontrager Supertack Perf tape
    Saddle Verse Short Elite, hollow magnesium rails, 145mm width
    Rear Derailleur SRAM X0 Eagle AXS, T-Type
    Crank Arm Size: S Praxis Alloy, 165mm length | Size: M, ML Praxis Alloy, 170mm length | Size: L, XL Praxis Alloy, 172.5mm length
    Shifter SRAM Force AXS E1
    Chainring Size - Max 1x: 44T
    Cassette SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
    Chain SRAM X0 Eagle, T-Type, 12 speed
    Fork RockShox Rudy XPLR, Solo Air spring, tapered steerer, 45mm offset, 12x100mm thru axle, 40mm travel
    Tire Size - Max 50mm without fenders, 42mm with fenders (as measured, see manual for details)
    Wheel - Front Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle
    Wheel - Rear Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, SRAM XDR driver, 142x12mm thru axle
    Tires Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm
    Skewer - Front Bontrager Switch chamfered thru axle, removable lever
    Skewer - Rear Bontrager Switch chamfered thru axle, removable lever
    _shipping-groups ACYP-ECY
    DG code UN3481
    Discipline Gravel
    Model Year 2027
    BS Product Type Gravel - Light Assist
    Frame Material Carbon
