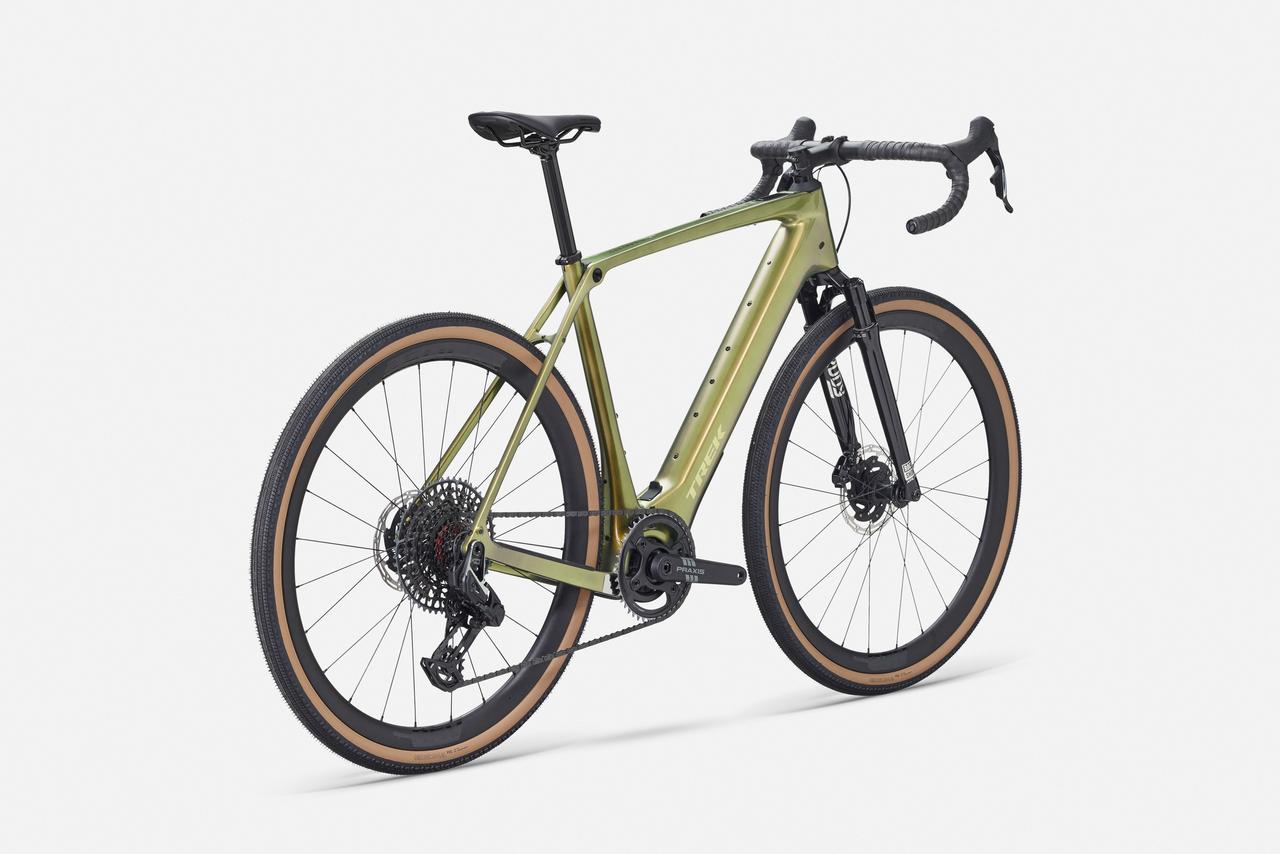

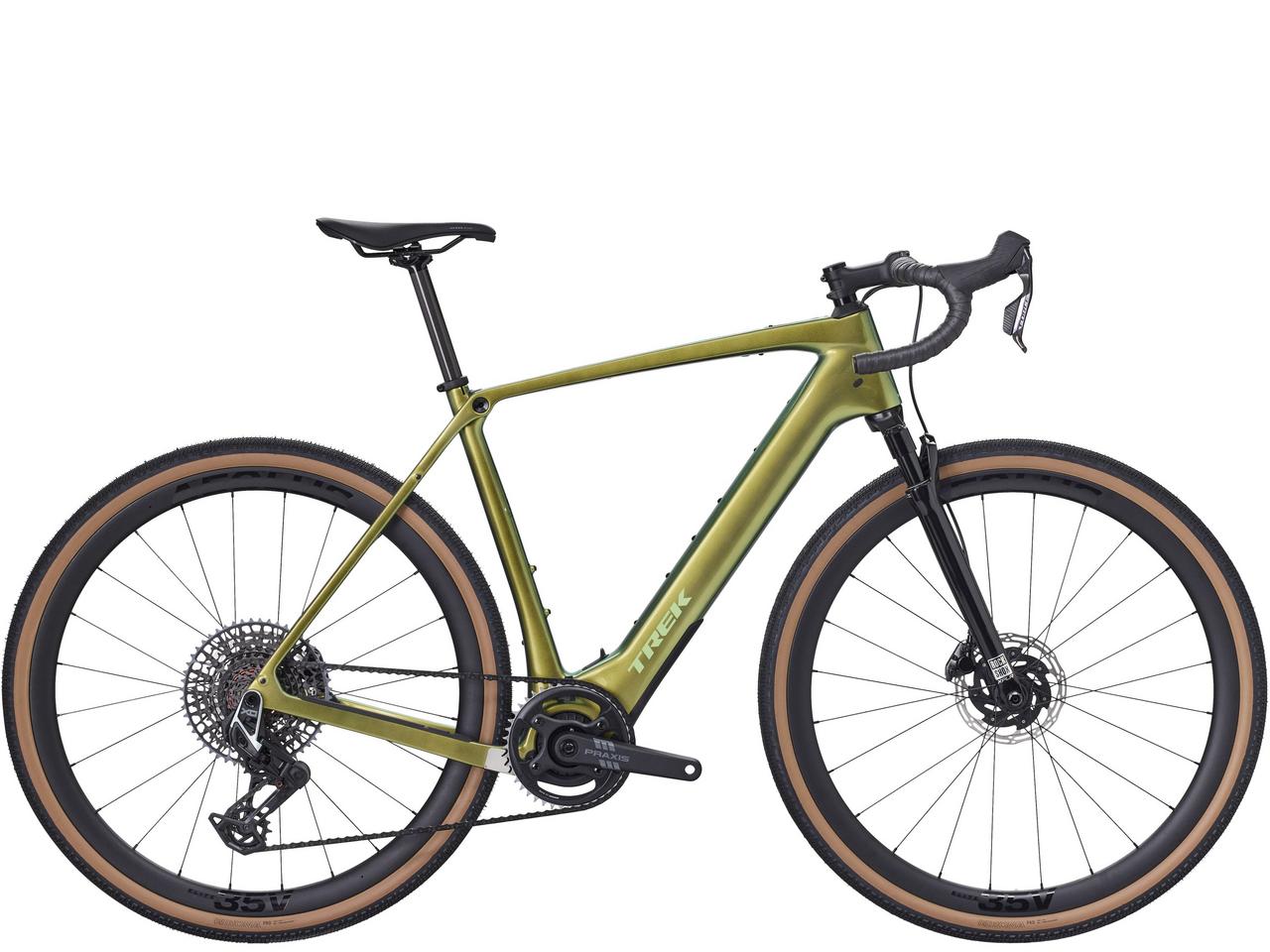

Checkpoint+ SL 7 AXS is an electric gravel bike built to take you on your most far-out adventures. An OCLV Carbon frame keeps things light, a TQ HPR60 motor provides a smooth boost, while a 40mm RockShox Rudy XPLR suspension fork keeps handling confident and relaxed on the roughest roads. SRAM's Force AXS 12-speed drivetrain delivers smooth, wireless shifting, and OCLV Carbon Bontrager Aeolus Elite 35V wheels and a carbon seatpost damp vibrations while keeping the weight down.
| SKU | Trek_58117 |
|---|---|
| Frame | 500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle |
| Frame Material | Carbon |
| Weight as Spec'd | ML - 14.05 kg / 30.98 lbs (with TLR sealant, no tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
| Motor | TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power |
| Battery | TQ 360Wh |
| E-Bike - Primary Battery Type | 360WH |
| Controller | TQ color LED display with Bluetooth & ANT+ connectivity |
| Brake Type | Hydraulic disc |
| Brake Rotor | SRAM CenterLine X, centerlock, round edge, 160mm |
| Brake Rotor Size | Max brake rotor sizes: 180mm front & rear |

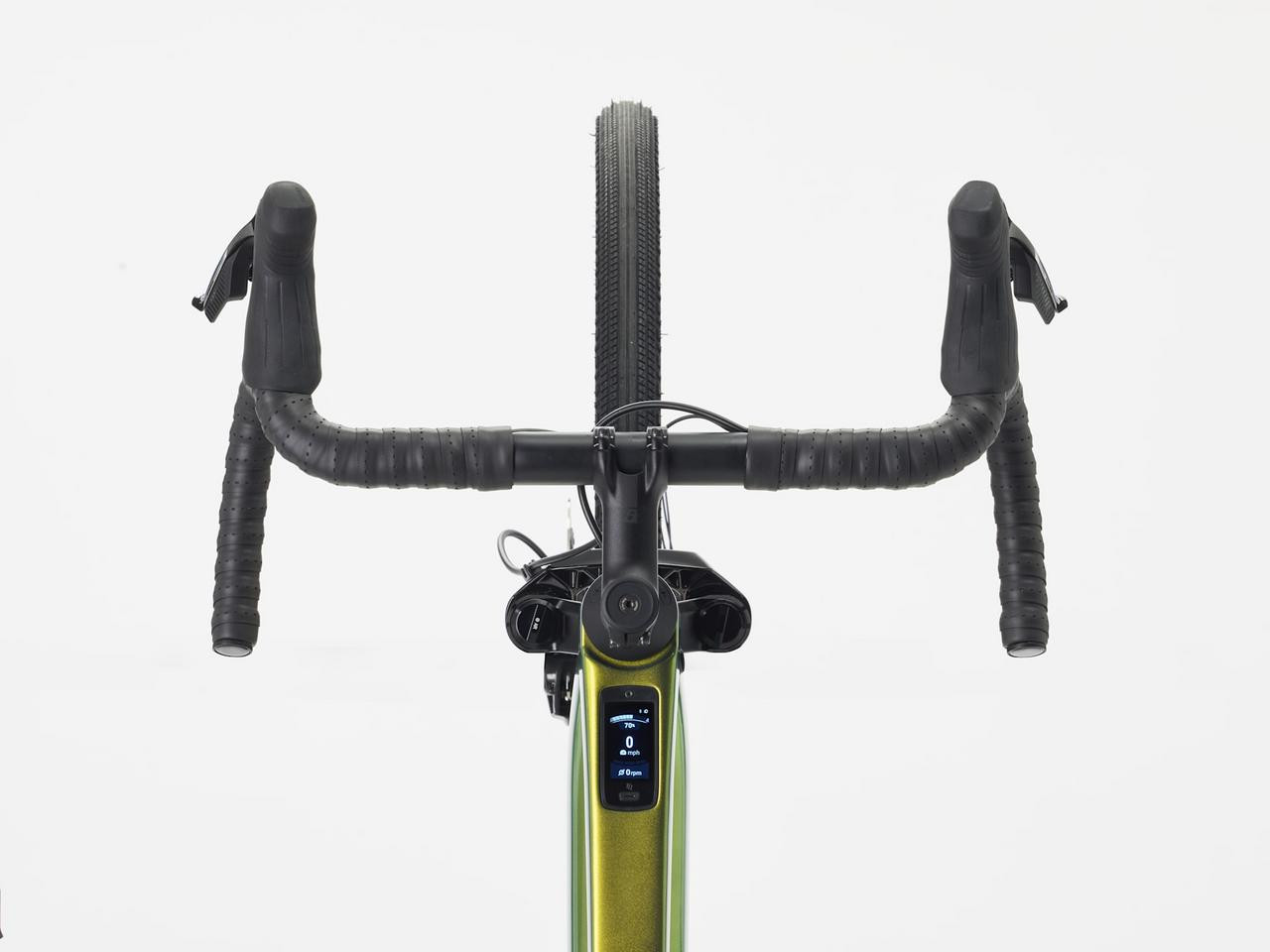

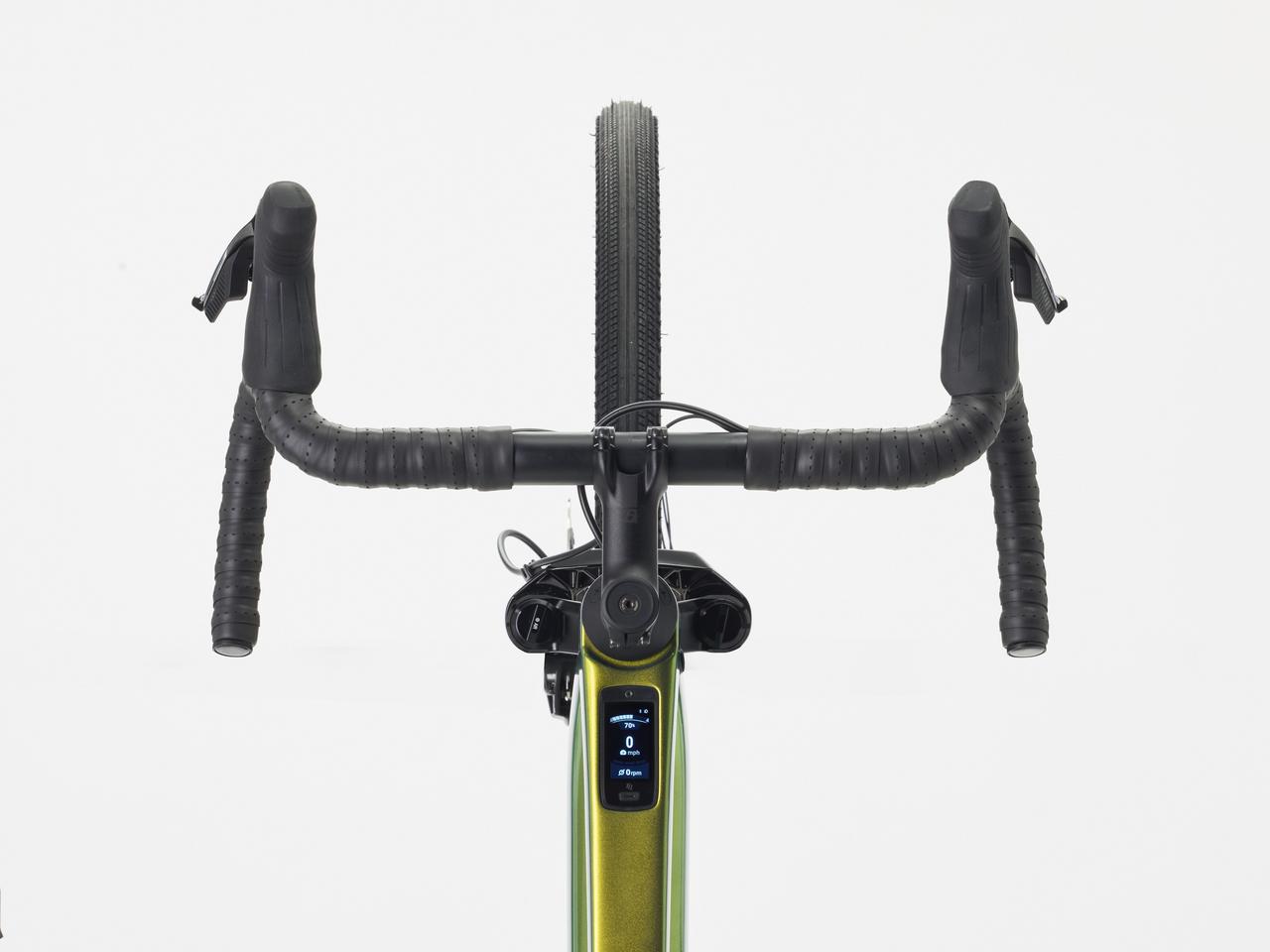

| Handlebar | Bontrager Pro Gravel, 42cm width |
| Stem | Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length |
| Saddle | Verse Short Elite, hollow magnesium rails, 145mm width |
| Seatpost | Bontrager carbon, 27.2mm, 8mm offset, 330mm length |
| Drivetrain - Brand | SRAM |
| Rear Derailleur | SRAM X0 Eagle AXS, T-Type |

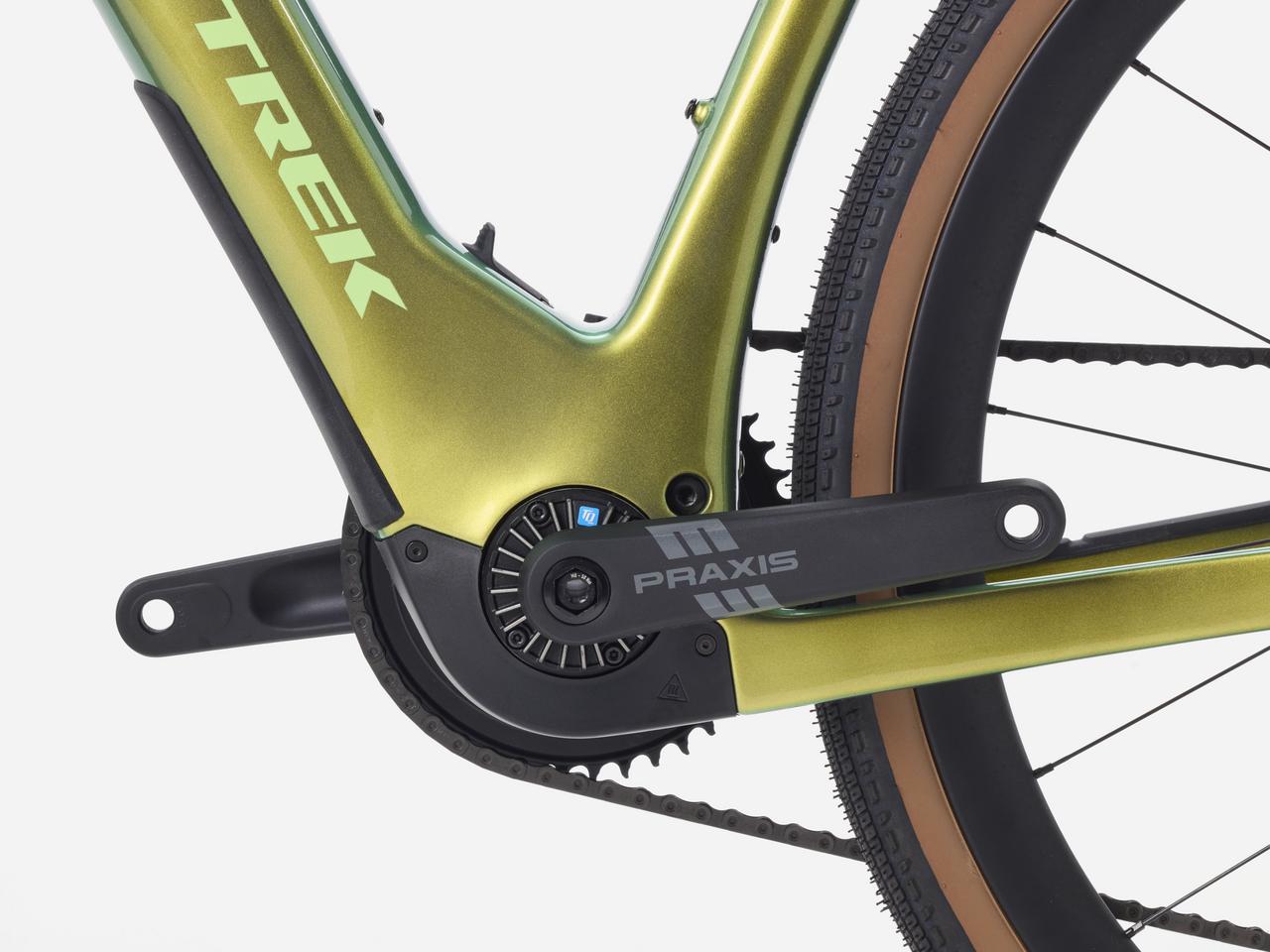

| Crank | Praxis Alloy, 170mm length |
| Shifter | SRAM Force AXS E1 // SRAM Force AXS E1 |
| Cassette | SRAM Eagle XS-1295, T-Type, 10-52, 12 speed |
| Chain | SRAM X0 Eagle, T-Type, 12 speed |
| Fork - Brand | RockShox |

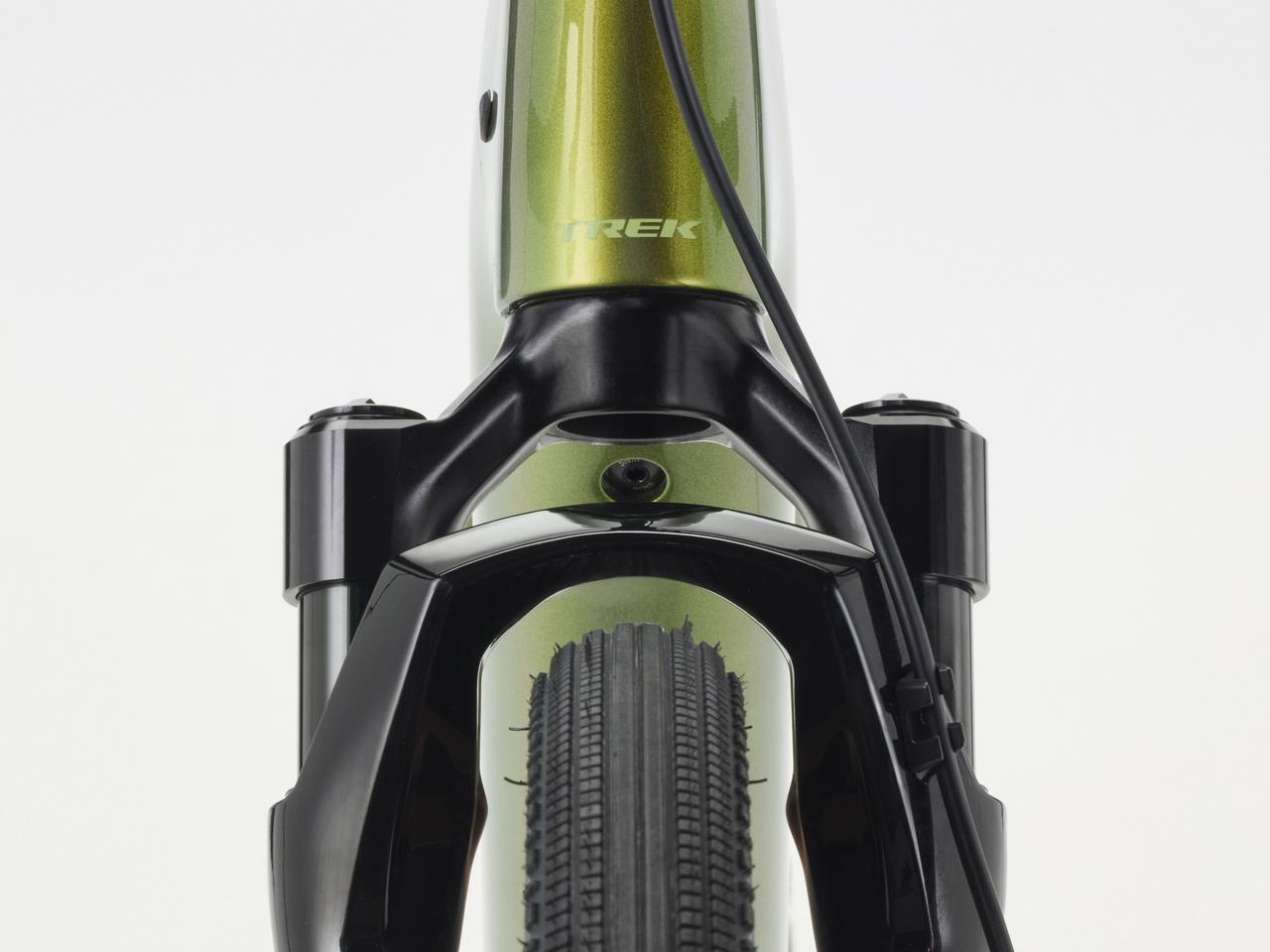

| Fork | RockShox Rudy XPLR, Solo Air spring, tapered steerer, 45mm offset, 12x100mm thru axle, 40mm travel |
| Fork - Travel | 40 mm (XS: compatible with rigid fork only) See Checkpoint SL Gen 3 FAQ for compatible options |
| Wheel Size | 700C |
| Tire Size - Max | 50mm without fenders, 42mm with fenders (as measured, see manual for details) |
| Wheel - Front | Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle / |
| Wheel - Rear | Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, SRAM XDR driver, 142x12mm thru axle |
| Tires | Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm |
| Skewer - Rear | Bontrager Switch chamfered thru axle, removable lever |
| Rim Strip | Bontrager TLR |
| Small Parts | Bontrager TLR sealant, 180 ml/6 oz |
| _shipping-groups | ACYP-ECY |
| Model Year | 2026 |
| BS Product Type | Bike |
| DG code | UN3481 |
