2026 | Fuel+ EX 9.8 XT Di2 Gen 2

$12,999.99
Available To Ship
Available For Pickup
View Store Details
Not Available
View Store Details
Low Stock
View Store Details

Product Info

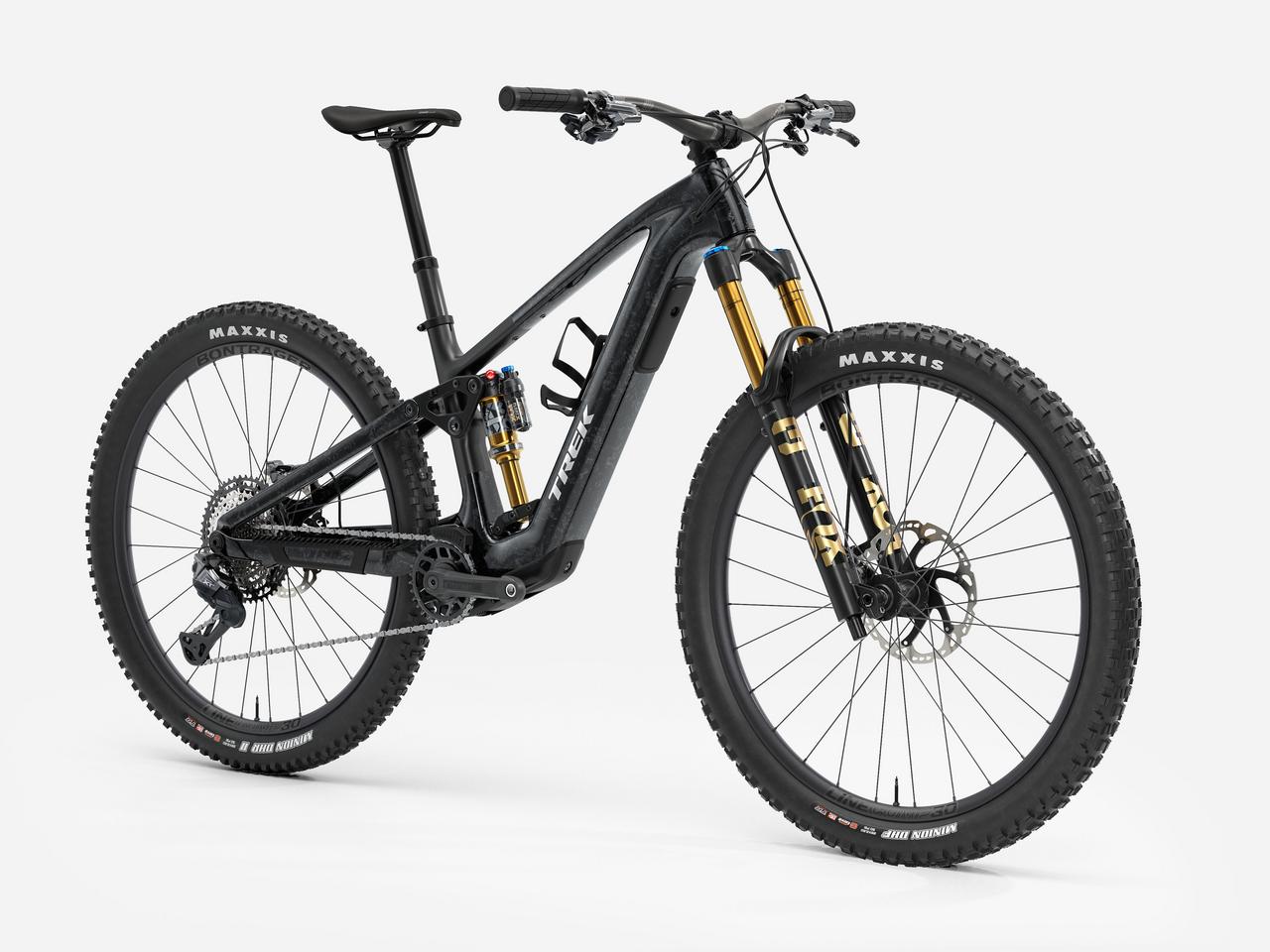

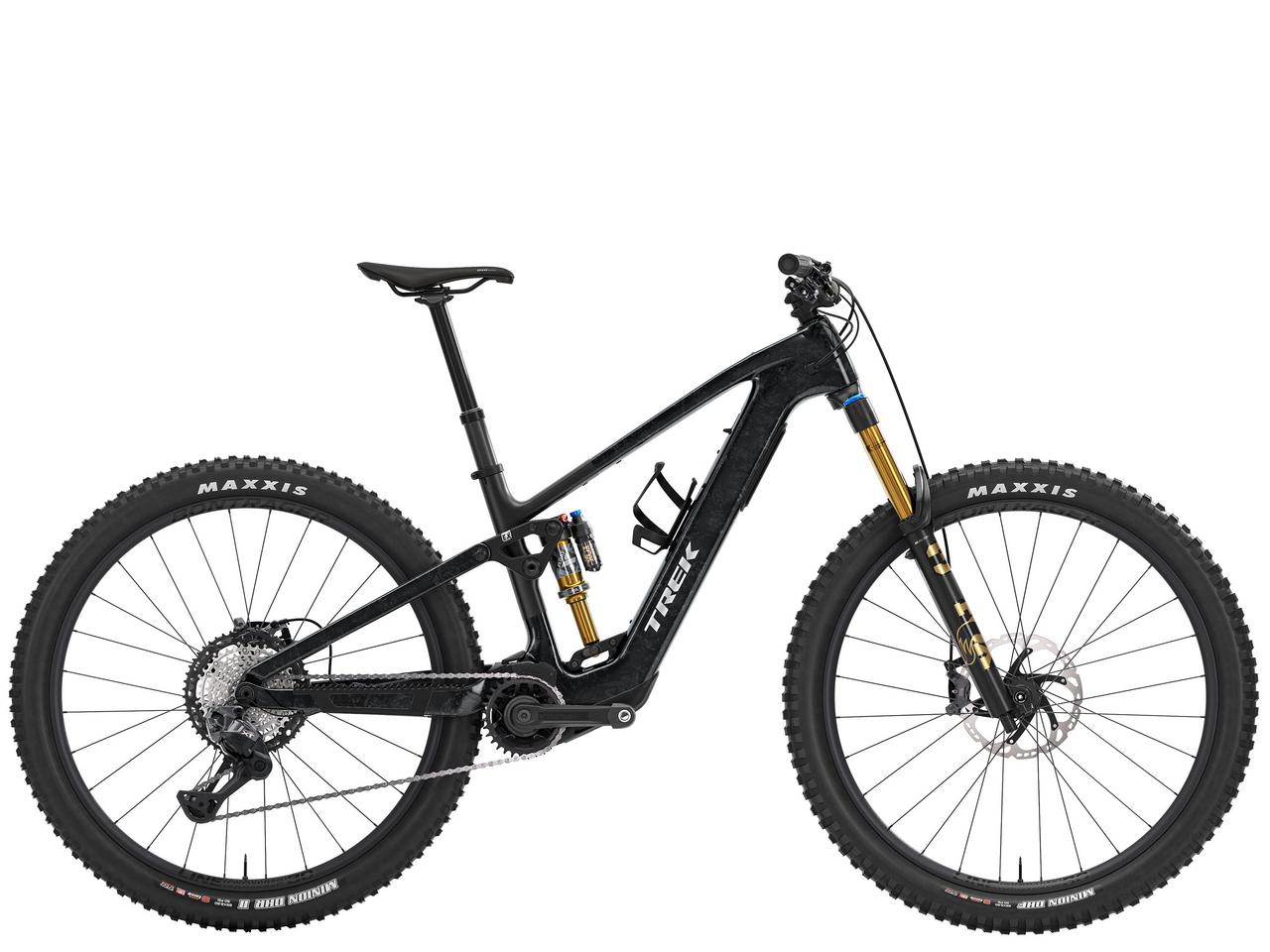

Fuel+ EX 9.8 XT Di2 is an adaptable carbon e-MTB ready for sky-high climbs and dreamy descents. Its OCLV Mountain Carbon frame delivers a smooth boost from TQ's HPR-60 motor, while a Fox Factory suspension package (145mm rear, 150mm front) gives you buttery-smooth control through the rough. A wireless Shimano XT Di2 12-speed drivetrain gives you clean, customizable shifting and 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-dime power.


Adapt, rip, repeat

    Only you can define your perfect trail bike — that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX, or charge through it all with LX.


Adjustable leverage rate

    Want more bottom-out resistance without giving up small-bump sensitivity? Flip the chip in the lower shock mount for a more progressive leverage rate.


Zero stack integrated headset

    With a ZS standard headset, you've got tons of options for aftermarket upgrades, including angle adjust or anodized colors.


Storage and accessory mounts

    Stash ride essentials with in-frame storage on all Fuel models — both carbon and alloy. Plus, top tube accessory mounts let you load up even more.


Fresh frame design

    Fuel's new frame gives you tons of room for long dropper posts, bigger shocks, frame bags, and more.


Active Braking Pivot

    Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

SKU Trek_58895
Frame OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable trav
Frame el 145mm-160mm
Frame Material Carbon
Weight as Spec'd M - 20.18 kg / 44.49 lbs (with TLR sealant, no tubes)
Weight Limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
Motor TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
Battery TQ 580Wh
E-Bike - Primary Battery Type 360WH
Controller TQ color LED display with Bluetooth & ANT+ connectivity
Brake - Brand Shimano
Brake Type Hydraulic disc
Brake Shimano XT M8200 4-piston hydraulic disc // Shimano XT M8200 4-piston hydraulic disc
Brake Rotor Shimano RT86, 6-bolt, 203mm
Brake Rotor Size Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
Handlebar Race Face ERA, carbon, 35mm, 27.5mm rise, 800mm width
Stem Bontrager Elite, 35mm, 0 degree, 45mm length
Grips Trek Line Elite, lock-on
Saddle Verse Short Comp, steel rails, 145mm width
Seatpost Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length
Drivetrain - Brand Shimano
Rear Derailleur Shimano XT Di2 M8260, 12 speed
Crank Arm E*thirteen E*spec Plus, 160mm length
Shifter Shimano XT Di2 M8250, 12 speed
Chainring E*Thirteen Helix Core Steel 32t steel, 55mm chainline
Cassette Shimano XT M8200, 10-51, 12 speed
Chain Shimano Ultegra/XT M8100, 12 speed
Fork - Brand Fox
Fork Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 150mm travel
Shock - Brand Fox
Shock Fox Factory Float X, 205mm x 60mm
Wheel Size 29"
Wheel - Front Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29" /
Wheel - Rear Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12mm thru axle, 29'
Tires Maxxis Minion DHF, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5' // Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5'
Tire Size 29x2.50"
Skewer - Rear Bontrager Switch thru axle, removable lever
Rim Strip Bontrager TLR
Small Parts Bontrager TLR sealant, 180 ml/6 oz
_shipping-groups ACYP-ECY
BS Product Type Trail Dual Suspension - Partial Assist
Discipline Mountain
Model Year 2026
DG code Yes
