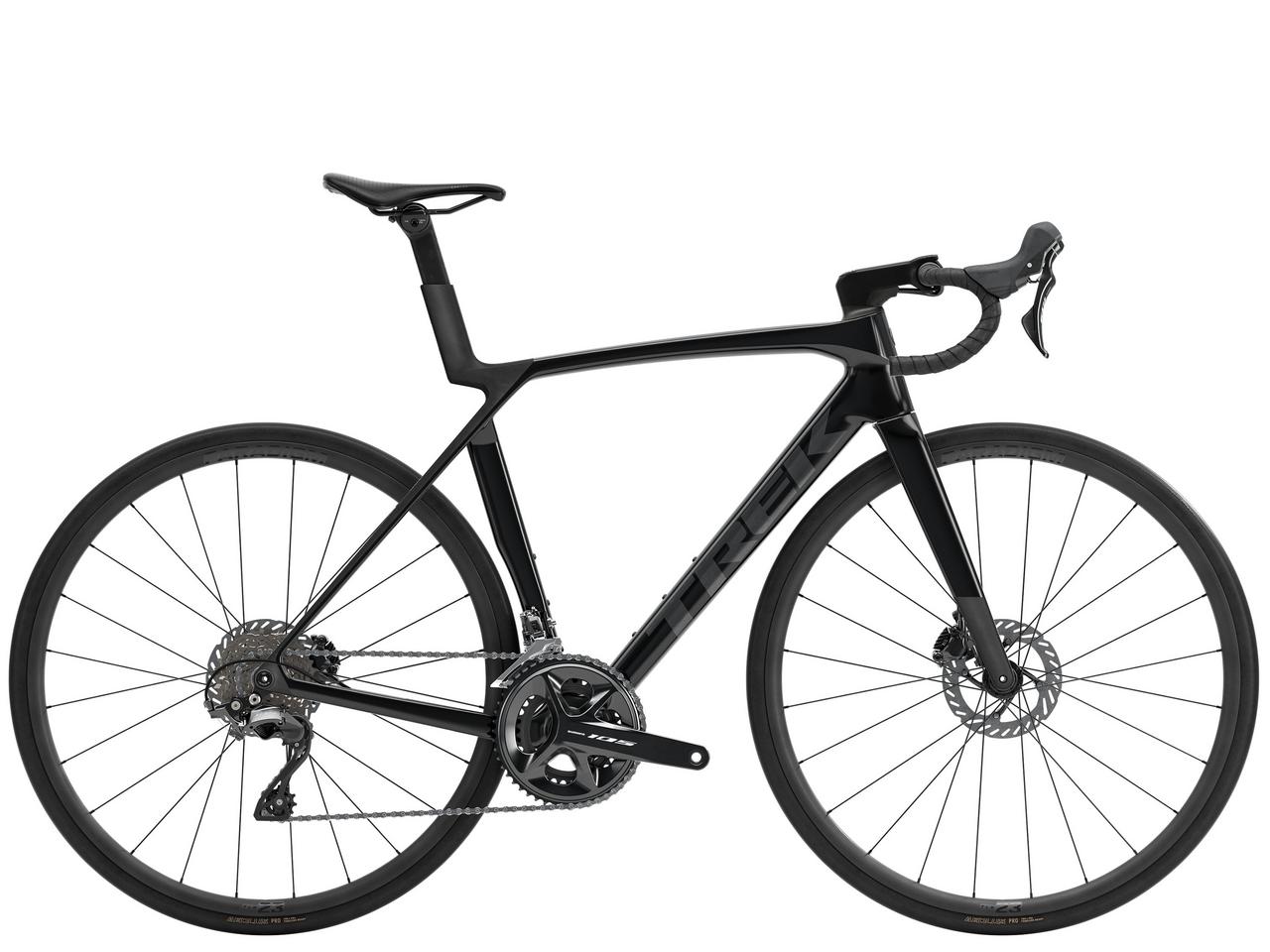

Madone SL 5 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8 models, but with a more economical OCLV 500 Carbon layup and two-piece cockpit with hidden cable routing. A Shimano 105 groupset, alloy handlebars, and alloy wheels keep the price down while still delivering clean mechanical shifting you can trust.
| SKU | Trek_57653 |
|---|---|

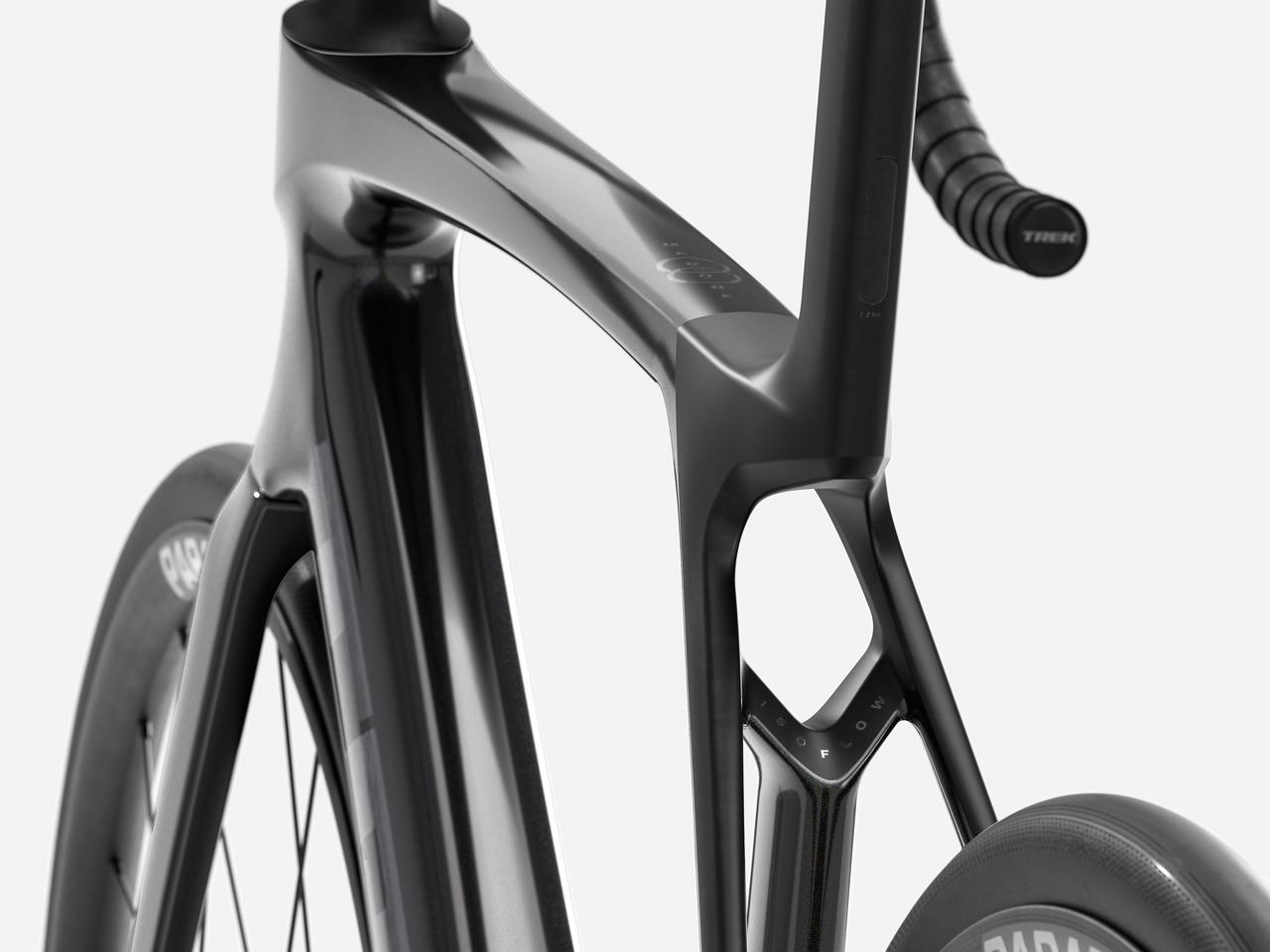

| Frame | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle |
| Frame Material | Carbon |
| Bottom Bracket | Praxis, T47 threaded, internal bearing |
| Weight as Spec'd | ML - 8.64 kg / 19.05 lbs (with tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
| Brake - Brand | Shimano |
| Brake Type | Hydraulic disc |
| Brake | Shimano 105 hydraulic disc, flat mount |
| Brake Rotor | Shimano CL700, centerlock, 160mm |
| Brake Rotor Size | Max brake rotor sizes: 180mm front, 160mm rear |

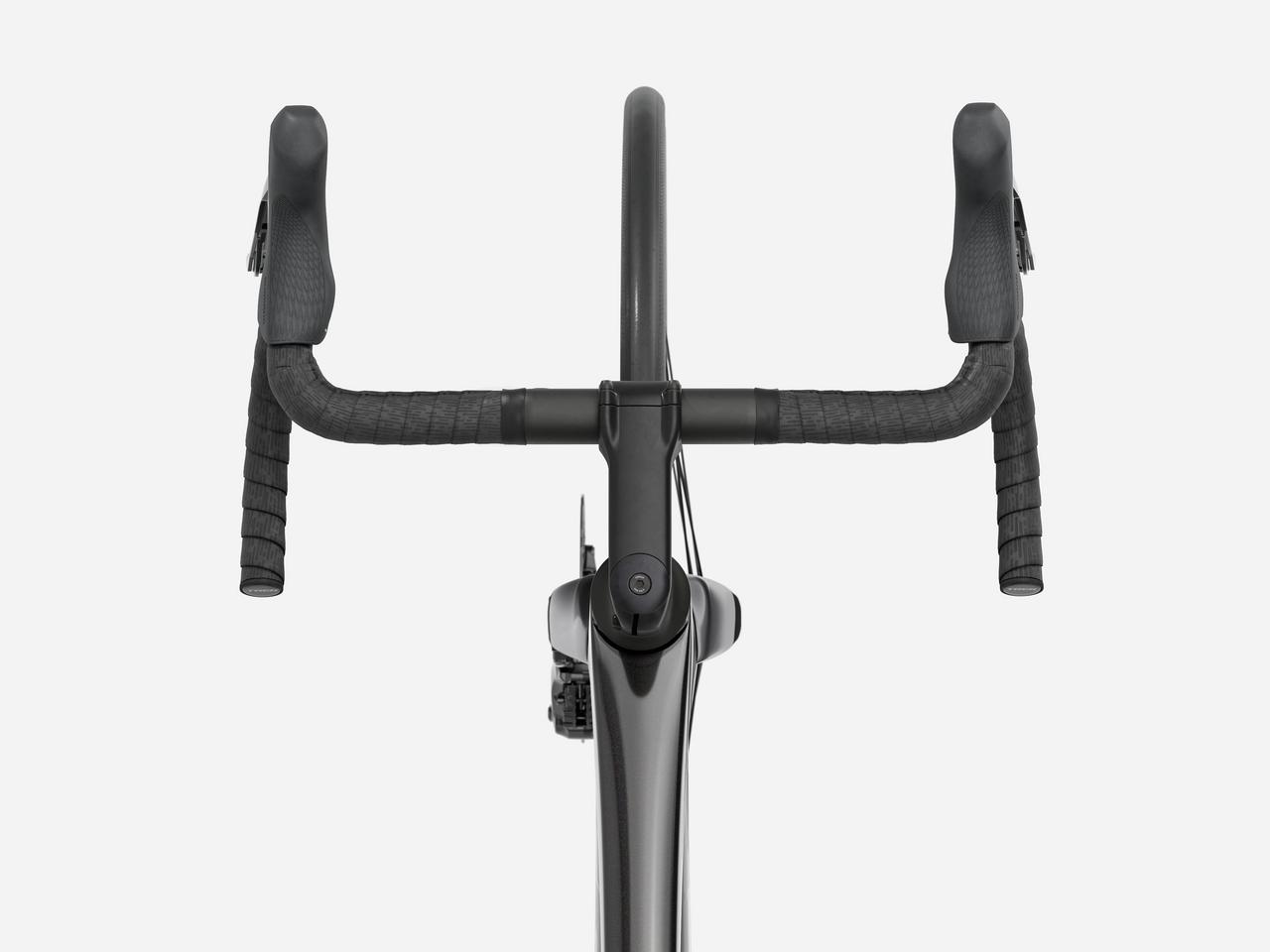

| Handlebar | Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width |
| Stem | Trek RCS Pro, -7 degree, 110mm length |
| Saddle | Bontrager Aeolus Elite, austenite rails, 145mm width |
| Seatpost | Madone aero carbon seatpost, 0mm offset, short length |

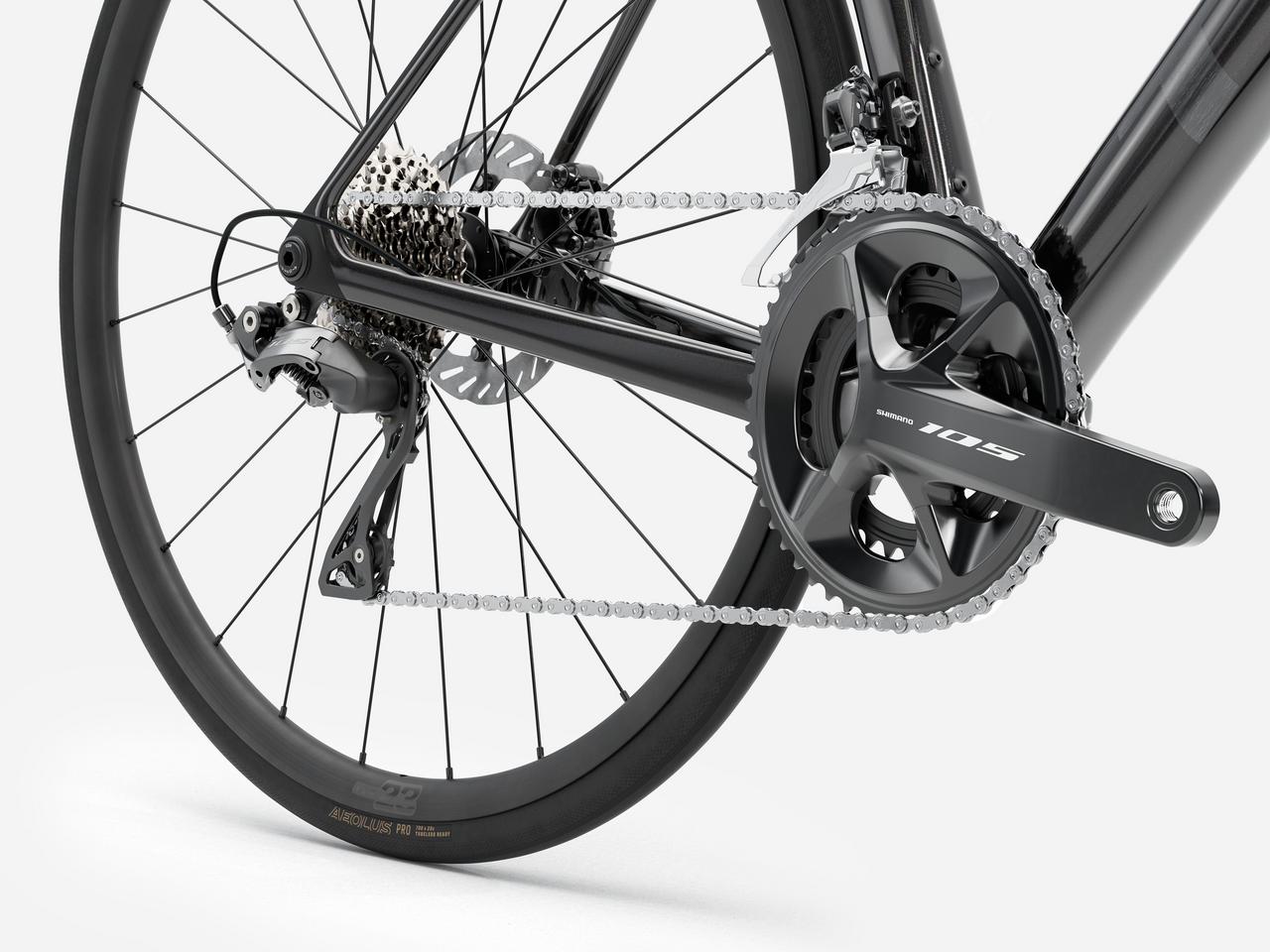

| Drivetrain - Brand | Shimano |
| Front Derailleur | Shimano 105 R7100, braze-on, down swing |
| Rear Derailleur | Shimano 105 R7100, 36T max cog |
| Crank | Shimano 105 R7100, 50/34, 172.5mm length |
| Shifter | Shimano 105 R7120, 12 speed // Shimano 105 R7120, 12 speed |
| Cassette | Shimano 105 7101, 11-34, 12 speed |
| Chain | Shimano SLX M7100, 12 speed |
| Fork - Brand | Trek |
| Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
| Wheel Size | 700C |
| Tire Size - Max | 32mm (as measured, see manual for details) |
| Wheel - Front | / |
| Tires | Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120tpi, 700x28mm |
| Tire Size | 700x28c |
| Hub - Front | Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle |
| Hub - Rear | Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle |
| Skewer - Front | Bontrager Switch chamfered thru axle |
| Skewer - Rear | Bontrager Switch chamfered thru axle, removable lever |
| Rims | Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve |
| Small Parts | Bontrager TLR sealant, 180 ml/6 oz |
| _shipping-groups | ACYP-ECY |
| Model Year | 2026 |
| BS Product Type | Performance Road |
