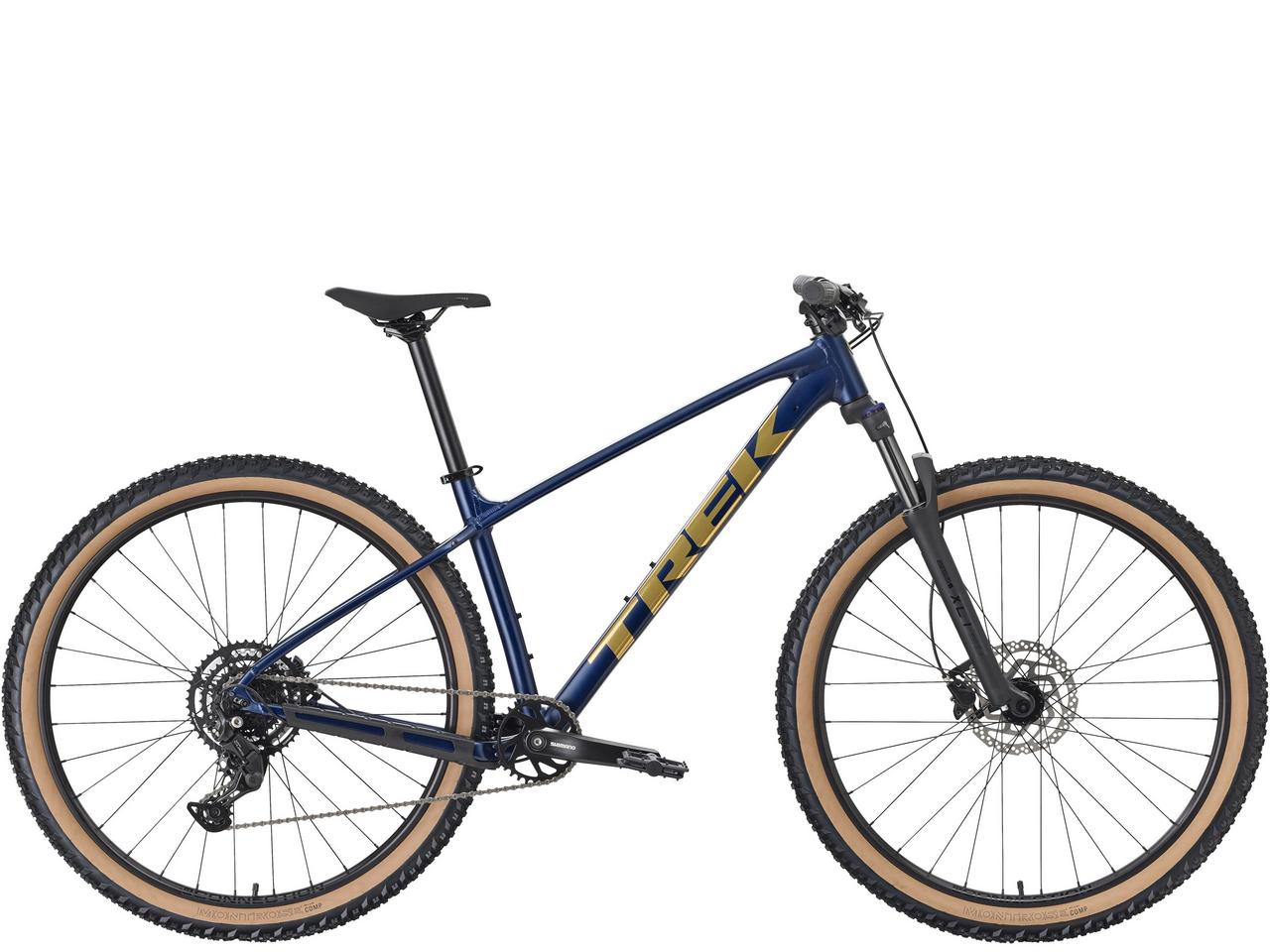

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting, and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
| SKU | Trek_57363 |
|---|---|
| Frame | Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew |
| Frame Material | Aluminum |
| Headset | Semi-integrated, 1-1/8" |
| Bottom Bracket | Shimano, 73mm, threaded cartridge, 122.5mm spindle |
| Weight as Spec'd | M - 15.10 kg / 33.29 lbs |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
| Brake Type | Hydraulic disc |
| Brake Rotor | Shimano RT26, 6-bolt, 160mm |
| Handlebar | Bontrager alloy, 31.8mm, 5mm rise, 690mm width |
| Stem | Bontrager Comp, 31.8mm, 7 degree, 35mm length |
| Grips | Trek Line Comp, nylon lock-on |
| Pedals | VP-536 nylon platform |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Seatpost | Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
| Drivetrain - Brand | Shimano |
| Rear Derailleur | Shimano CUES U4000 |
| Crank | Shimano CUES U4001, 32T, 52mm chainline, 170mm length |
| Shifter | Shimano U4000, 9 speed |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9 speed |
| Chain | Shimano LG500 |
| Fork - Brand | SR Suntour |
| Fork | SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel |
| Wheel Size | 27.5" |
| Tires | Bontrager Montrose Comp, wire bead, 30 tpi, 27.5x2.4'' |
| Tire Size | 27.5x2.40" |
| Hub - Front | Formula DC-20, alloy, 6-bolt, 100x5mm |
| Hub - Rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm |
| Skewer - Front | Trek Thru-Skew |
| Skewer - Rear | 173x5mm QR |
| Rims | Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve |
| Spokes | 14g stainless steel, black |
| _shipping-groups | ACYPY-EPY-FPY |
| Model Year | 2026 |
| BS Product Type | Trail Hardtails |
