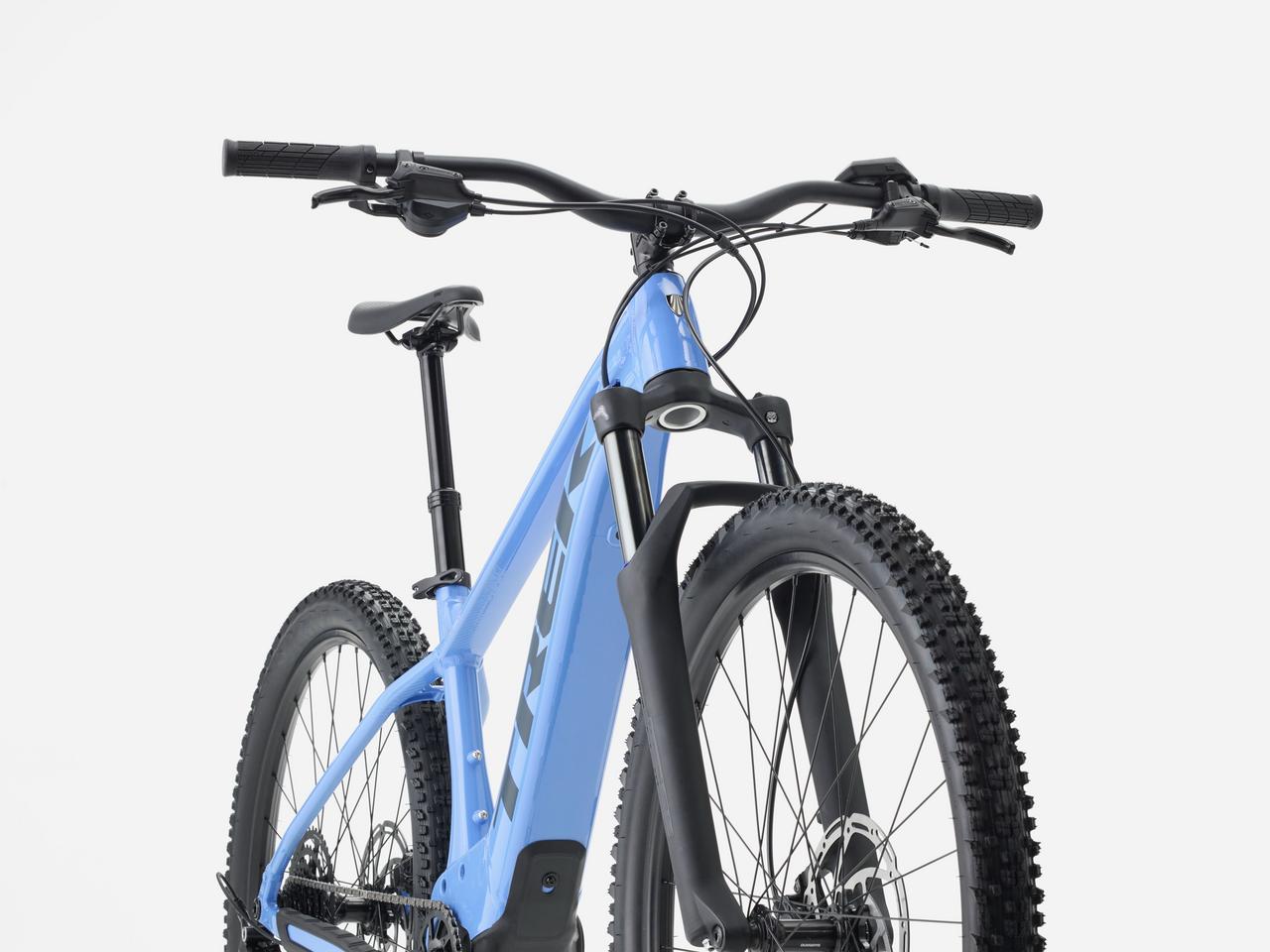

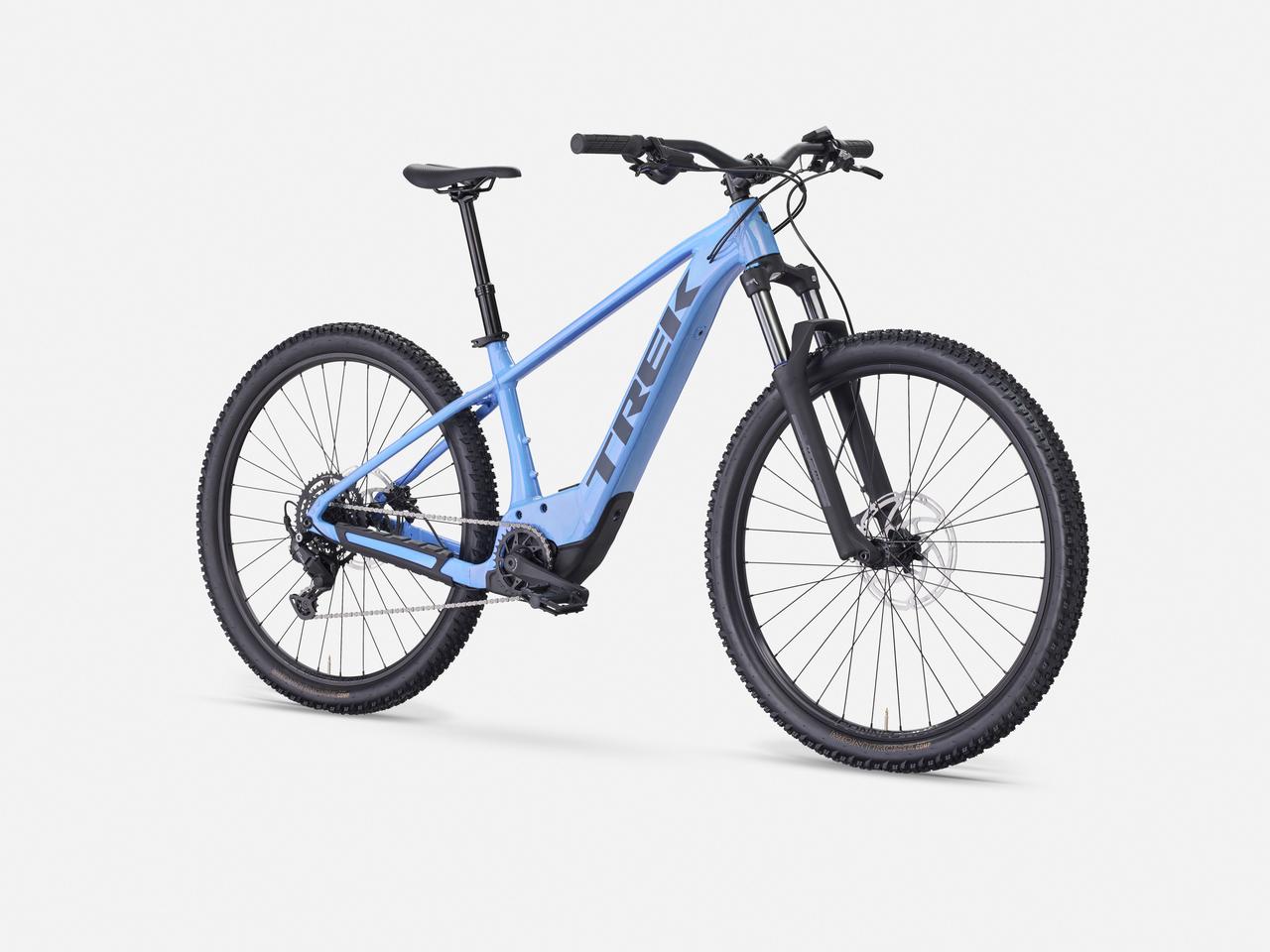

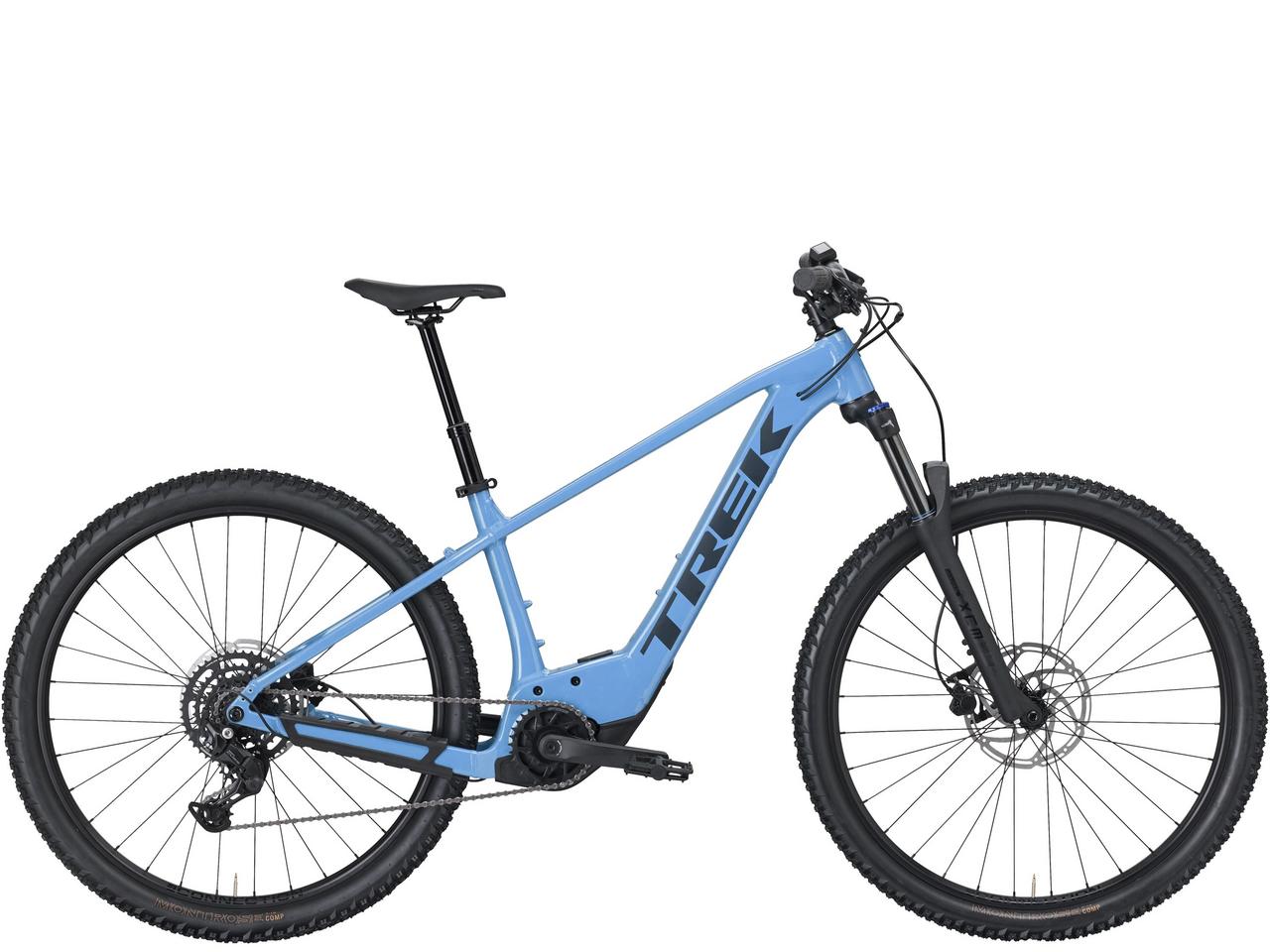

Marlin+ 6 is an electric mountain bike that's ready to power up your trail rides without breaking the bank. It's equipped with the same fun and confident geometry as the non-electric Marlin, with the added boost of Bosch's Active Line Plus drive system. A 120mm suspension fork soaks up rocks, roots, and potholes on your ride, while 9-speed Shimano CUES is durable and reliable for wherever you roll.
| SKU | Trek_57380 |
|---|---|
| Frame | Alpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle |
| Frame Material | Aluminum |
| Headset | Semi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom |
| Weight as Spec'd | M - 22.90 kg / 50.49 lbs (with tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |

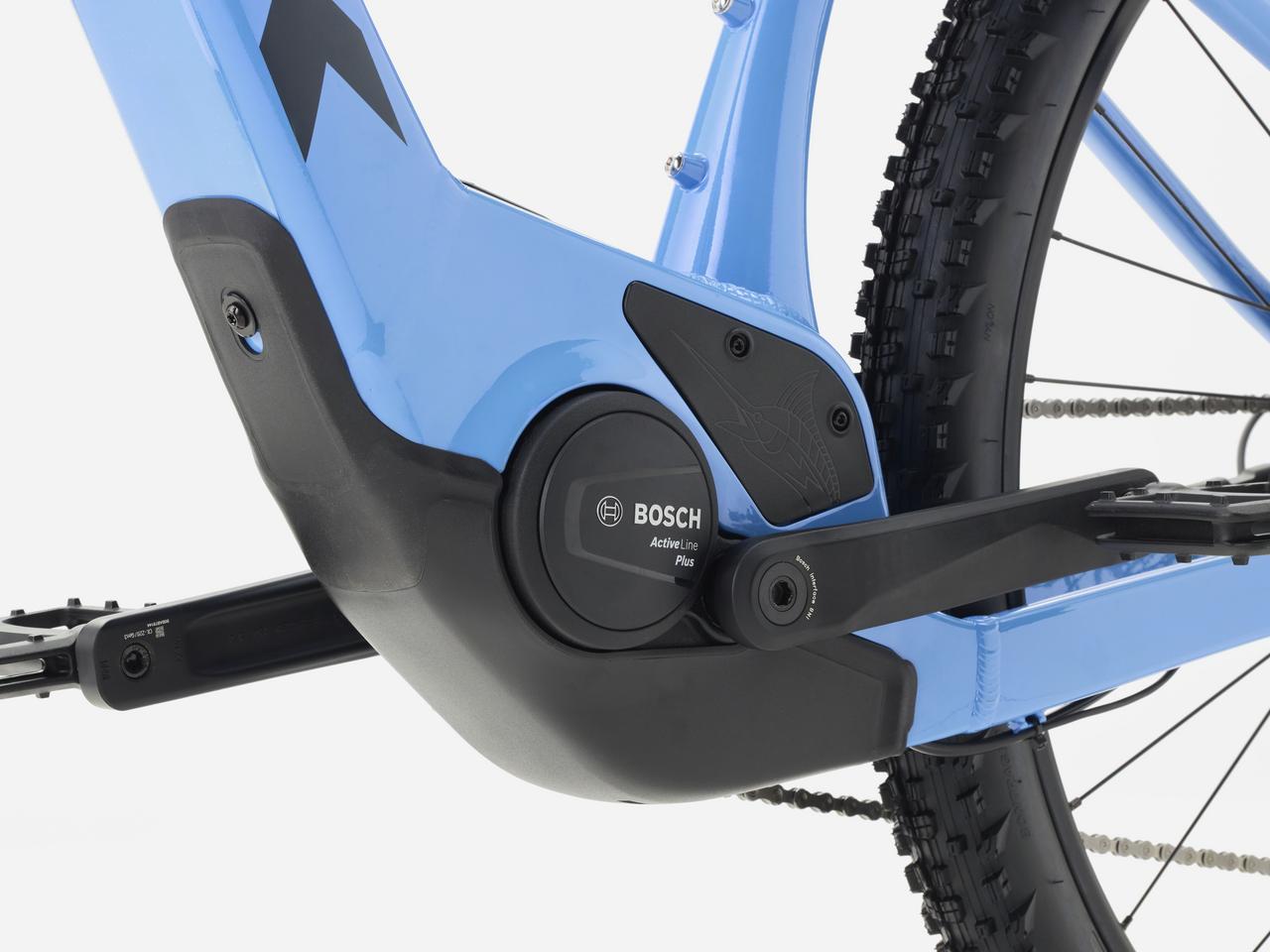

| Motor | Bosch Active Line Plus, 50 Nm |
| Battery | Bosch CompactTube 400Wh |
| E-Bike - Primary Battery Type | 400WH |
| Brake Type | Hydraulic disc |
| Brake Rotor | Tektro, centerlock, 203mm |
| Brake Rotor Size | Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer |

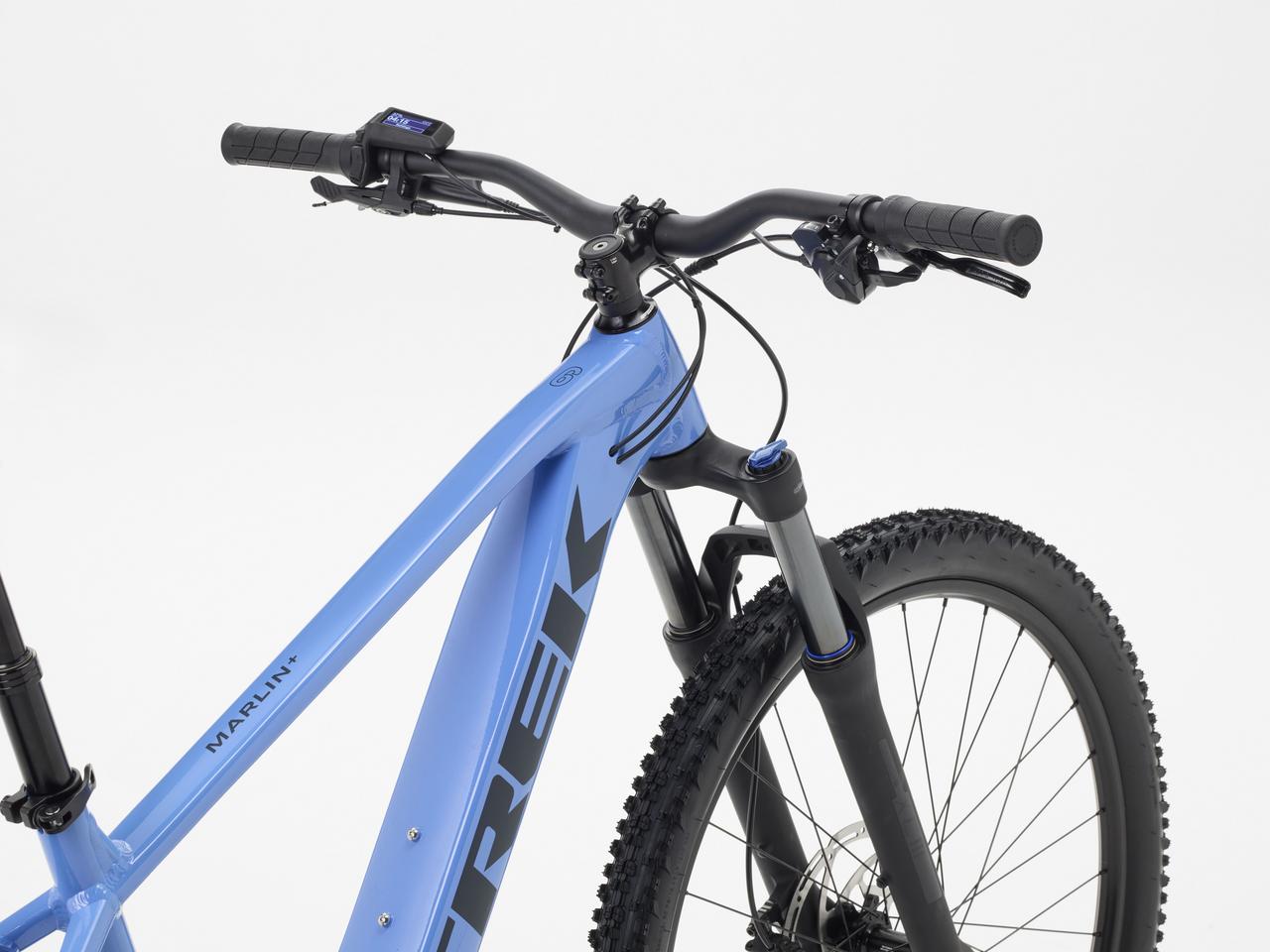

| Handlebar | Bontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width |
| Stem | Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length |
| Grips | Trek Line Comp, nylon lock-on |
| Pedals | VP-536 nylon platform |
| Saddle | Bontrager Verse P3, steel rails |
| Seatpost | TranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm length |
| Drivetrain - Brand | Shimano |

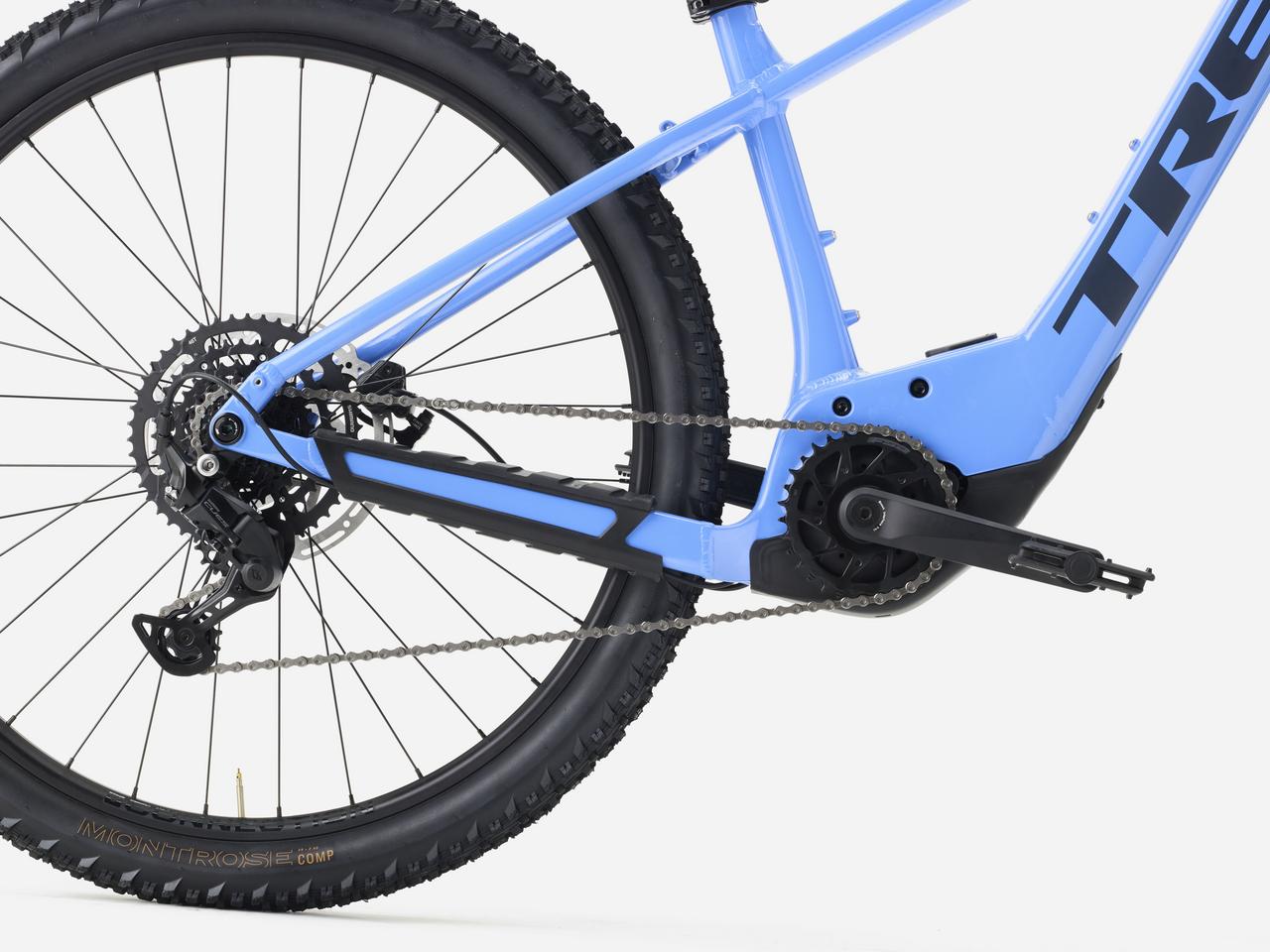

| Rear Derailleur | Shimano CUES U4000 |
| Crank | FSA CK-220, 165mm length |
| Shifter | Shimano U4000, 9 speed |
| Chainring | FSA, 32T, steel |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9 speed |
| Chain | Shimano LG500 |
| Fork - Brand | SR Suntour |
| Fork | SR Suntour XCM 34, air spring, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 120mm travel |
| Wheel Size | 29" |
| Tires | Bontrager Montrose Comp, wire bead, 30 tpi, 29x2.4'' |
| Hub - Front | Shimano TC500 alloy, centerlock, 110x15mm thru axle |
| Hub - Rear | Shimano TC500 alloy, centerlock, 148x12mm thru axle |
| Skewer - Rear | Bontrager Switch thru axle, removable lever |
| Rims | Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve |
| _shipping-groups | ACYP-ECY |
| Model Year | 2026 |
| BS Product Type | Bike |
| DG code | UN3481 |
