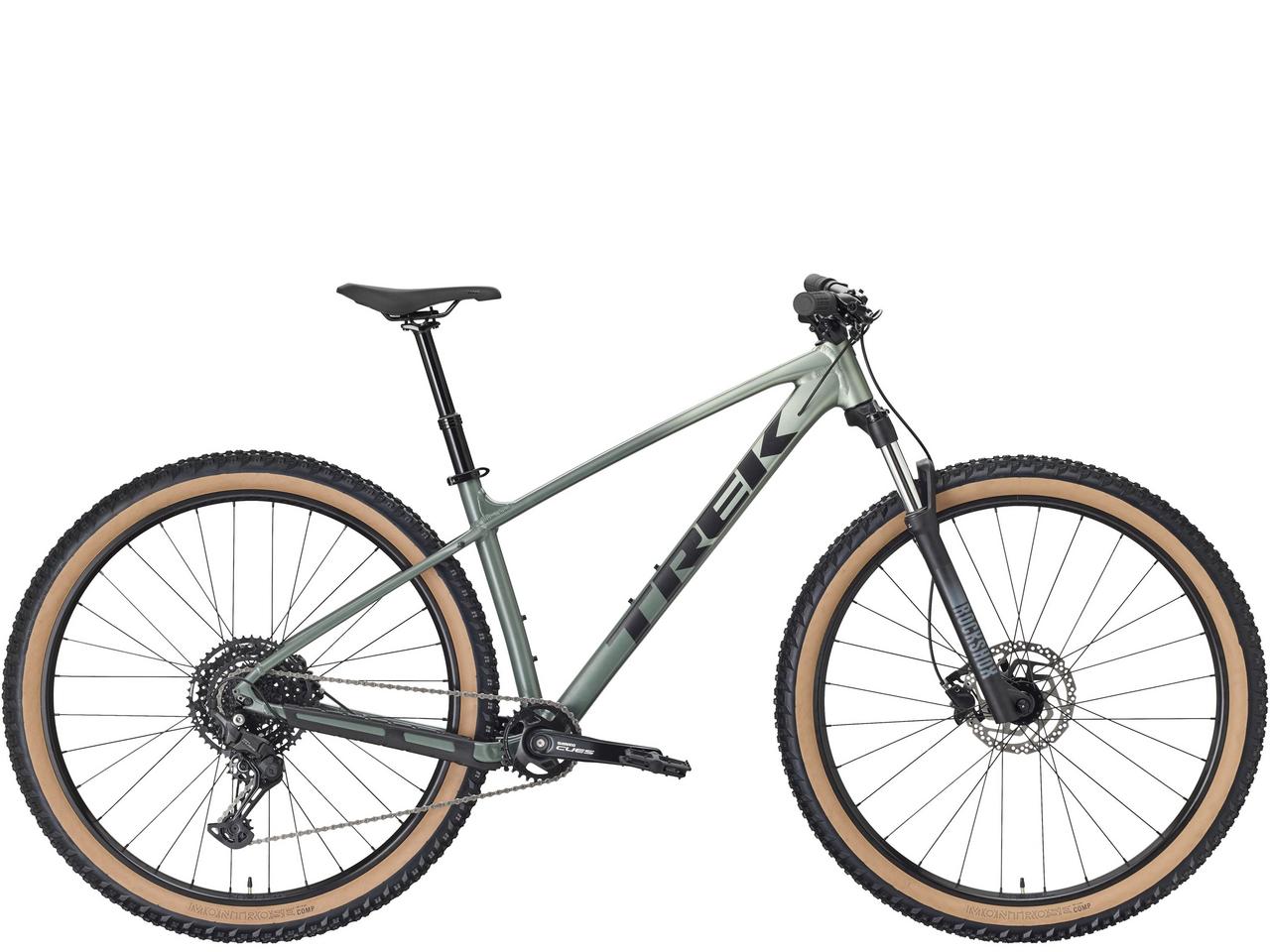

Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.
| SKU | Trek_57365 |
|---|---|

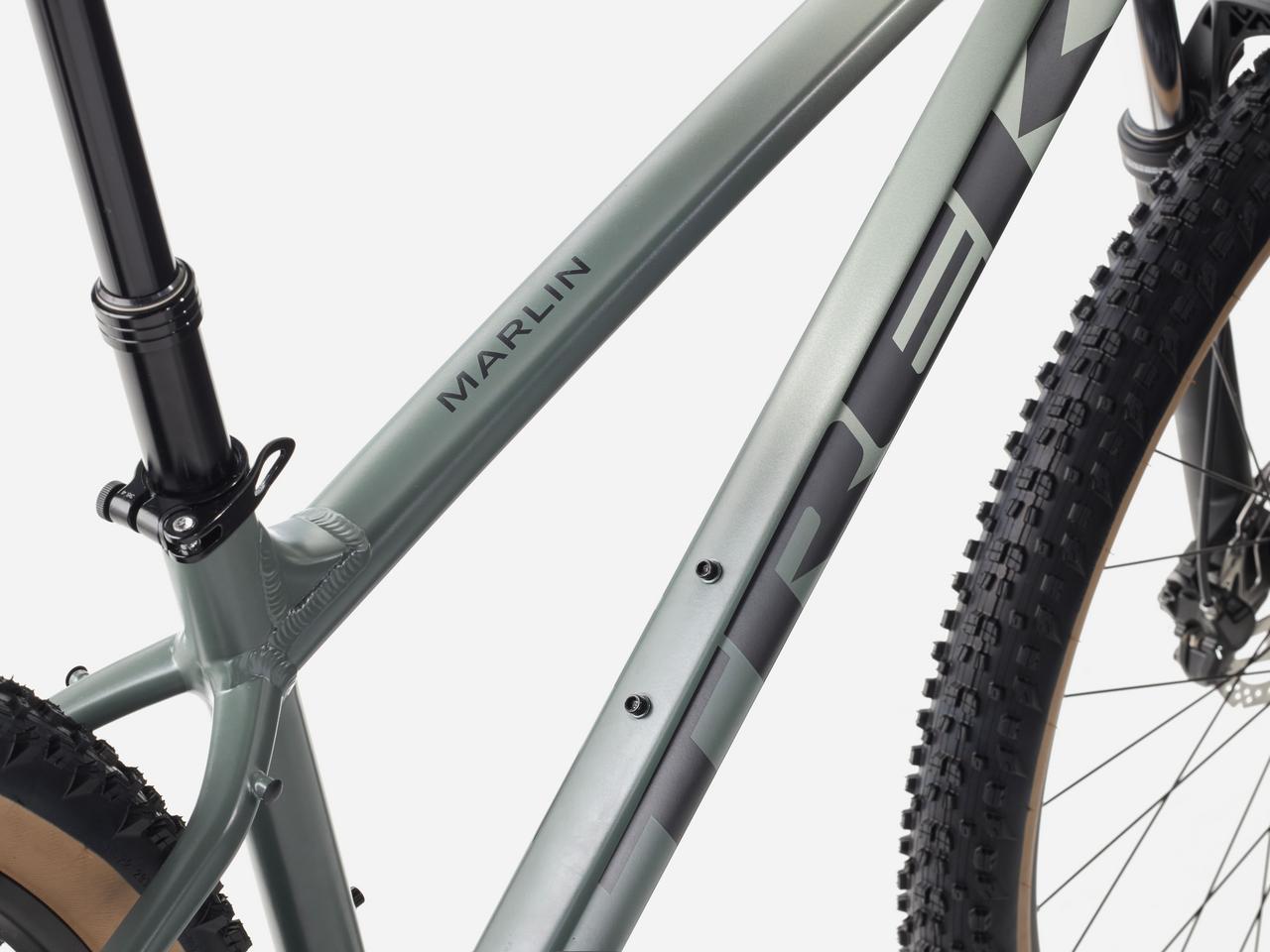

| Frame | Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew |
| Frame Material | Aluminum |
| Headset | Semi-integrated, 1-1/8" |
| Bottom Bracket | Shimano, 73mm, threaded cartridge, 122.5mm spindle |
| Weight as Spec'd | M - 15.00 kg / 33.07 lbs |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
| Brake - Brand | Shimano |
| Brake Type | Hydraulic disc |
| Brake | Shimano MT200 hydraulic disc |
| Brake Rotor | Shimano RT26, 6-bolt, 180mm // Shimano RT26, 6-bolt, 160mm |

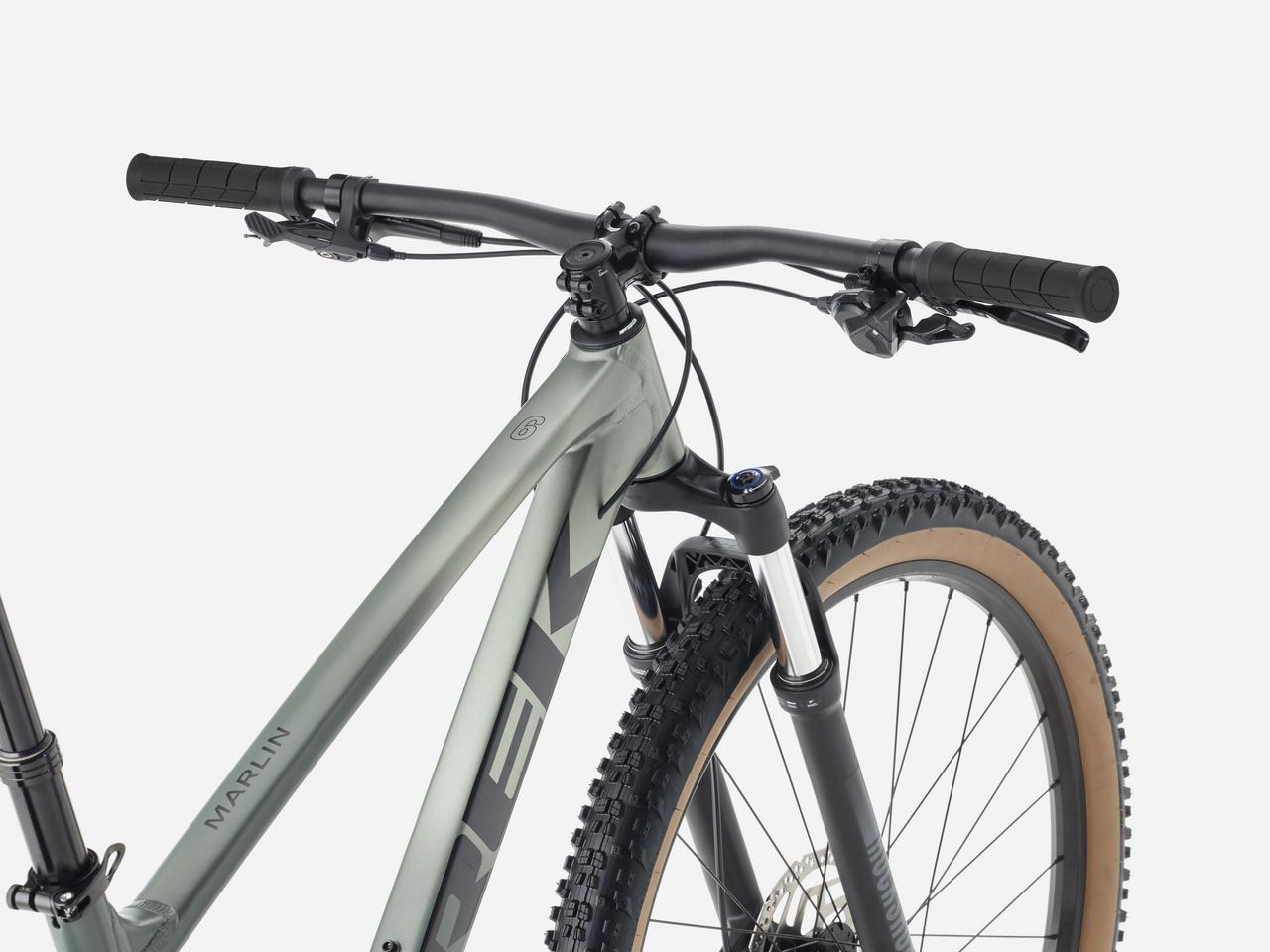

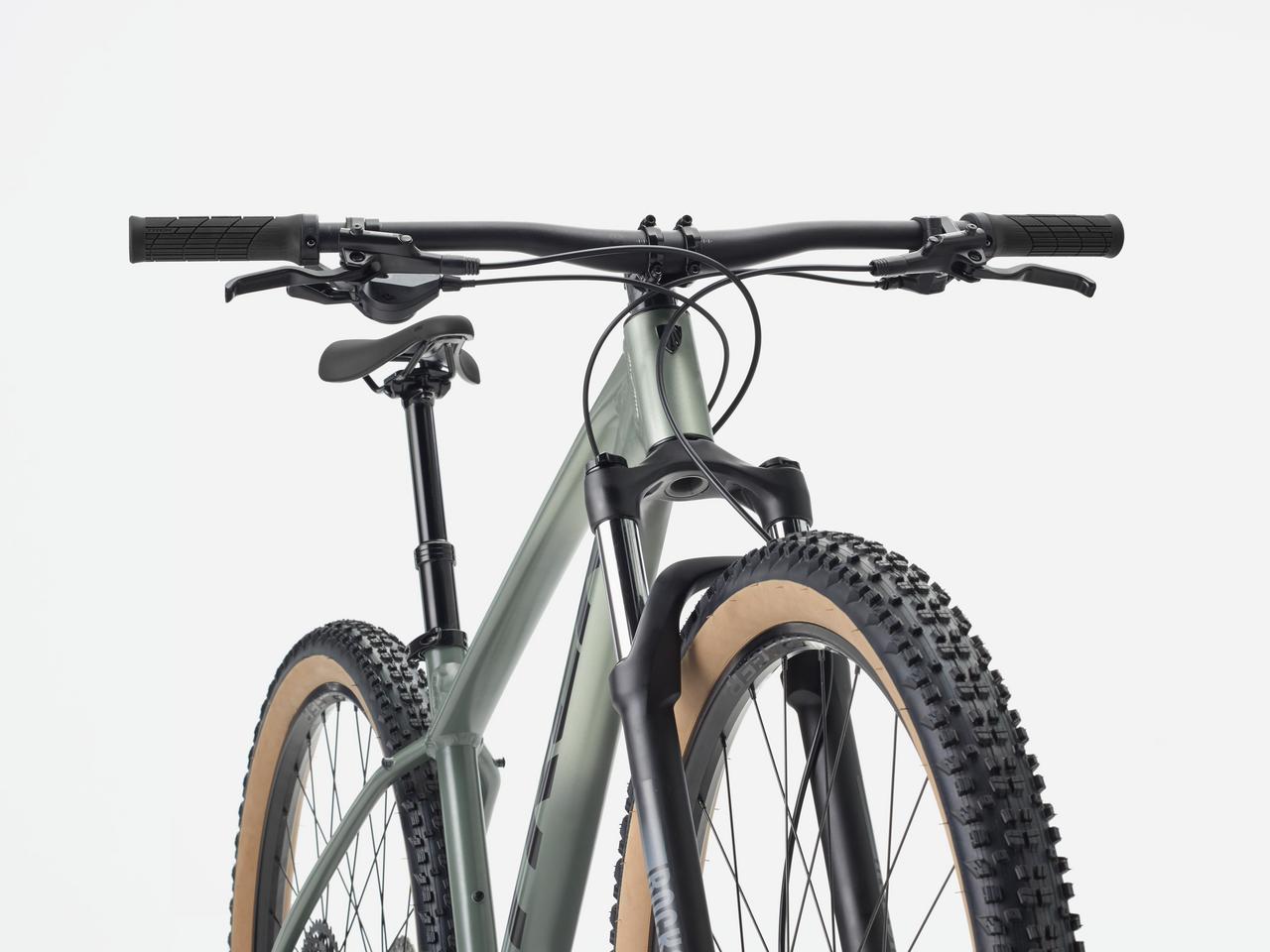

| Handlebar | Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| Stem | Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length |
| Grips | Trek Line Comp, nylon lock-on |
| Pedals | VP-536 nylon platform |
| Saddle | Bontrager Verse Short, stainless steel rails |
| Seat Collar | Bolt-on, 36.4mm |
| Seatpost | TranzX JD-YSI34, 125mm travel, internal routing, 31.6mm, 405mm length |
| Drivetrain - Brand | Shimano |

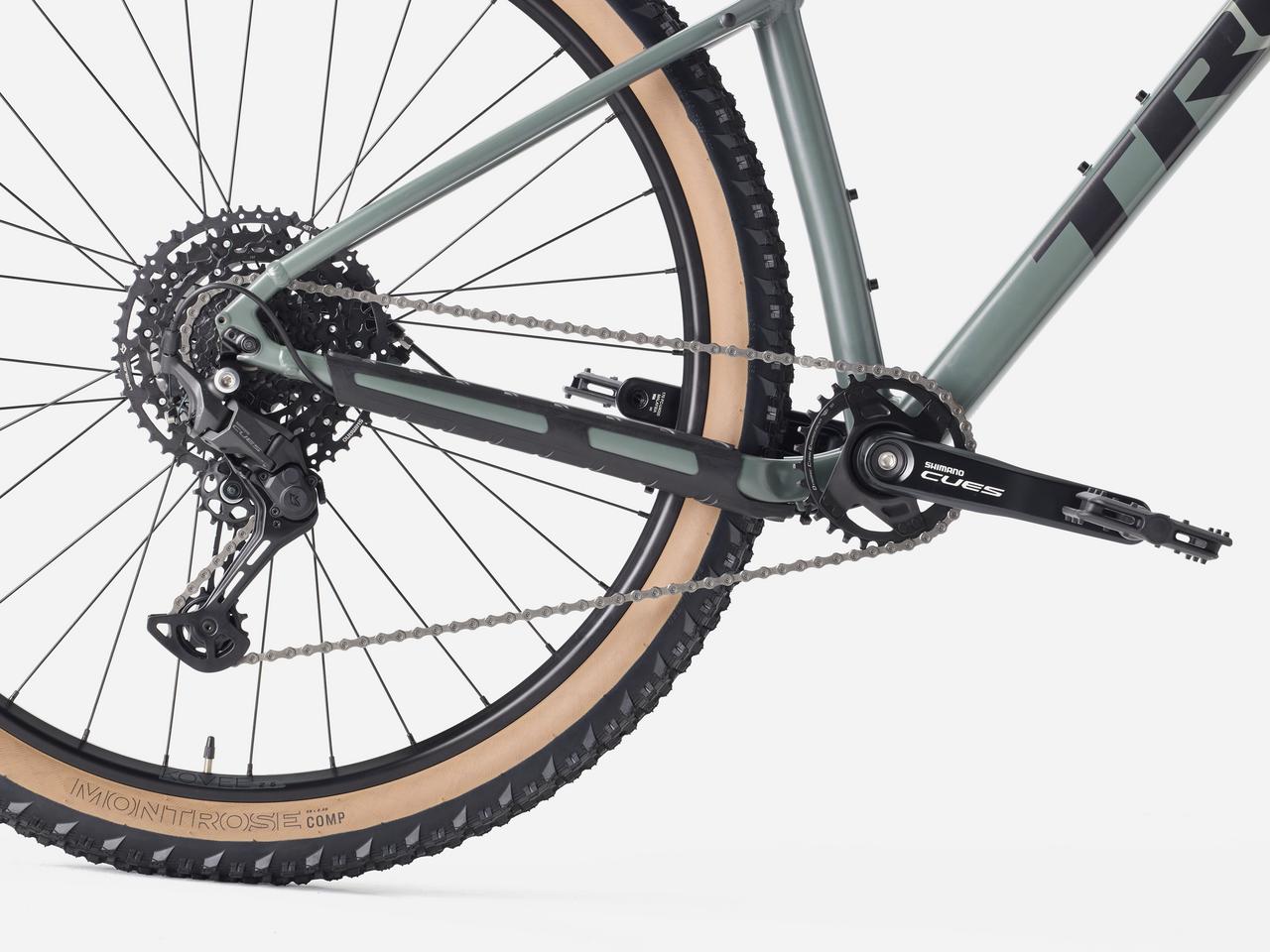

| Rear Derailleur | Shimano CUES U6000 GS |
| Crank | Shimano U4000, 30T chainring, 170mm length |
| Shifter | Shimano U6000, 10 speed |
| Cassette | Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed |
| Chain | Shimano LG500 |
| Fork - Brand | RockShox |
| Fork | RockShox Judy, coil spring, preload, TurnKey lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel |
| Wheel Size | 29" |
| Tires | Maxxis Rekon Race, tubeless ready, EXO casing, folding bead, 60tpi, 29x2.35" |
| Tire Size | 29x2.35" |
| Hub - Front | Formula DC-20, alloy, 6-bolt, 100 mm |
| Hub - Rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm |
| Skewer - Rear | 173x5mm QR |
| Rims | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve // Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, Presta valve |
| Rim Strip | Bontrager TLR |
| _shipping-groups | ACYPY-EPY-FPY |
| Model Year | 2026 |
| BS Product Type | Trail Hardtails |
