2026 | Checkpoint+ SL 5

$6,999.99
Available To Ship
Available For Pickup
View Store Details
Not Available
View Store Details
Low Stock
View Store Details

Product Info

Say yes to adventure with the Checkpoint+ SL electric gravel bike. No more stopping where the pavement ends. No more opting out of the scenic route. No mo' FOMO. Get all the tire clearance, mounts, and capability you need for long gravel adventures, plus an ultra-quiet, lightweight TQ motor with a natural-feeling 28mph assist to help you venture even farther. Plus, a carbon frame with IsoSpeed comfort tech helps you roll smoothly over the rough stuff.

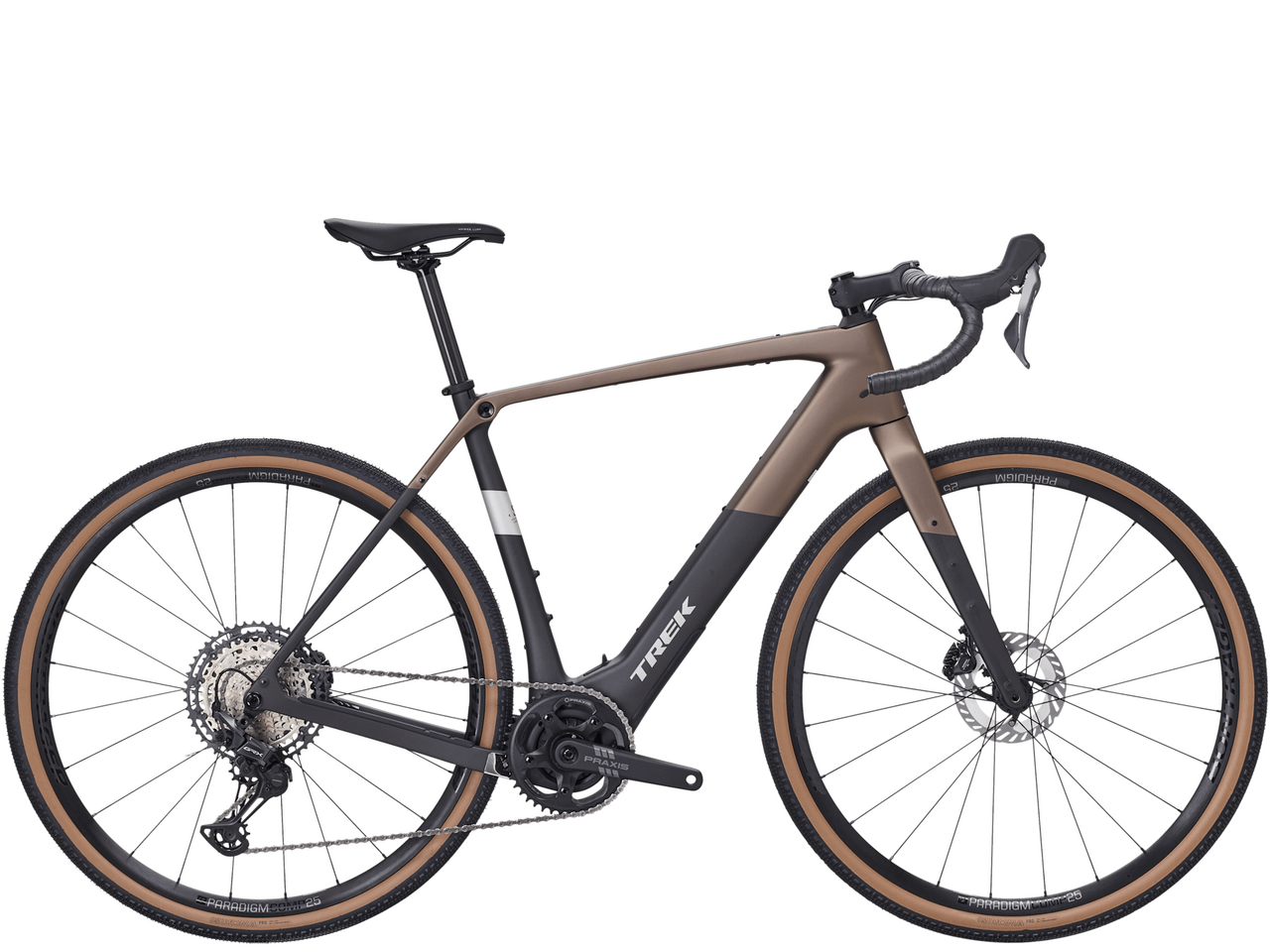

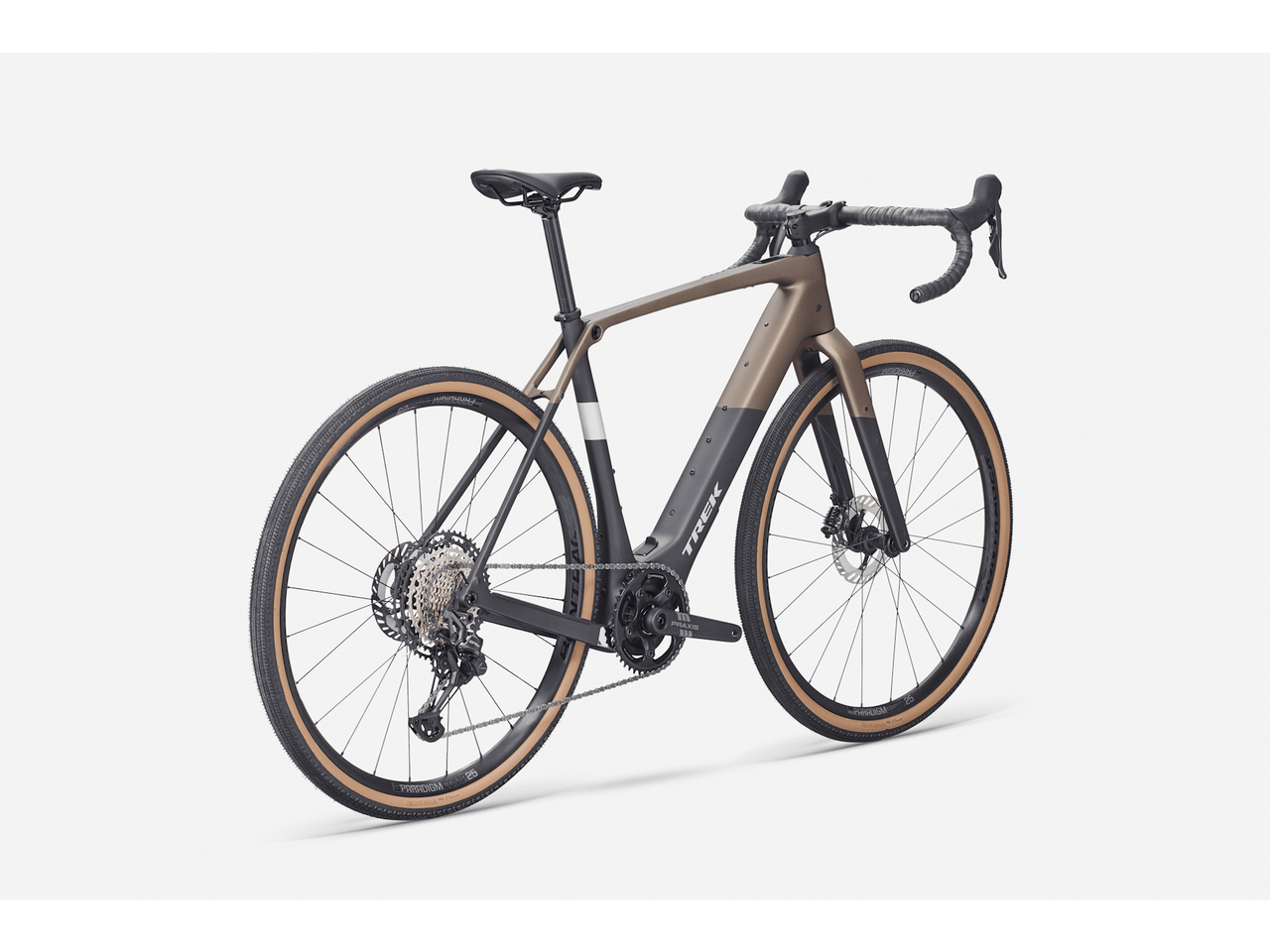

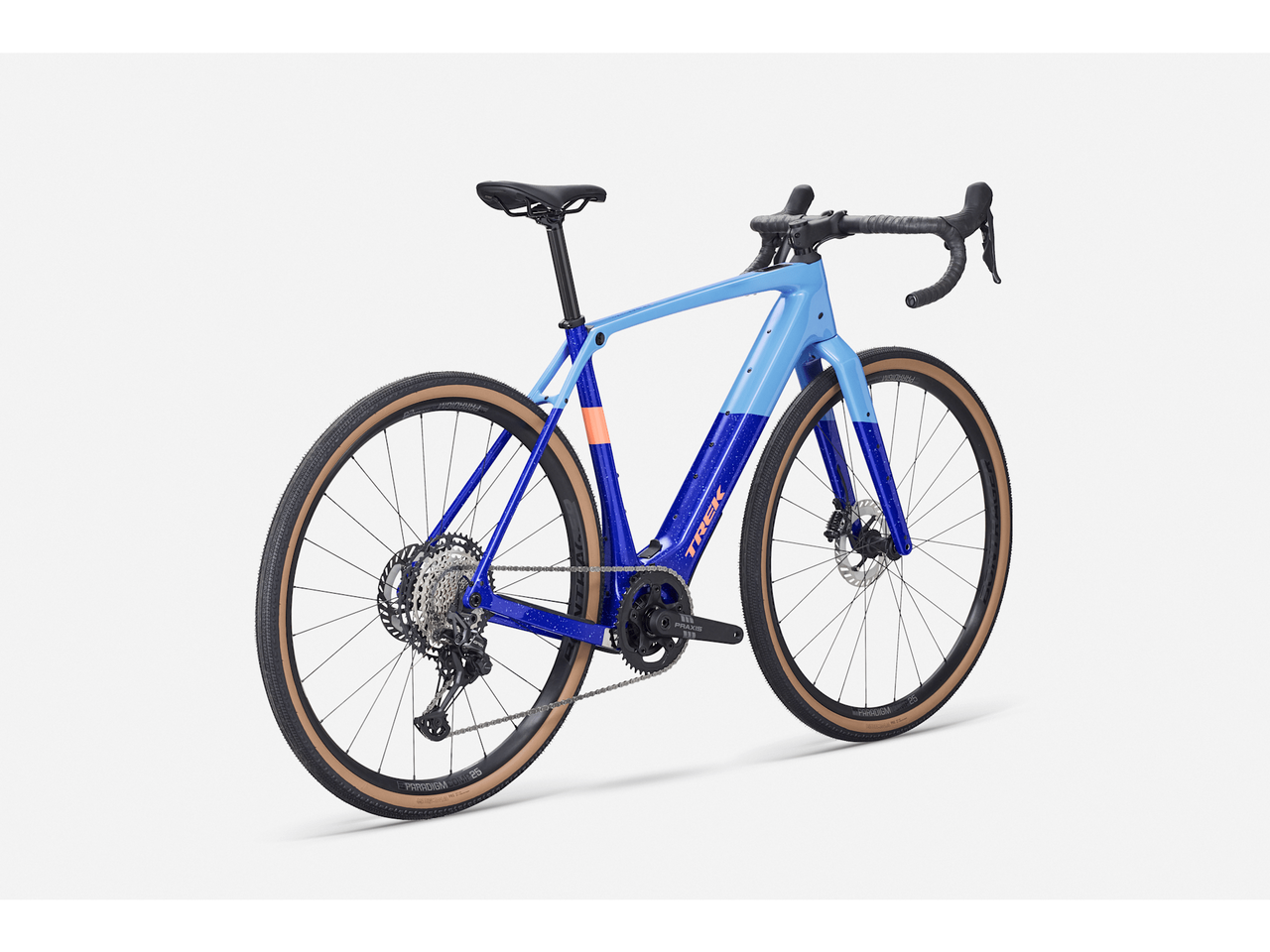

Checkpoint+ SL 5 is an electric gravel bike built to take you the distance. You get a TQ HPR60 motor with a smooth and quiet boost and a 360Wh battery that keeps going on your biggest rides. It comes ready to roll with an OCLV Carbon frame, durable alloy wheels, 12-speed Shimano GRX 1x shifting, and endurance geometry to keep you comfortable for the long haul

  • Frame 500 Series OCLV Carbon
  • Drivetrain Shimano GRX RX8020, 1x12
  • Wheels Bontrager Paradigm Comp 25, alloy
  • Weight ML - 13.81 kg / 30.45 lbs (with TLR sealant, no tubes)

  • Powerful and discreet e-systems

    Powerful and discreet e-systems

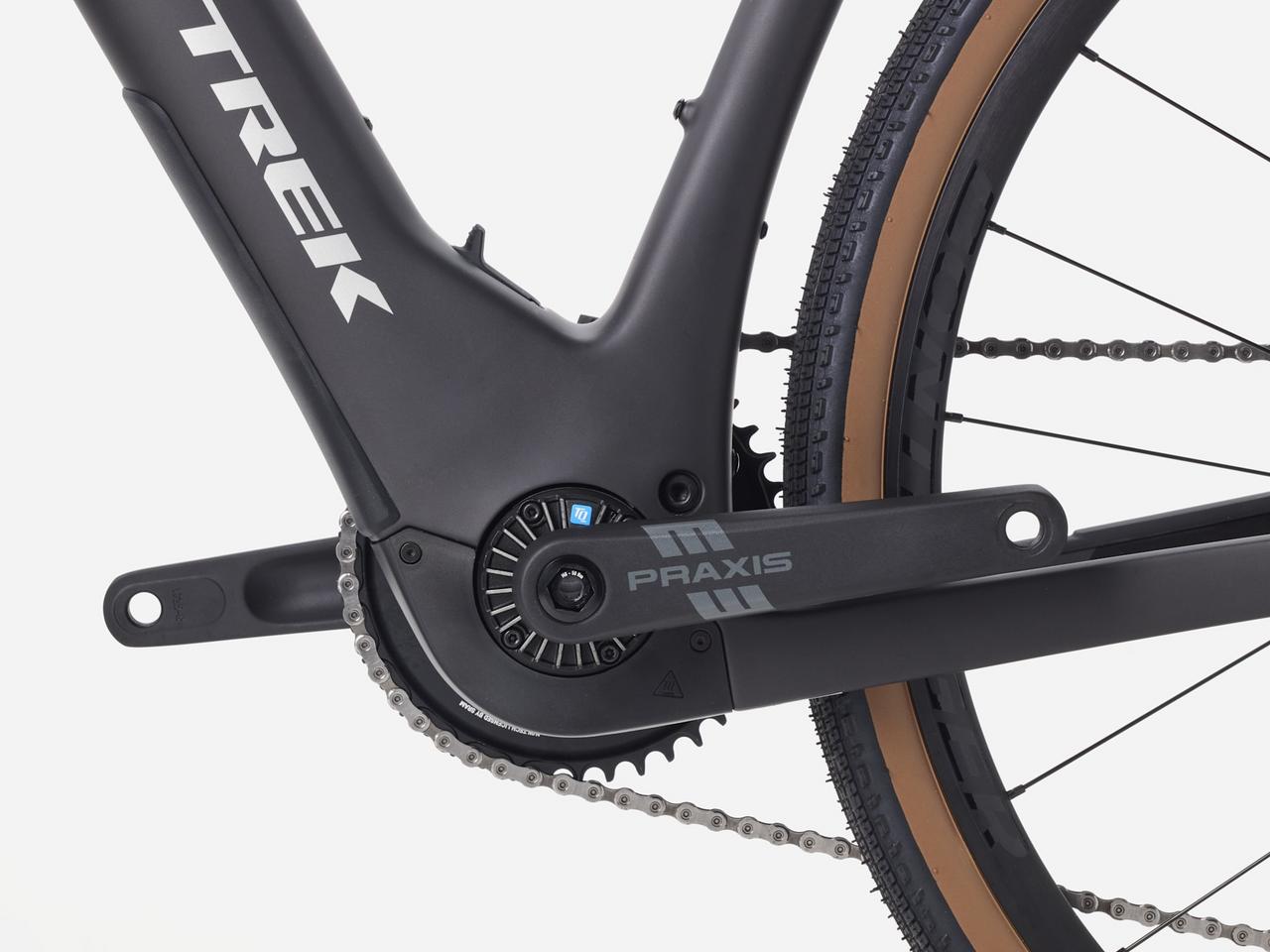

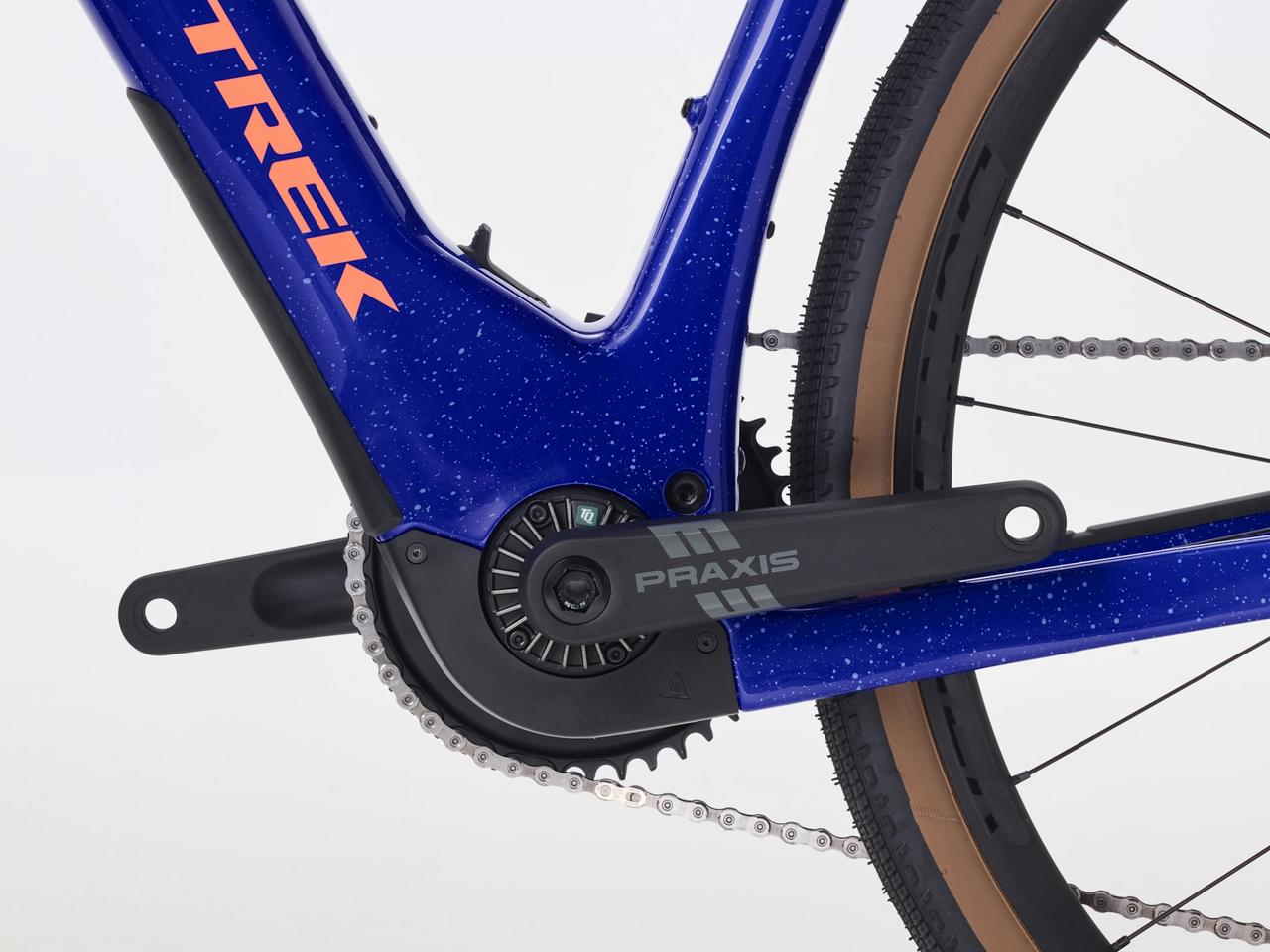

    The industry-leading TQ HPR 60 harmonic pin ring motor is super efficient with an amazing range-to-weight-to-speed ratio. It's ultra-compact, whisper-quiet, and offers a natural-feeling assist up to 28 mph with 50 miles of range (in eco mode). Plus, choose how much boost you get and when you get it with three assist modes.


    Optional Range Extenders

      Explore even farther with an optional 160Wh Range Extender that fits neatly in your bottle cage and gives you an extra 44% more range.


    Road-smoothing IsoSpeed

      IsoSpeed technology soaks up fatiguing bumps in the road so you can ride stronger longer.


    Relaxed Gravel Endurance geometry

      Confident and comfortable Gravel Endurance geometry puts you in a more relaxed upright riding position to tackle even the most epic, all-day adventures.


    Big ol' tire clearance

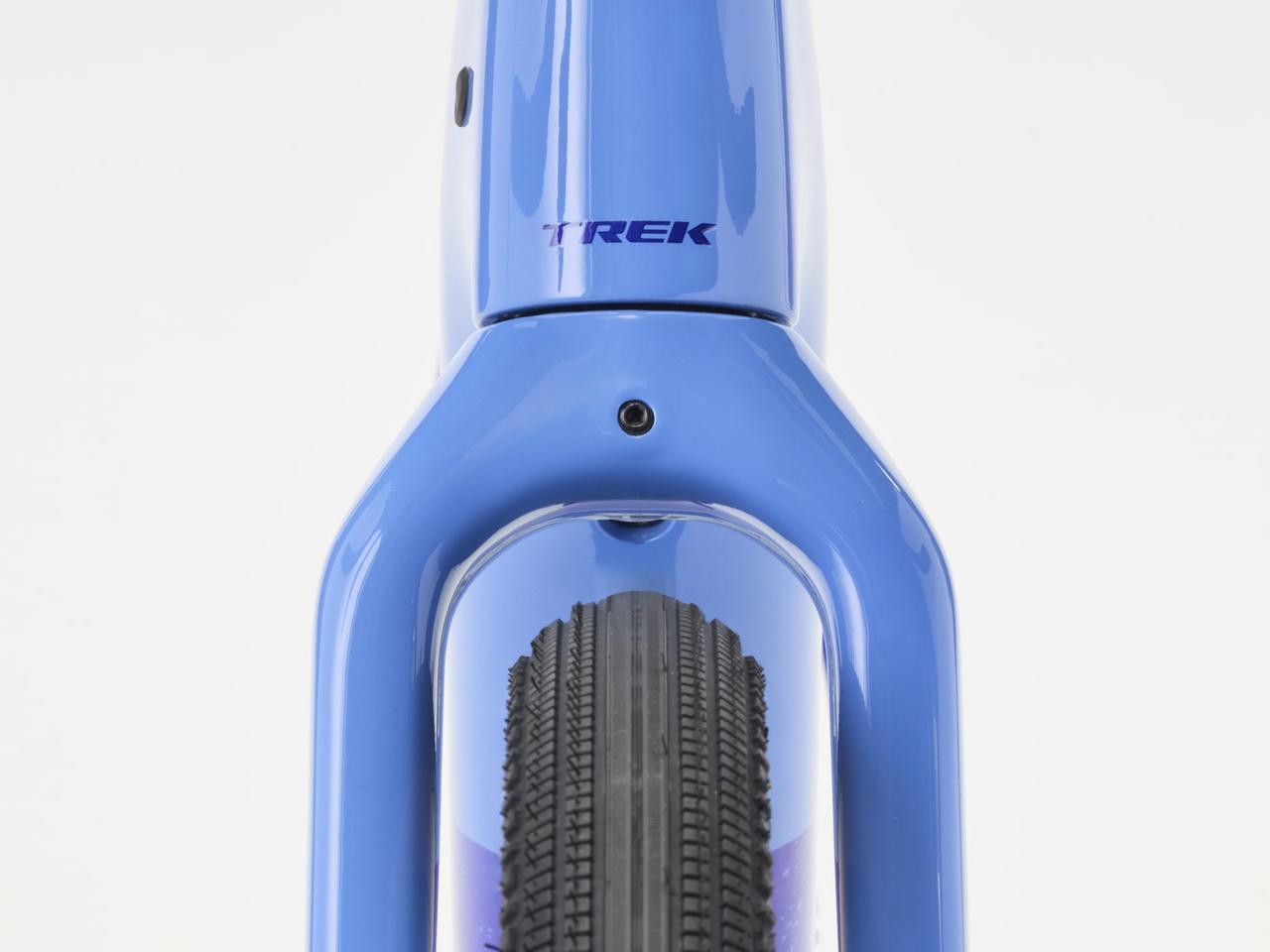

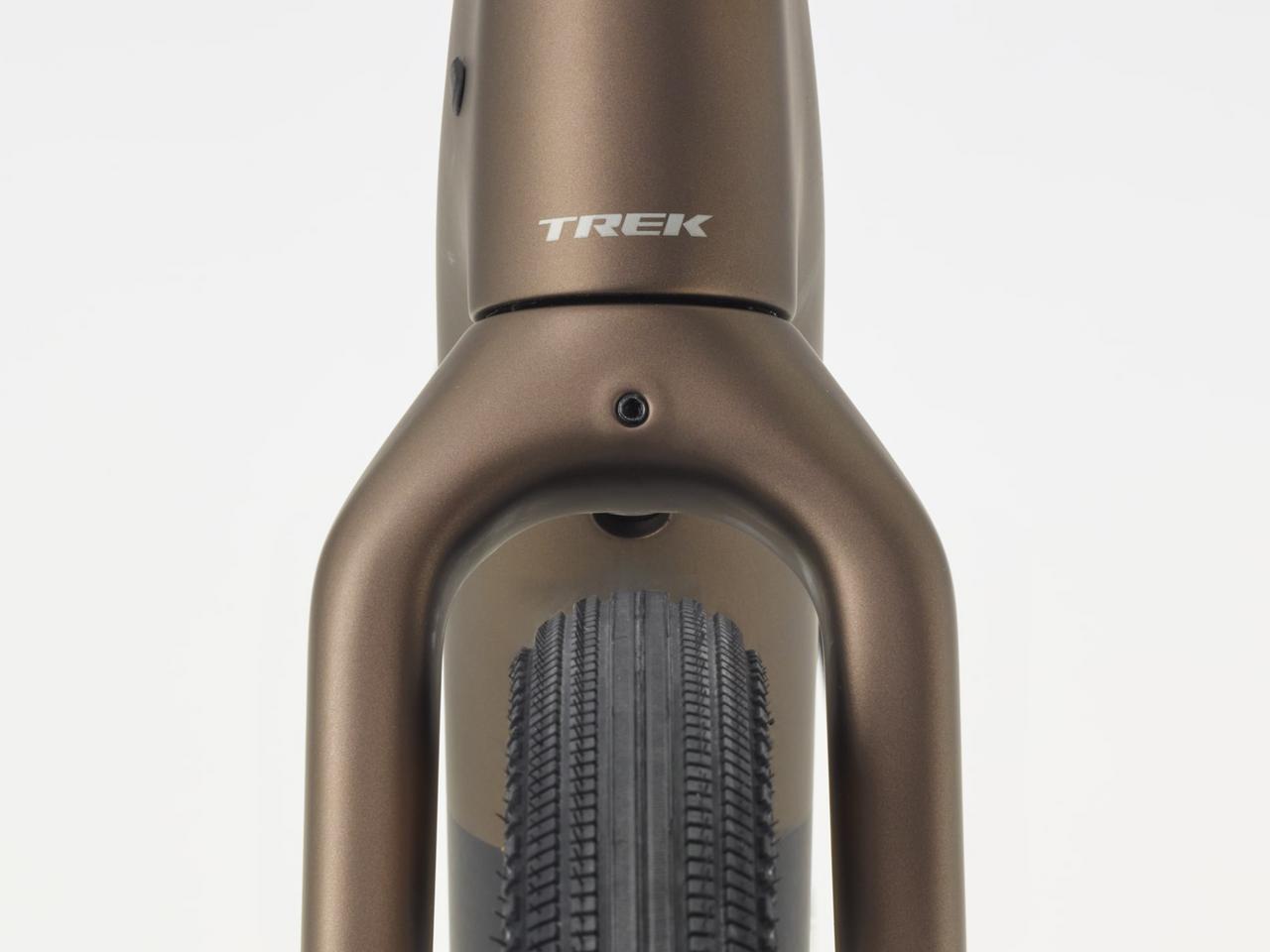

      Room for tires up to 50mm wide (as measured) lets you roll right over the big stuff.

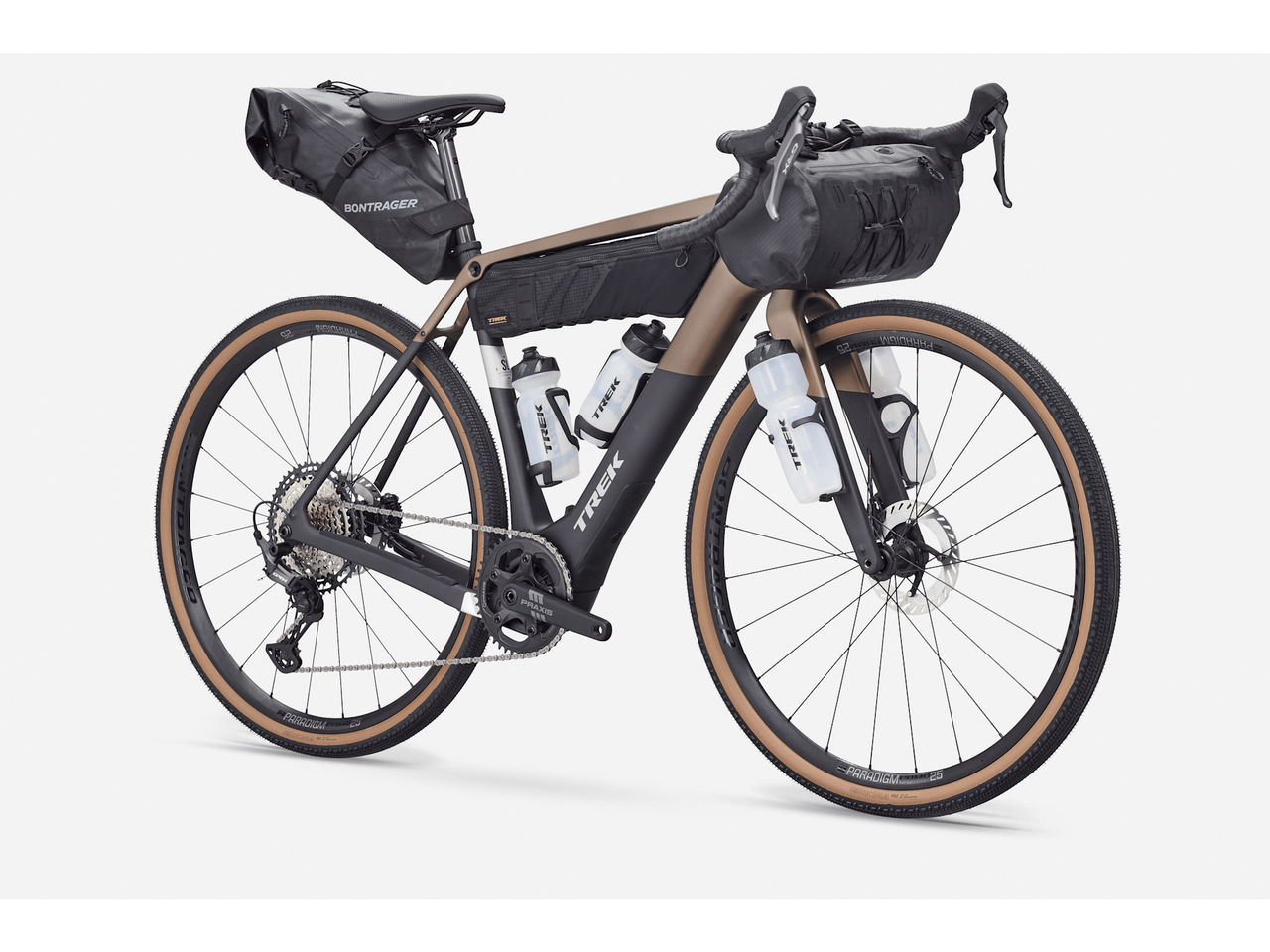

    Mounts to haul it all

      Carry everything you need with mounts on the frame and fork for front and rear racks, fenders, and Adventure Frame and Triangle Bags. Plus, Checkpoint+ was designed to fit extra hydration in additon to all your bags.

    SKU Trek | 2026 | Checkpoint+ SL 5
    Frame 500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle
    Weight as Spec'd ML - 13.81 kg / 30.45 lbs (with TLR sealant, no tubes)
    Weight Limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
    Motor TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
    Battery TQ 360Wh

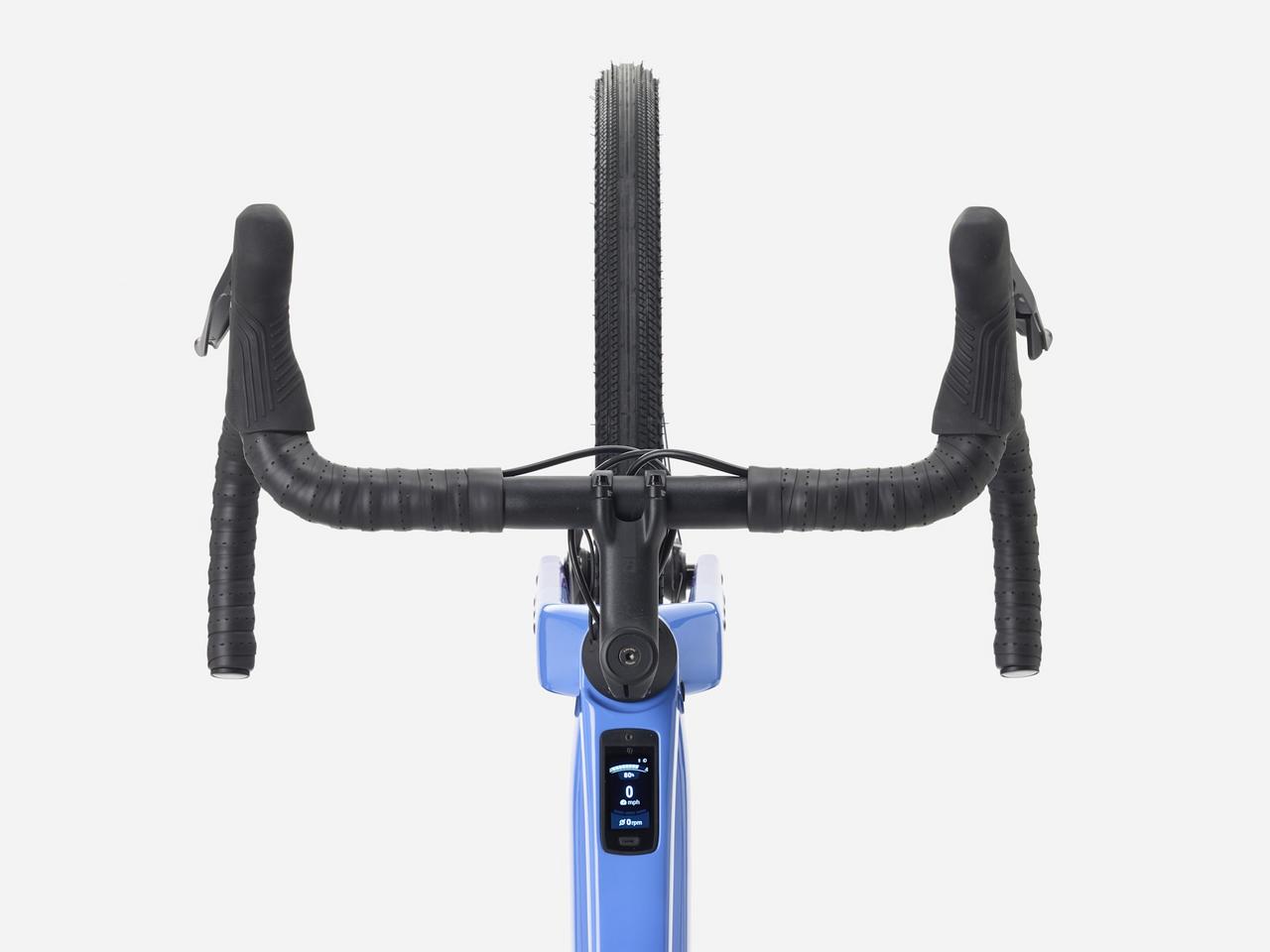

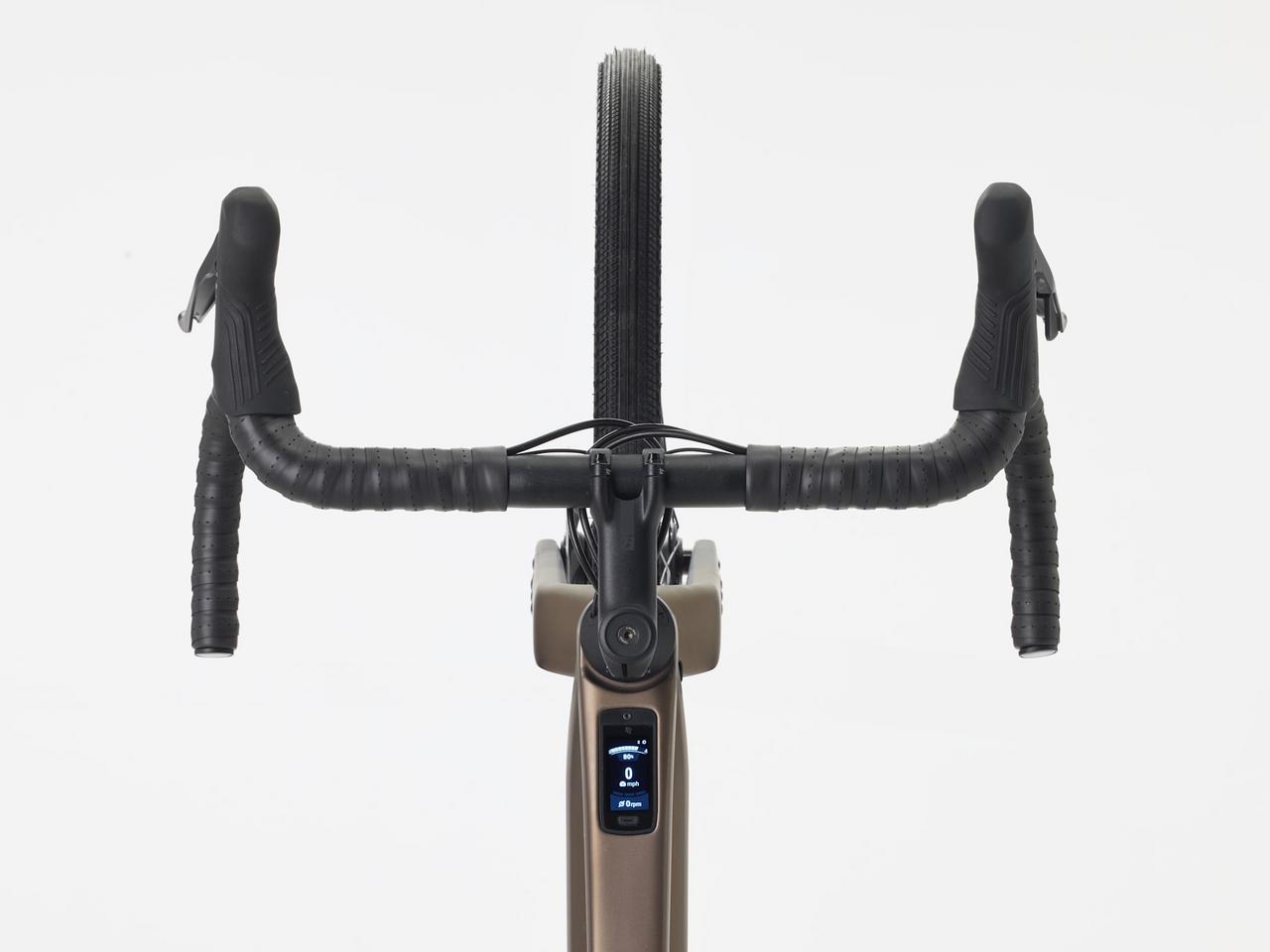

    Display TQ LED display with Bluetooth & ANT+ connectivity
    Brake Lever Shimano GRX RX820, 12 speed
    Brake Rotor Shimano CL800, centerlock, 160mm
    Brake Rotor Size Max brake rotor sizes: 180mm front & rear

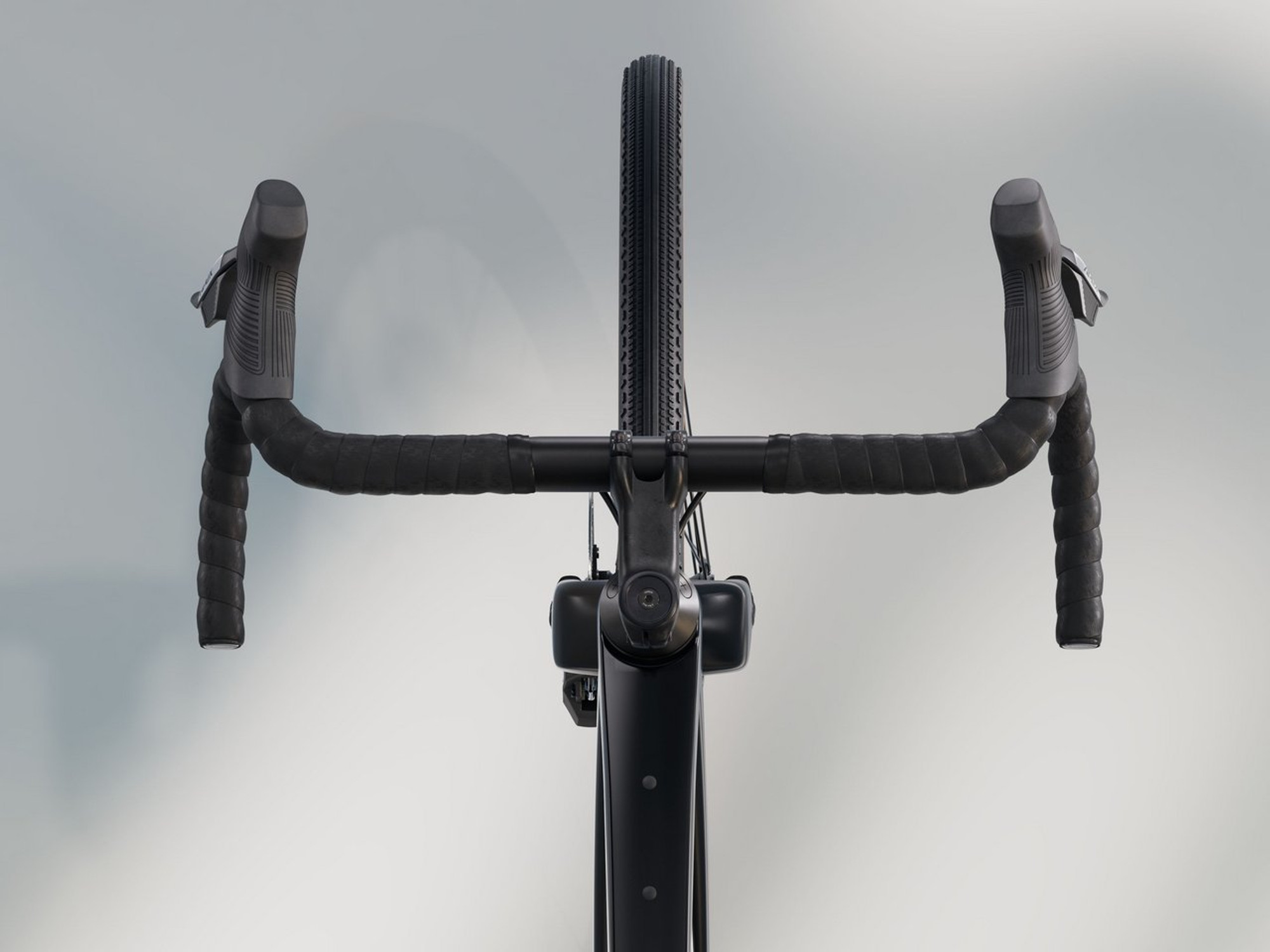

    Handlebar Size: XS, S Bontrager Elite Gravel, alloy, 40cm width | Size: M, ML Bontrager Elite Gravel, alloy, 42cm width | Size: L Bontrager Elite Gravel, alloy, 44cm width | Size: XL Bontrager Elite Gravel, alloy, 46cm width
    Stem Size: XS Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length | Size: S, M Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length | Size: ML, L Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length | Size: XL Bont
    Stem rager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
    Grips Bontrager Supertack Perf tape
    Saddle Verse Short Comp, steel rails, 145mm width
    Rear Derailleur Shimano GRX RX822, 51T max cog
    Crank Arm Size: XS, S Praxis Alloy, 165mm length | Size: M, ML Praxis Alloy, 170mm length | Size: L, XL Praxis Alloy, 172.5mm length
    Shifter Shimano GRX RX820, 12 speed
    Chainring Size - Max 1x: 44T
    Cassette Shimano XT M8100, 10-51, 12 speed
    Chain Shimano XT M8100, 12 speed
    Fork Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle
    Tire Size - Max 50mm without fenders, 42mm with fenders (as measured, see manual for details)
    Wheel - Front Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
    Wheel - Rear Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle
    Tires Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm
    Skewer - Front Bontrager Switch chamfered thru axle
    Skewer - Rear Bontrager Switch chamfered thru axle, removable lever
    _shipping-groups ACYP-ECY
    BS Product Type Gravel - Light Assist
    Discipline Gravel
    Model Year 2026
    DG code Yes
