Product Info

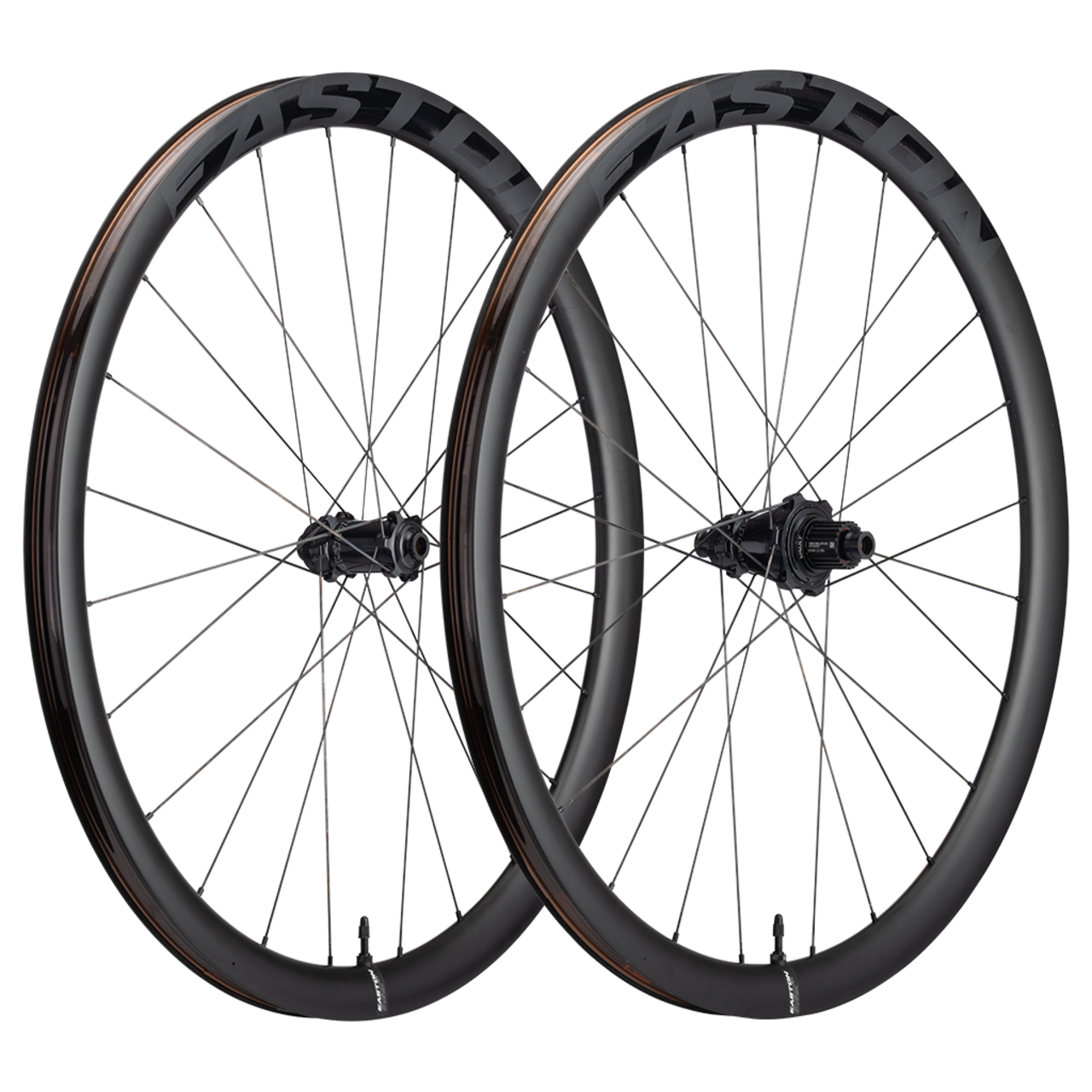

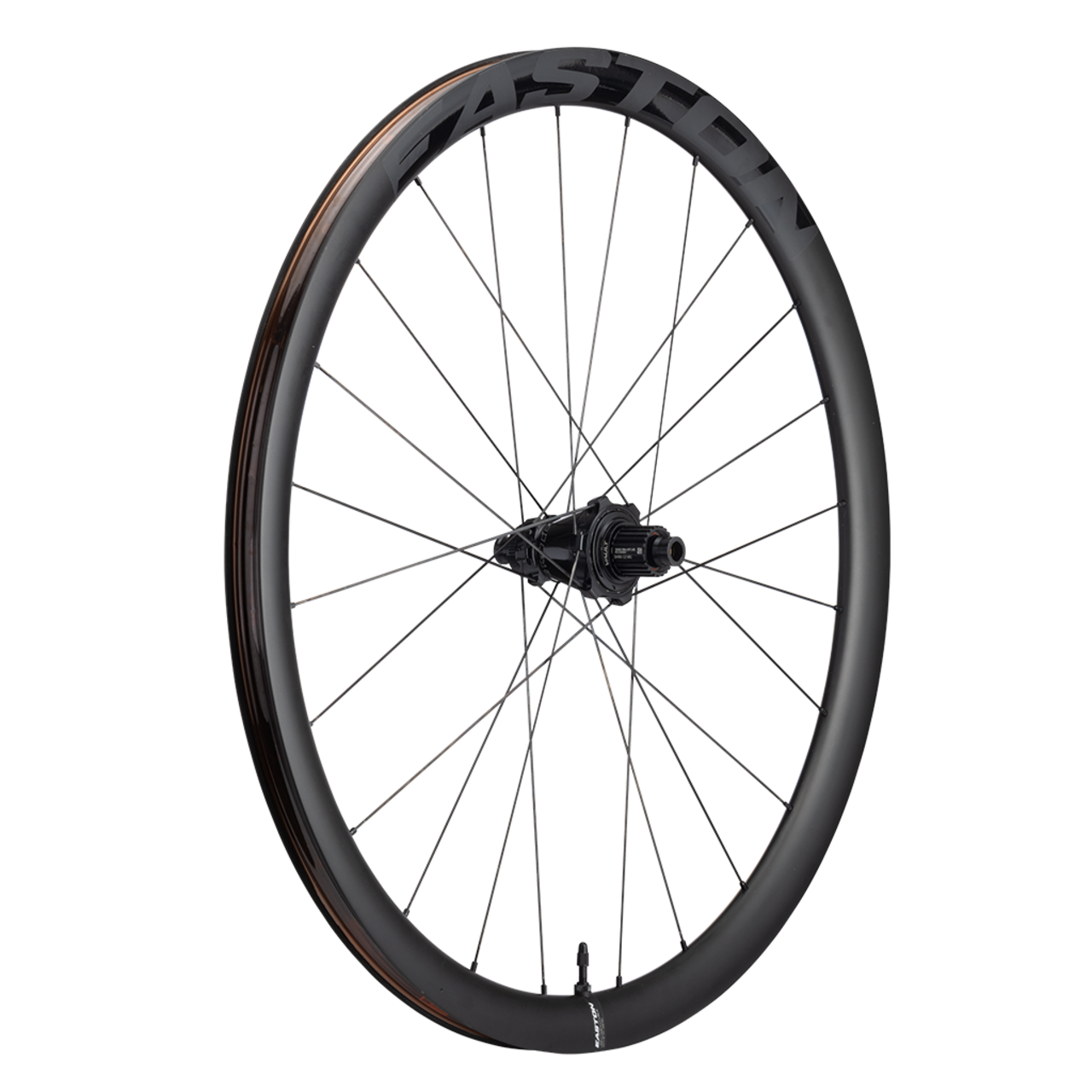

The EC90 ALX wheels offer an aero advantage to gravel riders in the pursuit of speed. Aerodynamics are of growing importance in gravel – riders are battling headwinds, washboard roads, and 10-hour+ days in the saddle. We set out to design an aerodynamic wheelset that struck a precise balance between rim depth and ride quality, with the goal of elevating gravel speed and experience. The EC90 ALX wheelset answers the aero needs of gravel riders. [Speci Tab] WHEELSET WEIGHT: 1495G(XDR, WITHOUT TAPE & VALVES) FINISH: MATTE CARBON/VINYL DECALS RIM TYPE: HOOKLESS TUBELESS READY RIM MATERIAL: CARBON RIM DEPTH: 36MM INTERNAL RIM WIDTH: 24MM EXTERNAL RIM WIDTH: 30MM SPOKES: SAPIM CX-RAY BLADED SPOKES BRAKING SURFACE: DISC/CENTERLOCK ROTOR MOUNT (MAX. 180MM) NIPPLE TYPE: EXTERNAL SECURE LOCK ALUMINUM HUB TYPE: EASTON VAULT CENTER-LOCK 12X100/12X142* ENGAGEMENT: 60 POINT/6° BEARING TYPE: SEALED CARTRIDGE BEARINGS TIRE COMPATIBILITY: 700C/30-53C INCLUDES: EASTON TUBELESS TAPE & VALVES, EXTRA REAR SPOKES [/Speci Tab] [feature Tab] We carefully selected a 36mm rim depth to yield a clear aerodynamic benefit over shallower rims, while avoiding drawbacks of added weight, rougher ride quality, and crosswind-fueled instability. Paired with a 24mm internal rim width, we created a rim shape optimized for aerodynamic advantage using gravel tires. Sapim cx-ray bladed spokes lace these rims to our durable and quick-engaging Easton vault hubs. These wheels are light, comfortable, fast and protected by our lifetime warranty. Aero for gravel, without compromise. [/feature Tab] [Manuals Tab] Rim Pressure Guide Vault Hub Diagram - Front, 516 Vault Hub Diagram - Rear, 525 Vault Hub Codes [/Manuals Tab]
