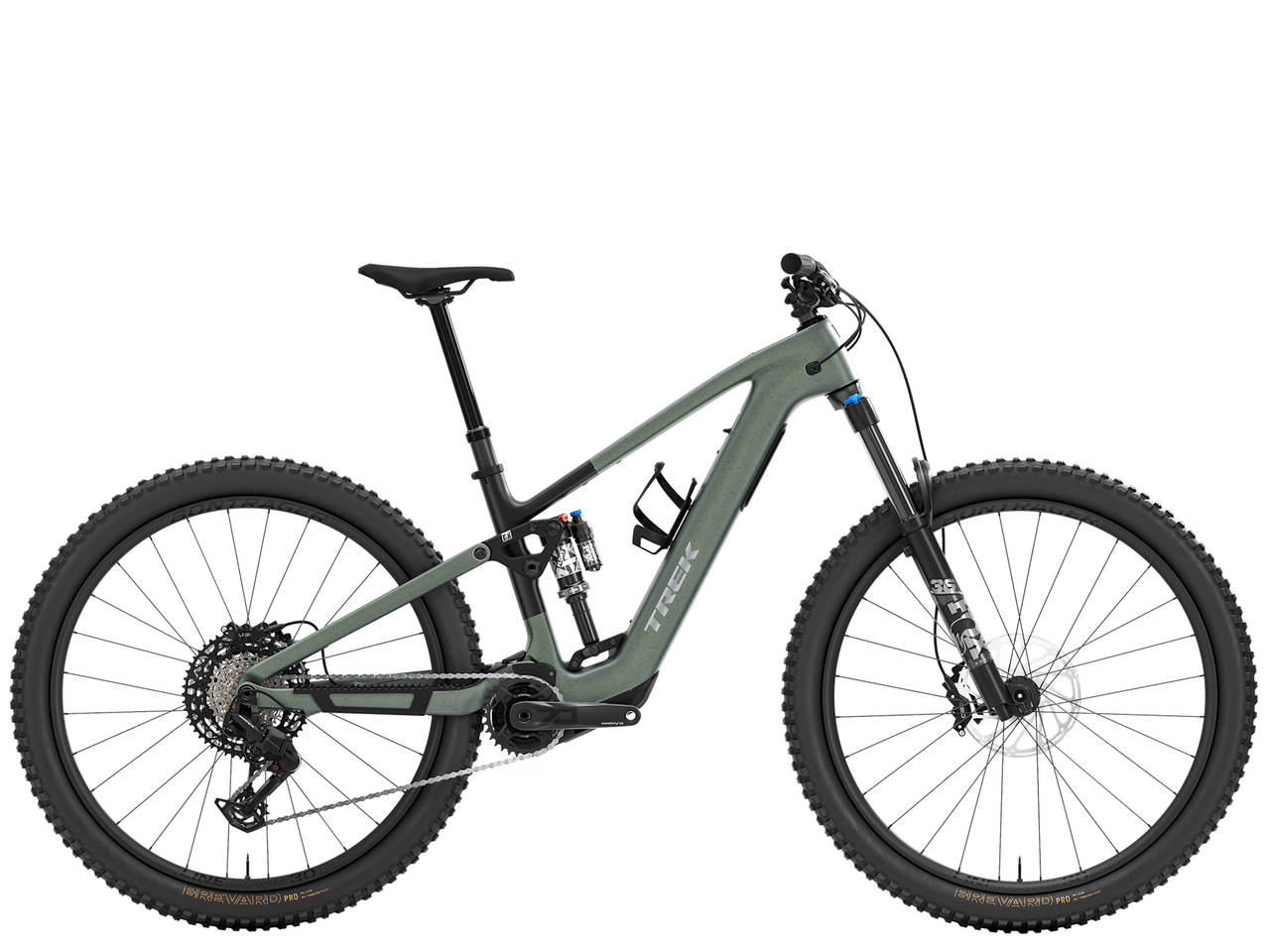

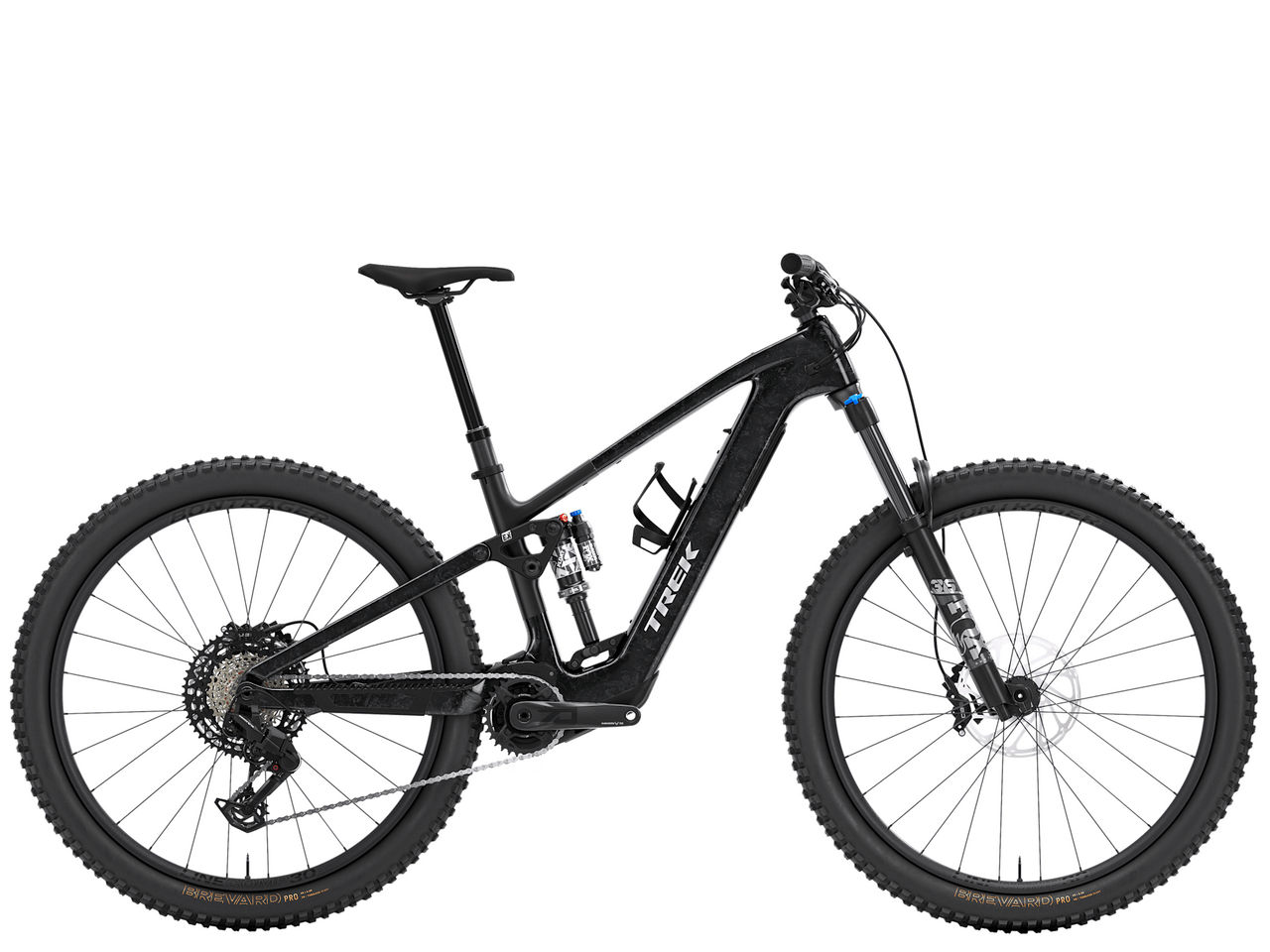

Fuel+ EX 9.7 is a carbon e-MTB that packs in adaptability for any kind of trail and any style of riding. It's equipped with the smooth and quiet boost of TQ's HPR60 motor with a 580Wh battery for bigger rides. You get the perfect balance of price and performance, with components like a Fox Rhythm 36 fork, Fox Performance Float X shock, SRAM Eagle T-Type shifting, and a Bontrager Line dropper post.
| SKU | TREK | Fuel + EX 9.7 |
|---|---|
| Size | Large |
| Frame | OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable trav |
| Frame | el 145mm-160mm |
| Headset | FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown |
| Weight as Spec'd | M - 19.73 kg / 43.5 lbs (with TLR sealant, no tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
| Motor | TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power |
| Battery | TQ 580Wh |
| Controller | TQ LED display with Bluetooth & ANT+ connectivity |
| Brakeset | SRAM DB 8 4-piston hydraulic disc |
| Brake Rotor | SRAM Centerline 2.0, 6-bolt, 200mm |
| Handlebar | Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width |
| Stem | Bontrager Elite, 35mm, 0 degree, 45mm length |
| Grips | Trek Line Elite, lock-on |
| Saddle | Bontrager Verse P3, chromoly rails |
| Rear Derailleur | SRAM Eagle 70, T-Type |
| Crank Arm | SRAM EAGLE 70, 160mm length |
| Shifter | SRAM Eagle 70, 12 speed |
| Chainring | SRAM T-Type, 32T, alloy |
| Cassette | SRAM Eagle XS-1270, T-Type,10-52, 12 speed |
| Chain | SRAM Eagle 70, T-Type, 12 speed |
| Fork | Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel |
| Shock | Fox Performance Float X, 2-position damper, 205mm x 60mm |
| Wheel Size | 29" |
| Tires | Size: S, XL, L, M, XXL Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" Size: S Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50" |
| Hub - Front | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
| Hub - Rear | Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12mm thru axle |
| Rims | Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve |
| _shipping-groups | Restricted |
| Discipline | Mountain |
| BS Product Type | Trail Light Assist |
