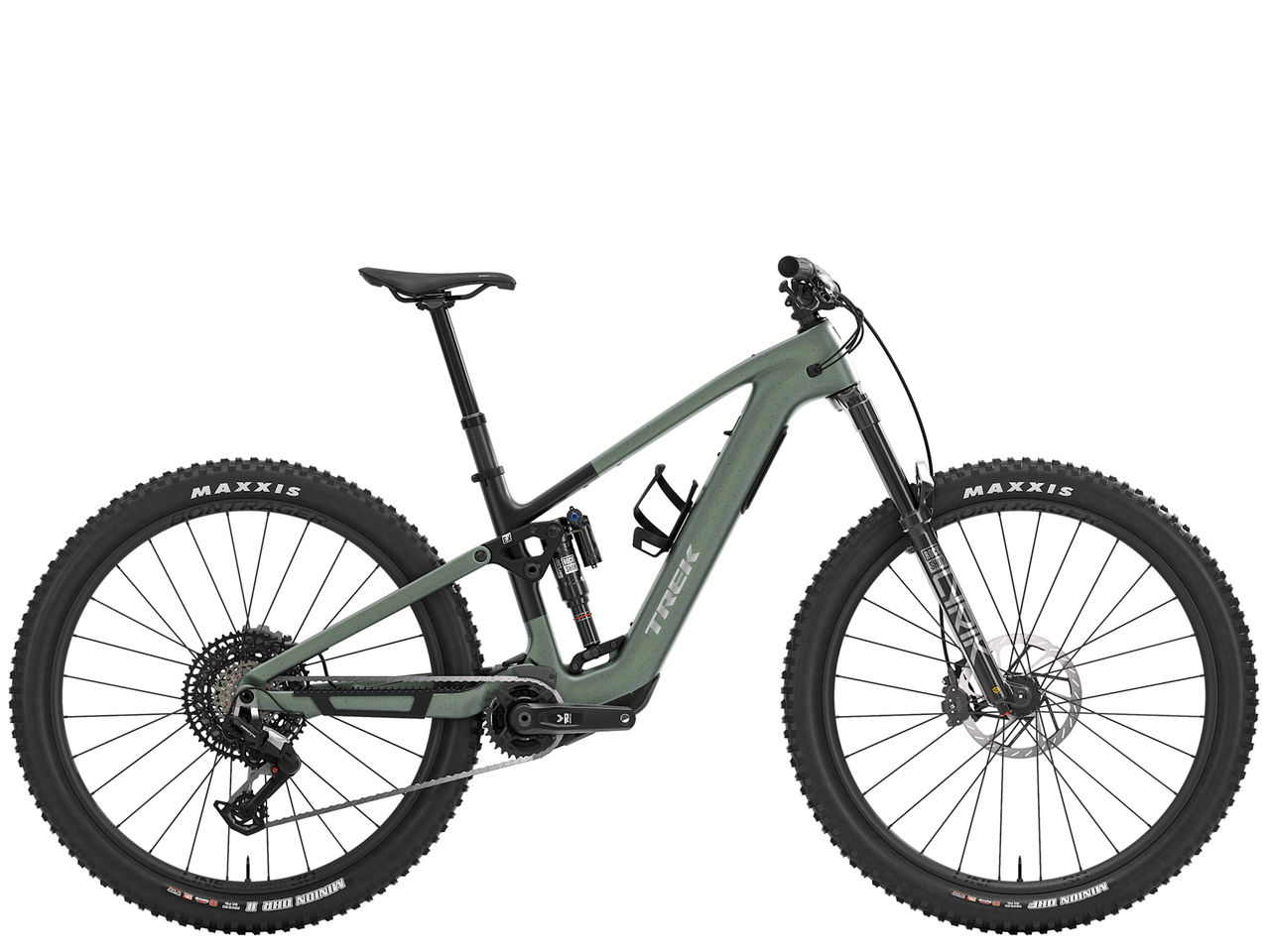

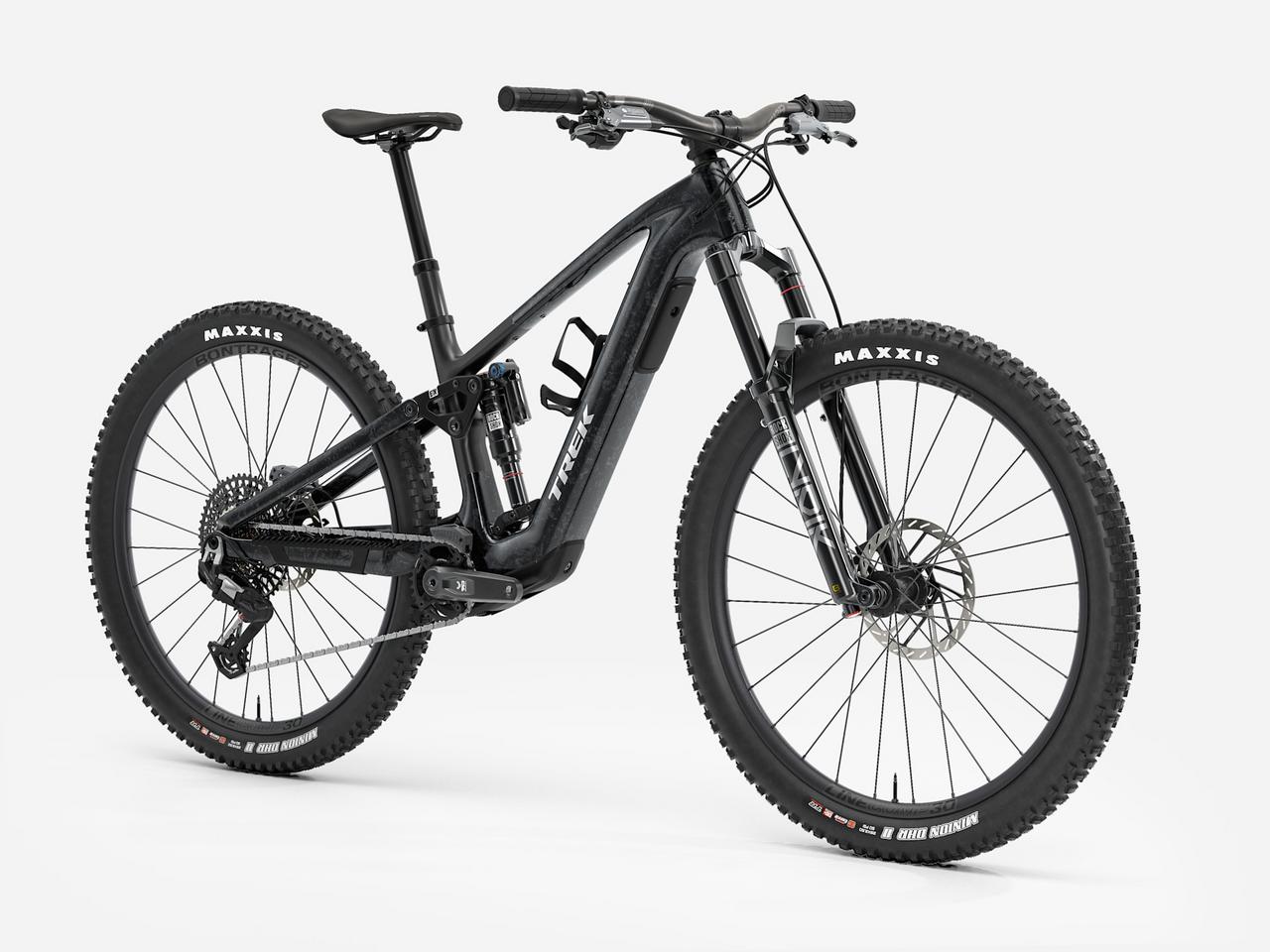

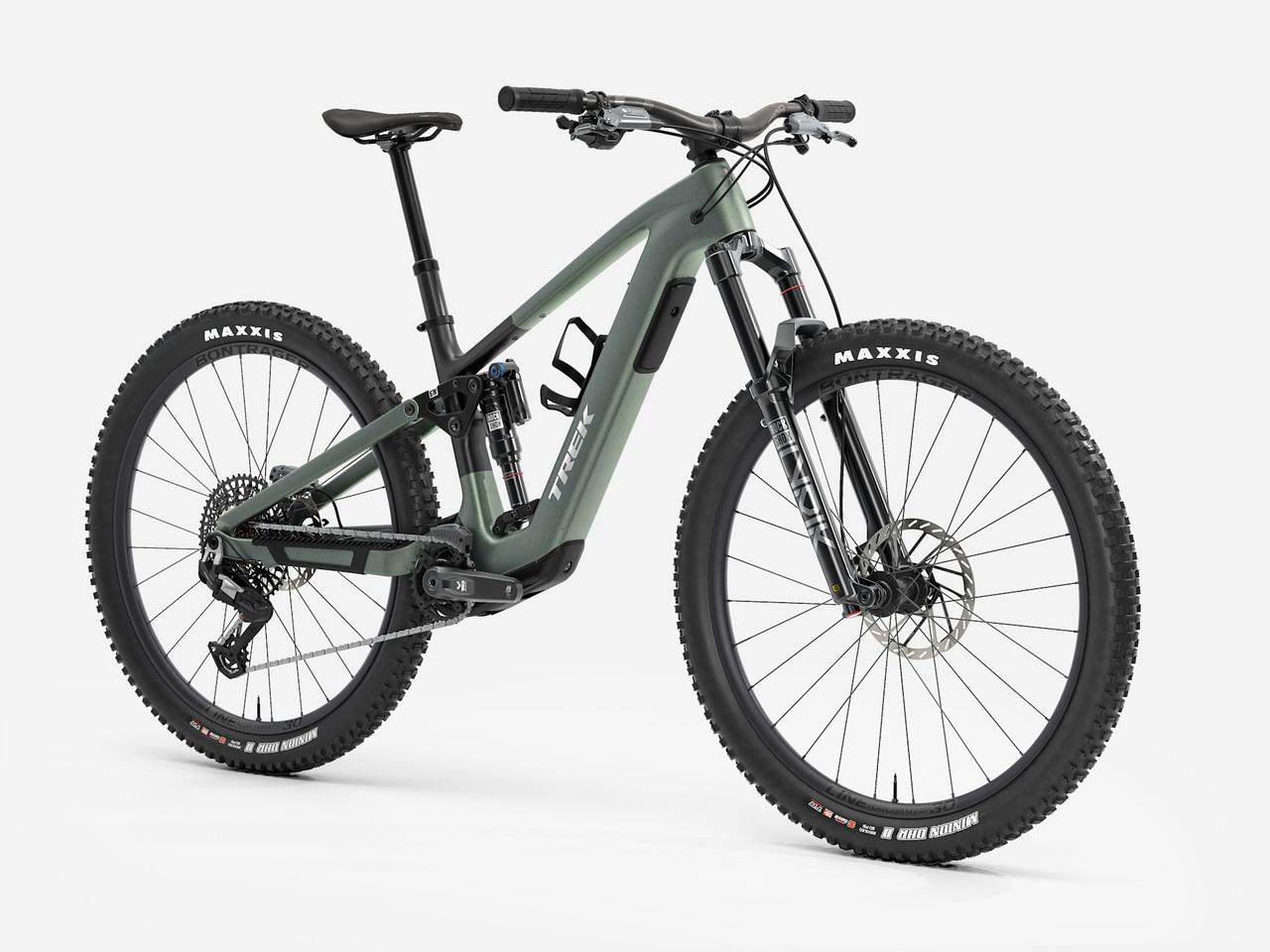

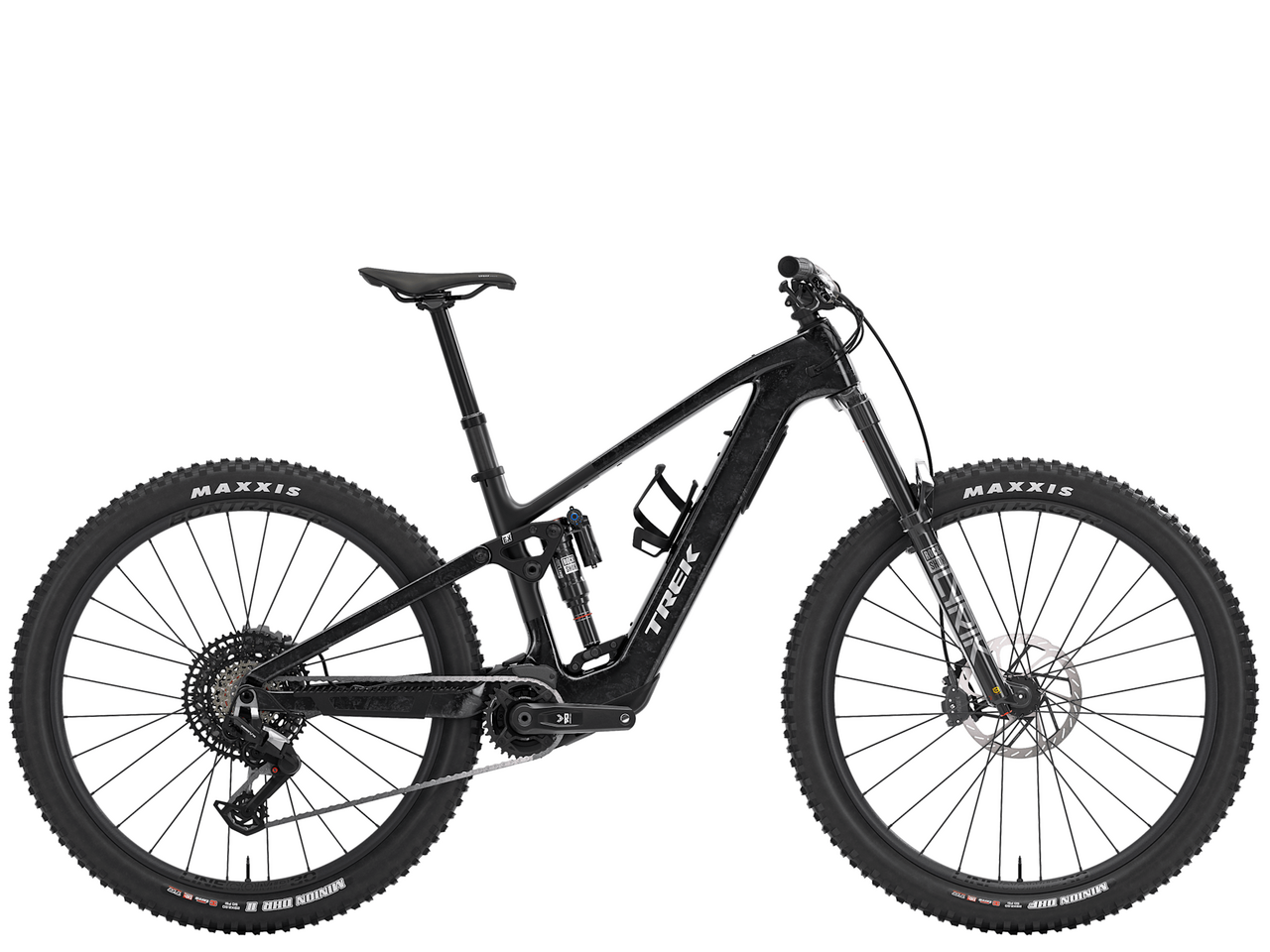

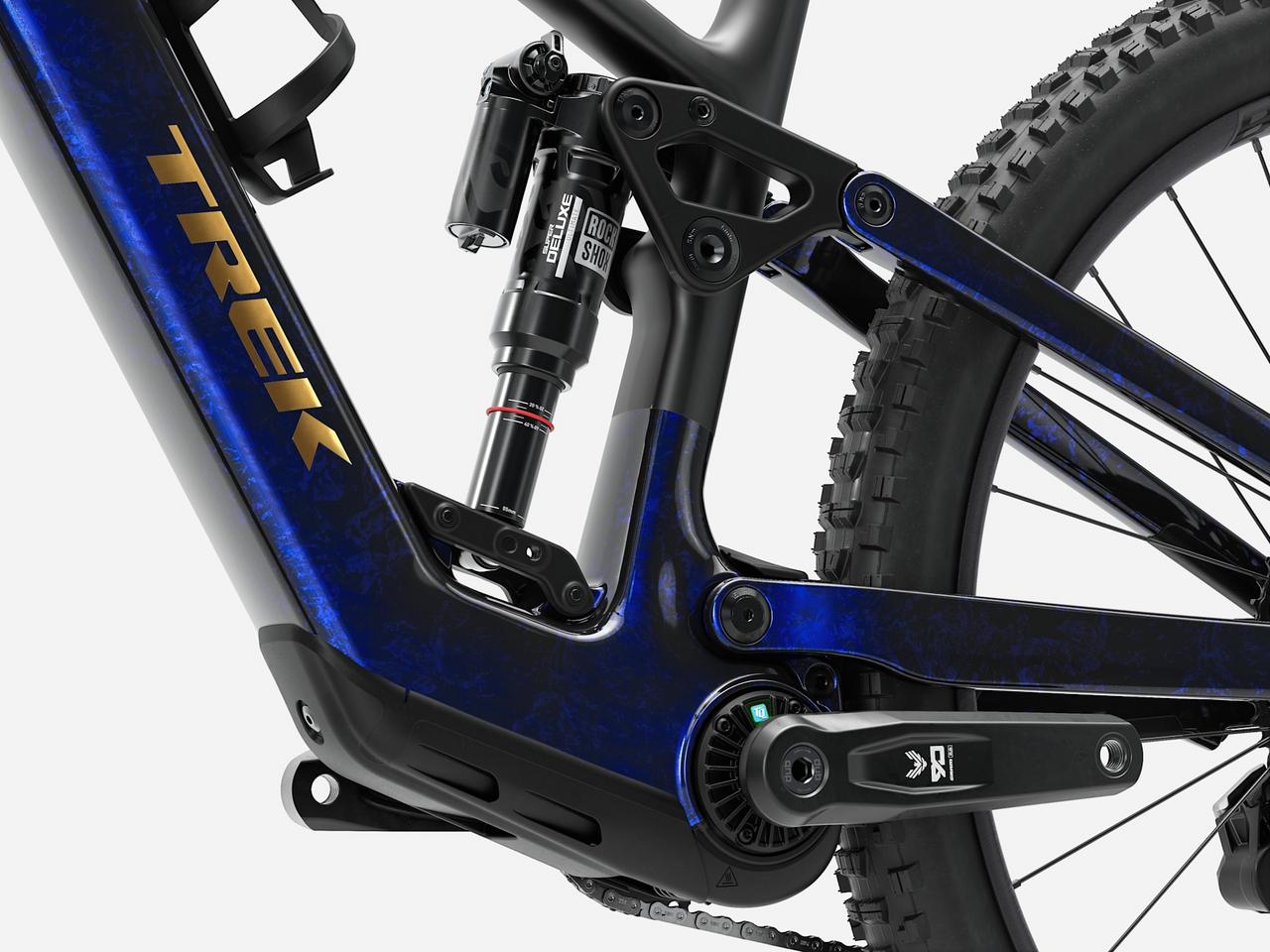

Fuel+ EX 9.8 Eagle 90 is an adaptable carbon e-MTB ready for sky-high climbs and dreamy descents. Its OCLV Mountain Carbon frame delivers a smooth boost from TQ's HPR-60 motor, while a RockShox Ultimate suspension package (145mm rear, 150mm front) gives you smooth control through the rough. SRAM's Eagle 90 transmission delivers ultra-smooth shifting, even under load, while SRAM Maven Bronze 4-piston brakes provide powerful control.
| SKU | TREK | Fuel + EX 9.8 Gen 2 EA90 |
|---|---|
| Size | Large |
| Frame | OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable trav |
| Frame | el 145mm-160mm |
| Weight as Spec'd | M - 20.38 kg / 44.94 lbs (with TLR sealant, no tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
| Motor | TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power |
| Battery | TQ 580Wh |
| Controller | TQ color LED display with Bluetooth & ANT+ connectivity |
| Brake | SRAM Maven Bronze 4-piston hydraulic disc |
| Brake Rotor | SRAM HS2, 6-bolt, 200mm |
| Handlebar | Race Face ERA, carbon, 35mm, 27.5mm rise, 800mm width |
| Stem | Bontrager Elite, 35mm, 0 degree, 45mm length |
| Grips | Trek Line Elite, lock-on |
| Saddle | Size: S, XL, L, M, XXL Verse Short Comp, steel rails, 145mm width |
| Rear Derailleur | SRAM Eagle 90, T-Type |
| Crank Arm | Premium Alpha Platinum Aluminum frame, top-load PowerPack, integrated cockpit routing, 135x5mm QR |
| Shifter | SRAM Eagle 90, 12 speed |
| Chainring | SRAM T-Type, 32T, alloy |
| Cassette | SRAM Eagle XS-1275, T-Type, 10-52, 12 speed |
| Chain | SRAM GX Eagle, T-Type, 12 speed |
| Fork | RockShox Lyrik Ultimate, DebonAir+ w/ ButterCups, Charger 3.1 RC damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel |
| Shock | RockShox Deluxe Ultimate RC2T, 205mm x 60mm |
| Wheel Size | 29" |
| Wheel - Front | Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29" |
| Wheel - Rear | Size: S Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12mm thru axle, 27.5'' | Size: M, L, XL, XXL Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12mm thru axl |
| Wheel - Rear | e, 29'' |
| Tires | Front: Size: S, XL, L, M, XXL Maxxis Minion DHF, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5'' | Rear: Size: S Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5'' Size: M, L, XL, XXL Maxxis M |
| Tires | inion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5'' |
| _shipping-groups | Restricted |
| Discipline | Mountain |
| BS Product Type | Trail Light Assist |
