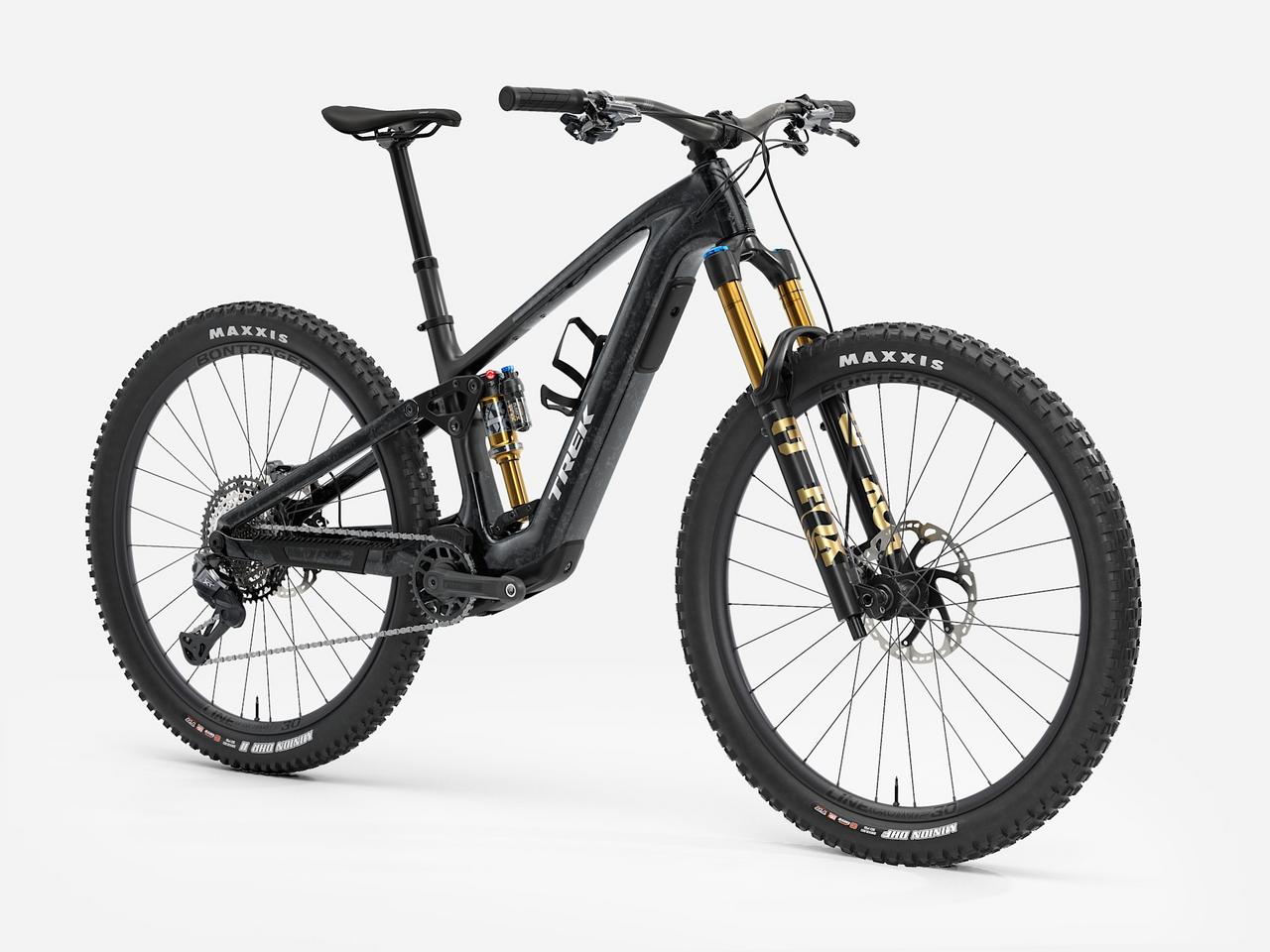

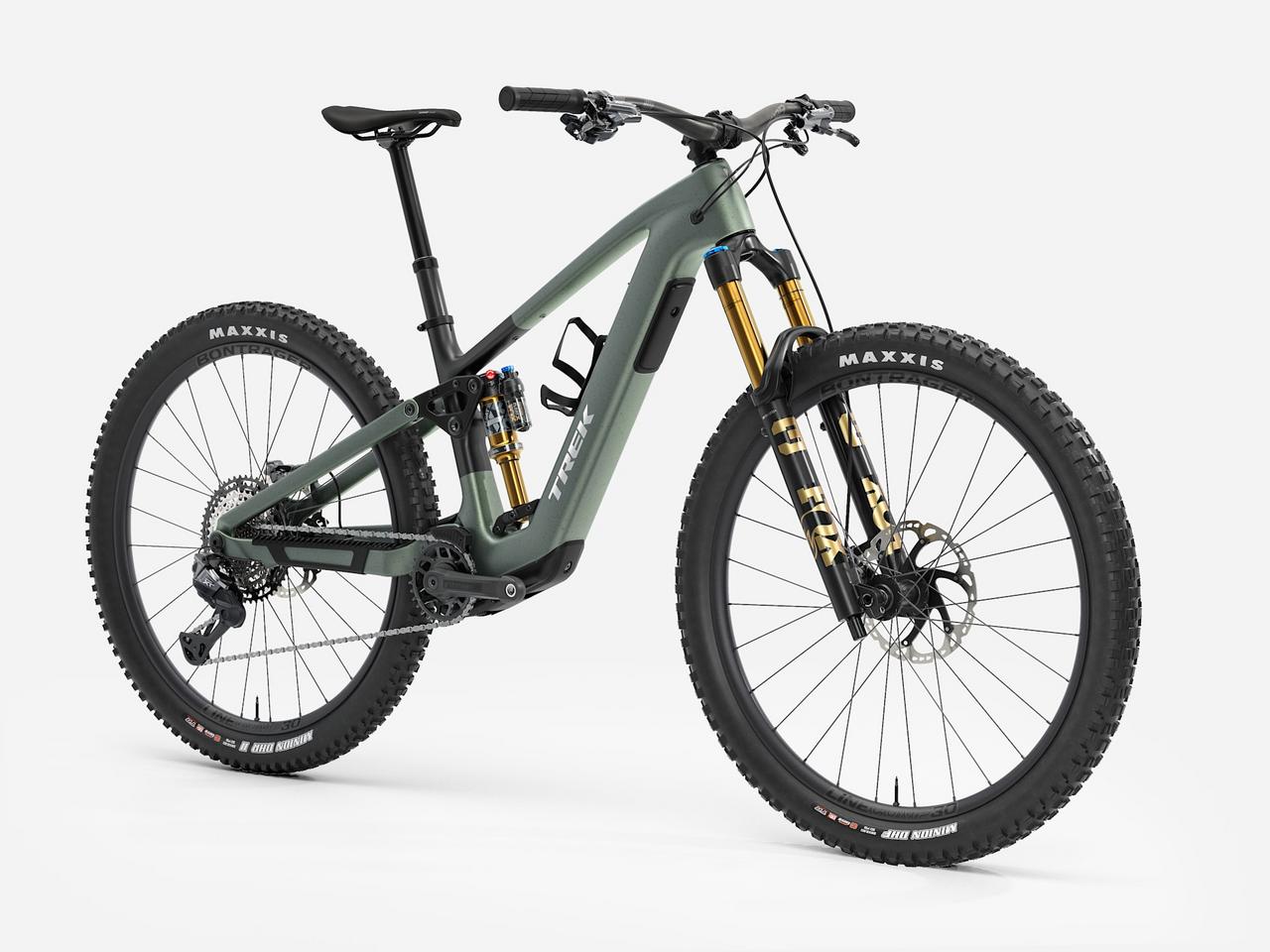

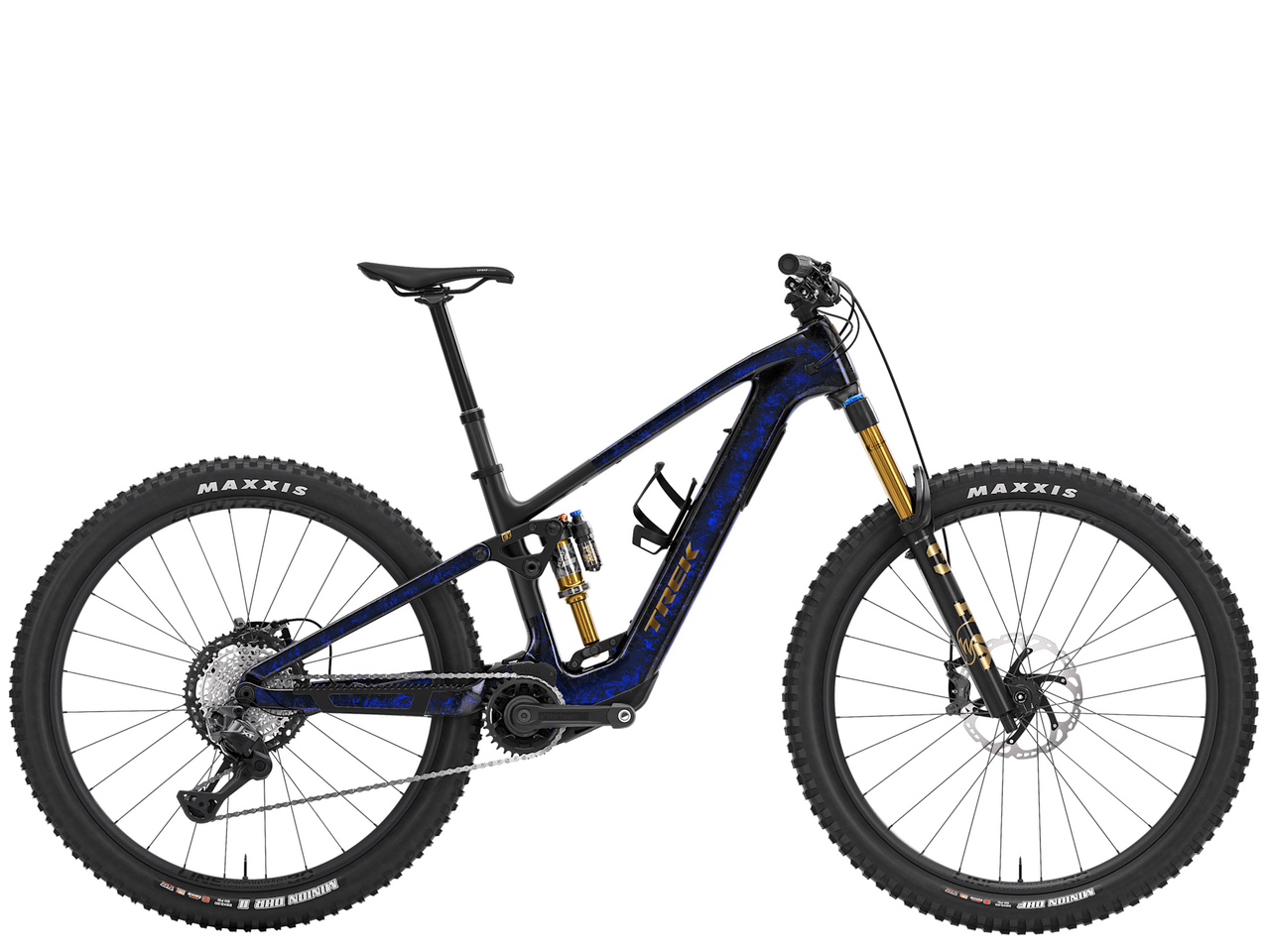

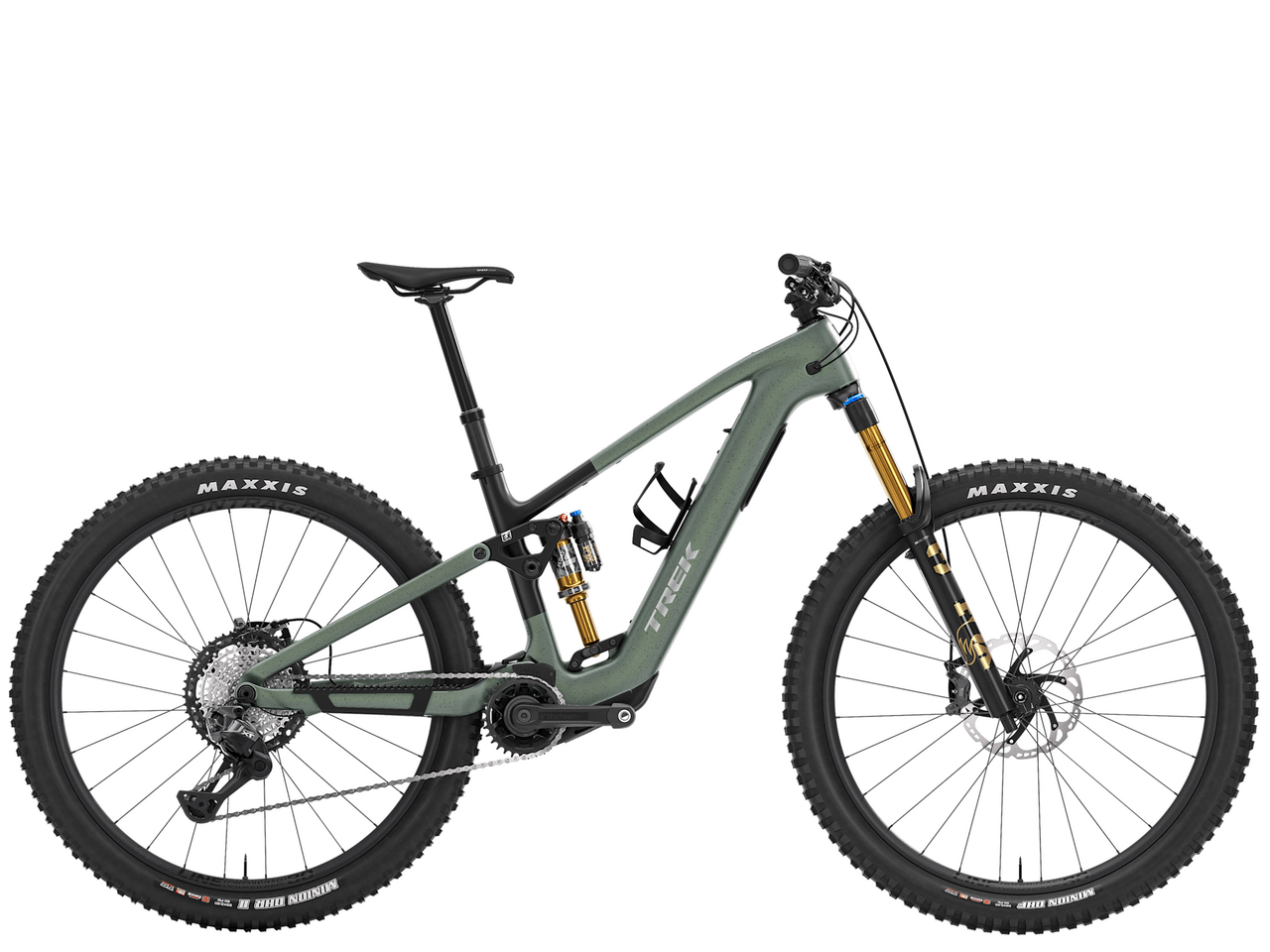

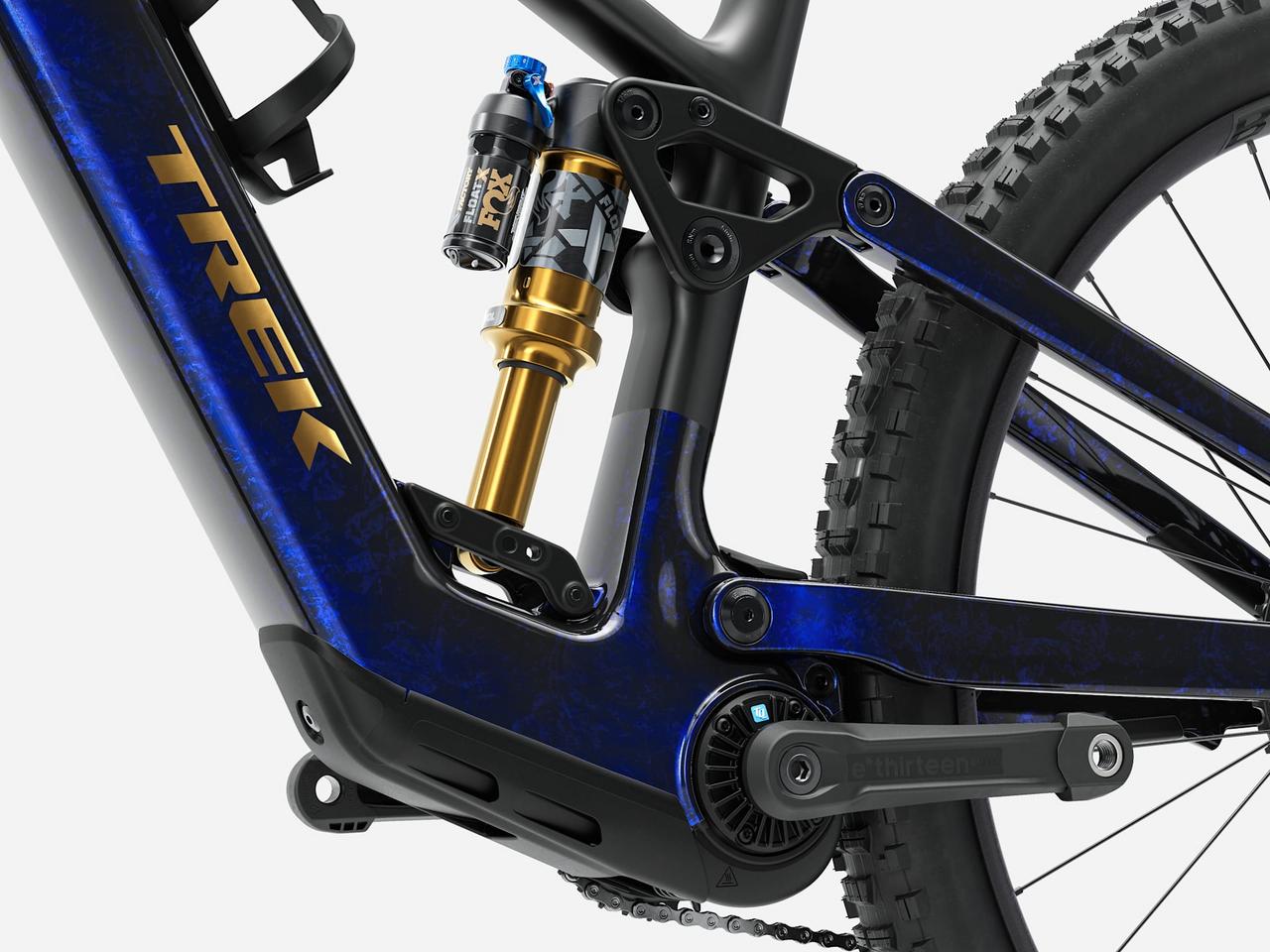

Fuel+ EX 9.8 XT Di2 is an adaptable carbon e-MTB ready for sky-high climbs and dreamy descents. Its OCLV Mountain Carbon frame delivers a smooth boost from TQ's HPR-60 motor, while a Fox Factory suspension package (145mm rear, 150mm front) gives you buttery-smooth control through the rough. A wireless Shimano XT Di2 12-speed drivetrain gives you clean, customizable shifting and 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-dime power.
| SKU | TREK | Fuel + EX 9.8 Gen 2 XT Di2 |
|---|---|
| Size | Large |
| Frame | OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable trav |
| Frame | el 145mm-160mm |
| Weight as Spec'd | M - 20.18 kg / 44.49 lbs (with TLR sealant, no tubes) |
| Weight Limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
| Motor | TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power |
| Battery | TQ 580Wh |
| Controller | TQ color LED display with Bluetooth & ANT+ connectivity |
| Brake | Shimano XT M8200 4-piston hydraulic disc |
| Brake Rotor | Shimano RT86, 6-bolt, 203mm |
| Handlebar | Race Face ERA, carbon, 35mm, 27.5mm rise, 800mm width |
| Stem | Bontrager Elite, 35mm, 0 degree, 45mm length |
| Grips | Trek Line Elite, lock-on |
| Saddle | Verse Short Comp, steel rails, 145mm width |

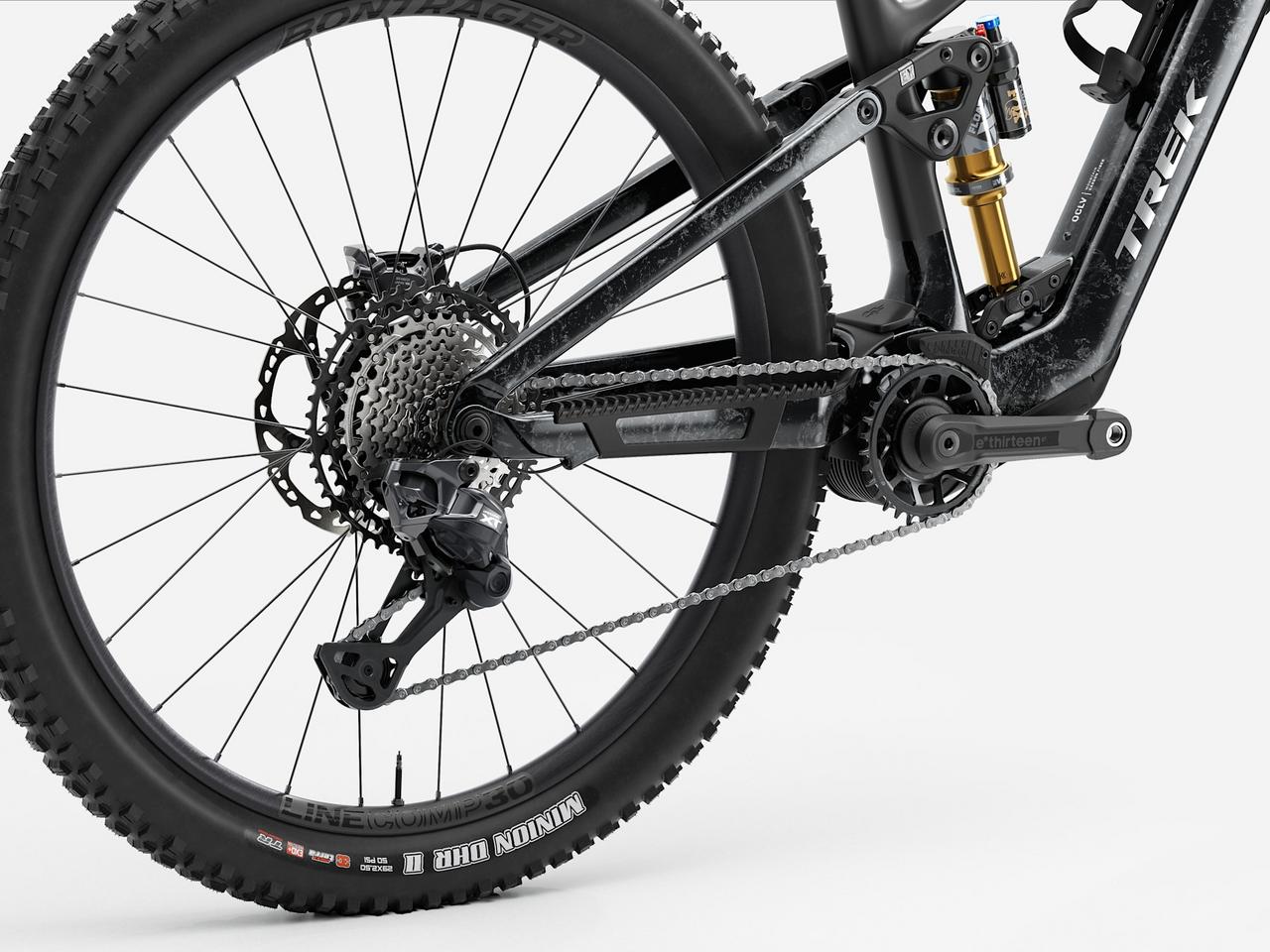

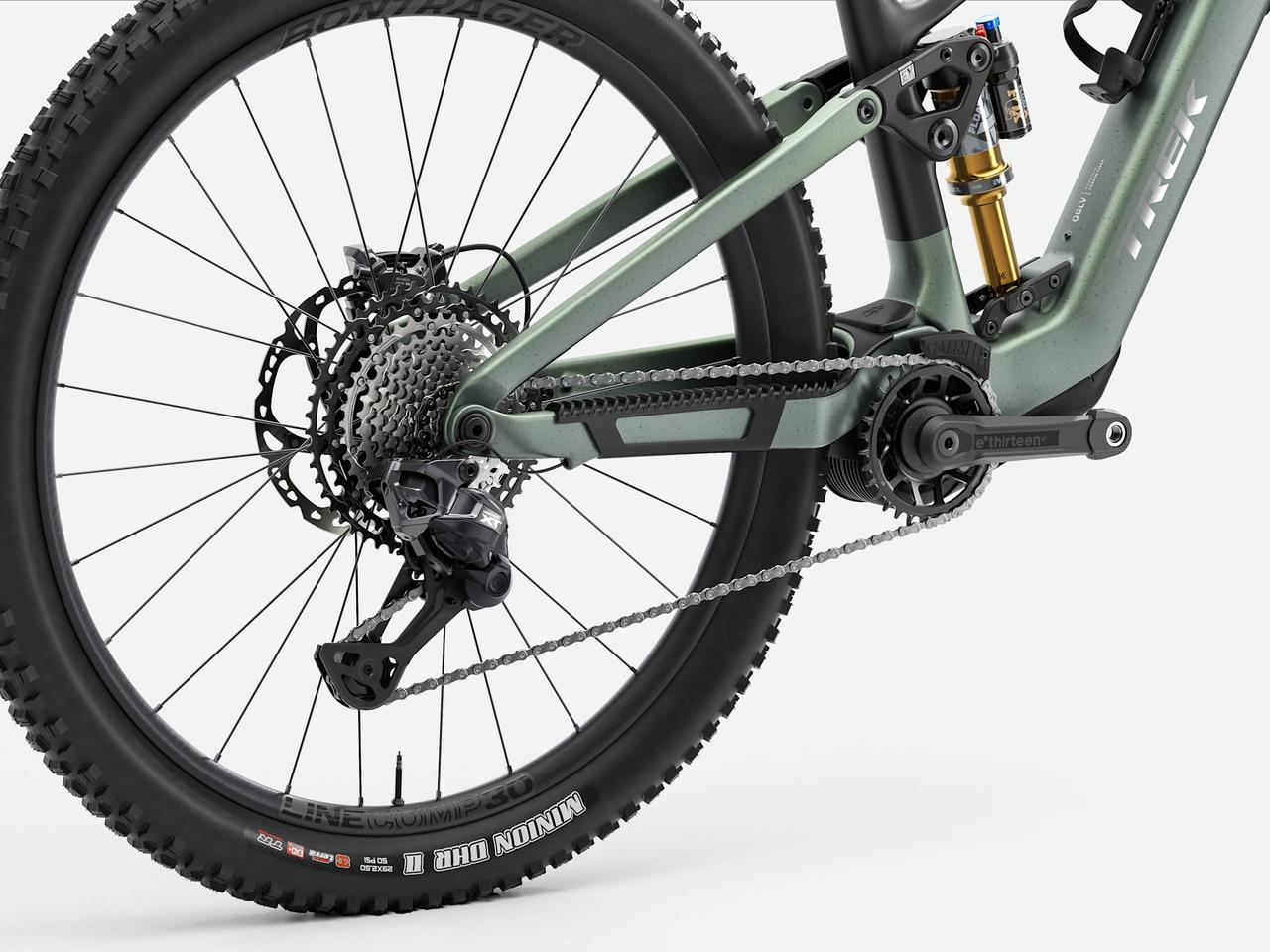

| Rear Derailleur | Shimano XT Di2 M8250, 12 speed |
| Crank Arm | E*thirteen E*spec Plus, 160mm length |
| Shifter | Shimano XT Di2 M8250, 12 speed |
| Chainring | E*Thirteen Helix Core Steel 32t steel, 55mm chainline |
| Cassette | Shimano XT M8200, 10-51, 12 speed |
| Chain | Shimano Ultegra/XT M8100, 12 speed |
| Fork | Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 150mm travel |

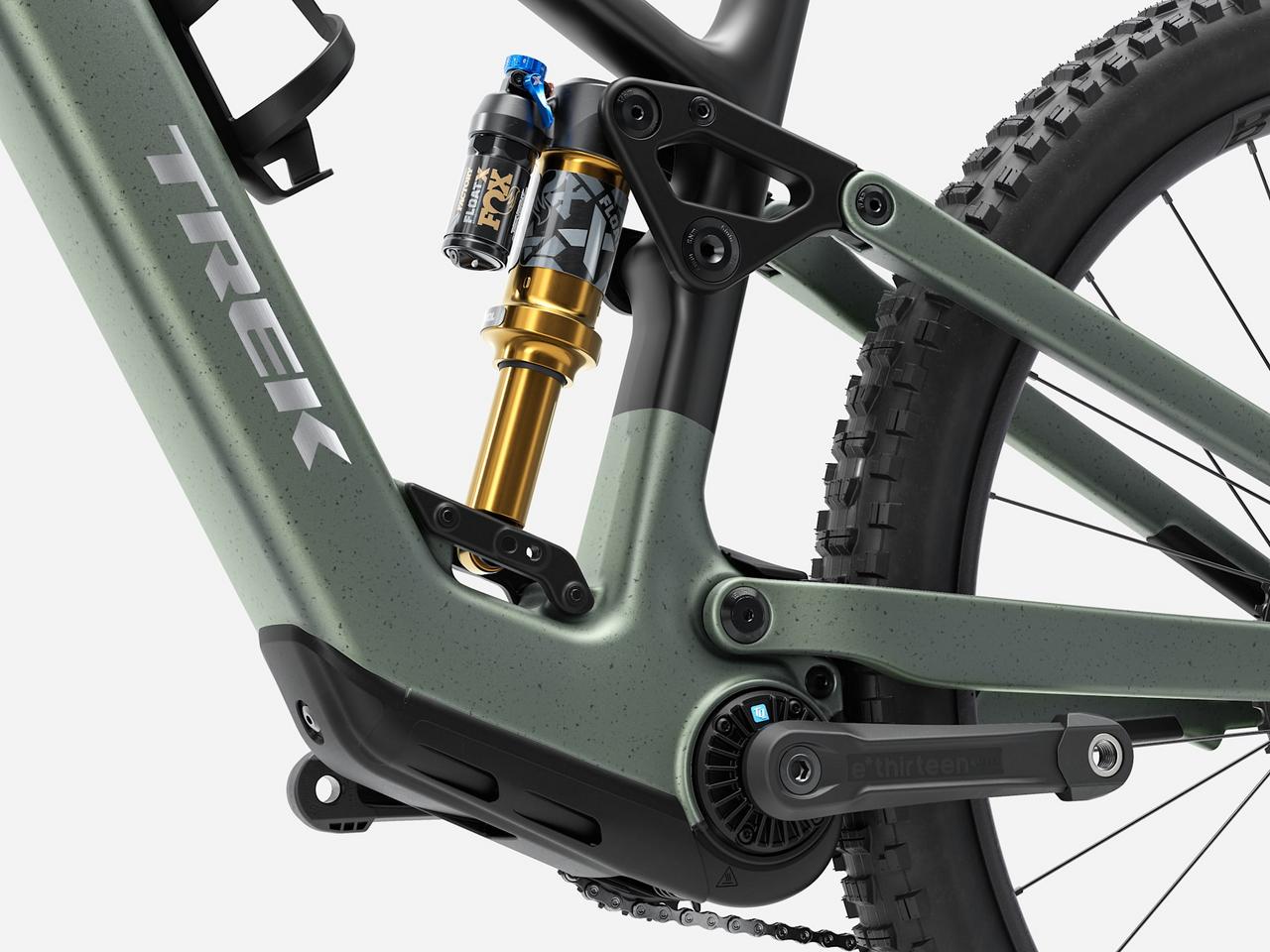

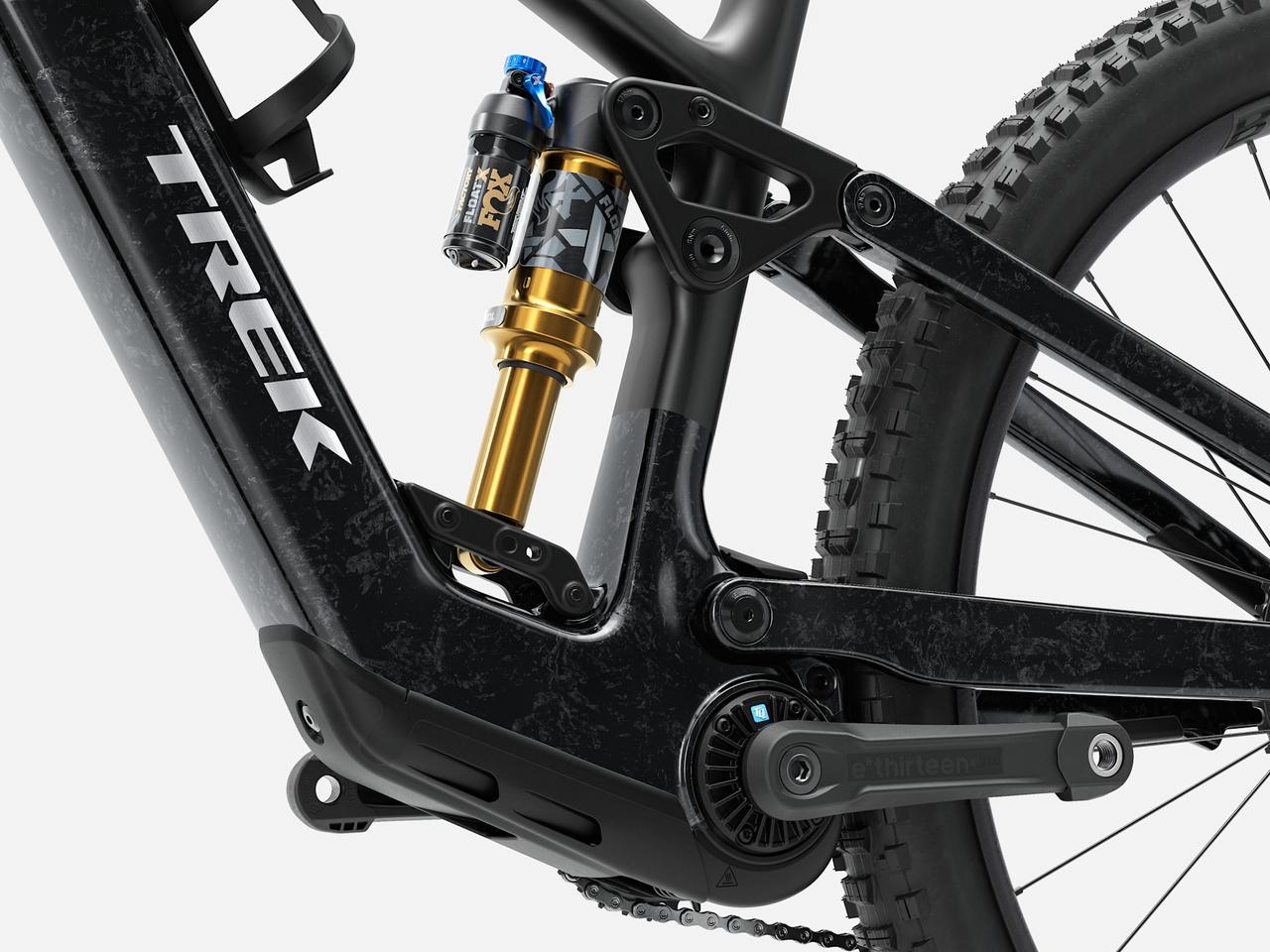

| Shock | Fox Factory Float X, 205mm x 60mm |
| Wheel Size | 29" |
| Wheel - Front | Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29" |
| Wheel - Rear | Size: S Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12mm thru axle, 27.5'' | Size: M, L, XL, XXL Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12mm thru axl |
| Wheel - Rear | e, 29'' |
| Tires | Size: S, XL, L, M, XXL Maxxis Minion DHF, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5'' Size: S Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5'' Size: XL, L, M, XXL Maxxis Minion DHR II, t |
| Tires | ubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5'' |
| Rims | F: | R: |
| _shipping-groups | Restricted |
| Discipline | Mountain |
| BS Product Type | Trail Light Assist |
