Save 17%
Trek
2023 | Marlin 6 Gen 3
2023 | Marlin 6 Gen 3
Regular price
$949.95
Sale price
$949.95
Regular price
$1,149.99
Shipping calculated at checkout.
SKU:TRE458607273
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.
Canadian shipping charges:
- Sale bikes: $200
- Standard pedal bikes over $1250: Free
- Standard pedal bikes under $1250: $100
- Electric bikes: $200
- Fat bikes: $200
- Kid's bikes: $60
Insurance charge: 1.5% insured value
We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details
Bike Specifications
Bike Specifications
Specifications are subject to change without notice

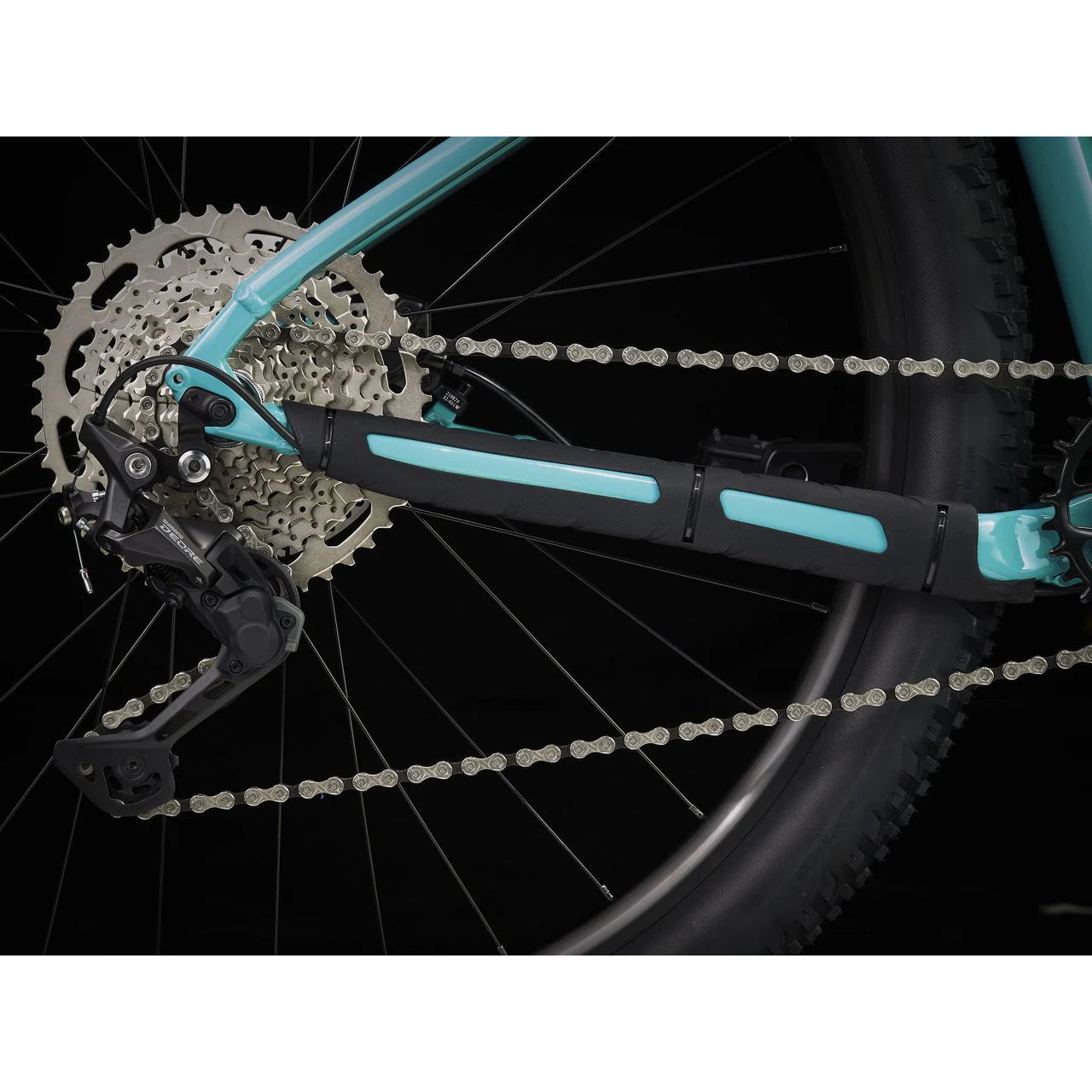

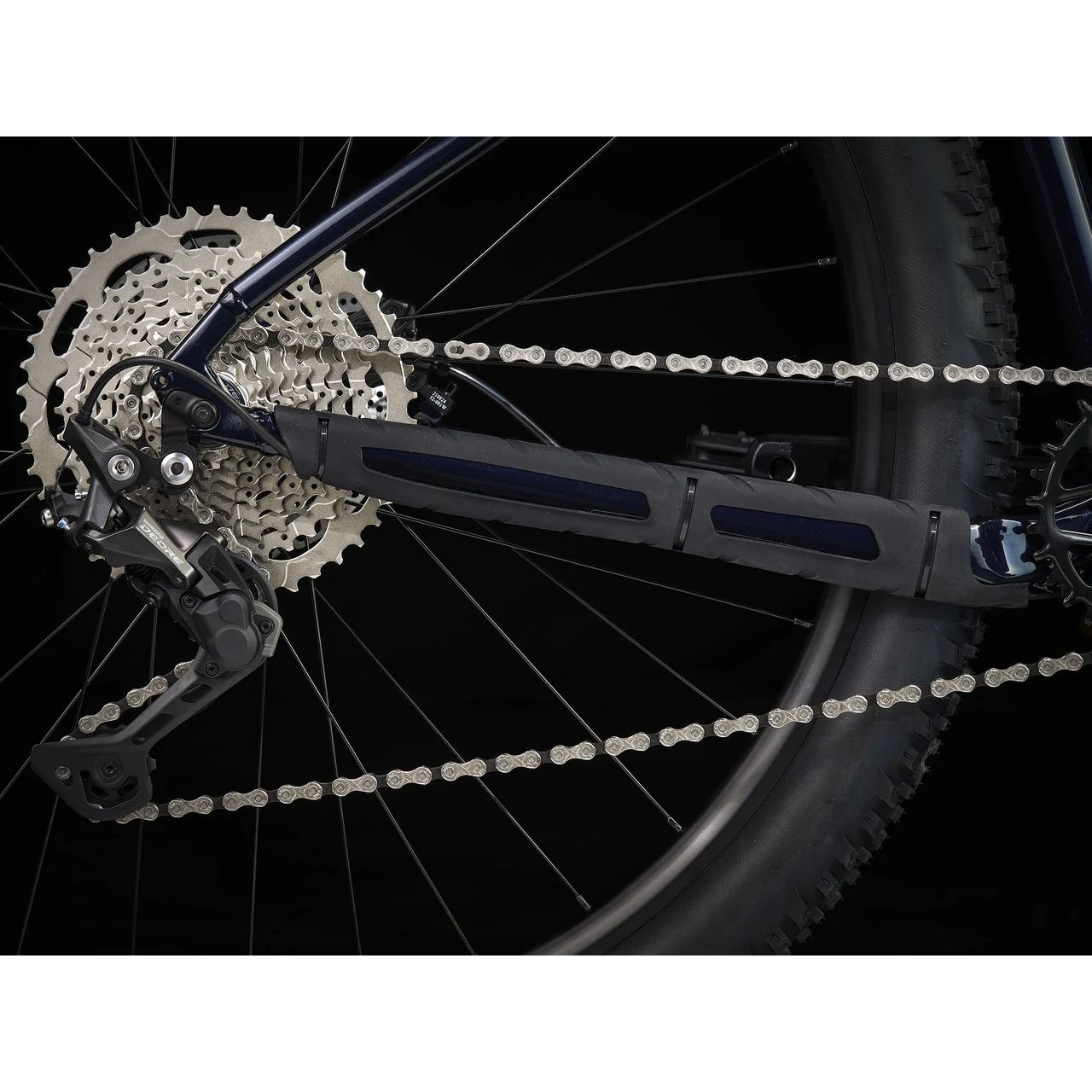

Drivetrain

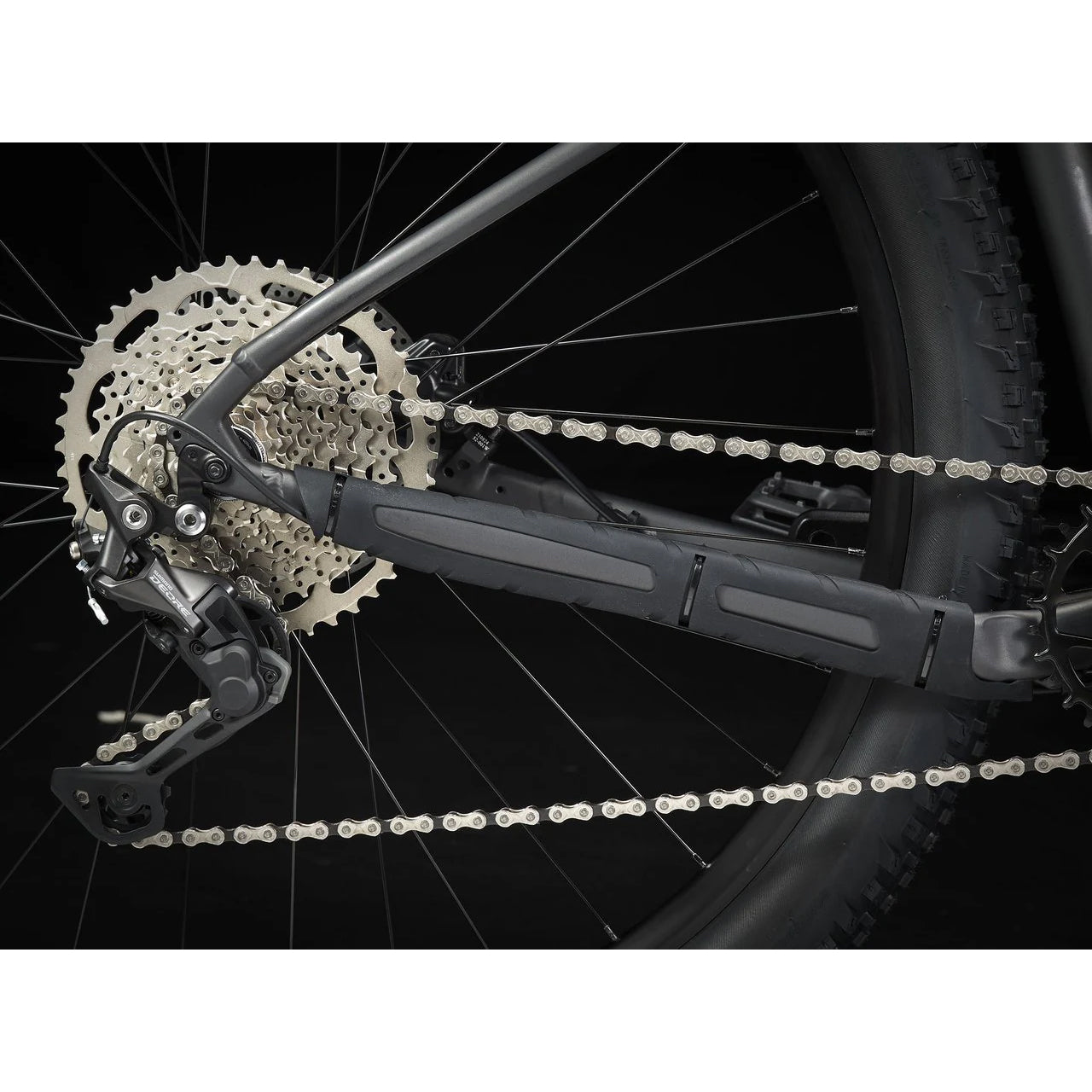

Cassette
Shimano Deore M4100, 11-46, 10 speed
Chain
KMC X10, 10 speed

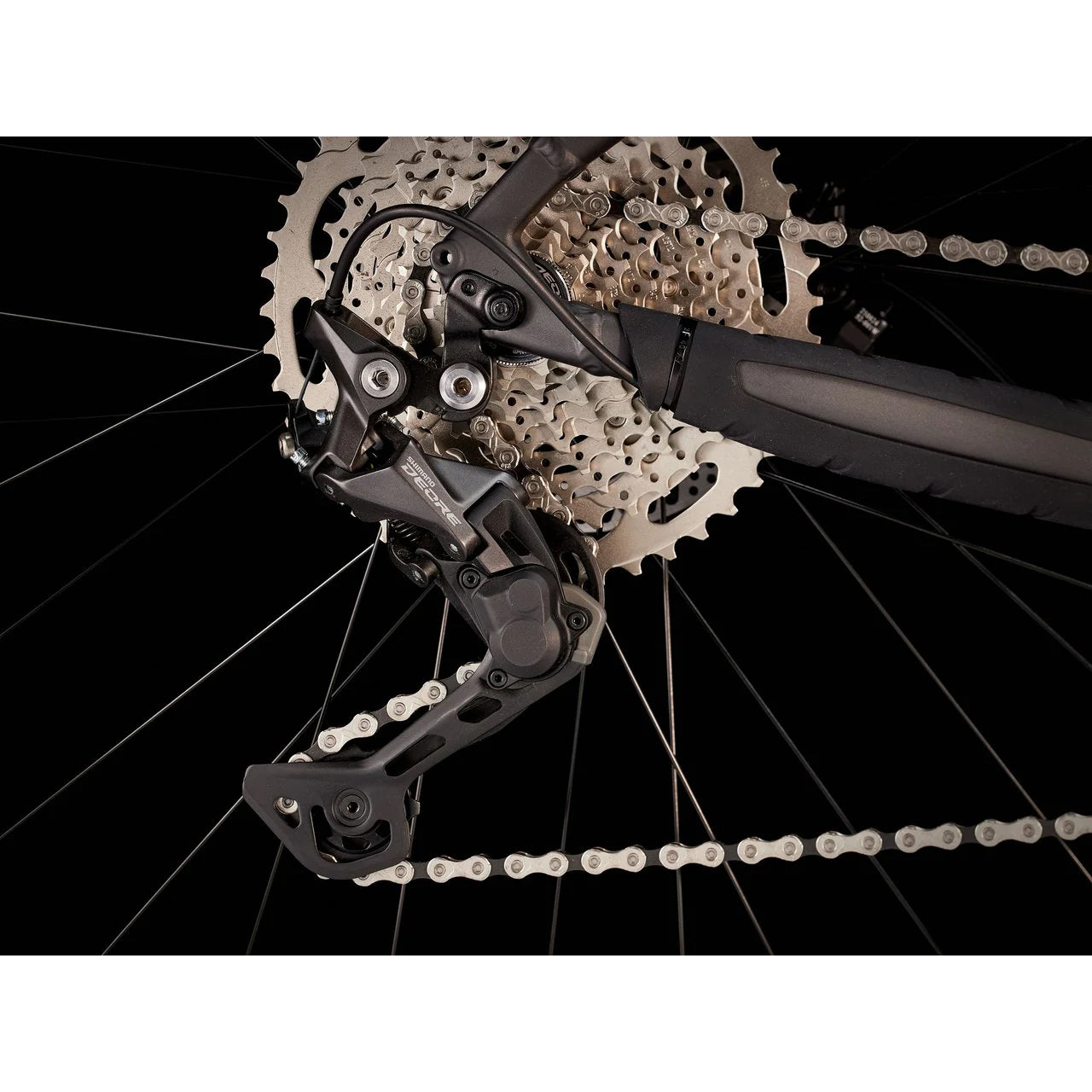

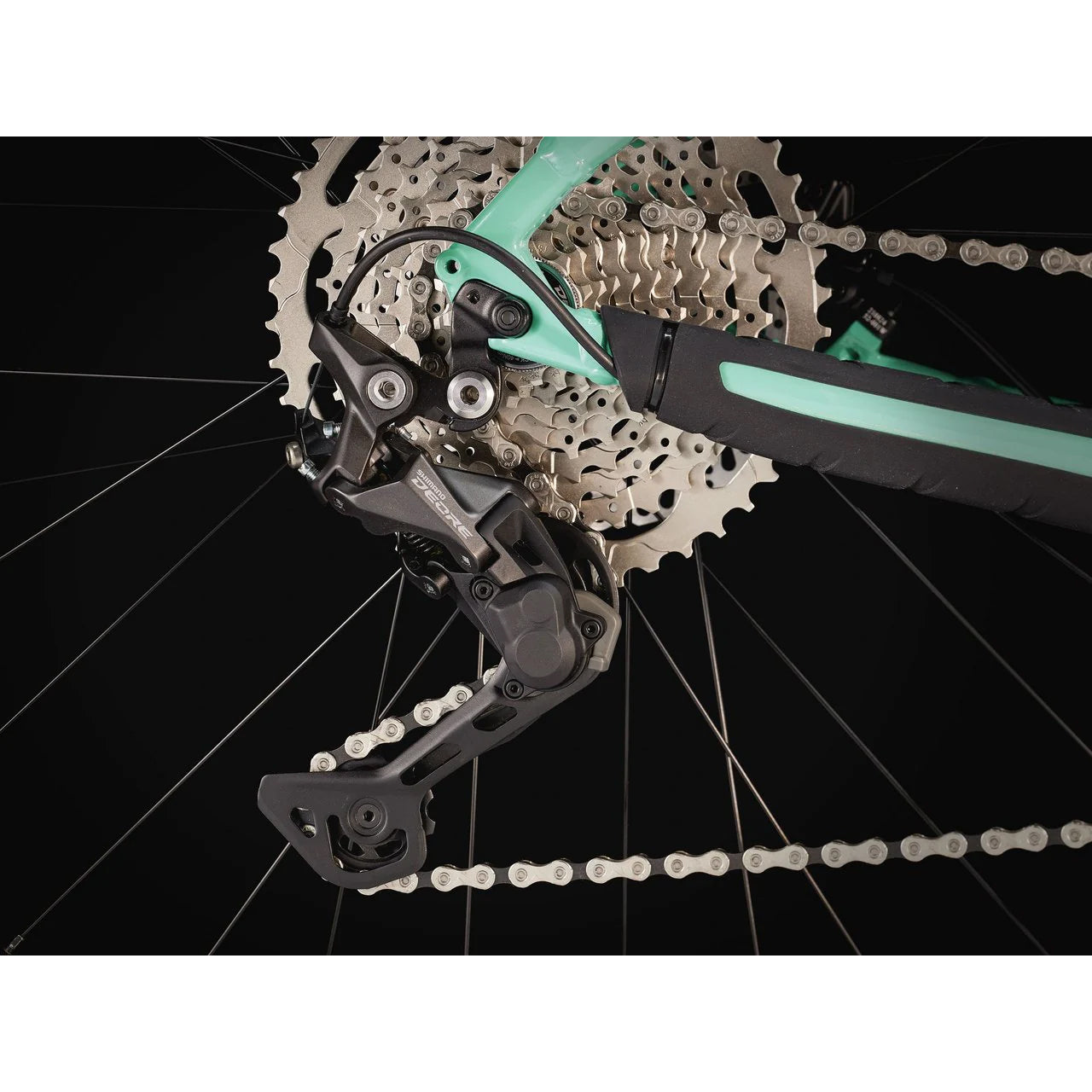

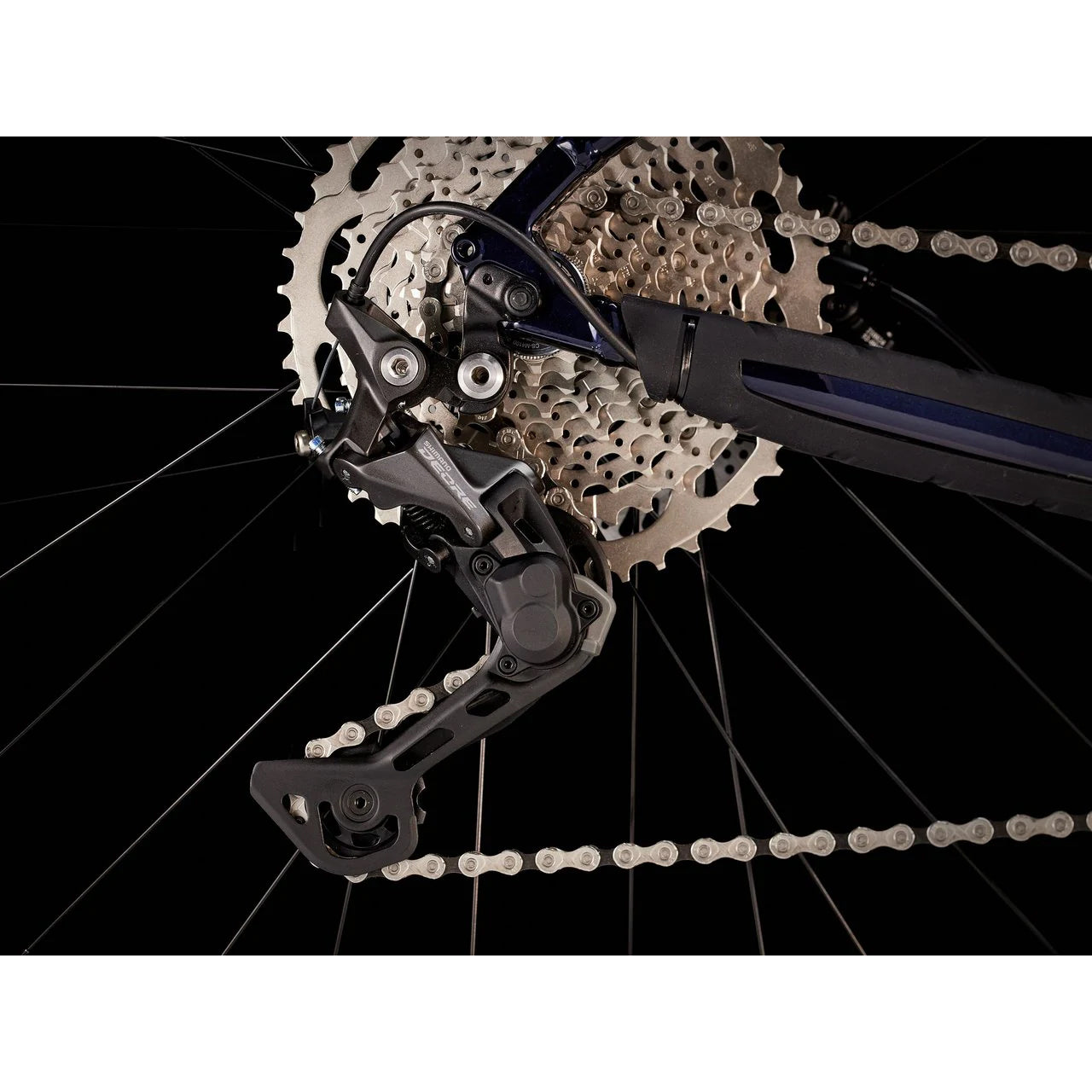

Rear derailleur
Shimano Deore M5120, long cage
Shifter
Shimano Deore M4100, 10 speed
Brakes
Brake type
Hydraulic disc

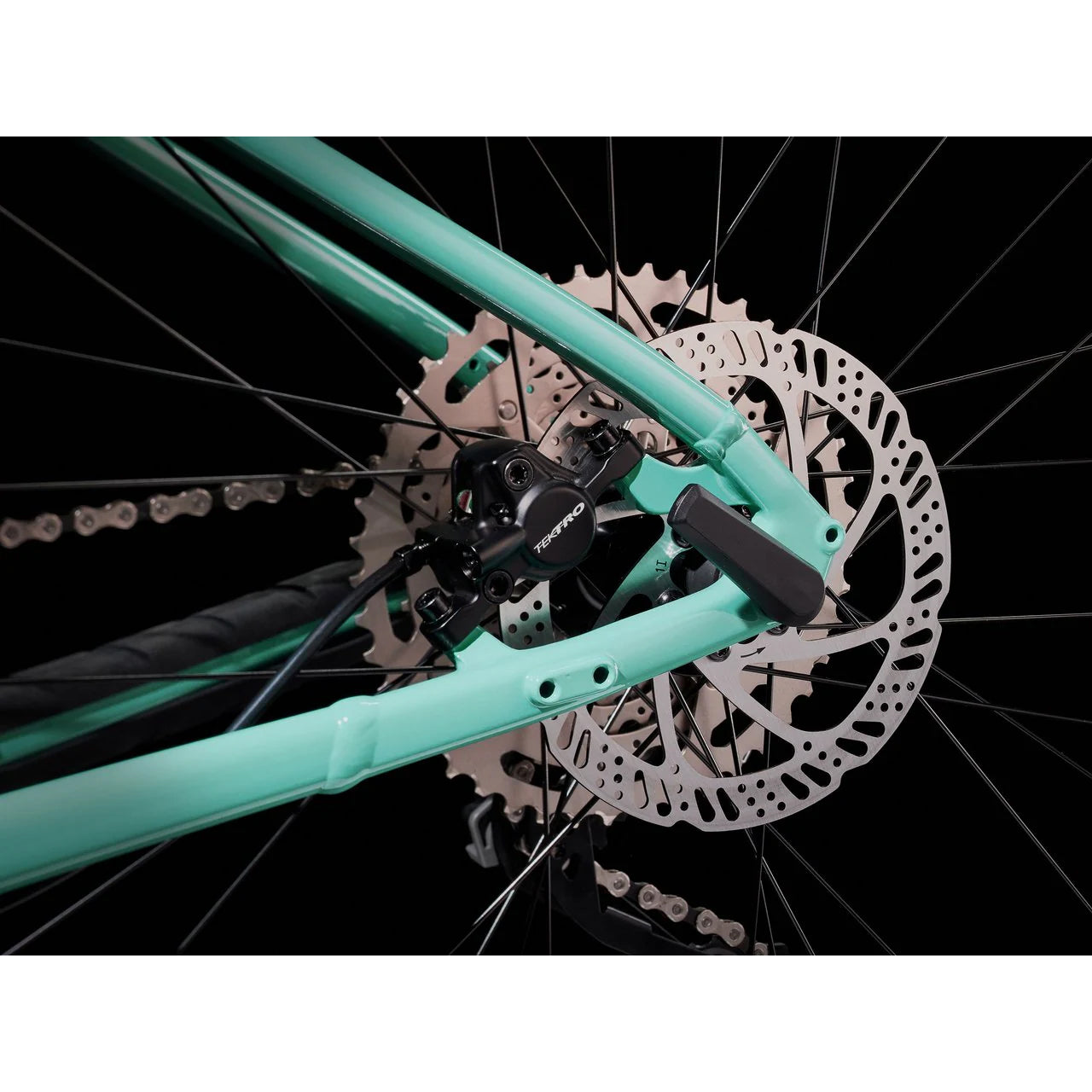

Caliper

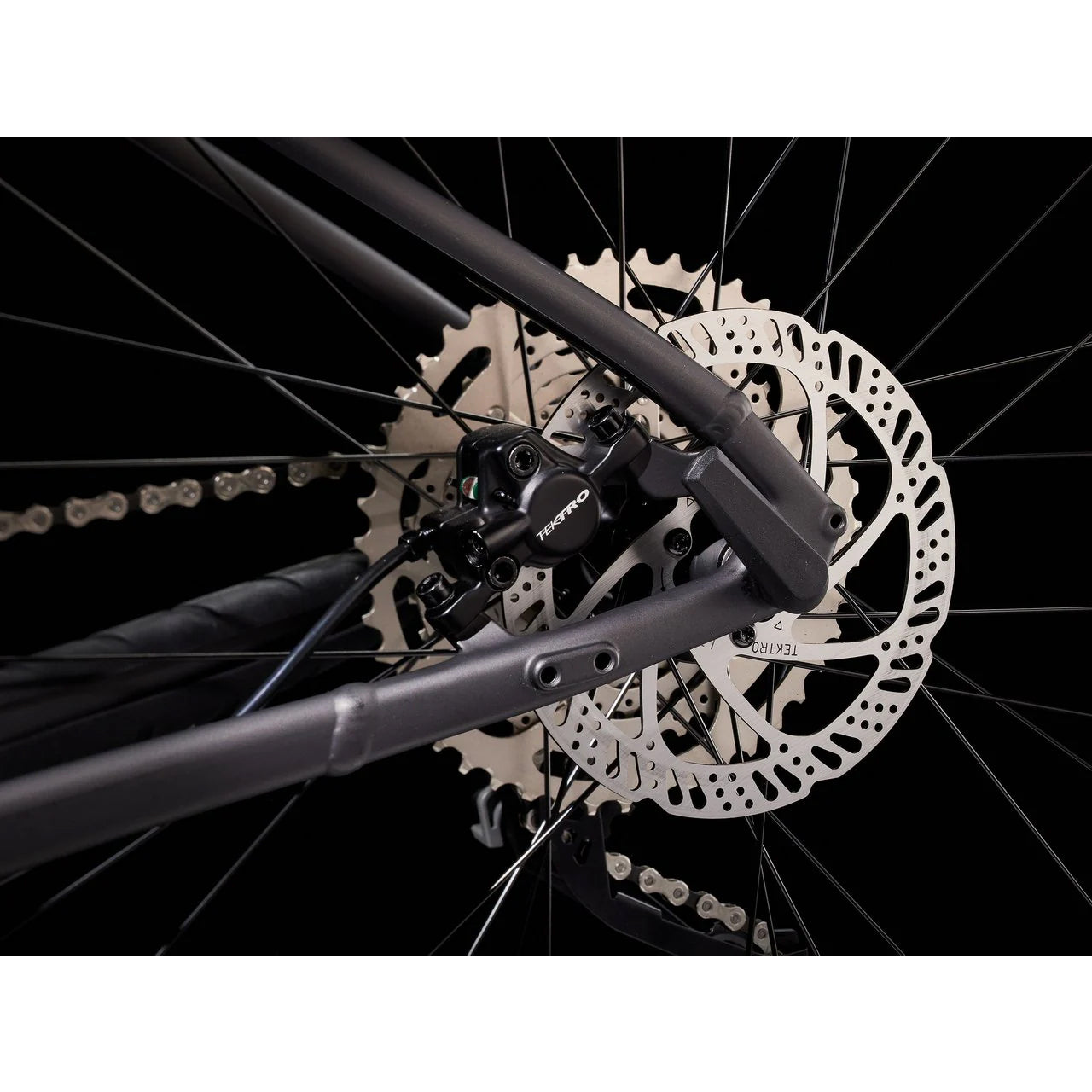

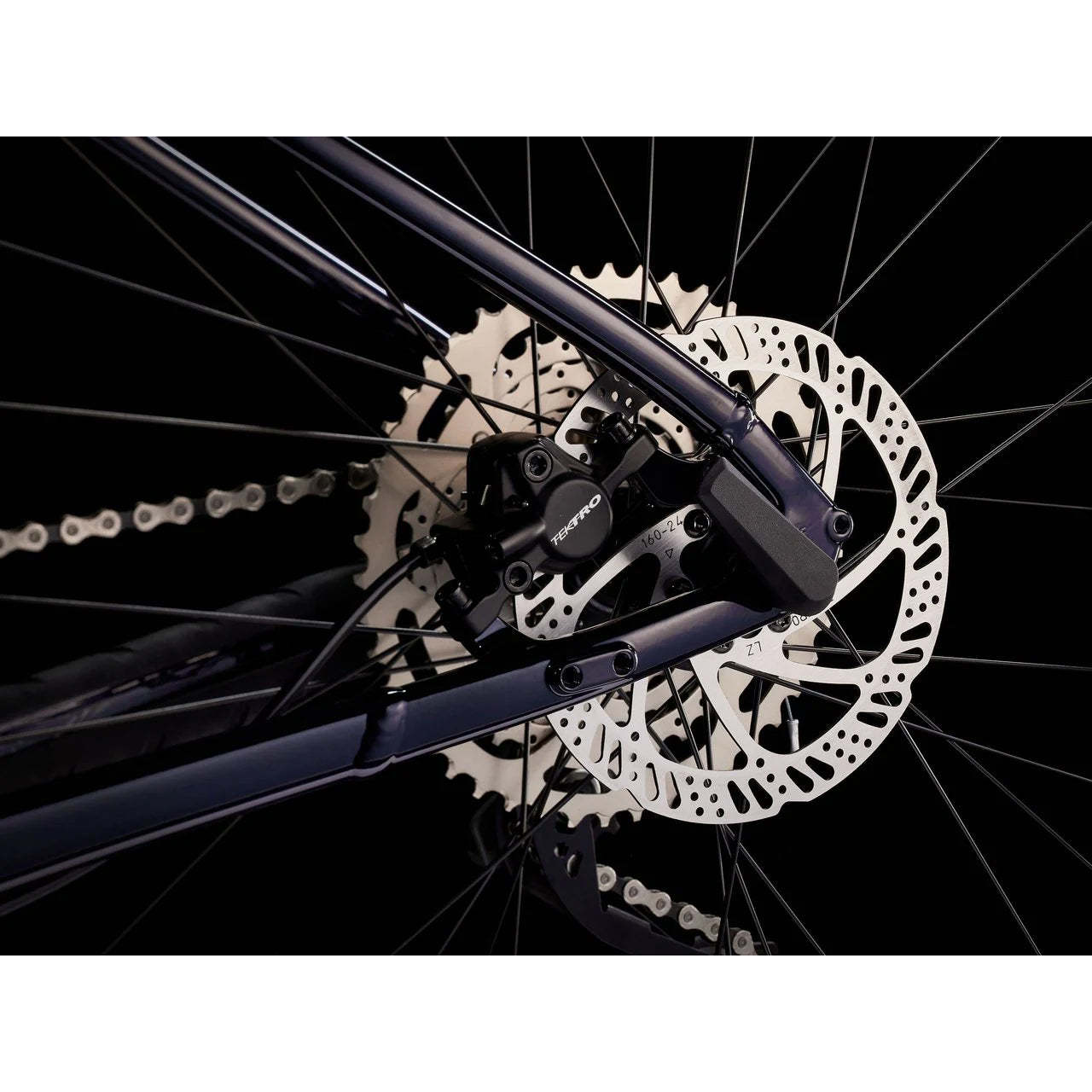

Tektro HD-M275 hydraulic disc, 180mm rotor
Cockpit
Grips tape
Bontrager XR Endurance Comp, lock-on
Handlebars
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Pedals
VP-536 nylon platform
Saddle
Bontrager Arvada, steel rails, 138 mm width
Seatpost
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
Stem
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Wheels
Front hub
Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew
Rear hub
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR

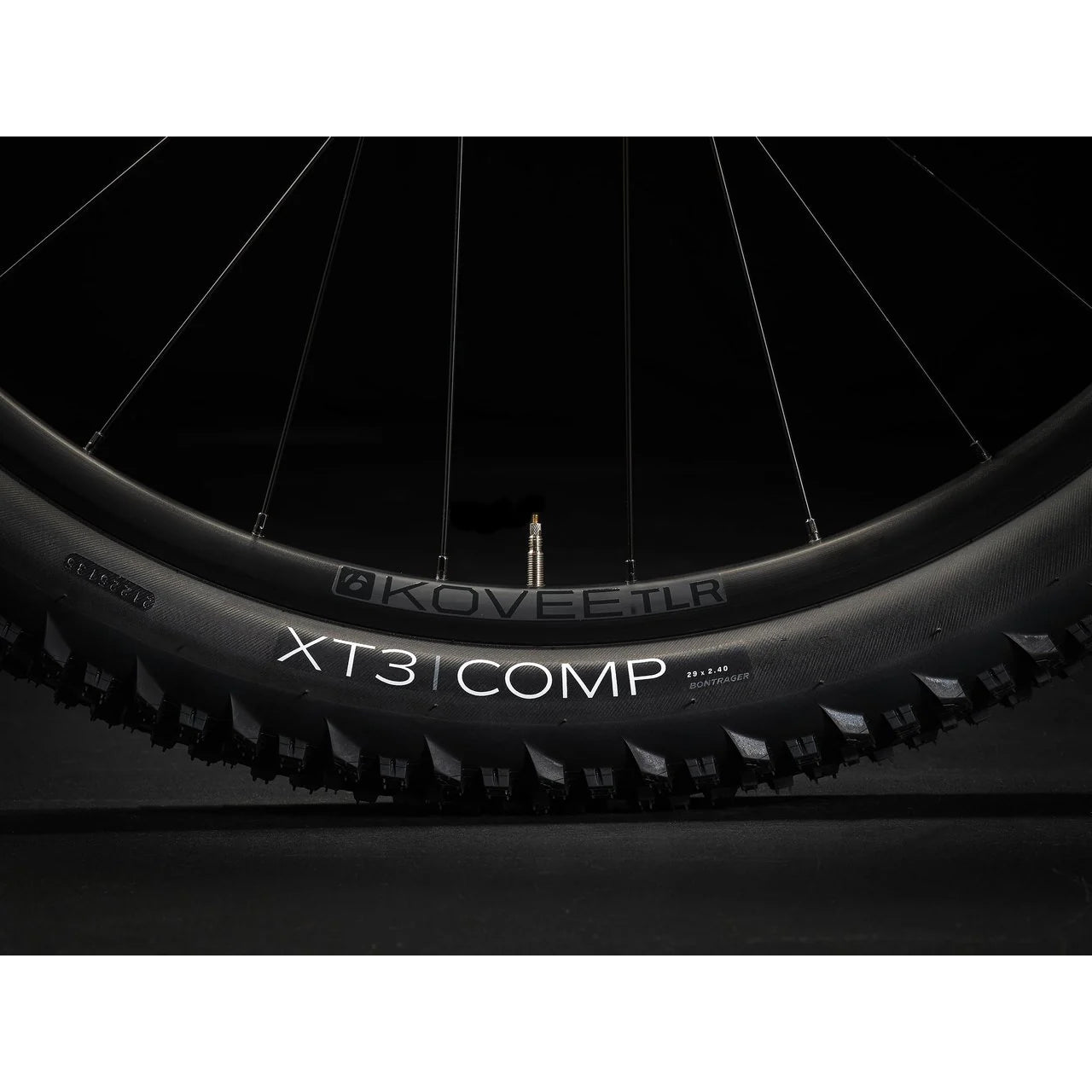

Rims
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
Spokes
14g stainless steel, black
Tires
Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40'
Wheel size
Size Specific
Suspension

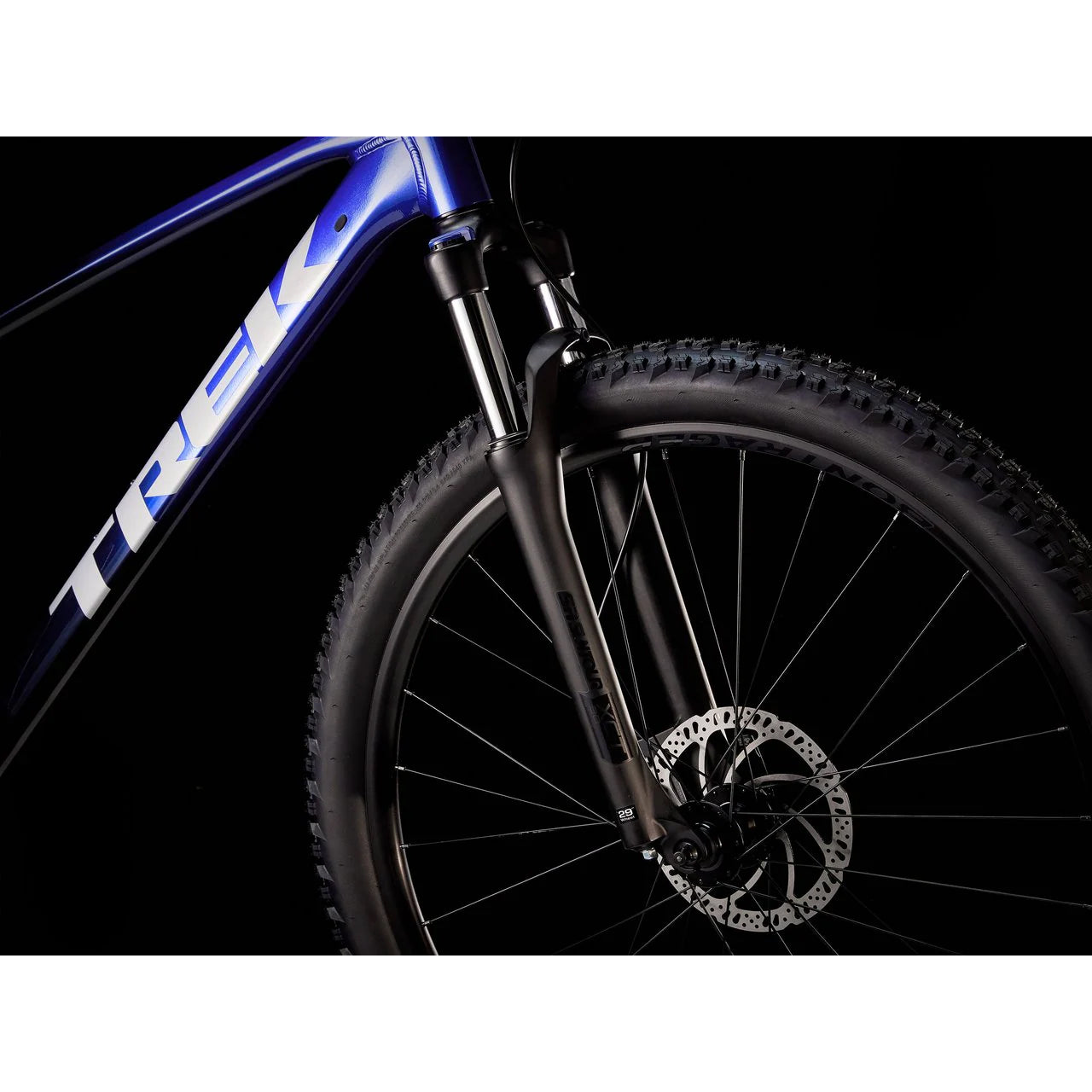

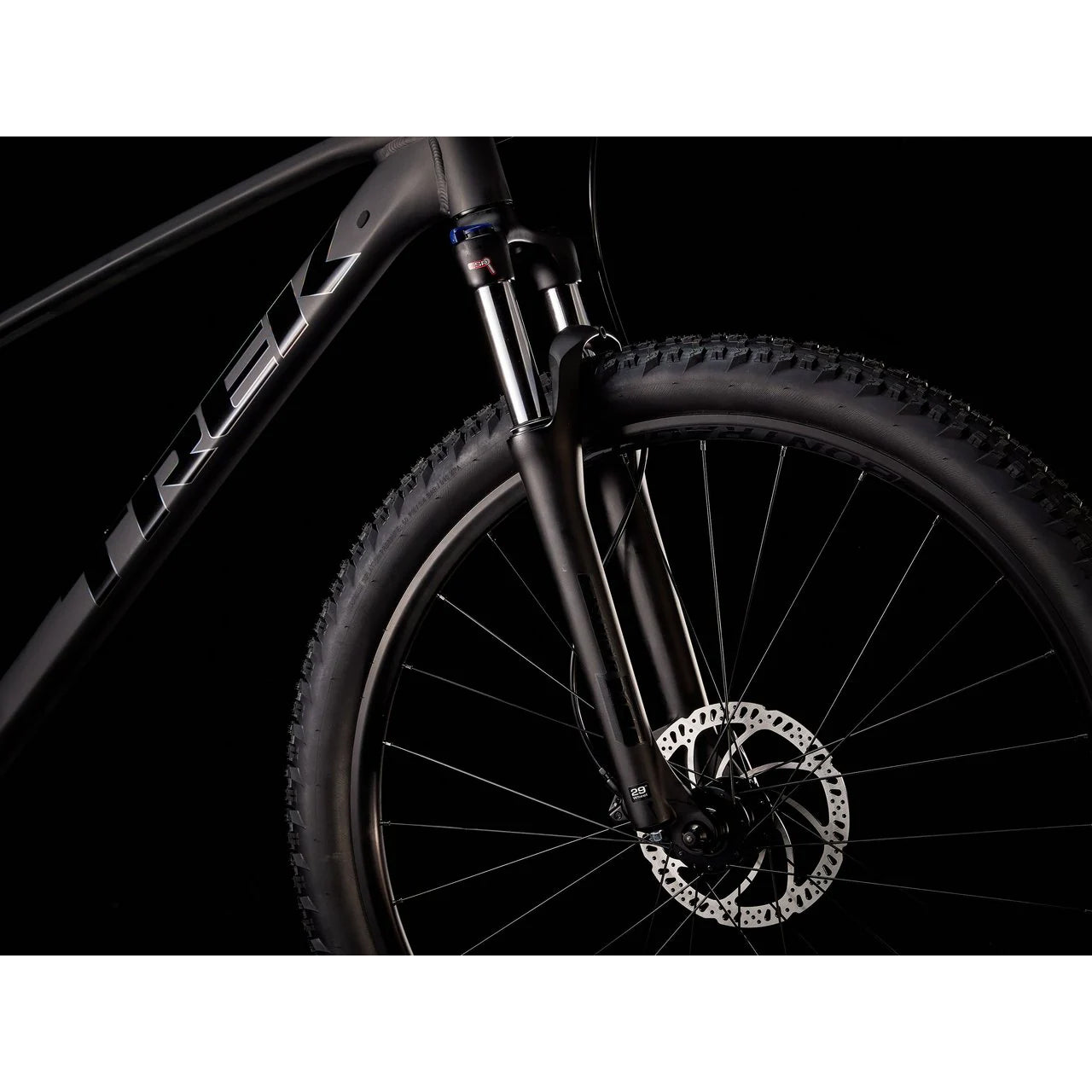

Fork

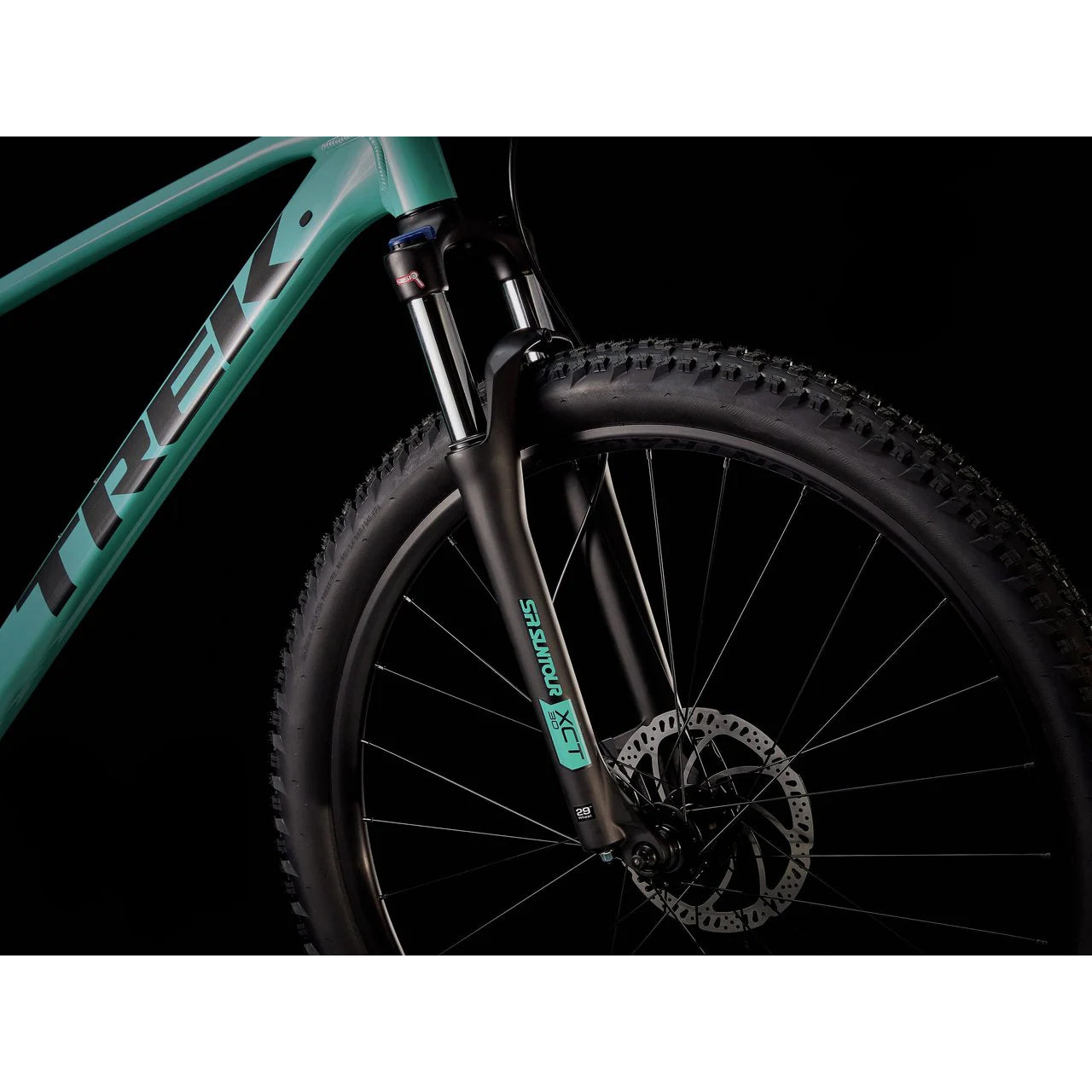

SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46mm offset for 29" wheel, 100mm QR, 100mm travel
Fork brand
SR Suntour
Frame
Bottom bracket

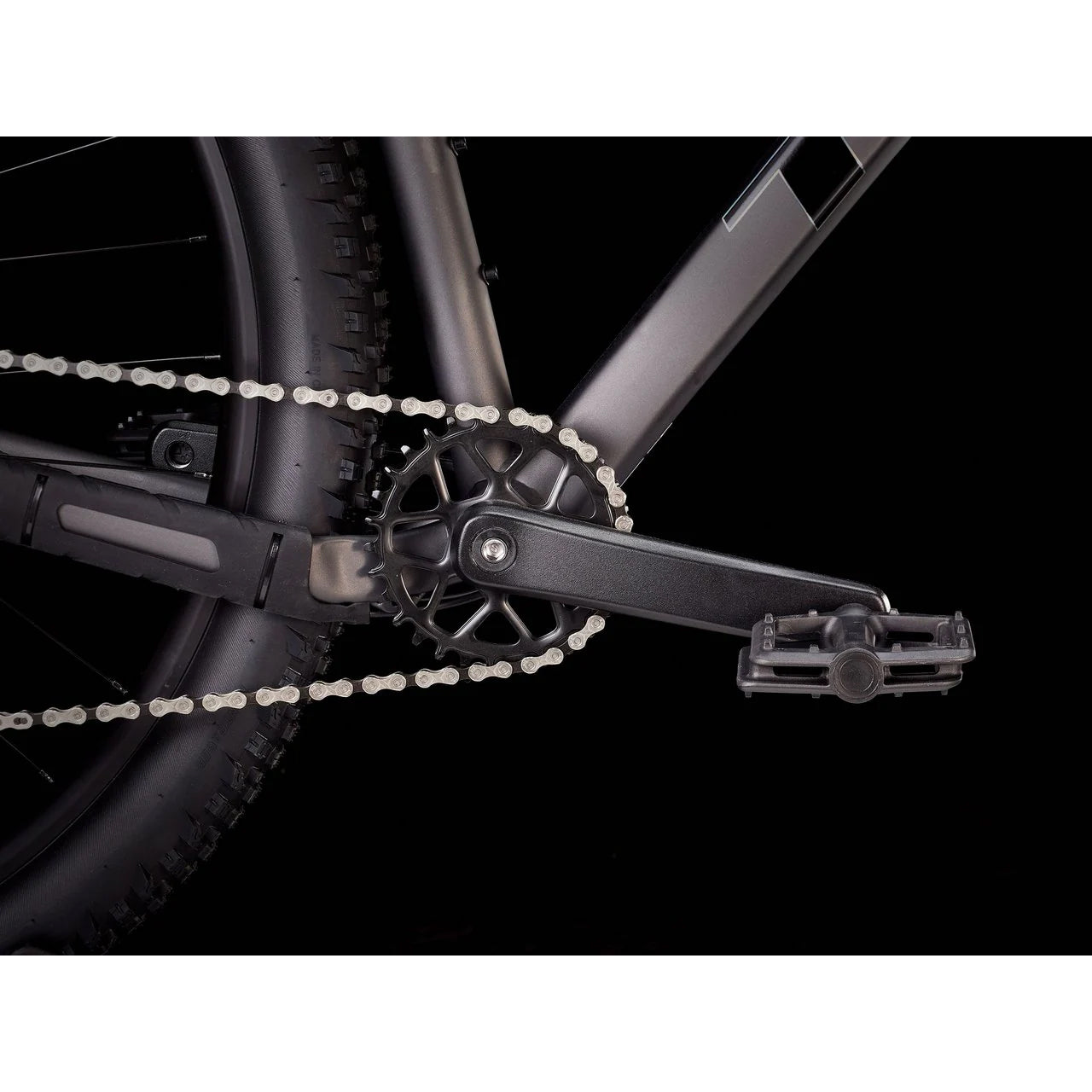

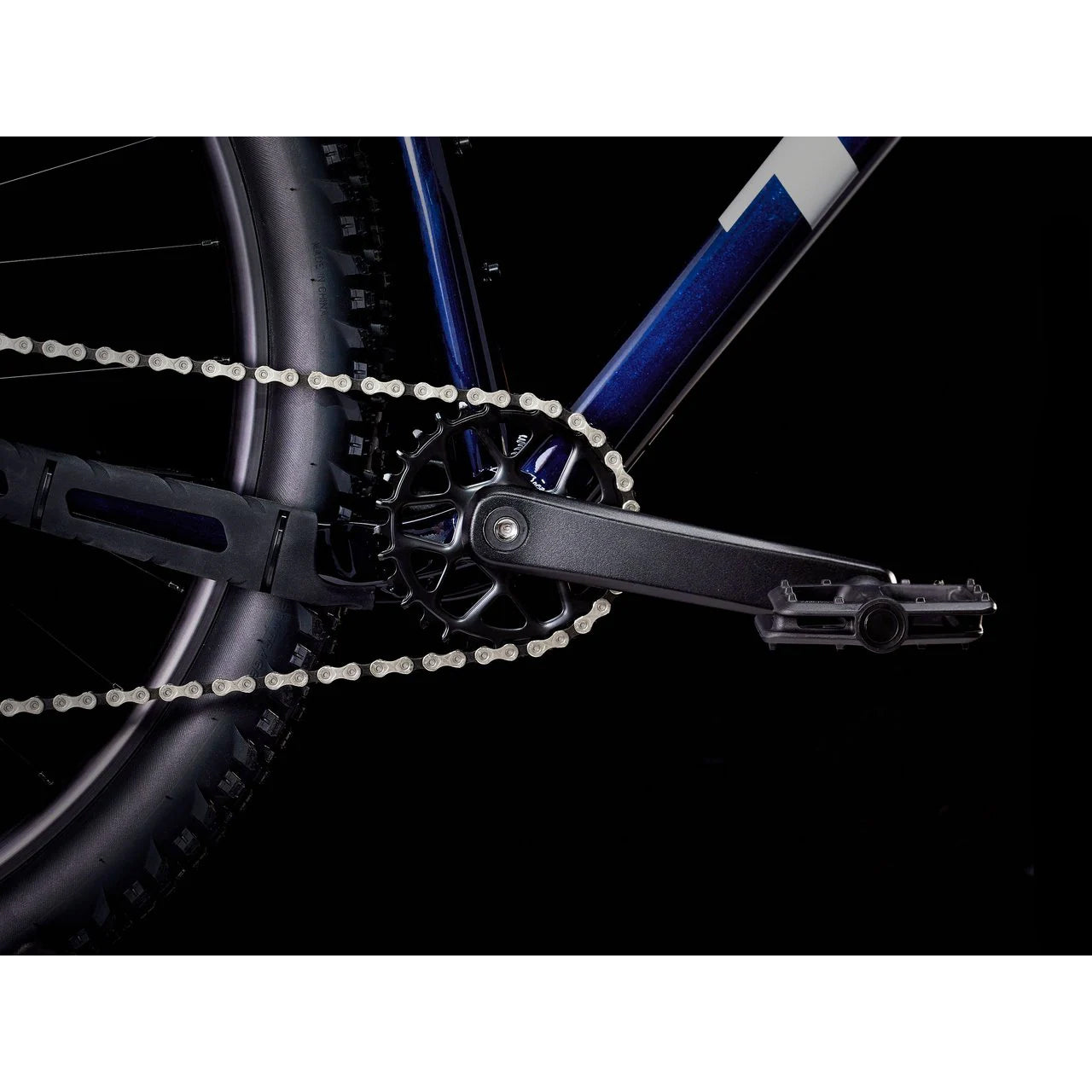

VP BC73, 73mm, threaded cartridge

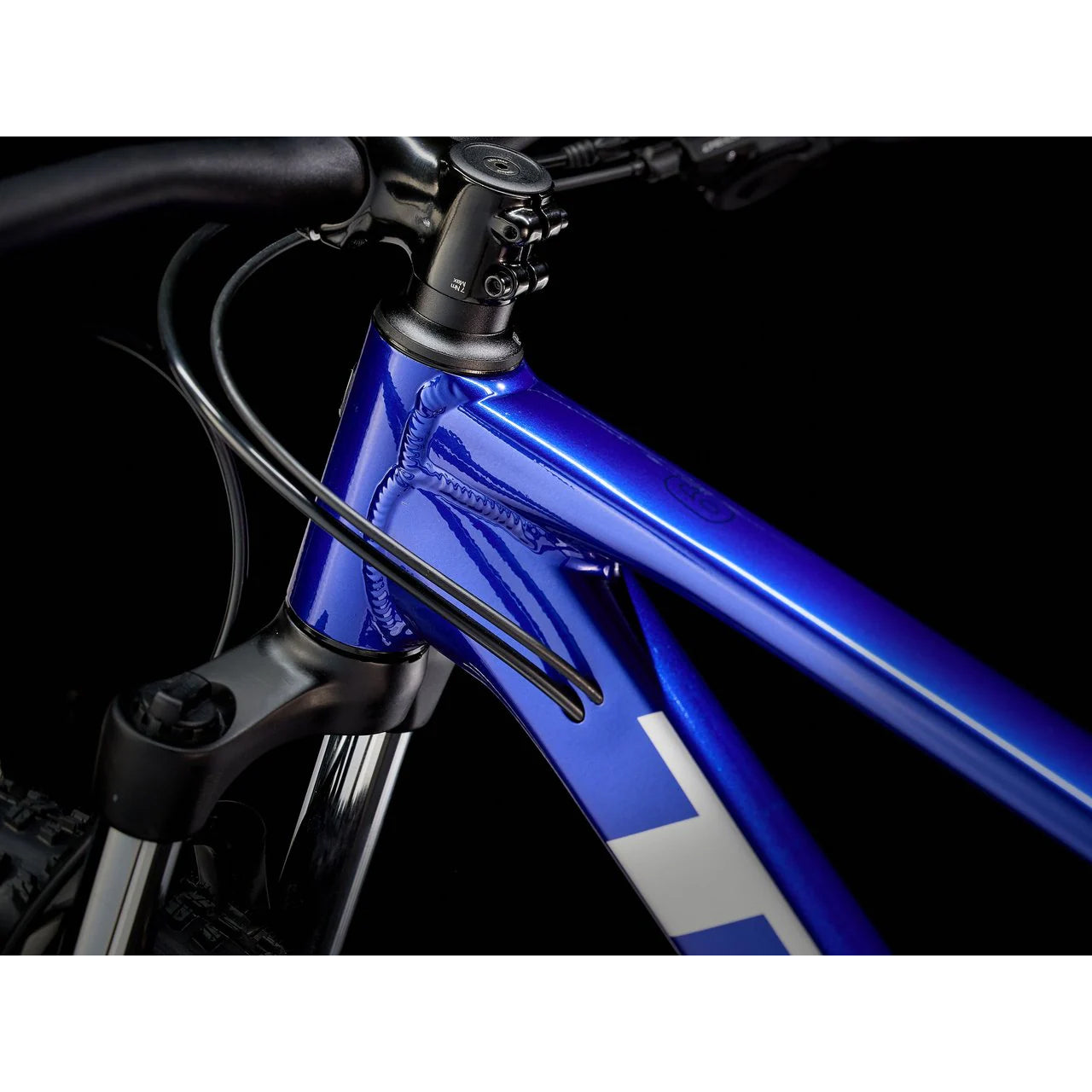

Frame

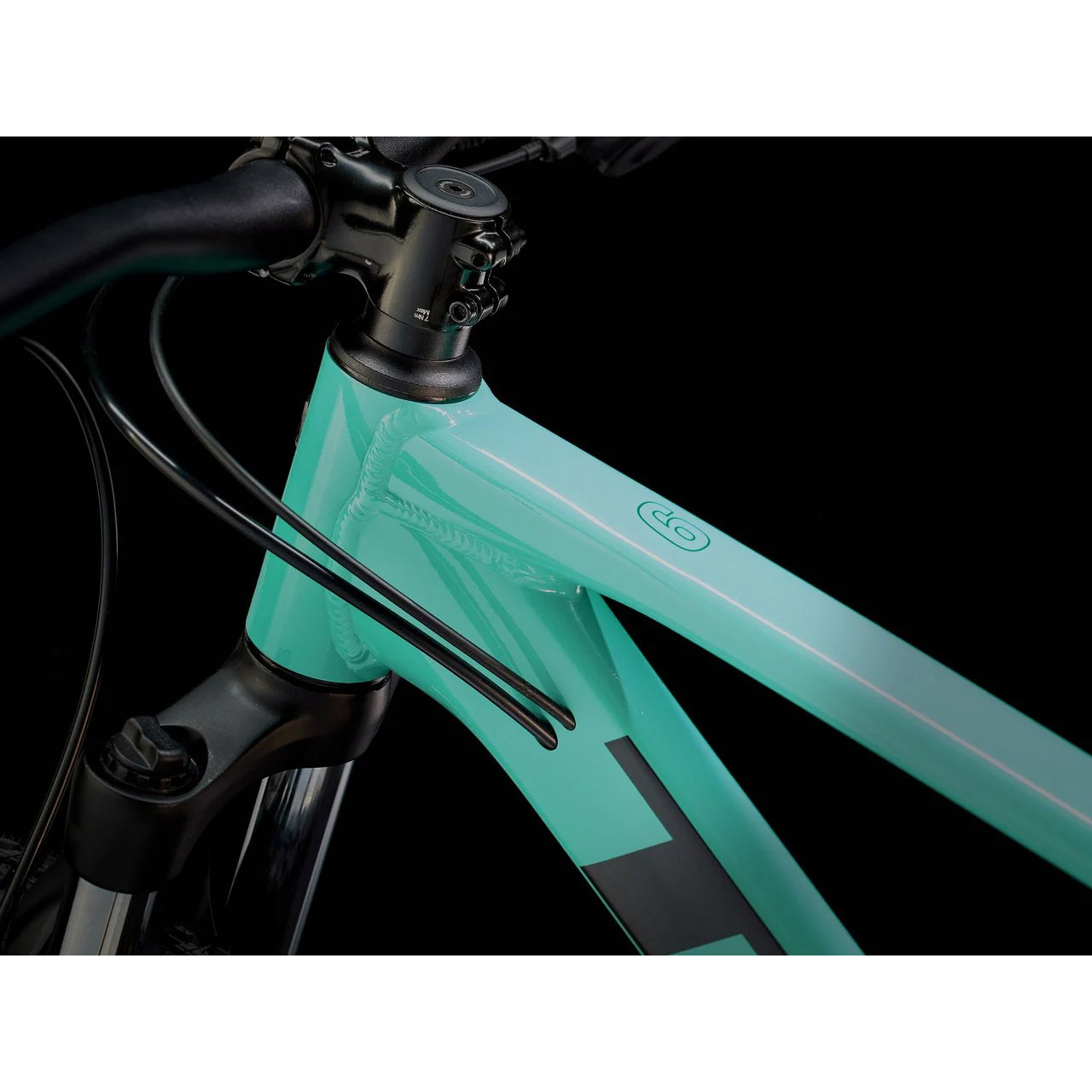

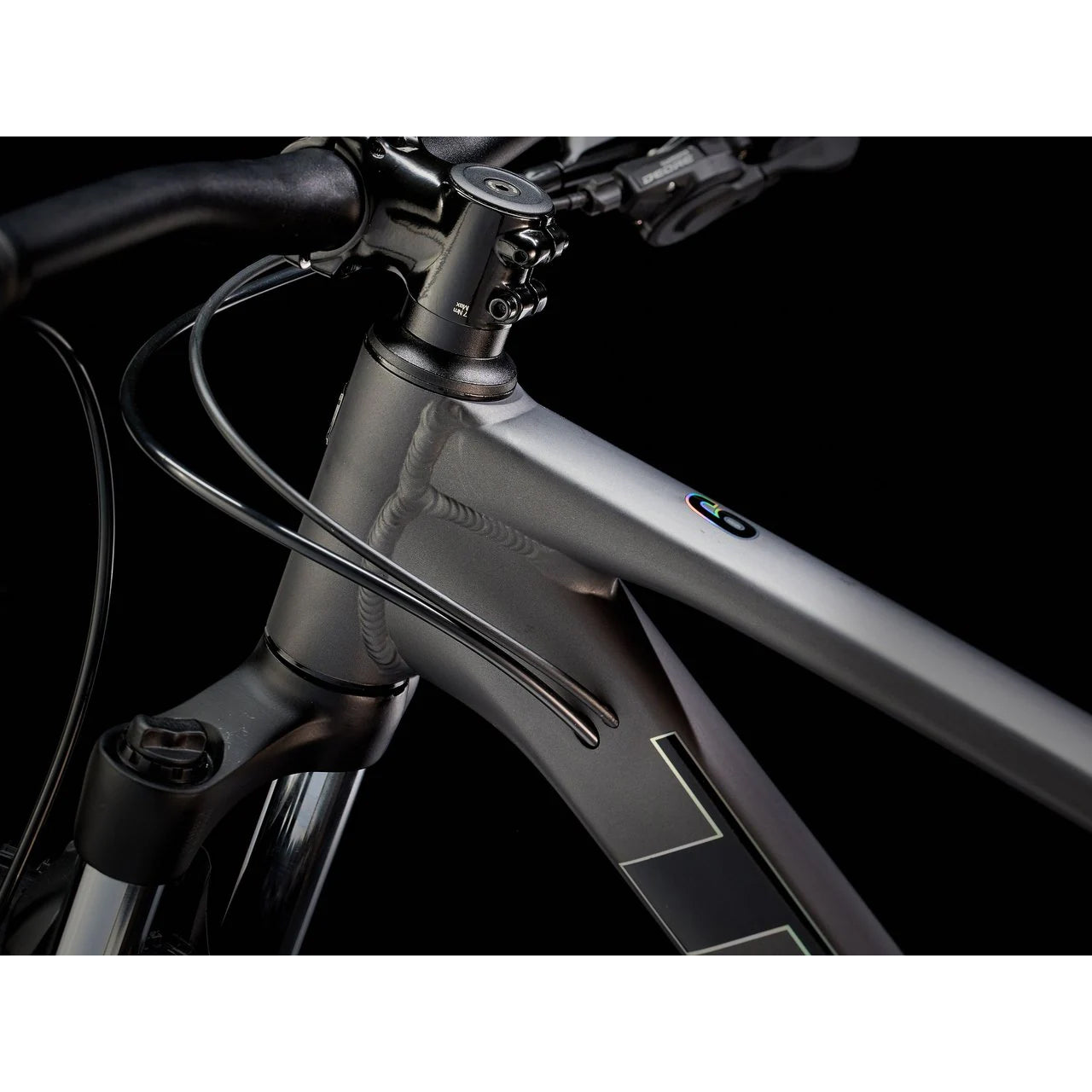

Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
Frame material
Aluminum
Headset
Semi-integrated, 1-1/8"
Platform wheel size
26" - (XXS) | 27.5" - (XS-S) | 29" - (M-XXL)
Seatpost
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
Weight as spec d
M - 14.80 kg / 32.63 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
Share this product
Description
Description

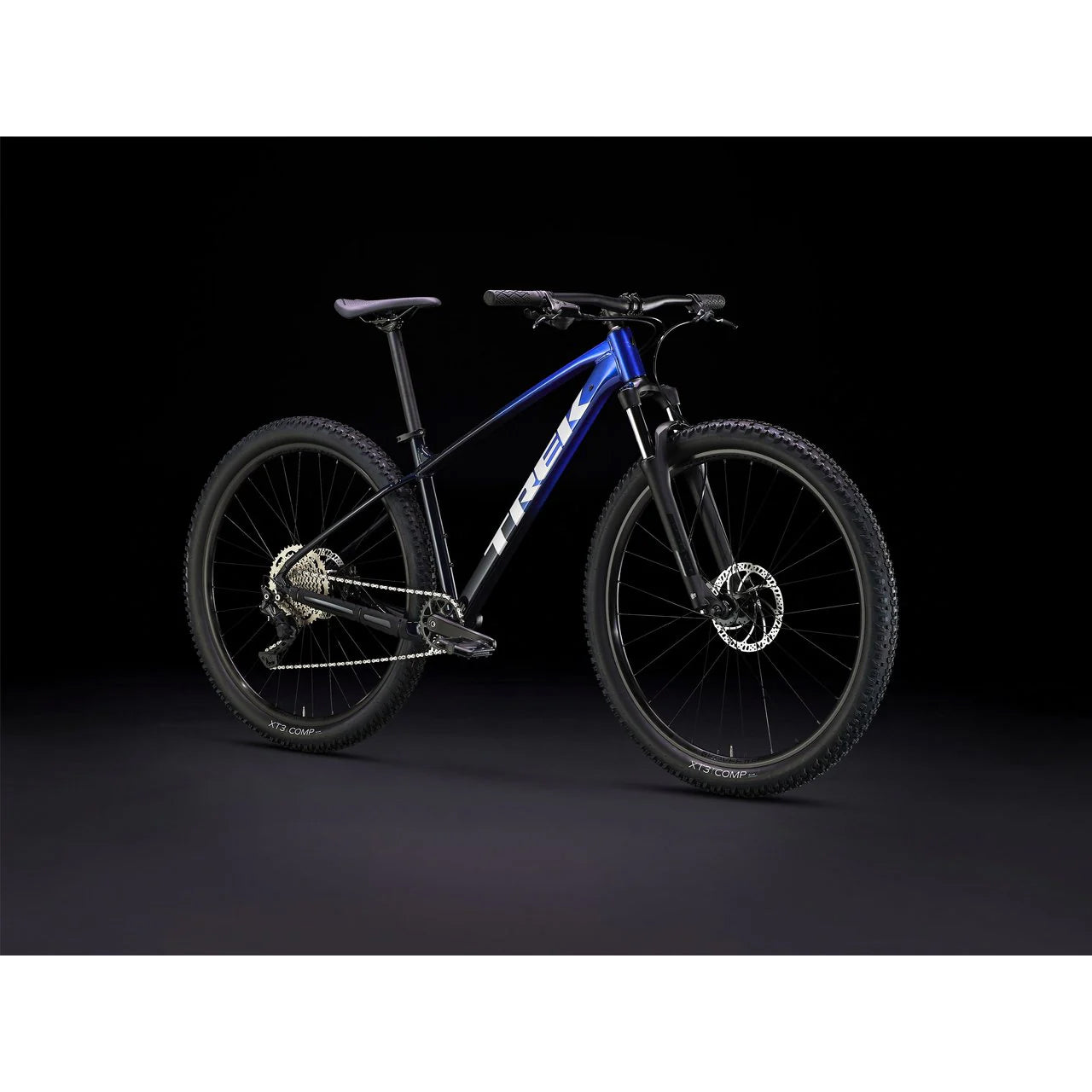

Marlin 6 is the perfect ride for progressing your skills on the trails. Its updated slacker frame geometry makes it easier to control on descents while the suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.
Geometry Chart
Geometry Chart
| Measurement | Small | Medium | Large | Medium / Large | X-Large | X-Small | XX-Large | XX-Small |
|---|---|---|---|---|---|---|---|---|
| Reach (mm) | 415 | 440 | 470 | 455 | 495 | 390 | 520 | 365 |
| Stack (mm) | 572 | 609 | 618 | 614 | 637 | 563 | 651 | 544 |
| Head Tube Angle (°) | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
| Seat Tube Angle (°) | 73.8° | 73.4° | 73.4° | 73.4° | 73.4° | 73.8° | 73.4° | 74.0° |
| Wheelbase (mm) | 1121 | 1163 | 1197 | 1180 | 1230 | 1092 | 1261 | 1060 |
| Chainstay Length (mm) | 433 | 438 | 438 | 438 | 438 | 433 | 438 | 433 |
| Head Tube Length (mm) | 100 | 105 | 115 | 110 | 135 | 90 | 150 | 90 |
| Seat Tube Length (mm) | 370 | 420 | 450 | 435 | 500 | 340 | 540 | 320 |
| BB Drop (mm) | 45 | 60 | 60 | 60 | 60 | 45 | 60 | 38 |
| BB Height (mm) | 313 | 308 | 308 | 308 | 308 | 313 | 308 | 302 |
| Rake (mm) | 42 | 46 | 46 | 46 | 46 | 42 | 46 | 40 |
| Trail (mm) | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 10 |
| Axle to Crown (mm) | 572 | 609 | 618 | 614 | 637 | 563 | 651 | 544 |
Part Numbers
Part Numbers
| Size / Wheelsize | Blue Sage | Hex Blue to Deepdark Blue | Matte Dnister Black |
|---|---|---|---|
| Medium / 29" |
SKUTRE304277753
VPNTrek_5277274
UPC601842863282
MPN5277274
|
SKUTRE435272033
VPNTrek_5277266
UPC601842863367
MPN5277266
|
— |
| Medium / 27.5" | — | — | — |
| Medium / 26" | — | — | — |
| Medium/Large / 29" |
SKUTRE314855053
VPNTrek_5277275
UPC601842863275
MPN5277275
|
SKUTRE447734363
VPNTrek_5277267
UPC601842863350
MPN5277267
|
— |
| Medium/Large / 27.5" | — | — | — |
| Medium/Large / 26" | — | — | — |
| X-Small / 29" | — | — | — |
| X-Small / 27.5" |
SKUTRE328927723
VPNTrek_5277272
UPC601842863305
MPN5277272
|
SKUTRE452770713
VPNTrek_5277264
UPC601842863381
MPN5277264
|
— |
| X-Small / 26" | — | — | — |
| XX-Small / 29" | — | — | — |
| XX-Small / 27.5" | — | — | — |
| XX-Small / 26" |
SKUTRE329342513
VPNTrek_5277271
UPC601842863312
MPN5277271
|
SKUTRE45466673
VPNTrek_5277263
UPC601842863398
MPN5277263
|
SKUTRE419472693
VPNTrek_5277255
UPC601842863473
MPN5277255
|
| Large / 29" | — |
SKUTRE435681163
VPNTrek_5277268
UPC601842863343
MPN5277268
|
— |
| Large / 27.5" | — | — | — |
| Large / 26" | — | — | — |
| XX-Large / 29" | — |
SKUTRE458607273
VPNTrek_5277270
UPC601842863329
MPN5277270
|
— |
| XX-Large / 27.5" | — | — | — |
| XX-Large / 26" | — | — | — |
| X-Large / 29" | — |
SKUTRE444699373
VPNTrek_5277269
UPC601842863336
MPN5277269
|
— |
| X-Large / 27.5" | — | — | — |
| X-Large / 26" | — | — | — |
Size Chart
Size Chart
Trek | Mountain
| Size | Rider height (in) | Rider height (cm) | Inseam (in) | Inseam (cm) |
|---|---|---|---|---|
| X-Small | 4'9" - 5'1" | 145 - 155 cm | 27" - 29" | 69 - 73 cm |
| Small | 5'1" - 5'5" | 155 - 165 cm | 29" - 31" | 74 - 78 cm |
| Medium | 5'5" - 5'10" | 165 - 177 cm | 31" - 33" | 79 - 83 cm |
| Medium/Large | 5'8" - 5'11" | 173 - 180 cm | 32" - 34" | 81 - 86 cm |
| Large | 5'10" - 6'2" | 177 - 188 cm | 33" - 35" | 84 - 89 cm |
| X-Large | 6'2" - 6'5" | 188 - 195 cm | 35" - 36" | 89 - 91 cm |
| XX-Large | 6'5" - 6'8" | 195 - 203 cm | 36" - 38" | 91 - 97 cm |
