Trek

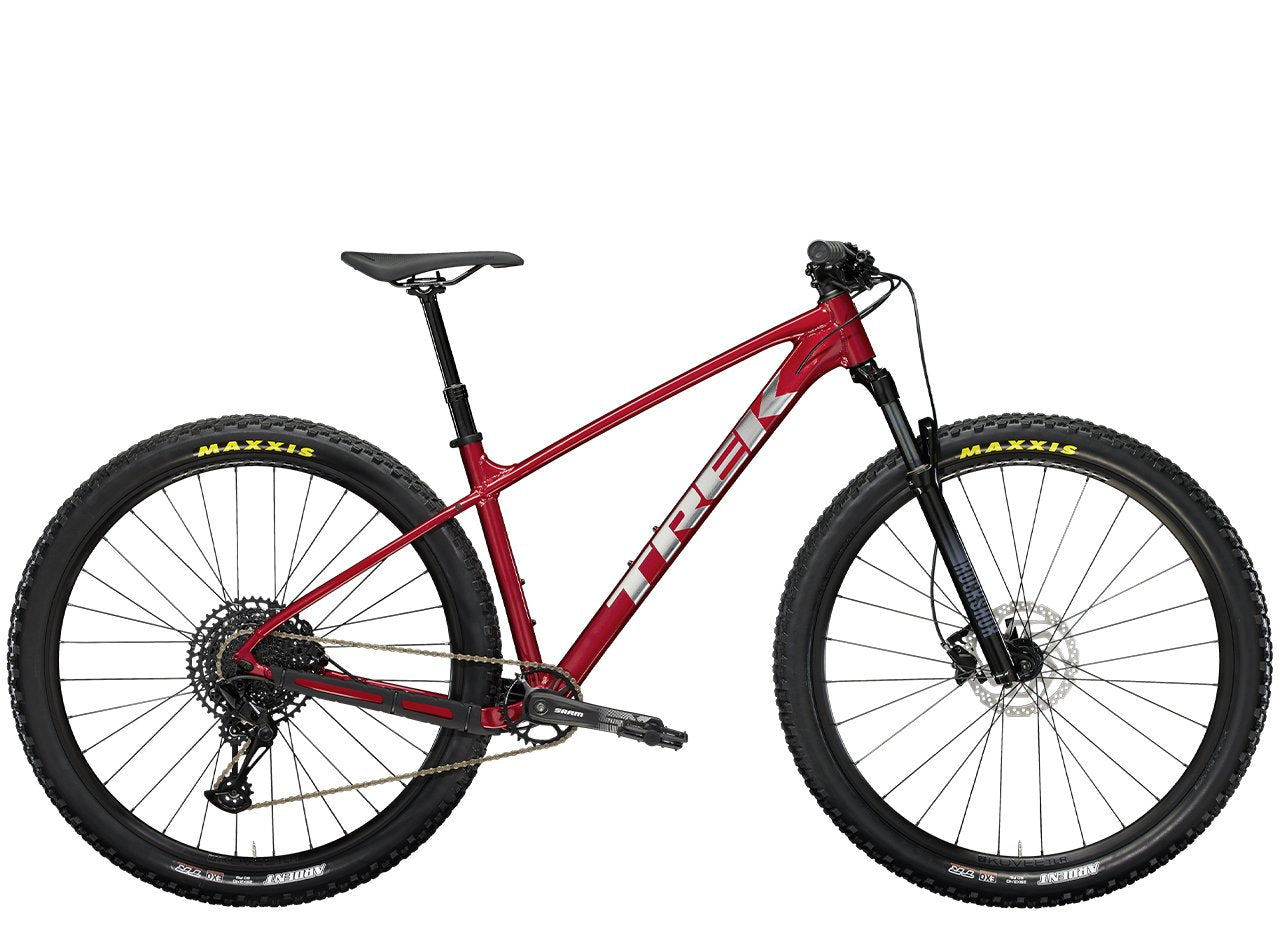

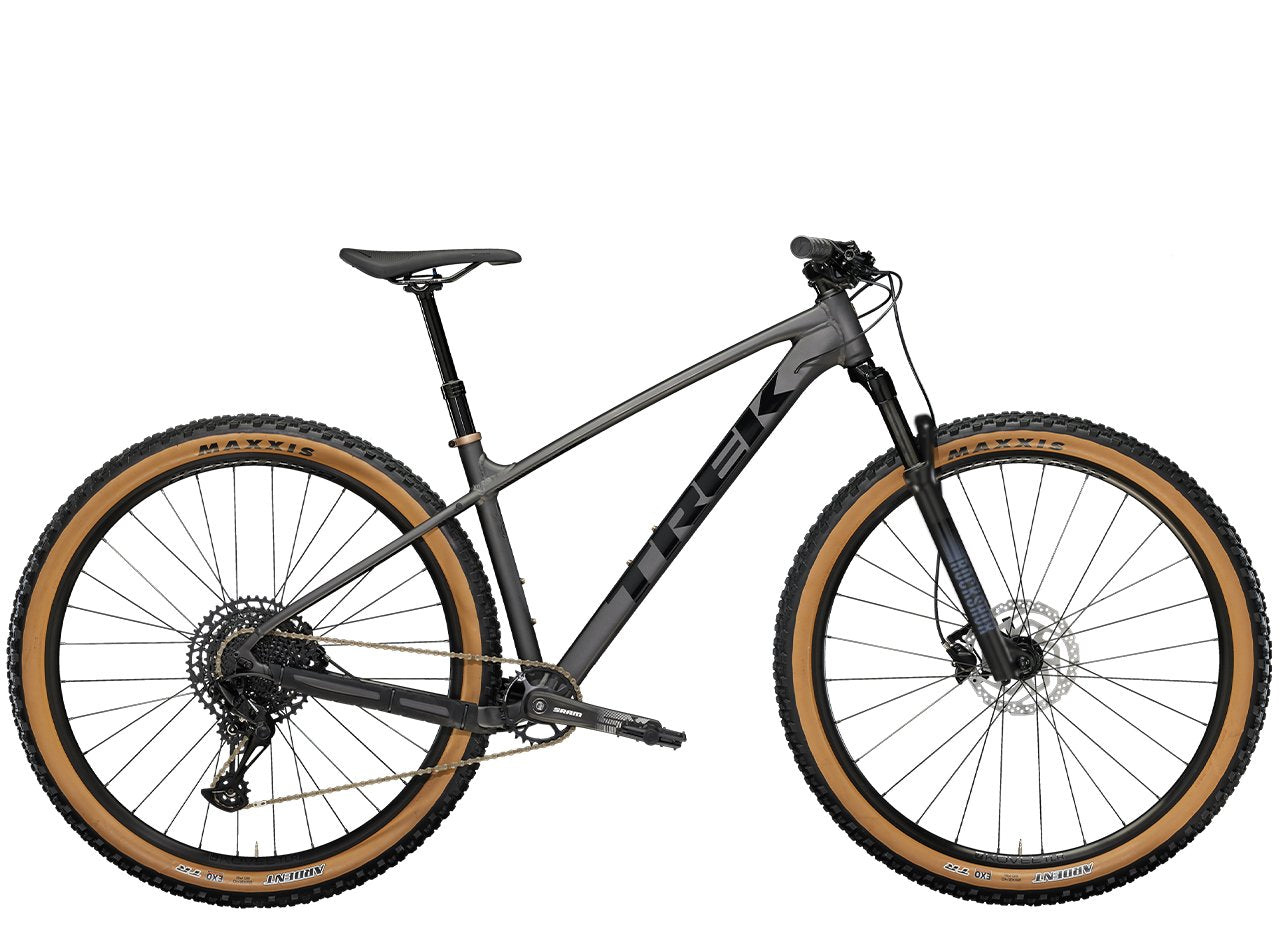

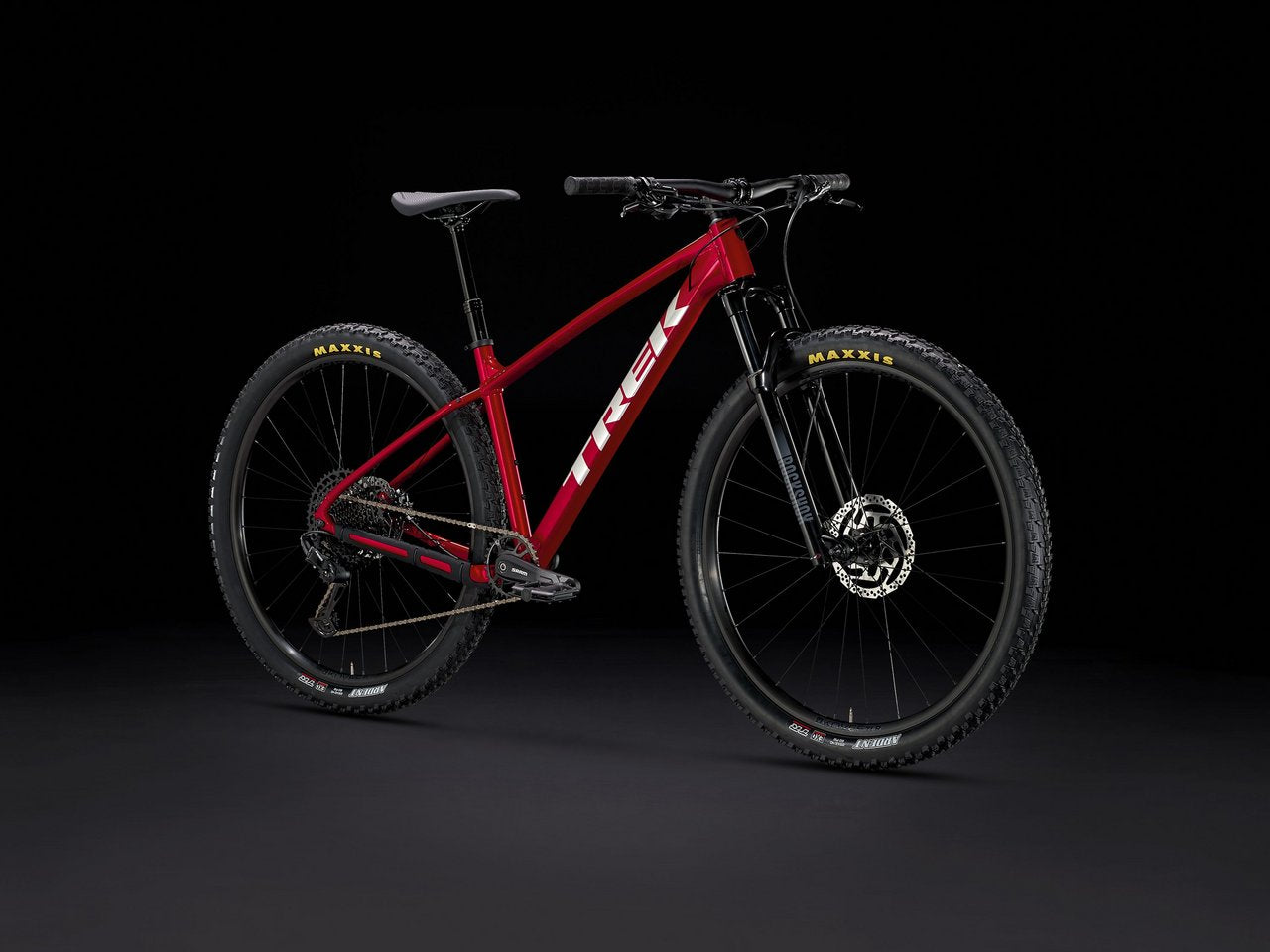

2023 | Marlin 8 Gen 3

$1,659.99

Shipping calculated at checkout.

Color: Crimson

Size: Small

Small Medium Large Medium/Large X-Large XX-Small

SKU:

Shipping & Returns

We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.

Canadian shipping charges:

Sale bikes: $200
Standard pedal bikes over $1250: Free
Standard pedal bikes under $1250: $100
Electric bikes: $200
Fat bikes: $200
Kid's bikes: $60

Insurance charge: 1.5% insured value

We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details

Bike Specifications

Specifications are subject to change without notice

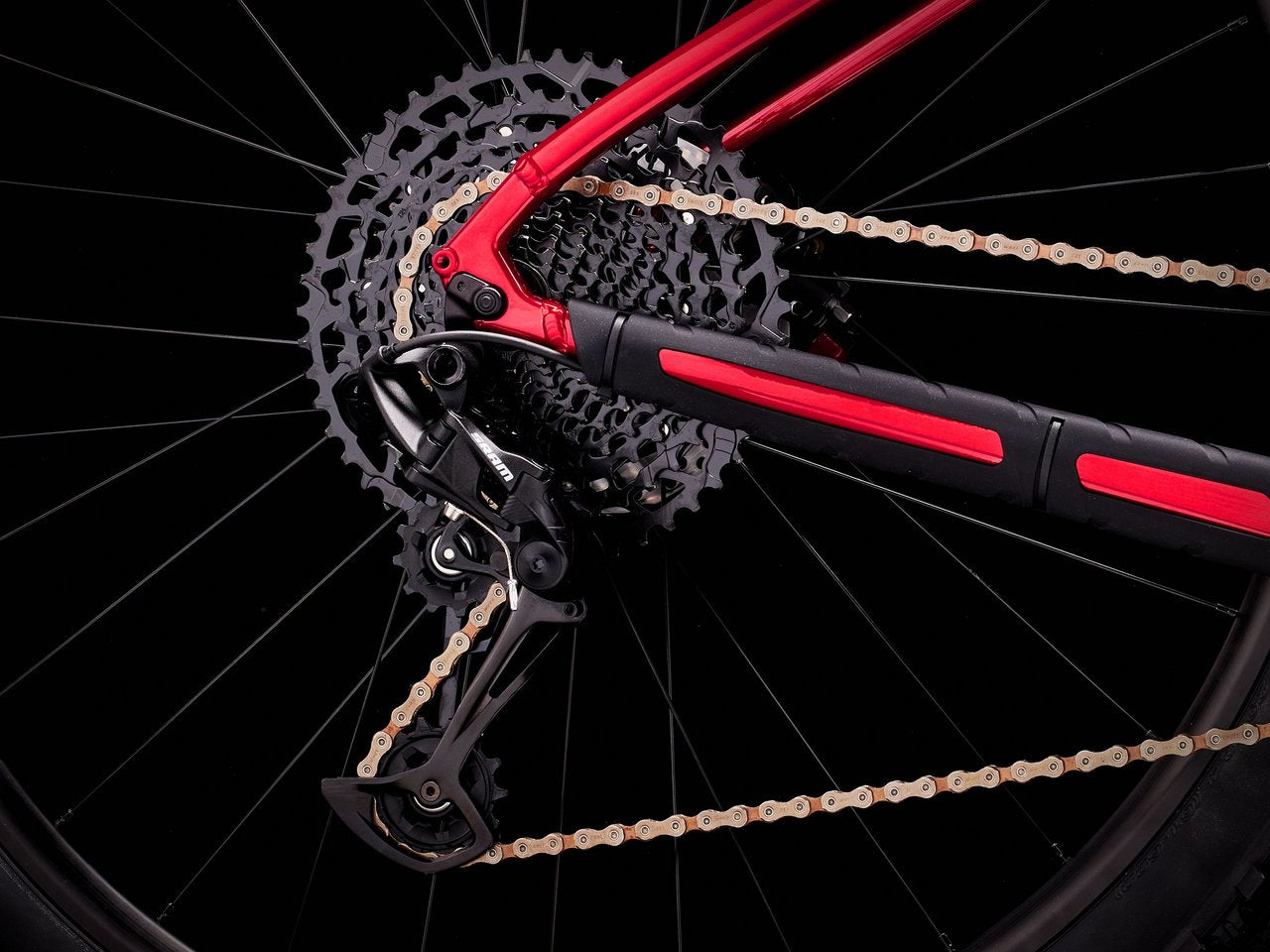

Drivetrain

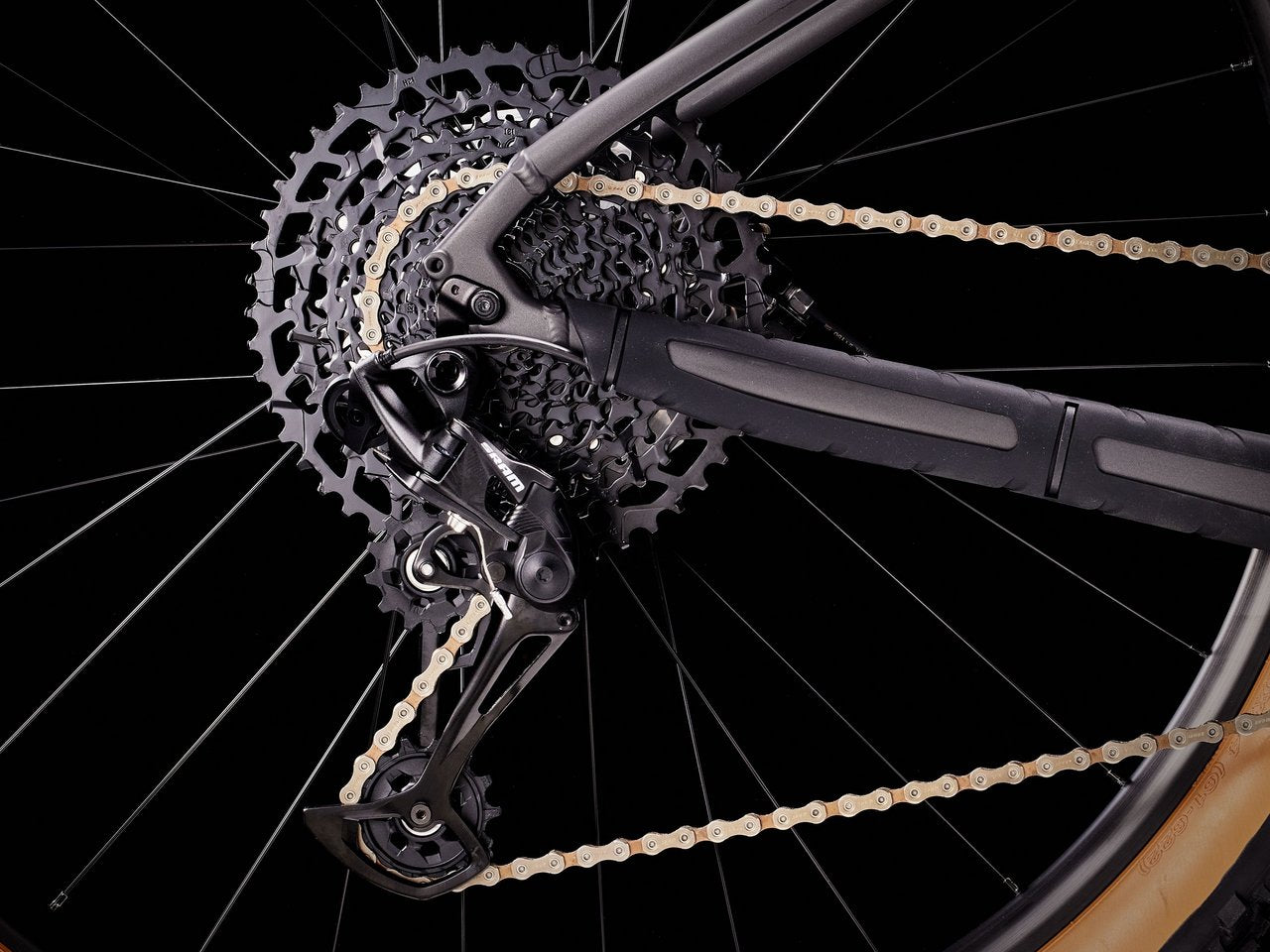

Cassette SRAM PG-1210 Eagle, 11-50, 12 speed

Chain SRAM SX Eagle, 12 speed

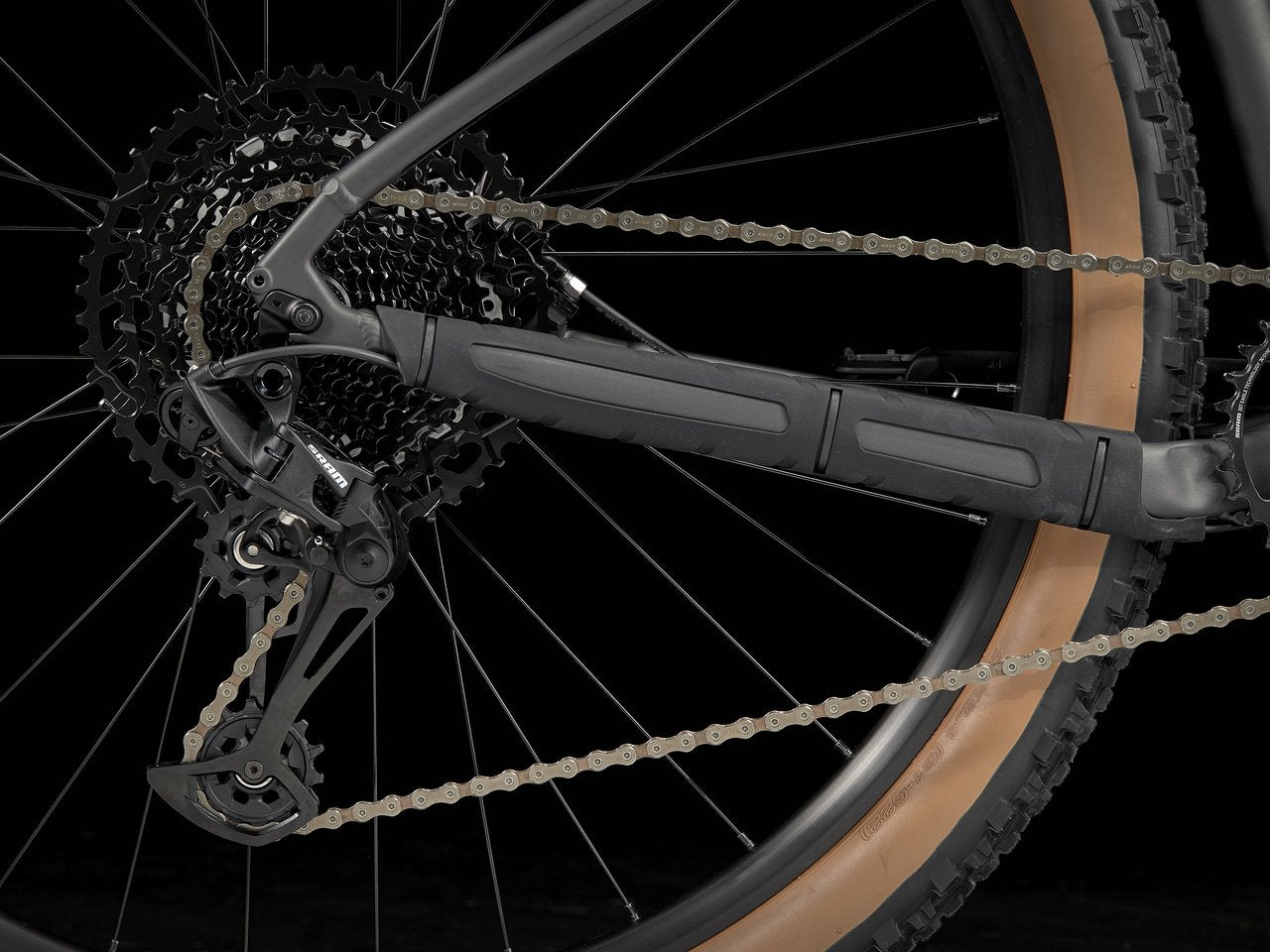

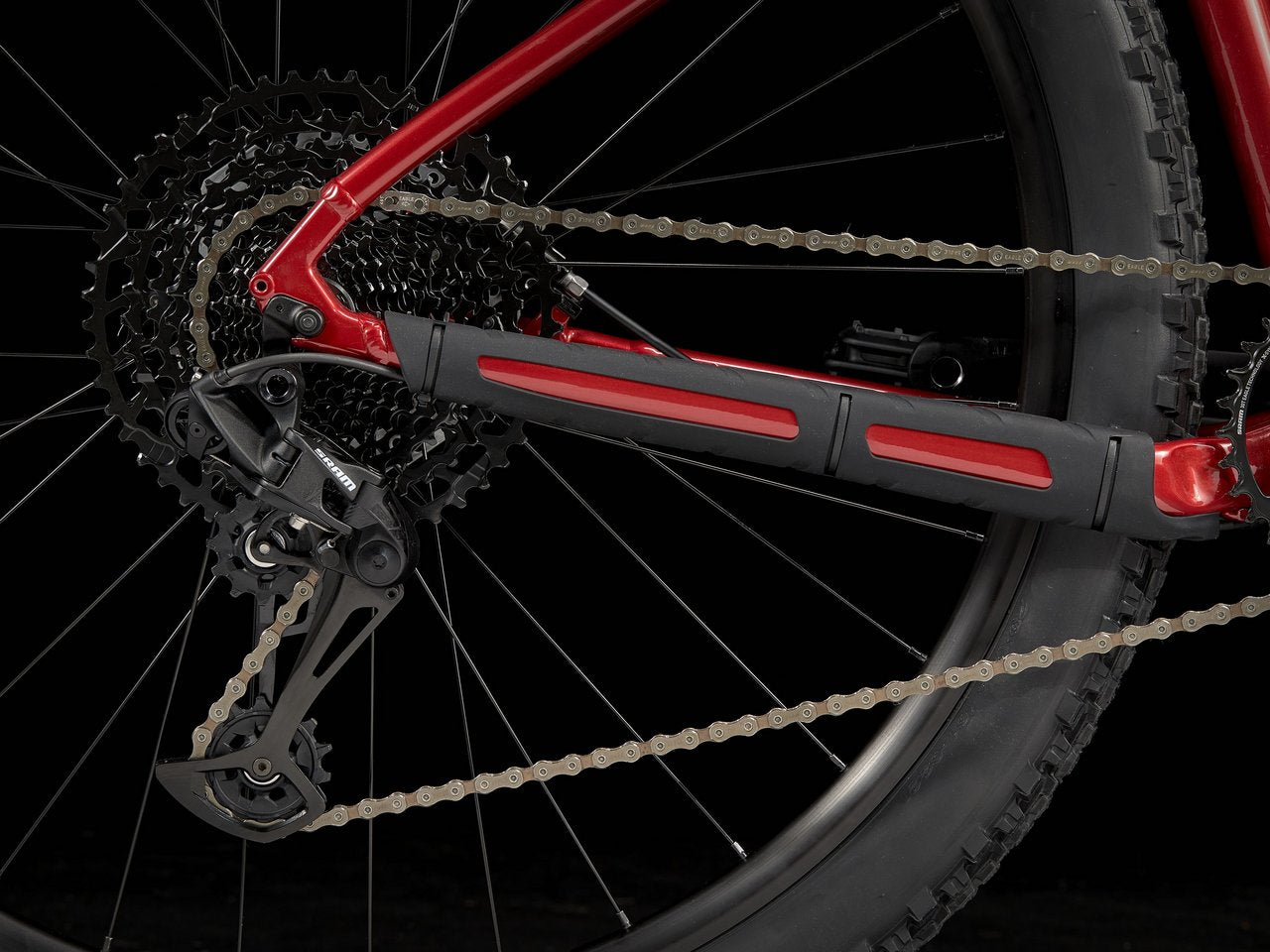

Rear derailleur SRAM SX Eagle

Shifter SRAM SX Eagle, 12 speed

Brakes

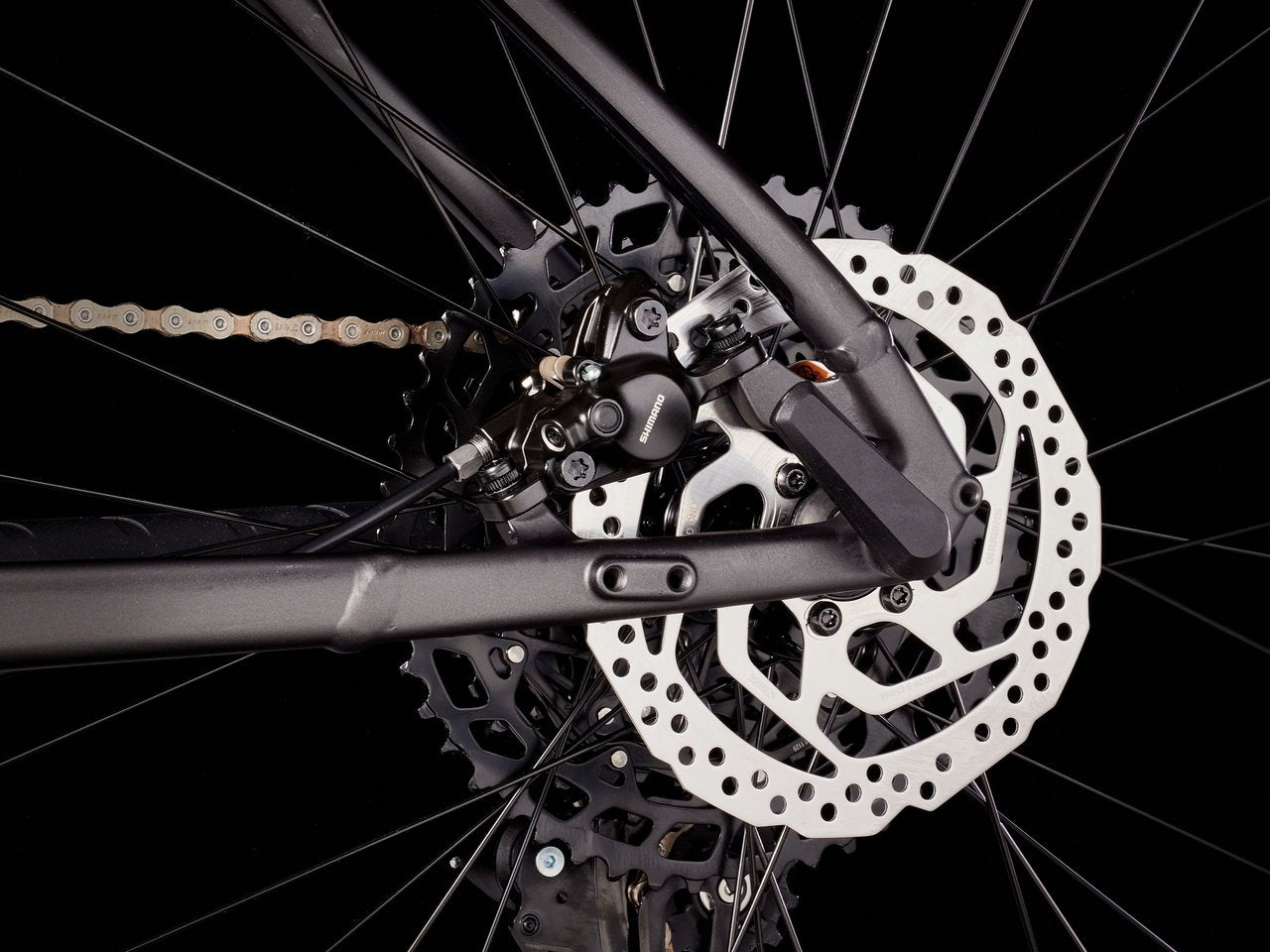

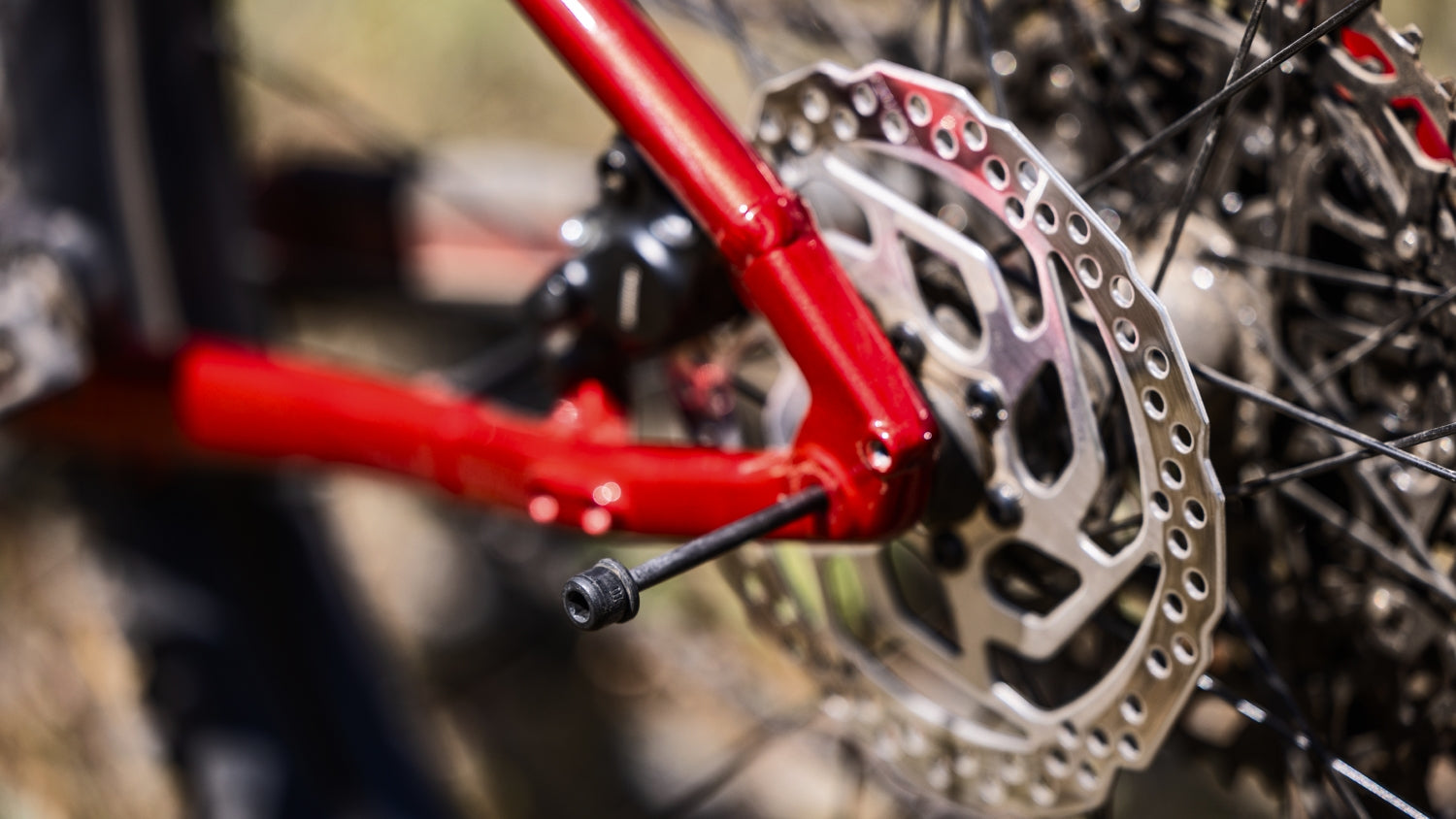

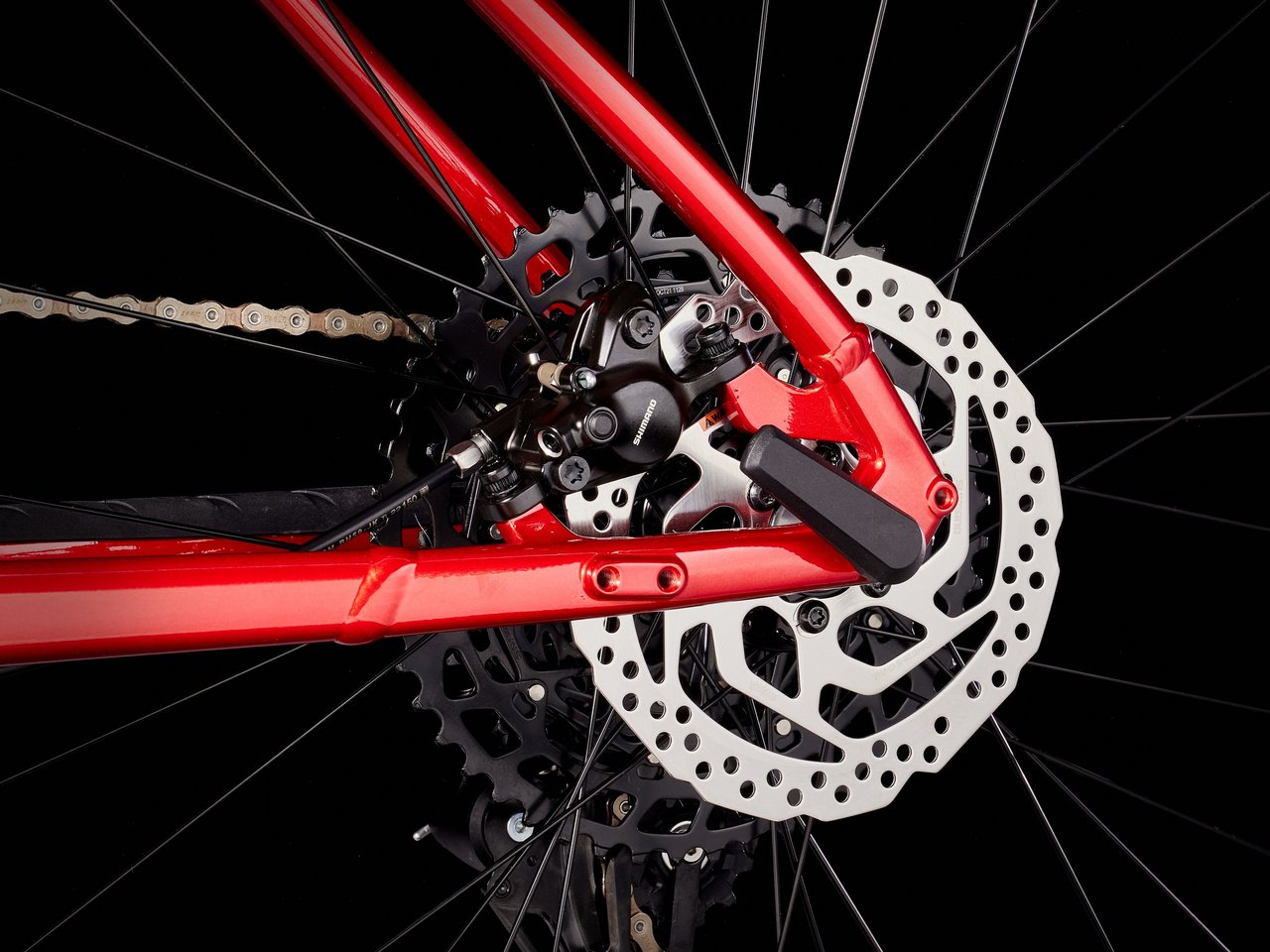

Brake rotor Shimano RT26, 6-bolt,160 mm

Brake type Hydraulic disc

Caliper Shimano MT200 hydraulic disc

Cockpit

Grips tape Bontrager XR Trail Comp, nylon lock-on

Handlebars Bontrager alloy, 31.8mm, 15mm rise, 720mm width

Pedals VP-536 nylon platform

Saddle Bontrager Arvada, steel rails, 138 mm width

Seatpost TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length

Seat collar Bolt-on, 36.4mm

Stem Bontrager Comp, 31.8mm, 7 degree, 35mm length

Wheels

Front hub Formula DC-20 LW, alloy, 6-bolt, 5x100mm QR

Rear hub Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR

Rims Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve

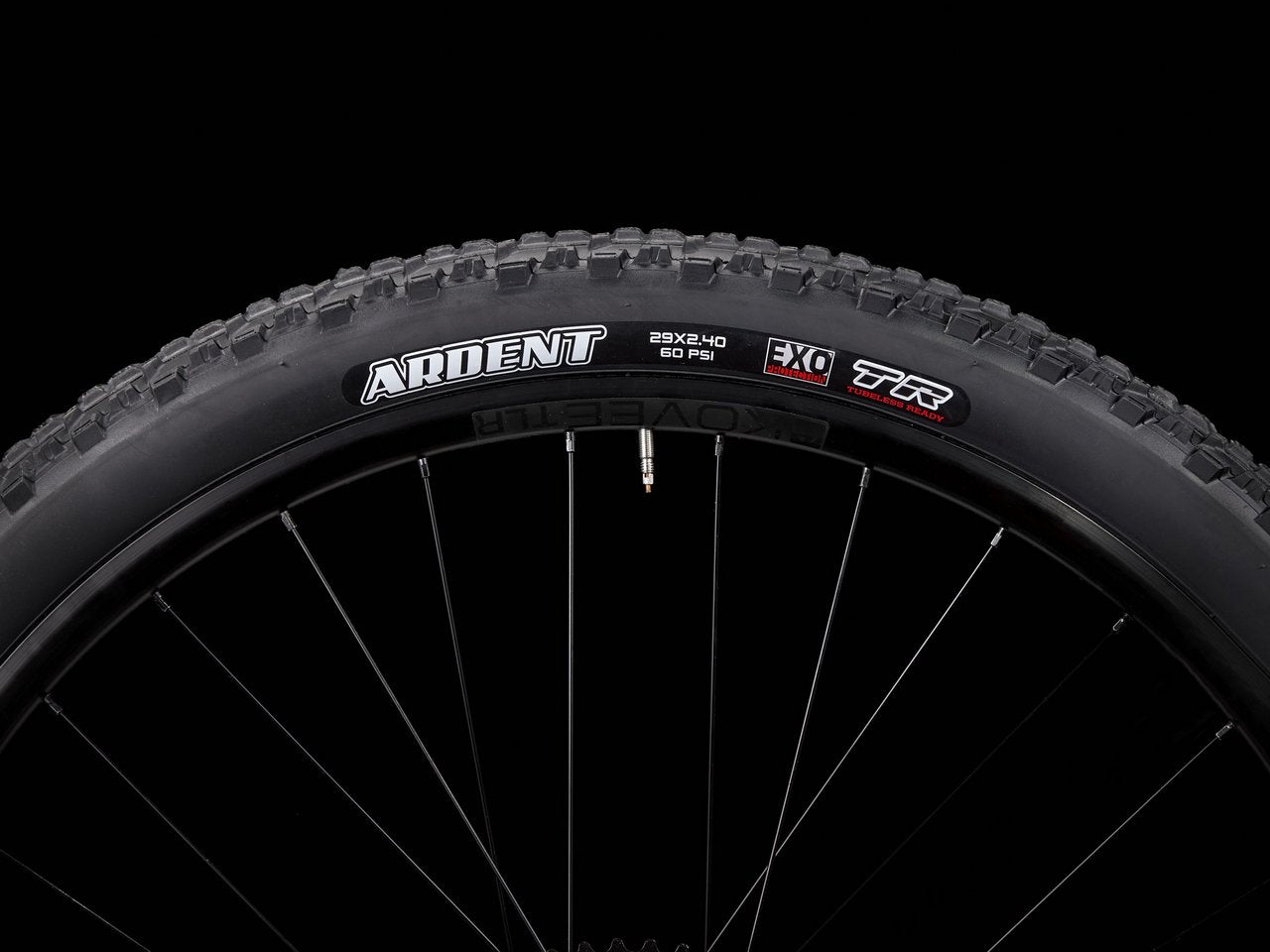

Tires Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60tpi, 27.5x2.40"

Wheel size Size Specific

Suspension

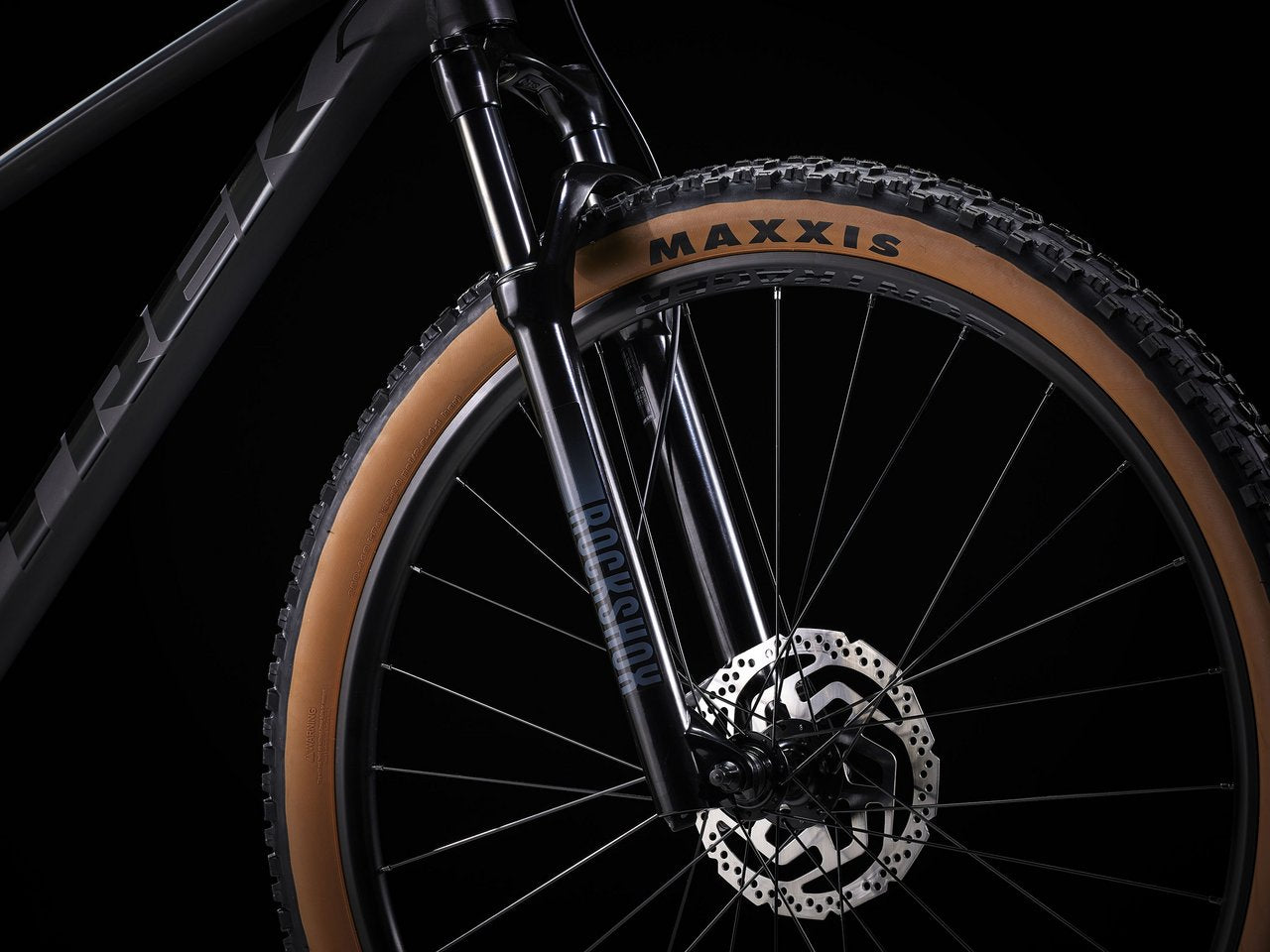

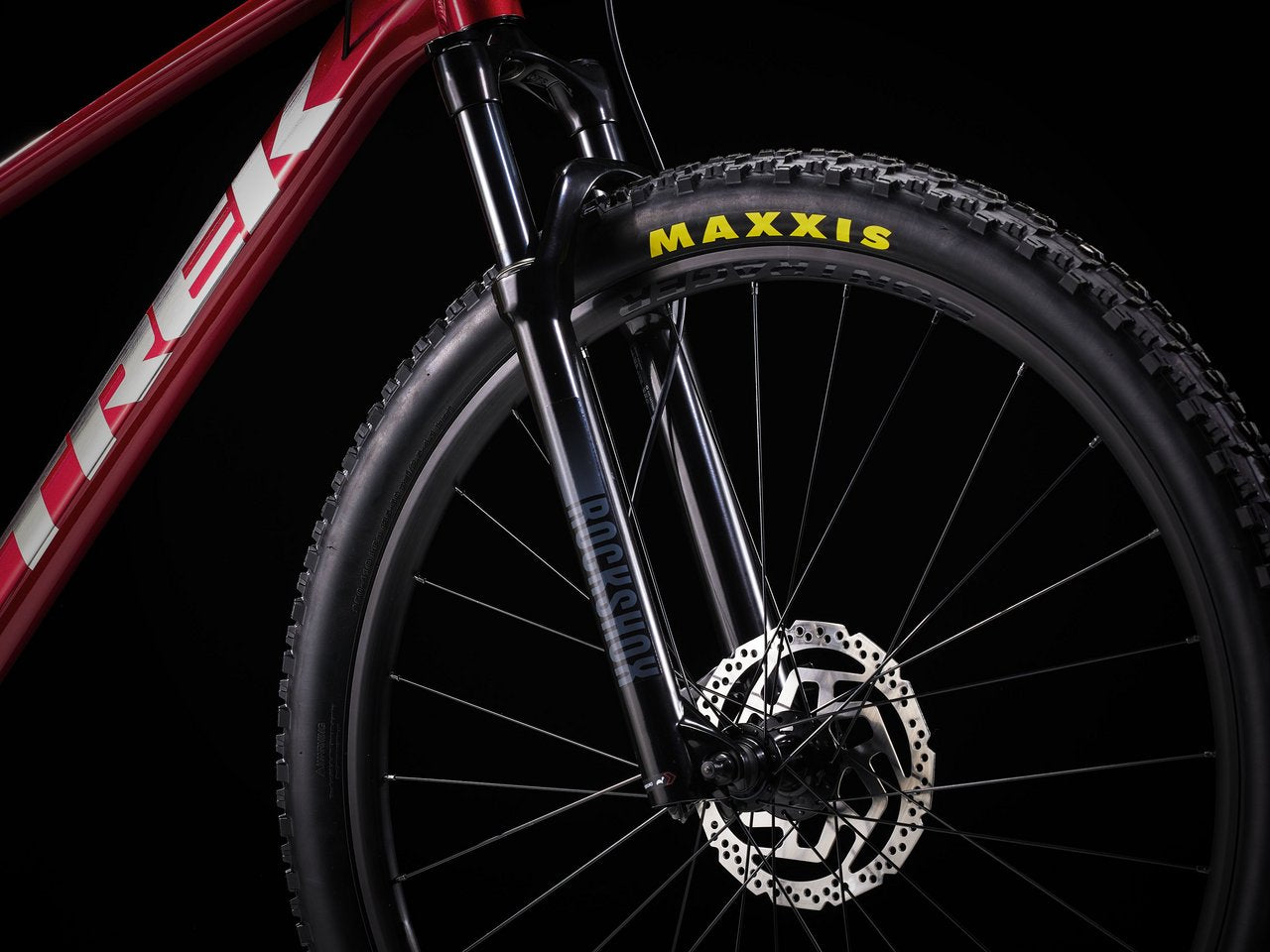

Fork RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 100 mm QR, 100 mm travel

Fork brand RockShox

Frame

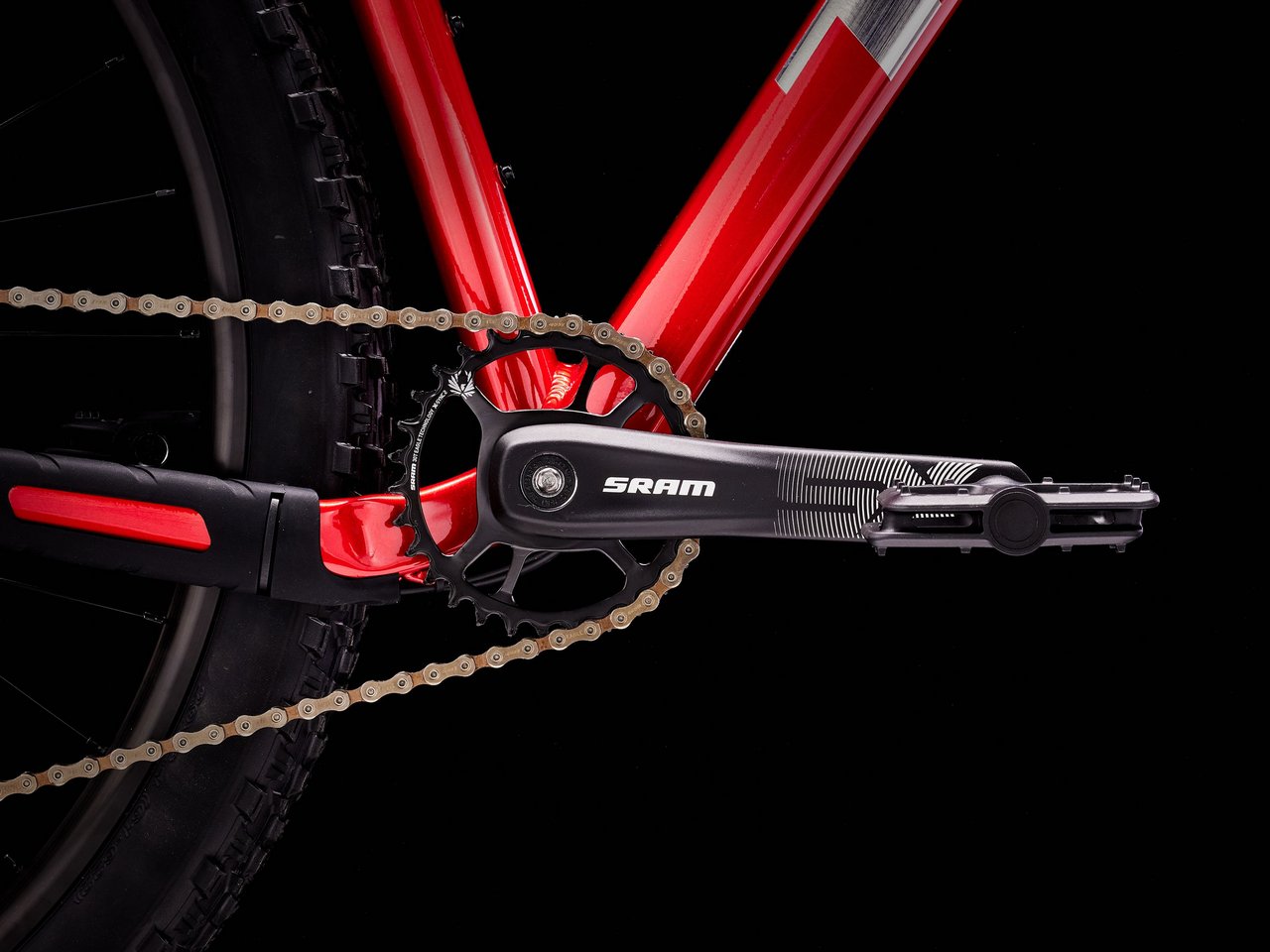

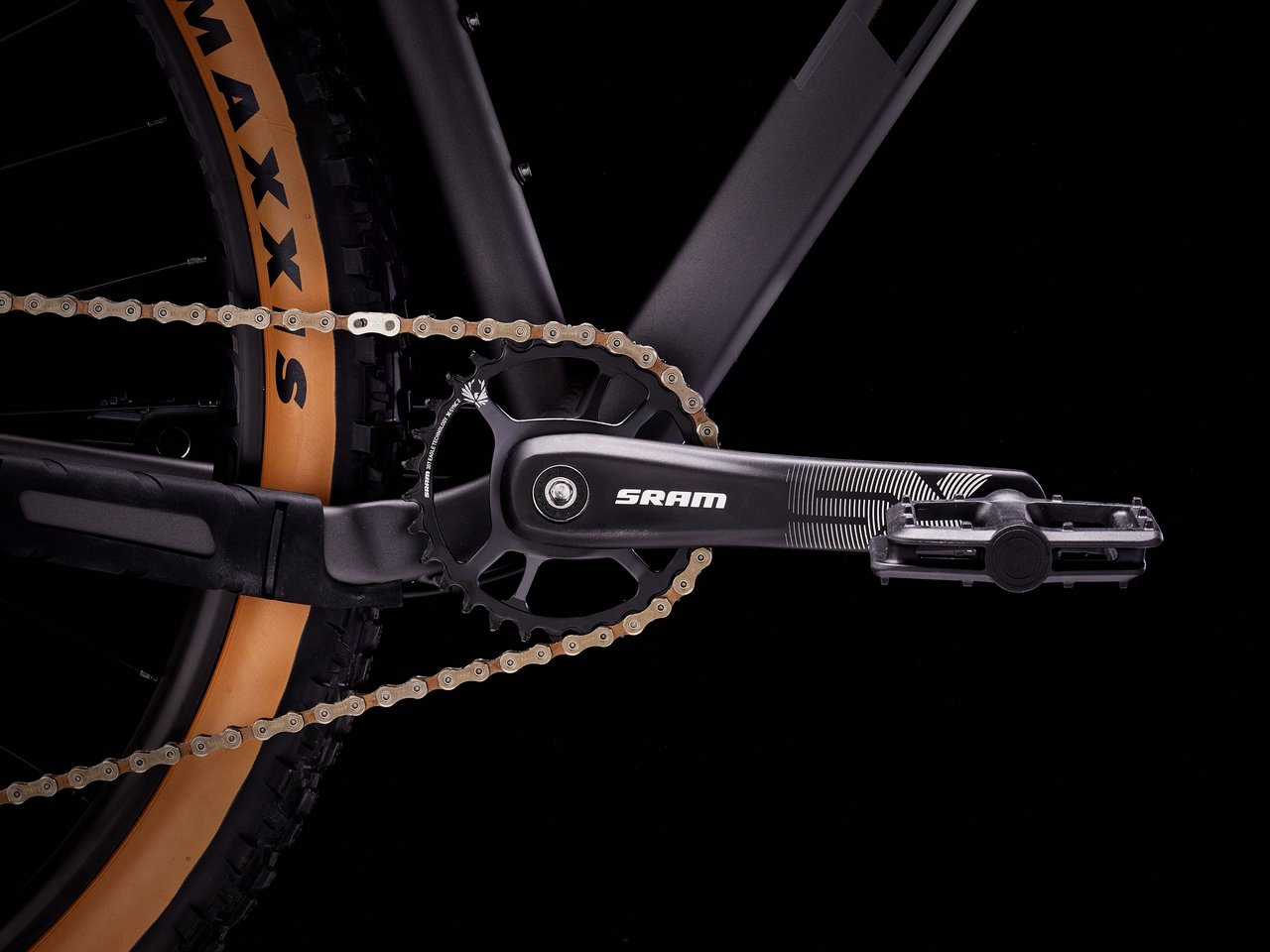

Bottom bracket Truvativ Powerspline, 73mm, threaded cartridge, 118mm spindle

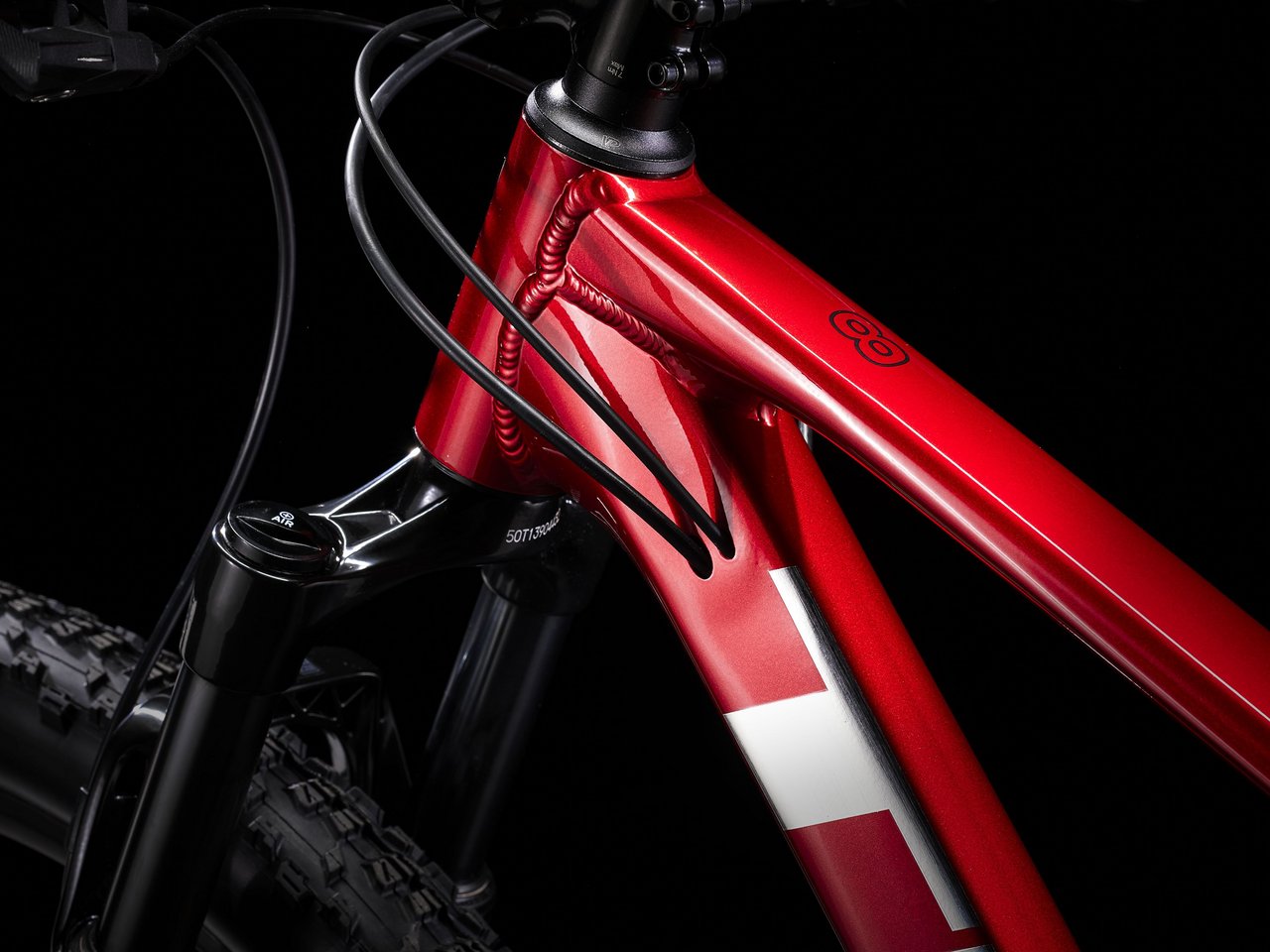

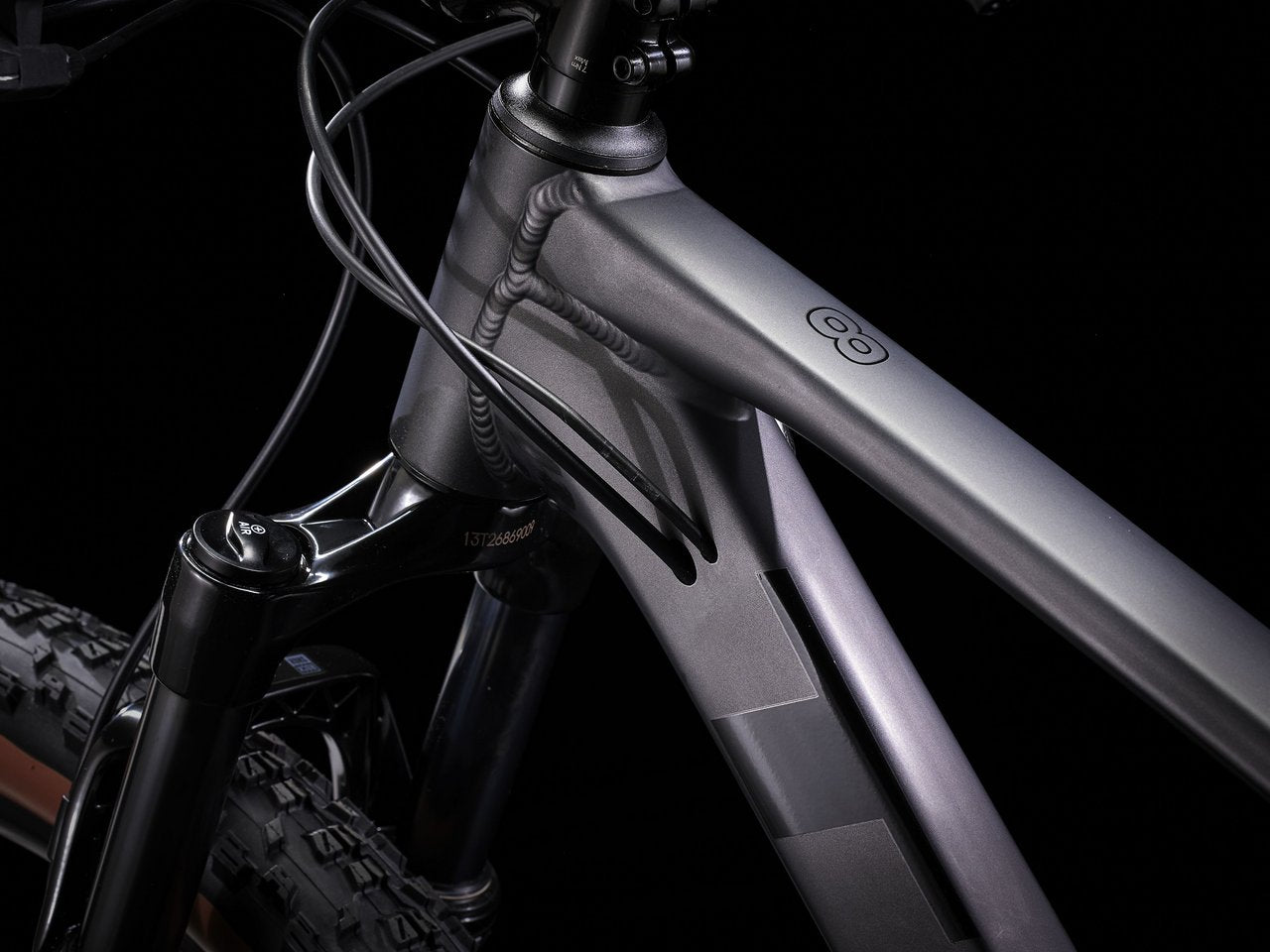

Frame Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew

Frame material Aluminum

Headset Semi-integrated, 1-1/8"

Platform wheel size 26" - (XXS) | 27.5" - (XS-S) | 29" - (M-XXL)

Seatpost TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length

Weight as spec d M - 14.29 kg / 31.51 lbs

Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

Description

Marlin 8 is a confidence-boosting trail bike with updated geometry that gives you more control on singletrack without skipping on features for everyday use, like mounts for racks and a kick stand. It's built for years of progress thanks to 12-speed SRAM shifting, and an upgraded RockShox air spring suspension fork.

Geometry Chart

Measurement	Small	Medium	Large	Medium/Large	X-Large	XX-Small

Part Numbers

Size	Crimson
Small	—
Medium	SKUTRE29607813 VPNTrek_5277584 UPC601842864418 MPN5277584
Large	—
Medium/Large	SKUTRE302510543 VPNTrek_5277585 UPC601842864401 MPN5277585
X-Large	—
XX-Small	SKUTRE311371413 VPNTrek_5277581 UPC601842864449 MPN5277581

Size Chart

Trek | Mountain

Size	Rider height (in)	Rider height (cm)	Inseam (in)	Inseam (cm)
X-Small	4'9" - 5'1"	145 - 155 cm	27" - 29"	69 - 73 cm
Small	5'1" - 5'5"	155 - 165 cm	29" - 31"	74 - 78 cm
Medium	5'5" - 5'10"	165 - 177 cm	31" - 33"	79 - 83 cm
Medium/Large	5'8" - 5'11"	173 - 180 cm	32" - 34"	81 - 86 cm
Large	5'10" - 6'2"	177 - 188 cm	33" - 35"	84 - 89 cm
X-Large	6'2" - 6'5"	188 - 195 cm	35" - 36"	89 - 91 cm
XX-Large	6'5" - 6'8"	195 - 203 cm	36" - 38"	91 - 97 cm
