Trek

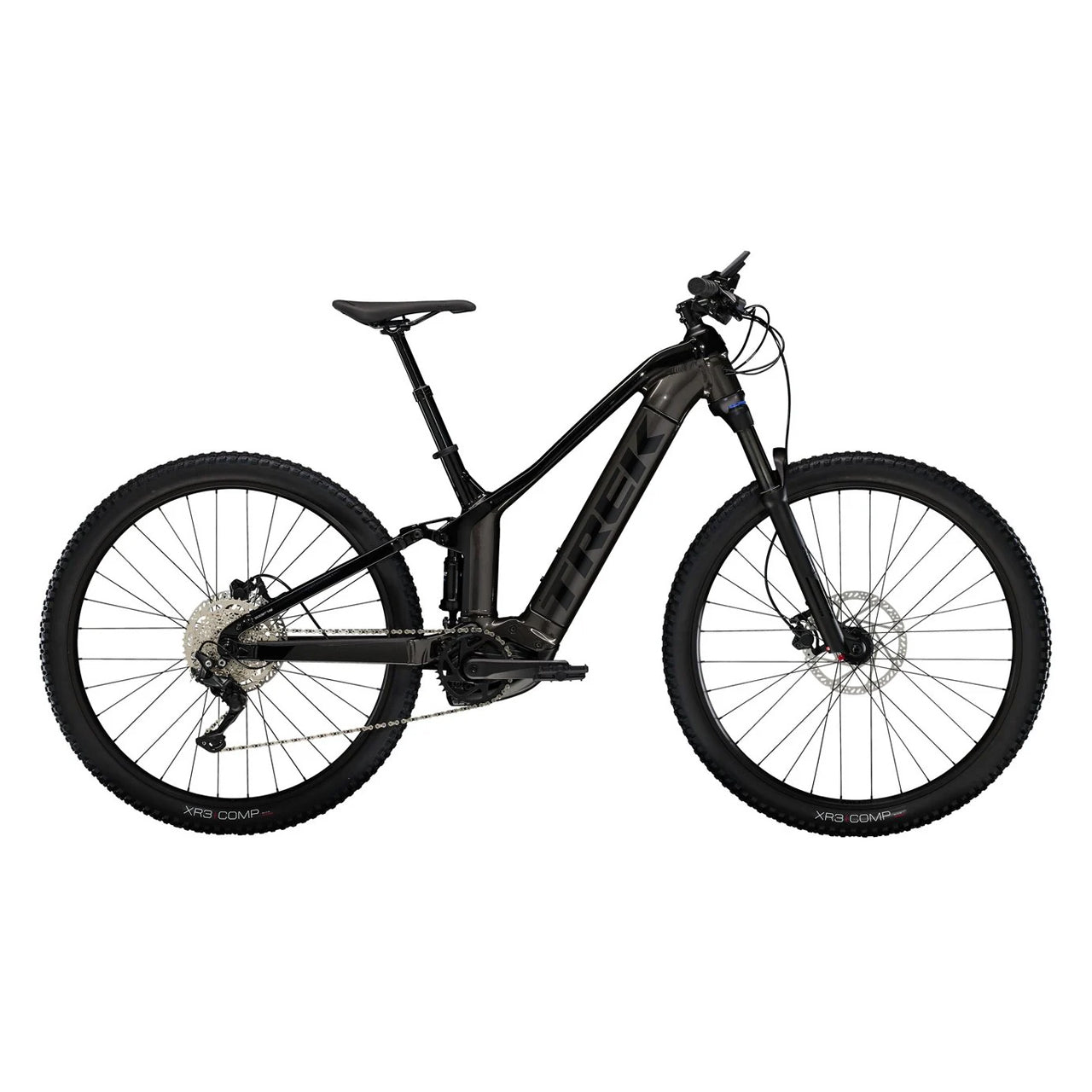

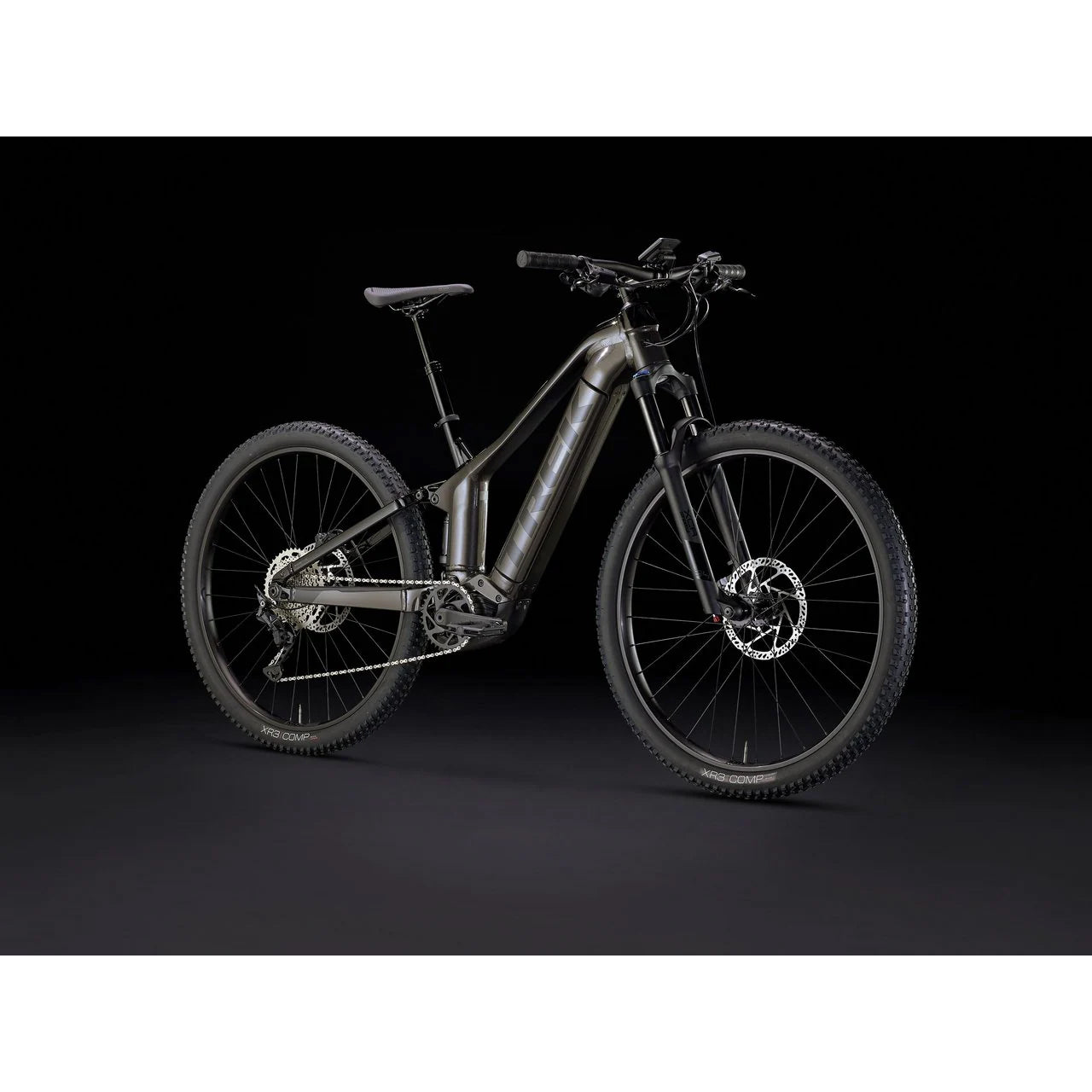

2023 | Powerfly FS 4 Gen 3

$6,149.99

Shipping calculated at checkout.

Color: Matte/Gloss Black

Size: Medium

Medium Large

Wheelsize: 29"

29"

SKU:TRE596738853

Shipping & Returns

We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.

Canadian shipping charges:

Sale bikes: $200
Standard pedal bikes over $1250: Free
Standard pedal bikes under $1250: $100
Electric bikes: $200
Fat bikes: $200
Kid's bikes: $60

Insurance charge: 1.5% insured value

We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details

Bike Specifications

Specifications are subject to change without notice

Drivetrain

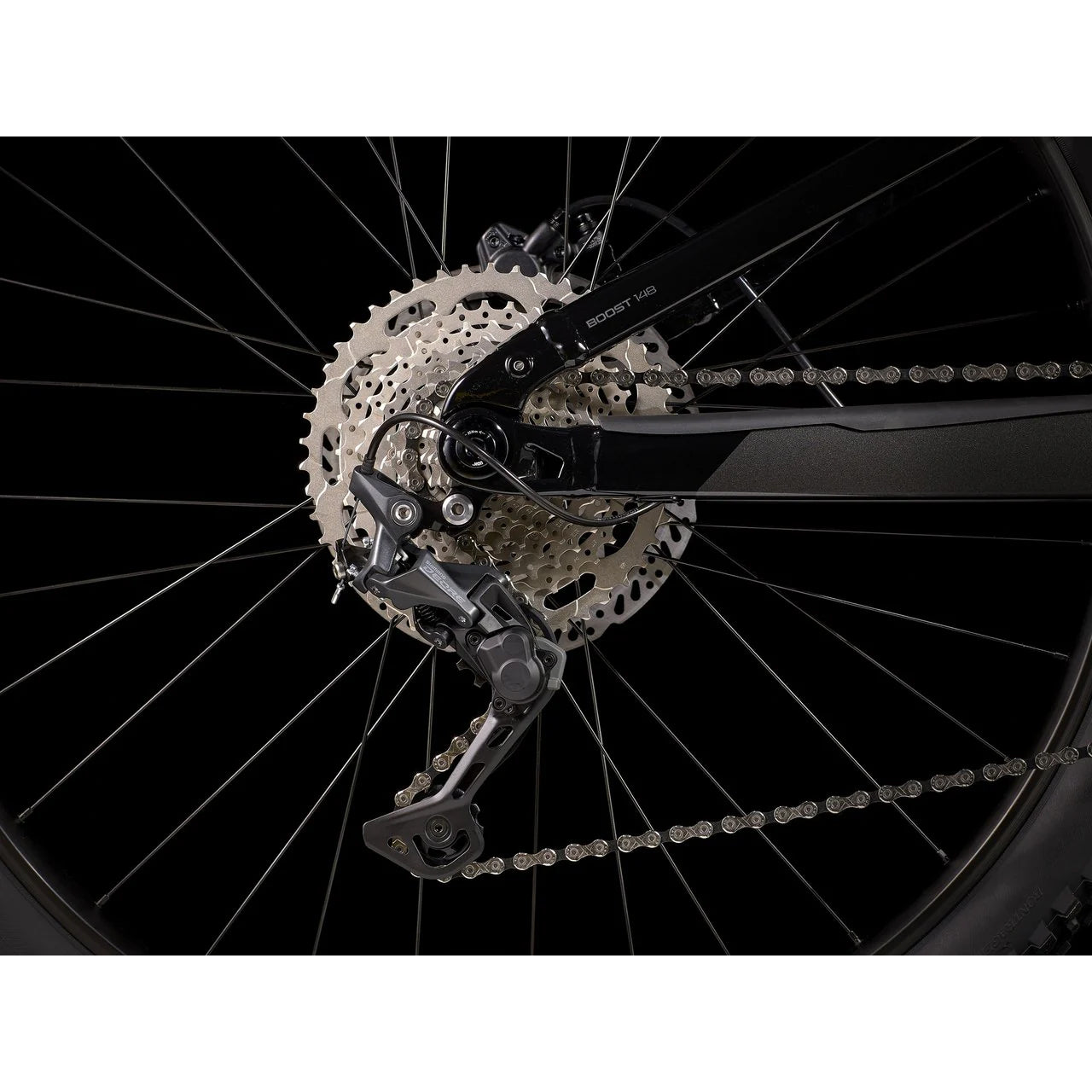

Cassette Shimano Deore M4100, 11-46, 10 speed

Chain KMC X10, 10 speed

Chainring FSA, 36T, steel

Rear derailleur Shimano Deore M5120, long cage

Shifter Shimano Deore M4100, 10 speed

Brakes

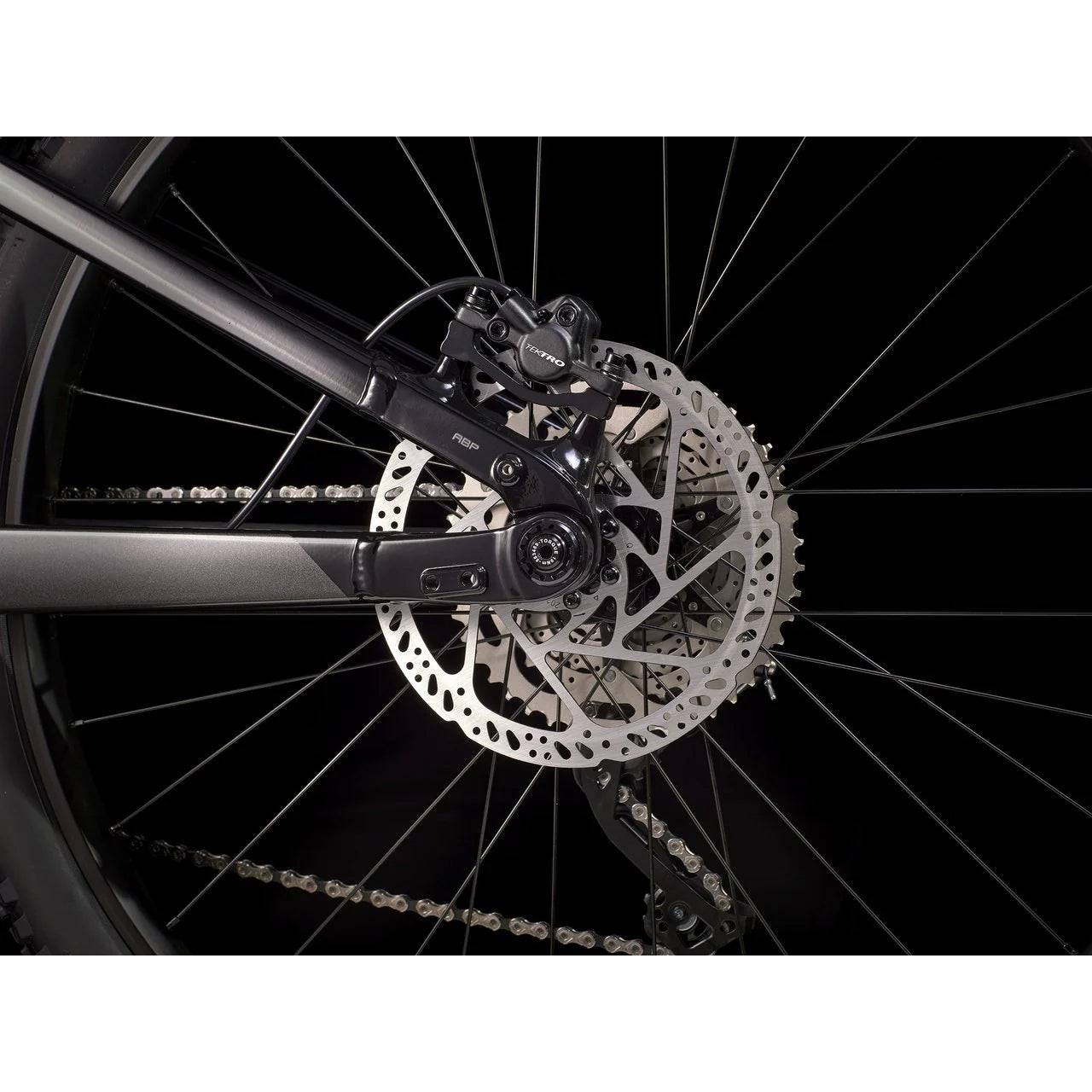

Brake rotor Tektro, 6-bolt, 203mm

Brake type Hydraulic disc

Cockpit

Grips tape Bontrager XR Trail Comp, nylon lock-on

Handlebars Bontrager alloy, 31.8mm, 15mm rise, 720mm width

Pedals VP-536 nylon platform

Saddle Bontrager Arvada, steel rails, 138 mm width

Seatpost TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length

Seat collar Bolt-on, 36.4mm

Stem Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length

Wheels

Front hub Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle

Rear hub Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle

Rims Alex MD35, tubeless compatible, 32-hole, 35mm width, Presta valve

Tires Bontrager XR3 Comp, wire bead, 30 tpi, 27.5x2.35"

Wheel size 27.5"

Suspension

Fork SR Suntour XCR 34, air spring, LO R damper, hydraulic lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm bolt-on thru axle, 100 mm travel

Fork brand SR Suntour

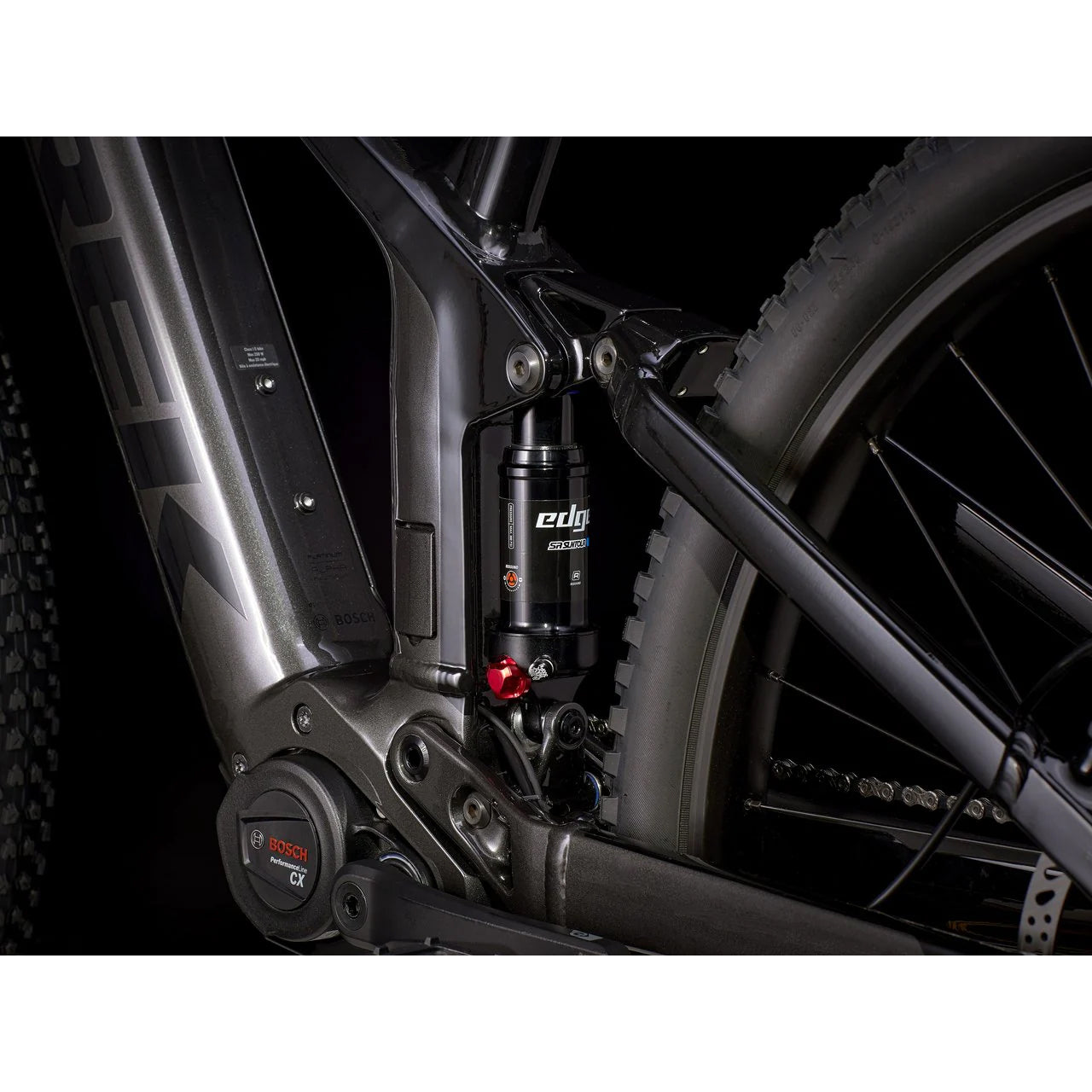

Shock SR Suntour Edge R, 190 mm x 45 mm

Shock brand SR Suntour

Frame

Frame Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, internal routing, Motor Armor, rocker link, rack and fender mount, ABP, Boost148, 100mm travel

Frame material Aluminum

Headset FSA IS-2

Platform wheel size 27.5"

Seatpost TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length

Weight as spec d M - 24.64 kg / 54.33 lbs M - 24.64 kg / 54.33 lbs

Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

E-Bike System

Battery Bosch PowerTube 500Wh, smart system

Battery type 500WH

Motor Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm

Motor controller Bosch Intuvia 100, smart system

Description

Powerfly FS 4 is a full suspension electric mountain bike built to tackle rugged trail adventures. The plush suspension setup soaks up rough terrain, and the powerful Bosch electric drive system boosts your capacity to crush climbs and mile after mile of singletrack.

Geometry Chart

Measurement	X-Small
Reach (mm)	405
Stack (mm)	599
Head Tube Angle (°)	66.5°
Seat Tube Angle (°)	68.3°
Wheelbase (mm)	1170
Chainstay Length (mm)	468
Head Tube Length (mm)	140
Seat Tube Length (mm)	368
BB Drop (mm)	24
BB Height (mm)	332
Rake (mm)	44
Trail (mm)	11
Axle to Crown (mm)	599

Part Numbers

Size / Wheelsize	Matte/Gloss Black
Medium / 29"	SKUTRE596738853 VPNTrek_5277934 UPC768682615508 MPN5277934
Large / 29"	SKUTRE592355573 VPNTrek_5277935 UPC768682615546 MPN5277935

Size Chart

Trek | Mountain

Size	Rider height (in)	Rider height (cm)	Inseam (in)	Inseam (cm)
X-Small	4'9" - 5'1"	145 - 155 cm	27" - 29"	69 - 73 cm
Small	5'1" - 5'5"	155 - 165 cm	29" - 31"	74 - 78 cm
Medium	5'5" - 5'10"	165 - 177 cm	31" - 33"	79 - 83 cm
Medium/Large	5'8" - 5'11"	173 - 180 cm	32" - 34"	81 - 86 cm
Large	5'10" - 6'2"	177 - 188 cm	33" - 35"	84 - 89 cm
X-Large	6'2" - 6'5"	188 - 195 cm	35" - 36"	89 - 91 cm
XX-Large	6'5" - 6'8"	195 - 203 cm	36" - 38"	91 - 97 cm

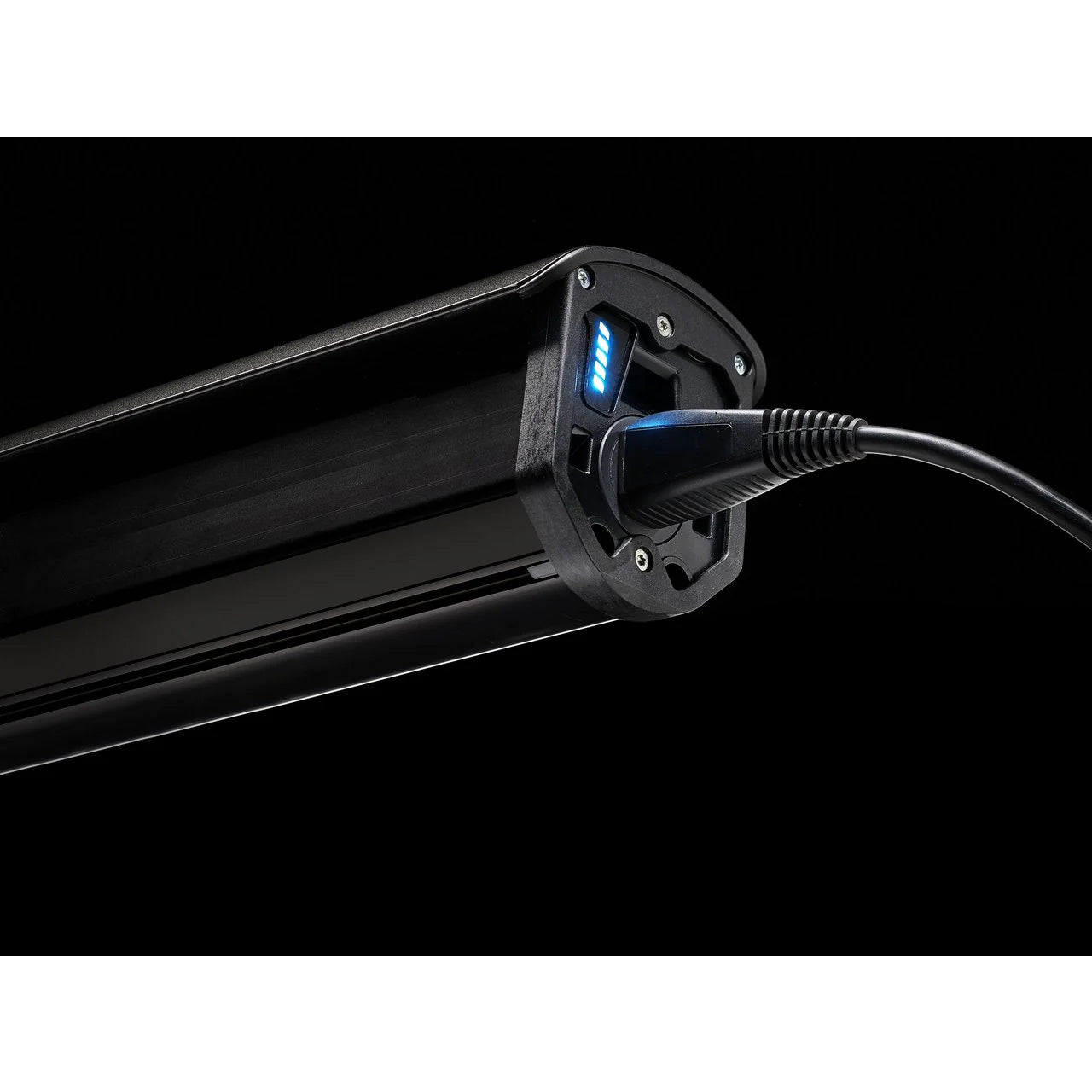

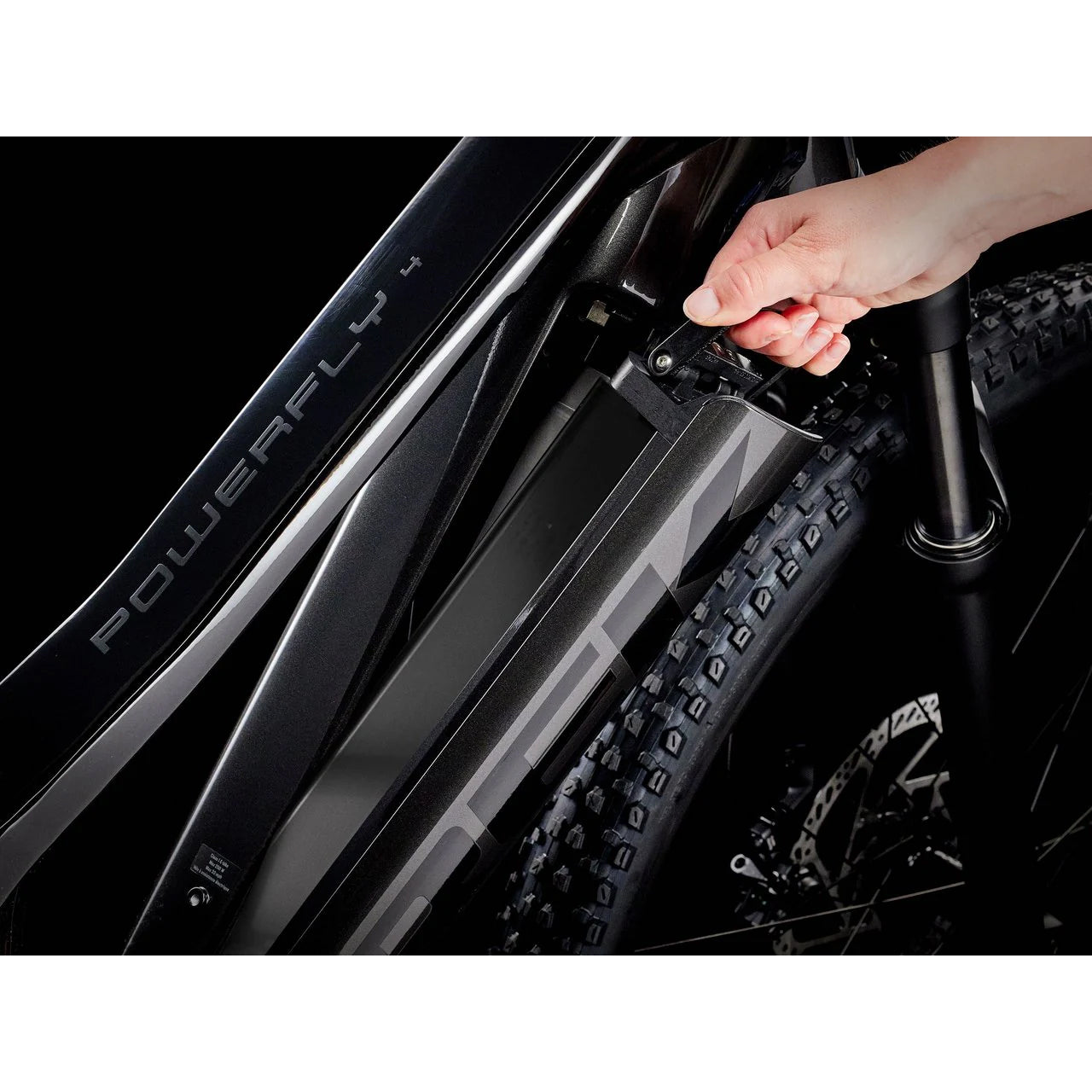

Removable Integrated Battery

RIB is a one-piece battery and cover with a built-in handle that can easily be removed and re-installed in the frame with no tools and no hassle. It’s the most convenient way to remove your battery for transport, security, or just easier charging.<br><br>

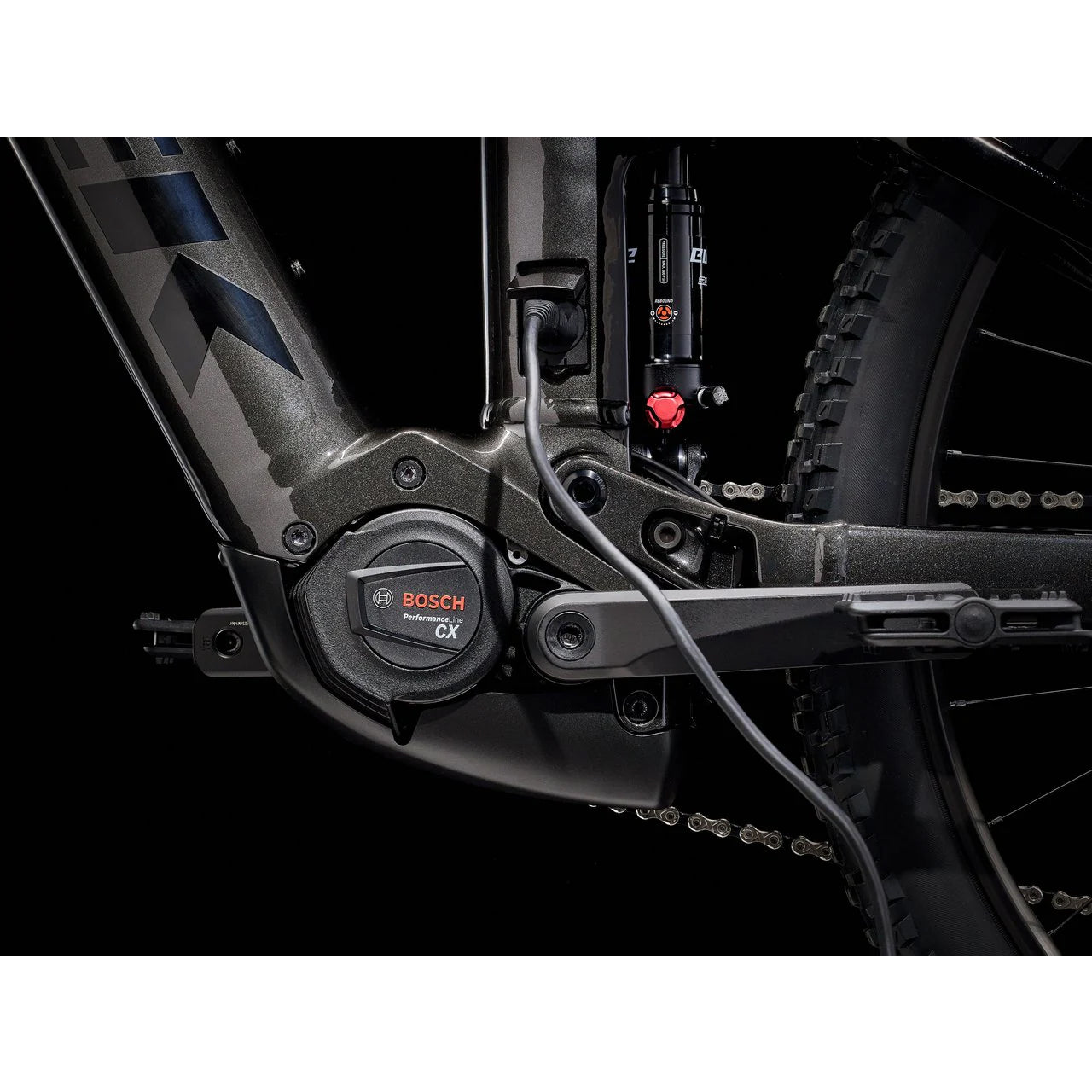

Bosch Performance Line CX motor

Bosch Performance Line CX sets the standard for eMTB performance with up to 85Nm of torque and an intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain.

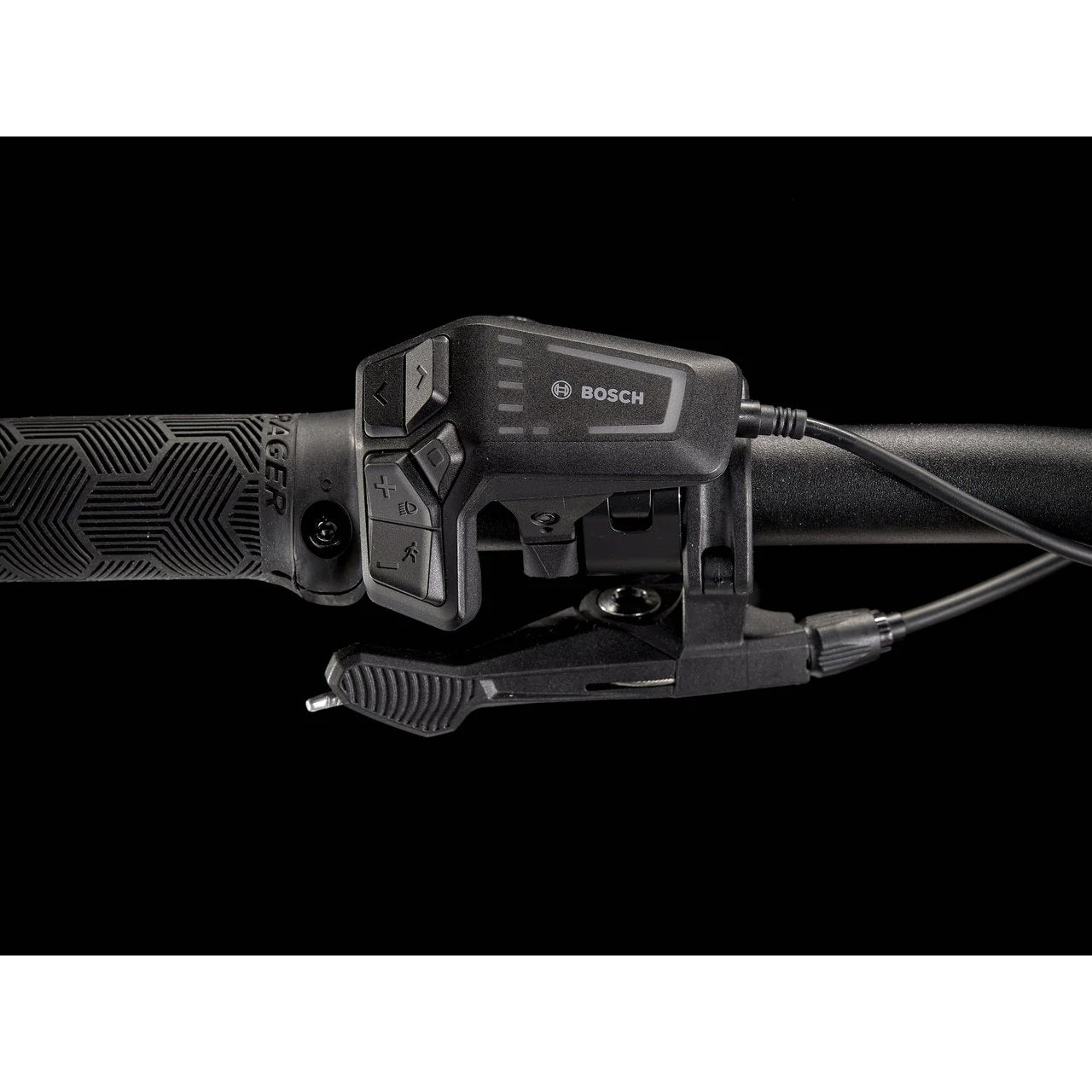

Bosch LED Remote

The Bosch smart system LED remote lets you easily change assist modes, activate walk mode, or turn on optional lights. The bright LEDs are easy to see in any light, and show you your battery level and assist mode at a glance.<br><br>

Bosch Intuvia 100 display

The Bosch smart system Intuvia 100 display puts your ride data front and center with a large-font high-contrast display that's easy to read in any weather. You get eBike Lock theft protection, and best of all, it's completey wireless and connects to the remote via Bluetooth.
