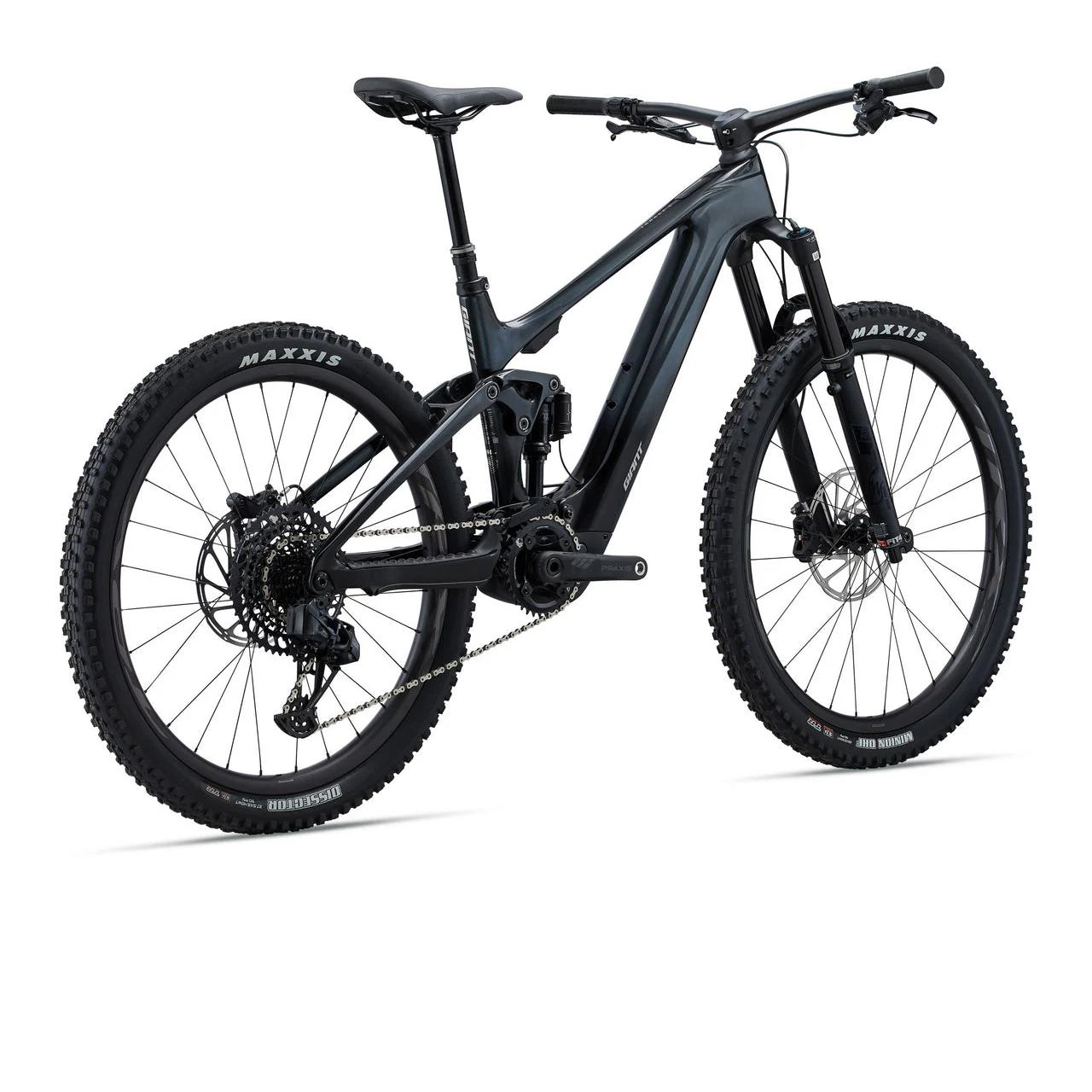

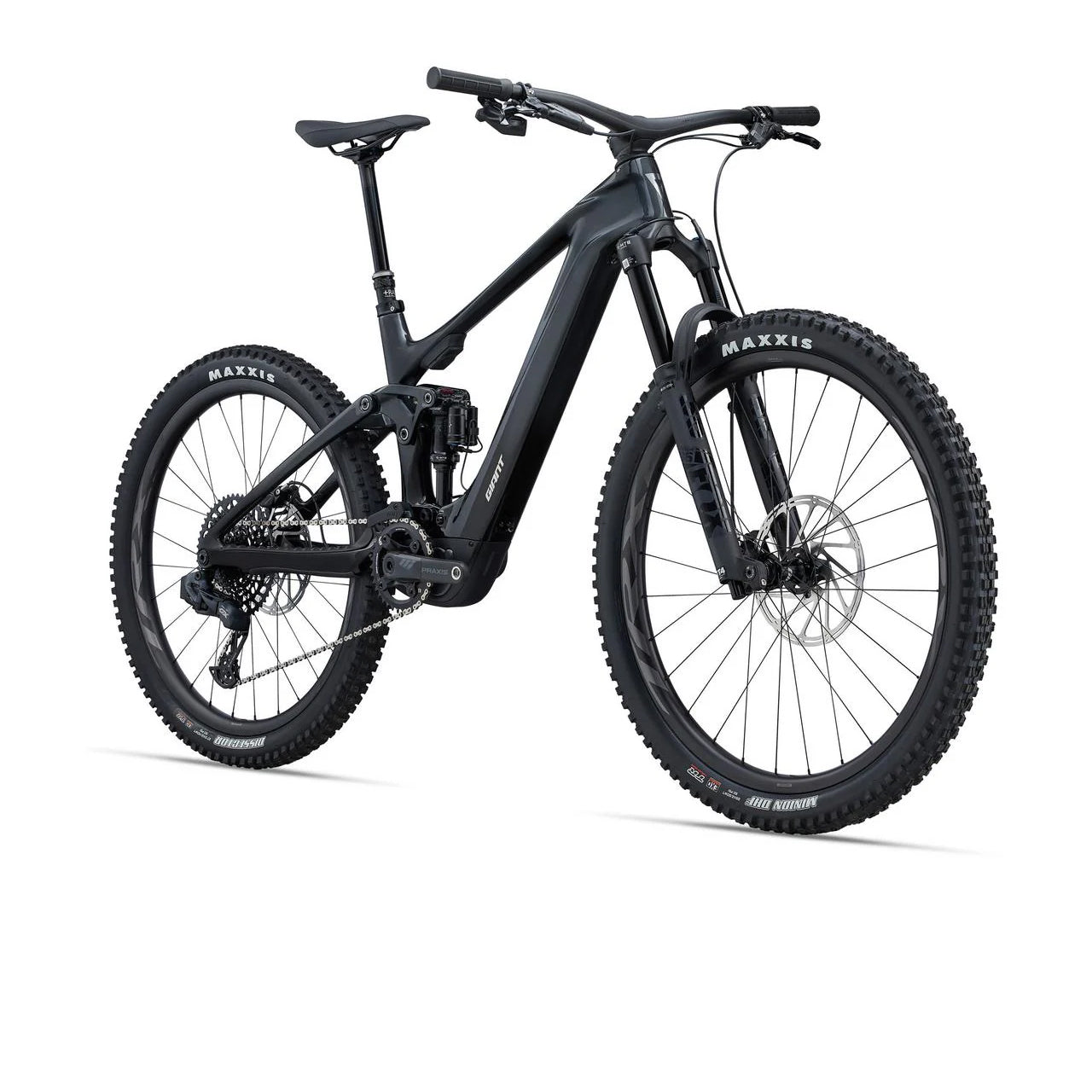

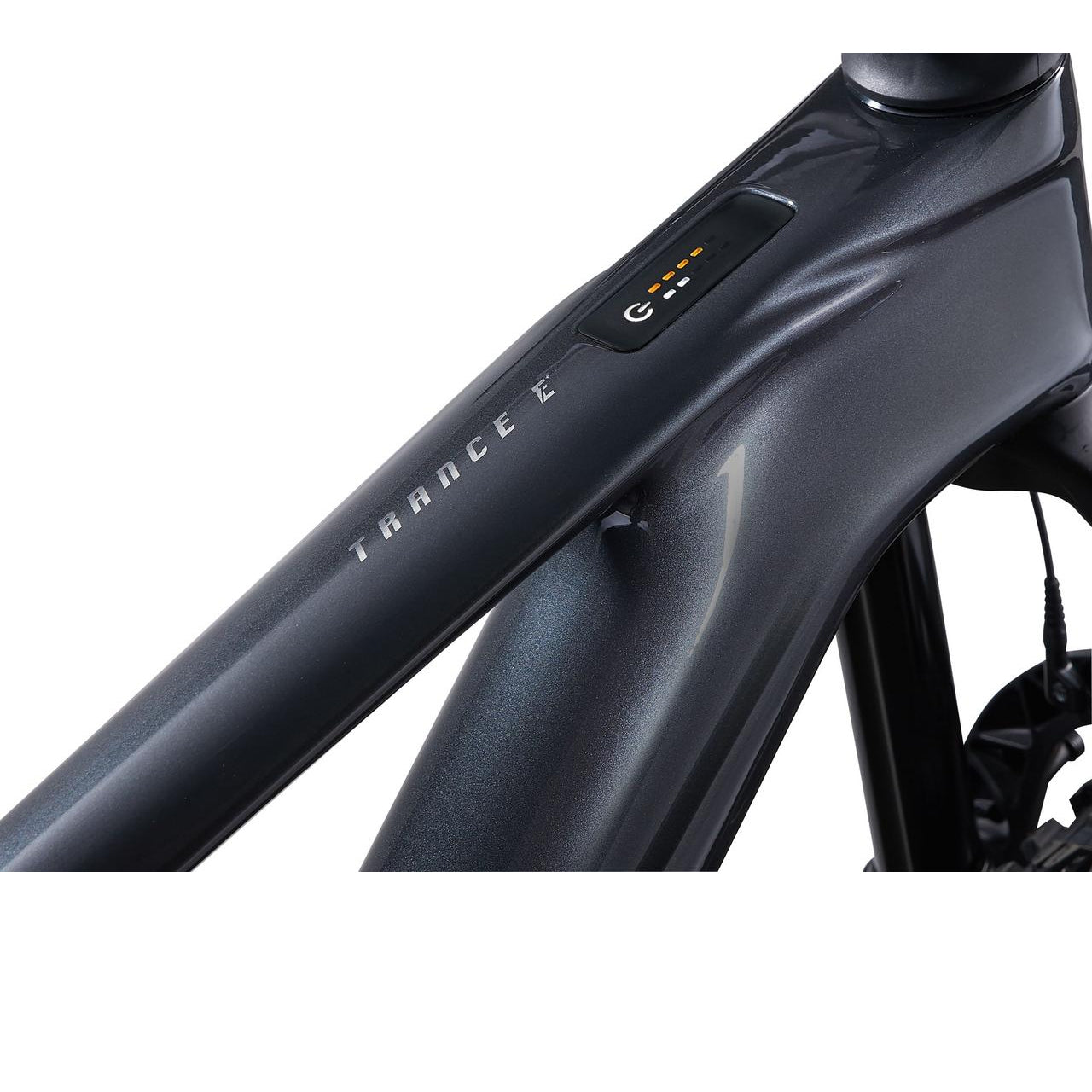

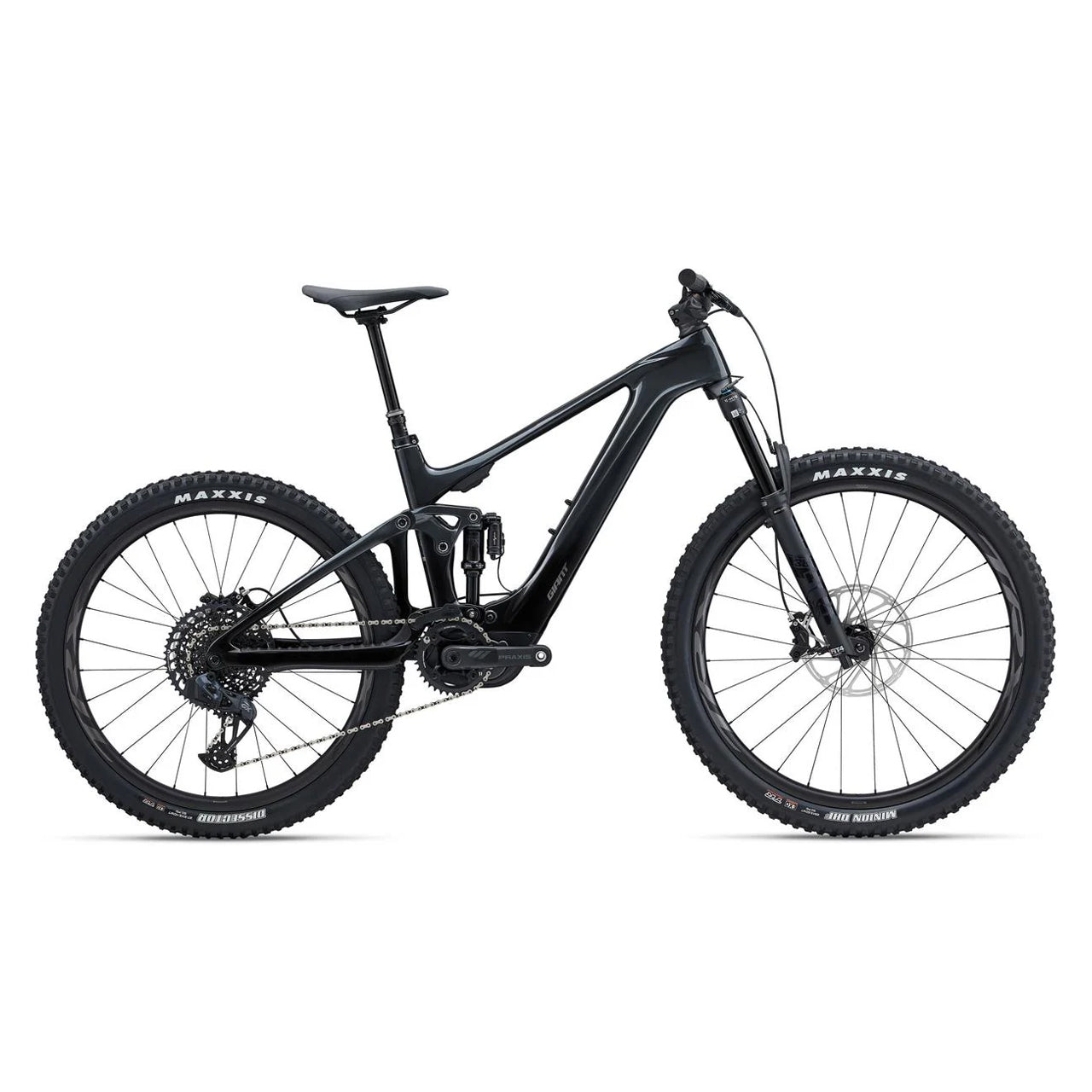

2023 | Trance X Advanced E+

Drivetrain ▾

Chain KMC e.12 Turbo, EcoProteq, e-bike optimized

Crankset Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-Cranks (Q-factor=168, S:160, M/L:165, XL:170)

Front derailleur MRP HD2 co-moulded chain guide

Rear derailleur Shimano Deore 12-speed, Shadow+

Shifter Shimano Deore

Brakes ▾

Caliper Shimano BR-MT420, 4-piston, hydraulic disc,203mm [F/R]

Lever Shimano Deore, I-spec EV

Cockpit ▾

Grips tape Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)

Handlebars Giant Contact SL 35 Trail, 35x780mm

Pedals Not Included

Saddle Giant Romero, Neutral

Seatpost Giant Contact Switch, dropper, 30,9mm (S:125/M:150/ L&XL:170) (*3mm housing recommended)

Stem Giant Contact SL 35

Wheels ▾

Rear hub Shimano MT410 Boost, Center-Lock, 110x15 [F] 148x12 Shimano Micro-Spline Drive Body Thru-axle [R]

Rims Giant AM30, Tubeless ready, 30mm inner width, 29" [F] / 27.5" [R]

Spokes Sapim E-Lite [R] Race [F], e-bike optimized

Tires Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]

Wheel size 29"

Suspension ▾

Fork Marzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110

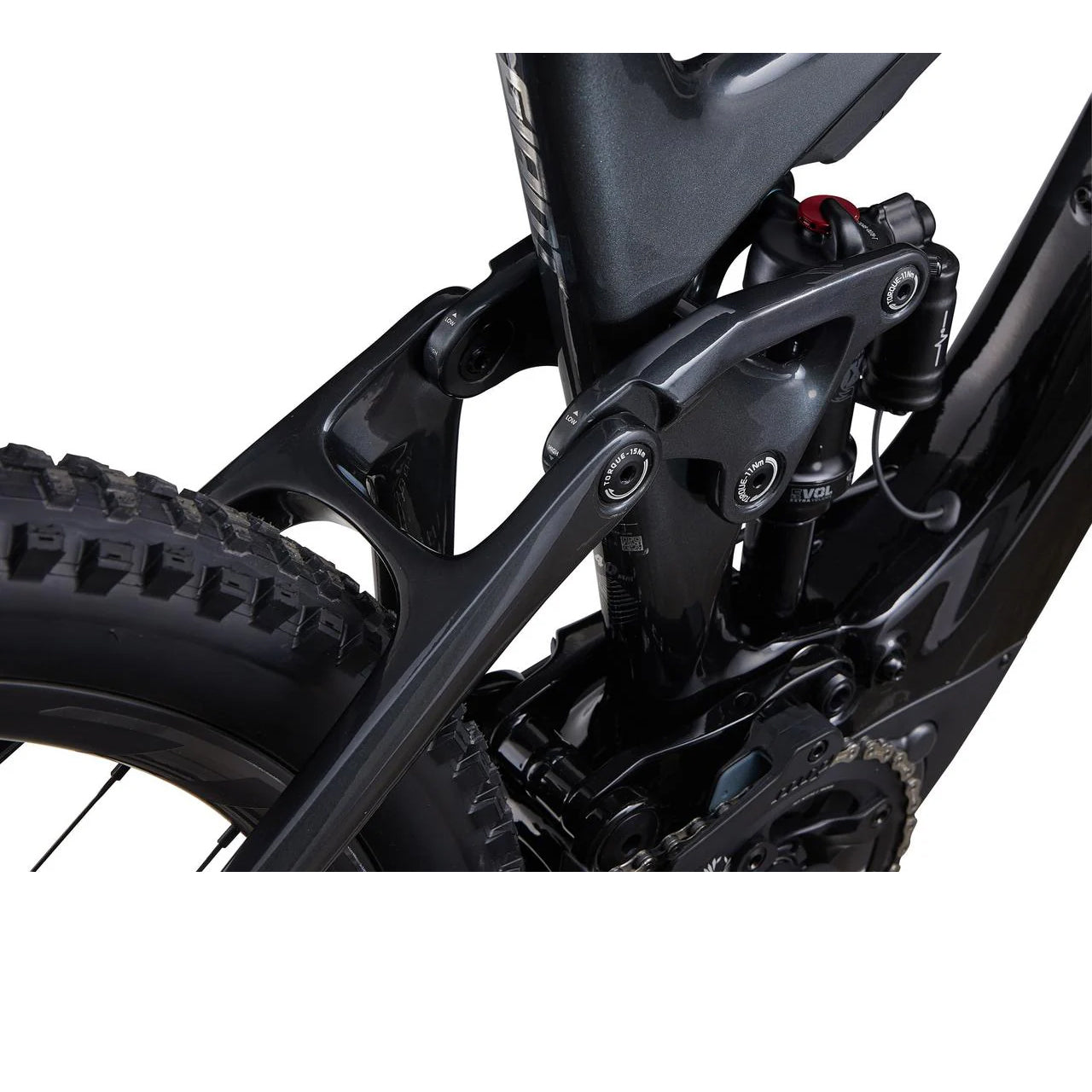

Shock Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%

Frame ▾

Bottom bracket N/A

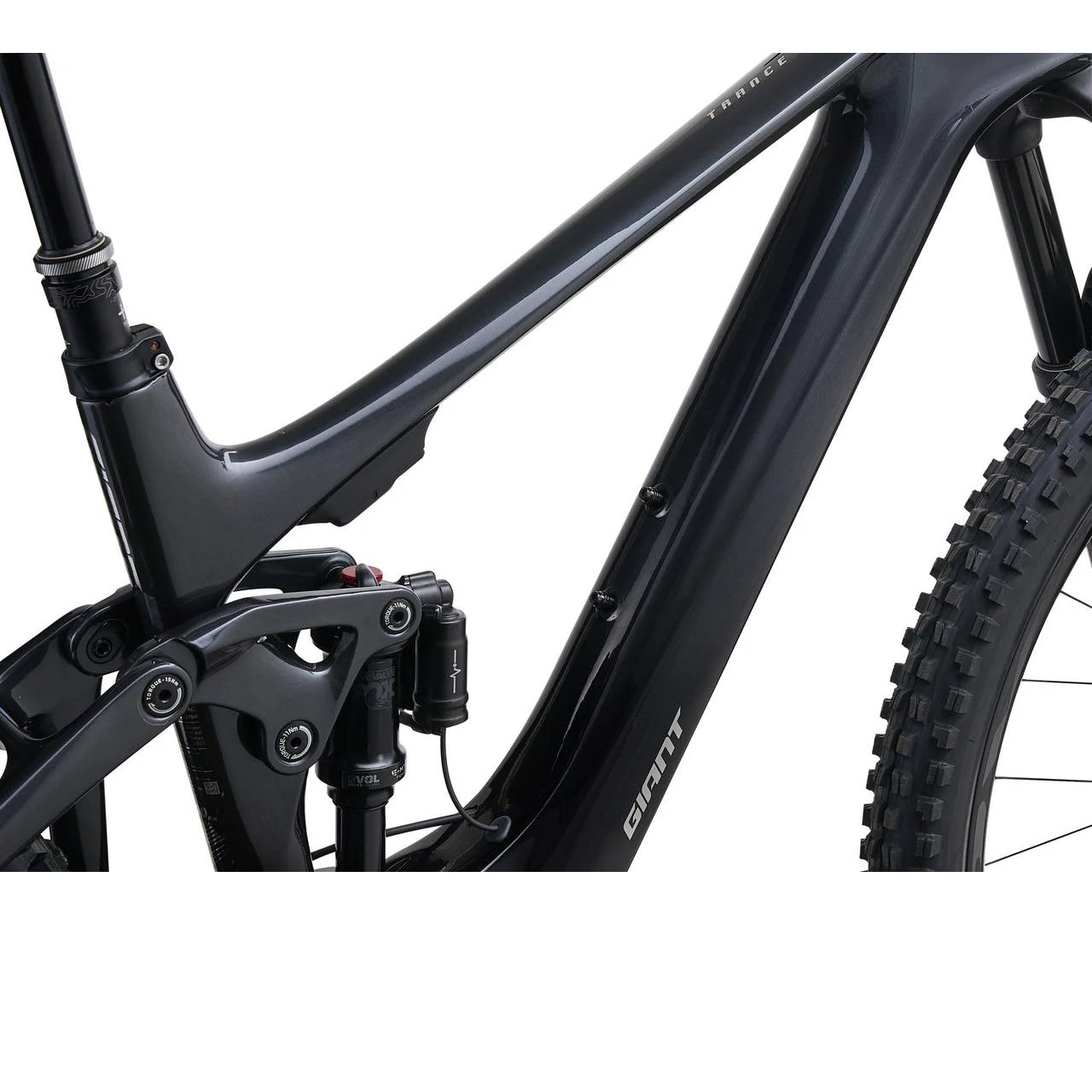

Frame Advanced-Grade Composite front triangle, ALUXX SL-Grade rear triangle, Advanced Forged Composite upper rocker, 140mm Maestro suspension, 12x148 thru-axle, flip chip - Maestro

Frame material Carbon

Platform wheel size 29"

Seatpost Giant Contact Switch, dropper, 30,9mm (S:125/M:150/ L&XL:170) (*3mm housing recommended)

E-Bike System ▾

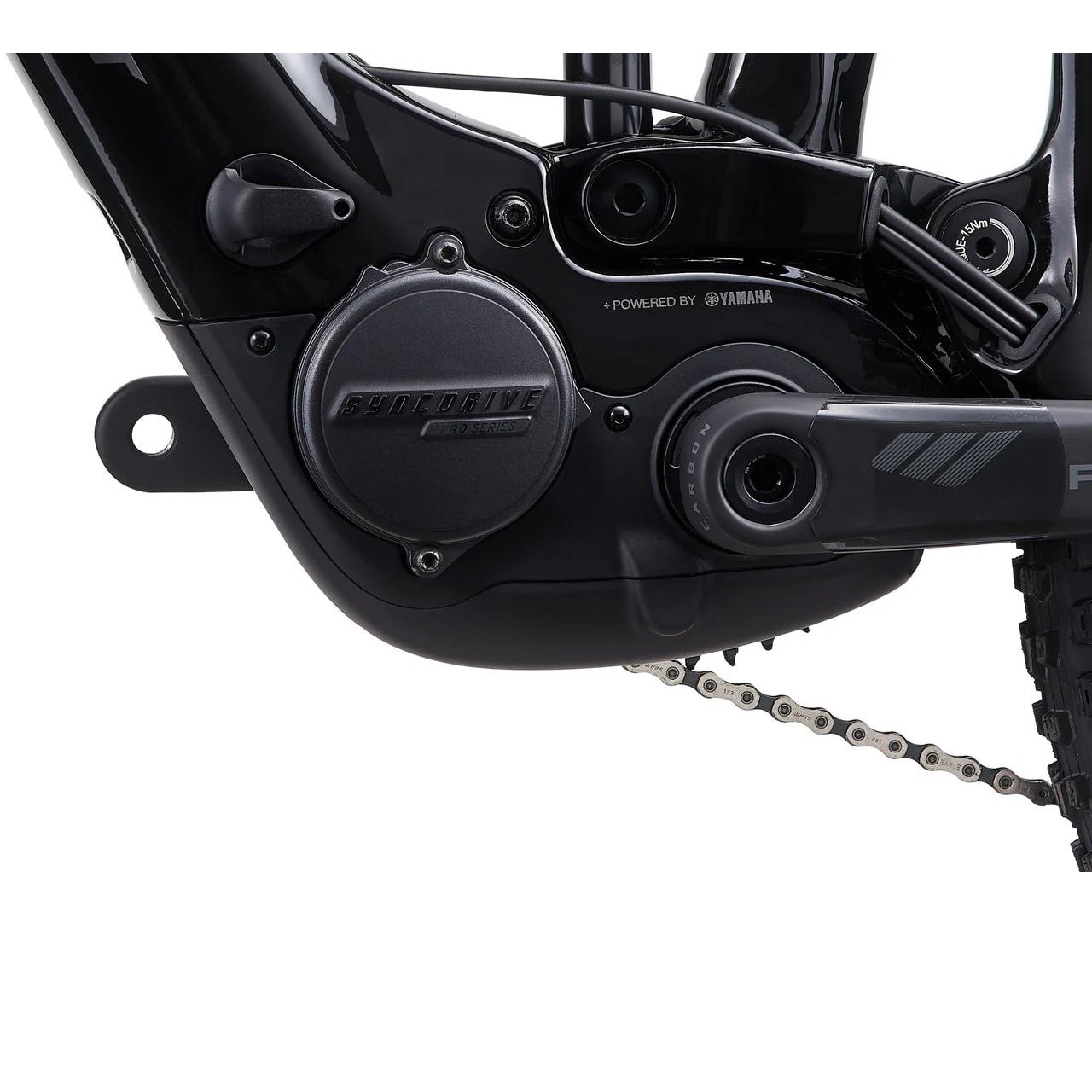

E bike system SyncDrive Pro2, 85Nm, powered by Yamaha
