Save 37%
Trek

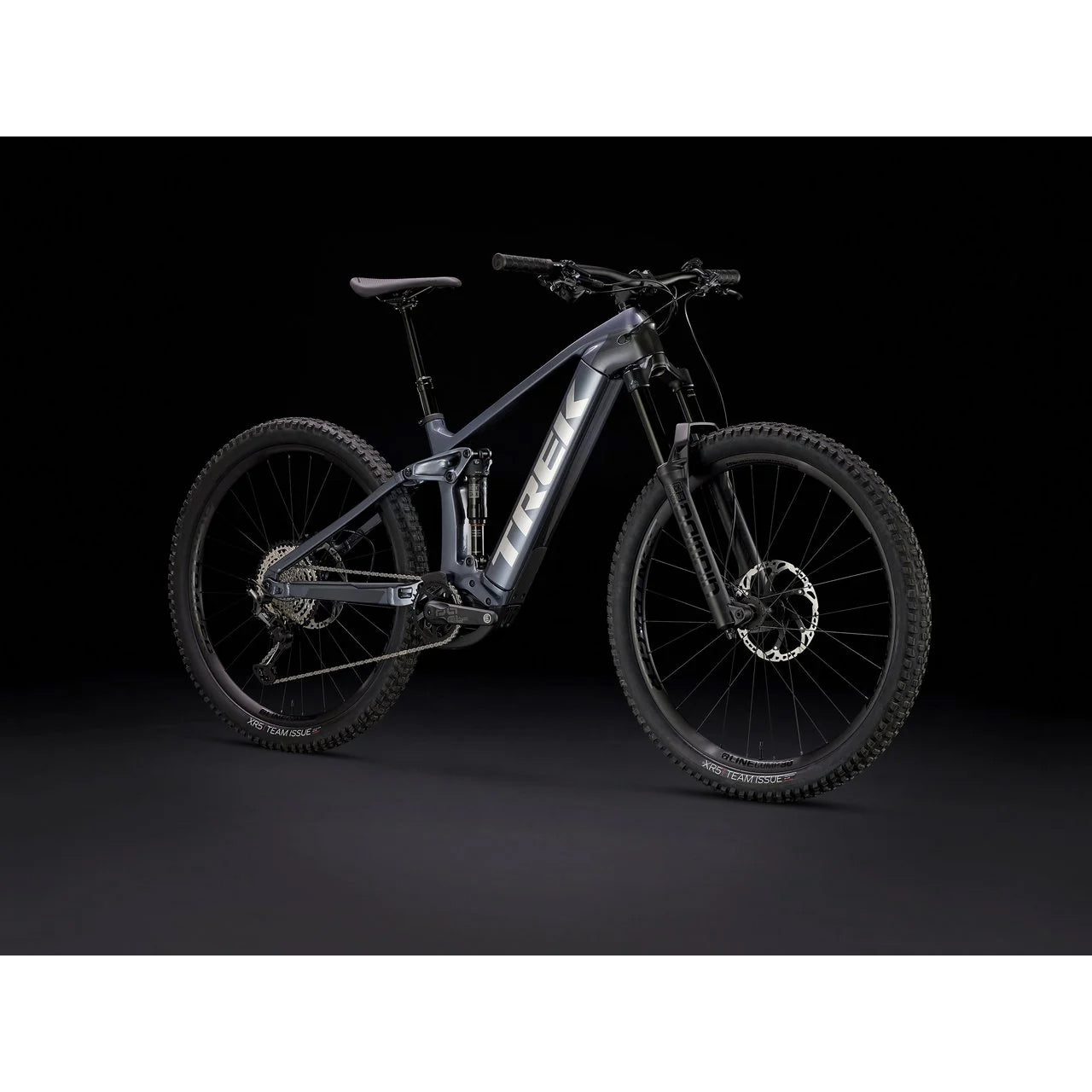

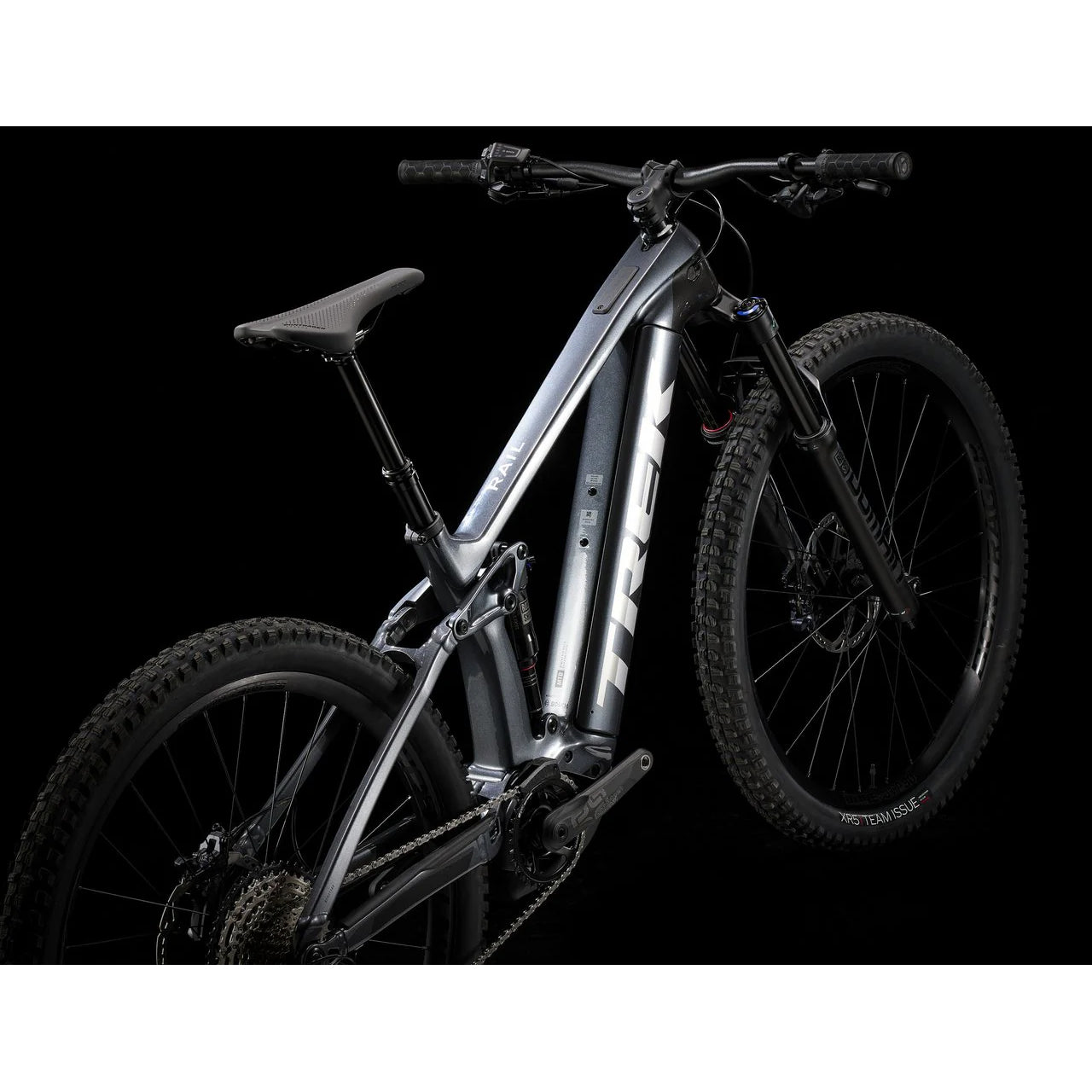

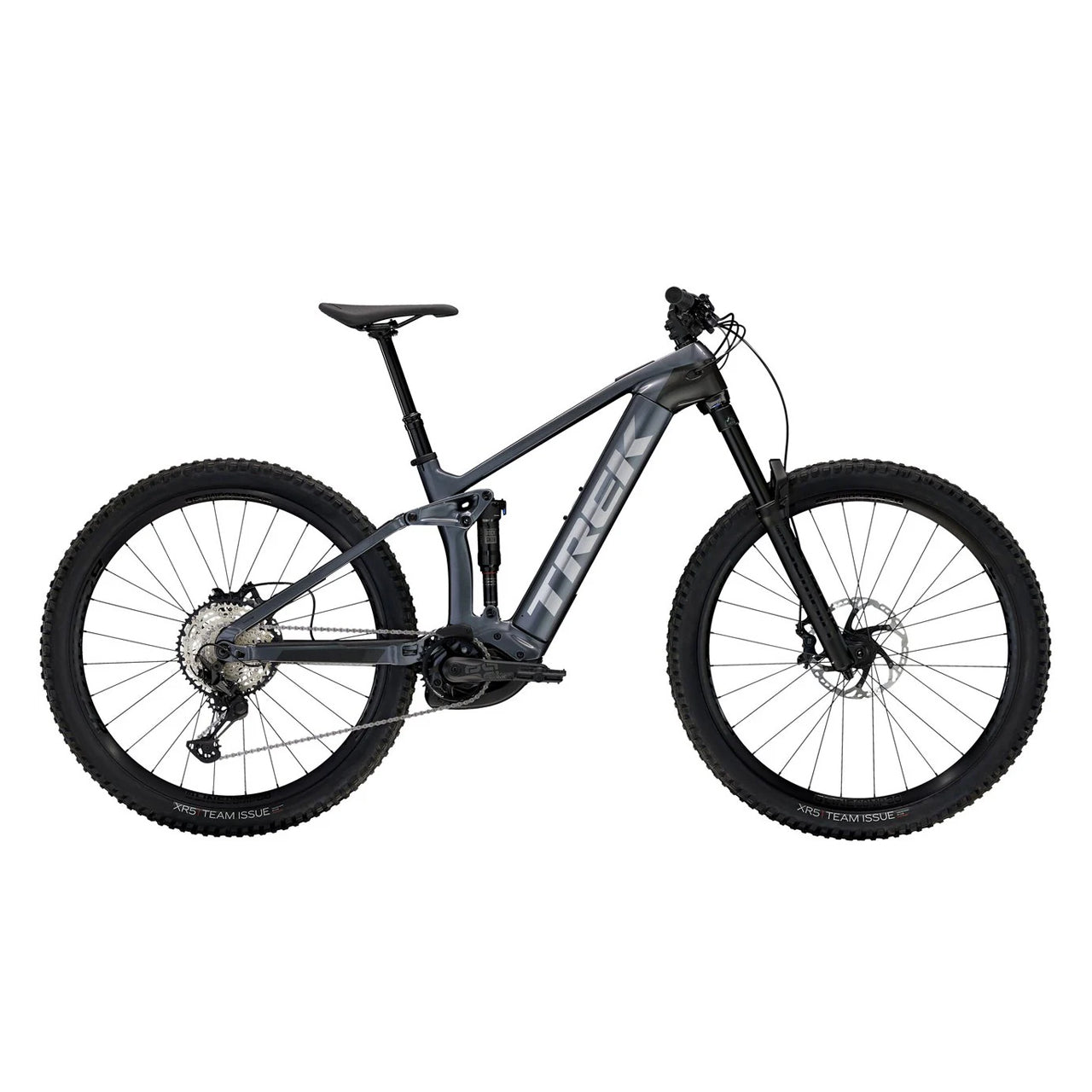

2024 | Rail 9.7 Gen 4
2024 | Rail 9.7 Gen 4
Regular price
$5,999.95
Sale price
$5,999.95
Regular price
$9,549.99
Shipping calculated at checkout.
SKU:TRE396774304
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.
Canadian shipping charges:
- Sale bikes: $200
- Standard pedal bikes: $100
- Electric bikes: $200
- Fat bikes: $200
- Kid's bikes: $60
Insurance charge: 1.5% insured value
Visit our shipping page for more details
Bike Specifications
Bike Specifications
Specifications are subject to change without notice
Drivetrain
Cassette
Shimano SLX M7100, 10-51T, 12 speed
Chain
Shimano SLX M7100, 12 speed
Chainring
E*thirteen E*spec, 34T alloy, 55mm chainline
Crank length
E*thirteen E*spec Plus, 160mm length
Rear derailleur
Shimano XT M8100, long cage
Shifter
Shimano SLX M7100, 12 speed
Brakes
Brake rotor
Shimano RT86, 6-bolt, 203mm
Brake type
Hydraulic disc
Caliper
Shimano M6120 4-piston hydraulic disc // Shimano M6120 4-piston hydraulic disc
Cockpit
Grips tape
Bontrager XR Trail Comp, nylon lock-on
Handlebars
Bontrager Comp, alloy, 31.8 mm, 15 mm rise, 780 mm width
Pedals
VP-536 nylon platform
Saddle
Bontrager Verse P3, chromoly rails
Seatpost
Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 4500mm length
Stem
Bontrager Rhythm Comp, 31.8mm, 0 degree, 50mm length
Wheels
Tires
Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50'
Valves
Bontrager TLR sealant, 180 ml/6 oz
Wheel size
29"
Suspension
Fork
RockShox Domain RC, DebonAir, Motion Control damper, lockout, 1.8' oversized tapered steerer, 44mm offset, oversized crown for eMTB, Boost110, 15mm Maxle Stealth, 160mm travel
Fork brand
RockShox
Shock
RockShox Deluxe Select+ RT, 230mm x 57.5mm
Shock brand
RockShox
Frame
Frame
OCLV Mountain Carbon main frame, 1.8' lower head tube, Bosch System Controller compatible, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9mm seat tube, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
Frame material
Carbon
Headset
Knock Block Integrated, cartridge bearing, 1-1/8' top, 1.8' bottom
Platform wheel size
29"
Seatpost
Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 4500mm length
Weight as spec d
M - 24.28 kg / 53.53 lbs (with TLR sealant, no tubes) M - 24.28 kg / 53.53 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
E-Bike System
Battery
Bosch PowerTube 750Wh, smart system
Battery type
625WH
Motor
Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
Motor controller
Bosch System Controller BRC3100, smart system
Share this product
Description
Description
Rail 9.7 is a long-travel carbon electric mountain bike that gets you to the fun stuff faster. It's decked out with an upgraded frame that offers more reach for serious stability on the trail, and a Bosch smart system drive unit with a beefy 750Wh battery that makes the climbs go by fast, and the laps feel endless.
Geometry Chart
Geometry Chart
| Measurement | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Reach (mm) | 436 | 456 | 491 | 521 |
| Stack (mm) | 625 | 629 | 643 | 656 |
| Head Tube Angle (°) | 64.6° | 64.6° | 64.6° | 64.6° |
| Seat Tube Angle (°) | 71.2° | 71.2° | 71.2° | 71.2° |
| Wheelbase (mm) | 1213 | 1236 | 1277 | 1313 |
| Chainstay Length (mm) | 447 | 447 | 447 | 447 |
| Head Tube Length (mm) | 105 | 110 | 125 | 140 |
| Seat Tube Length (mm) | 410 | 420 | 450 | 500 |
| BB Drop (mm) | 27 | 27 | 27 | 27 |
| BB Height (mm) | 346 | 346 | 346 | 346 |
| Rake (mm) | 43 | 43 | 43 | 43 |
| Trail (mm) | 13 | 13 | 13 | 13 |
| Axle to Crown (mm) | 625 | 629 | 643 | 656 |
Part Numbers
Part Numbers
| Size | Galactic Grey |
|---|---|
| Medium |
SKUTRE387426184
VPNTrek_5278505
UPC768682595800
MPN5278505
|
| X-Large |
SKUTRE396774304
VPNTrek_5278507
UPC768682595848
MPN5278507
|
| Large |
SKUTRE384316974
VPNTrek_5278506
UPC768682595947
MPN5278506
|
| Small |
SKUTRE387658794
VPNTrek_5278504
UPC768682595961
MPN5278504
|
Size Chart
Size Chart
Trek | Mountain
| Size | Rider height (in) | Rider height (cm) | Inseam (in) | Inseam (cm) |
|---|---|---|---|---|
| X-Small | 4'9" - 5'1" | 145 - 155 cm | 27" - 29" | 69 - 73 cm |
| Small | 5'1" - 5'5" | 155 - 165 cm | 29" - 31" | 74 - 78 cm |
| Medium | 5'5" - 5'10" | 165 - 177 cm | 31" - 33" | 79 - 83 cm |
| Medium/Large | 5'8" - 5'11" | 173 - 180 cm | 32" - 34" | 81 - 86 cm |
| Large | 5'10" - 6'2" | 177 - 188 cm | 33" - 35" | 84 - 89 cm |
| X-Large | 6'2" - 6'5" | 188 - 195 cm | 35" - 36" | 89 - 91 cm |
| XX-Large | 6'5" - 6'8" | 195 - 203 cm | 36" - 38" | 91 - 97 cm |

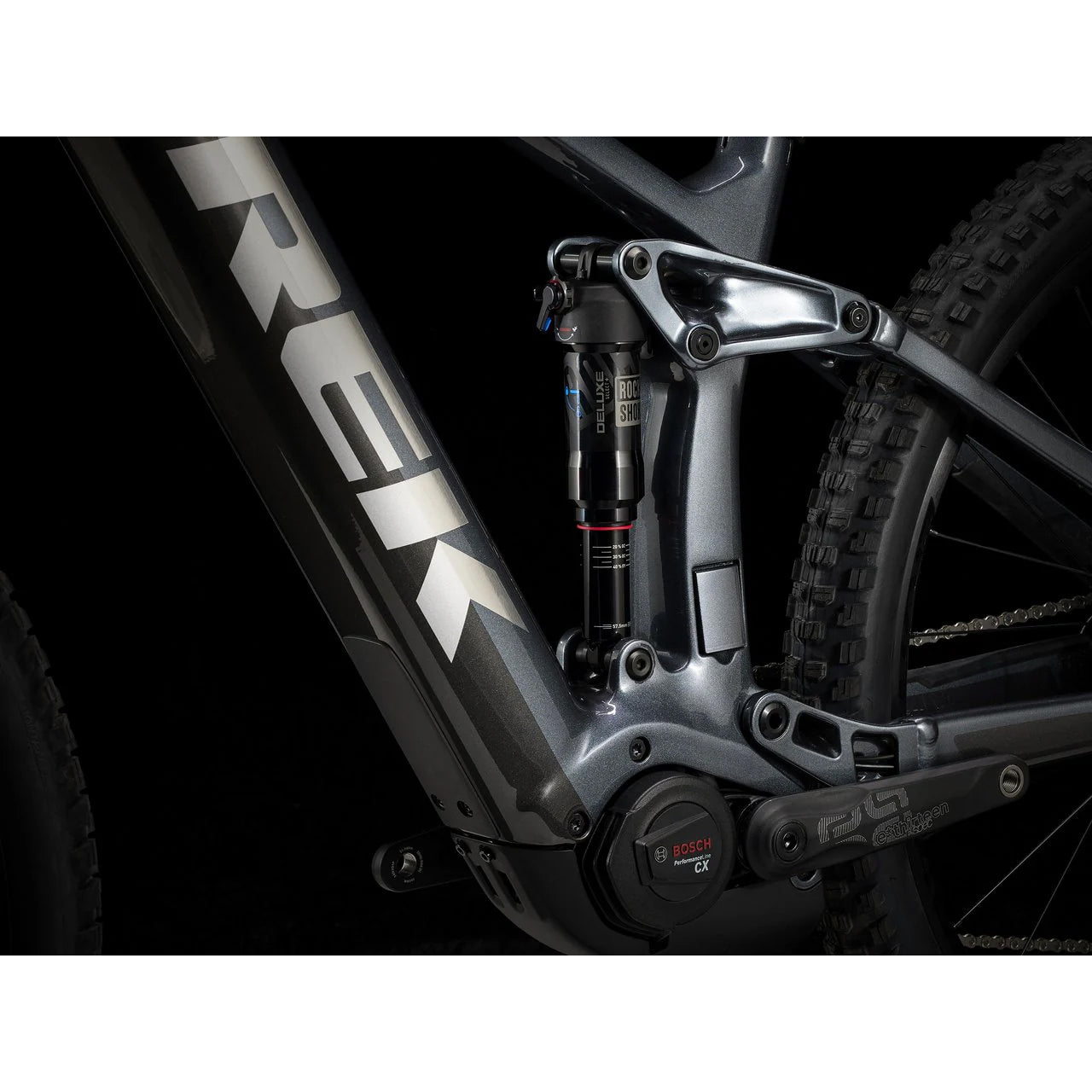

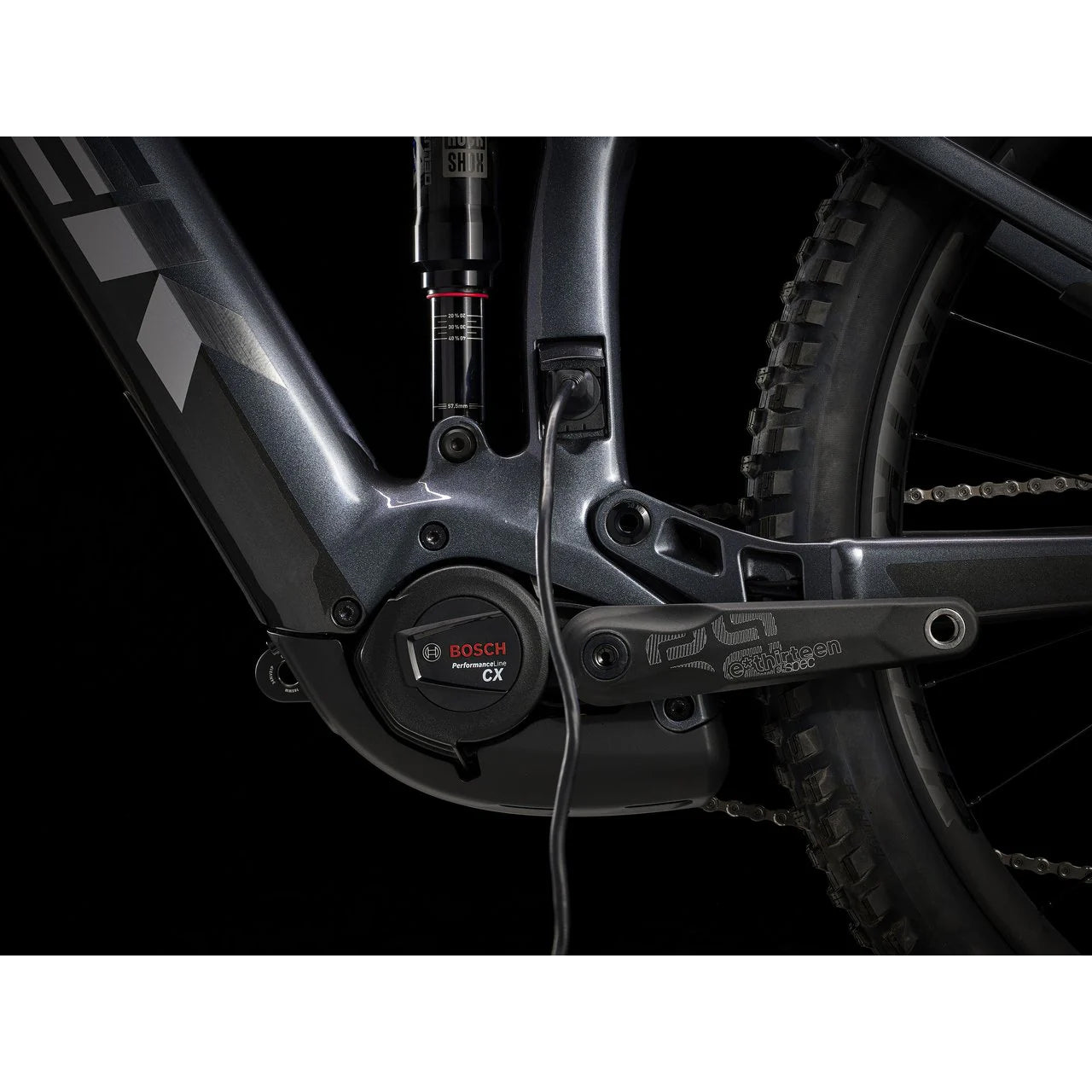

Bosch Performance Line CX motor Bosch Performance Line CX motor

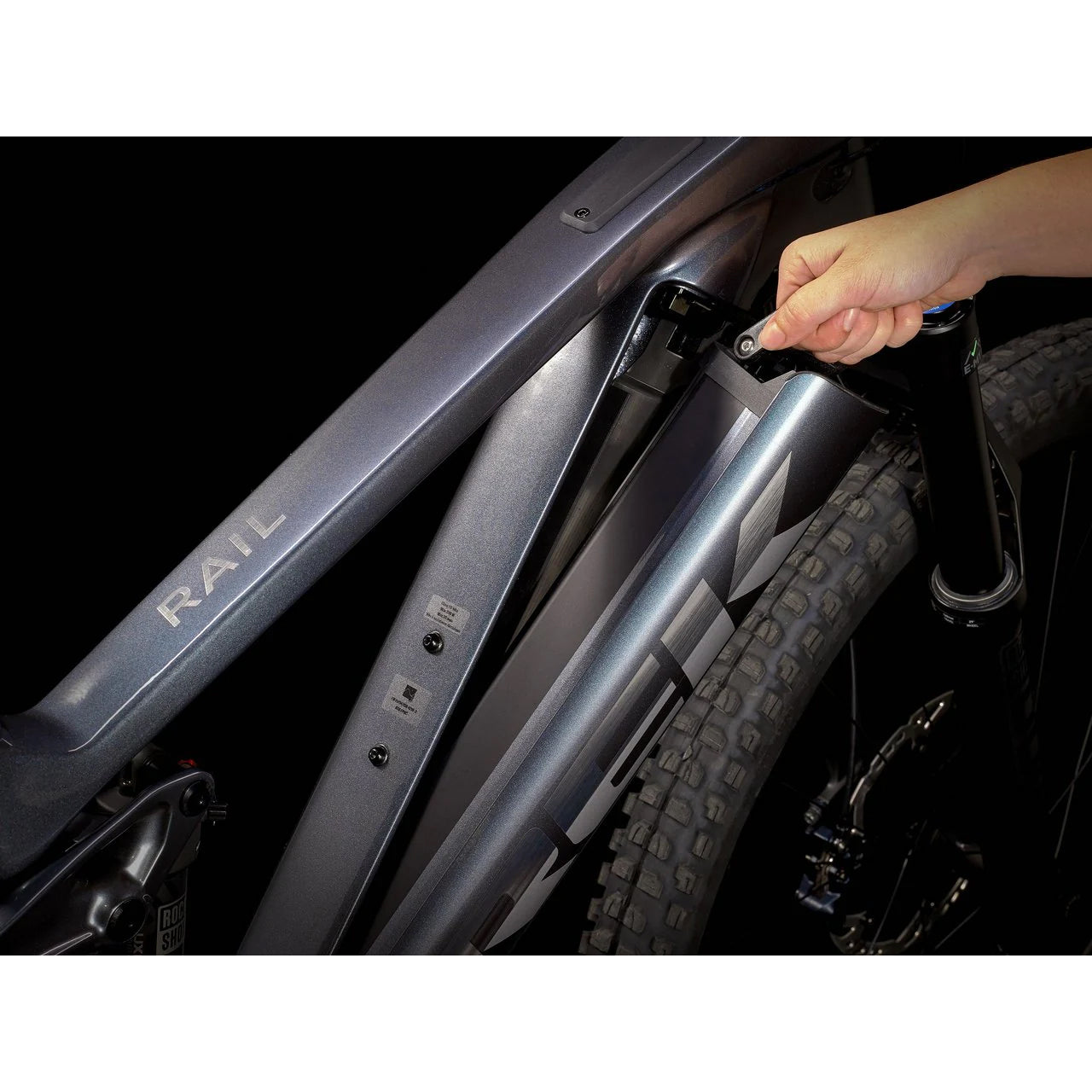

Removable Integrated Battery
Bosch Performance Line CX motor

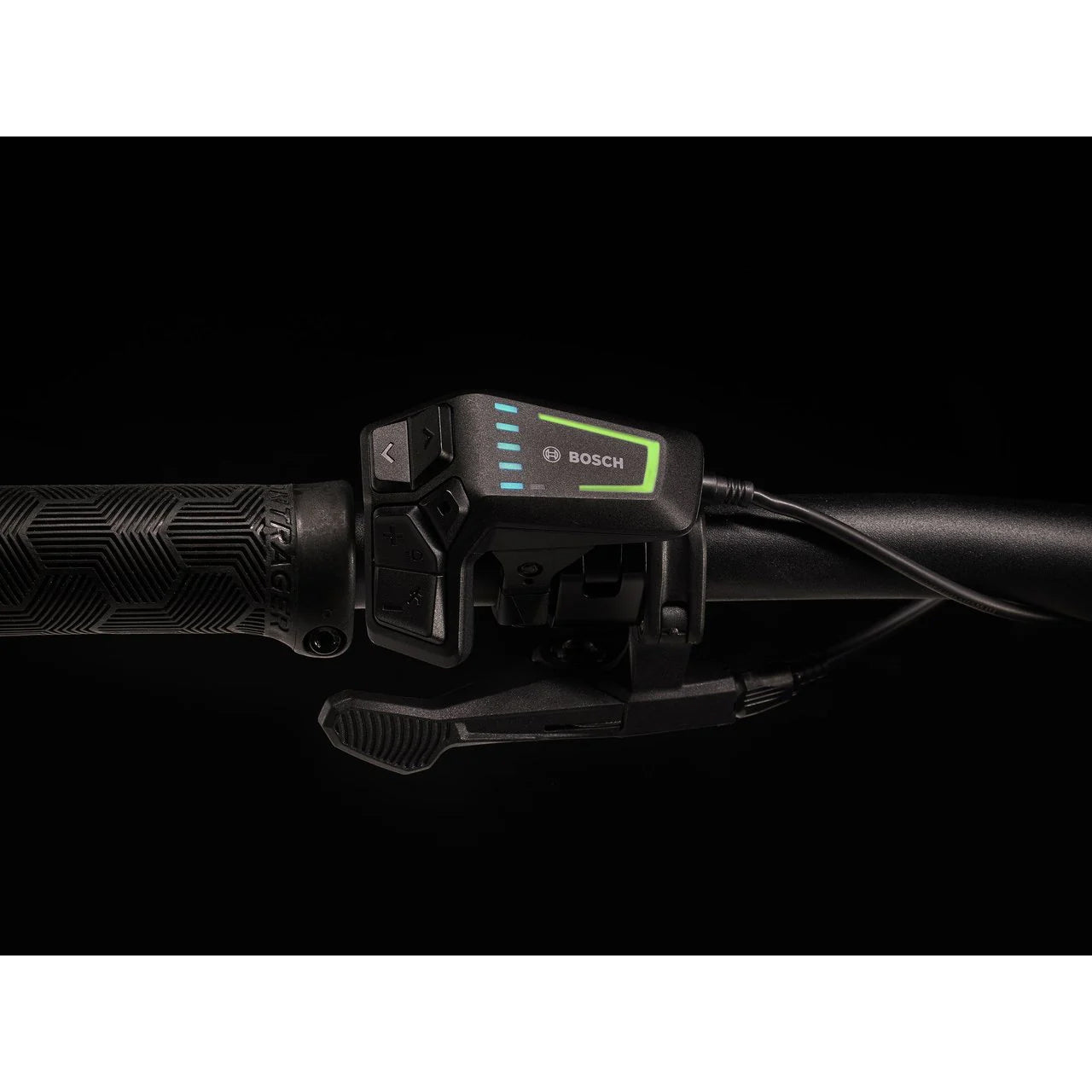

Bosch LED Remote
