Sold out

Trek

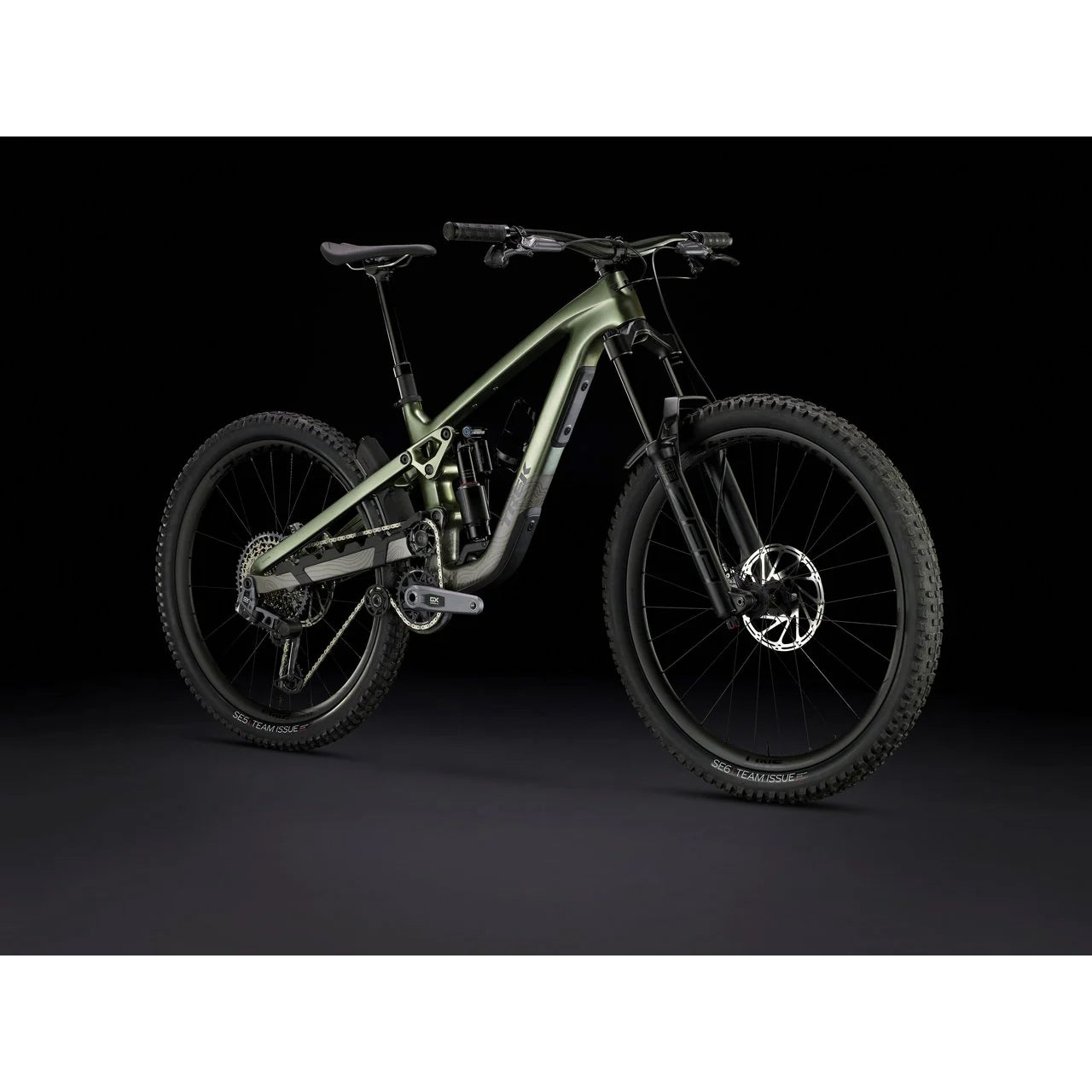

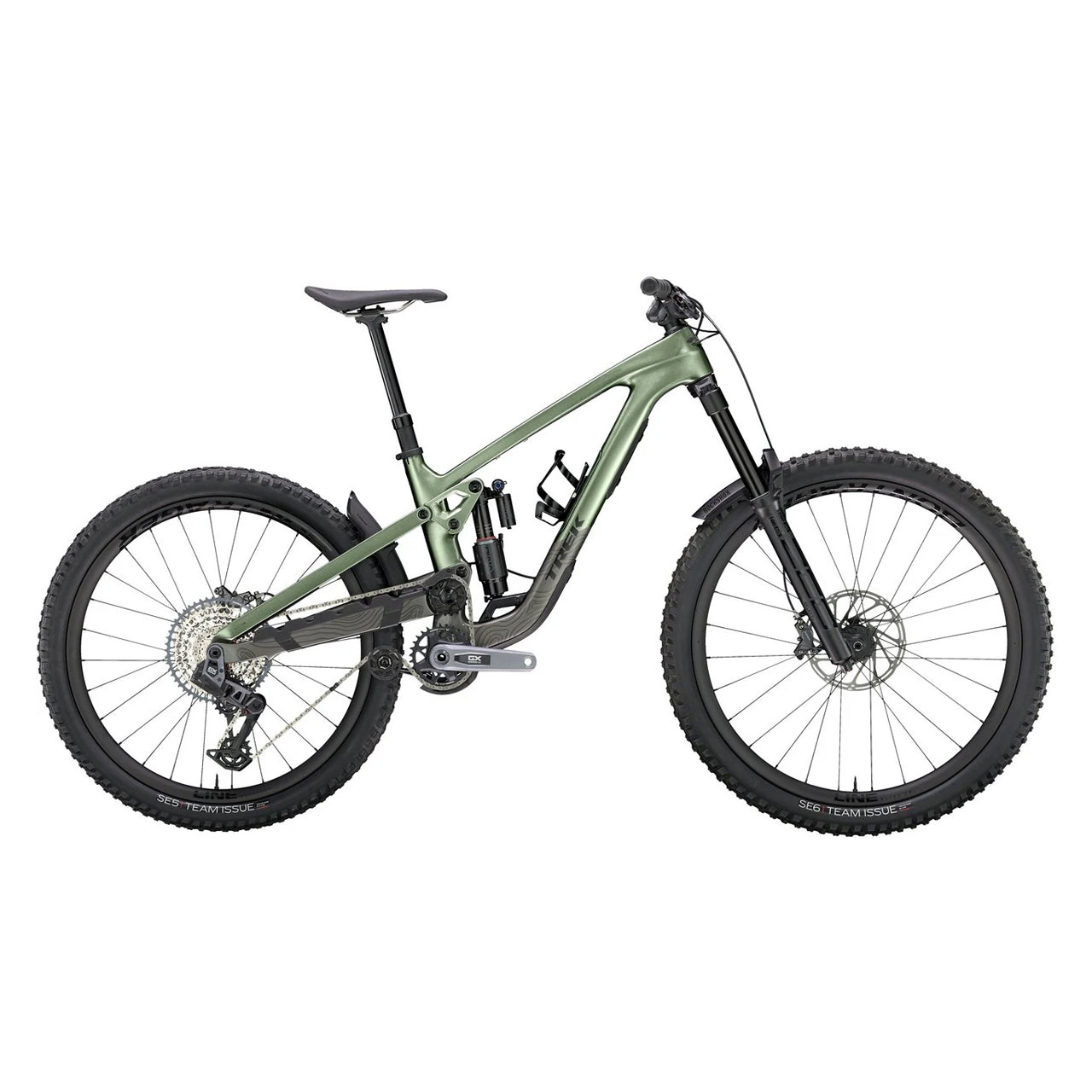

2024 | Slash 9.8 GX AXS T-Type Gen 6

$9,999.99

Shipping calculated at checkout.

Color: Lichen Green

Size: Large

Large Medium/Large

SKU:TRE361536736

Shipping & Returns

We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.

Canadian shipping charges:

Sale bikes: $200
Standard pedal bikes over $1250: Free
Standard pedal bikes under $1250: $100
Electric bikes: $200
Fat bikes: $200
Kid's bikes: $60

Insurance charge: 1.5% insured value

We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details

Bike Specifications

Specifications are subject to change without notice

Drivetrain

Cassette SRAM Eagle XS-1275, T-Type,10-52, 12 speed

Chain SRAM GX Eagle, T-Type, 12 speed

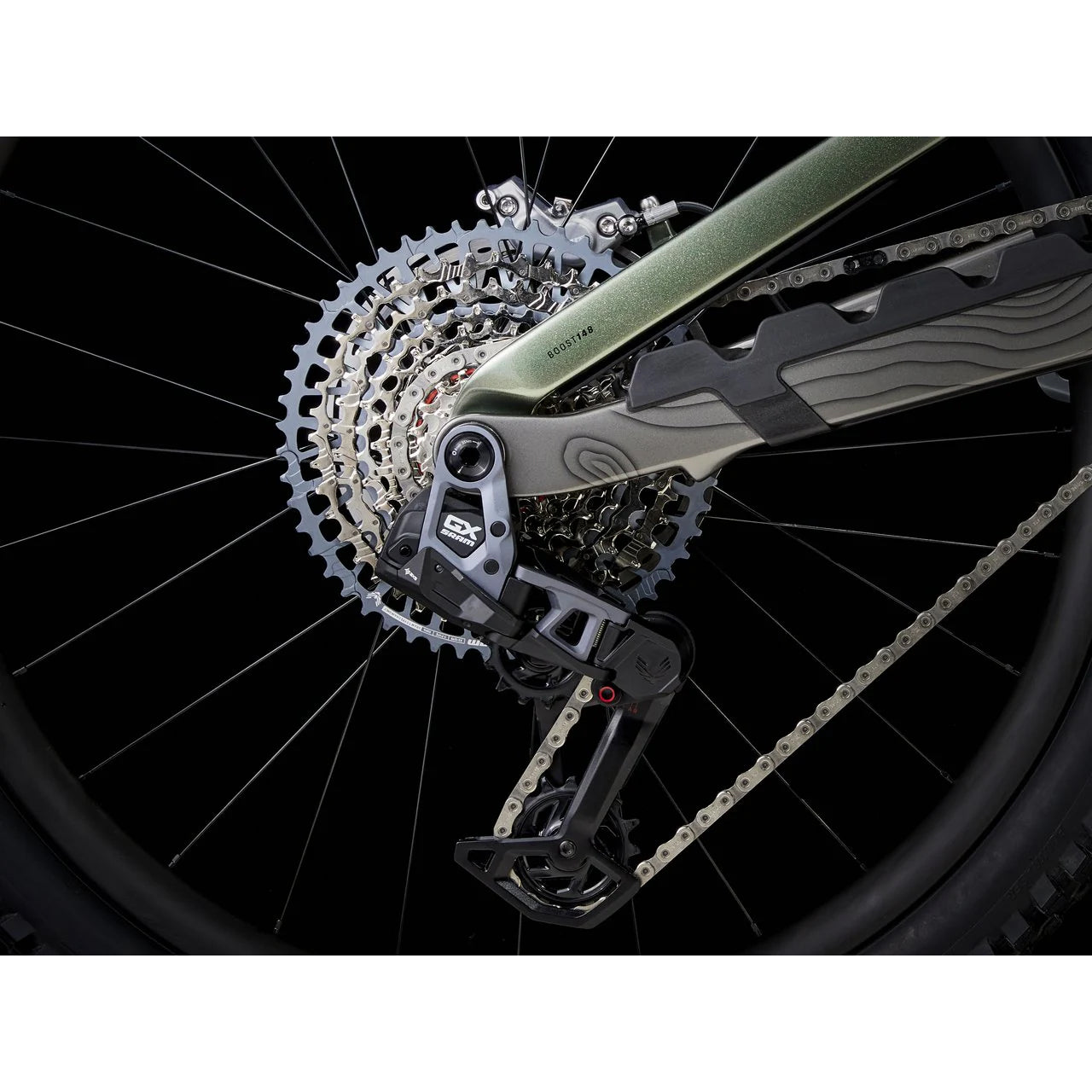

Rear derailleur SRAM GX Eagle AXS, T-Type

Shifter SRAM AXS POD

Brakes

Brake rotor SRAM CenterLine, 6-bolt, round edge, 200mm

Brake type Hydraulic disc

Caliper SRAM CODE Bronze 4-piston hydraulic disc // SRAM CODE Bronze 4-piston hydraulic disc

Cockpit

Grips tape Bontrager XR Trail Pro, alloy lock-on

Handlebars Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 820mm width

Saddle Bontrager Arvada, austenite rails, 138mm width

Seatpost Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length

Stem Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 35mm length

Wheels

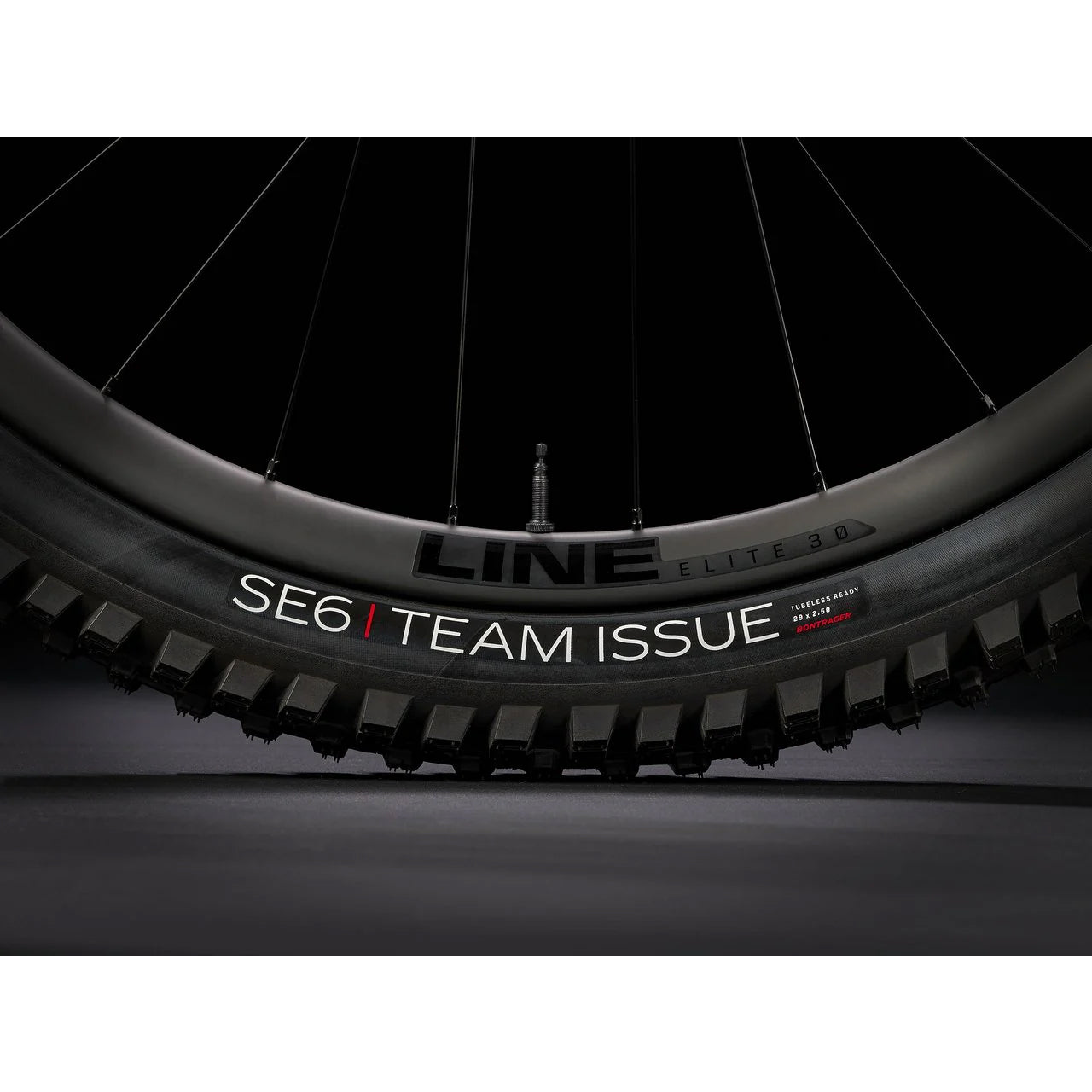

Tires Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5x2.50" // Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"

Valves Bontrager TLR sealant, 180 ml/6 oz

Wheel size Size Specific

Suspension

Fork RockShox ZEB Select+, DebonAir spring, Charger 3 RC2 damper, tapered steerer, 44mm offset, Boost110, Maxle Stealth, 170mm travel

Fork brand RockShox

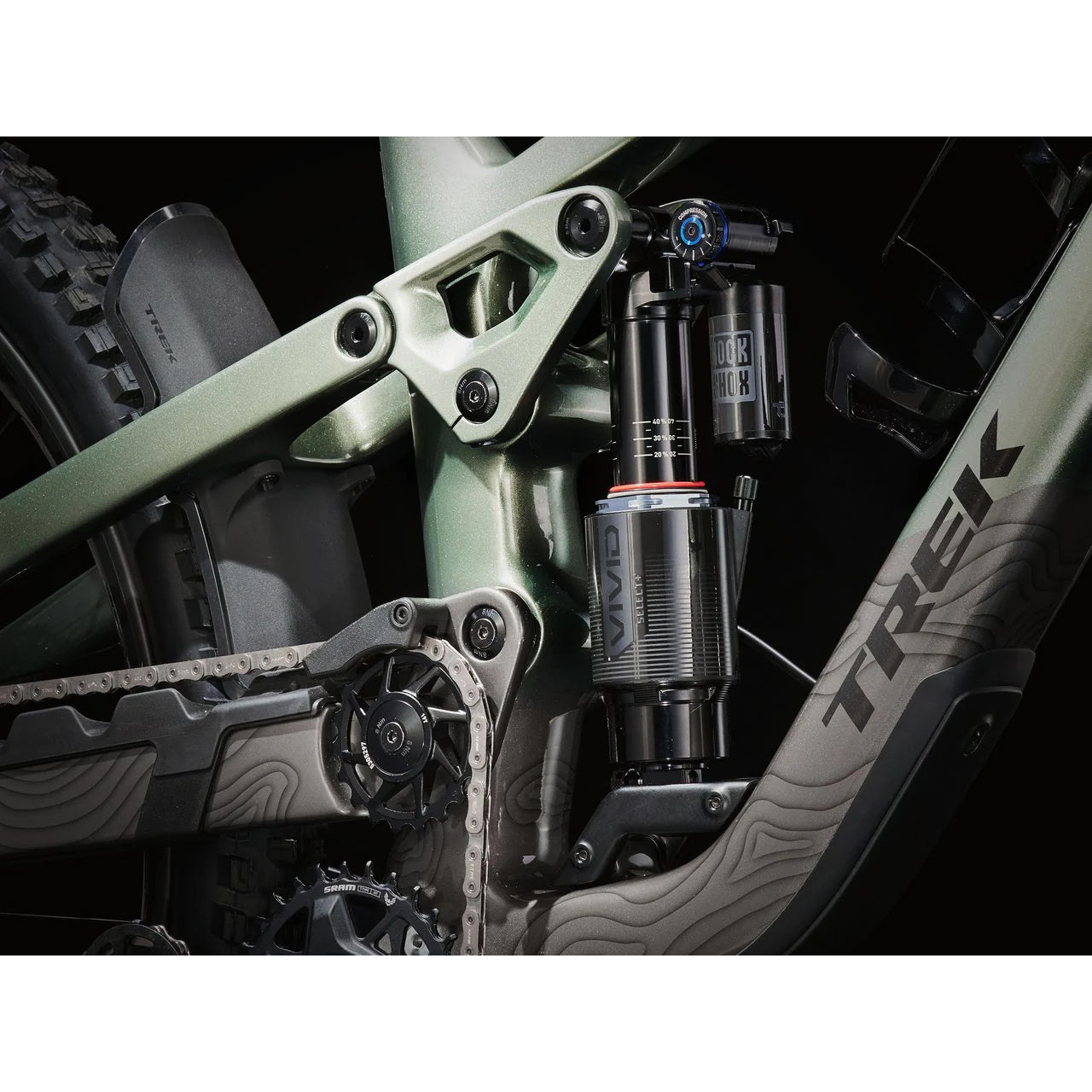

Shock RockShox Vivid Select+, 230mm x 65mm

Shock brand RockShox

Frame

Bottom bracket SRAM DUB MTB Wide, 73mm, BSA threaded

Frame OCLV Mountain Carbon, high main pivot, idler pulley, internal storage, angle-adjust headset, adjustable leverage rate, integrated frame protection, internal routing, magnesium rocker link, ISCG 05, Active Braking Pivot, UDH, 148x12mm thru axle, 170mm travel

Frame material Carbon

Headset Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible

Platform wheel size 27.5" - (S) | 29" - (M-XL)

Seatpost Bontrager Line Elite Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 550mm length

Weight as spec d M - 15.83 kg / 34.9 lbs (with TLR sealant, no tubes) M - 15.83 kg / 34.9 lbs (with TLR sealant, no tubes)

Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

E-Bike System

Battery SRAM eTap battery pack (with charger)

Battery type Li-Ion 300mAh 7.4 Volt

Description

Slash 9.8 GX AXS T-Type is a carbon enduro mountain bike that doesn't back down from hair-raising descents. It's built with an OCLV Mountain Carbon frame and 170mm high-pivot suspension for gobbling up boulders and keeping traction on-point for wall rides and punchy climbs. A 29˝ front and 27.5˝ rear wheel keep handling playful, and an upgraded RockShox suspension package holds up to anything you can throw at it. Plus, it comes equipped with a wireless SRAM GX AXS transmission that keeps shifts on-point, even under load.

Geometry Chart

Measurement	Small	Large	Medium / Large	X-Large
Reach (mm)	430	488	468	513
Stack (mm)	588	641	632	659
Head Tube Angle (°)	63.5°	63.3°	63.3°	63.3°
Seat Tube Angle (°)	74.0°	73.8°	73.8°	73.8°
Wheelbase (mm)	1195	1278	1253	1312
Chainstay Length (mm)	429	434	434	439
Head Tube Length (mm)	100	120	110	140
Seat Tube Length (mm)	390	435	420	470
BB Drop (mm)	10	27	27	27
BB Height (mm)	352	351	351	351
Rake (mm)	43	43	43	43
Trail (mm)	13	14	14	14
Axle to Crown (mm)	588	641	632	659

Part Numbers

Size	Lichen Green
Large	SKUTRE361536736 VPNTrek_5303138 UPC601479213047 MPN5303138
Medium/Large	SKUTRE379601186 VPNTrek_5303137 UPC601479213146 MPN5303137

Size Chart

Trek | Mountain

Size	Rider height (in)	Rider height (cm)	Inseam (in)	Inseam (cm)
X-Small	4'9" - 5'1"	145 - 155 cm	27" - 29"	69 - 73 cm
Small	5'1" - 5'5"	155 - 165 cm	29" - 31"	74 - 78 cm
Medium	5'5" - 5'10"	165 - 177 cm	31" - 33"	79 - 83 cm
Medium/Large	5'8" - 5'11"	173 - 180 cm	32" - 34"	81 - 86 cm
Large	5'10" - 6'2"	177 - 188 cm	33" - 35"	84 - 89 cm
X-Large	6'2" - 6'5"	188 - 195 cm	35" - 36"	89 - 91 cm
XX-Large	6'5" - 6'8"	195 - 203 cm	36" - 38"	91 - 97 cm

High-pivot suspension

Slash's high main pivot allows the axle to move rearward as the suspension compresses, so the back wheel moves with the force from bumps and gets out of the way faster. On the trail, it feels ultra-smooth while maintaining more momentum with insane traction.

Curb the kickback

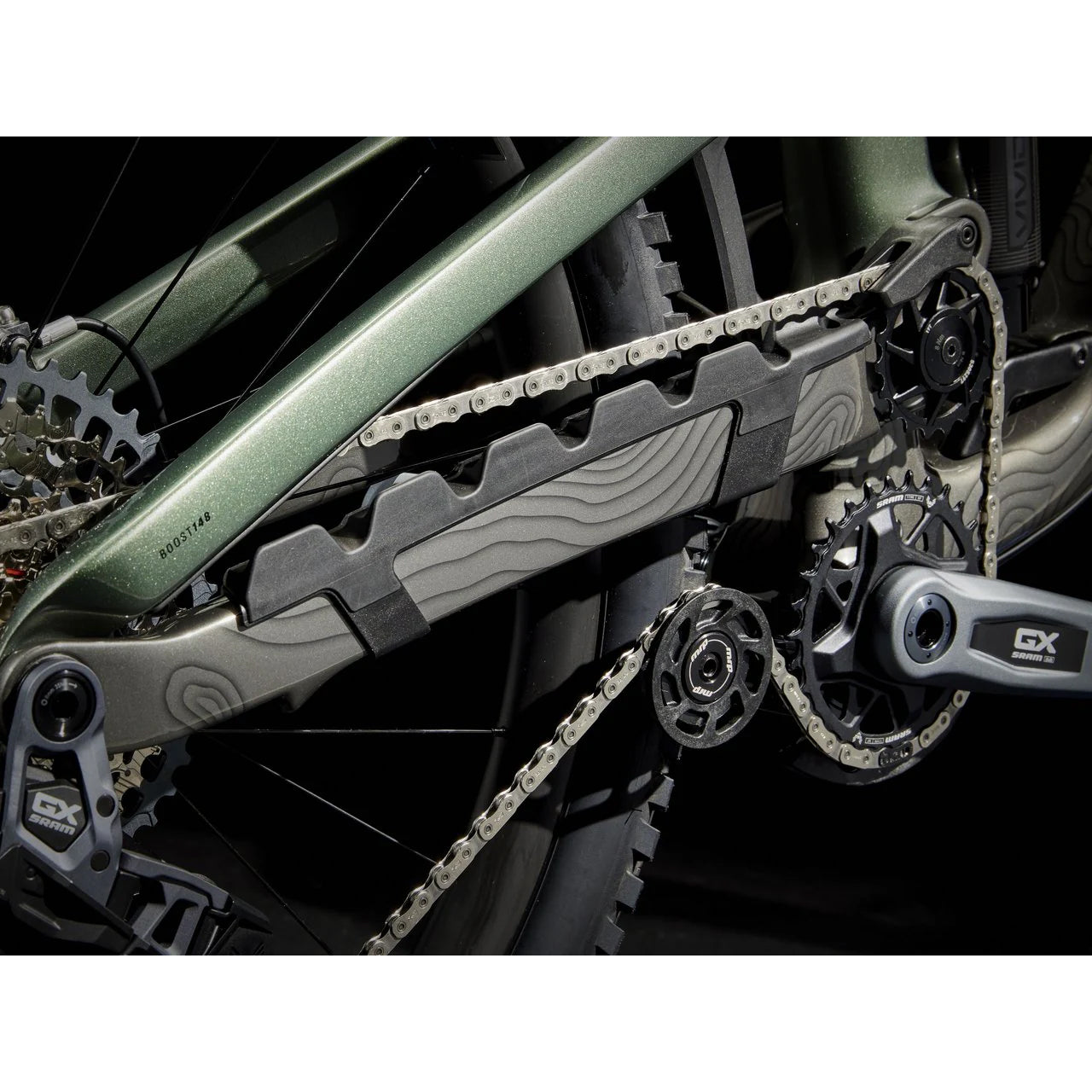

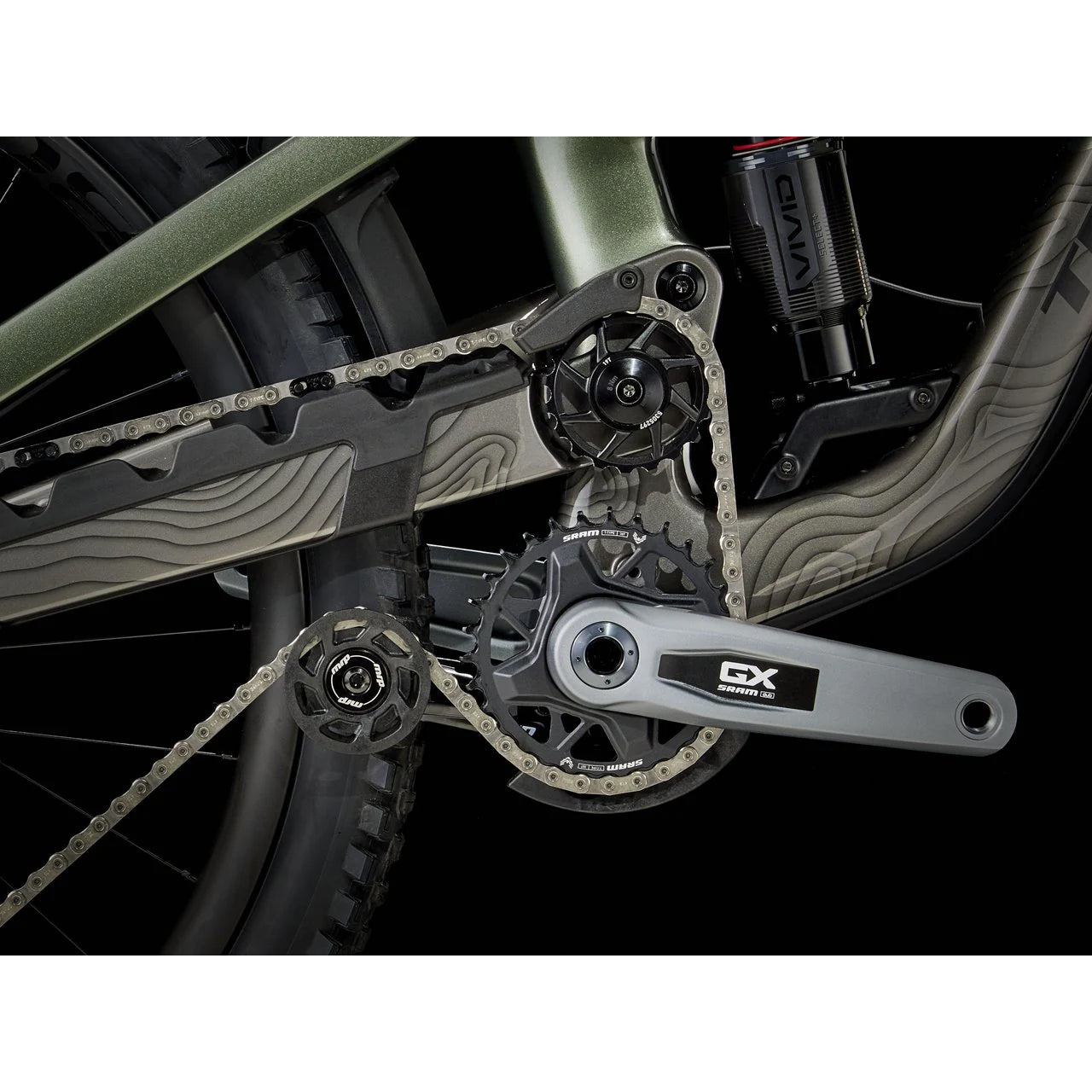

Slash's oversized upper idler not only eliminates the pedal kickback caused by high pivot, but its size and position also give you just the right amount of anti-squat for efficient pedaling. The lower idler takes chain tension off the derailleur so you get smoother shifting and suspension performance.

Mixed wheel size

You get a 29" front wheel for monster truckin' over stuff, with a smaller 27.5" wheel out back for getting rowdy. Want full 29er speed? Just swap the lower shock mount (sold separately) to lower BB height for running a faster wheel out back.

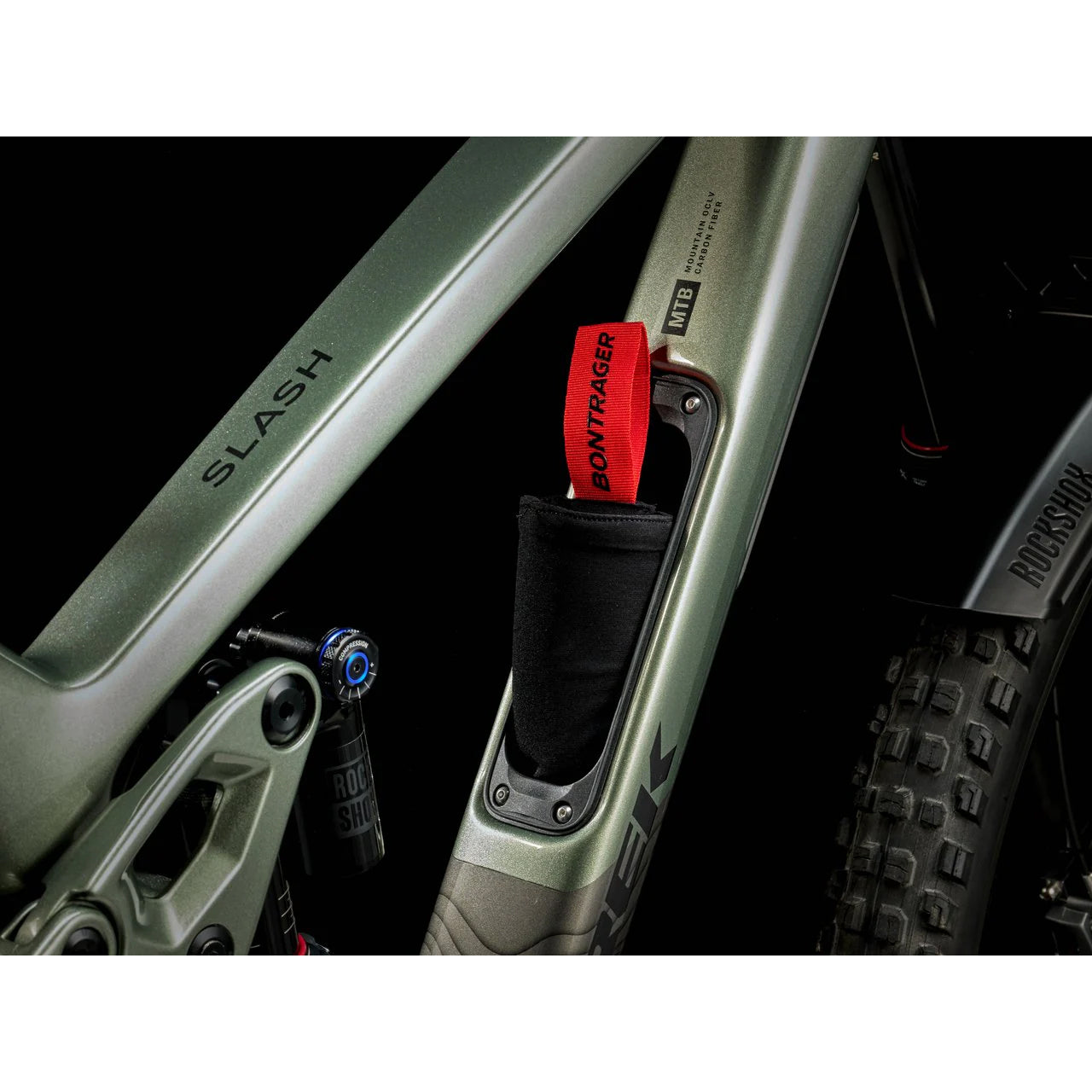

Improved internal storage

Slash's storage door is bigger, easier to use, and the plastic parts are all made from recycled materials.<br><br>
