Specialized

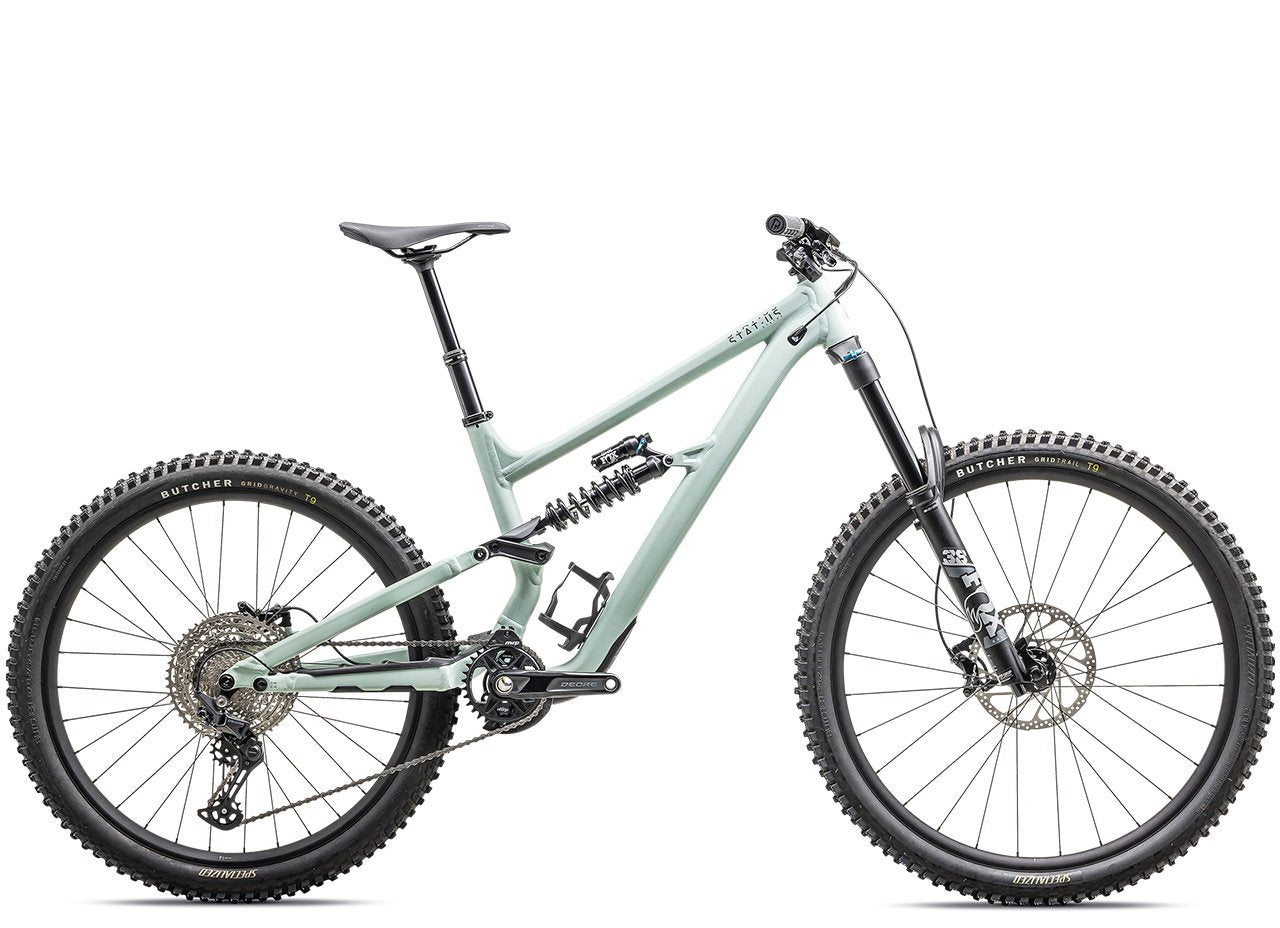

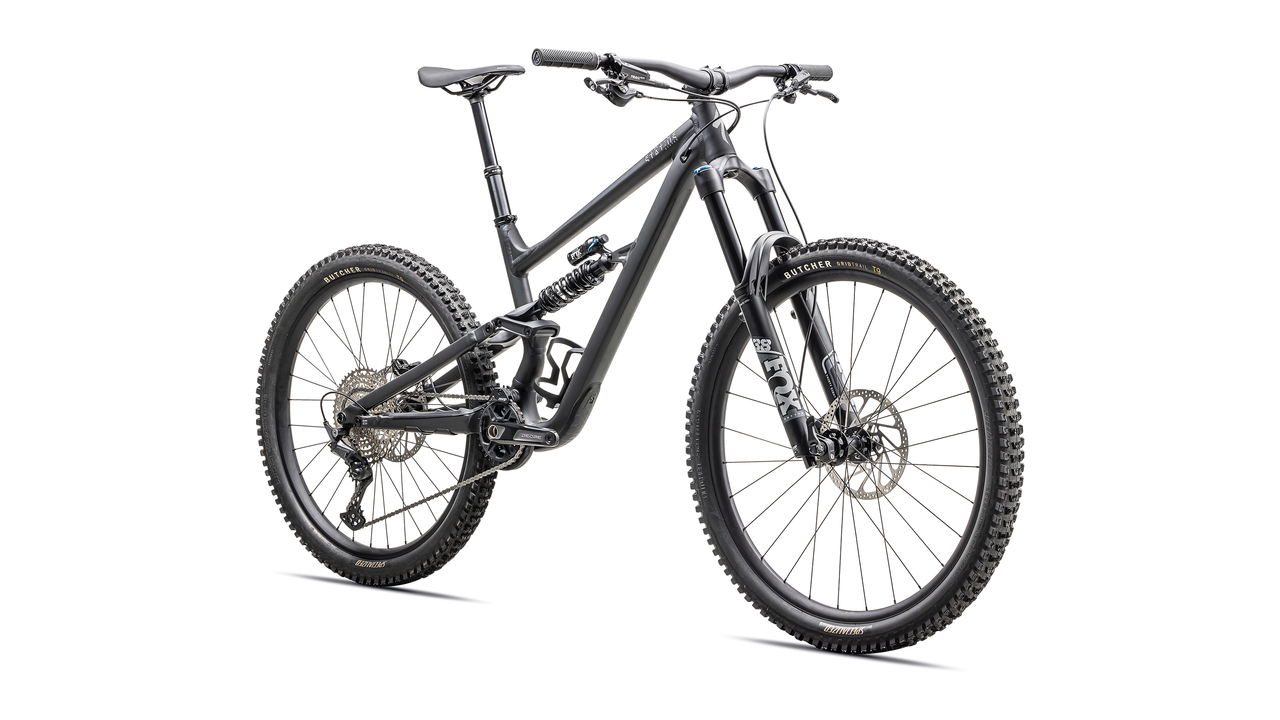

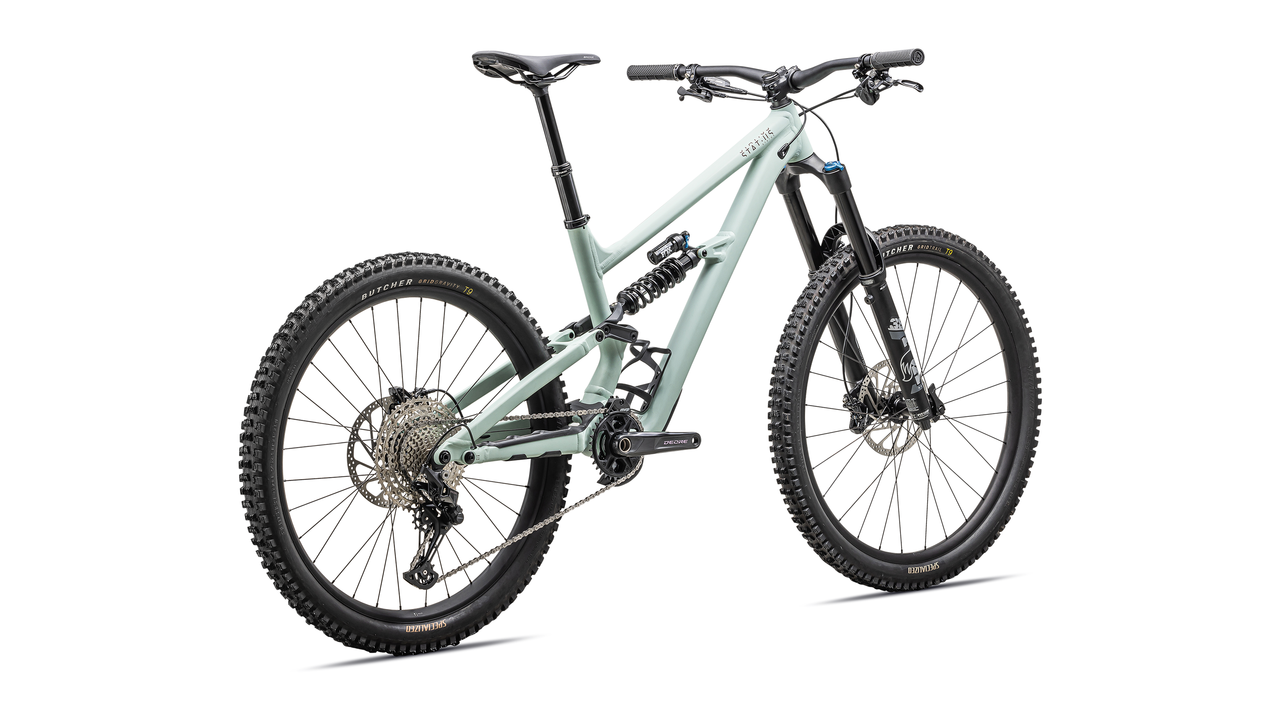

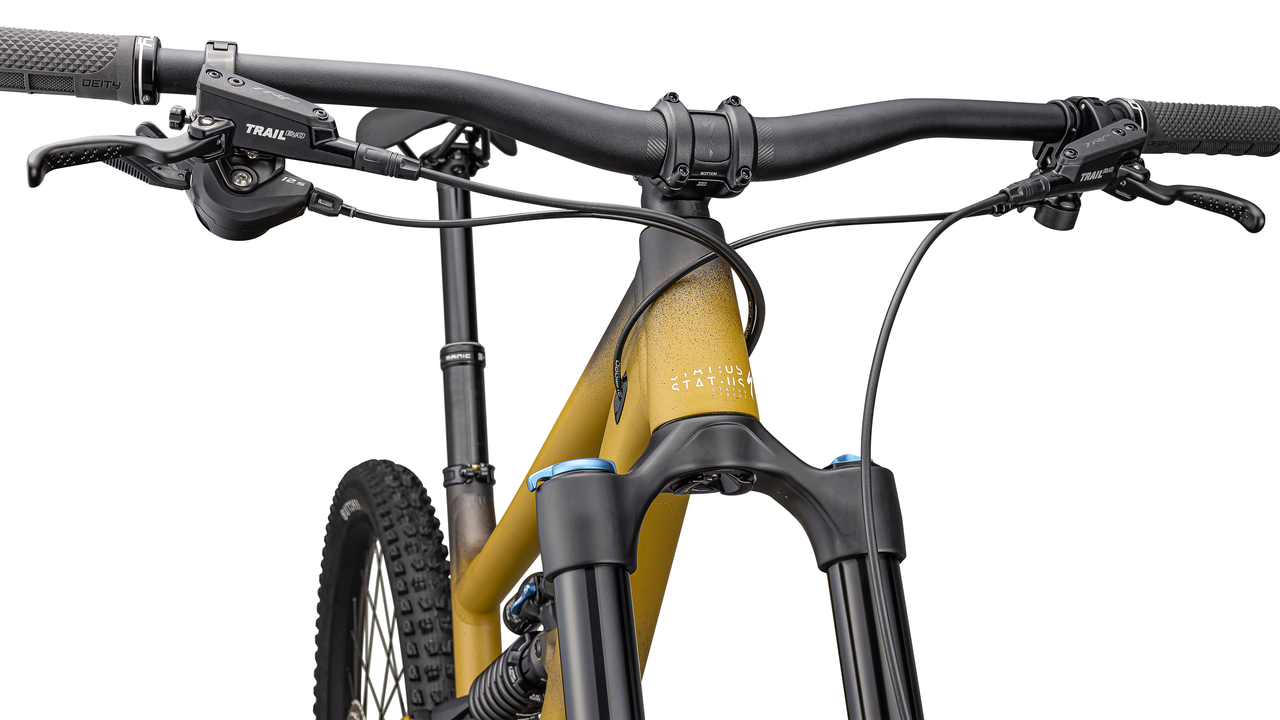

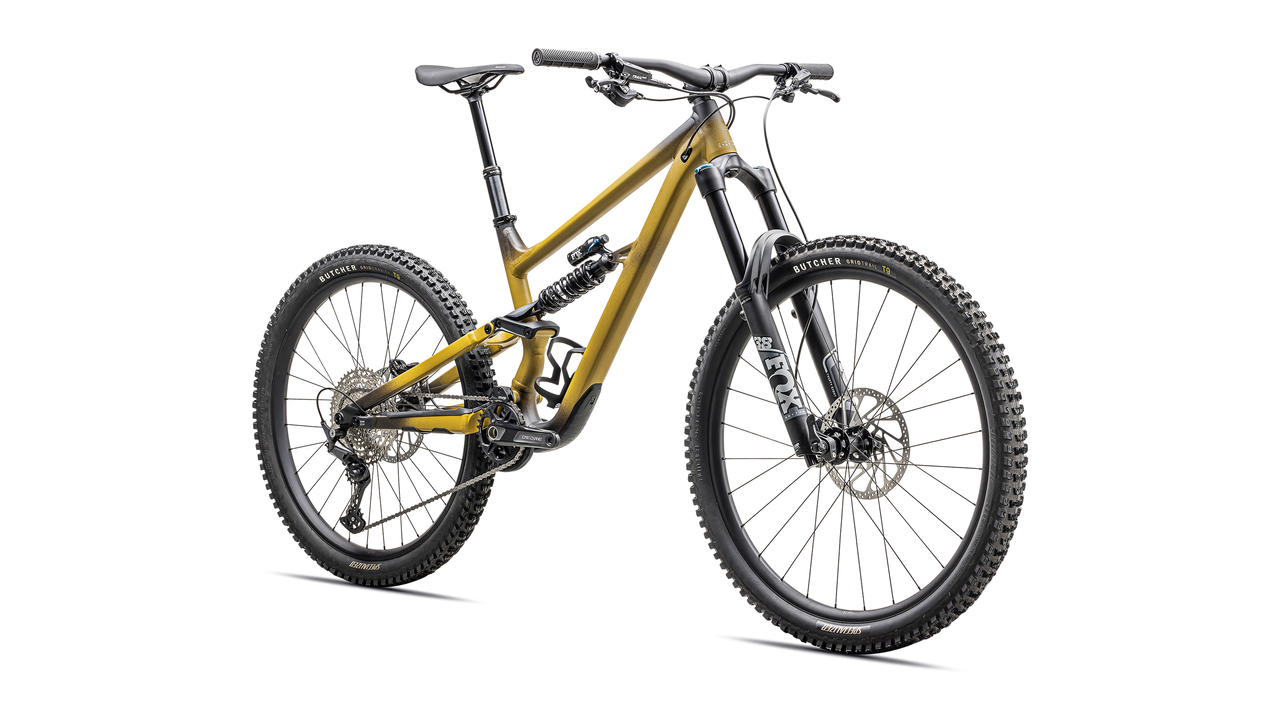

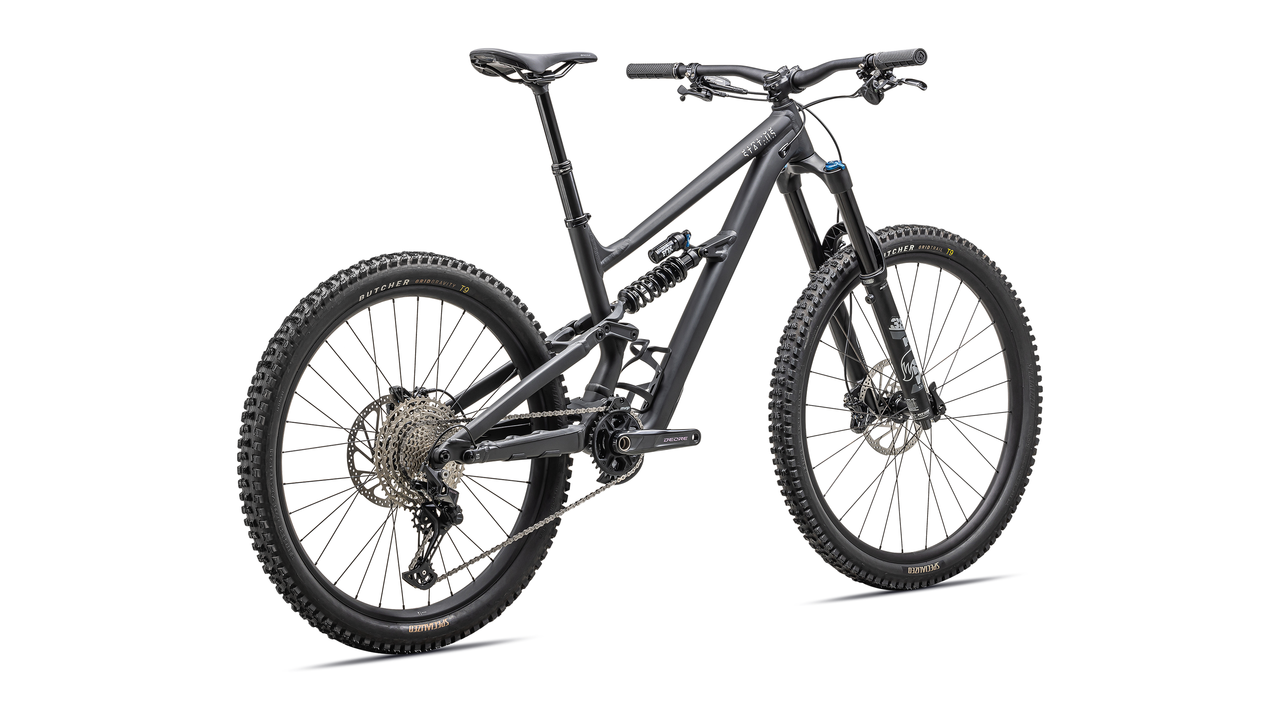

2024 | Status 2 170
2024 | Status 2 170
SKU:SPE47511986W
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.
Canadian shipping charges:
- Sale bikes: $200
- Standard pedal bikes over $1250: Free
- Standard pedal bikes under $1250: $100
- Electric bikes: $200
- Fat bikes: $200
- Kid's bikes: $60
Insurance charge: 1.5% insured value
We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details
Bike Specifications
Bike Specifications
Specifications are subject to change without notice
Drivetrain
Brakes
Cockpit
Wheels
Suspension
Frame
Share this product
Description
Description
STATUS 2 finds the boundaries of mountain bikes and pushes past them. Is it a trail bike? Yes. Park bike? Yep. Cruise to the convenience store and stop for a stealth session on a concrete wall ride? Oh yeah. STATUS 2 is a bike meant to be ridden, however or wherever you ride. Whether you are on the trails, at the bike park, in the streets, or just cutting turns with your friends on a local hill, the STATUS 2 will allow you to ride your way.
BUILT BY RIDERS: Each build starts with a super strong M5 alloy chassis and tough alloy wheels. Stout suspension, powerful brakes, and popular drivetrain options round out these builds to catch big hits, pedal smooth, and provide a ton of stoppage. It’s not for the gram counter—it’s for those riders who push the boundaries of progression and come back for more.

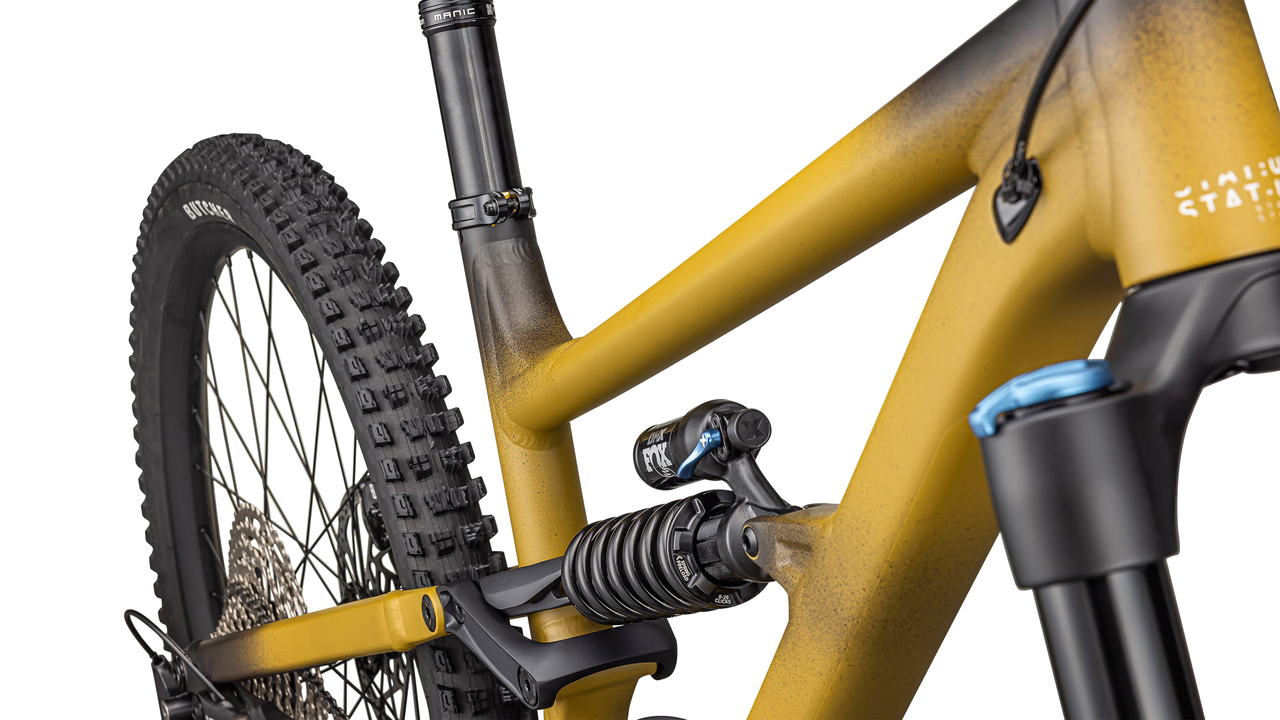

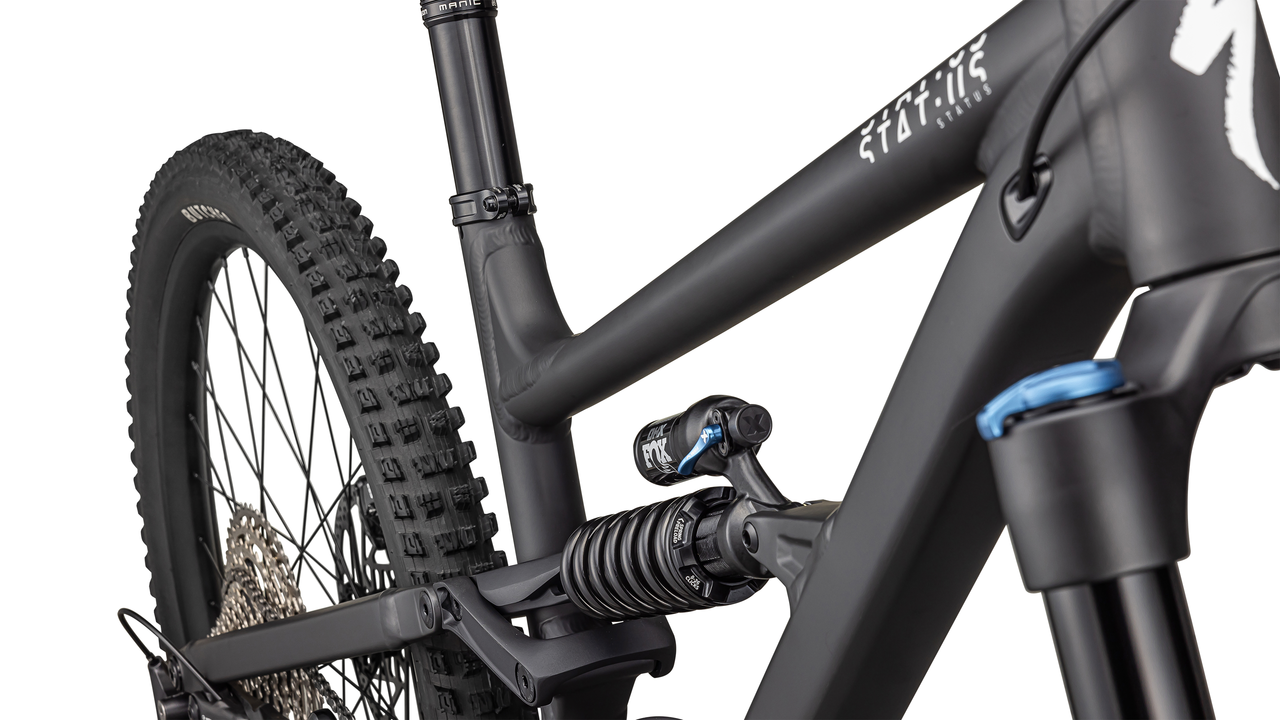

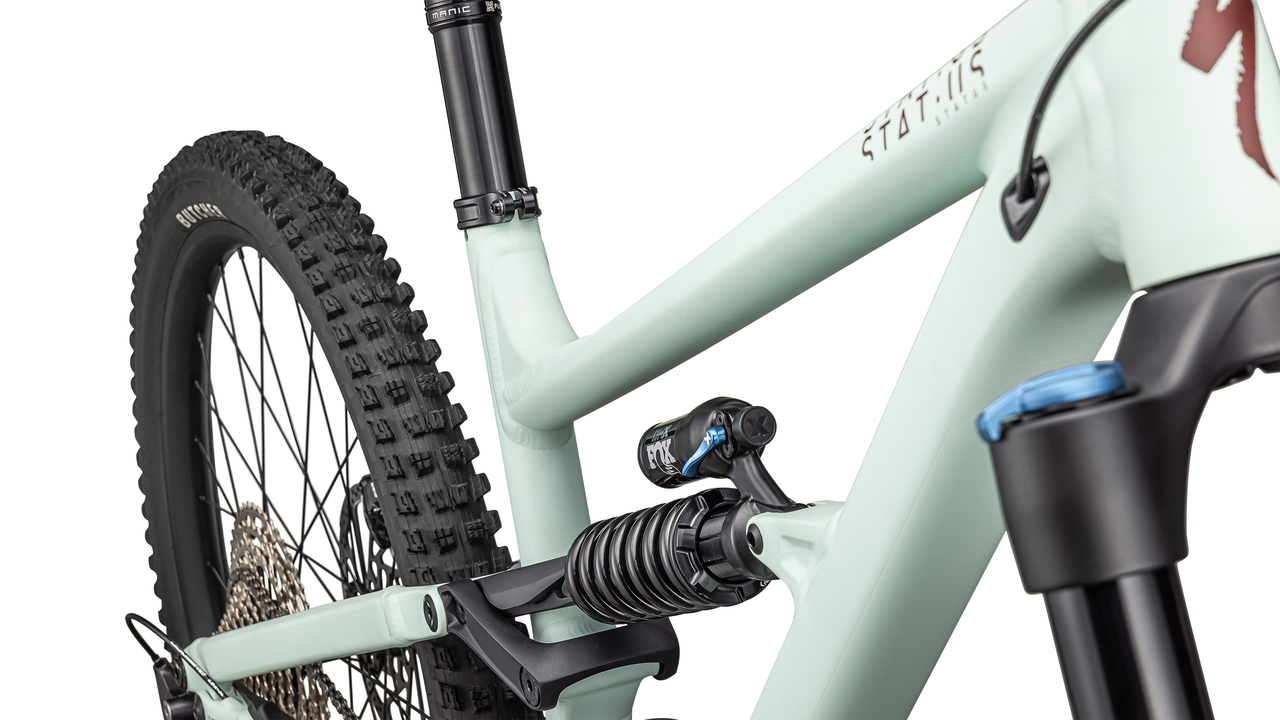

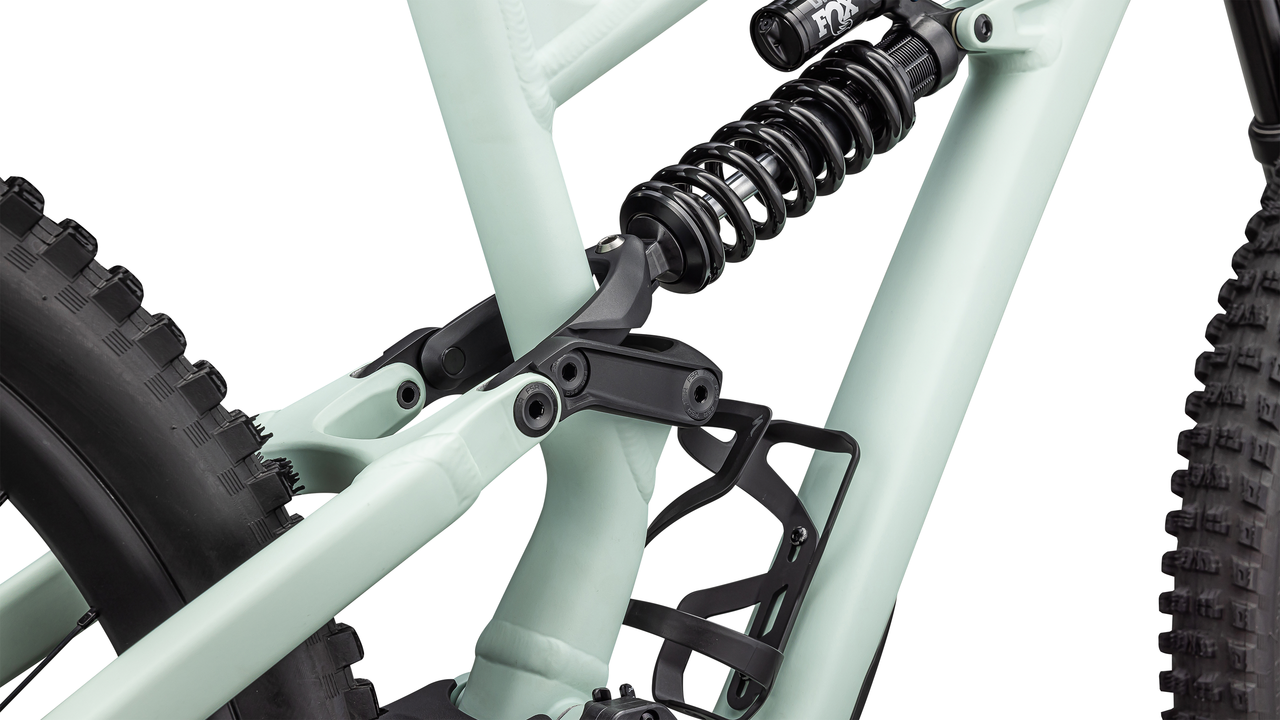

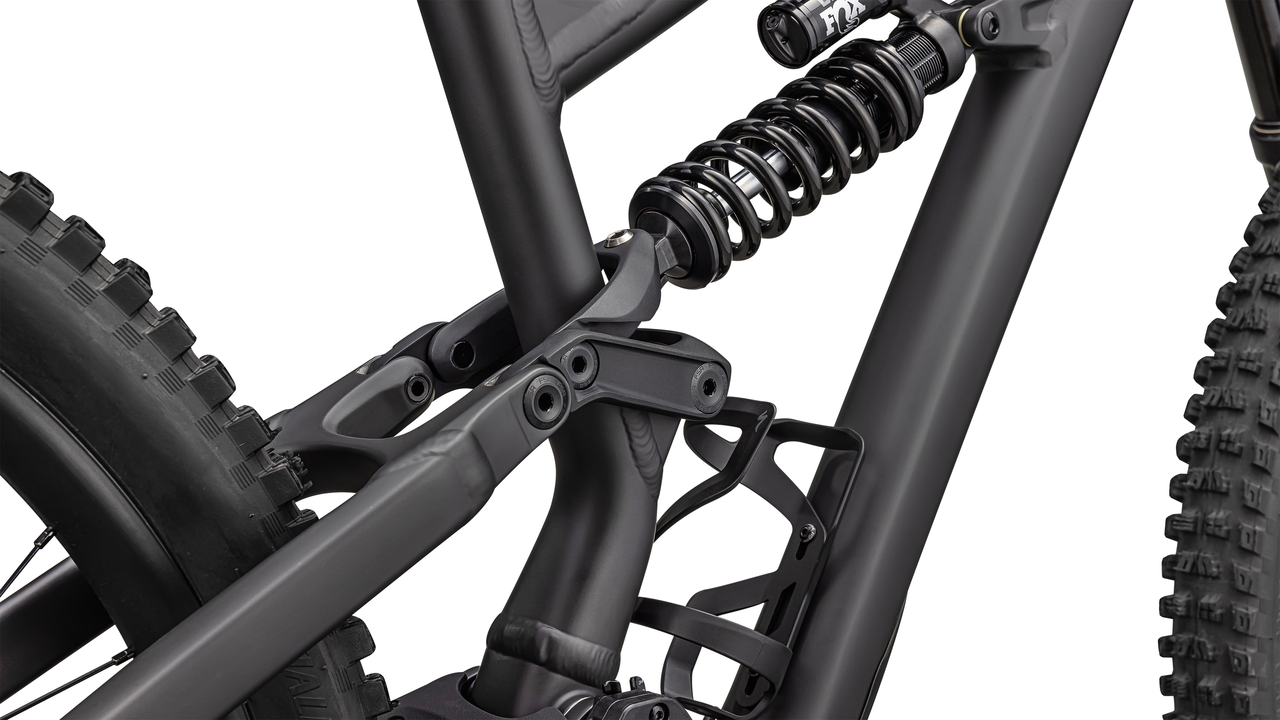

RIDE DYNAMICS TUNED: Before showing up at your doorstep or local bike shop, each STATUS 2 gets a special shock tune from our Specialized Ride Dynamics team—a group that eats, sleeps, and breathes mountain bike suspension. The characteristics of the shock are designed to complement the kinematics of the new STATUS 2 perfectly.

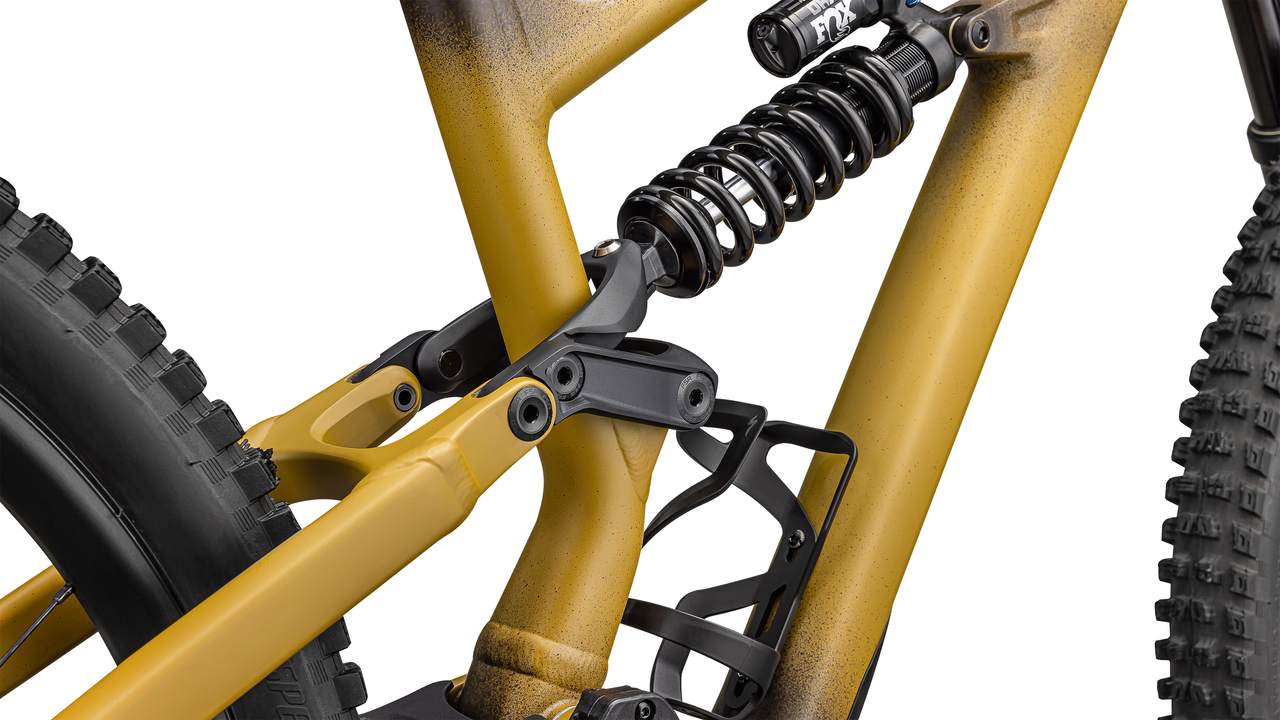

LET’S GET PERSONAL: Each model of STATUS 2 features neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow the rider to finely tune the frame’s geometry to their desired ride or terrain. Bikes ship in the high position but can be ‘flipped’ to lower and slacker—8 mm lower bottom bracket and half a degree slacker head tube angle.
Geometry Chart
Geometry Chart
| Measurement | S1 | S2 | S3 |
|---|---|---|---|
| Reach (mm) | 420 | 445 | 470 |
| Stack (mm) | 620 | 625 | 634 |
| Seat Tube Angle (°) | 77 | 77 | 77 |
| Wheelbase (mm) | 1193 | 1221 | 1250 |
| Chainstay Length (mm) | 432 | 432 | 432 |
| Head Tube Length (mm) | 95 | 100 | 110 |
| Seat Tube Length (mm) | 390 | 400 | 420 |
| BB Drop (mm) | 34 | 34 | 34 |
| BB Height (mm) | 342 | 342 | 342 |
| Rake (mm) | 44 | 44 | 44 |
| Trail (mm) | 138 | 138 | 138 |
Part Numbers
Part Numbers

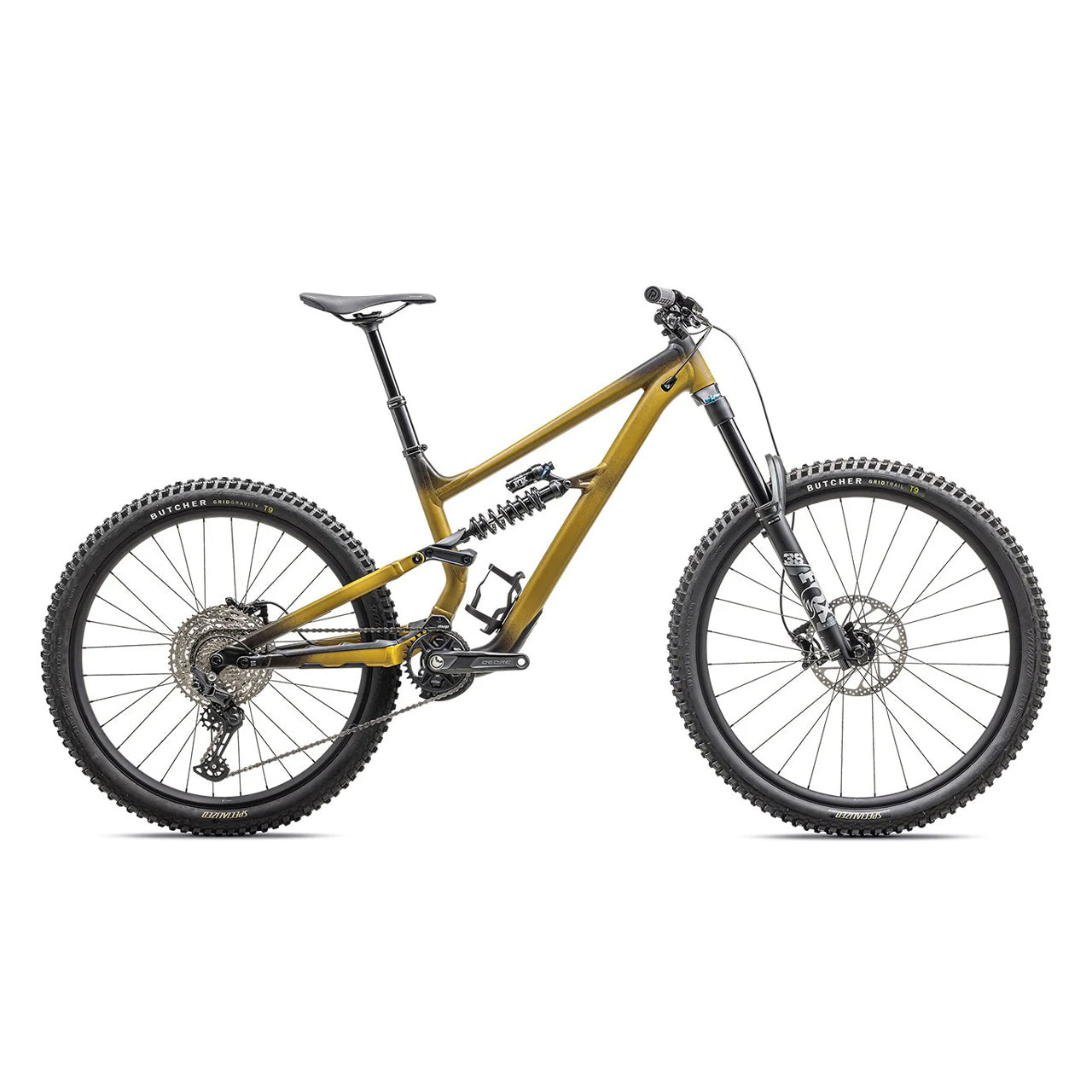

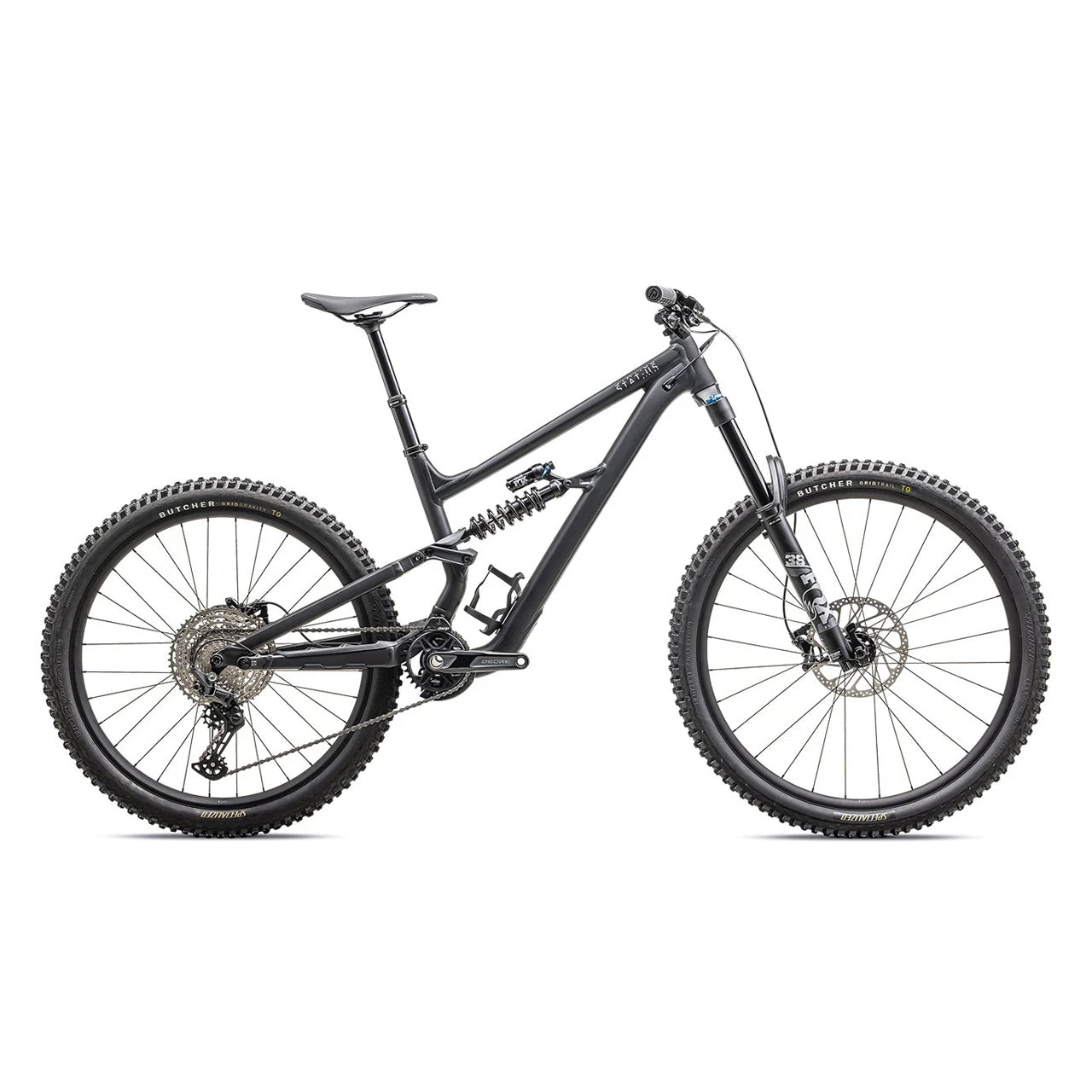

| Size | Satin Harvest Gold Tint/Obsidian/Dune White | Satin Obsidian/Dune White |
|---|---|---|
| S1 |
SKUSPE47176382W
VPNSpec-93723-7701
UPC888818887088
MPN93723-7701
|
— |
| S2 |
SKUSPE47511986W
VPNSpec-93723-7702
UPC888818887767
MPN93723-7702
|
— |
| S3 |
SKUSPE47916138W
VPNSpec-93723-7703
UPC888818887361
MPN93723-7703
|
— |
| S5 | — |
SKUSPE43547130E
VPNSpec-93723-7505
UPC888818887675
MPN93723-7505
|
Size Chart
Size Chart
| Size | Rider height (in) | Rider height (cm) |
|---|---|---|
| S0 | 4'9"-5'2" | 144-157 |
| S1 | 4'11"-5'3" | 150-160 |
| S2 | 5'2"-5'8" | 157-173 |
| S3 | 5'5"-5'11" | 165-180 |
| S4 | 5'8"-6'2" | 173-188 |
| S5 | 5'10"+ | 178+ |
