Trek

2025 | Checkpoint SL 6 AXS Gen 3

$5,199.99

Shipping calculated at checkout.

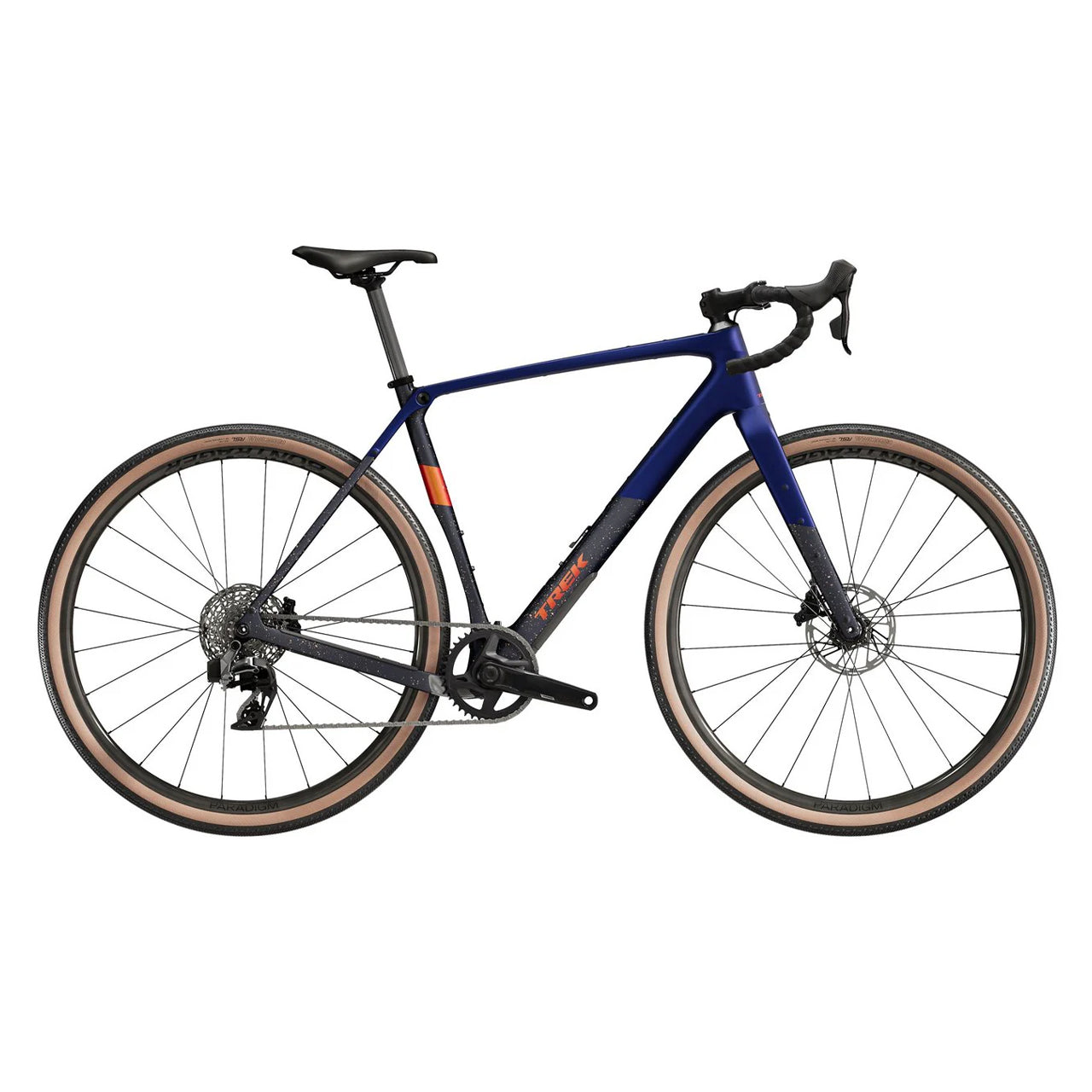

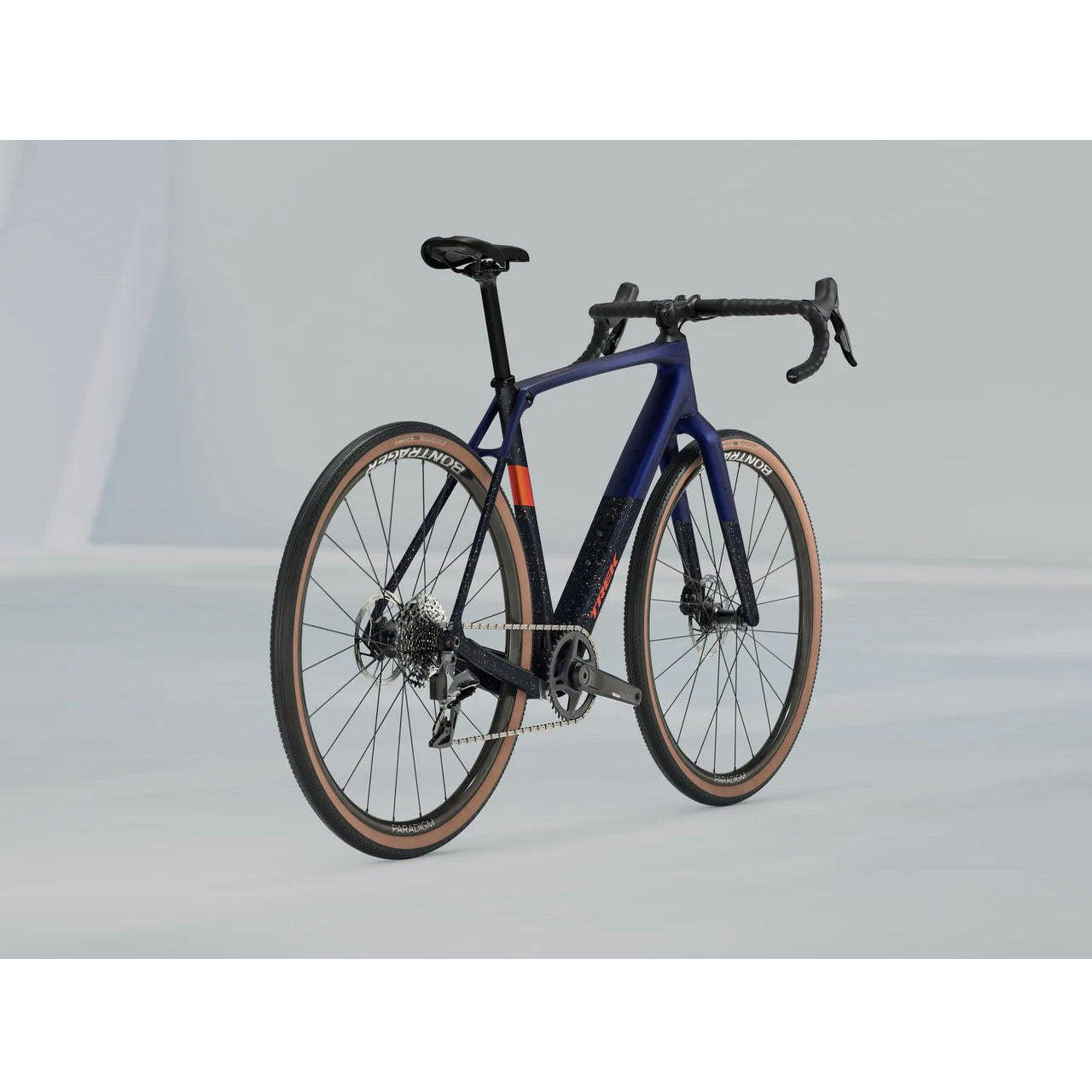

Color: Matte Hex Blue/Marianas Blue

Size: X-Small

X-Small Small Medium Medium/Large Large X-Large

SKU:TRE546970643

Shipping & Returns

We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.

Canadian shipping charges:

Sale bikes: $200
Standard pedal bikes over $1250: Free
Standard pedal bikes under $1250: $100
Electric bikes: $200
Fat bikes: $200
Kid's bikes: $60

Insurance charge: 1.5% insured value

We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details

Bike Specifications

Specifications are subject to change without notice

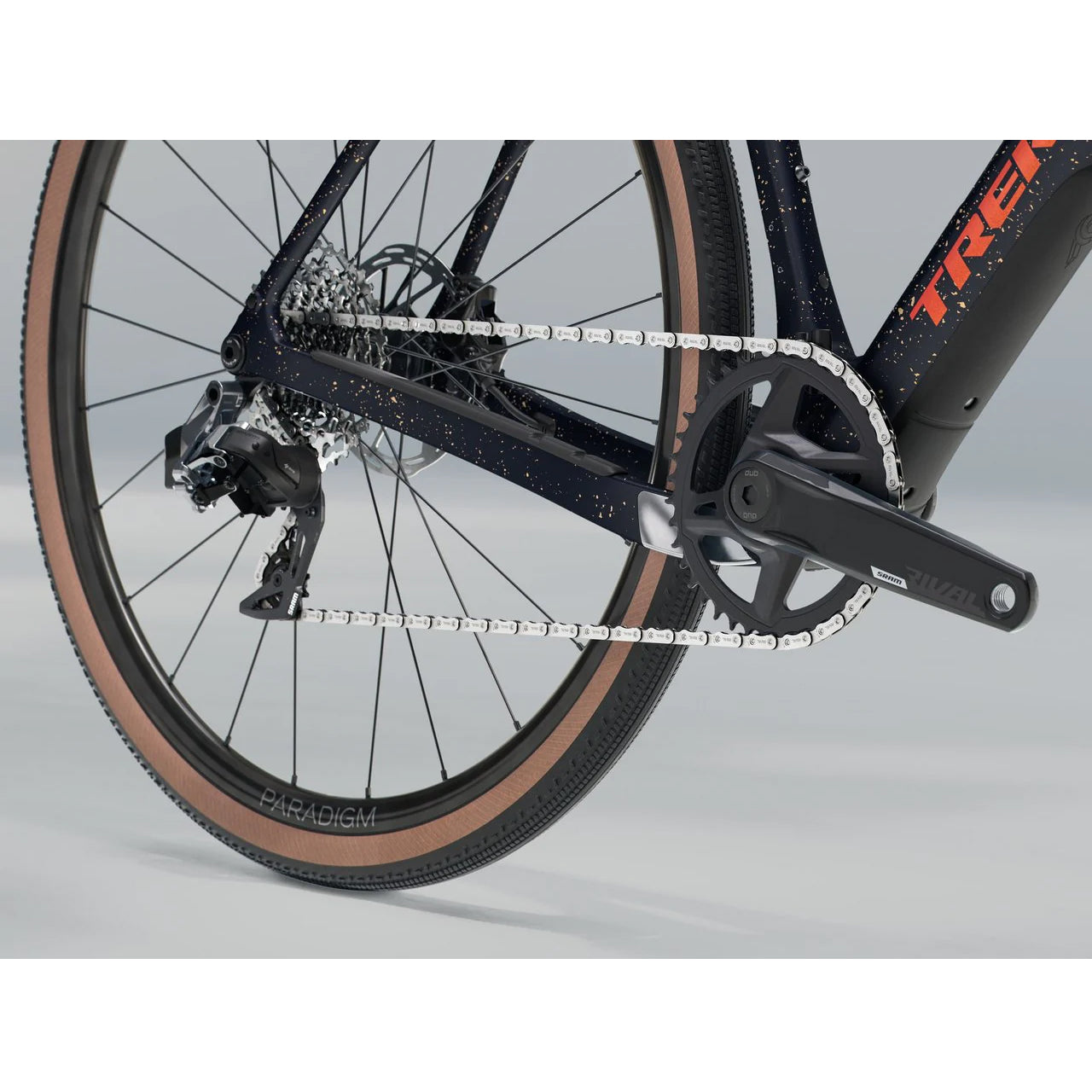

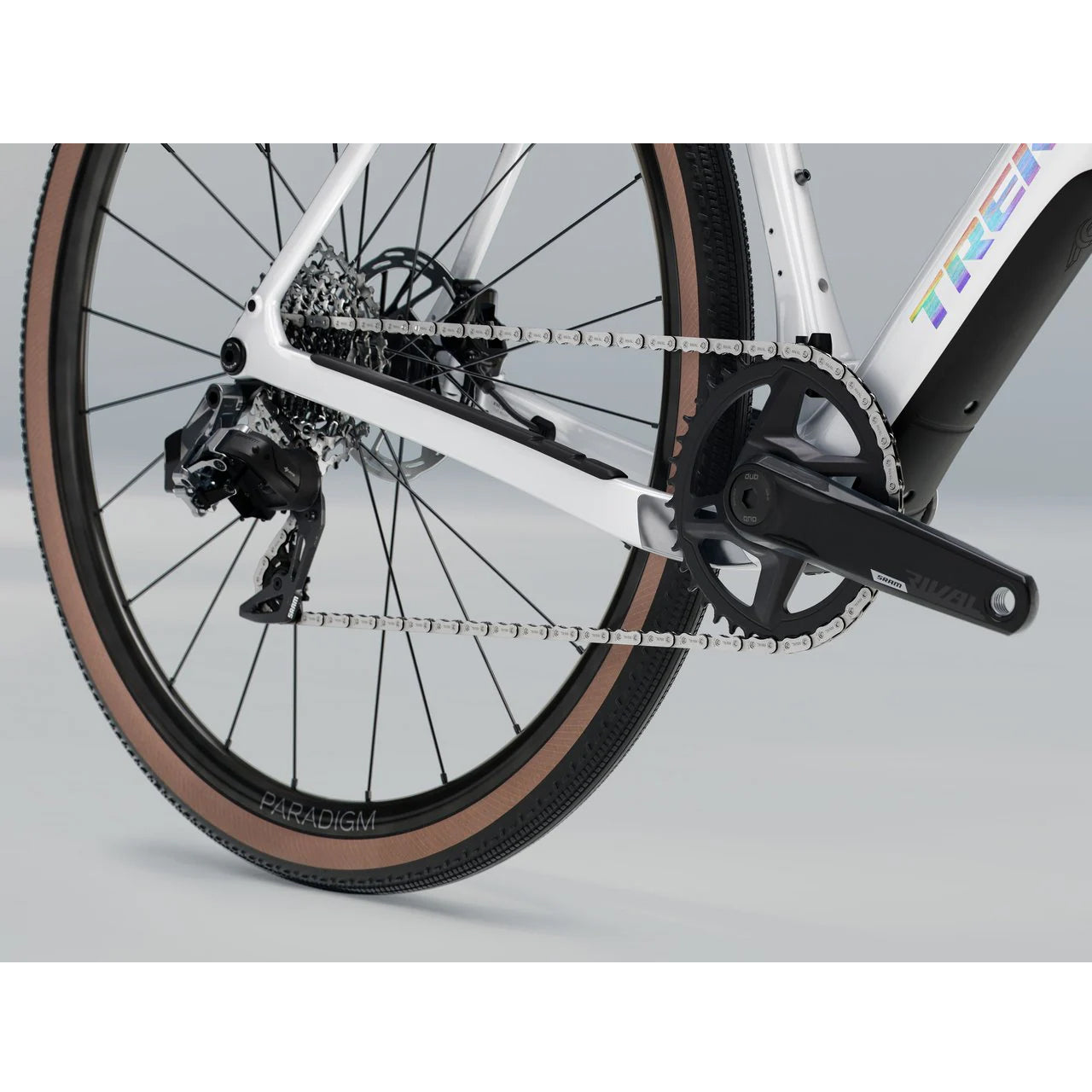

Drivetrain

Cassette SRAM XG-1251, 10-44, 12 speed

Chain SRAM Rival, 12 speed

Rear derailleur SRAM Rival XPLR eTap AXS, 44T max cog

Shifter SRAM Rival eTap AXS, 12 speed // SRAM Rival eTap AXS, 12 speed

Brakes

Brake rotor SRAM Paceline, rounded, centerlock, 160mm

Brake type Hydraulic disc

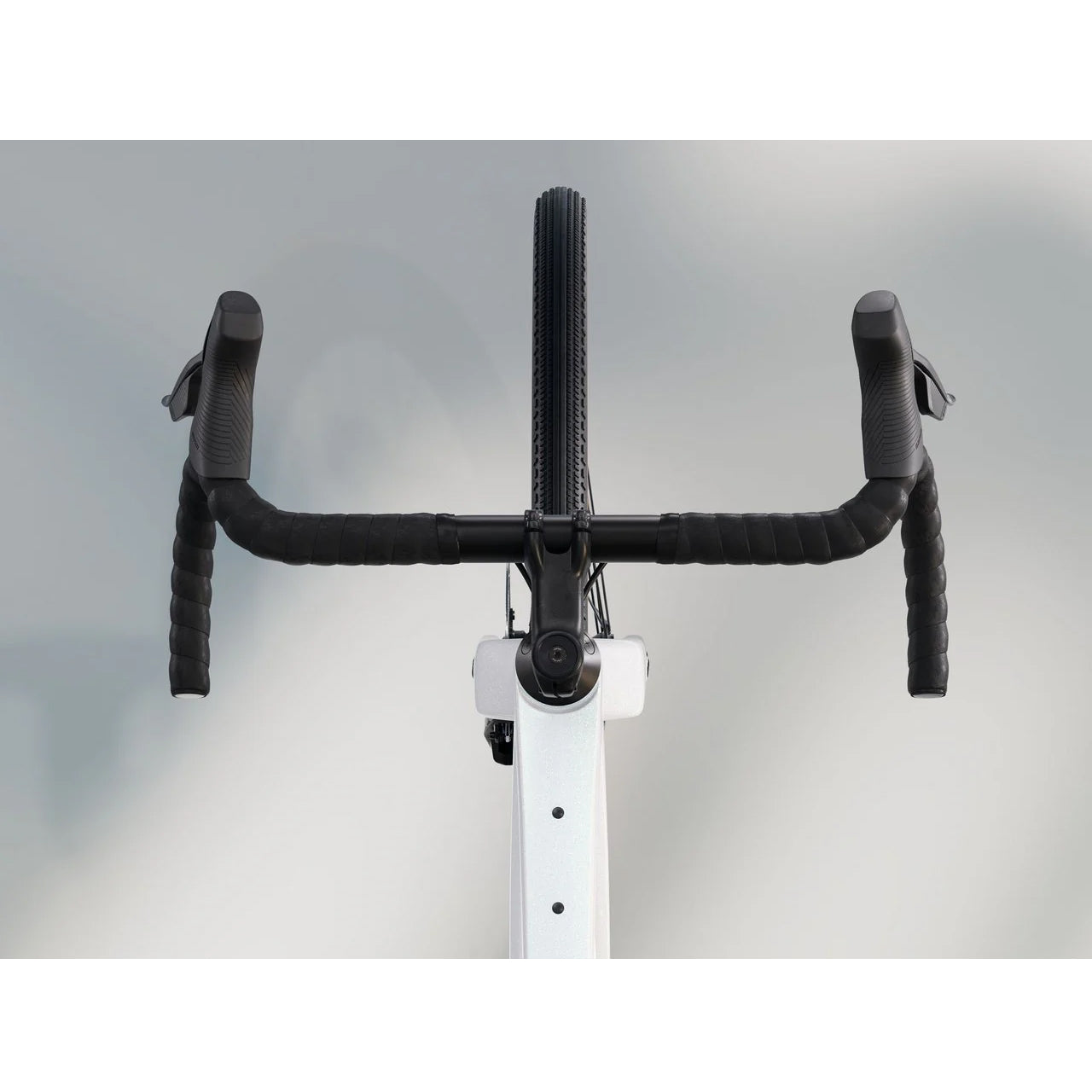

Cockpit

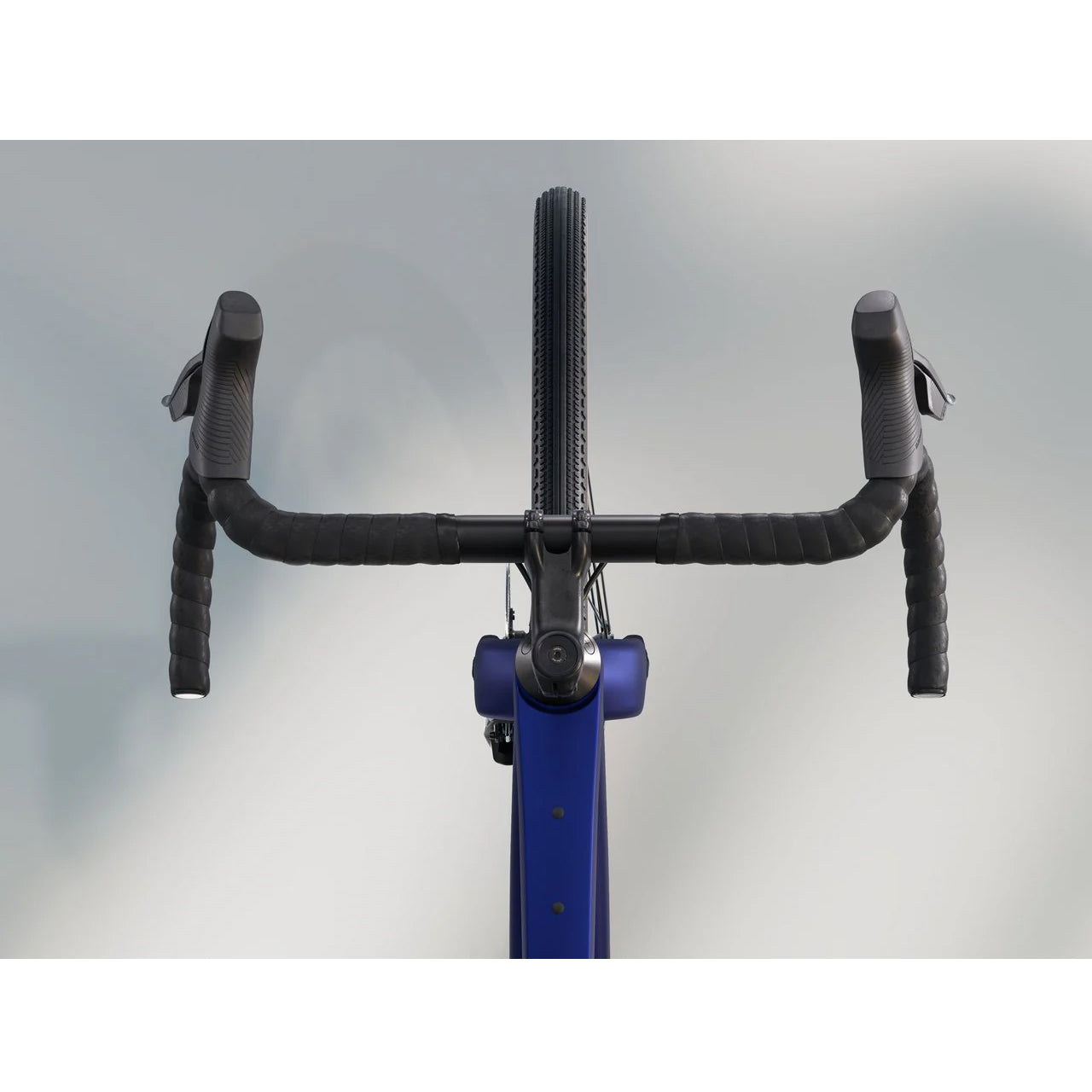

Handlebars Bontrager Elite Gravel, alloy, 44cm width

Saddle Bontrager Verse P3, steel rails

Seatpost Bontrager carbon, 27.2mm, 8mm offset, 330mm length

Stem Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length

Wheels

Rims Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width

Tires Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm

Valves Bontrager TLR sealant, 180 ml/6 oz

Wheel size 700c

Suspension

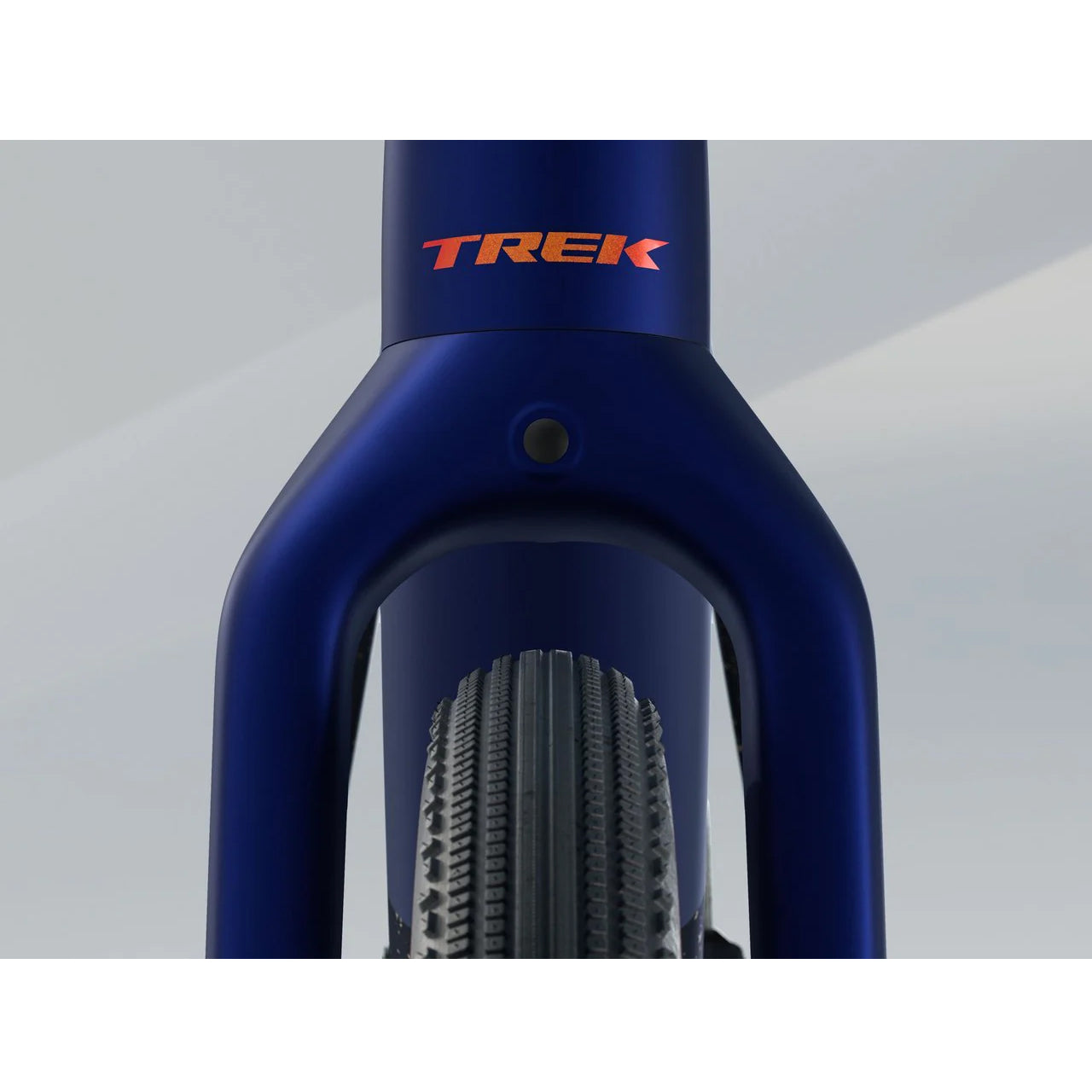

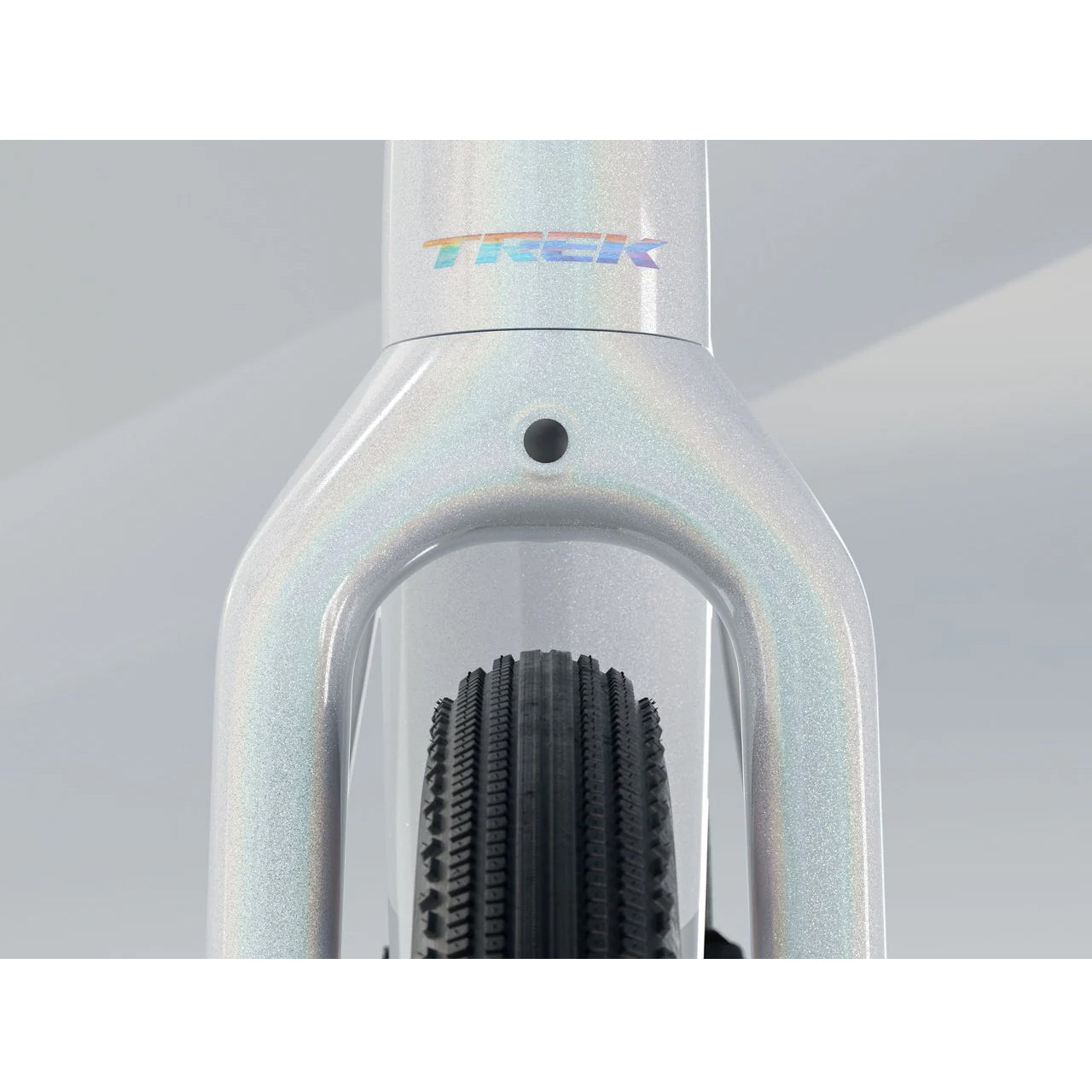

Fork Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle

Fork brand Trek

Fork travel 40 mm (XS: compatible with rigid fork only)
See Checkpoint SL Gen 3 FAQ for compatible options

Frame

Bottom bracket SRAM DUB, T47 threaded, internal bearing

Frame 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle

Frame material Carbon

Platform wheel size 700C

Seatpost Bontrager carbon, 27.2mm, 8mm offset, 330mm length

Weight as spec d ML - 9.40 kg / 20.73 lbs (with TLR sealant, no tubes)

Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-Bike System

Battery SRAM eTap battery pack (with charger)

Battery type Li-Ion 300mAh 7.4 Volt

Description

Checkpoint SL 6 AXS Gen 3 is a carbon gravel bike ready for far-out adventures. Its lightweight carbon frame is designed with comfort-focused Gravel Endurance geometry, clearance for beefy 50mm tires (as measured), and plenty of frame and fork mounts. Plus, IsoSpeed frame technology helps soak up jarring road vibrations, helping you float over chatter and potholes. It's ready to cut loose with a SRAM Rival AXS wireless 12-speed groupset.

Geometry Chart

Measurement	Small	Medium	Large	Medium / Large	X-Large	X-Small
Reach (mm)	386	391	402	397	408	380
Stack (mm)	556	579	620	601	640	535
Head Tube Angle (°)	71.4°	71.6°	72.1°	72.0°	72.4°	71.0°
Seat Tube Angle (°)	74.0°	73.3°	73.3°	73.3°	73.3°	74.0°
Wheelbase (mm)	1022	1034	1052	1042	1062	1013
Chainstay Length (mm)	430	430	430	430	430	430
Head Tube Length (mm)	106	130	171	151	191	86
Seat Tube Length (mm)	480	505	550	530	575	445
BB Drop (mm)	76	76	76	76	76	76
Rake (mm)	49	49	49	49	49	49
Trail (mm)	7	7	6	6	6	7
Axle to Crown (mm)	556	579	620	601	640	535

Part Numbers

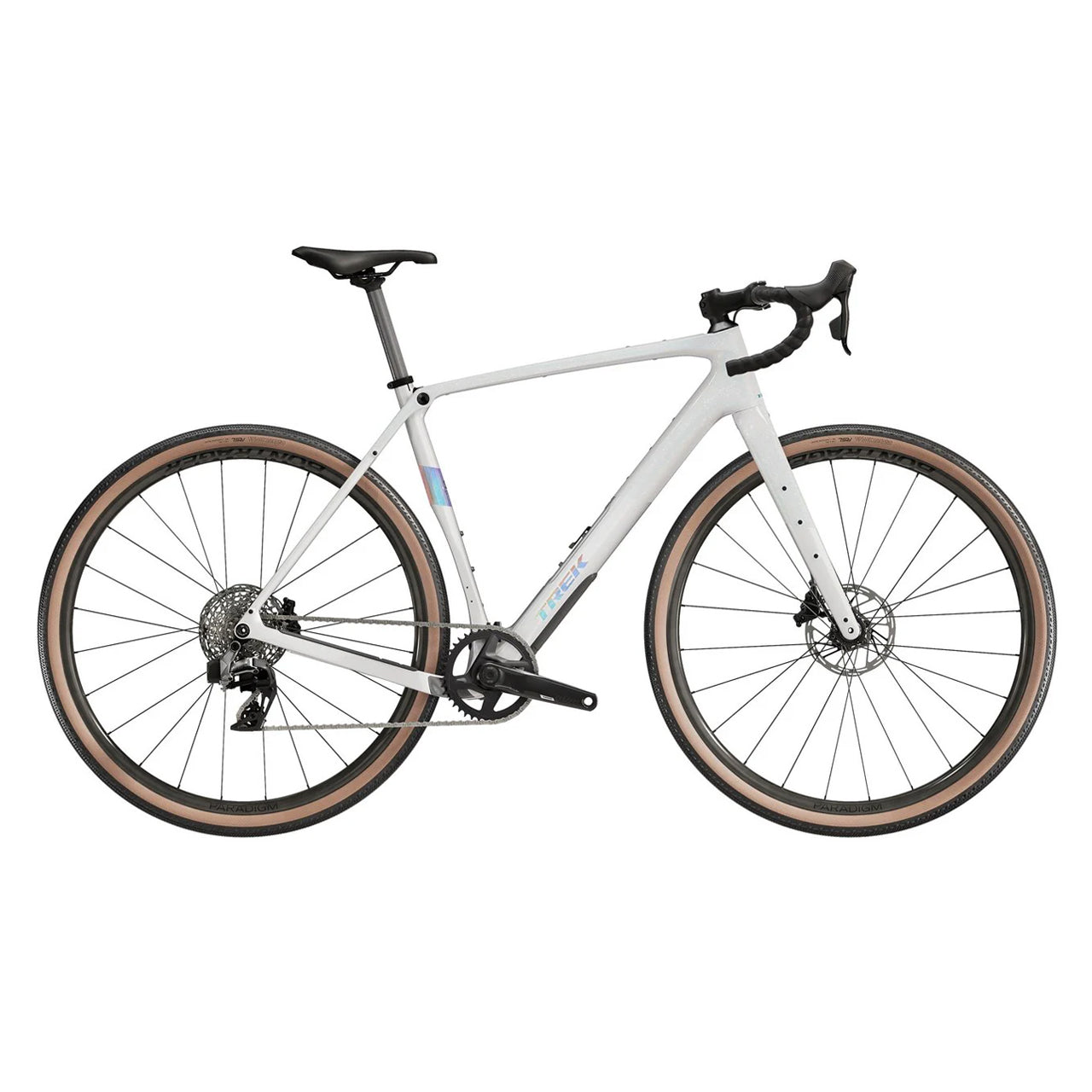

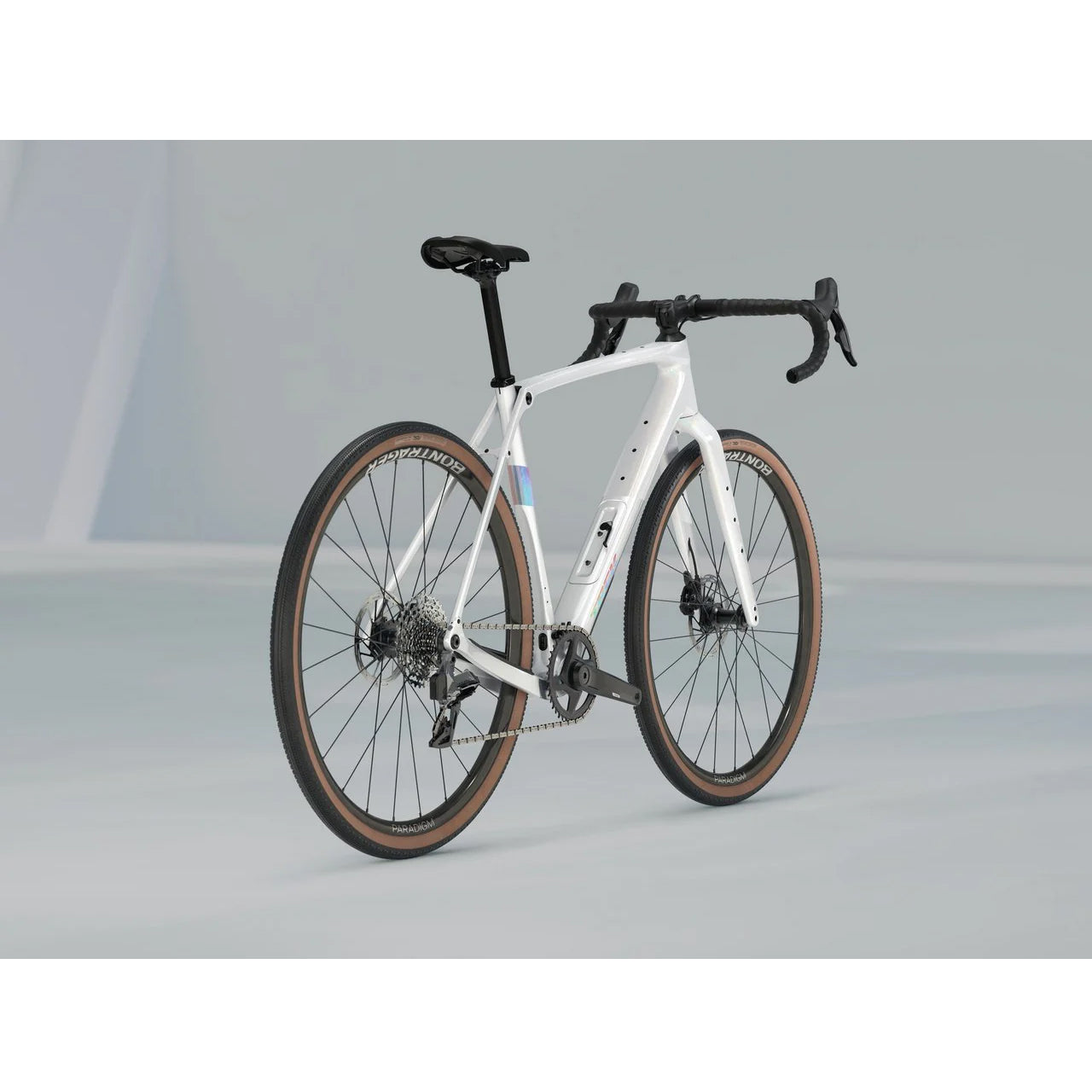

Size	Matte Hex Blue/Marianas Blue	White Prismatic
X-Small	SKUTRE546970643 VPNTrek_5321646 UPC197216040149 MPN5321646	SKUTRE444901503 VPNTrek_5321652 UPC197216040200 MPN5321652
Small	SKUTRE533593663 VPNTrek_5321647 UPC197216040156 MPN5321647	SKUTRE437561853 VPNTrek_5321653 UPC197216040217 MPN5321653
Medium	SKUTRE539281483 VPNTrek_5321648 UPC197216040163 MPN5321648	SKUTRE432692243 VPNTrek_5321654 UPC197216040224 MPN5321654
Medium/Large	SKUTRE54804123 VPNTrek_5321649 UPC197216040170 MPN5321649	SKUTRE443027893 VPNTrek_5321655 UPC197216040231 MPN5321655
Large	SKUTRE539757323 VPNTrek_5321650 UPC197216040187 MPN5321650	SKUTRE433861283 VPNTrek_5321656 UPC197216040248 MPN5321656
X-Large	SKUTRE548858163 VPNTrek_5321651 UPC197216040194 MPN5321651	SKUTRE442591813 VPNTrek_5321657 UPC197216040255 MPN5321657

Size Chart

Trek | Gravel

Size	Size (cm)	Rider height (in)	Rider height (cm)	Inseam (in)	Inseam (cm)
X-Small	N/A	4'8" - 5'2"	143 - 158 cm	26" - 29"	67 - 74 cm
Small	49cm	5'2" - 5'5"	158 - 164 cm	29" - 30"	74 - 77 cm
Medium	52-54cm	5'5" - 5'10"	164 - 177 cm	30" - 33"	77 - 83 cm
Medium/Large	56cm	5'10" - 6'2"	177 - 188 cm	33" - 35"	83 - 88 cm
Large	58cm	6'2" - 6'4"	188 - 194 cm	35" - 36"	88 - 91 cm
X-Large	61cm	6'4" - 6'8"	194 - 203 cm	36" - 37"	91 - 95 cm
