Sold out
Trek

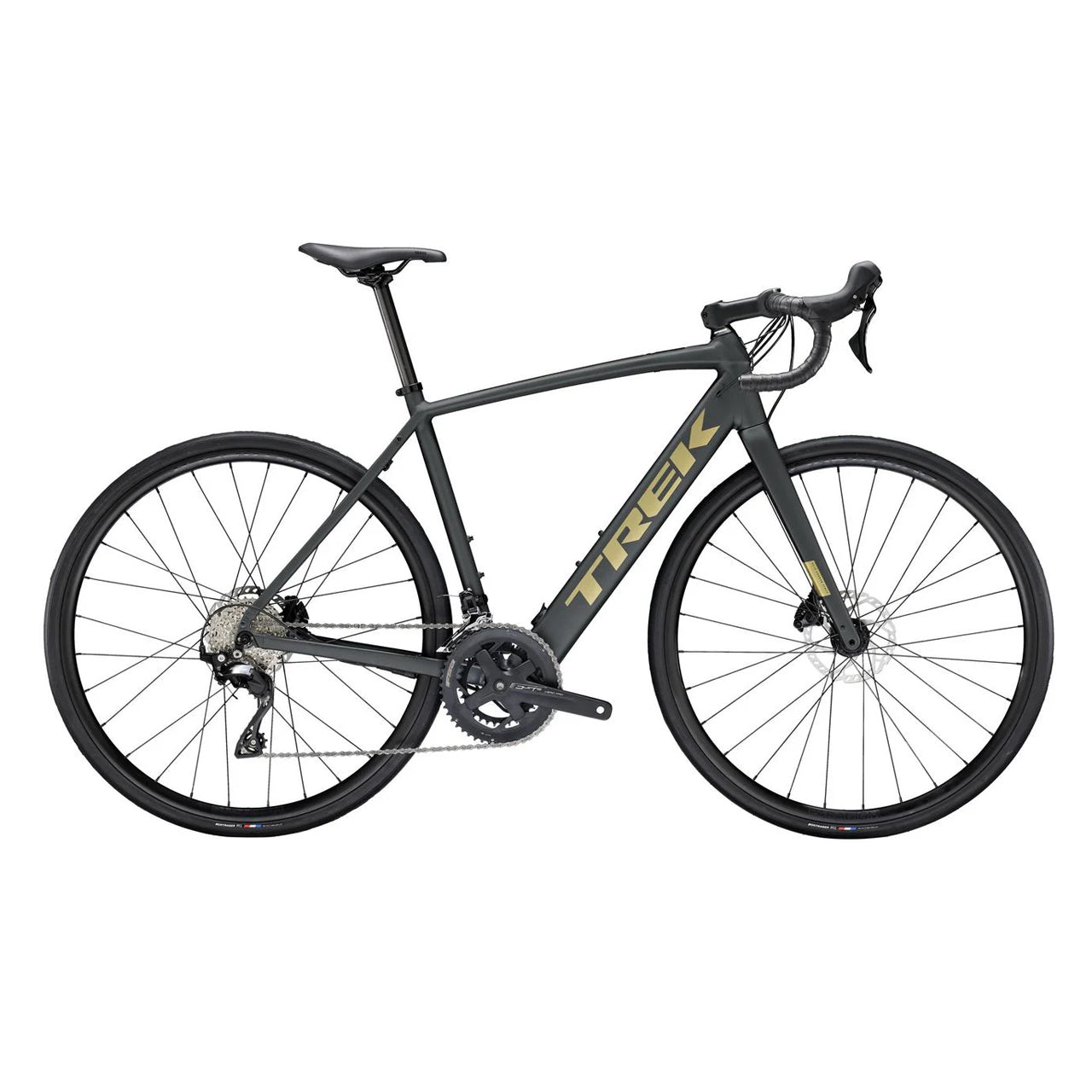

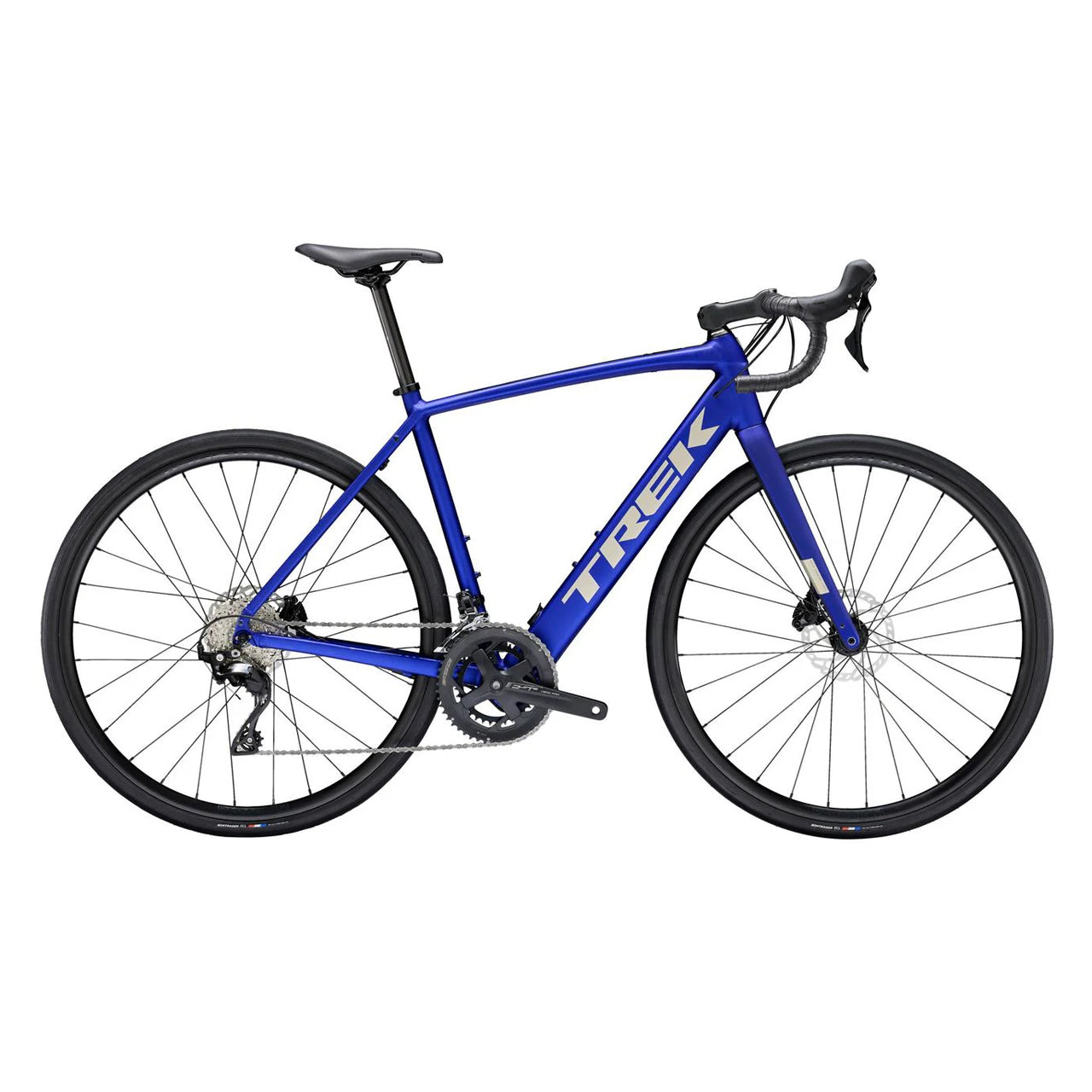

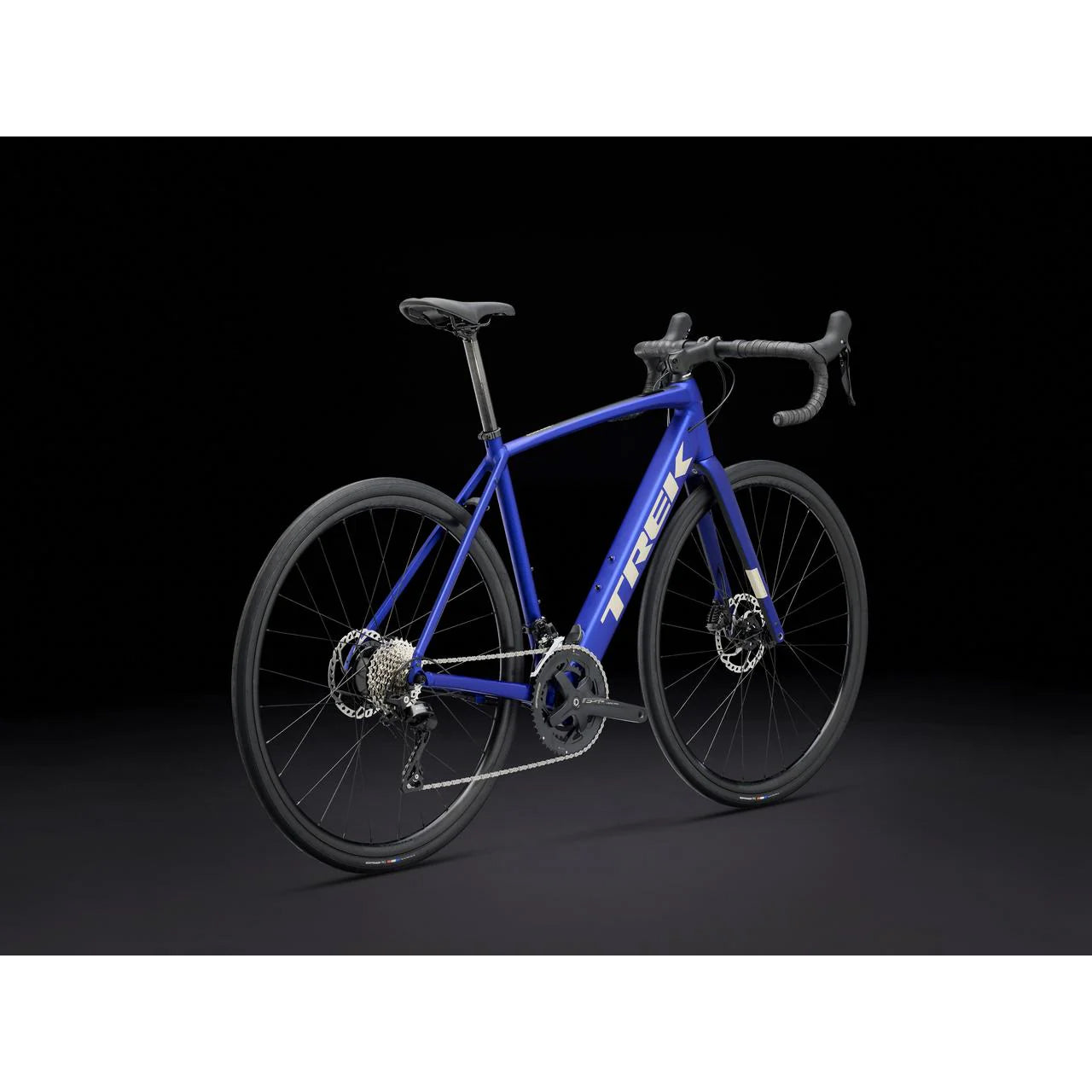

2025 | Domane+ AL 5
2025 | Domane+ AL 5
Regular price
$4,499.99
Sale price
$4,499.99
Regular price
Shipping calculated at checkout.
SKU:
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.
Canadian shipping charges:
- Sale bikes: $200
- Standard pedal bikes over $1250: Free
- Standard pedal bikes under $1250: $100
- Electric bikes: $200
- Fat bikes: $200
- Kid's bikes: $60
Insurance charge: 1.5% insured value
We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details
Bike Specifications
Bike Specifications
Specifications are subject to change without notice

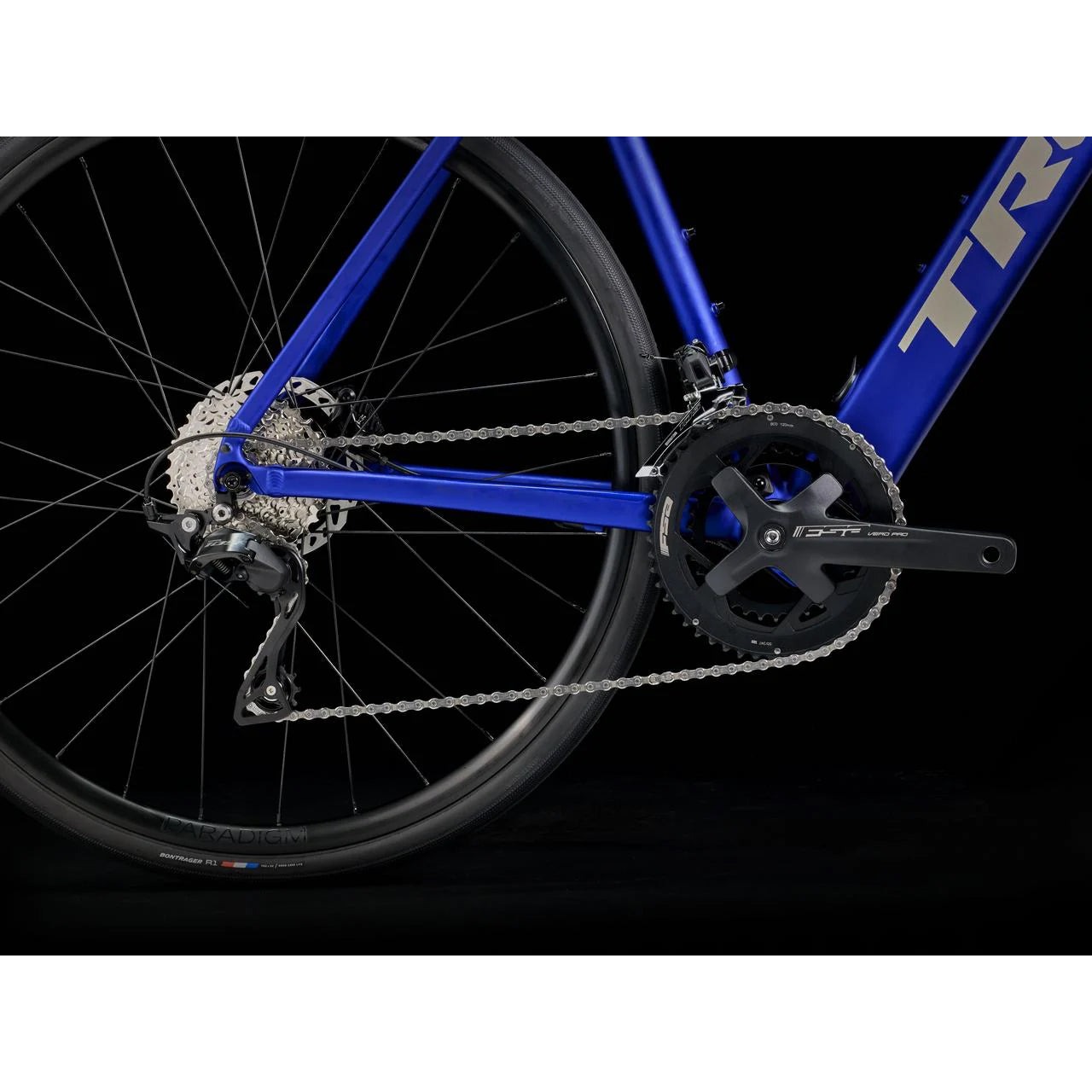

Drivetrain
Cassette
Shimano 105 7101, 11-34, 12 speed
Chain
Shimano SLX M7100, 12 speed
Front derailleur
Shimano 105 R7100, 31.8mm clamp, down swing
Rear derailleur
Shimano 105 R7100, 36T max cog
Shifter
Shimano 105 R7120, 12 speed // Shimano 105 R7120, 12 speed
Brakes
Brake rotor
Shimano RT66, 6-bolt, 160mm
Brake type
Hydraulic disc
Cockpit
Handlebars

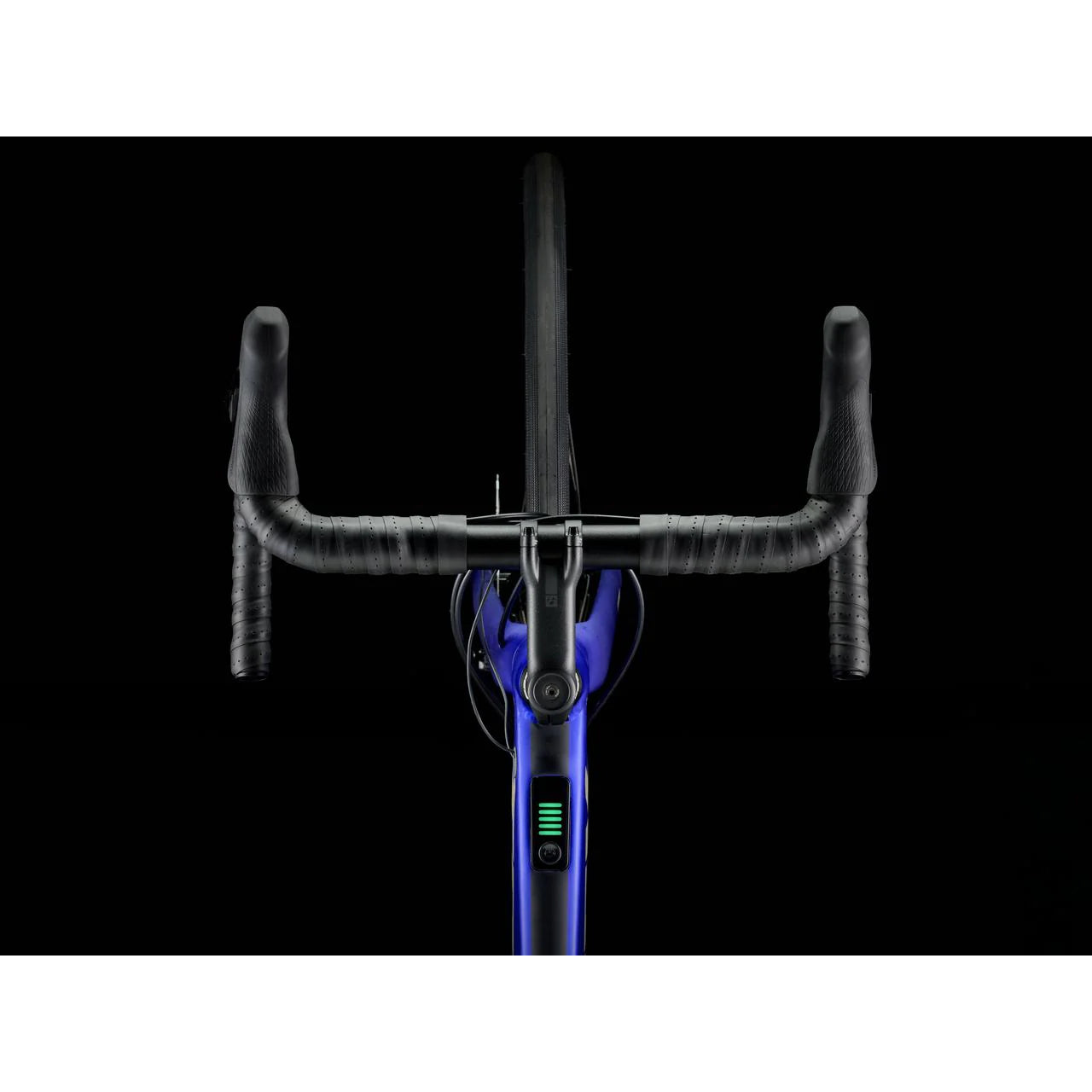

Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 44cm width
Saddle
Bontrager Verse P3, steel rails
Seatpost
Bontrager carbon, 27.2mm, 8mm offset, 330mm length
Stem
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
Wheels
Front hub
Formula RX-812 alloy, sealed bearing, 6-bolt, 100x12mm thru axle
Rims
Bontrager Paradigm, Tubeless Ready, 28-hole, 21 mm width, Presta valve
Tires
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
Wheel size
700c
Suspension
Fork
Domane+ carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Fork brand
Trek
Frame
Bottom bracket
Torque sensor, threaded, 110mm spindle
Frame
100 Series Alpha Aluminum, hub drive system, tapered head tube, internal routing, flat mount disc, rack and fender mounts
Frame material
Aluminum
Headset
FSA Integrated, sealed cartridge bearing, 1-1/8' top, 1.5' bottom
Platform wheel size
700C
Seatpost
Bontrager carbon, 27.2mm, 8mm offset, 330mm length
Weight as spec d
56 - 14.10 kg / 31.09 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
E-Bike System
Battery
250Wh, integrated in down tube
Battery type
252WH
Motor

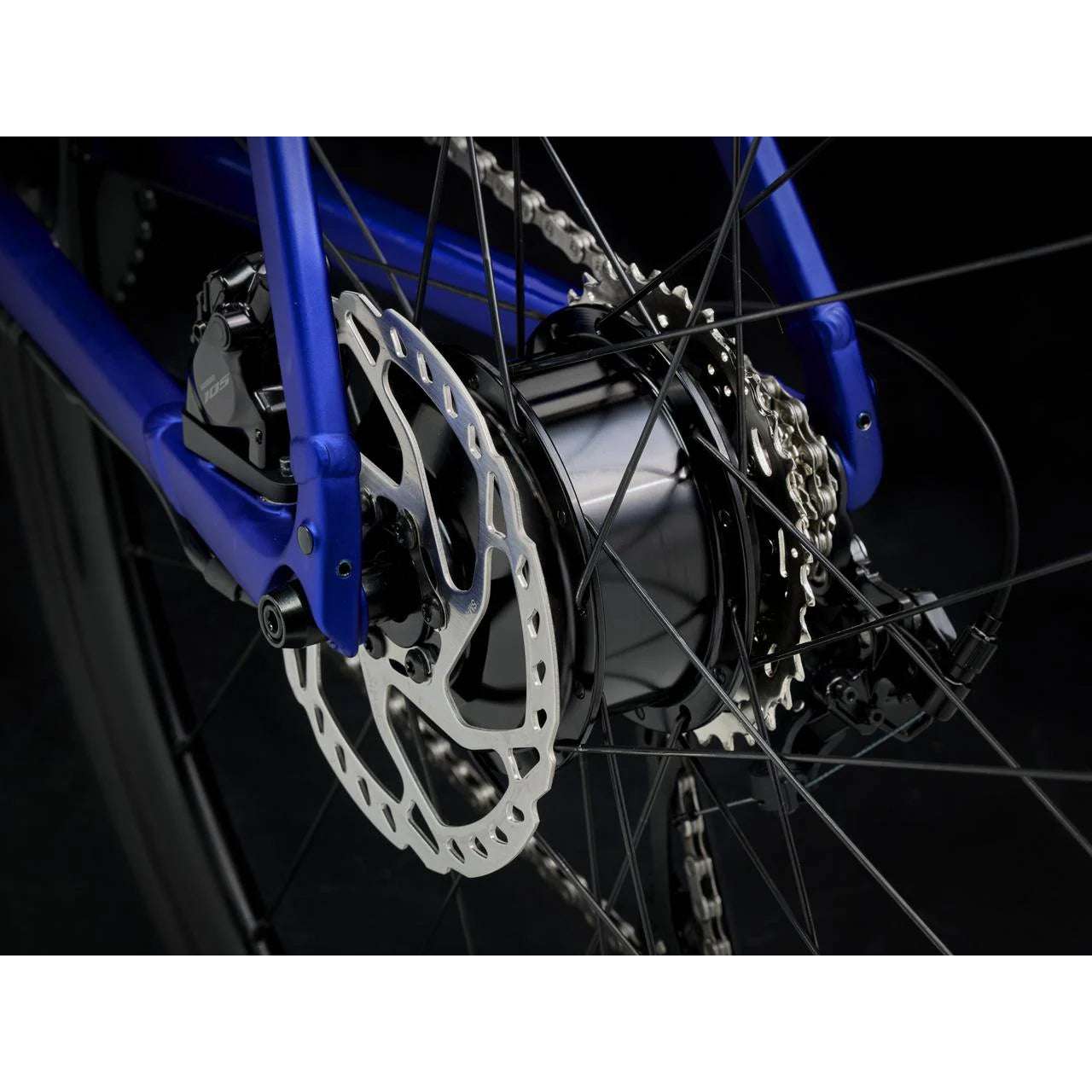

Hyena hub drive motor, 40Nm, 250W
Share this product
Description
Description
Domane+ AL 5 is a lightweight alloy e-road bike that delivers an authentic road bike feel with the benefit of an electric boost. The intuitive and natural-feeling HyDrive pedal assist system lets you keep pace with friends, crush hilly terrain, or push yourself harder on training rides.
Geometry Chart
Geometry Chart
Part Numbers
Part Numbers
| Size | Matte Hex Blue | Matte Lithium Grey |
|---|---|---|
| 49cm |
—
|
—
|
| 54cm |
SKUDOM25251646E
VPNTrek_5323478
UPC197216037965
MPN5323478
|
— |
| 56cm |
SKUTRE33186780E
VPNTrek_5323479
UPC197216037972
MPN5323479
|
SKUTRE3763839Y
VPNTrek_5323473
UPC197216037910
MPN5323473
|
| 58cm |
SKUTRE33576615E
VPNTrek_5323480
UPC197216037989
MPN5323480
|
SKUTRE37508146Y
VPNTrek_5323474
UPC197216037927
MPN5323474
|
| 61cm |
SKUTRE33401456E
VPNTrek_5323481
UPC197216037996
MPN5323481
|
SKUTRE37809523Y
VPNTrek_5323475
UPC197216037934
MPN5323475
|
