Trek

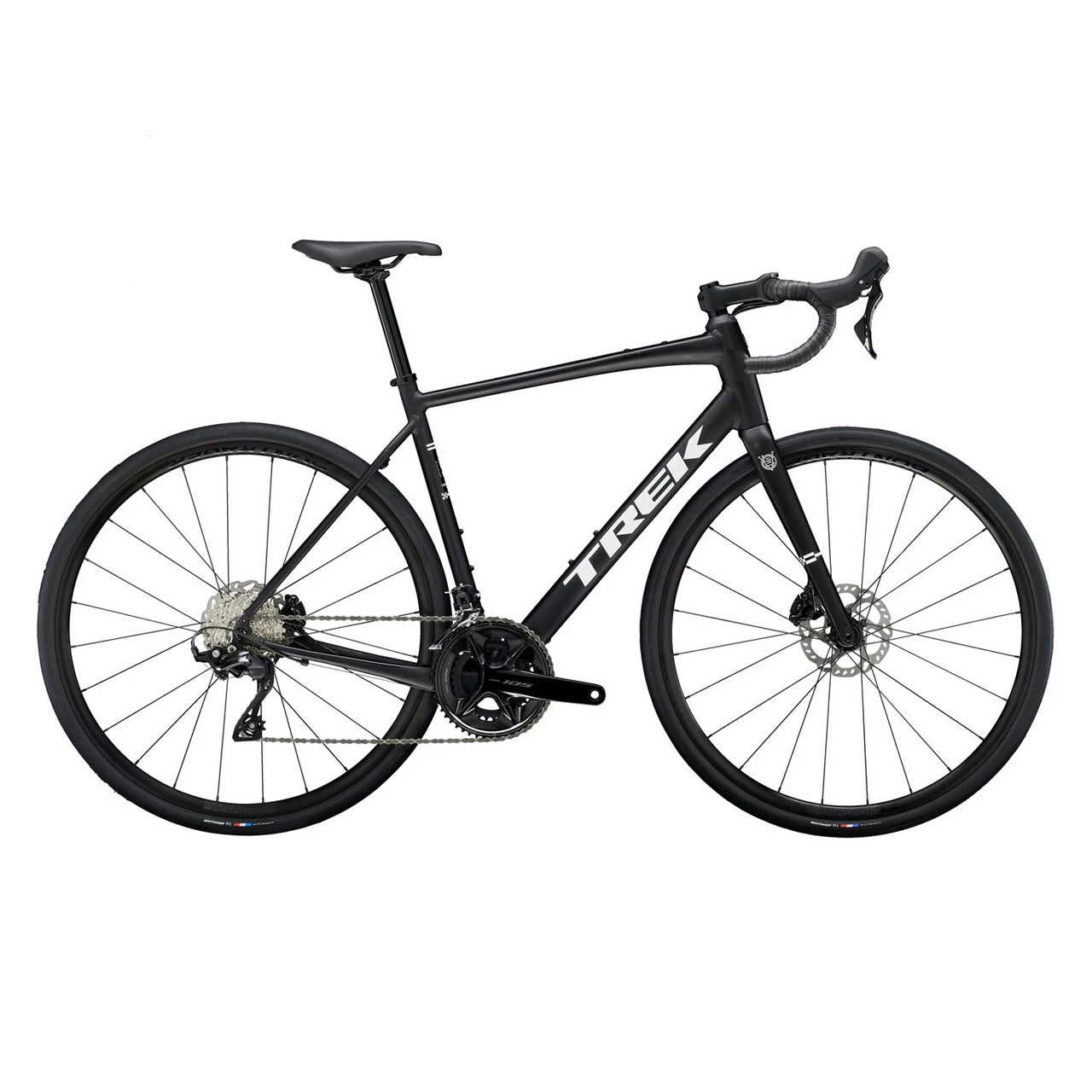

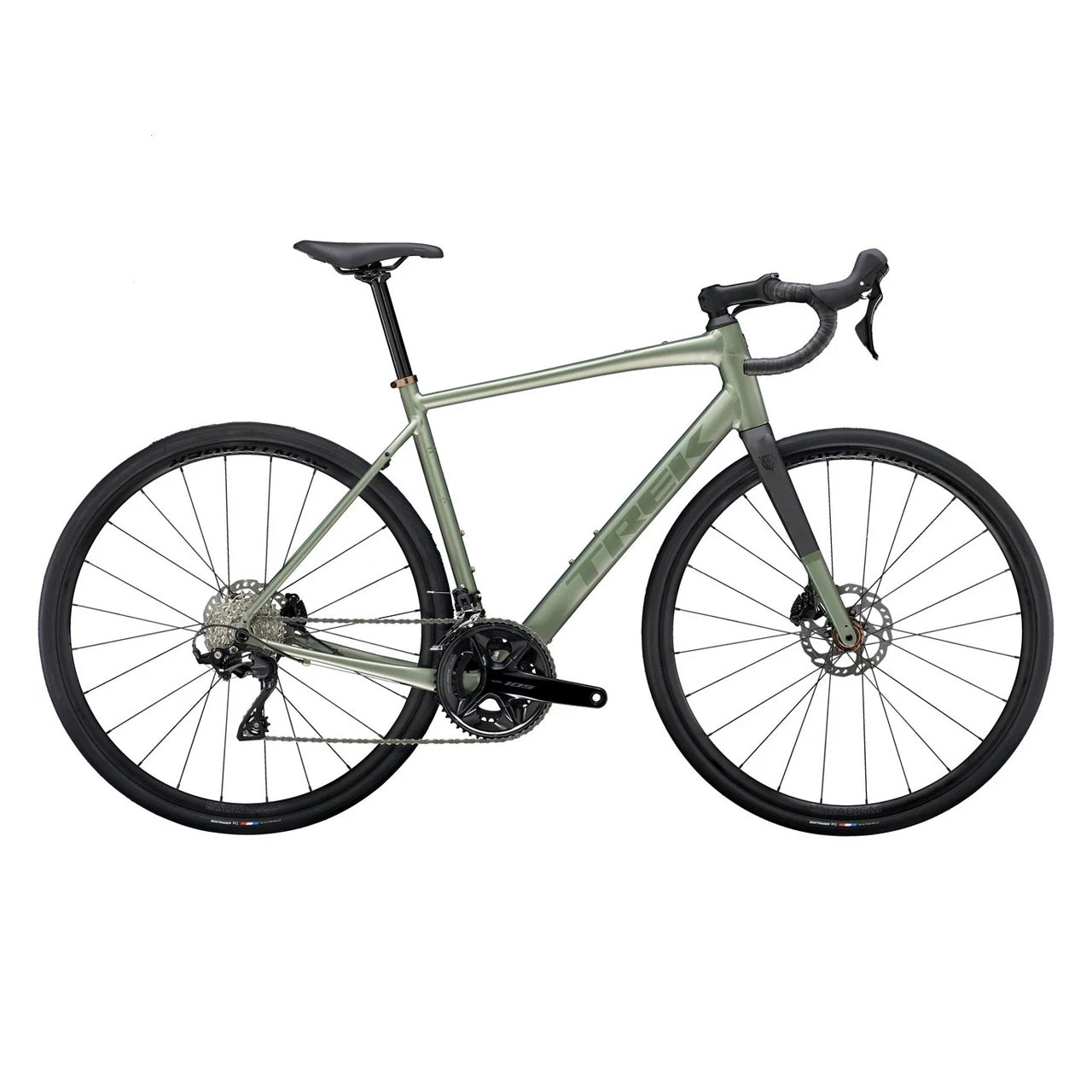

2025 | Domane AL 5 Gen 4

$2,629.99

Shipping calculated at checkout.

Color: Lichen Green

Size: 49cm

49cm 52cm 54cm 56cm 58cm 61cm

SKU:DOM262635314

Shipping & Returns

We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.

Canadian shipping charges:

Sale bikes: $200
Standard pedal bikes over $1250: Free
Standard pedal bikes under $1250: $100
Electric bikes: $200
Fat bikes: $200
Kid's bikes: $60

Insurance charge: 1.5% insured value

We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details

Bike Specifications

Specifications are subject to change without notice

Drivetrain

Cassette Shimano 105 7101, 11-34, 12 speed

Chain Shimano SLX M7100, 12 speed

Front derailleur Shimano 105 R7100, 31.8mm clamp, down swing

Rear derailleur Shimano 105 R7100, 36T max cog

Shifter Shimano 105 R7120, 12 speed // Shimano 105 R7120, 12 speed

Brakes

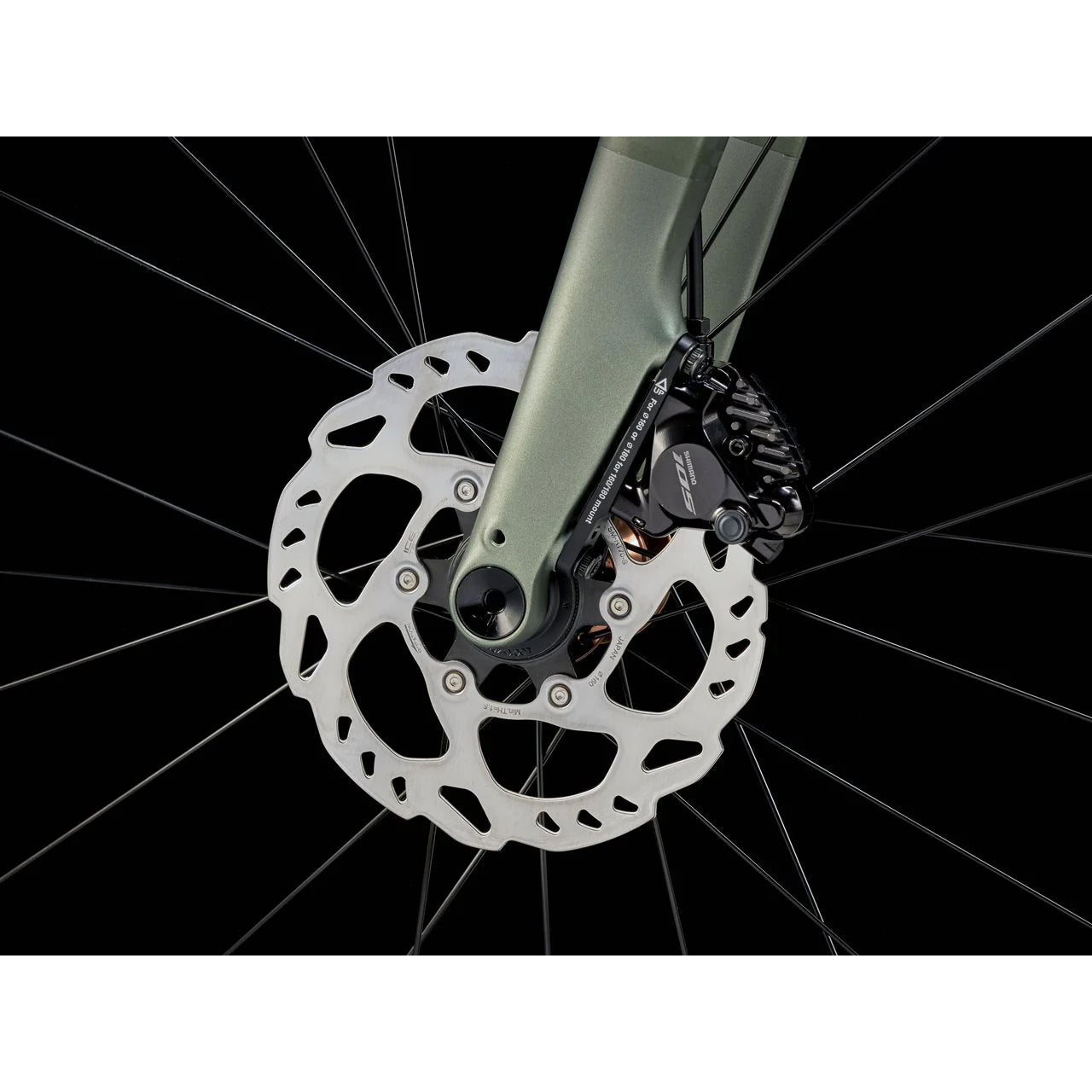

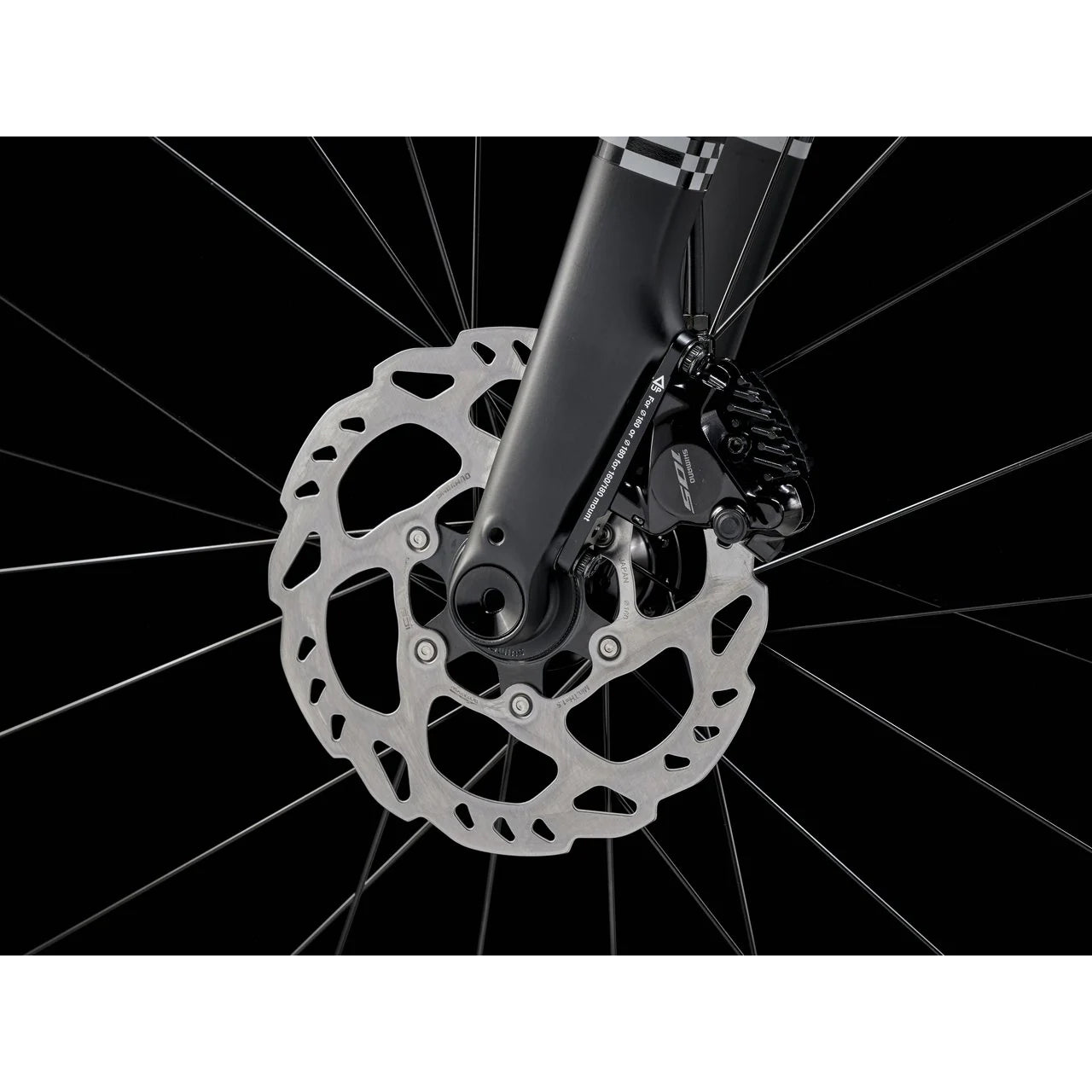

Brake rotor Shimano RT70, centerlock, 160mm

Brake type Hydraulic disc

Caliper Shimano 105 hydraulic disc, flat mount

Cockpit

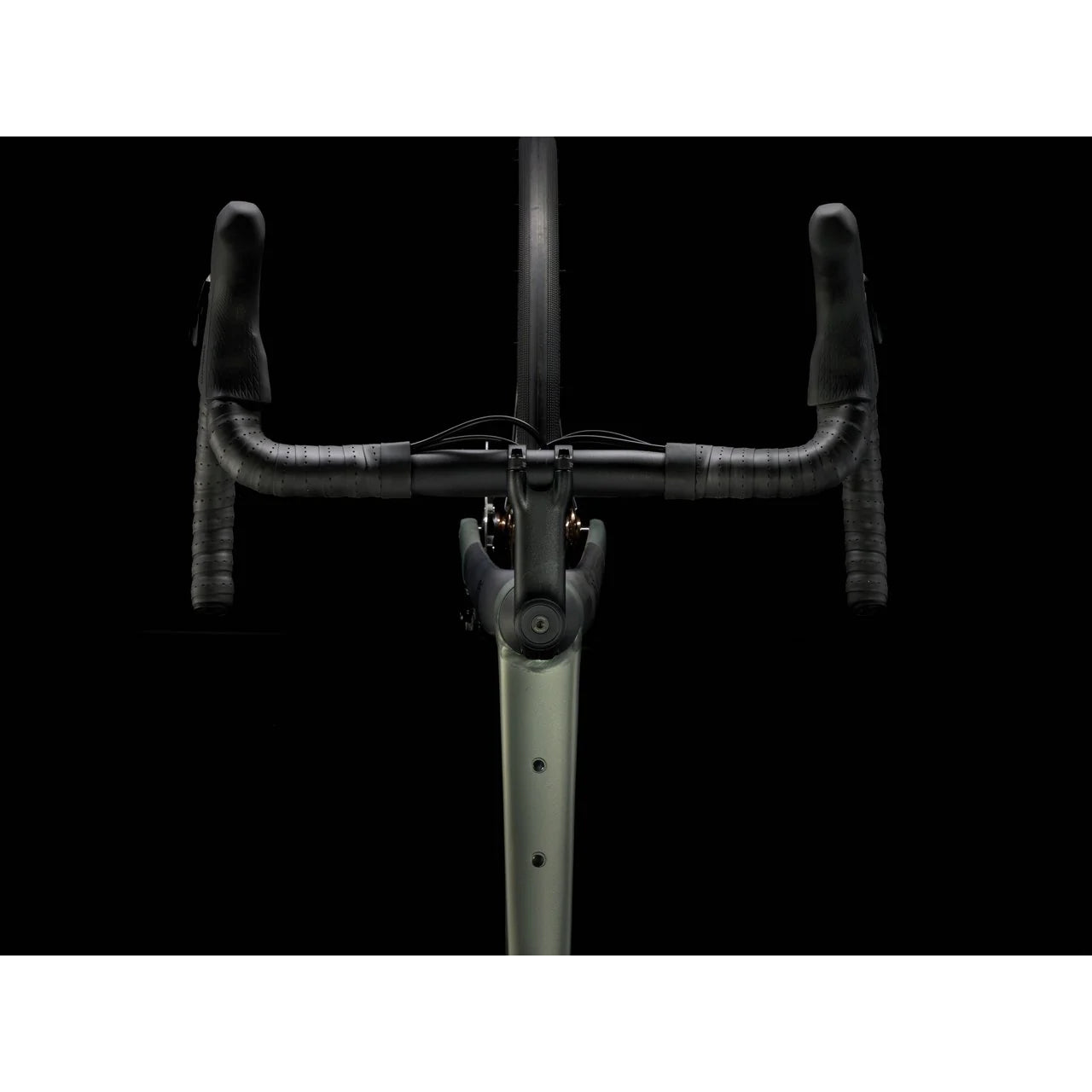

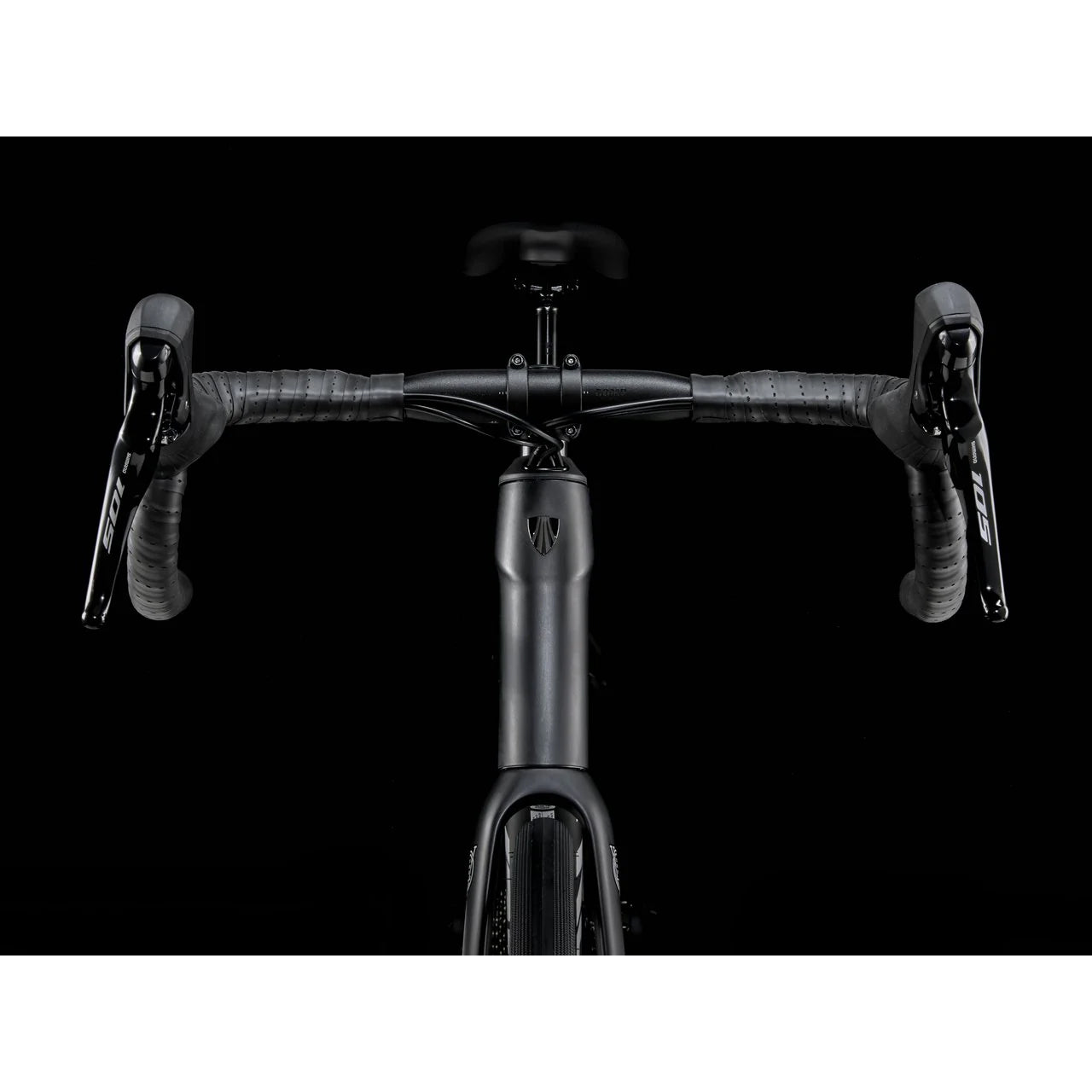

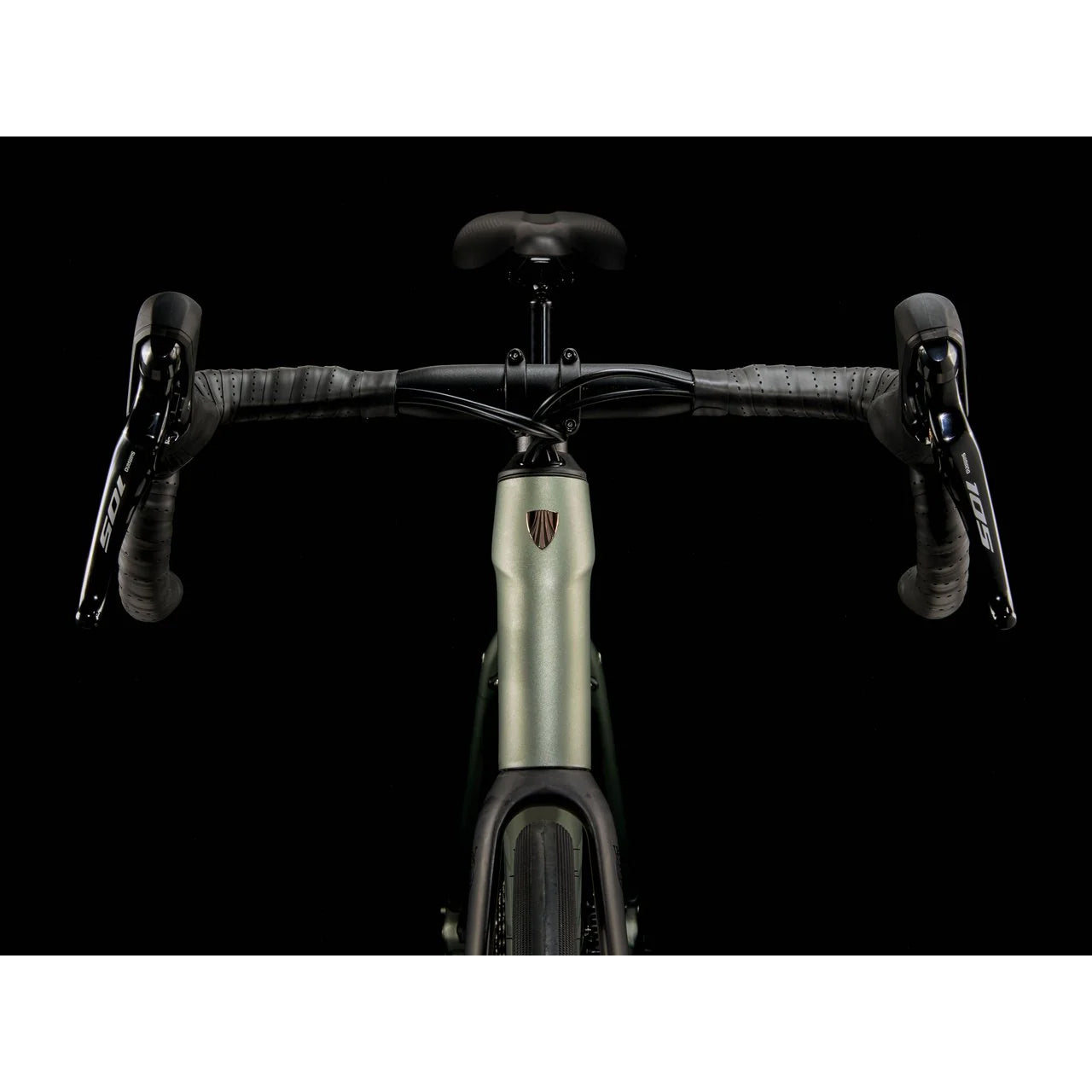

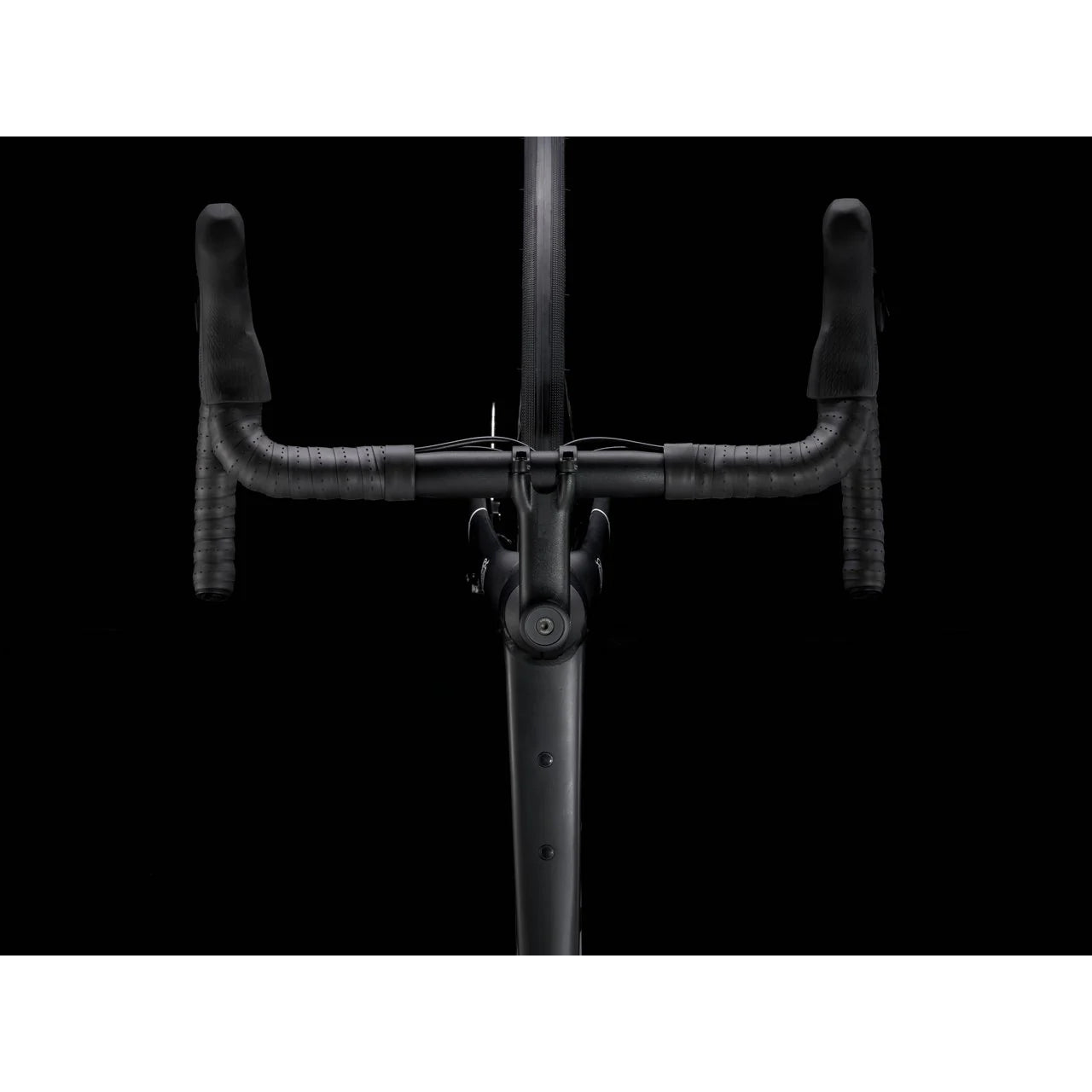

Handlebars Bontrager Elite IsoZone VR-CF, alloy, 31.8mm, internal Di2 routing, 93mm reach, 123mm drop, 44cm width

Saddle Verse Short, steel rails, 145mm width

Seatpost Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length

Stem Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length

Wheels

Front hub Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle

Rims Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve

Spokes 14g stainless steel, black

Tires Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm

Wheel size 700c

Suspension

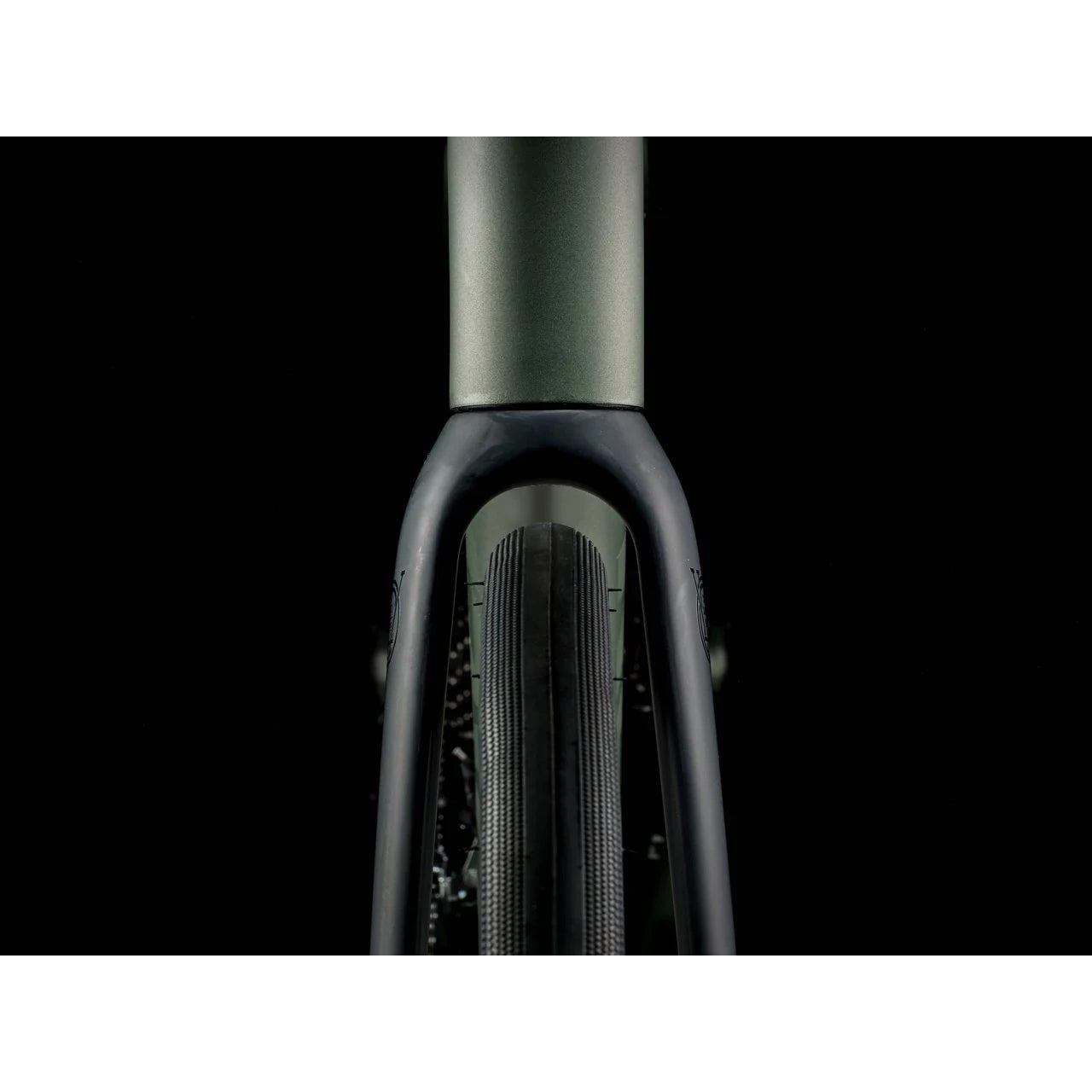

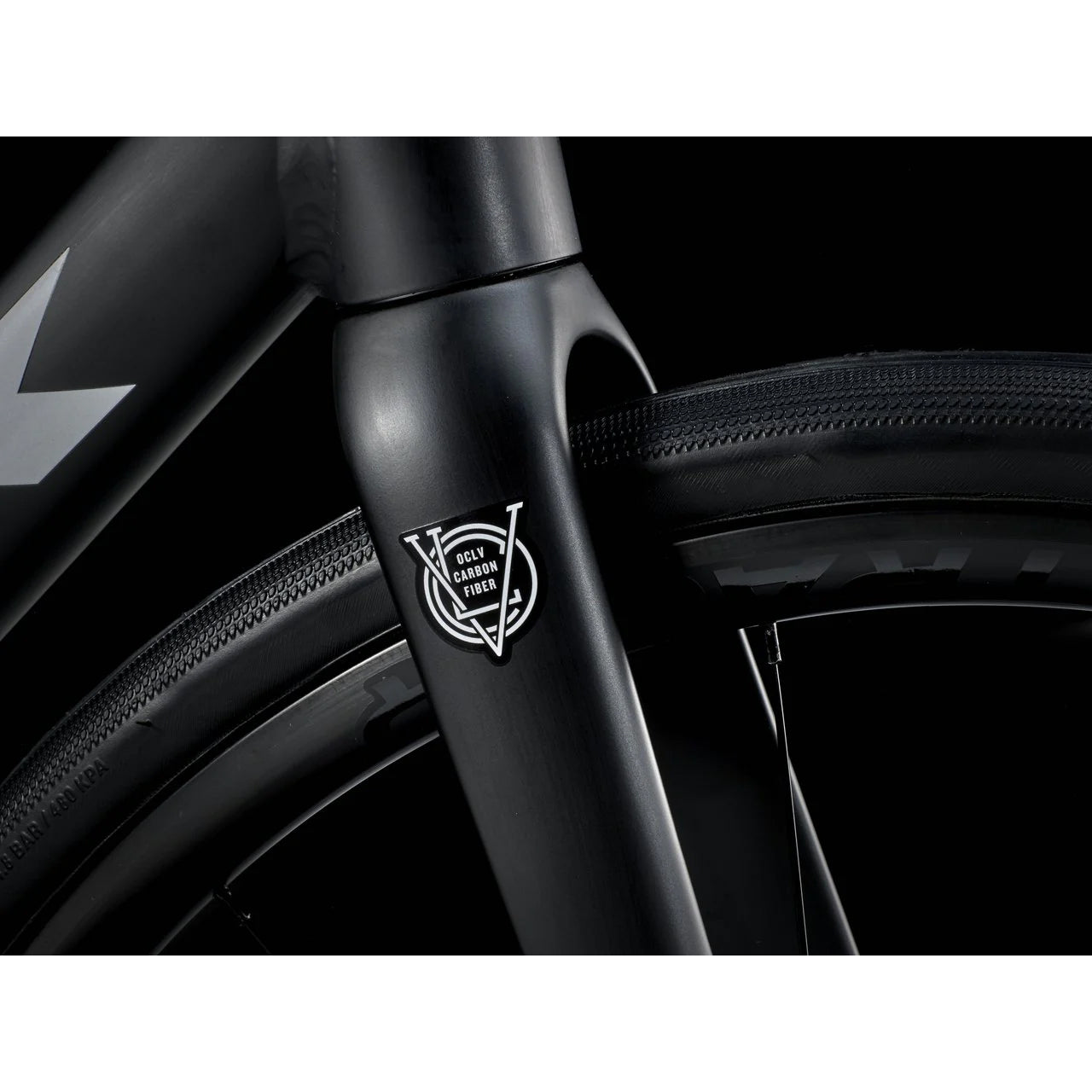

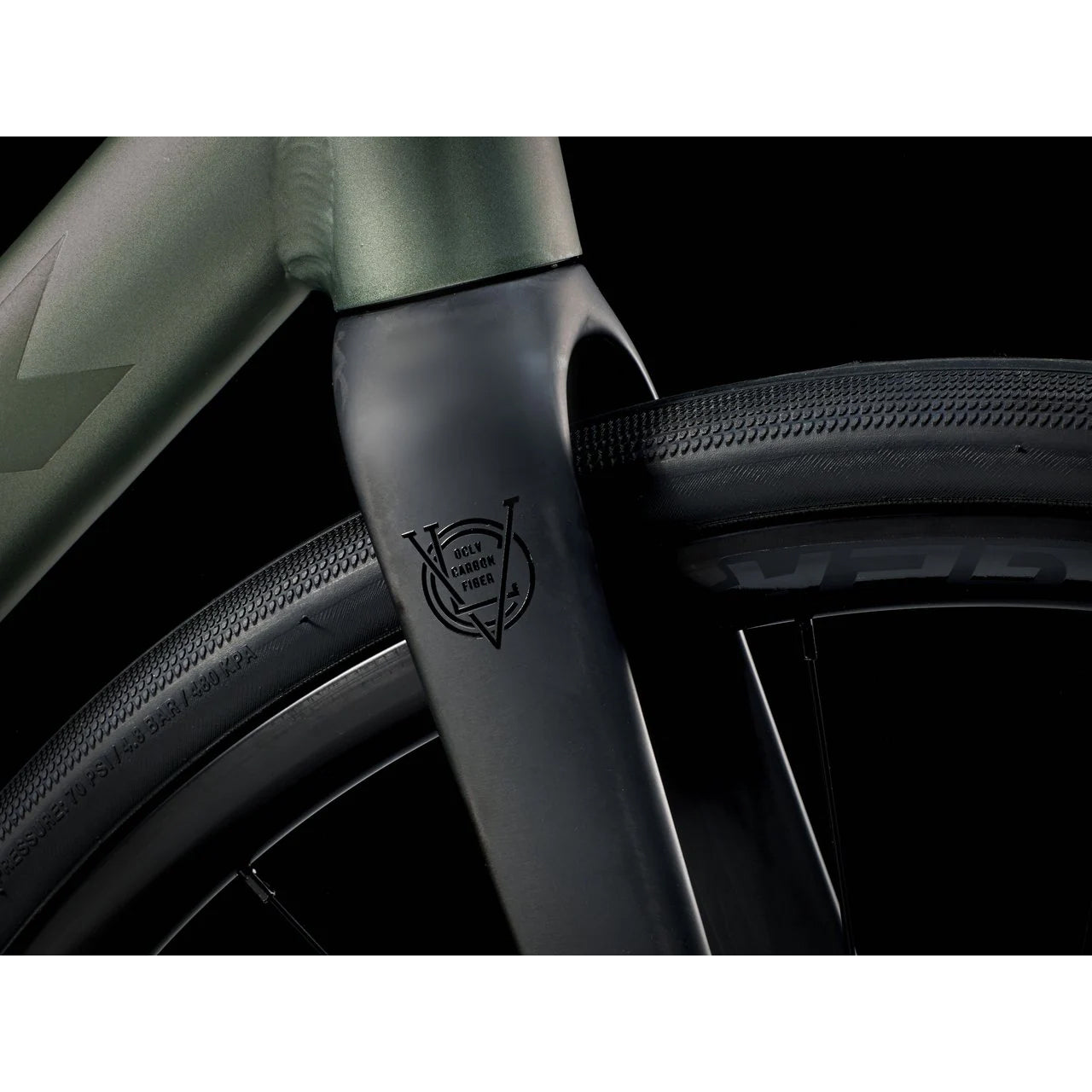

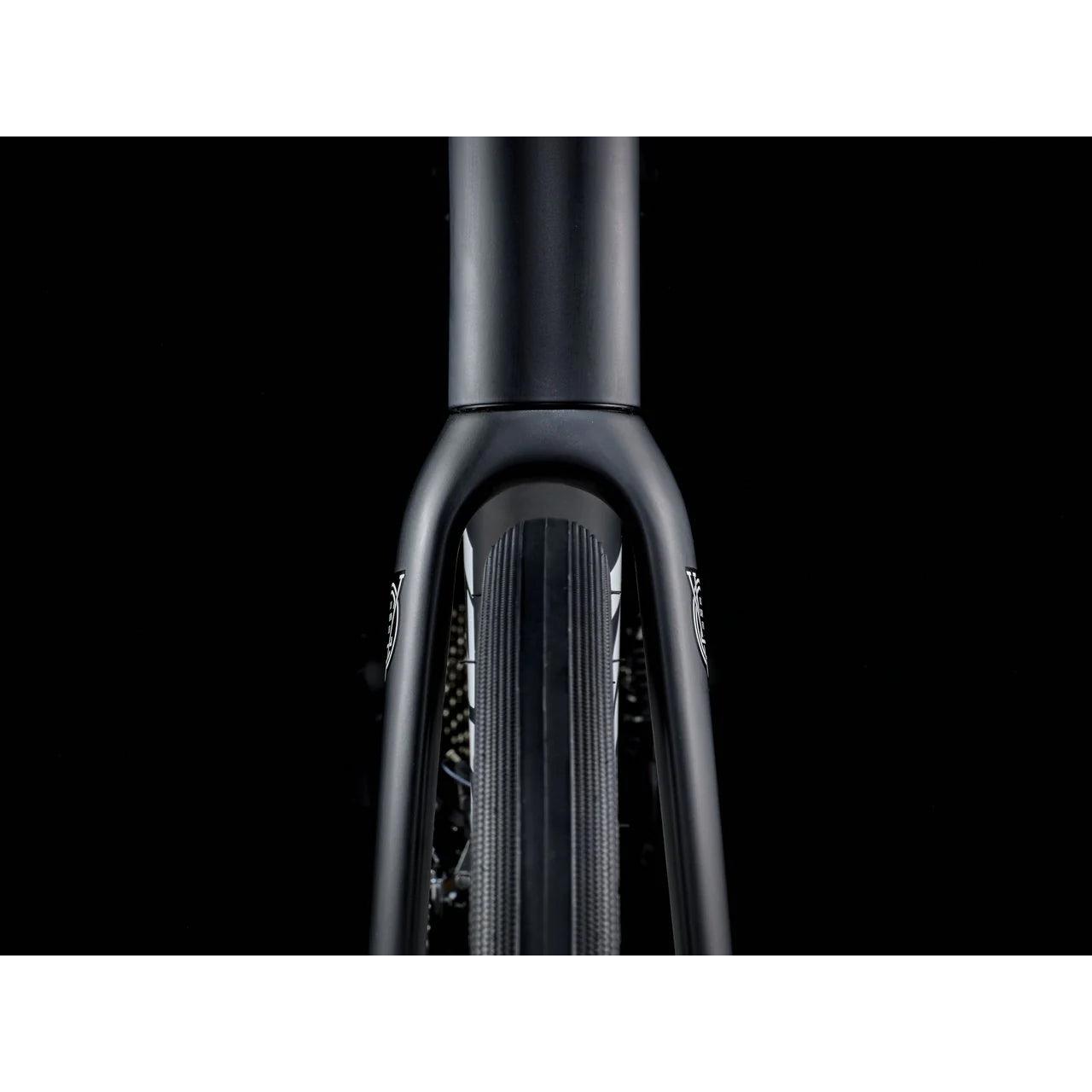

Fork Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle

Fork brand Trek

Frame

Bottom bracket Shimano RS500, 68mm, threaded external

Frame 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle

Frame material Aluminum

Platform wheel size 700C

Seatpost Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length

Weight as spec d 56 - 9.85 kg / 21.72 lbs

Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Description

Domane AL 5 is a speedy and versatile road bike that's a perfect starting point for anyone looking to get into road riding. With an Alpha Aluminum frame, clearance for larger tires, a 12-speed Shimano 105 drivetrain, top tube mounts, and an all-day road comfort geometry — Domane AL 5 is perfect for casual pedaling, group rides, fast commutes, and even venturing beyond paved paths to most gravel roads.

Geometry Chart

Measurement	49cm	52cm	54cm	56cm	58cm	61cm
Reach (mm)	368	371	374	377	380	385
Stack (mm)	540	561	575	591	611	646
Head Tube Angle (°)	70.8°	71.3°	71.3°	71.9°	72.0°	72.1°
Seat Tube Angle (°)	74.6°	74.2°	73.7°	73.3°	73.0°	72.7°
Wheelbase (mm)	1001	1003	1010	1018	1022	1038
Chainstay Length (mm)	425	420	420	420	425	425
Head Tube Length (mm)	123	145	160	175	195	235
Seat Tube Length (mm)	440	475	500	525	548	576
BB Drop (mm)	80	80	80	78	78	75
Rake (mm)	53	53	53	48	48	48
Trail (mm)	7	6	6	6	6	6
Axle to Crown (mm)	540	561	575	591	611	646

Part Numbers

Size	Lichen Green	Matte Trek Black
49cm	SKUDOM262635314 VPNTrek_5298016 UPC768682486467 MPN5298016	SKUTRE37978934 VPNTrek_5298009 UPC768682464489 MPN5298009
52cm	SKUDOM265390384 VPNTrek_5298017 UPC768682486146 MPN5298017	SKUDOM295197694 VPNTrek_5298010 UPC768682464502 MPN5298010
54cm	SKUDOM26467944 VPNTrek_5298018 UPC768682486160 MPN5298018	SKUDOM292596064 VPNTrek_5298011 UPC768682464724 MPN5298011
56cm	SKUDOM266749154 VPNTrek_5298019 UPC768682486108 MPN5298019	SKUDOM291650504 VPNTrek_5298012 UPC768682486221 MPN5298012
58cm	SKUTRE347469844 VPNTrek_5298020 UPC768682486207 MPN5298020	SKUDOM298043284 VPNTrek_5298013 UPC768682486566 MPN5298013
61cm	SKUDOM265006934 VPNTrek_5298021 UPC768682486306 MPN5298021	SKUDOM29172234 VPNTrek_5298014 UPC768682486405 MPN5298014

Size Chart

Trek | Road

Size	Size (cm)	Rider height (in)	Rider height (cm)	Inseam (in)	Inseam (cm)
—	47cm	5'0" - 5'2"	152 - 158 cm	28" - 30"	71 - 75 cm
—	50cm	5'2" - 5'4"	158 - 163 cm	29" - 30"	74 - 77 cm
—	52cm	5'4" - 5'6"	163 - 168 cm	30" - 31"	76 - 79 cm
—	54cm	5'6" - 5'9"	168 - 174 cm	31" - 32"	78 - 82 cm
—	56cm	5'9" - 5'11"	174 - 180 cm	32" - 33"	81 - 85 cm
—	58cm	5'11" - 6'1"	180 - 185 cm	33" - 34"	84 - 87 cm
—	60cm	6'1" - 6'3"	185 - 190 cm	34" - 35"	86 - 90 cm
—	62cm	6'3" - 6'5"	190 - 195 cm	35" - 36"	89 - 92 cm
