Save 22%
Trek

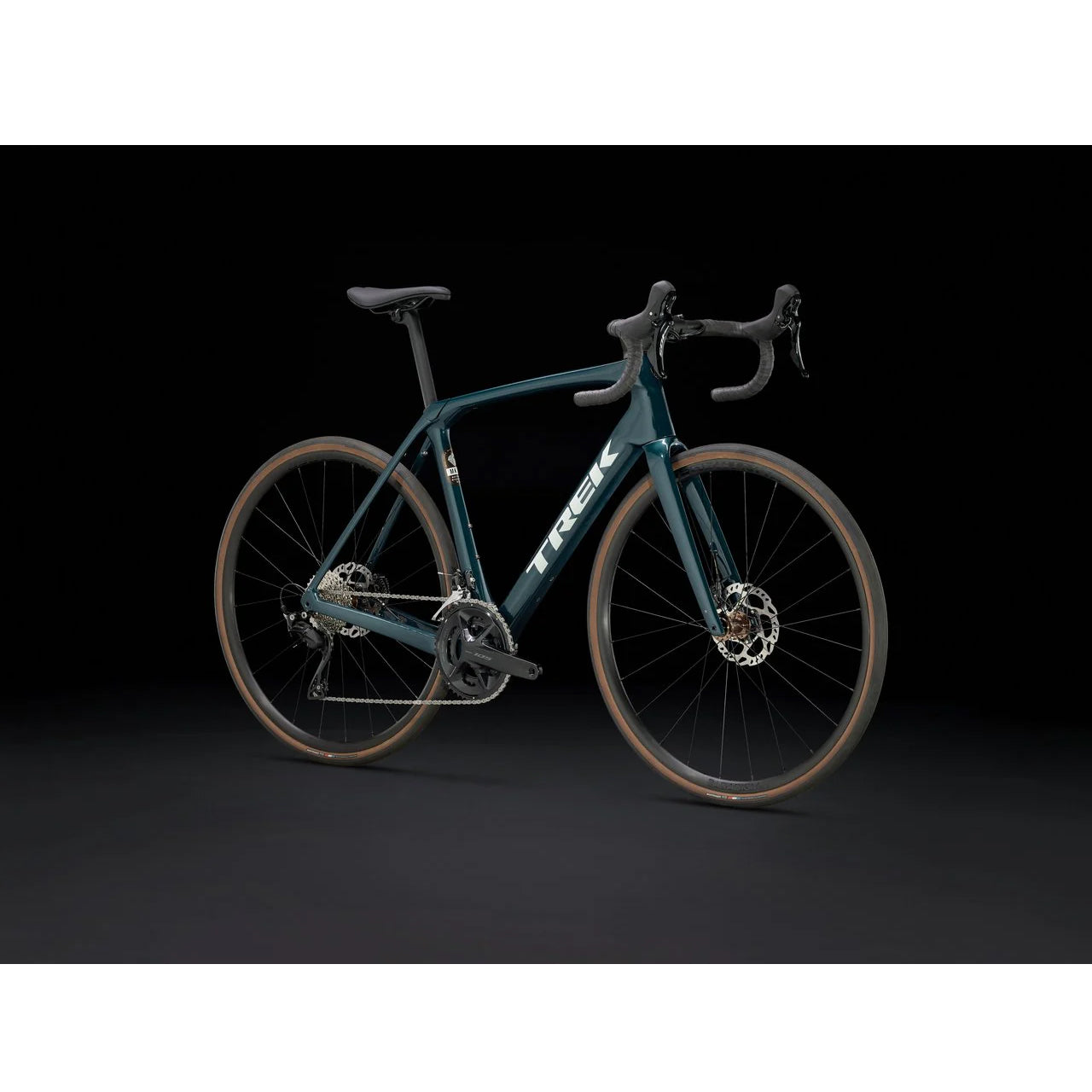

2025 | Domane SL 5 Gen 4
2025 | Domane SL 5 Gen 4
Regular price
$3,499.99
Sale price
$3,499.99
Regular price
$4,499.99
Shipping calculated at checkout.
SKU:TRE346715154
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.
Canadian shipping charges:
- Sale bikes: $200
- Standard pedal bikes over $1250: Free
- Standard pedal bikes under $1250: $100
- Electric bikes: $200
- Fat bikes: $200
- Kid's bikes: $60
Insurance charge: 1.5% insured value
We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details
Bike Specifications
Bike Specifications
Specifications are subject to change without notice
Drivetrain
Cassette
Shimano 105 7101, 11-34, 12 speed
Chain
Shimano SLX M7100, 12 speed
Front derailleur
Shimano 105 R7100, braze-on, down swing
Rear derailleur
Shimano 105 R7100, 36T max cog
Shifter
Shimano 105 R7120, 12 speed // Shimano 105 R7120, 12 speed
Brakes
Brake rotor
Shimano RT70, centerlock, 160mm
Brake type
Hydraulic disc
Caliper
Shimano 105 hydraulic disc, flat mount

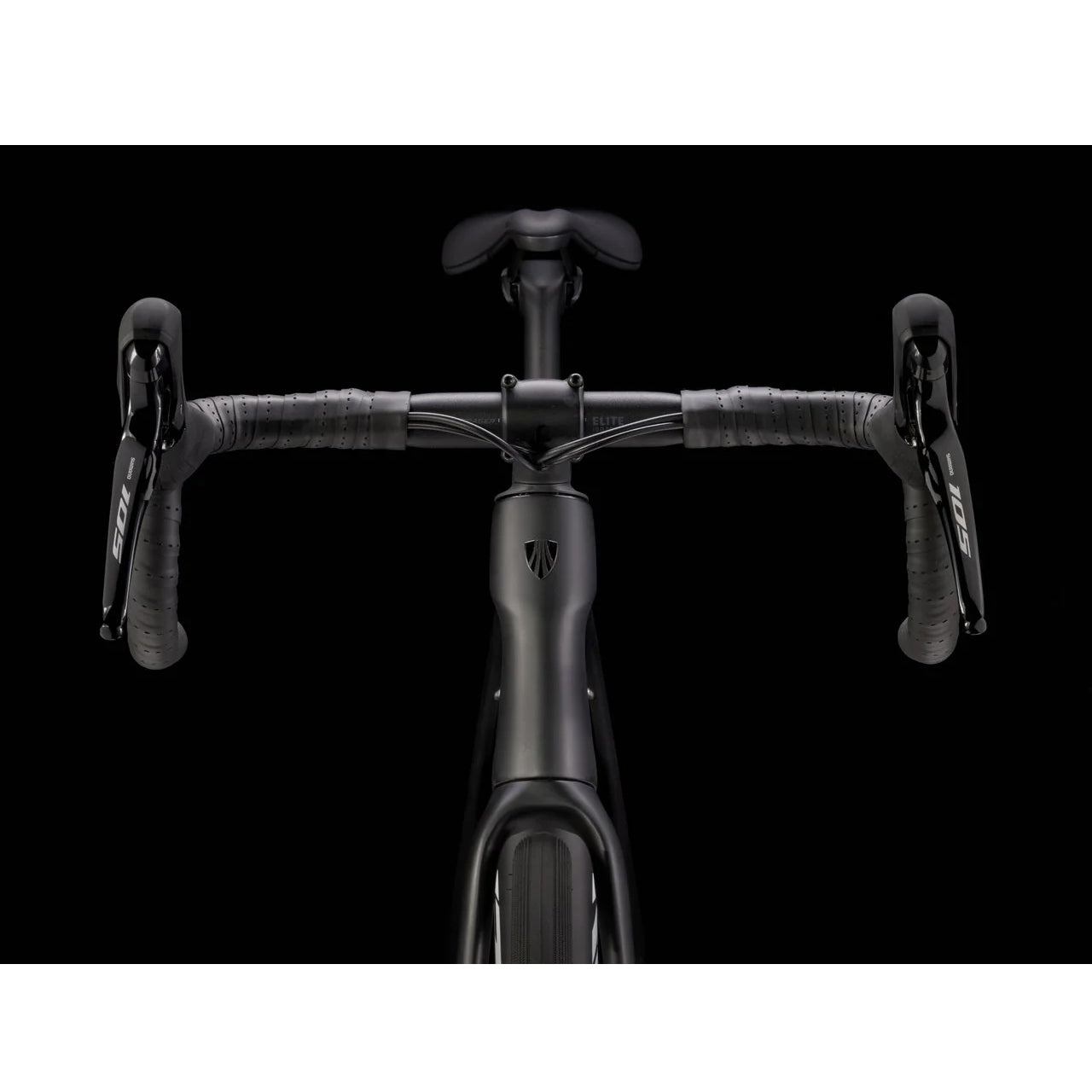

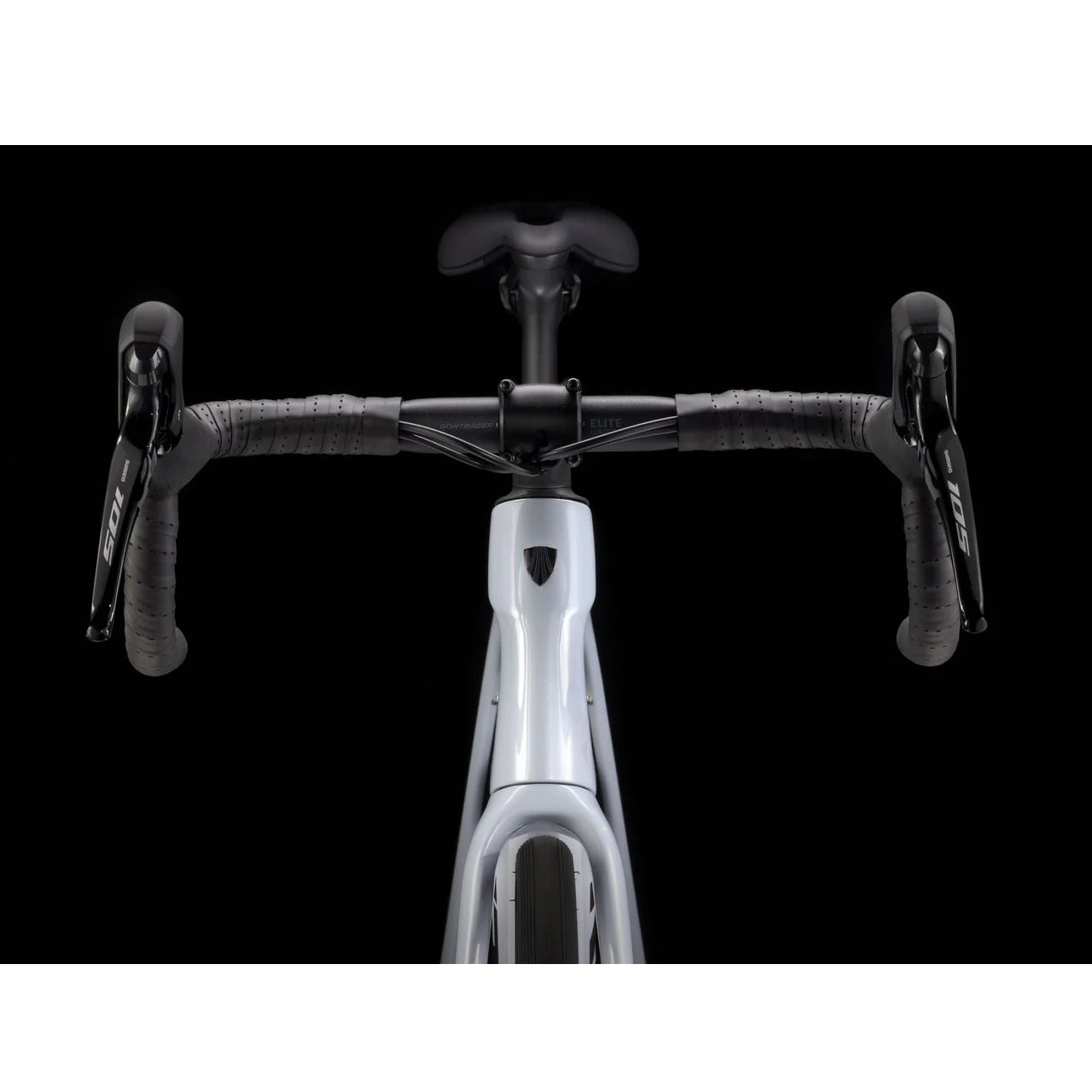

Cockpit
Handlebars
Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 44cm width
Saddle
Verse Short Comp, steel rails, 145mm width
Seatpost
KVF aero carbon seatpost, 20mm offset, 320mm length
Stem
Trek RCS Pro, -7 degree, 100mm length
Wheels
Front hub
Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Rear hub
Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Rims
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Tires
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm
Valves
Bontrager TLR sealant, 180 ml/6 oz
Wheel size
700c
Suspension
Fork
Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Fork brand
Trek
Frame
Bottom bracket
Praxis, T47 threaded, internal bearing
Frame

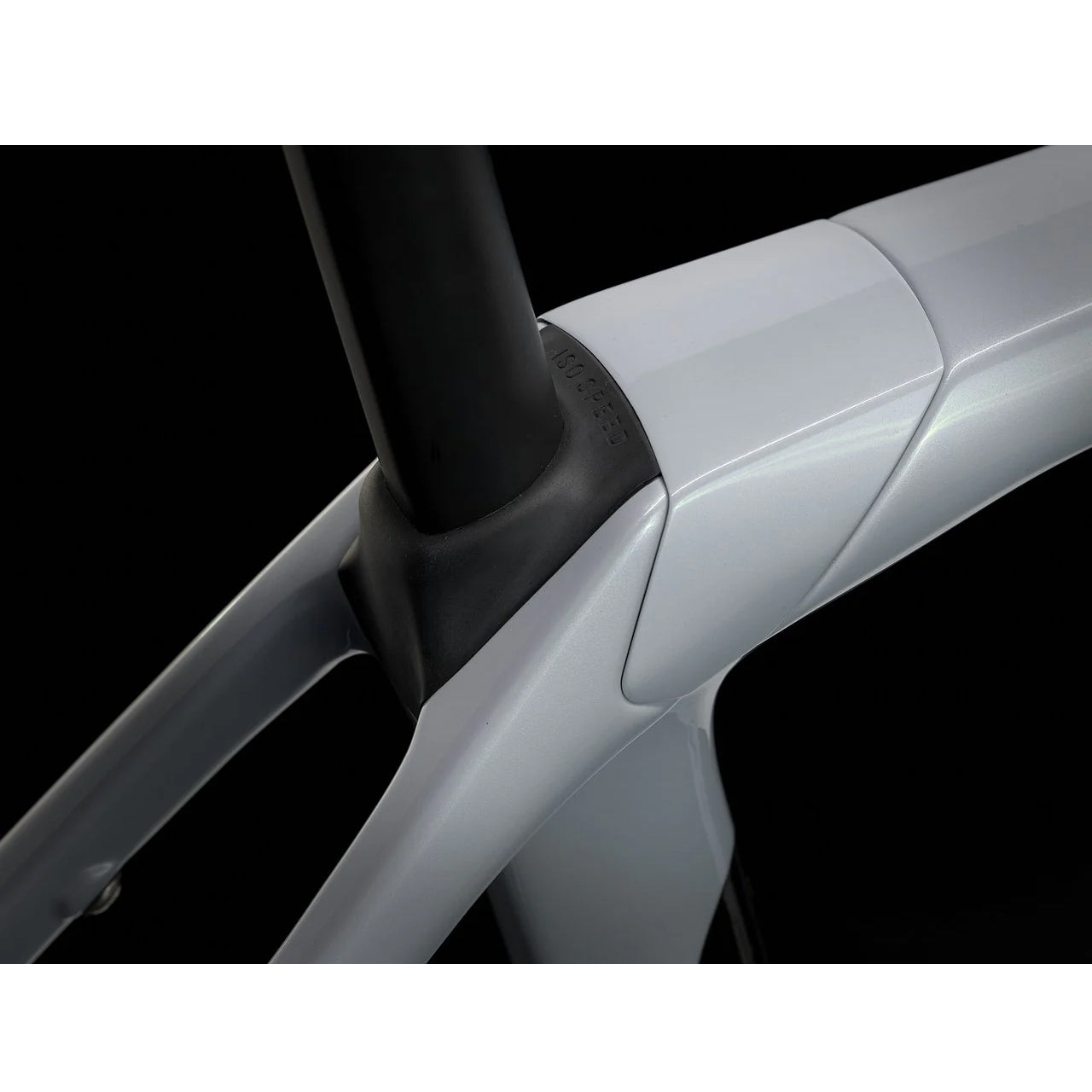

500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle
Frame material
Carbon
Platform wheel size
700C
Seatpost
KVF aero carbon seatpost, 20mm offset, 320mm length
Weight as spec d
56 - 9.02 kg / 19.89 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
Share this product
Description
Description

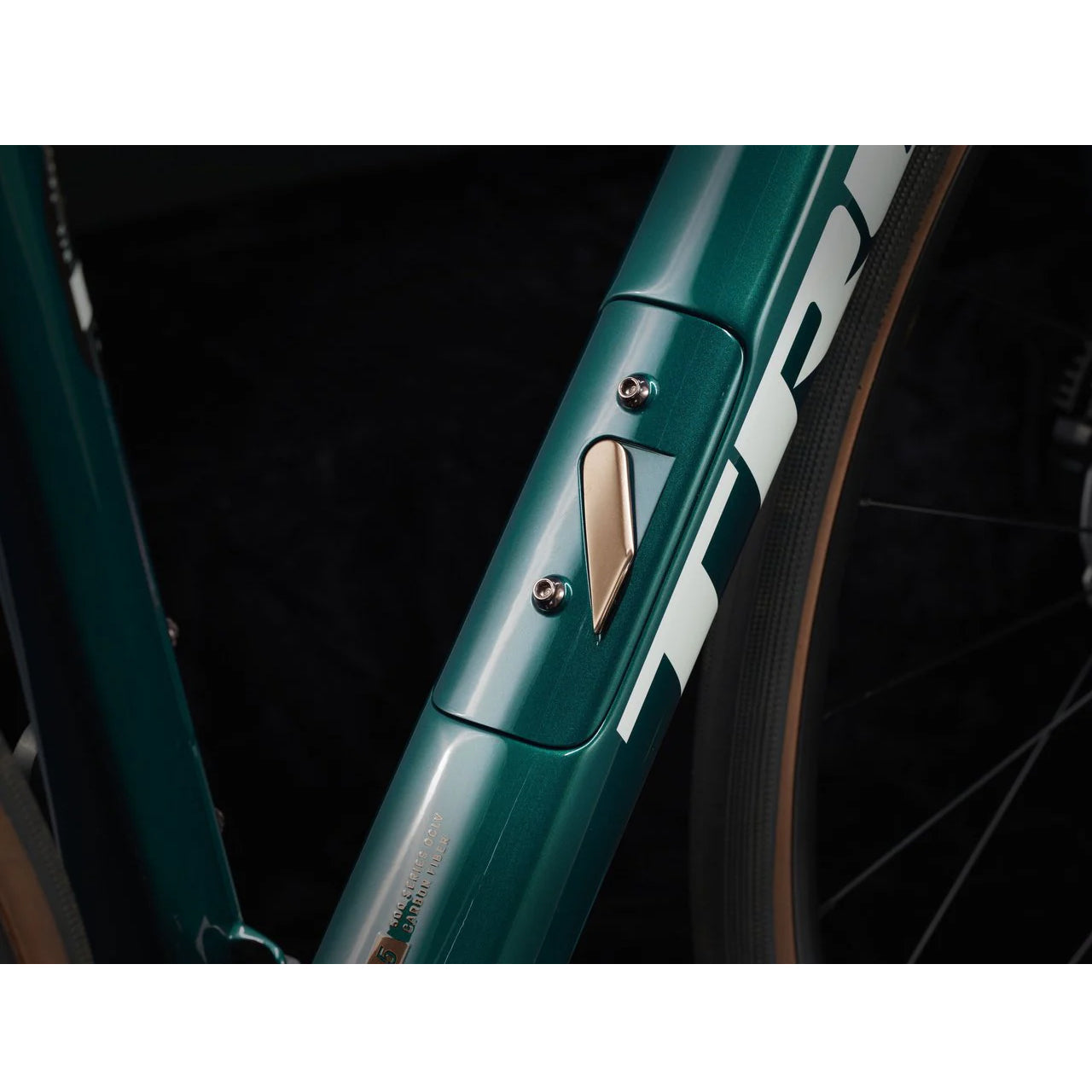

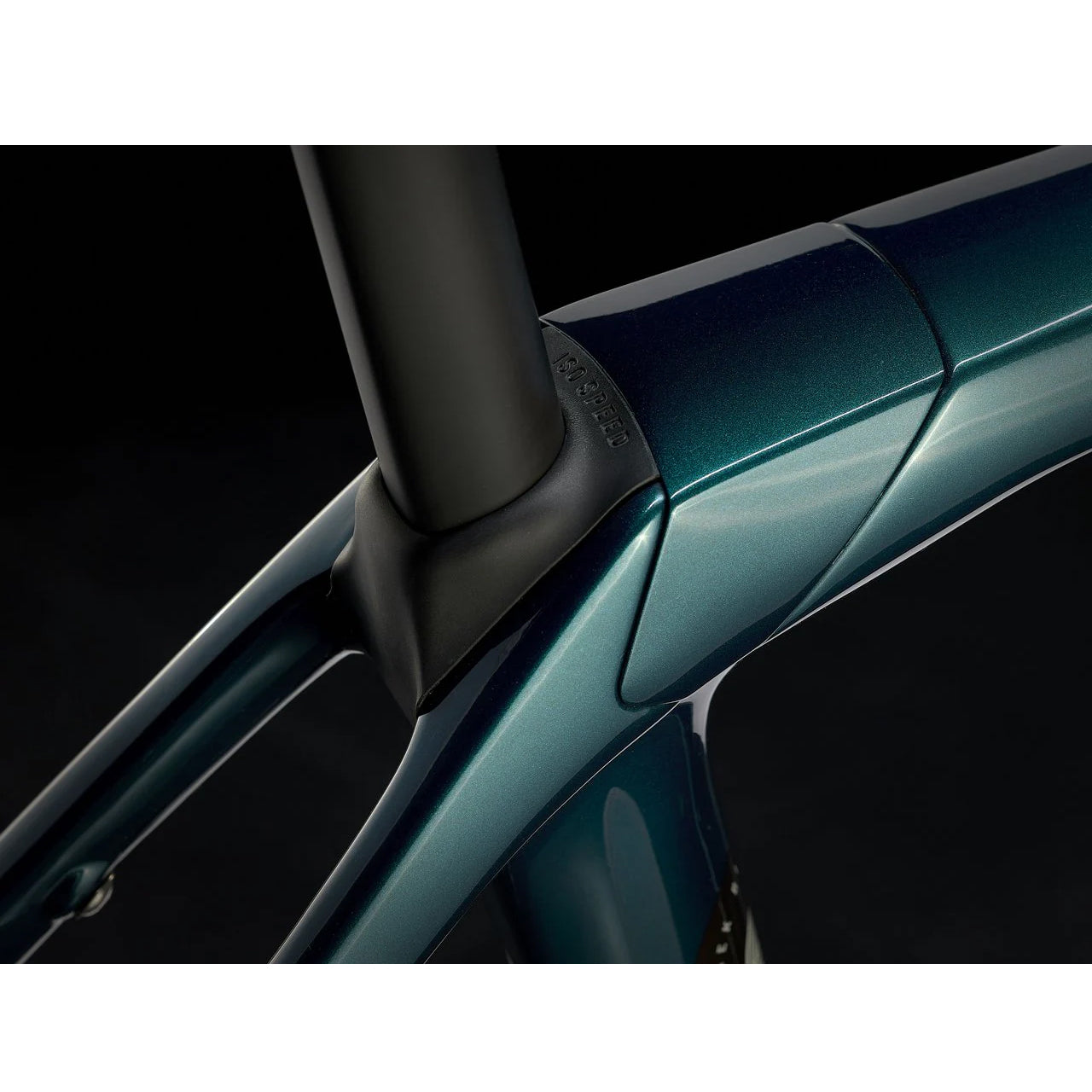

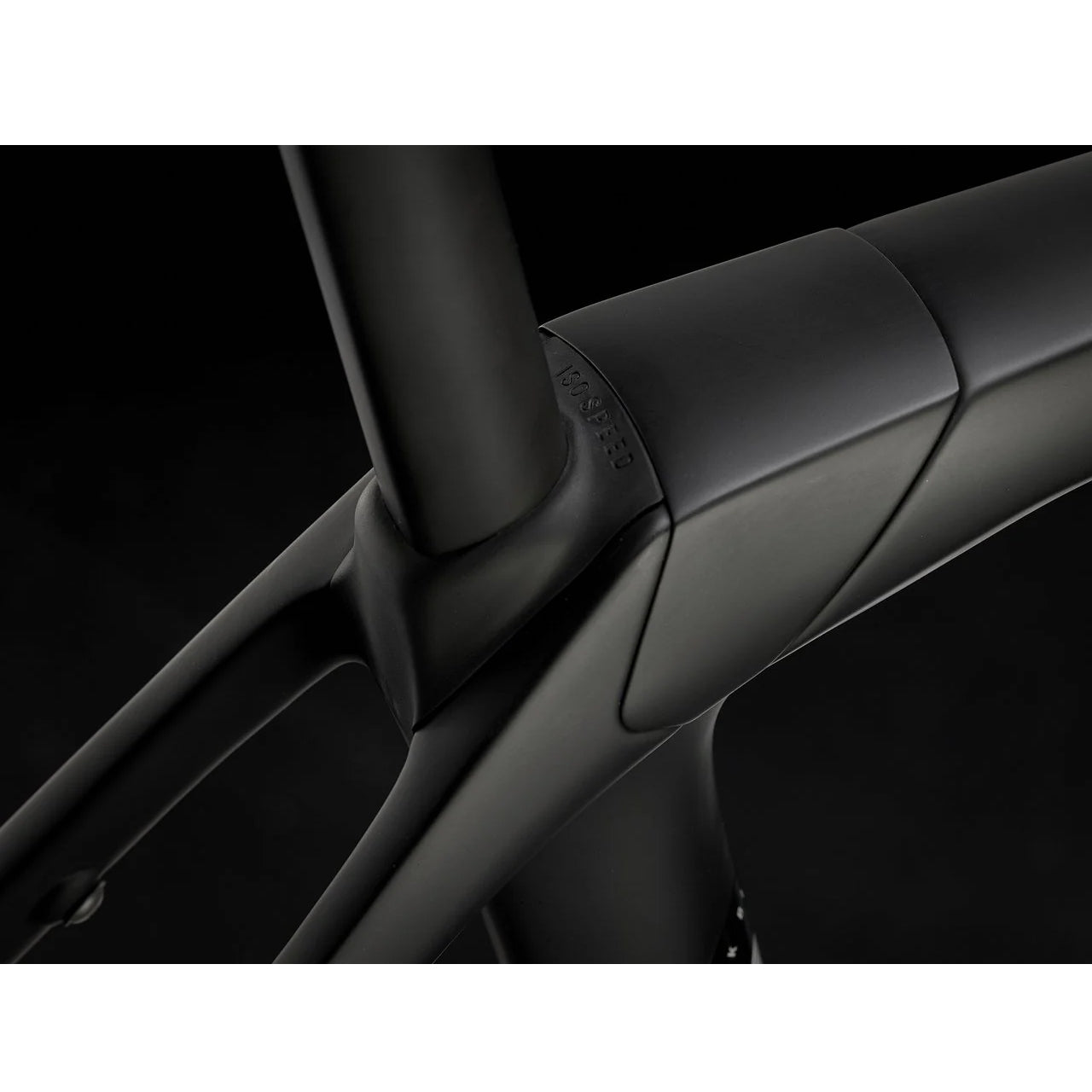

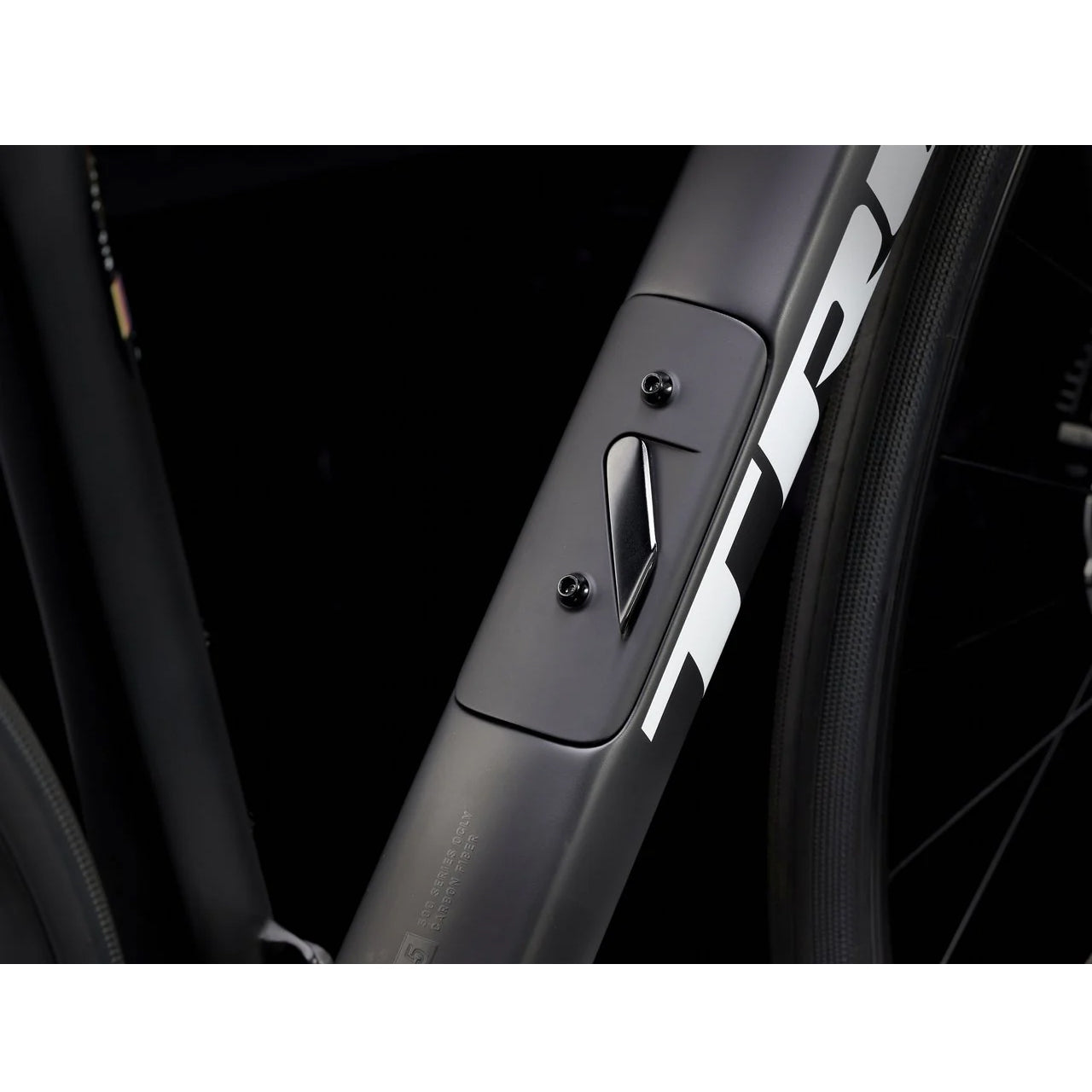

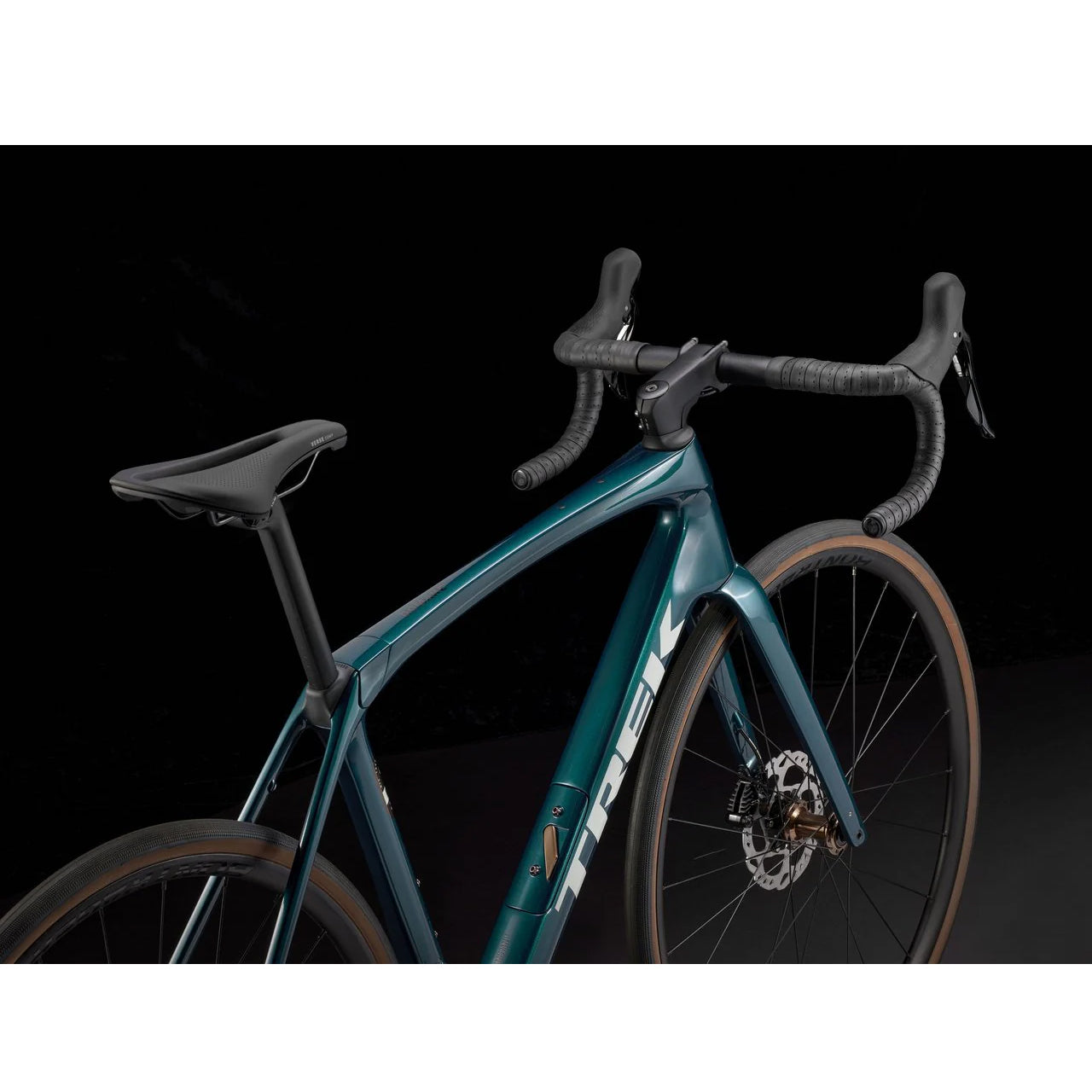

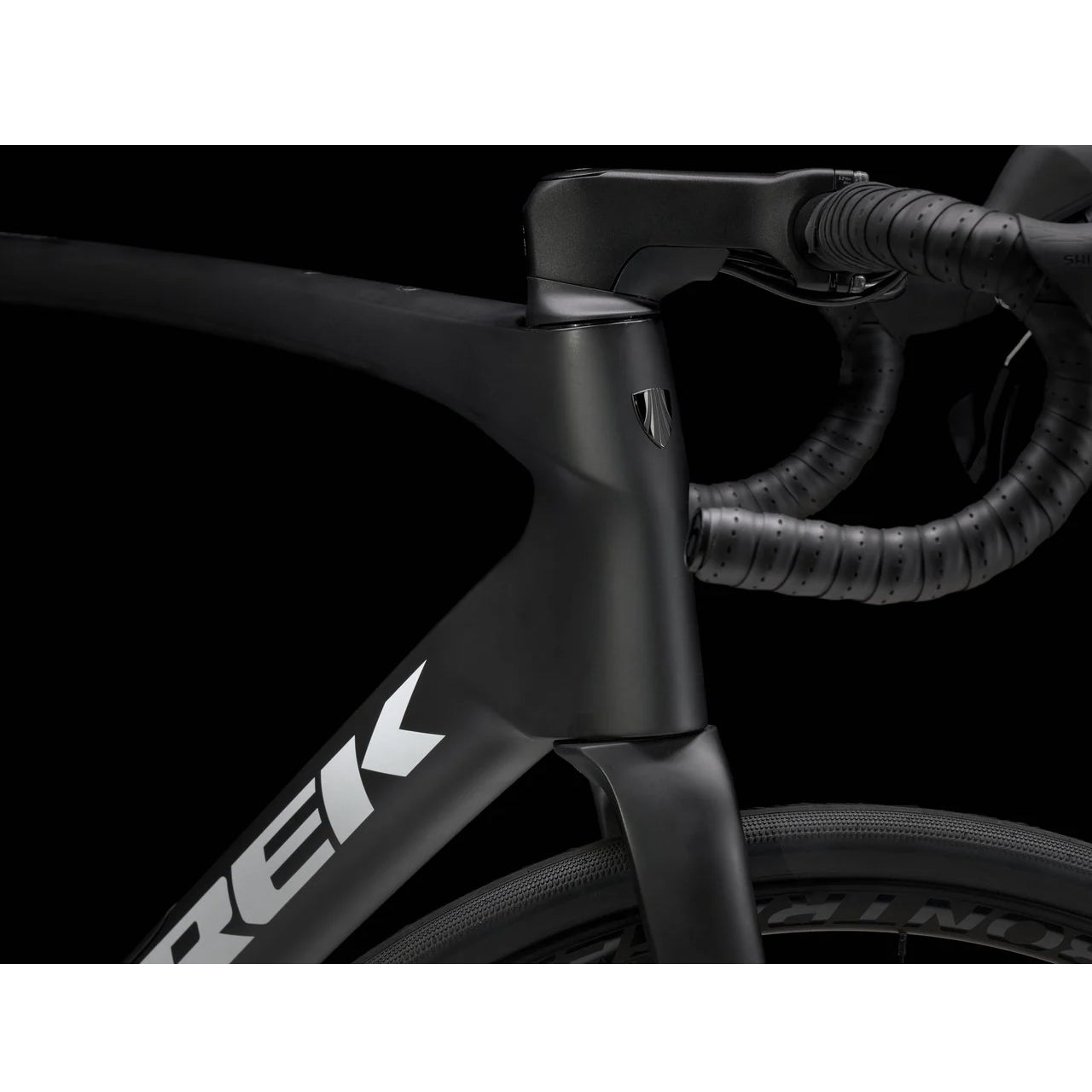

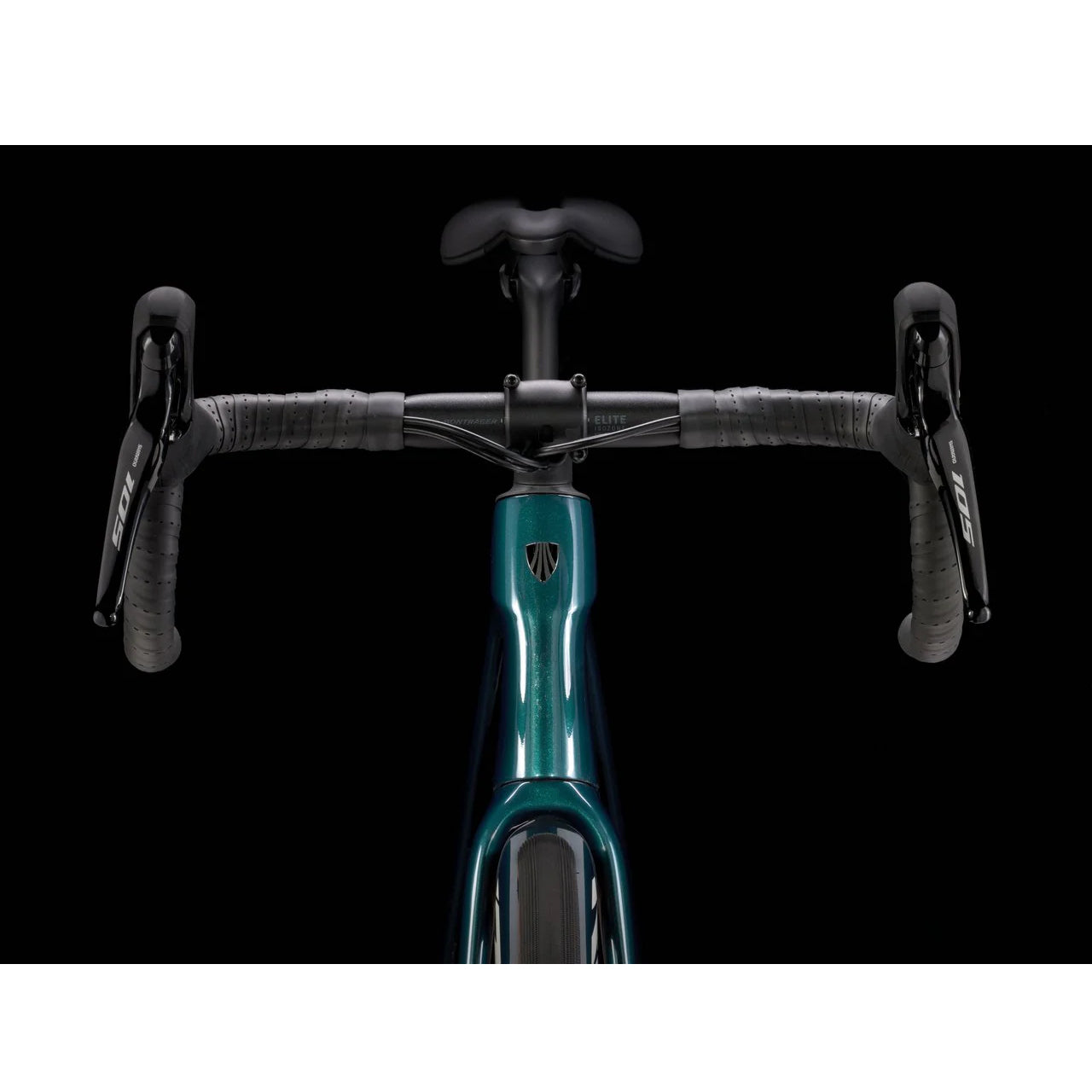

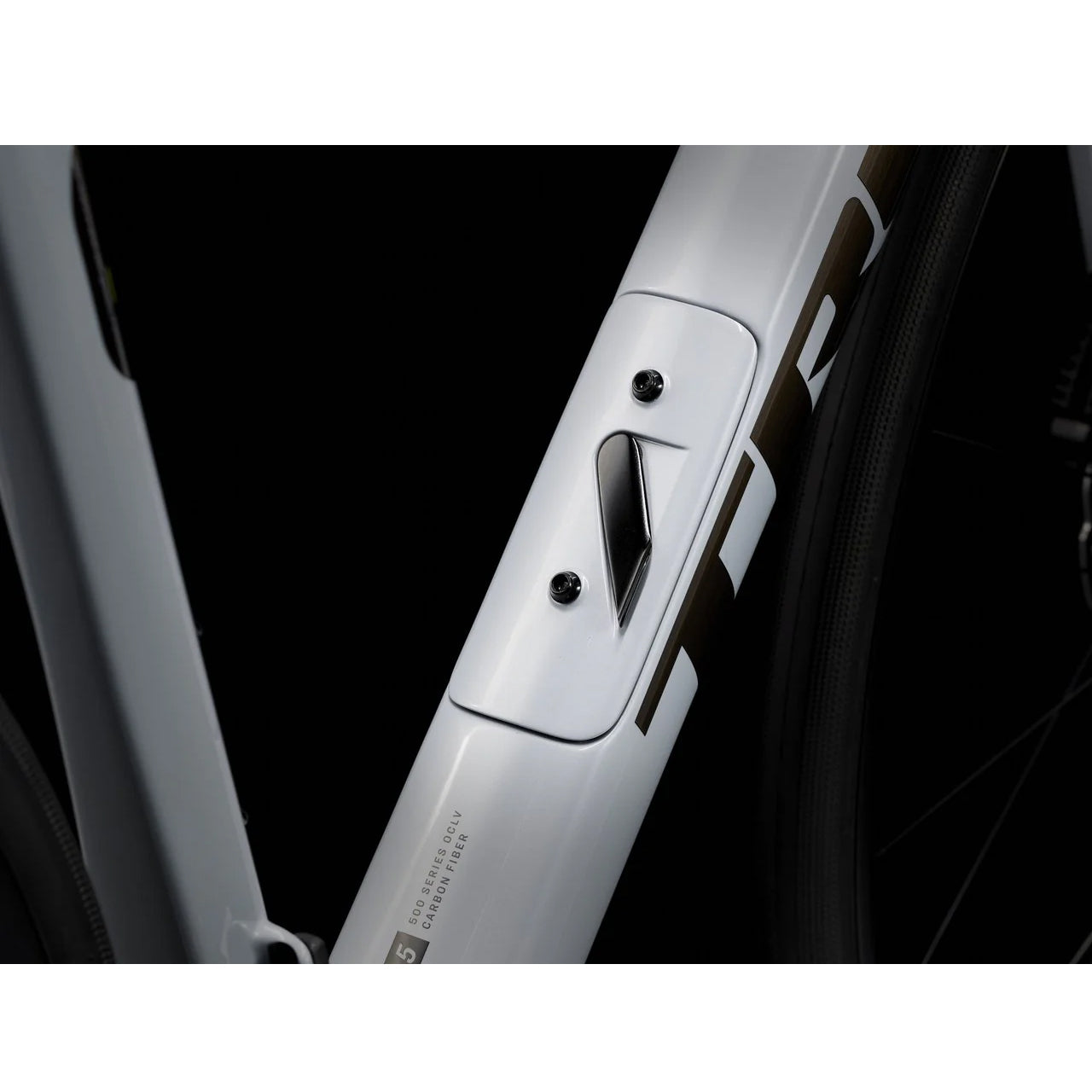

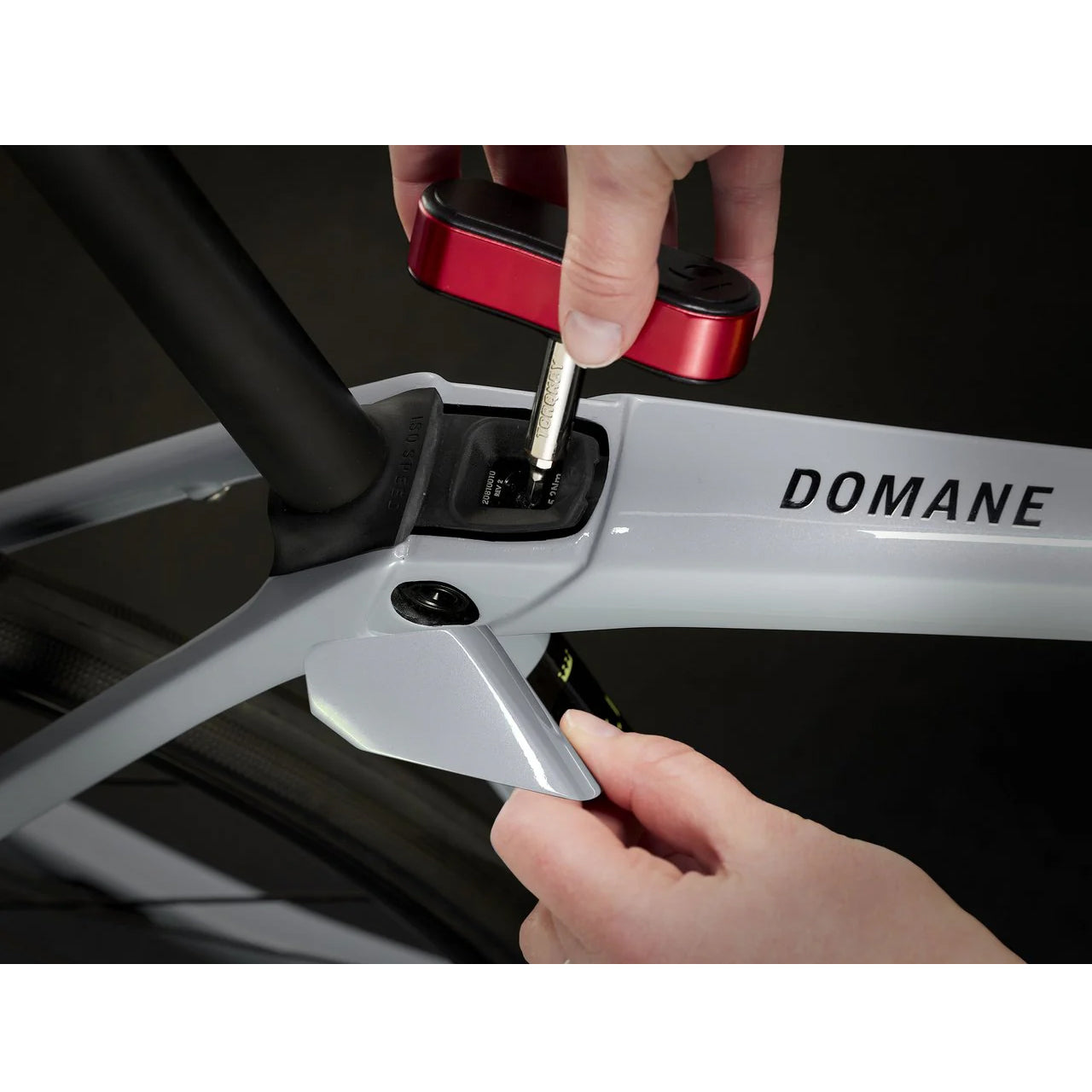

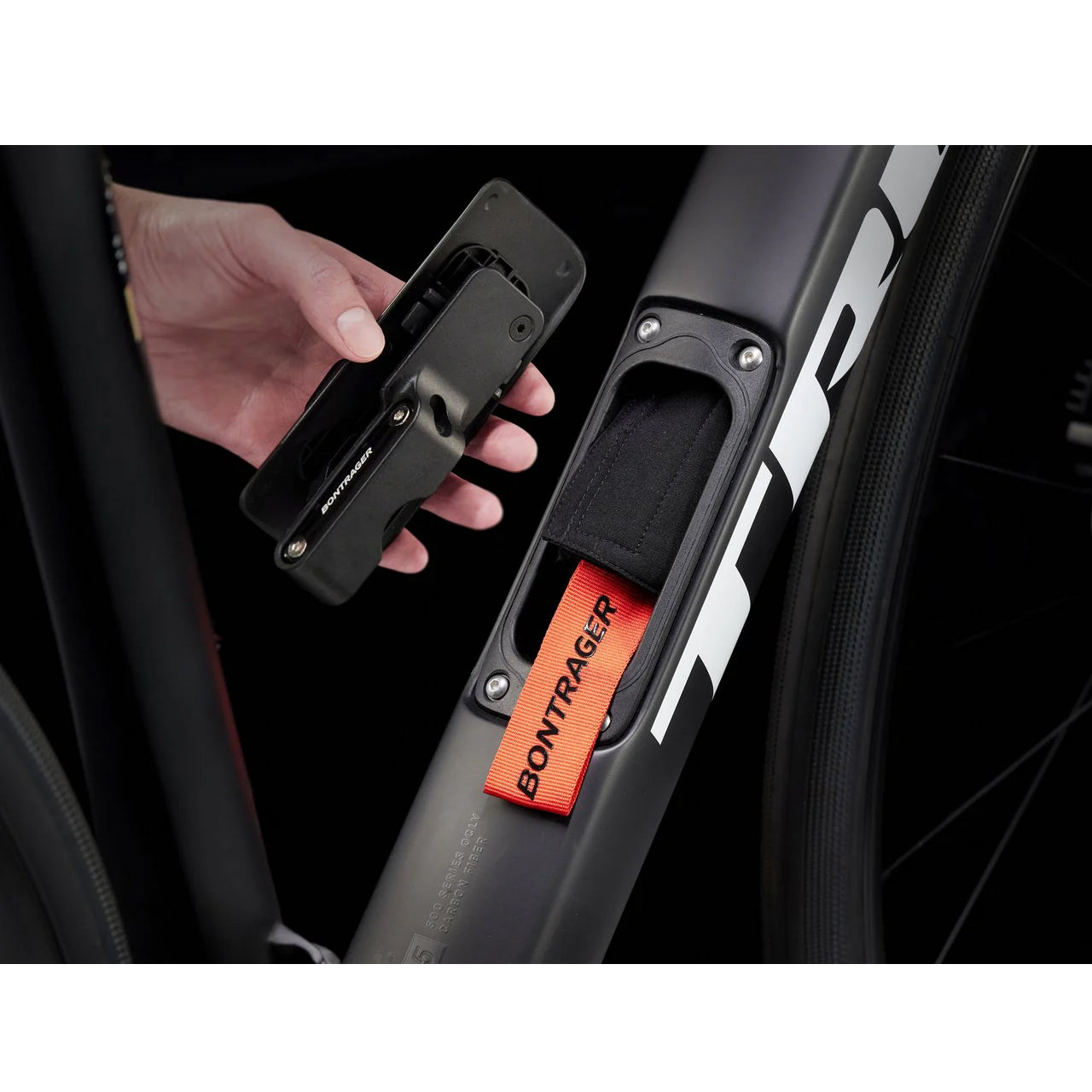

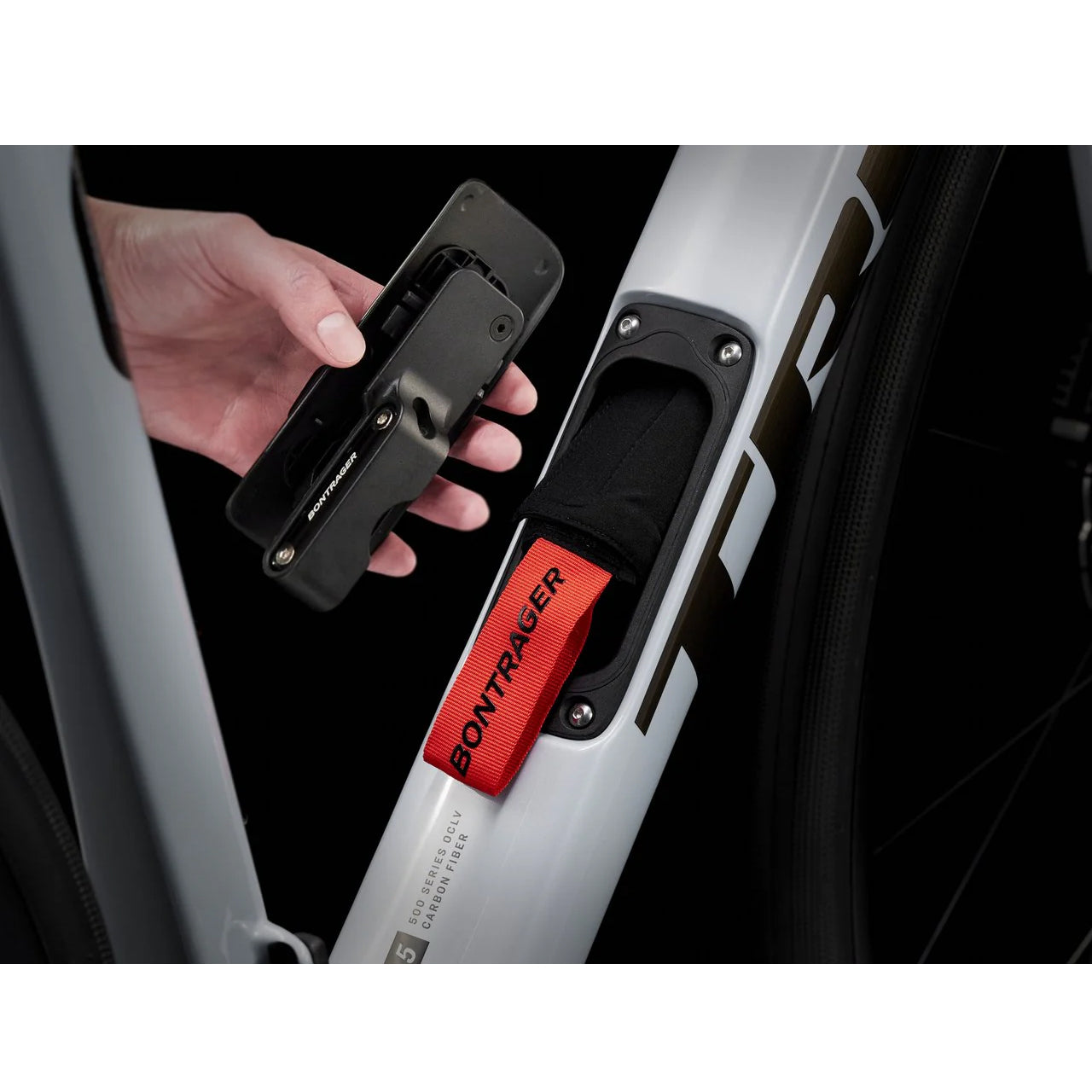

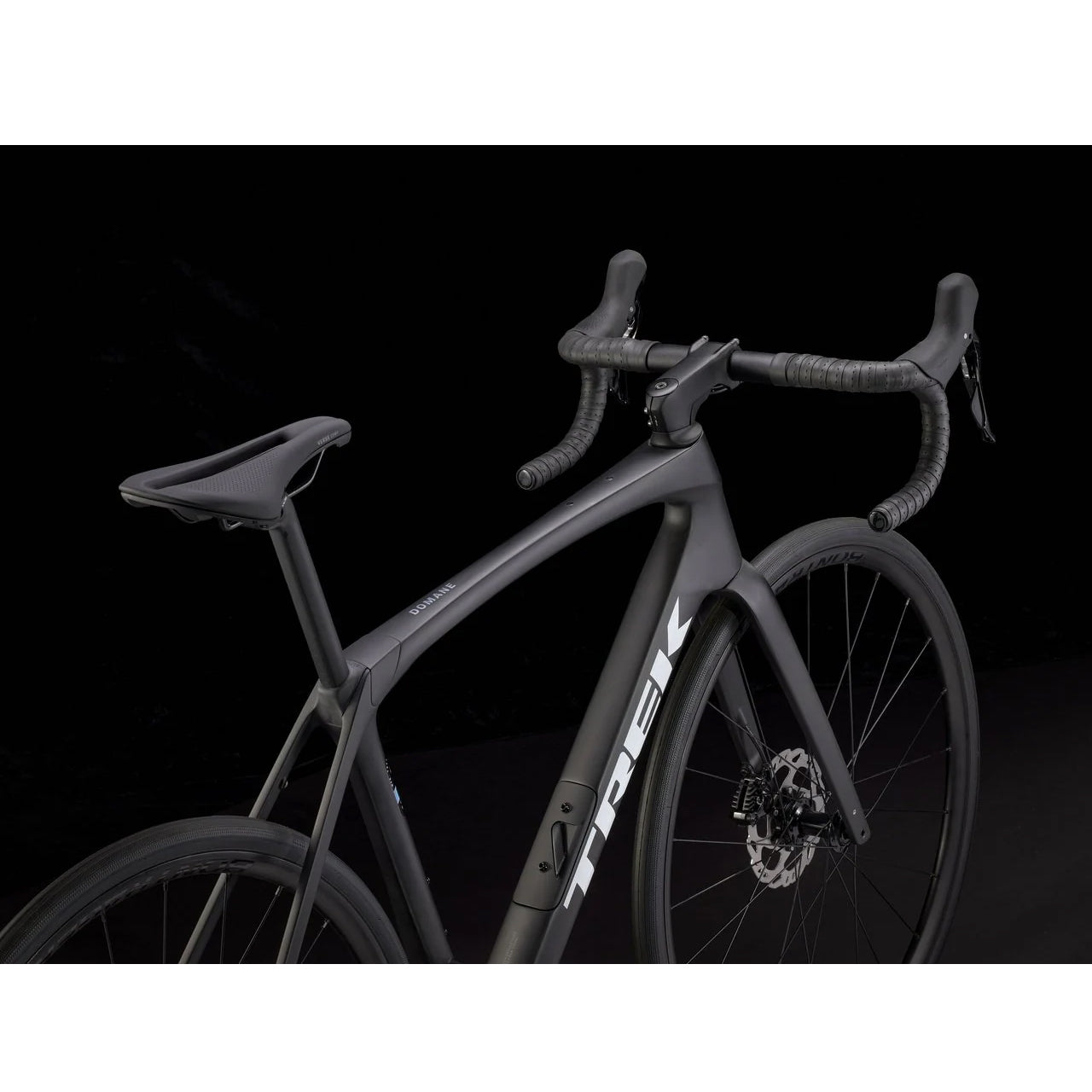

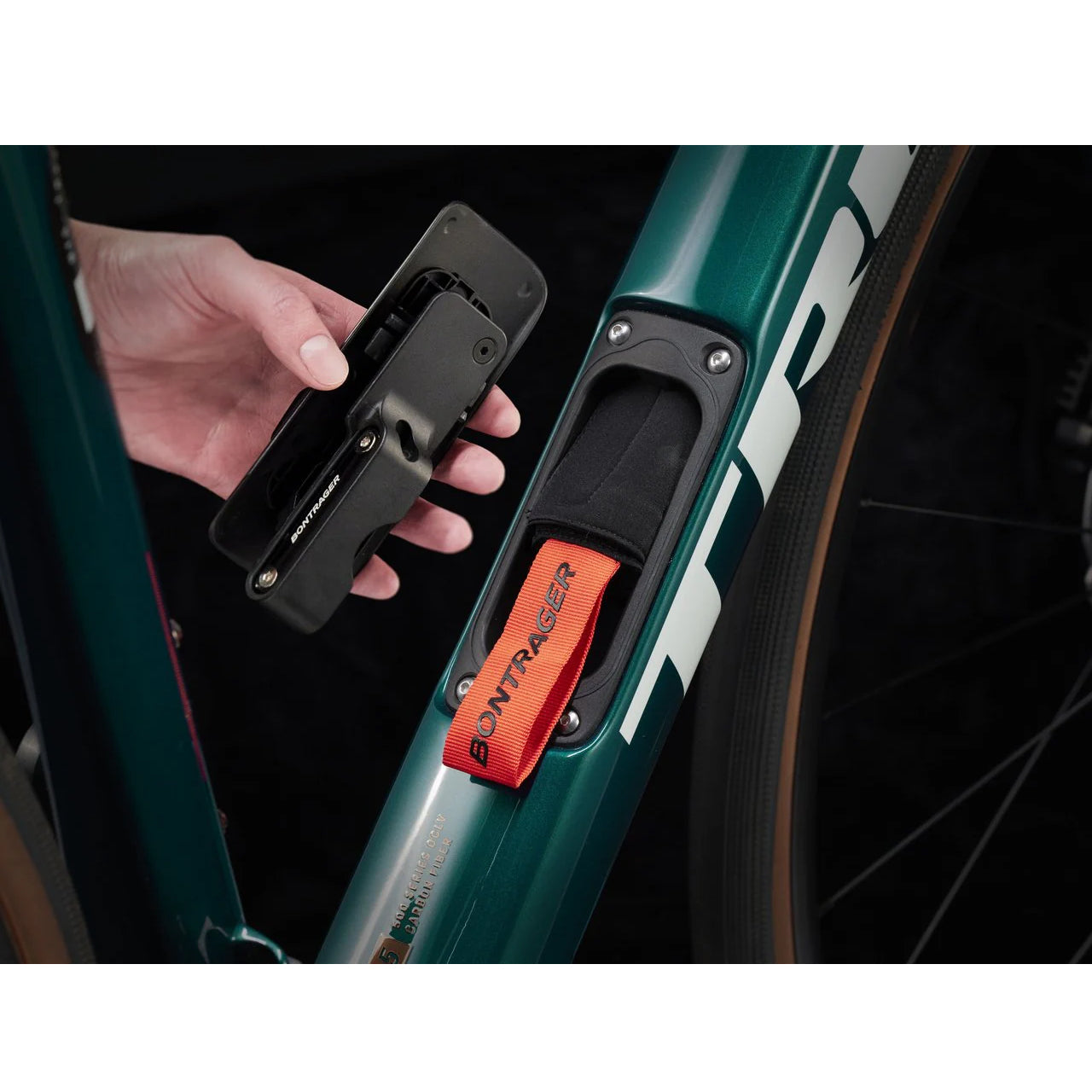

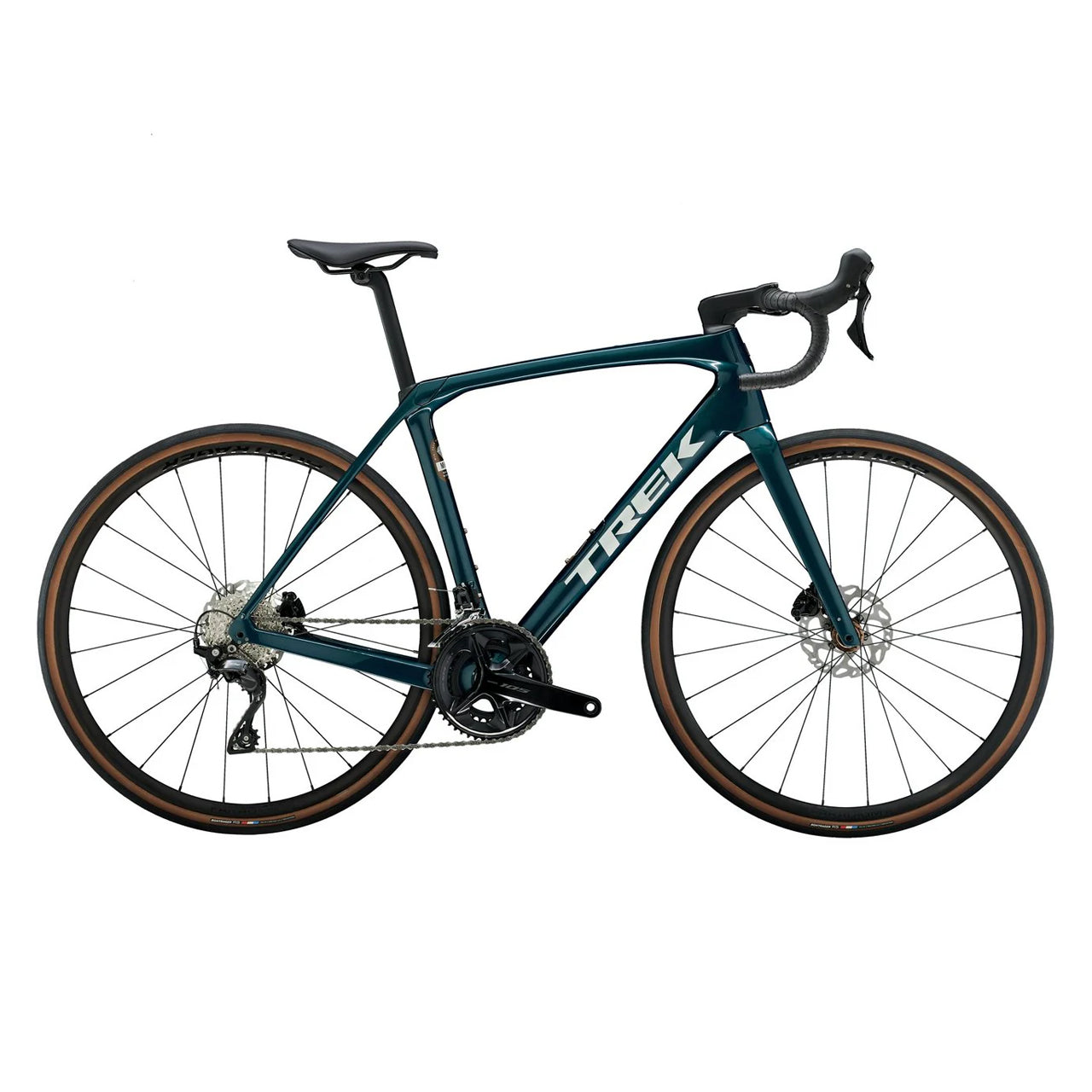

Domane SL 5 is ready to comfortably take on rough roads and long miles in comfort. The lightweight 500 Series OCLV Carbon frame has rear IsoSpeed to smooth out bumps in the road and reduce fatigue, and an integrated cockpit for a setup that looks as good as it feels. It features a reliable Shimano 105 drivetrain, and an easy-access internal storage compartment for stowing ride essentials. Plus, lofty 38mm tire clearance lets you take on any road from tarmac to light gravel.
Geometry Chart
Geometry Chart
| Measurement | 44cm | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|
| Reach (mm) | 360 | 364 | 368 | 371 | 374 | 377 | 380 | 383 | 386 |
| Stack (mm) | 510 | 527 | 546 | 561 | 575 | 591 | 611 | 632 | 656 |
| Head Tube Angle (°) | 70.3° | 71.0° | 71.1° | 71.3° | 71.3° | 71.9° | 72.0° | 72.1° | 72.1° |
| Seat Tube Angle (°) | 74.6° | 74.6° | 74.6° | 74.2° | 73.7° | 73.3° | 73.0° | 72.8° | 72.5° |
| Wheelbase (mm) | 983 | 986 | 996 | 1003 | 1010 | 1008 | 1022 | 1032 | 1042 |
| Chainstay Length (mm) | 420 | 420 | 420 | 420 | 420 | 420 | 425 | 425 | 425 |
| Head Tube Length (mm) | 95 | 110 | 130 | 145 | 160 | 175 | 195 | 220 | 245 |
| Seat Tube Length (mm) | 390 | 420 | 450 | 475 | 500 | 525 | 548 | 567 | 586 |
| BB Drop (mm) | 80 | 80 | 80 | 80 | 80 | 78 | 78 | 75 | 75 |
| Rake (mm) | 53 | 53 | 53 | 53 | 53 | 48 | 48 | 48 | 48 |
| Trail (mm) | 7 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Axle to Crown (mm) | 510 | 527 | 546 | 561 | 575 | 591 | 611 | 632 | 656 |
Part Numbers
Part Numbers
| Size | Plasma Grey Pearl | Dark Aquatic | Matte Deep Smoke |
|---|---|---|---|
| 52cm |
SKUTRE388046724
VPNTrek_5297176
UPC768682188774
MPN5297176
|
SKUTRE344215194
VPNTrek_5297185
UPC768682210055
MPN5297185
|
SKUTRE375215494
VPNTrek_5297167
UPC768682188750
MPN5297167
|
| 47cm | — |
SKUTRE346715154
VPNTrek_5297183
UPC768682210093
MPN5297183
|
SKUTRE376997574
VPNTrek_5297165
UPC768682188736
MPN5297165
|
| 44cm | — |
SKUTRE344640714
VPNTrek_5297182
UPC768682188798
MPN5297182
|
SKUTRE373984444
VPNTrek_5297164
UPC768682188934
MPN5297164
|
| 50cm | — |
SKUTRE349056514
VPNTrek_5297184
UPC768682209950
MPN5297184
|
SKUTRE377772654
VPNTrek_5297166
UPC768682188675
MPN5297166
|
| 54cm | — |
SKUTRE346858964
VPNTrek_5297186
UPC768682209936
MPN5297186
|
SKUTRE371616984
VPNTrek_5297168
UPC768682188712
MPN5297168
|
| 56cm | — |
SKUTRE345901094
VPNTrek_5297187
UPC768682210154
MPN5297187
|
SKUTRE373216814
VPNTrek_5297169
UPC768682188613
MPN5297169
|
| 58cm | — |
SKUTRE349382394
VPNTrek_5297188
UPC768682209998
MPN5297188
|
SKUTRE375906054
VPNTrek_5297170
UPC768682188538
MPN5297170
|
| 60cm | — |
SKUTRE346965074
VPNTrek_5297189
UPC768682210239
MPN5297189
|
SKUTRE371472714
VPNTrek_5297171
UPC768682188552
MPN5297171
|
| 62cm | — |
SKUTRE341847494
VPNTrek_5297190
UPC768682210017
MPN5297190
|
SKUTRE375205734
VPNTrek_5297172
UPC768682188651
MPN5297172
|
Size Chart
Size Chart
Trek | Road
| Size | Size (cm) | Rider height (in) | Rider height (cm) | Inseam (in) | Inseam (cm) |
|---|---|---|---|---|---|
| — | 47cm | 5'0" - 5'2" | 152 - 158 cm | 28" - 30" | 71 - 75 cm |
| — | 50cm | 5'2" - 5'4" | 158 - 163 cm | 29" - 30" | 74 - 77 cm |
| — | 52cm | 5'4" - 5'6" | 163 - 168 cm | 30" - 31" | 76 - 79 cm |
| — | 54cm | 5'6" - 5'9" | 168 - 174 cm | 31" - 32" | 78 - 82 cm |
| — | 56cm | 5'9" - 5'11" | 174 - 180 cm | 32" - 33" | 81 - 85 cm |
| — | 58cm | 5'11" - 6'1" | 180 - 185 cm | 33" - 34" | 84 - 87 cm |
| — | 60cm | 6'1" - 6'3" | 185 - 190 cm | 34" - 35" | 86 - 90 cm |
| — | 62cm | 6'3" - 6'5" | 190 - 195 cm | 35" - 36" | 89 - 92 cm |
