Trek

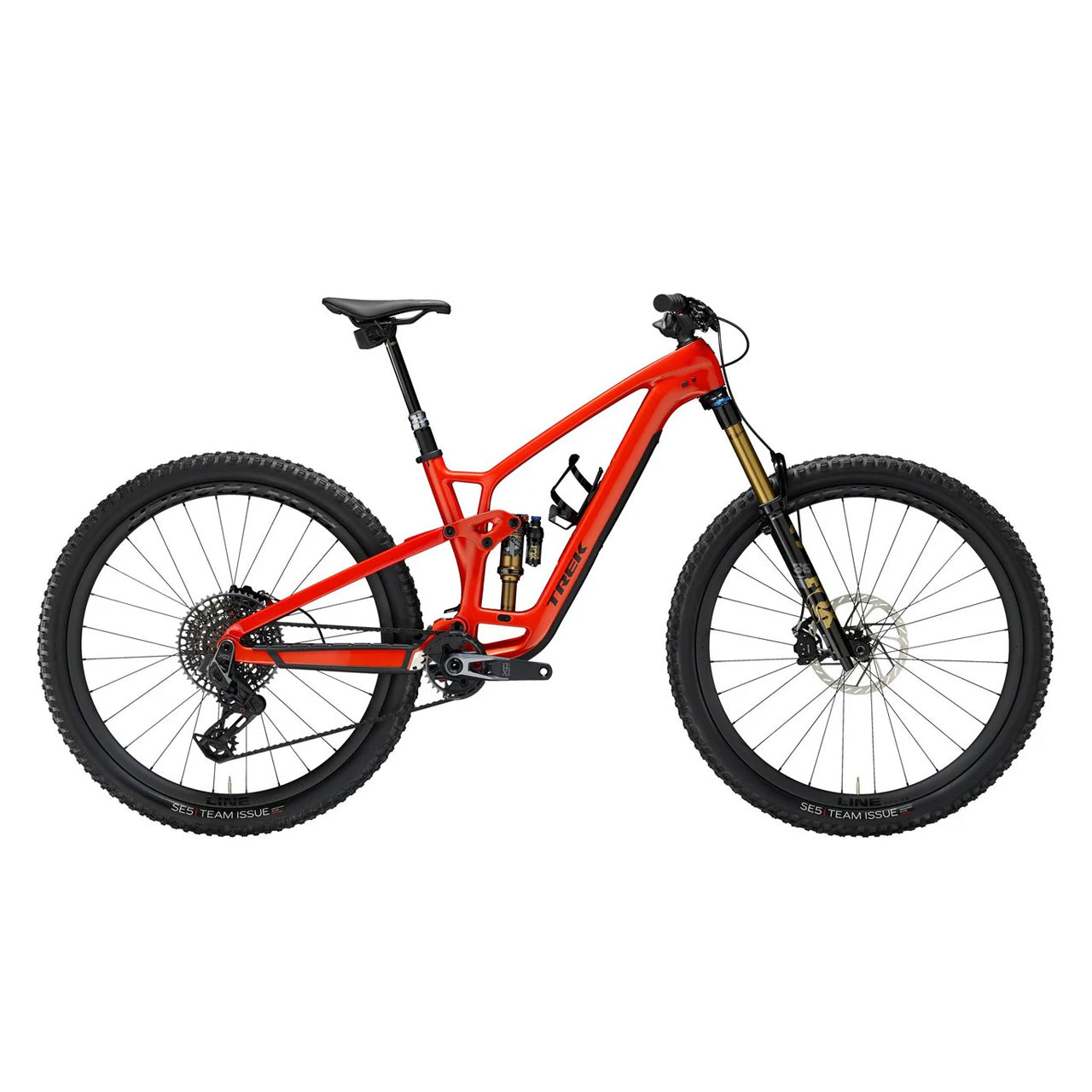

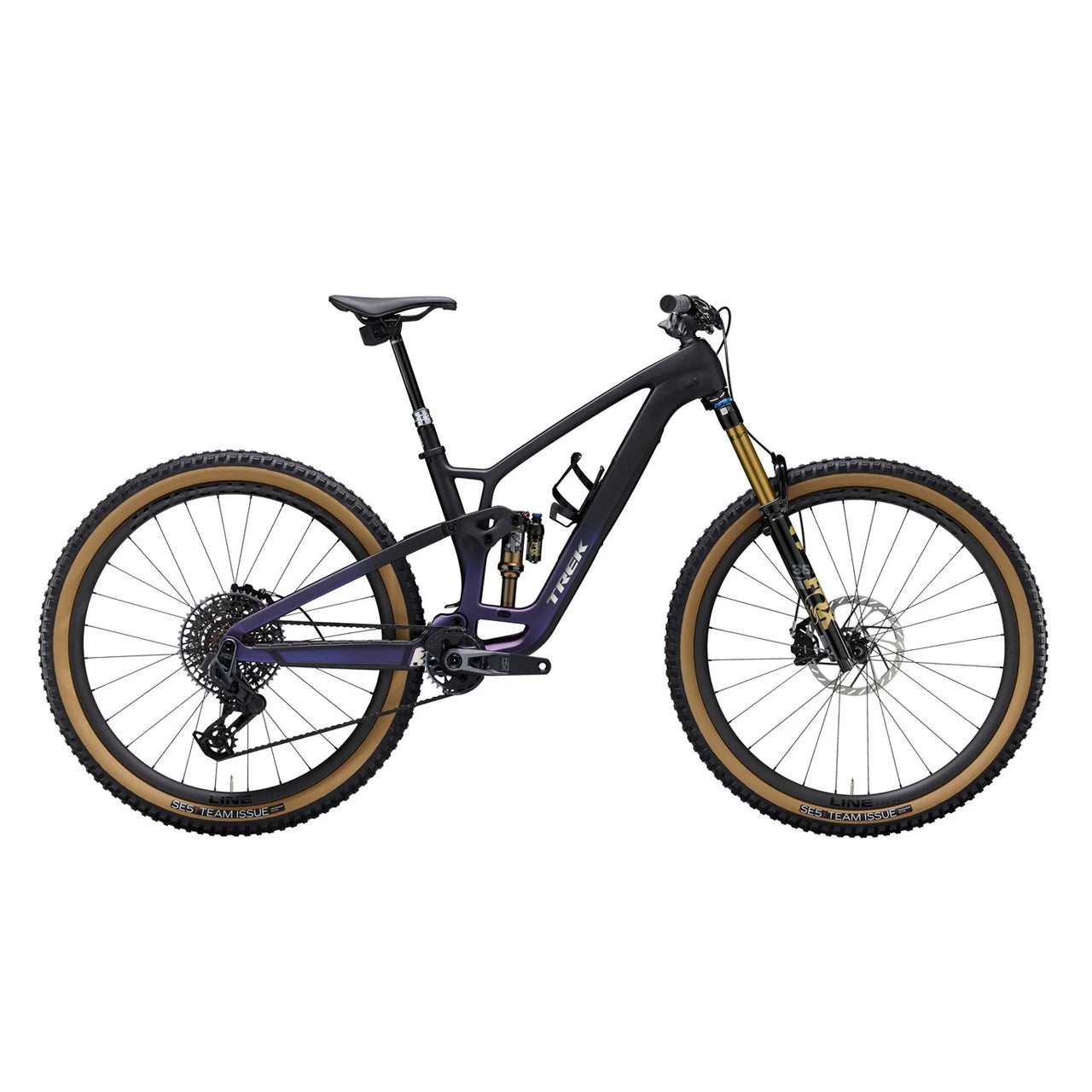

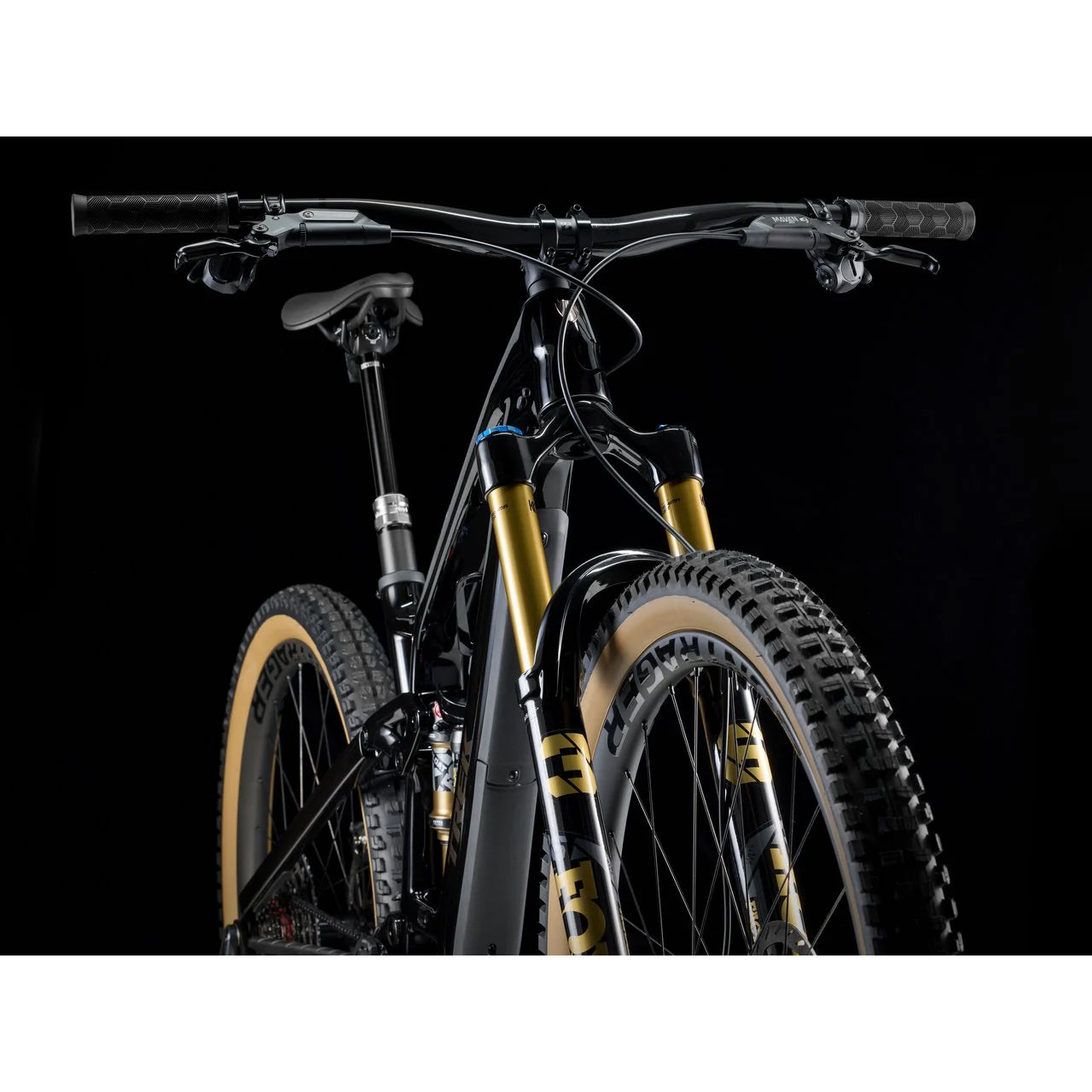

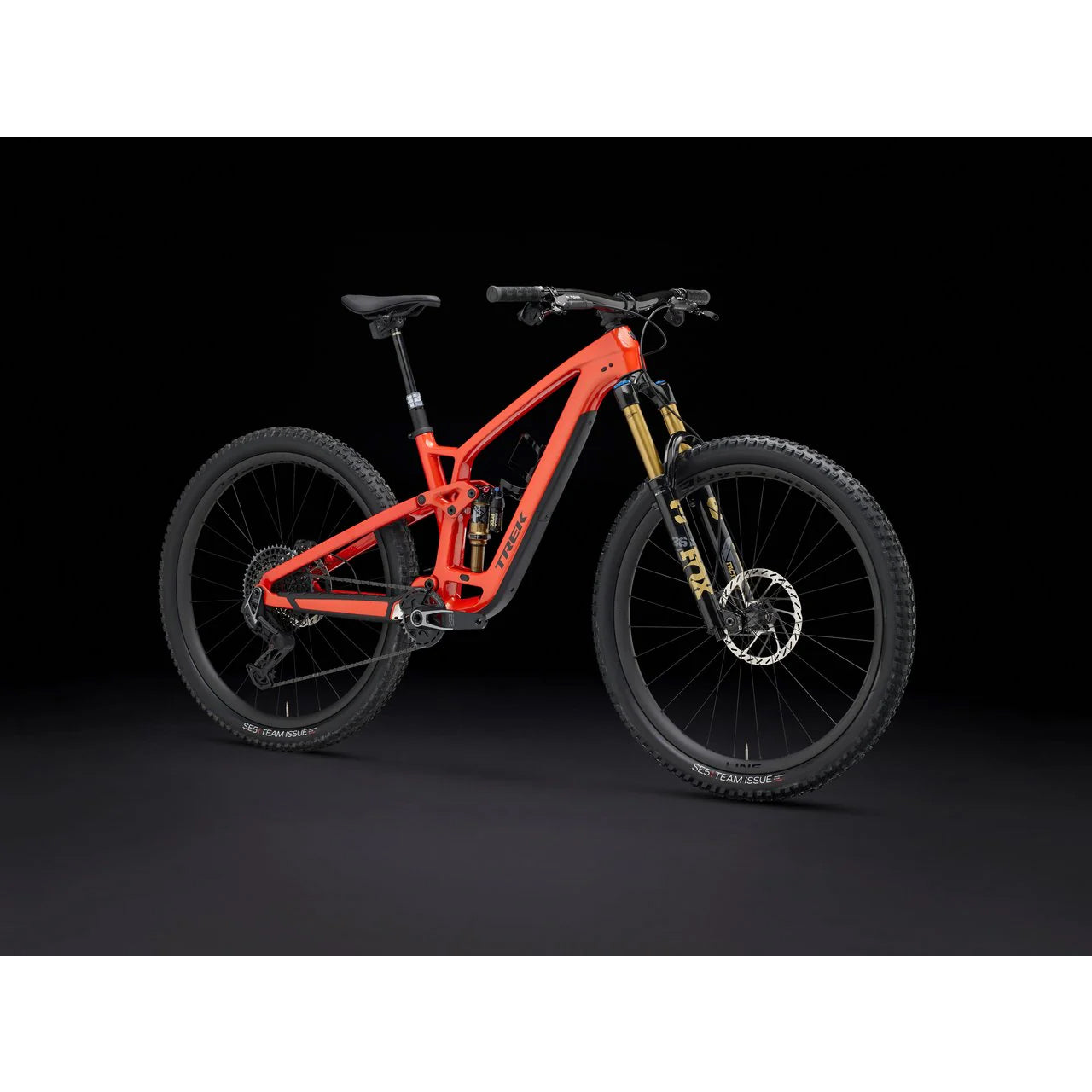

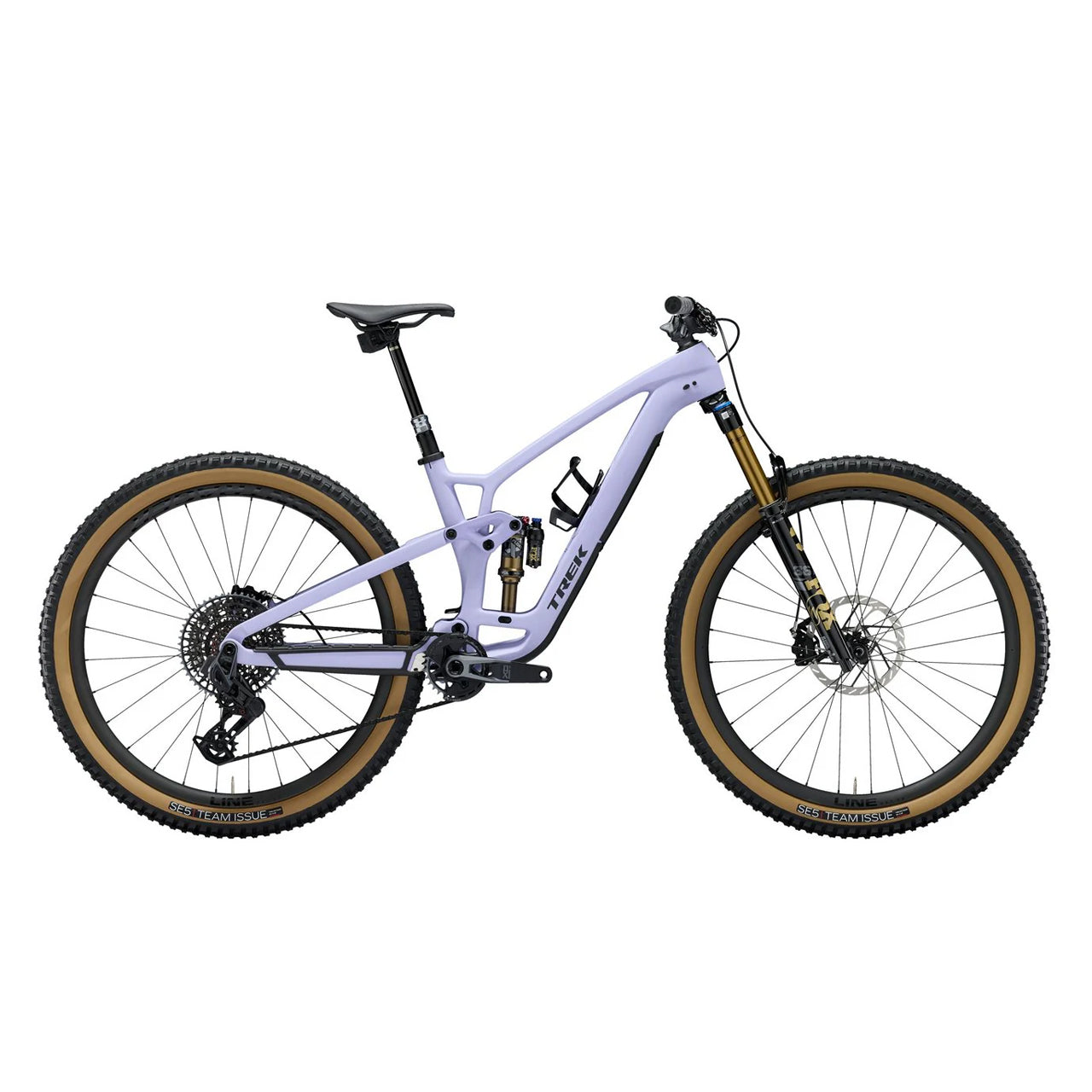

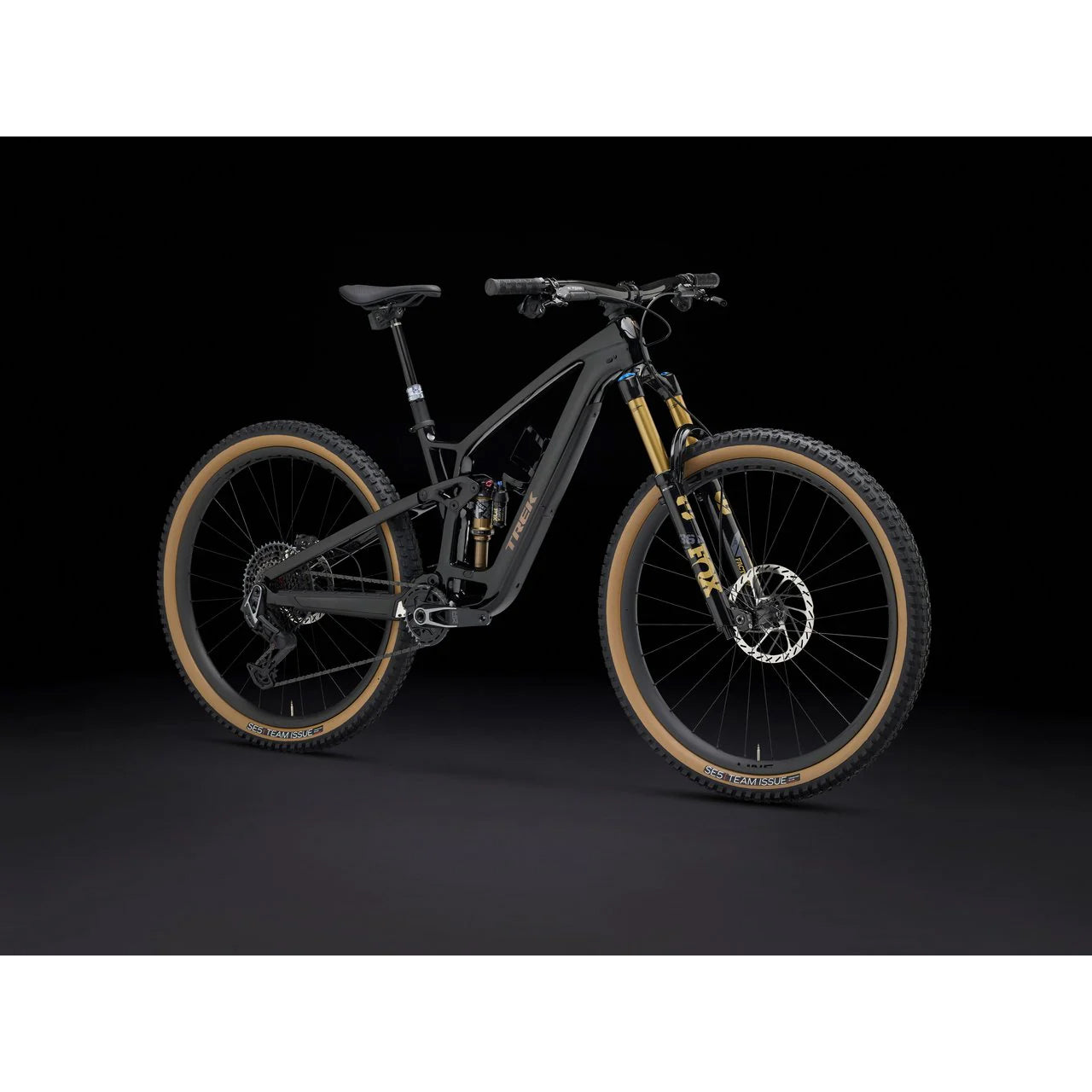

2025 | Fuel EX 9.9 X0 AXS T-Type Gen 6
2025 | Fuel EX 9.9 X0 AXS T-Type Gen 6
Regular price
$10,999.99
Sale price
$10,999.99
Regular price
Shipping calculated at checkout.
SKU:TRE30125896A
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.
Canadian shipping charges:
- Sale bikes: $200
- Standard pedal bikes over $1250: Free
- Standard pedal bikes under $1250: $100
- Electric bikes: $200
- Fat bikes: $200
- Kid's bikes: $60
Insurance charge: 1.5% insured value
We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details
Bike Specifications
Bike Specifications
Specifications are subject to change without notice

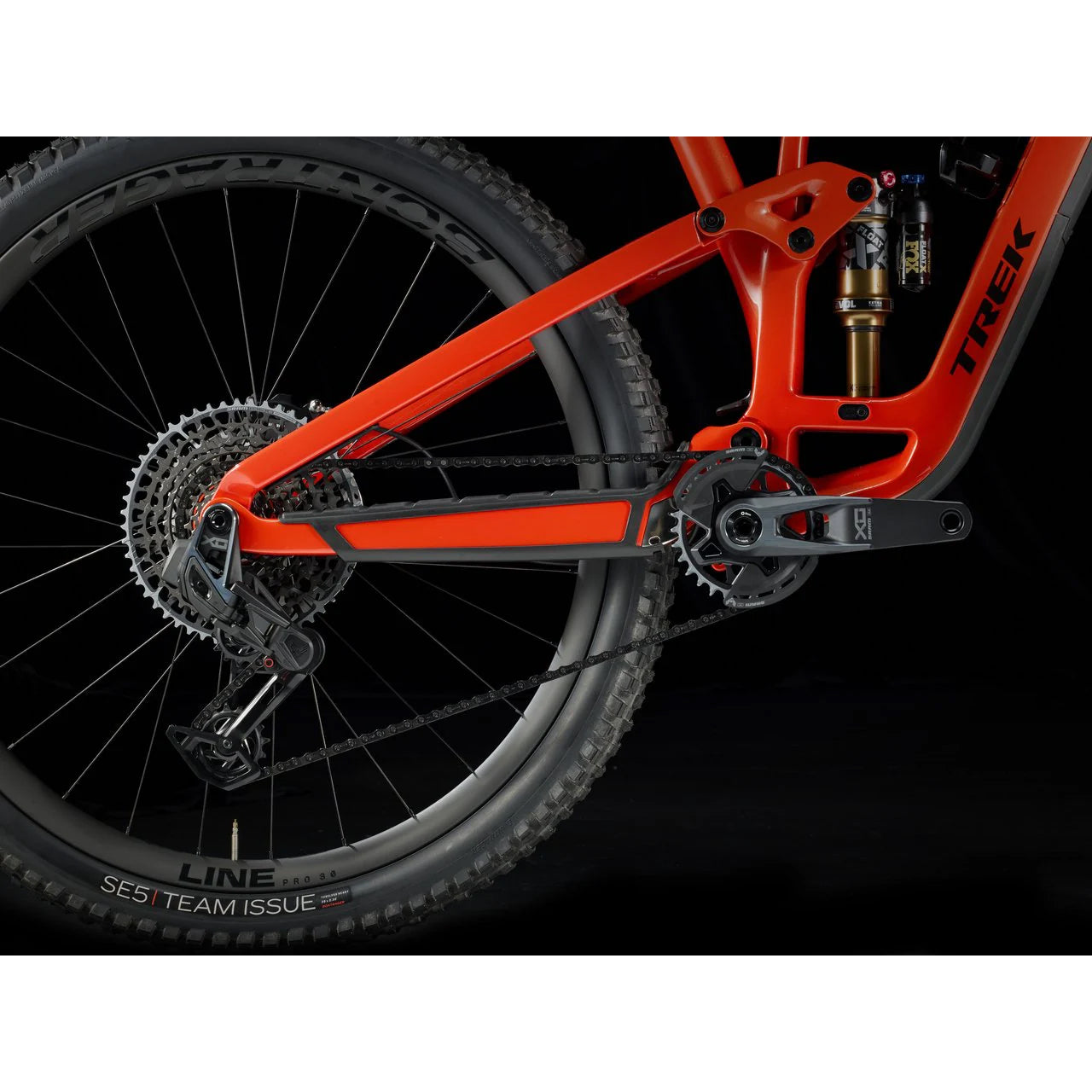

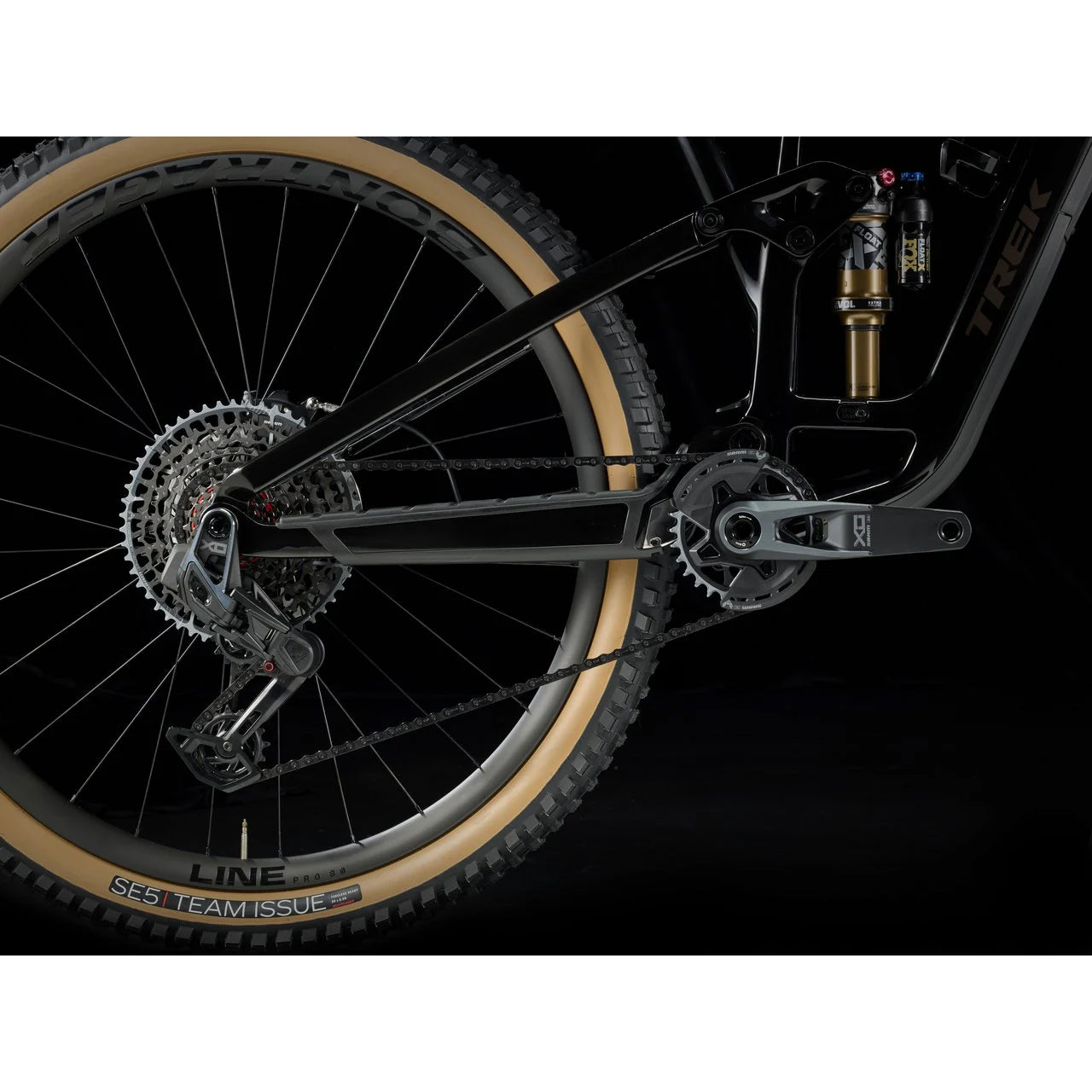

Drivetrain
Cassette
SRAM Eagle XS-1295, T-Type, 10-52, 12 speed
Chain
SRAM X0 Eagle, T-Type, 12 speed
Rear derailleur
SRAM X0 Eagle AXS, T-Type
Brakes
Brake rotor
SRAM HS2, 6-bolt, 180mm // SRAM 6-bolt, 200mm
Brake type
Hydraulic disc
Caliper
SRAM Maven Silver 4-piston hydraulic disc // SRAM Maven Silver 4-piston hydraulic disc

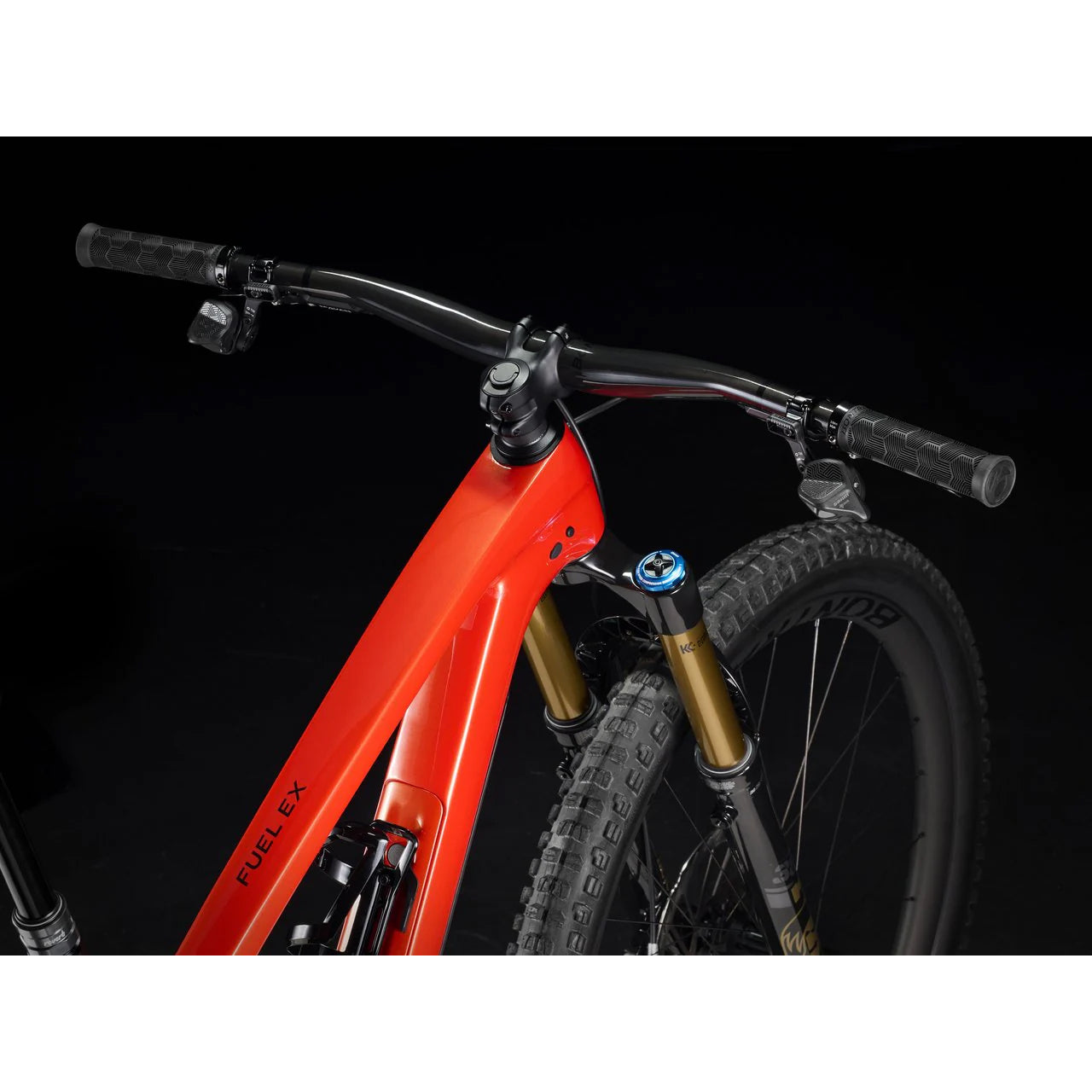

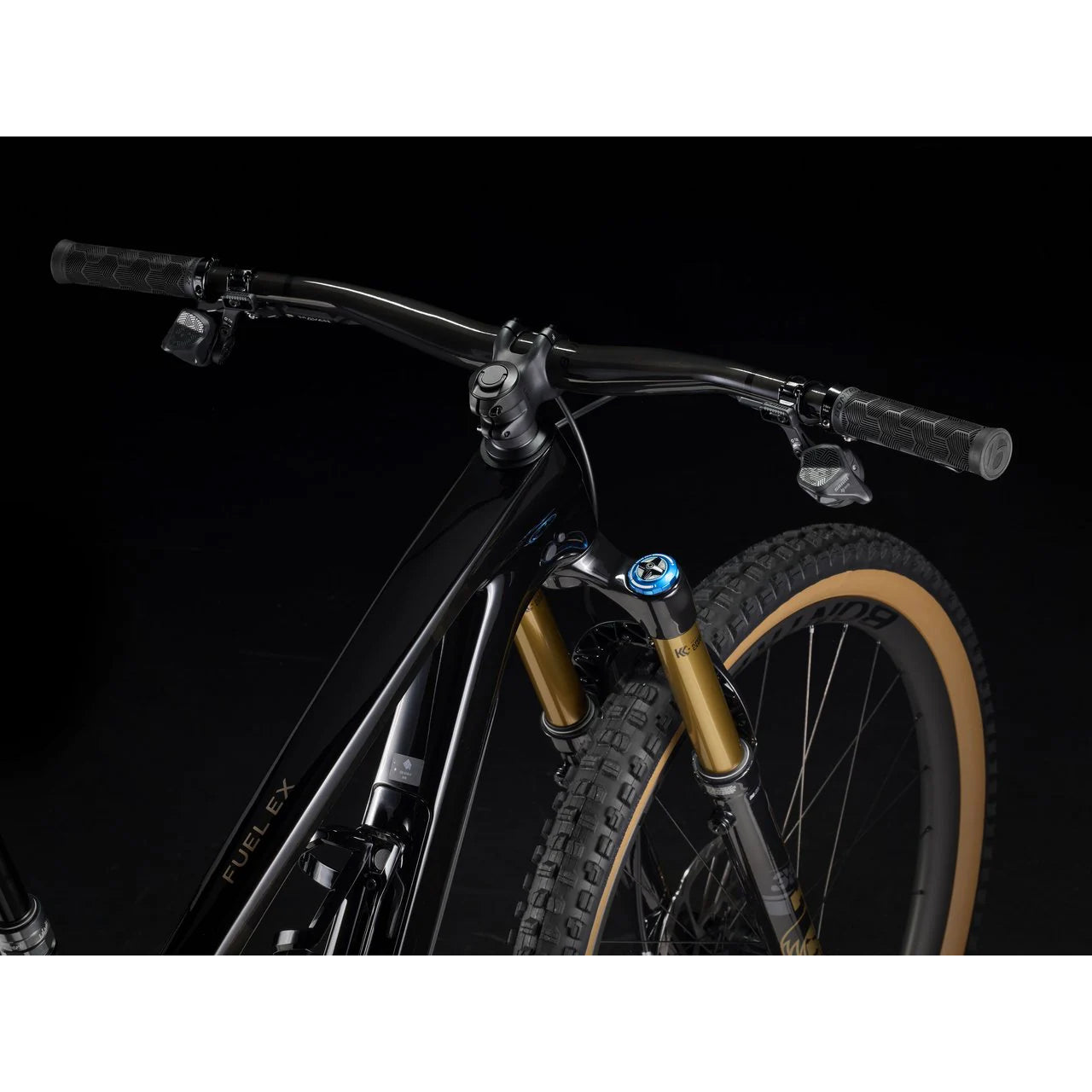

Cockpit
Grips tape
Bontrager XR Trail Elite, nylon lock-on
Handlebars
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
Saddle
Verse Short Pro, carbon rails, 145mm width
Seatpost
RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length
Stem
Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 35mm length
Wheels
Tires
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50" // Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Valves
Bontrager TLR sealant, 180 ml/6 oz
Wheel size
Size Specific
Suspension

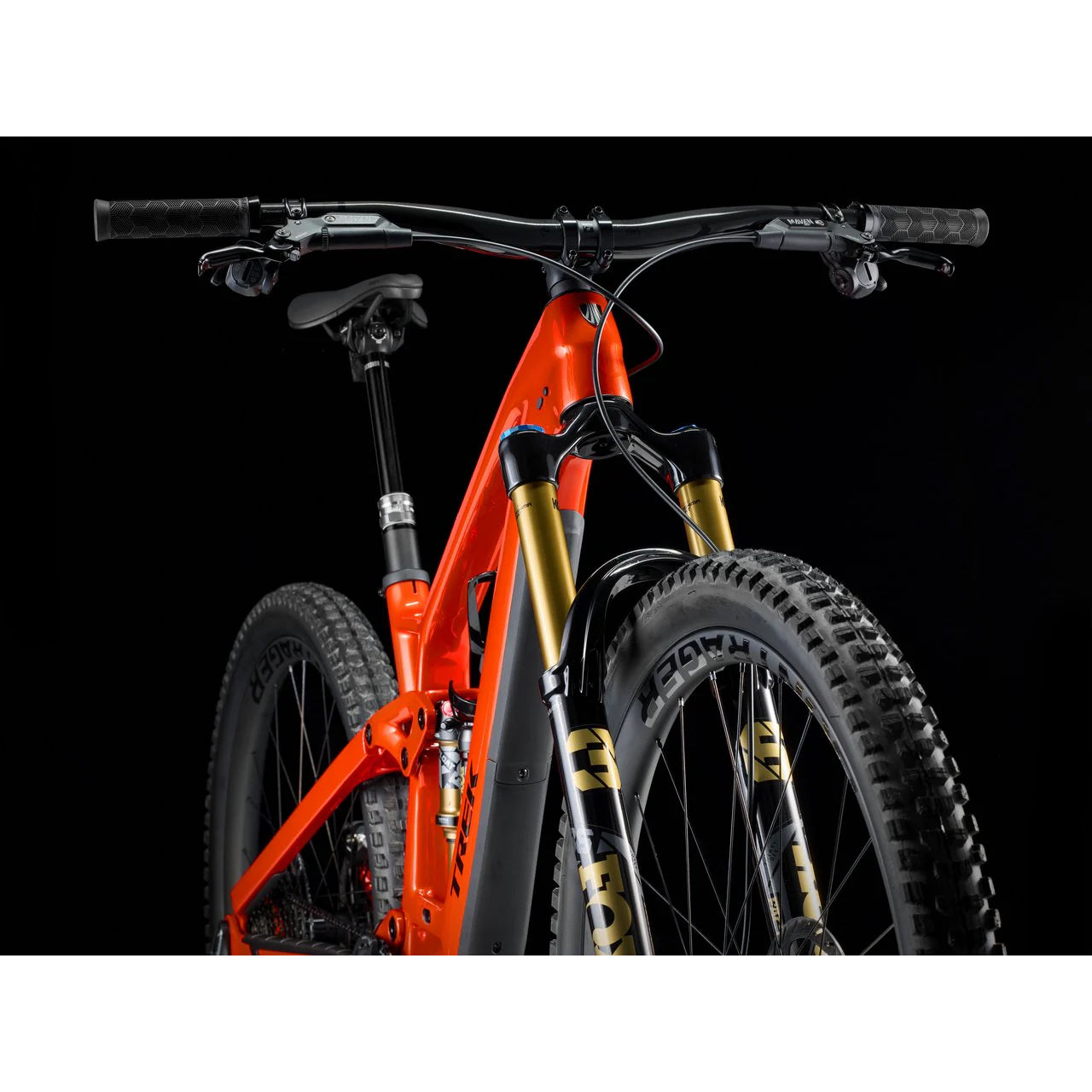

Fork
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 180mm direct mount brake tab, 150mm travel
Fork brand
Fox

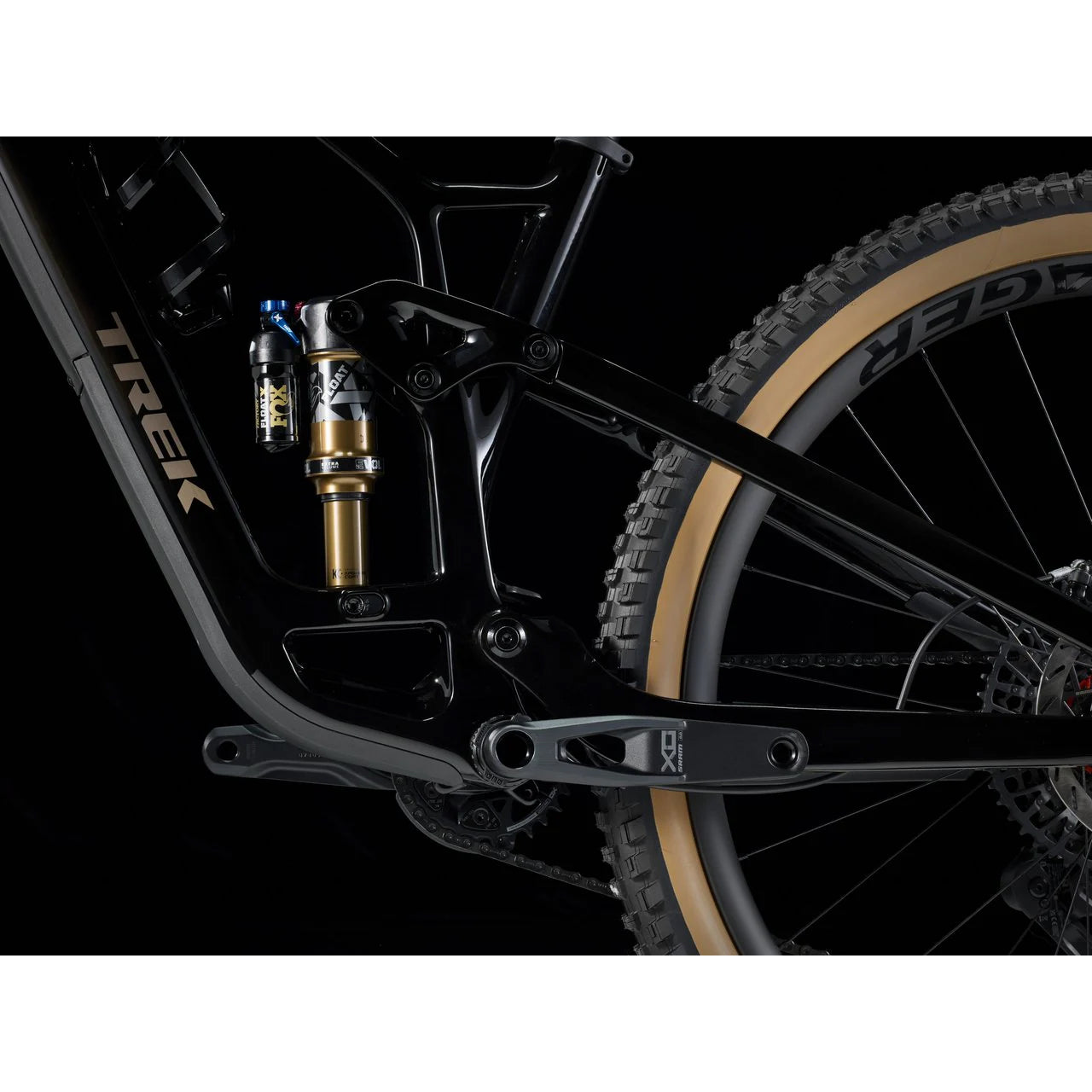

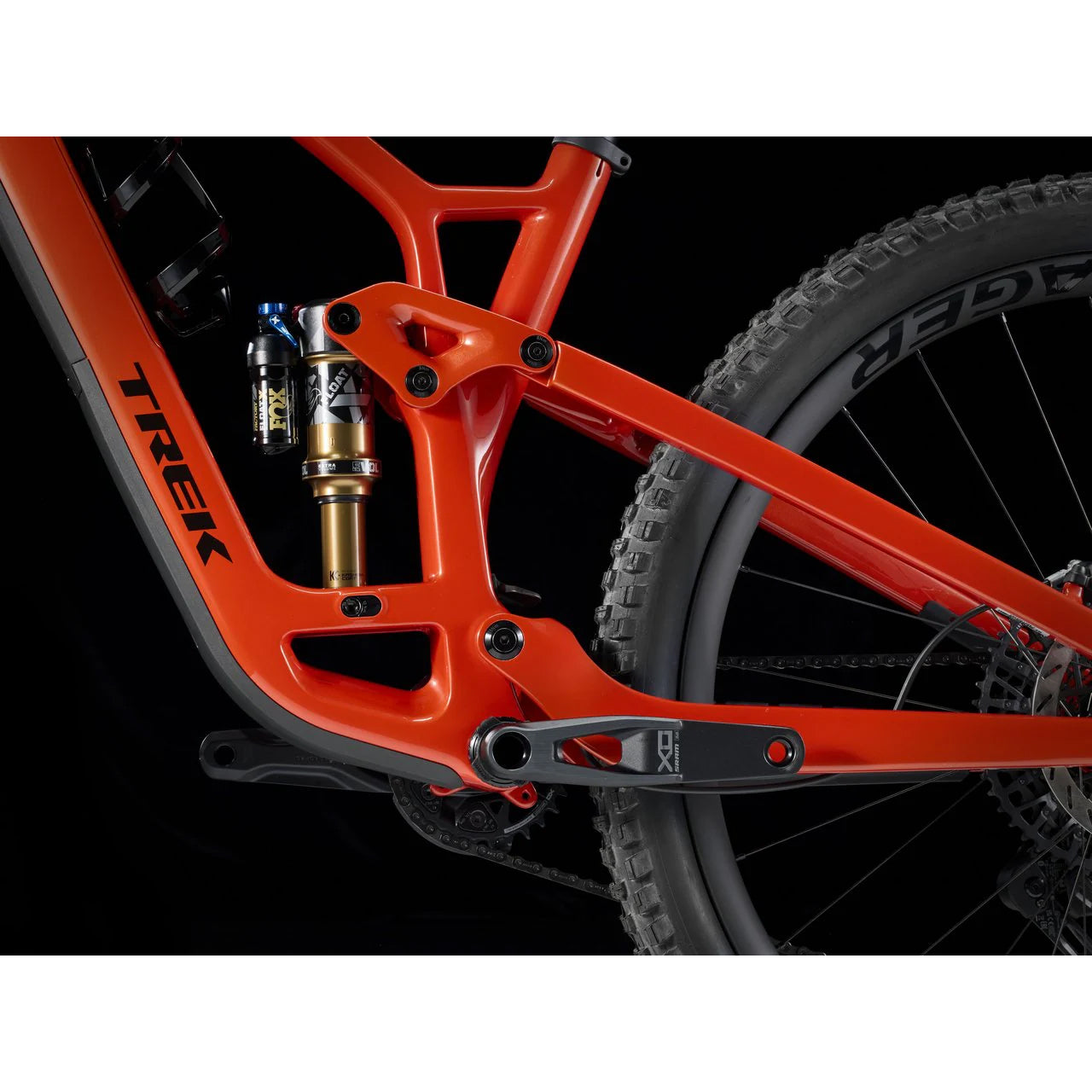

Shock
Fox Factory Float X, 2-position damper, 185mm x 55mm
Shock brand
Fox
Frame
Bottom bracket
SRAM DUB MTB Wide, 73mm, BSA threaded
Frame
OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
Frame material
Carbon
Headset
Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
Platform wheel size
27.5" - (XS-S) | 29" - (M-XXL)
Seatpost
RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length
Weight as spec d
M - 14.78 kg / 32.59 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
E-Bike System
Battery type
Li-Ion 300mAh 7.4 Volt
Share this product
Description
Description
Fuel EX 9.9 X0 AXS is a top-tier trail bike built for riders who have an appreciation for the finest things in life. It combines a cream of the crop carbon frame with top-tier components, from the carbon fiber wheels all the way up to the 150mm Kashima-coated FOX Factory fork, and rugged, fully wireless SRAM X0 transmission. It's a bike that rules the mountain and doesn't hesitate to lay claim to its domain, ripping up rock gardens, blasting berms, and rocketing back to the top to conquer it all once again.
Geometry Chart
Geometry Chart
| Measurement | Small | Medium | Large | Medium / Large | X-Large | X-Small |
|---|---|---|---|---|---|---|
| Reach (mm) | 433 | 456 | 491 | 476 | 521 | 404 |
| Stack (mm) | 572 | 612 | 617 | 612 | 630 | 572 |
| Head Tube Angle (°) | 64.8° | 65.1° | 65.1° | 65.1° | 65.0° | 64.9° |
| Seat Tube Angle (°) | 71.1° | 71.4° | 71.4° | 71.4° | 71.3° | 71.2° |
| Wheelbase (mm) | 1174 | 1212 | 1249 | 1232 | 1286 | 1144 |
| Chainstay Length (mm) | 434 | 433 | 438 | 438 | 443 | 434 |
| Head Tube Length (mm) | 95 | 100 | 105 | 100 | 120 | 95 |
| Seat Tube Length (mm) | 380 | 410 | 435 | 420 | 470 | 360 |
| BB Drop (mm) | 21 | 31 | 31 | 31 | 30 | 21 |
| BB Height (mm) | 337 | 343 | 343 | 343 | 343 | 337 |
| Rake (mm) | 44 | 44 | 44 | 44 | 44 | 44 |
| Trail (mm) | 12 | 13 | 13 | 13 | 13 | 12 |
| Axle to Crown (mm) | 572 | 612 | 617 | 612 | 630 | 572 |
Part Numbers
Part Numbers
| Size | Lava | Deep Smoke | Deep Smoke/Purple Flip | Lavender Haze |
|---|---|---|---|---|
| X-Small |
SKUTRE30125896A
VPNTrek_5330173
UPC197216116912
MPN5330173
|
SKUTRE35223686E
VPNTrek_5330167
UPC197216116851
MPN5330167
|
SKUTRE45286744P
VPNTrek_5323869
UPC197216116554
MPN5323869
|
SKUTRE38600754E
VPNTrek_5330096
UPC197216116738
MPN5330096
|
| Small |
SKUTRE29570432A
VPNTrek_5330174
UPC197216116929
MPN5330174
|
SKUTRE34693064E
VPNTrek_5330168
UPC197216116868
MPN5330168
|
SKUTRE44183723P
VPNTrek_5323870
UPC197216116561
MPN5323870
|
SKUTRE37919907E
VPNTrek_5330097
UPC197216116745
MPN5330097
|
| Medium |
SKUTRE28336337A
VPNTrek_5330175
UPC197216116936
MPN5330175
|
SKUTRE33828704E
VPNTrek_5330169
UPC197216116875
MPN5330169
|
SKUTRE43490458P
VPNTrek_5323871
UPC197216116578
MPN5323871
|
SKUTRE36247403E
VPNTrek_5330098
UPC197216116752
MPN5330098
|
| Medium/Large |
SKUTRE29981311A
VPNTrek_5330176
UPC197216116943
MPN5330176
|
SKUTRE34522697E
VPNTrek_5330170
UPC197216116882
MPN5330170
|
SKUTRE44882634P
VPNTrek_5323872
UPC197216116585
MPN5323872
|
SKUTRE37223740E
VPNTrek_5330099
UPC197216116769
MPN5330099
|
| Large |
SKUTRE28401769A
VPNTrek_5330177
UPC197216116950
MPN5330177
|
SKUTRE3394855E
VPNTrek_5330171
UPC197216116899
MPN5330171
|
SKUTRE43892059P
VPNTrek_5323873
UPC197216116592
MPN5323873
|
SKUTRE36515695E
VPNTrek_5330100
UPC197216116776
MPN5330100
|
| X-Large |
SKUTRE29477762A
VPNTrek_5330178
UPC197216116967
MPN5330178
|
SKUTRE34779298E
VPNTrek_5330172
UPC197216116905
MPN5330172
|
SKUTRE44670805P
VPNTrek_5323874
UPC197216116608
MPN5323874
|
SKUTRE37325982E
VPNTrek_5330101
UPC197216116783
MPN5330101
|
Size Chart
Size Chart
Trek | Mountain
| Size | Rider height (in) | Rider height (cm) | Inseam (in) | Inseam (cm) |
|---|---|---|---|---|
| X-Small | 4'9" - 5'1" | 145 - 155 cm | 27" - 29" | 69 - 73 cm |
| Small | 5'1" - 5'5" | 155 - 165 cm | 29" - 31" | 74 - 78 cm |
| Medium | 5'5" - 5'10" | 165 - 177 cm | 31" - 33" | 79 - 83 cm |
| Medium/Large | 5'8" - 5'11" | 173 - 180 cm | 32" - 34" | 81 - 86 cm |
| Large | 5'10" - 6'2" | 177 - 188 cm | 33" - 35" | 84 - 89 cm |
| X-Large | 6'2" - 6'5" | 188 - 195 cm | 35" - 36" | 89 - 91 cm |
| XX-Large | 6'5" - 6'8" | 195 - 203 cm | 36" - 38" | 91 - 97 cm |
