Sold out
Trek

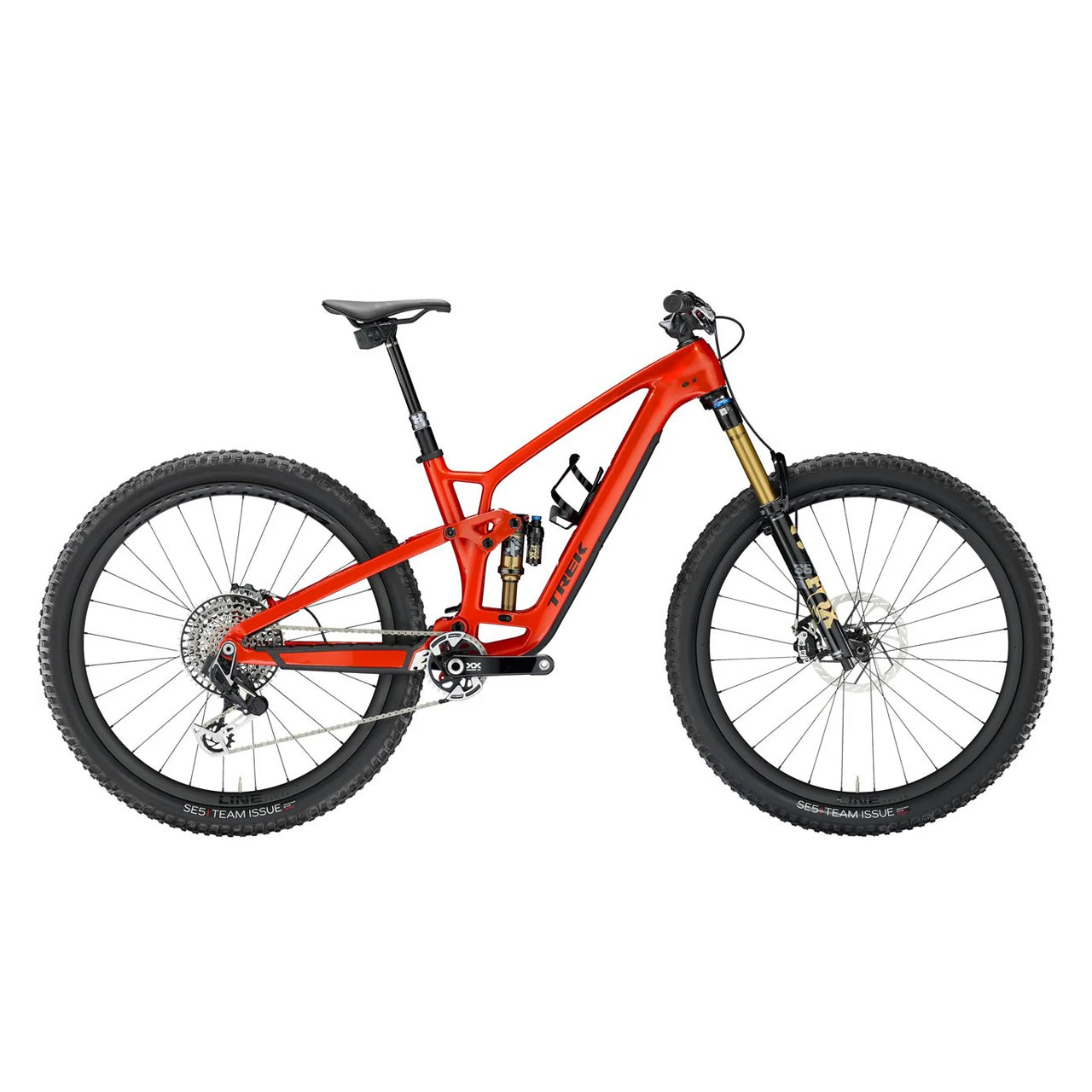

2025 | Fuel EX 9.9 XX AXS T-Type Gen 6
2025 | Fuel EX 9.9 XX AXS T-Type Gen 6
Regular price
$13,999.99
Sale price
$13,999.99
Regular price
Shipping calculated at checkout.
SKU:TRE386900376
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.
Canadian shipping charges:
- Sale bikes: $200
- Standard pedal bikes over $1250: Free
- Standard pedal bikes under $1250: $100
- Electric bikes: $200
- Fat bikes: $200
- Kid's bikes: $60
Insurance charge: 1.5% insured value
We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details
Bike Specifications
Bike Specifications
Specifications are subject to change without notice

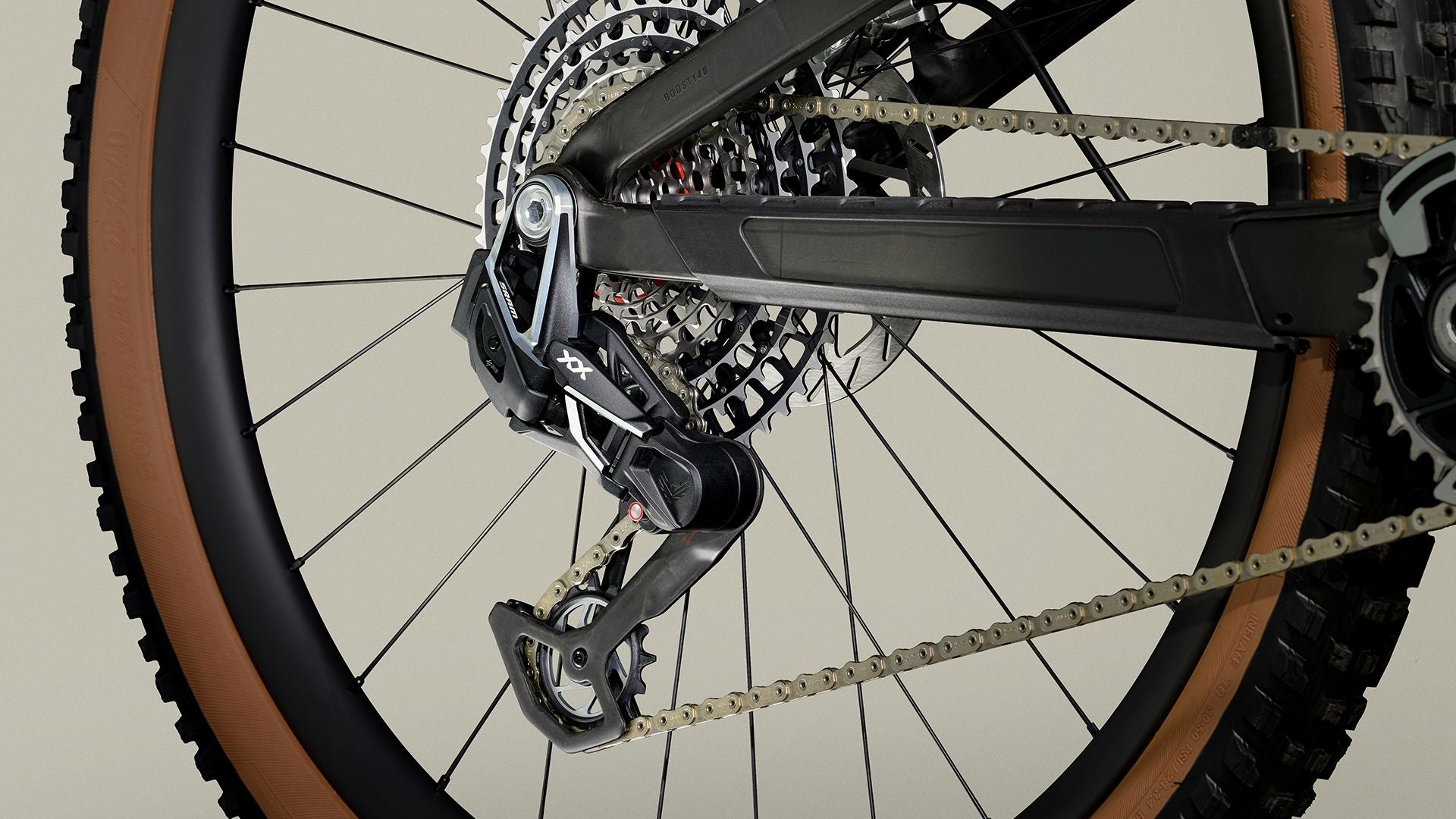

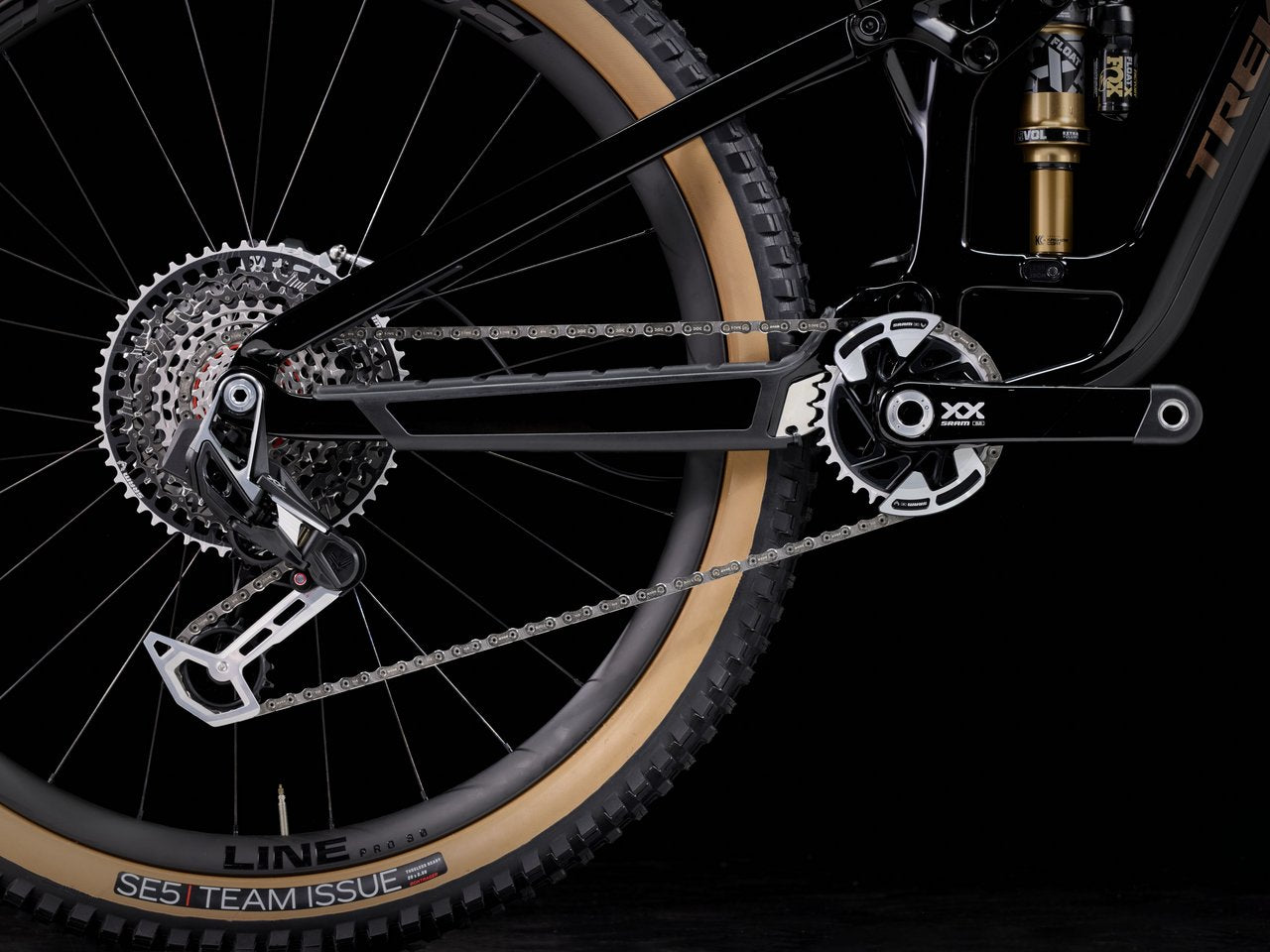

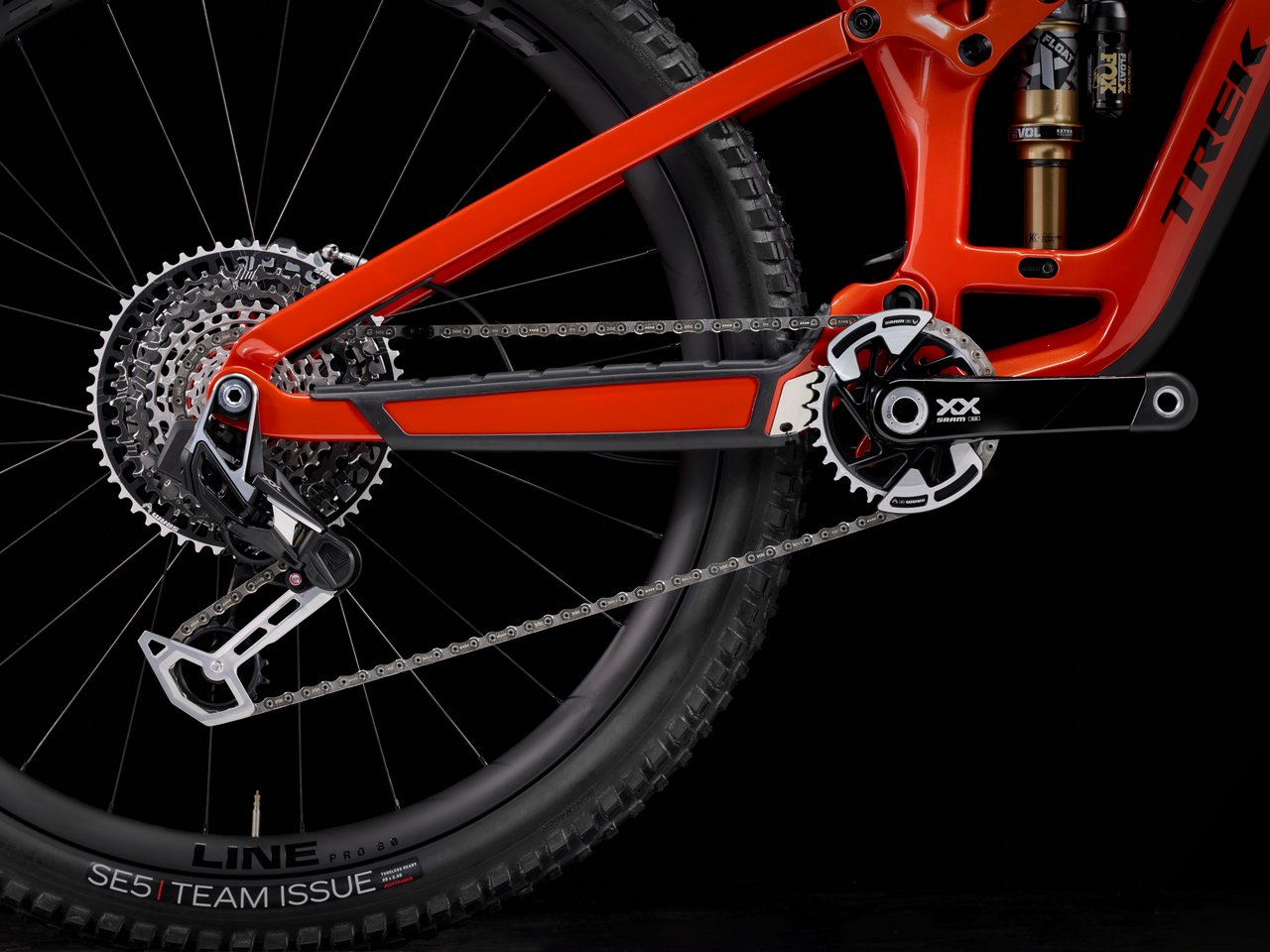

Drivetrain
Cassette
SRAM Eagle XS-1297, T-Type, 10-52, 12 speed
Chain
SRAM XX Eagle, T-Type
Rear derailleur
SRAM XX Eagle AXS, T-Type
Brakes
Brake rotor
SRAM HS2, 6-bolt, 180mm // SRAM 6-bolt, 200mm
Brake type
Hydraulic disc
Caliper
SRAM Maven Ultimate 4-piston hydraulic disc // SRAM Maven Ultimate 4-piston hydraulic disc

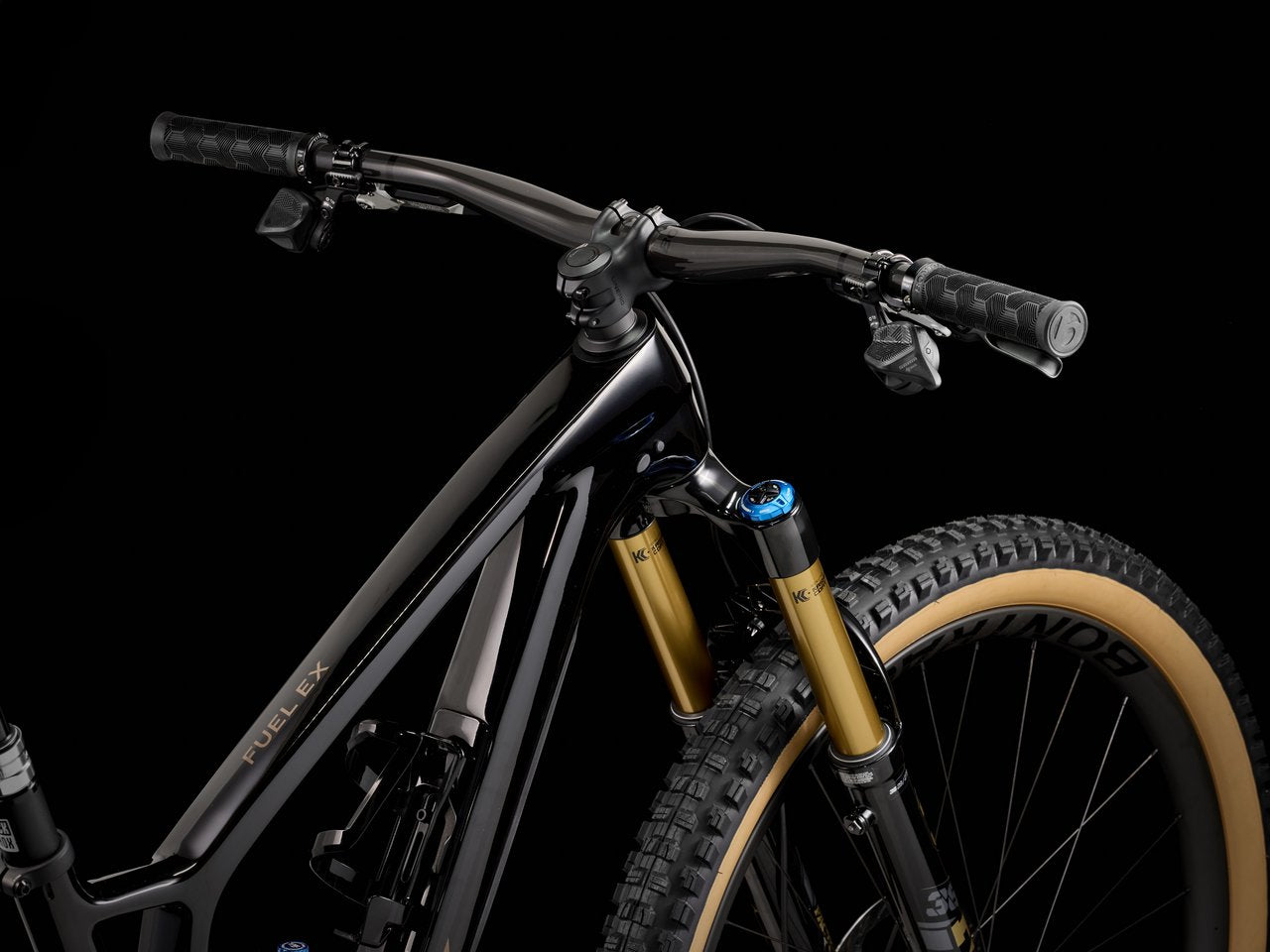

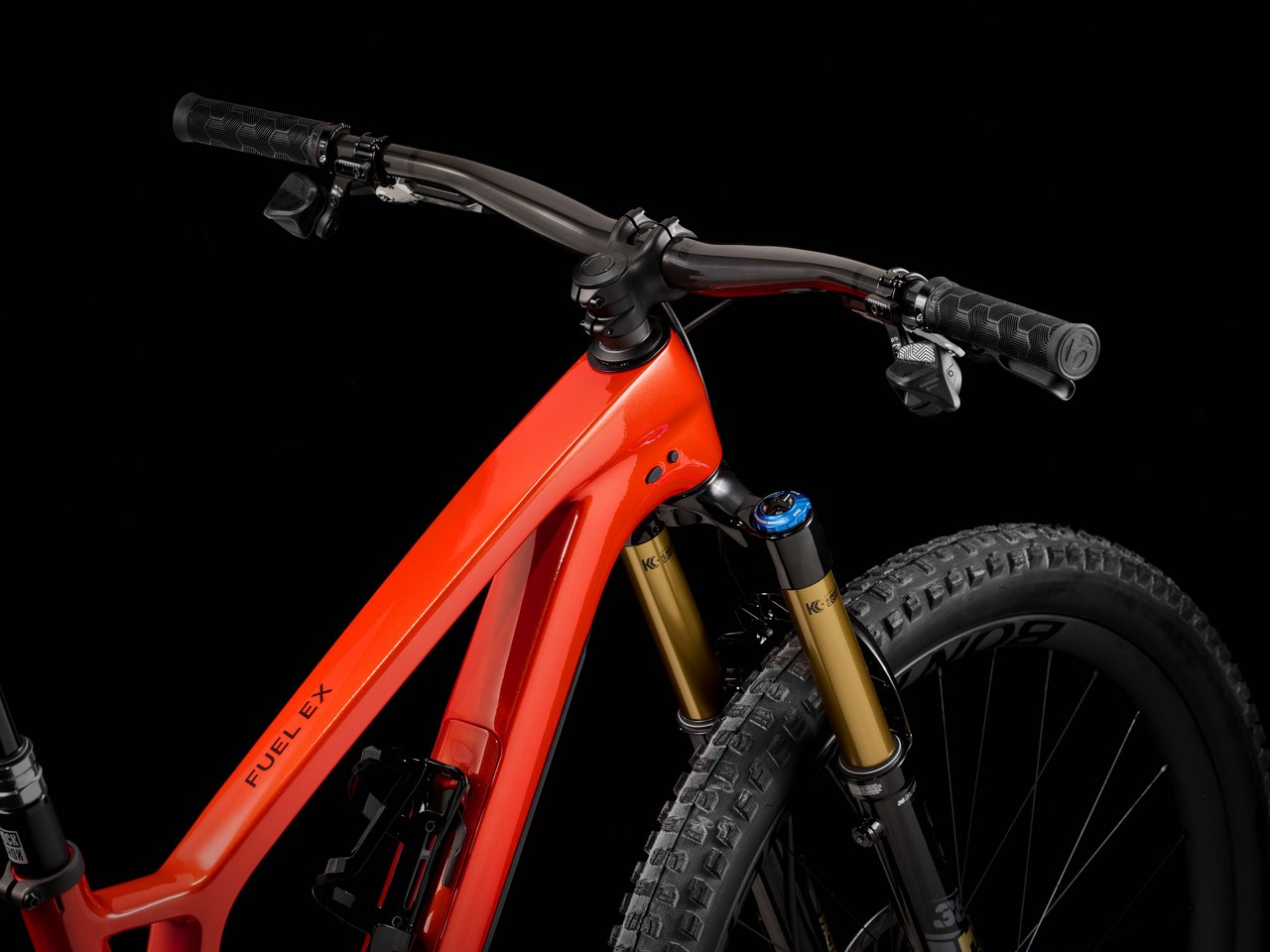

Cockpit
Grips tape
Bontrager XR Trail Elite, nylon lock-on
Handlebars
Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width
Saddle
Verse Short Pro, carbon rails, 145mm width
Seatpost
RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length
Stem
Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 35mm length
Wheels
Tires
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50" // Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Valves
Bontrager TLR sealant, 180 ml/6 oz
Wheel size
Size Specific

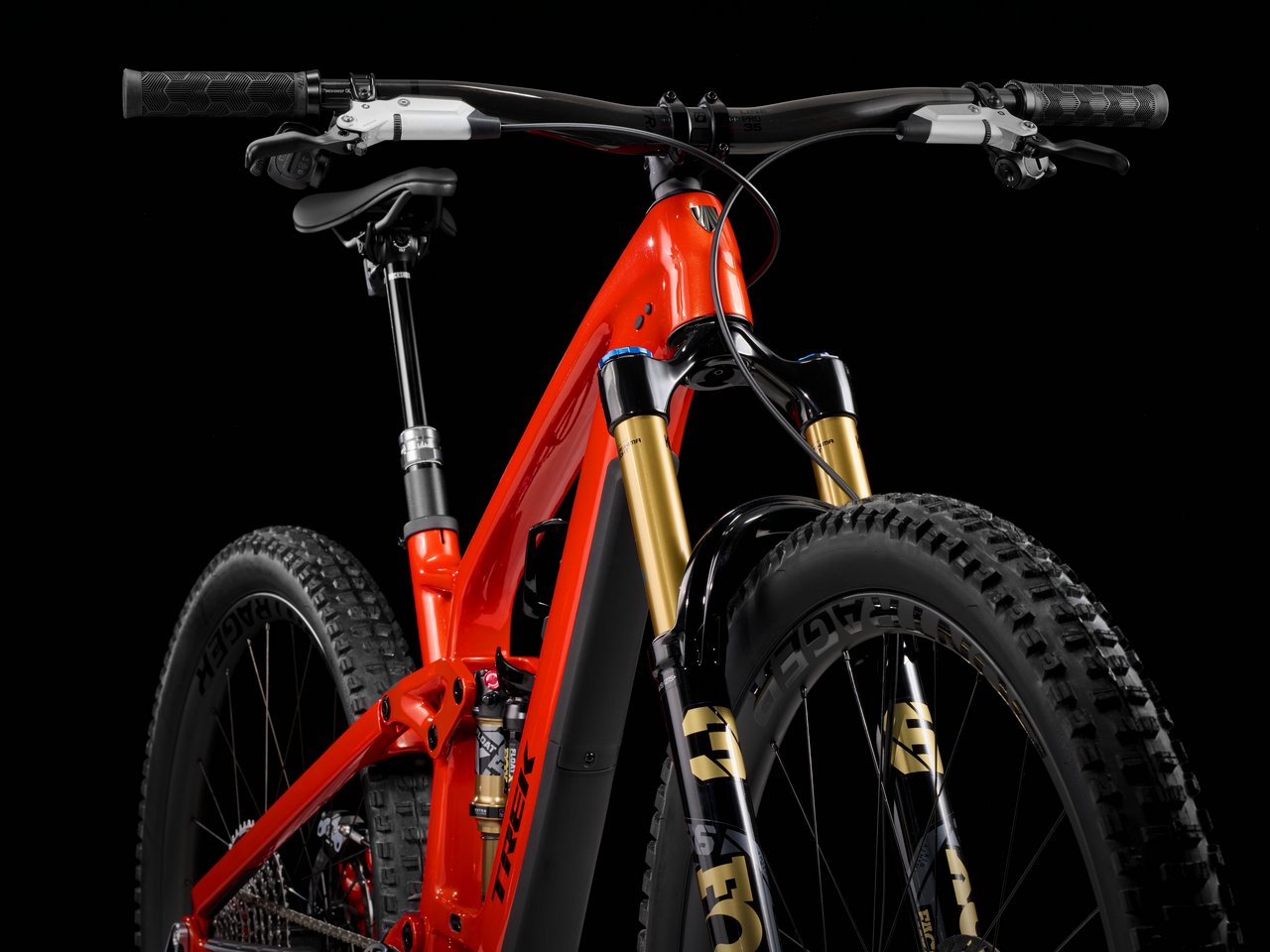

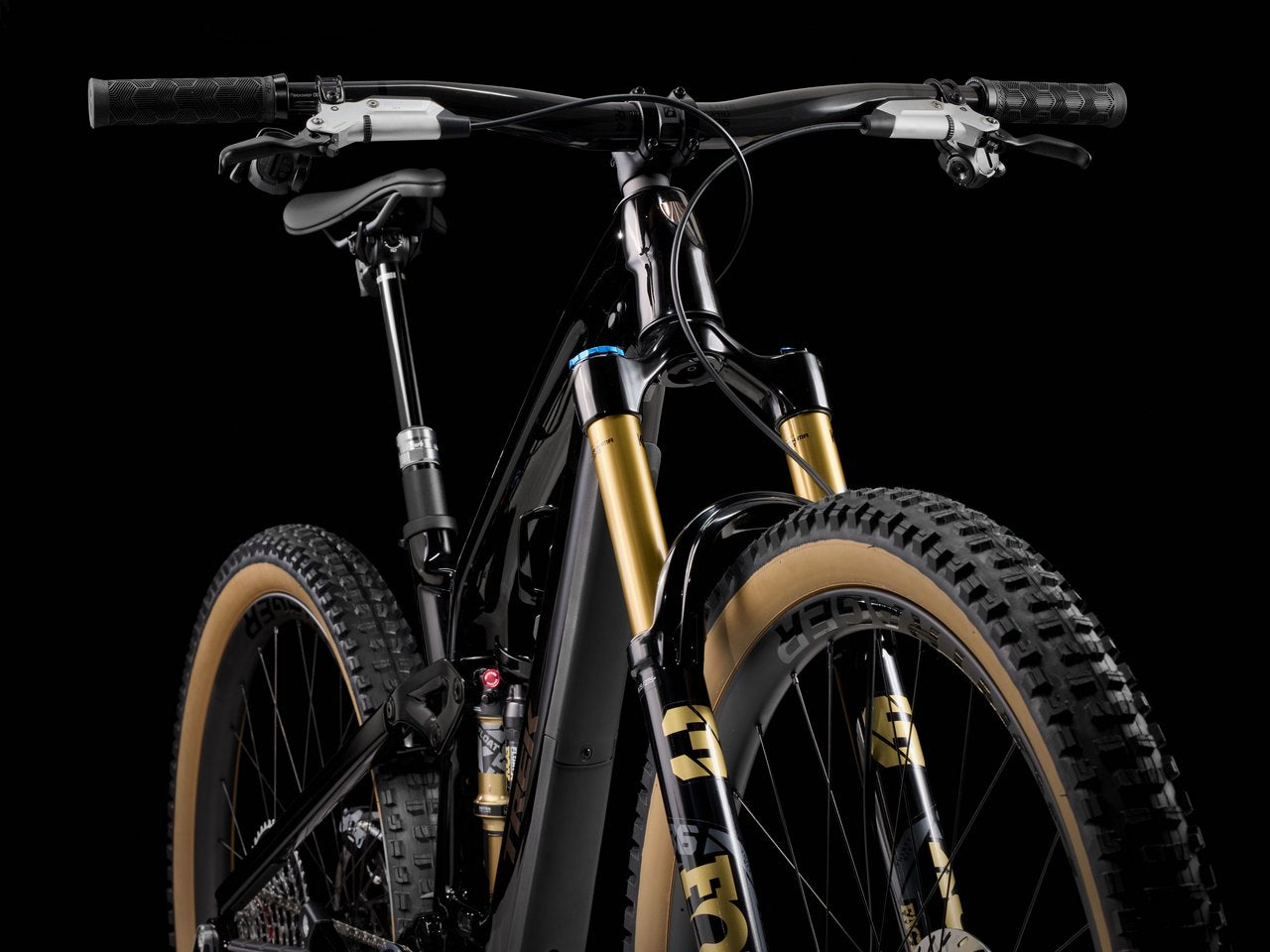

Suspension
Fork
Fox Factory 36, Float EVOL air spring, GRIP X2 damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 180mm direct mount brake tab, 150mm travel
Fork brand
Fox
Shock

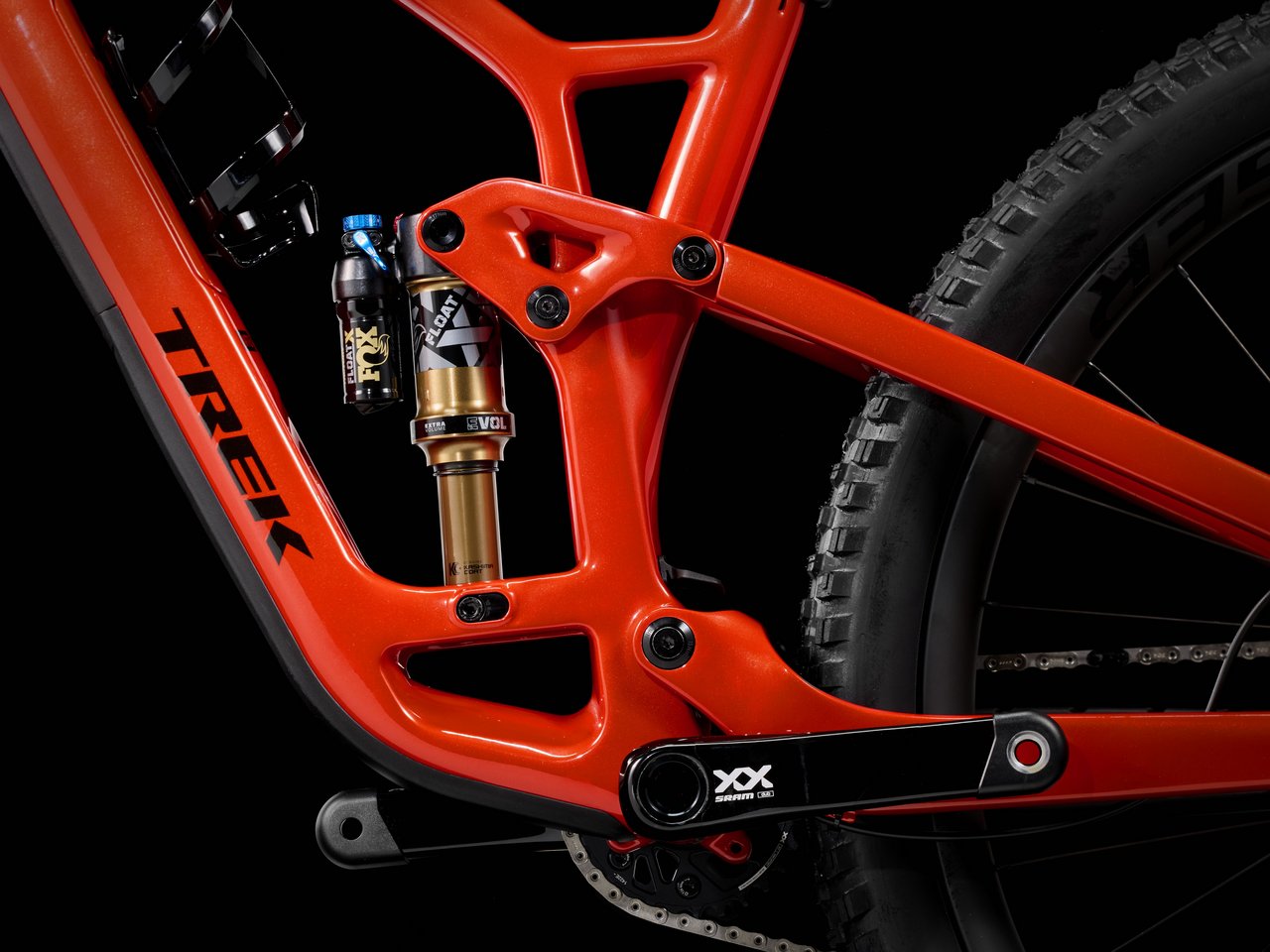

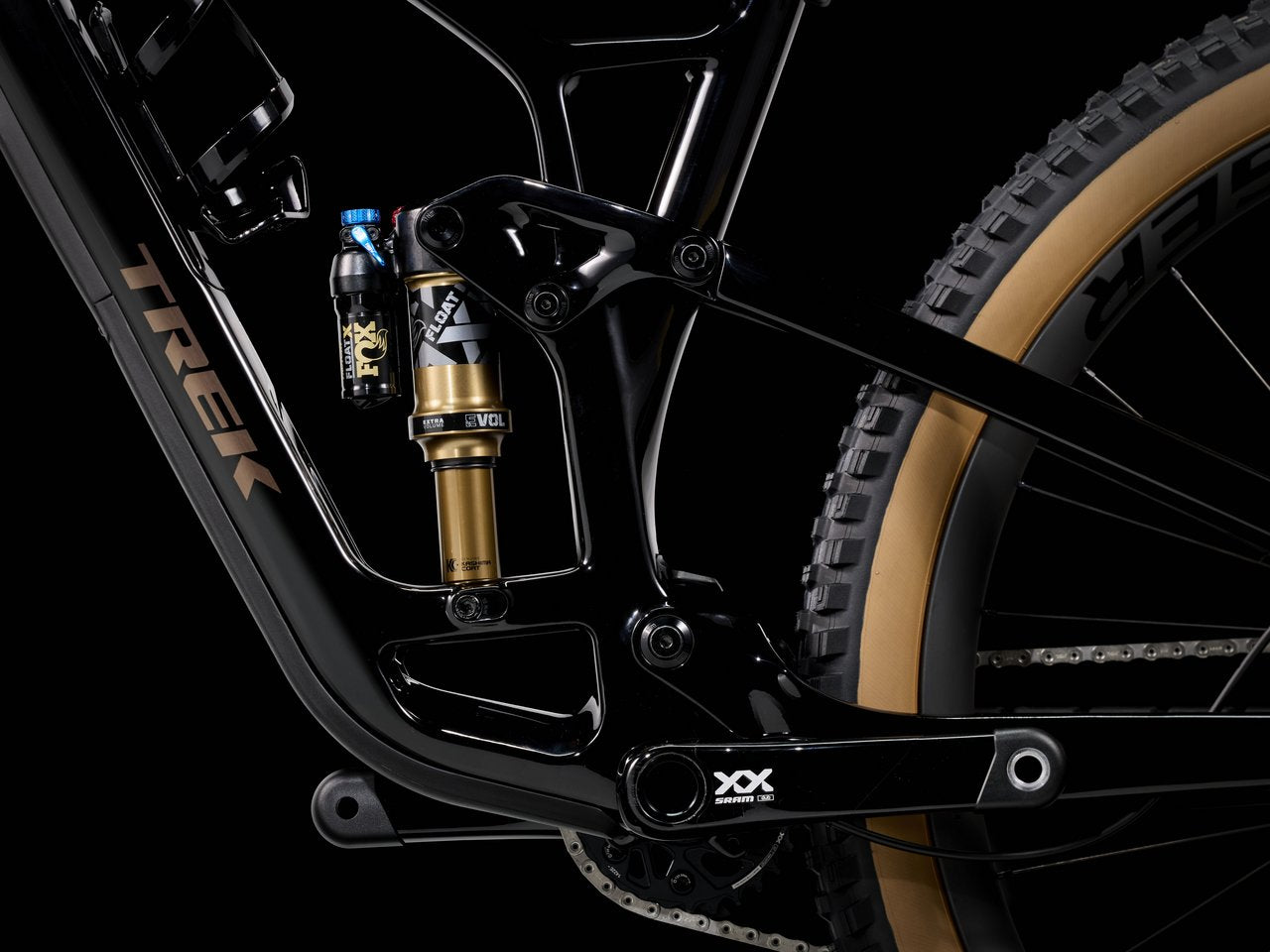

Fox Factory Float X, 2-position damper, 185mm x 55mm
Shock brand
Fox
Frame
Bottom bracket
SRAM DUB MTB Wide, 73mm, BSA threaded
Frame

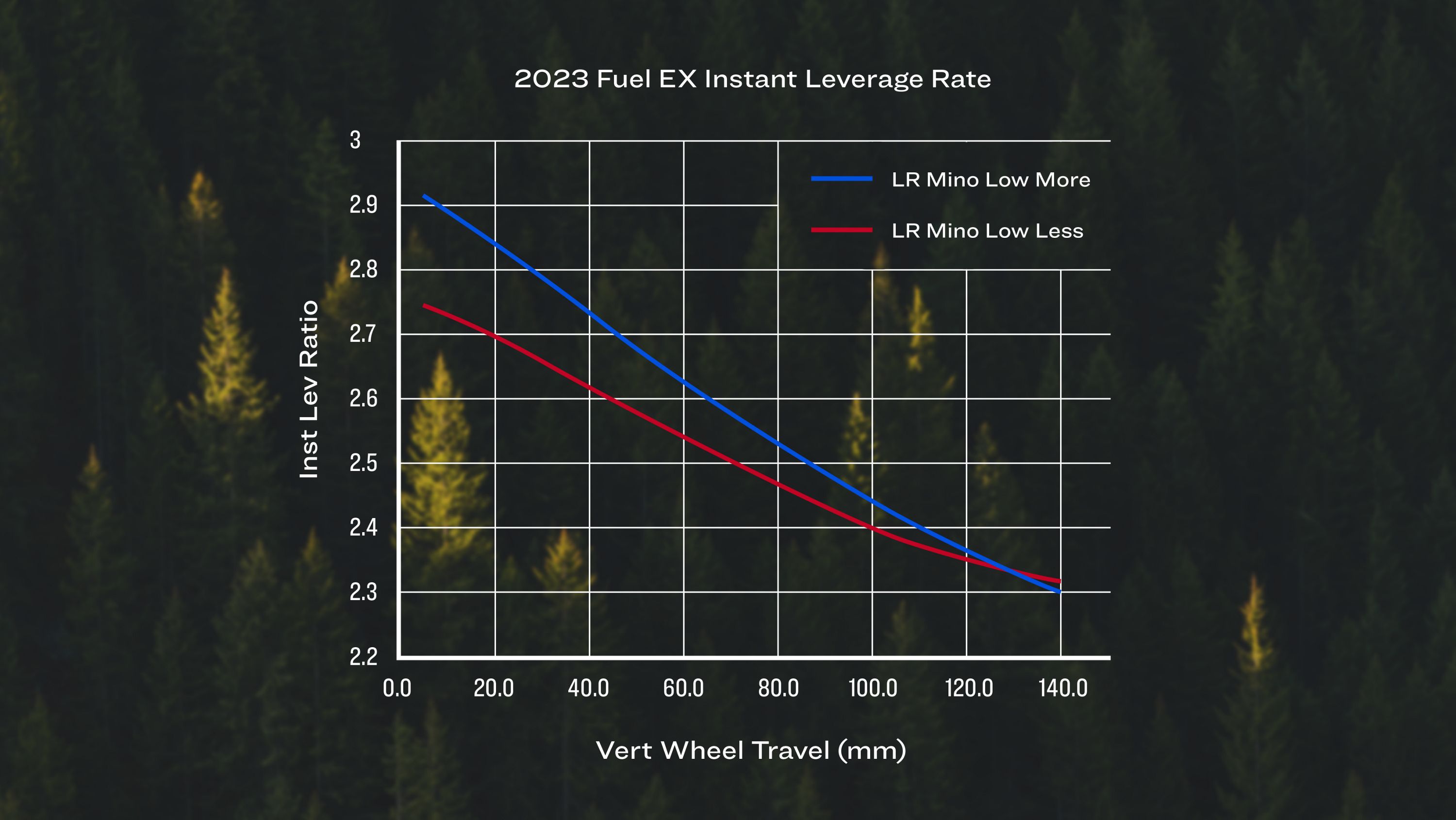

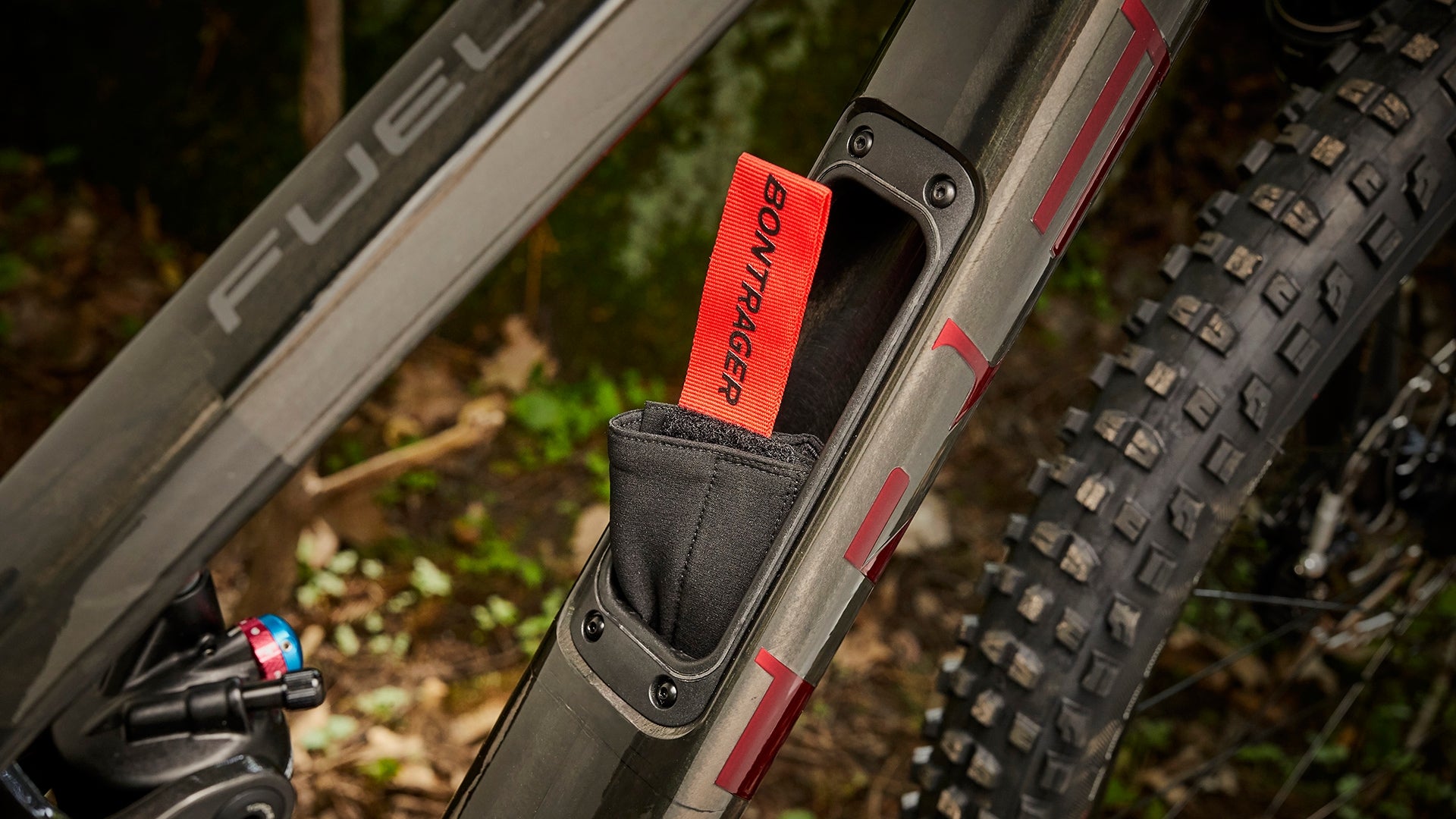

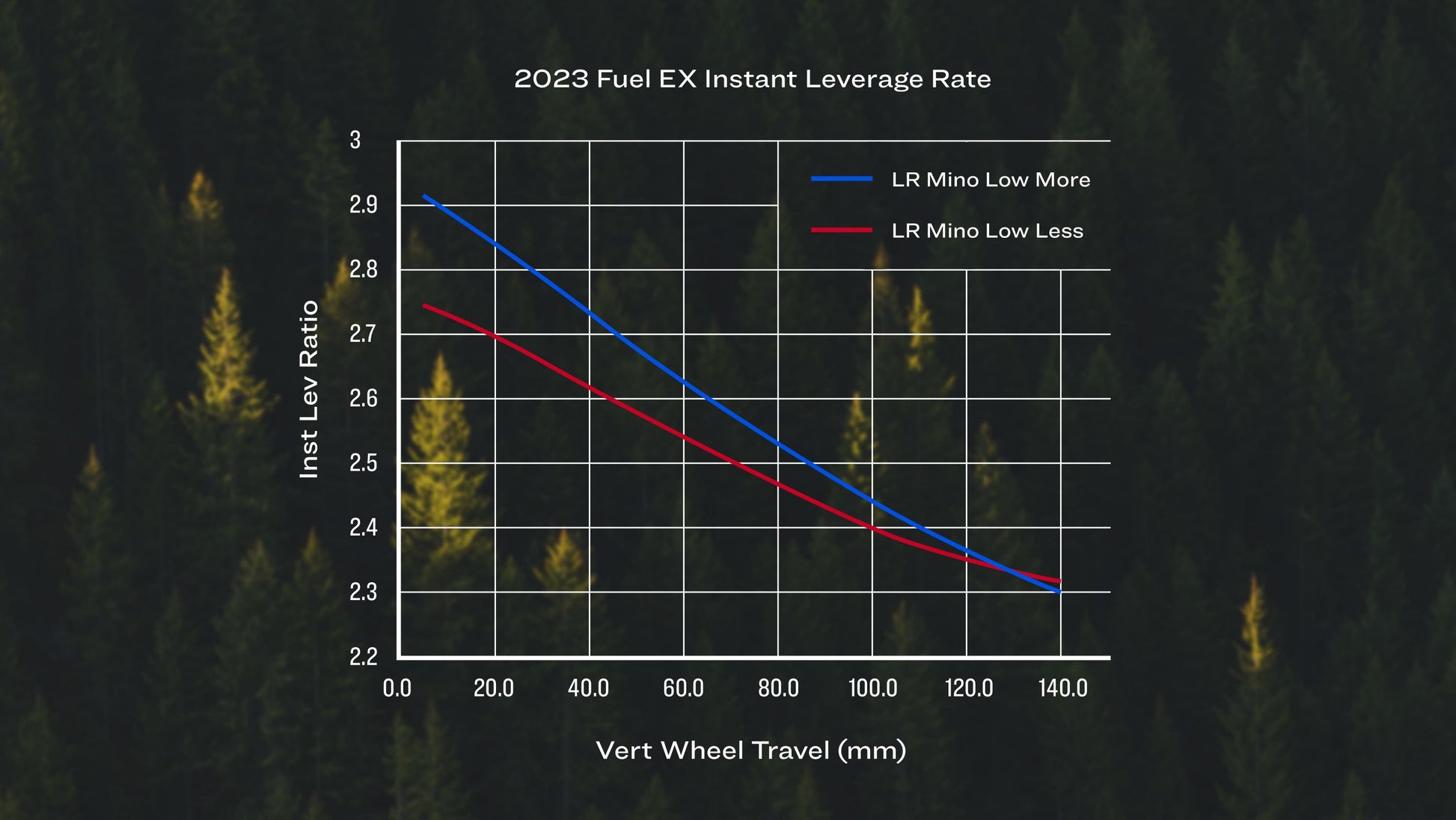

OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
Frame material
Carbon
Headset

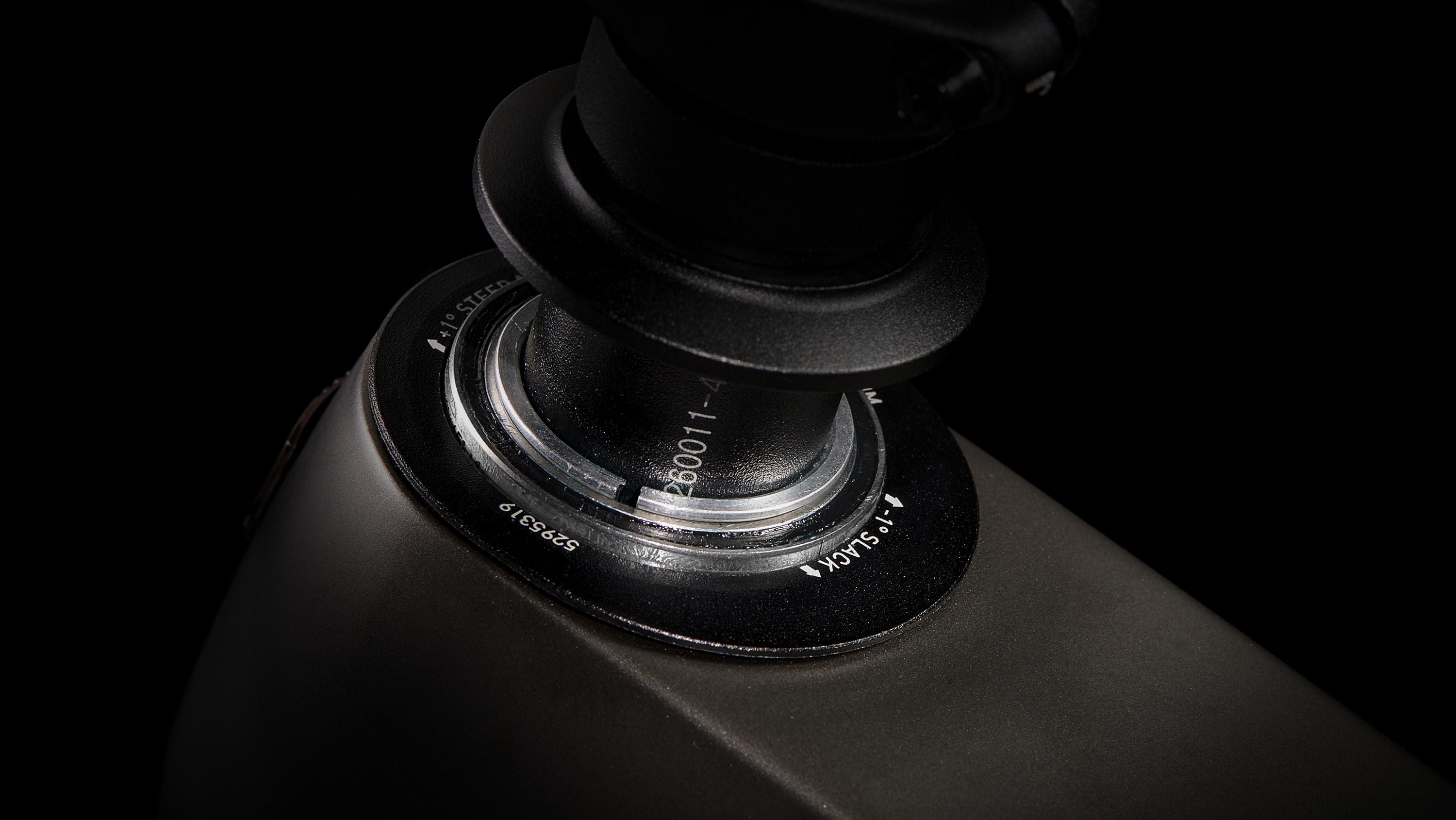

Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
Platform wheel size
27.5" - (XS-S) | 29" - (M-XXL)
Seatpost
RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length
Weight as spec d
M - 14.48 kg / 31.93 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
E-Bike System
Battery type
Li-Ion 300mAh 7.4 Volt
Share this product
Description
Description
Fuel EX 9.9 XX AXS is a performance-first trail bike built for riders who have an appreciation for the finest things in life. It combines a cream of the crop carbon frame with top-tier components, from the carbon fiber wheels all the way up to the 150mm Kashima-coated FOX Factory fork, and featherweight, fully wireless SRAM XX transmission. It's a bike that rules the mountain and doesn't hesitate to lay claim to its domain, ripping up rock gardens, blasting berms, and rocketing back to the top to conquer it all once again.
Geometry Chart
Geometry Chart
| Measurement | Small | Medium | Large | Medium / Large | X-Large | X-Small |
|---|---|---|---|---|---|---|
| Reach (mm) | 433 | 456 | 491 | 476 | 521 | 404 |
| Stack (mm) | 572 | 612 | 617 | 612 | 630 | 572 |
| Head Tube Angle (°) | 64.8° | 65.1° | 65.1° | 65.1° | 65.0° | 64.9° |
| Seat Tube Angle (°) | 71.1° | 71.4° | 71.4° | 71.4° | 71.3° | 71.2° |
| Wheelbase (mm) | 1174 | 1212 | 1249 | 1232 | 1286 | 1144 |
| Chainstay Length (mm) | 434 | 433 | 438 | 438 | 443 | 434 |
| Head Tube Length (mm) | 95 | 100 | 105 | 100 | 120 | 95 |
| Seat Tube Length (mm) | 380 | 410 | 435 | 420 | 470 | 360 |
| BB Drop (mm) | 21 | 31 | 31 | 31 | 30 | 21 |
| BB Height (mm) | 337 | 343 | 343 | 343 | 343 | 337 |
| Rake (mm) | 44 | 44 | 44 | 44 | 44 | 44 |
| Trail (mm) | 12 | 13 | 13 | 13 | 13 | 12 |
| Axle to Crown (mm) | 572 | 612 | 617 | 612 | 630 | 572 |
Part Numbers
Part Numbers
| Size | Deep Smoke | Lava | Deep Smoke/Purple Flip | Lavender Haze |
|---|---|---|---|---|
| Small |
SKUTRE386900376
VPNTrek_5330192
UPC197216116981
MPN5330192
|
SKUTRE339963276
VPNTrek_5330198
UPC197216117049
MPN5330198
|
SKUTRE48309746
VPNTrek_5323906
UPC197216116622
MPN5323906
|
SKUTRE417557516
VPNTrek_5330109
UPC197216116806
MPN5330109
|
| Medium |
SKUTRE375048866
VPNTrek_5330193
UPC197216116998
MPN5330193
|
SKUTRE324420826
VPNTrek_5330199
UPC197216117056
MPN5330199
|
SKUTRE471349026
VPNTrek_5323907
UPC197216116639
MPN5323907
|
SKUTRE407329196
VPNTrek_5330110
UPC197216116813
MPN5330110
|
| Large |
SKUTRE373999486
VPNTrek_5330195
UPC197216117018
MPN5330195
|
SKUTRE327999696
VPNTrek_5330201
UPC197216117070
MPN5330201
|
SKUTRE472571756
VPNTrek_5323909
UPC197216116653
MPN5323909
|
SKUTRE401519076
VPNTrek_5330112
UPC197216116837
MPN5330112
|
| Medium/Large |
SKUTRE384532906
VPNTrek_5330194
UPC197216117001
MPN5330194
|
SKUTRE339601496
VPNTrek_5330200
UPC197216117063
MPN5330200
|
SKUTRE487927876
VPNTrek_5323908
UPC197216116646
MPN5323908
|
SKUTRE411783326
VPNTrek_5330111
UPC197216116820
MPN5330111
|
| X-Large |
SKUTRE387094556
VPNTrek_5330196
UPC197216117025
MPN5330196
|
SKUTRE33225806
VPNTrek_5330202
UPC197216117087
MPN5330202
|
SKUTRE485093986
VPNTrek_5323910
UPC197216116660
MPN5323910
|
SKUTRE412711936
VPNTrek_5330113
UPC197216116844
MPN5330113
|
| X-Small |
SKUTRE395262136
VPNTrek_5330191
UPC197216116974
MPN5330191
|
SKUTRE348126156
VPNTrek_5330197
UPC197216117032
MPN5330197
|
SKUTRE493395226
VPNTrek_5323905
UPC197216116615
MPN5323905
|
SKUTRE424389186
VPNTrek_5330108
UPC197216116790
MPN5330108
|
Size Chart
Size Chart
Trek | Mountain
| Size | Rider height (in) | Rider height (cm) | Inseam (in) | Inseam (cm) |
|---|---|---|---|---|
| X-Small | 4'9" - 5'1" | 145 - 155 cm | 27" - 29" | 69 - 73 cm |
| Small | 5'1" - 5'5" | 155 - 165 cm | 29" - 31" | 74 - 78 cm |
| Medium | 5'5" - 5'10" | 165 - 177 cm | 31" - 33" | 79 - 83 cm |
| Medium/Large | 5'8" - 5'11" | 173 - 180 cm | 32" - 34" | 81 - 86 cm |
| Large | 5'10" - 6'2" | 177 - 188 cm | 33" - 35" | 84 - 89 cm |
| X-Large | 6'2" - 6'5" | 188 - 195 cm | 35" - 36" | 89 - 91 cm |
| XX-Large | 6'5" - 6'8" | 195 - 203 cm | 36" - 38" | 91 - 97 cm |
