Save 24%
Trek
2025 | Fuel EXe 8 XT
2025 | Fuel EXe 8 XT
Regular price
$6,499.97
Sale price
$6,499.97
Regular price
$8,649.99
Shipping calculated at checkout.
SKU:FUE26276906Y
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.
Canadian shipping charges:
- Sale bikes: $200
- Standard pedal bikes: $100
- Electric bikes: $200
- Fat bikes: $200
- Kid's bikes: $60
Insurance charge: 1.5% insured value
Visit our shipping page for more details
Bike Specifications
Bike Specifications
Specifications are subject to change without notice
Drivetrain
Cassette
Shimano XT M8100, 10-51, 12 speed
Chain
Shimano Ultegra/XT M8100, 12 speed
Chainring
E*thirteen E*spec, 32T alloy ring, 55mm chainline
Rear derailleur
Shimano XT M8100, long cage
Shifter
Shimano XT M8100, 12 speed
Brakes

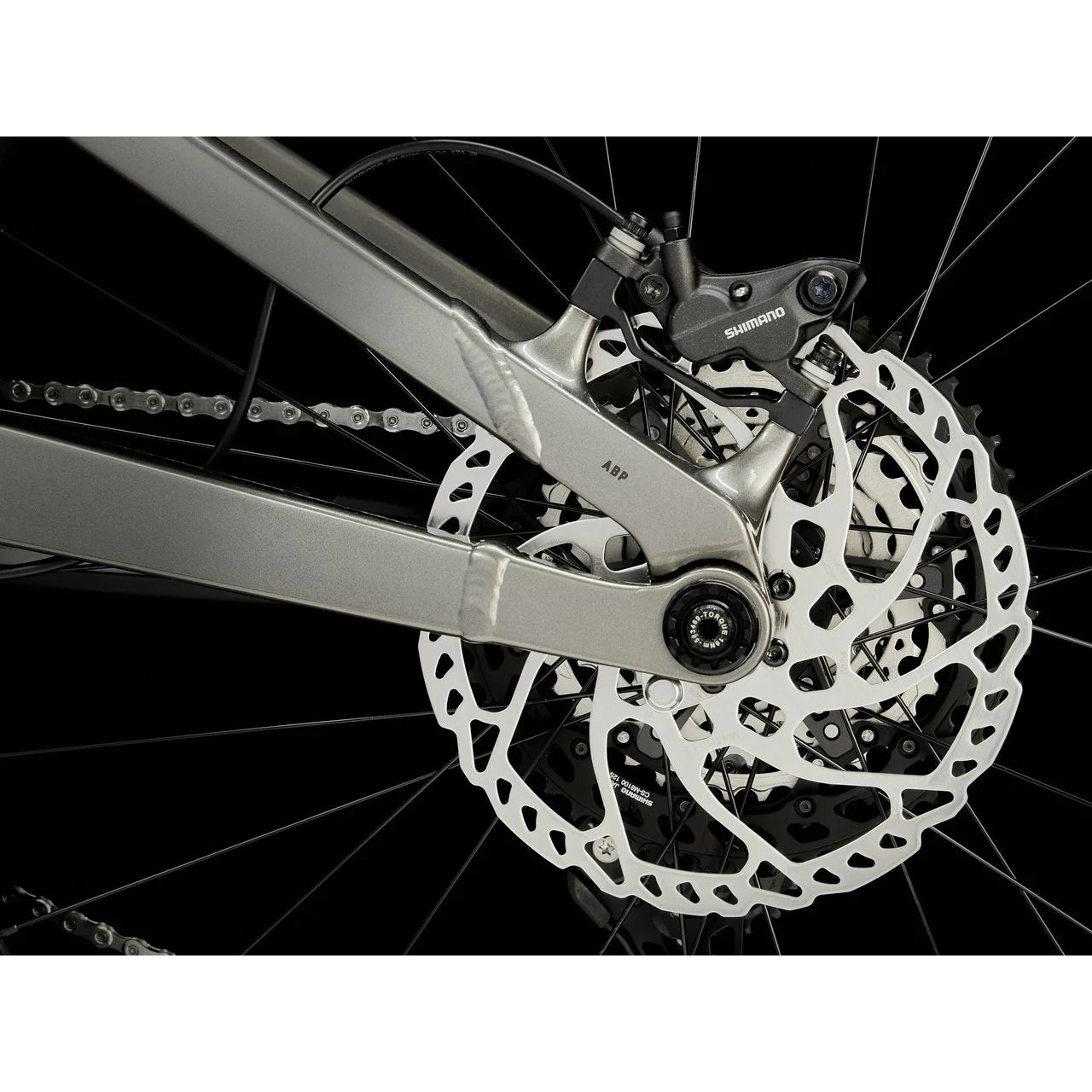

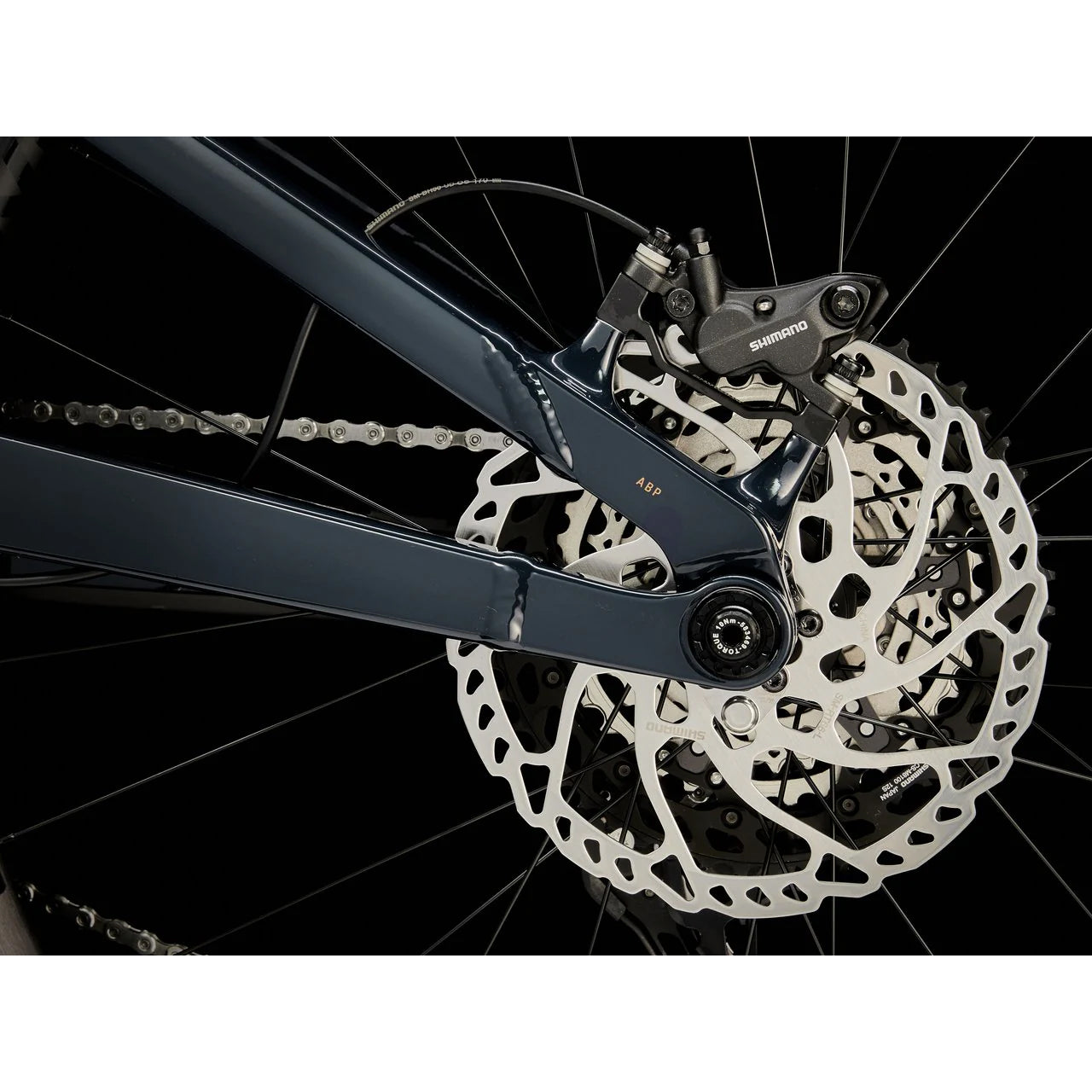

Brake rotor
Shimano RT66, 6-bolt, 203mm
Brake type
Hydraulic disc
Caliper
Shimano M6120 4-piston hydraulic disc // Shimano M6120 4-piston hydraulic disc
Cockpit
Grips tape
Bontrager XR Trail Elite, nylon lock-on
Handlebars
Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width
Saddle
Bontrager Arvada, hollow chromoly rails, 138 mm width
Seatpost
Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 4500mm length
Stem
Bontrager Elite, 35mm, 0 degree, 45mm length
Wheels
Tires
Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50'
Valves
Bontrager TLR sealant, 180 ml/6 oz
Wheel size
29"
Suspension
Fork
Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel
Fork brand
Fox

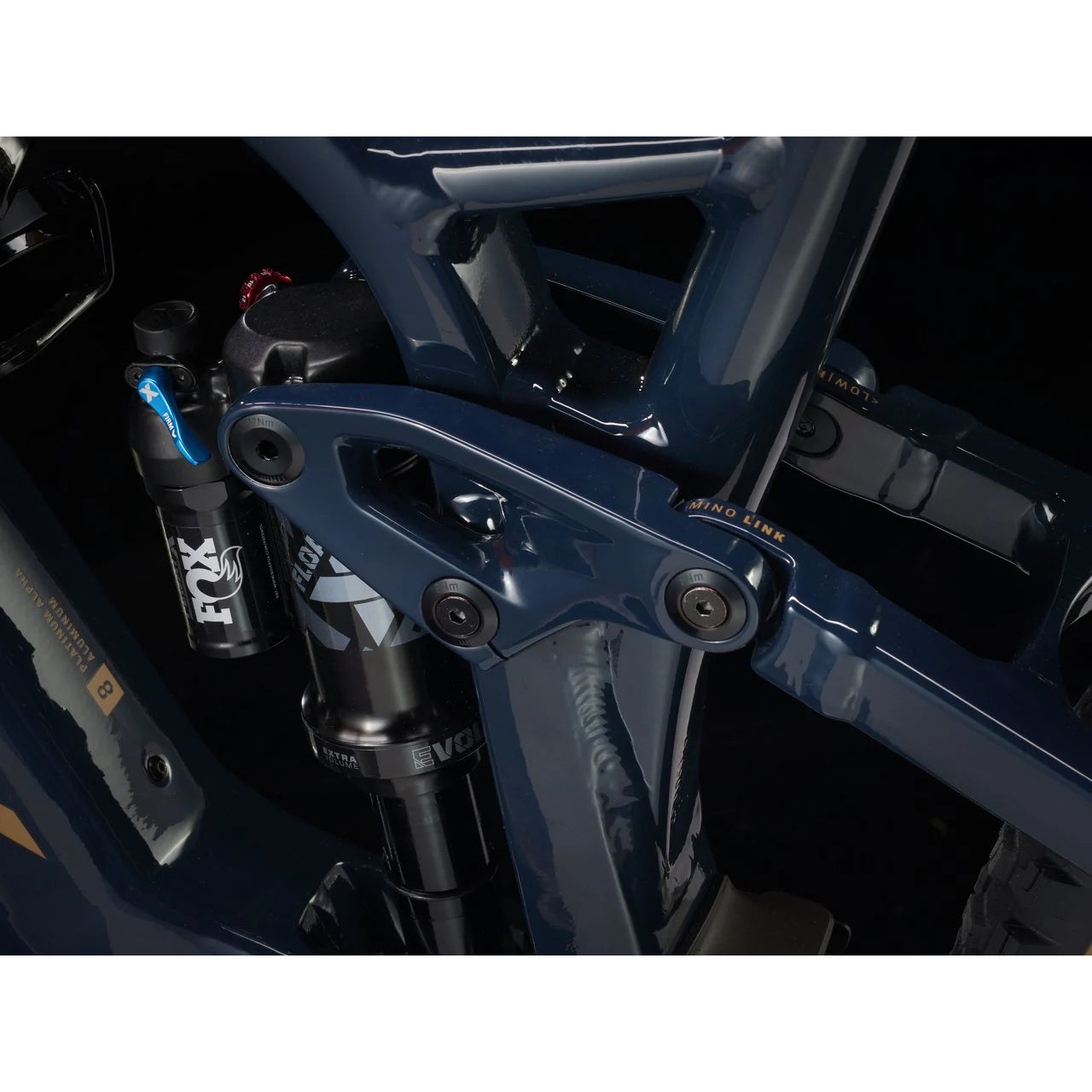

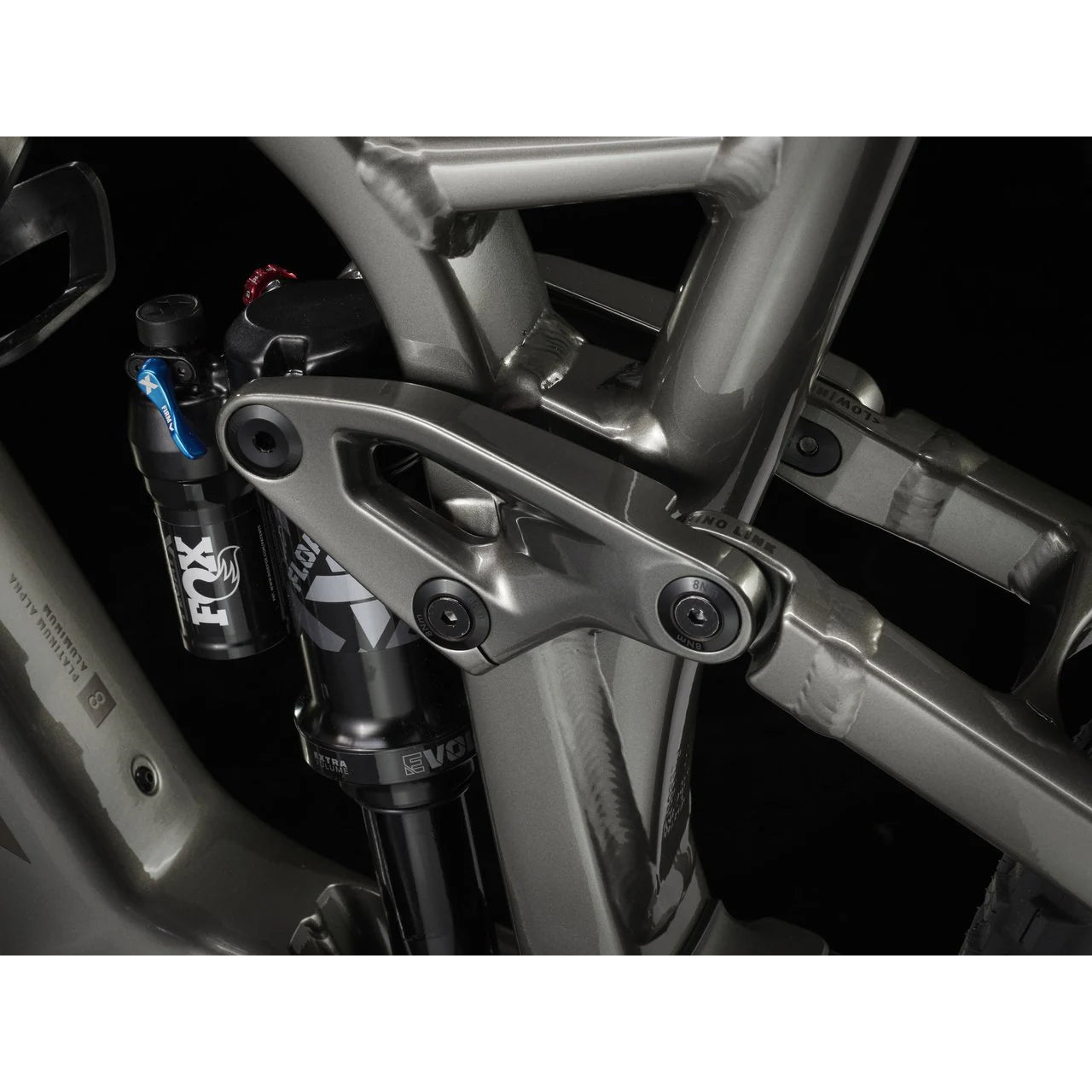

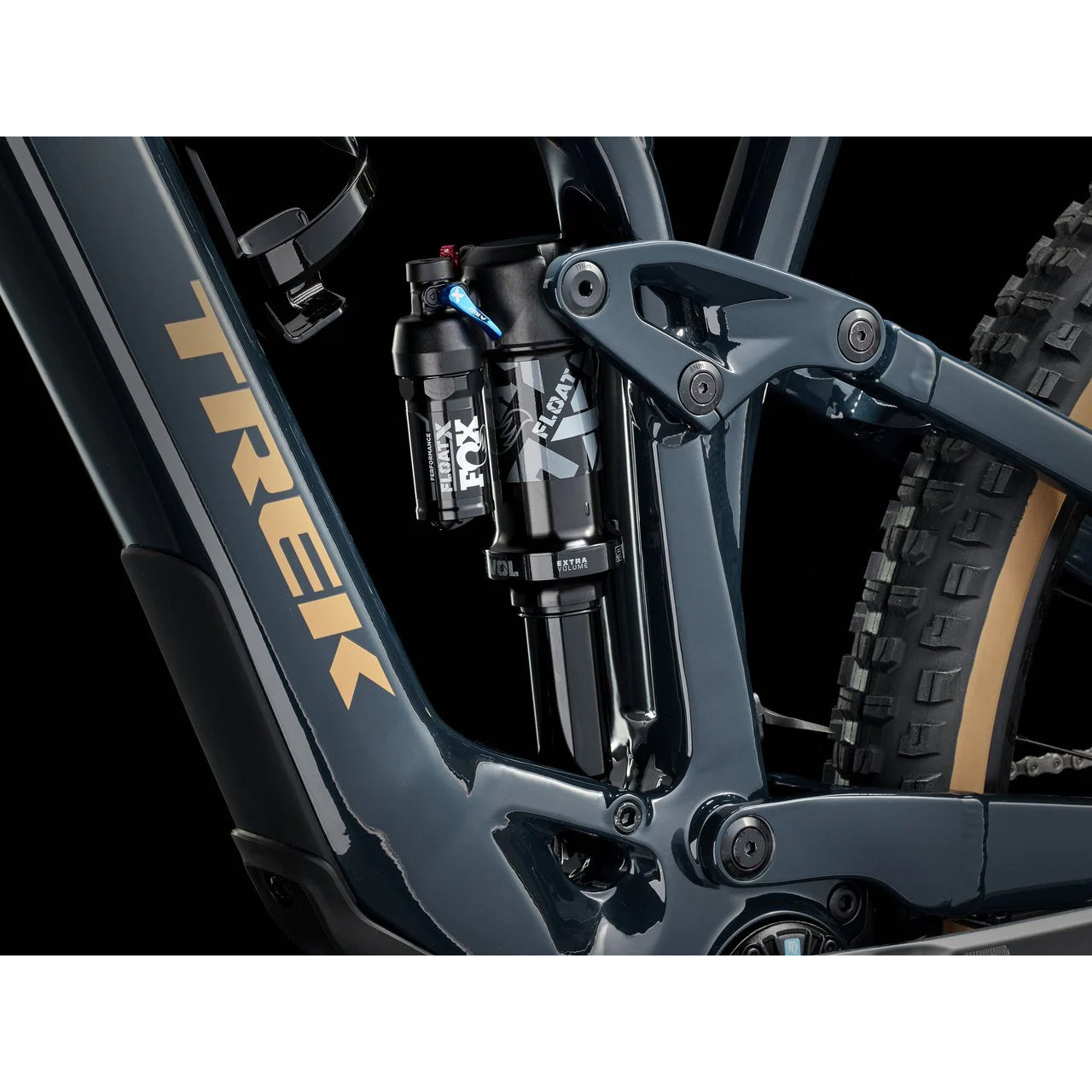

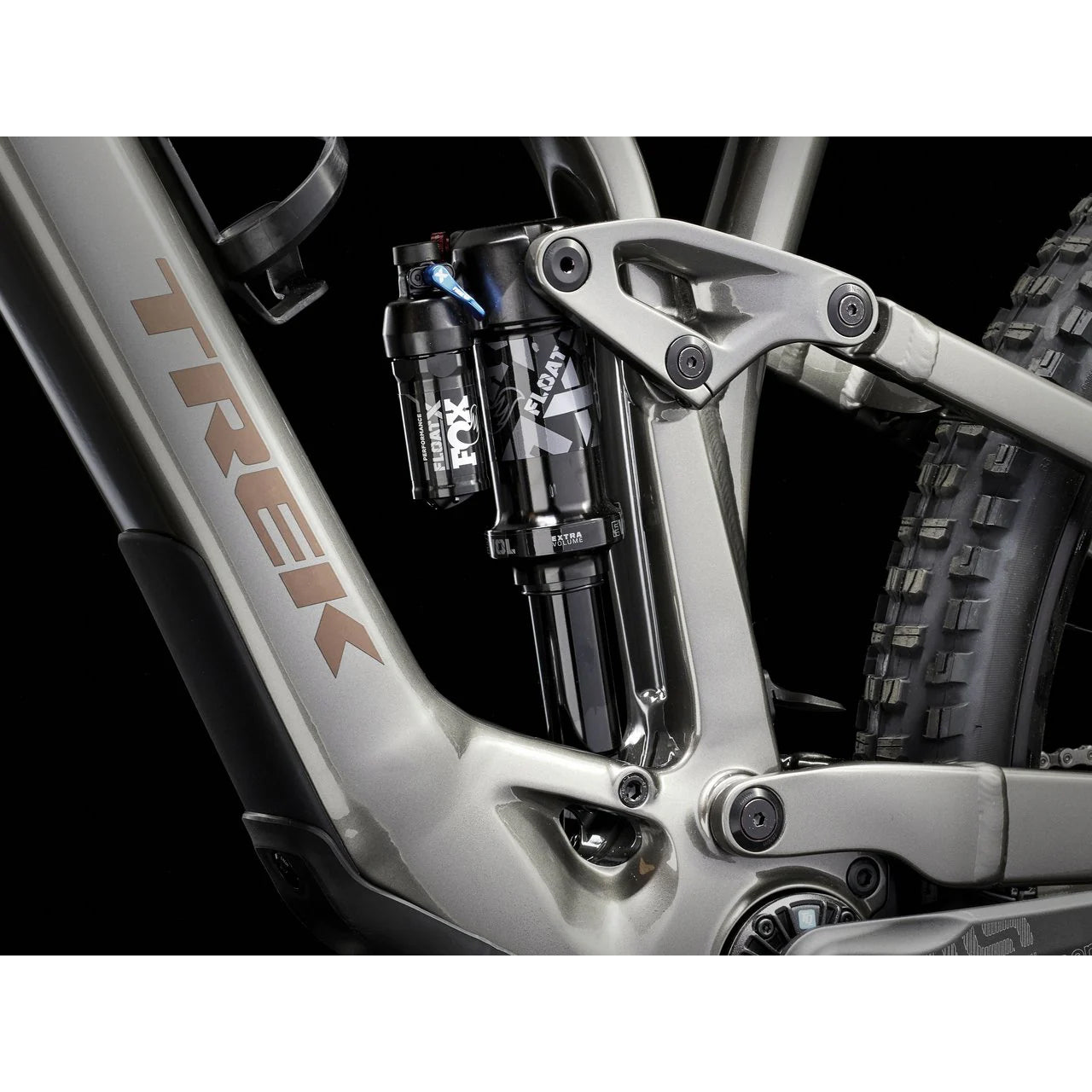

Shock
Fox Performance Float X, 2-position damper, 205mm x 60mm
Shock brand
Fox
Frame
Frame

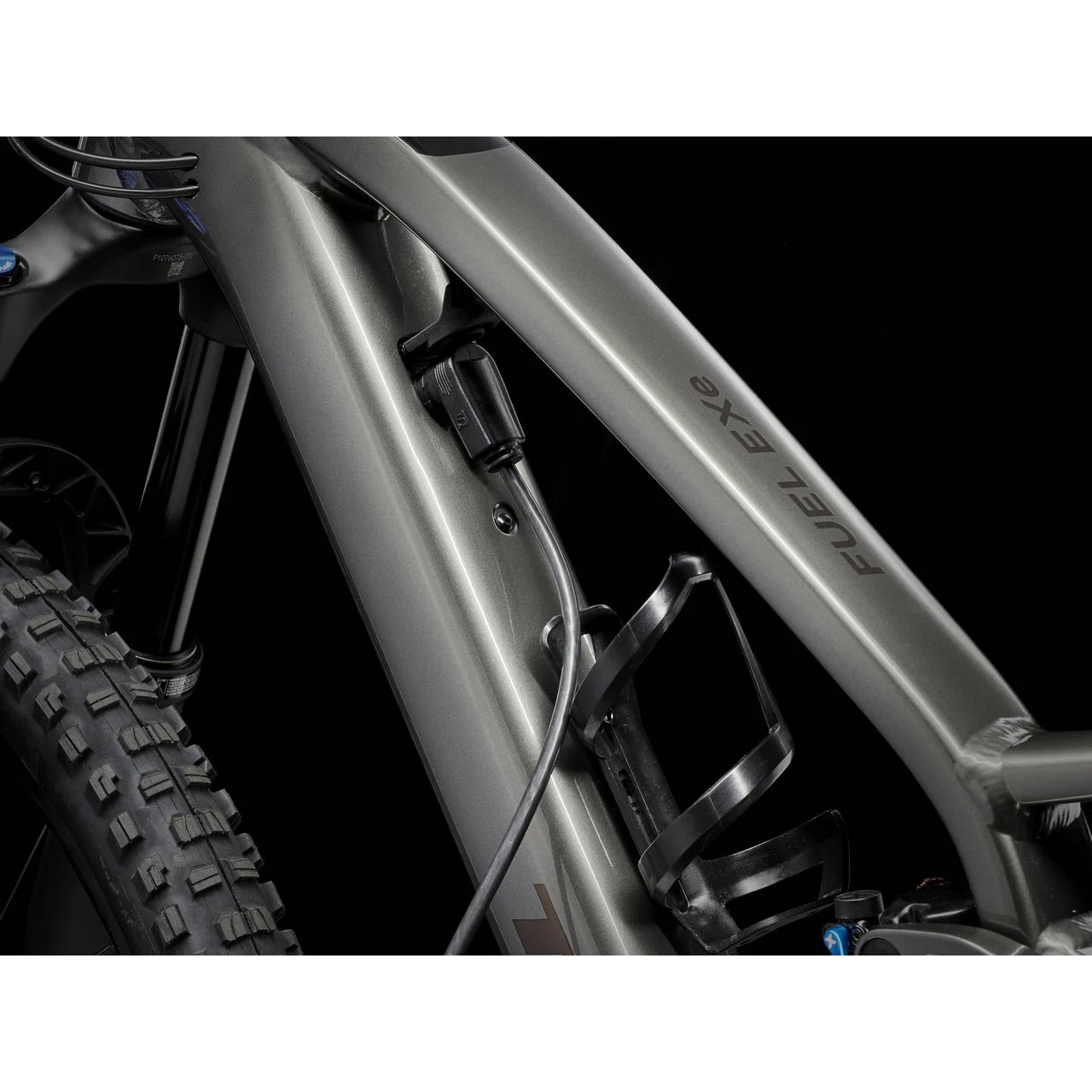

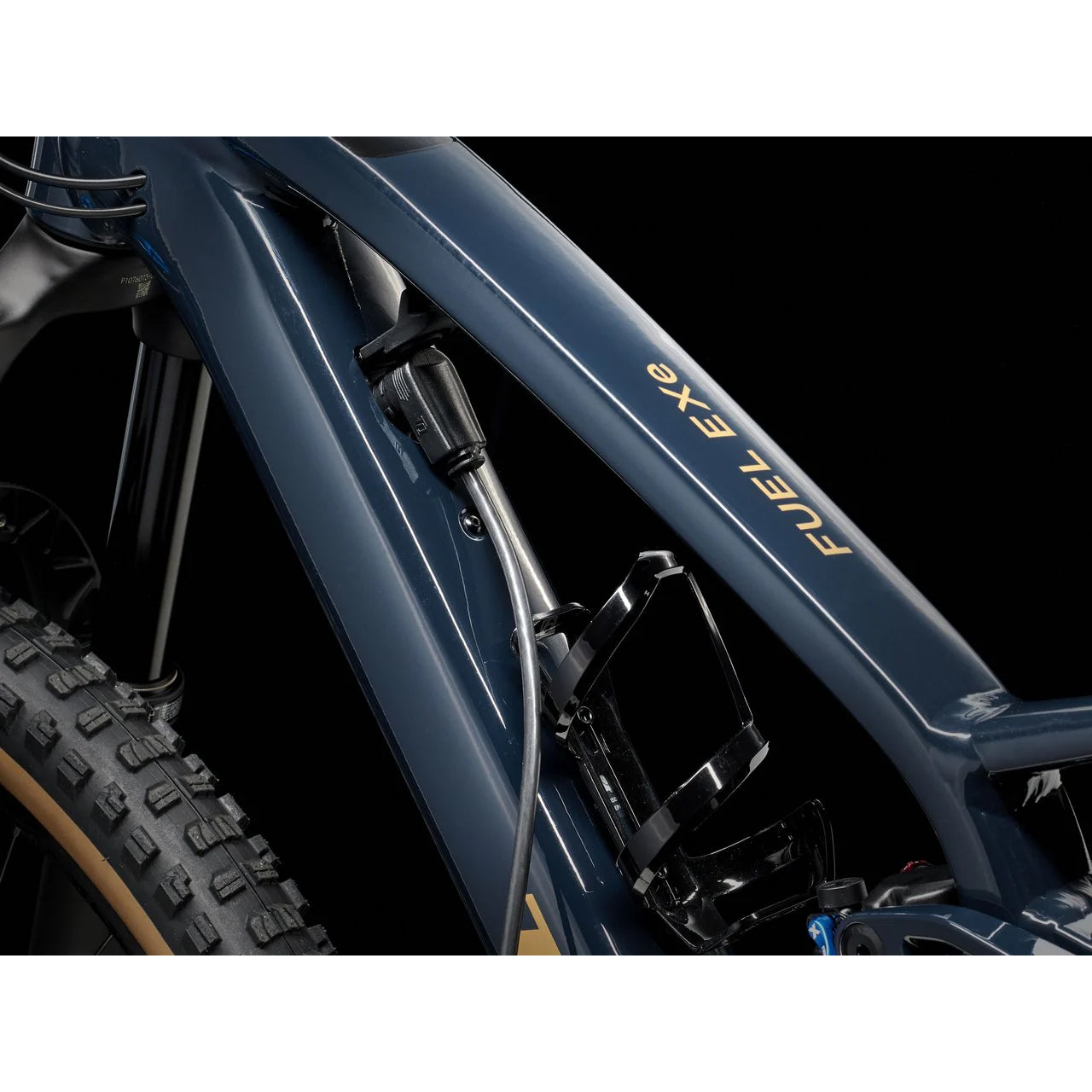

Alpha Platinum Aluminum, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
Frame material
Aluminum
Headset
Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
Platform wheel size
29"
Seatpost
Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 4500mm length
Weight as spec d
M - 20.28 kg / 44.71 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
E-Bike System
Battery
TQ 360Wh
Battery type
360WH

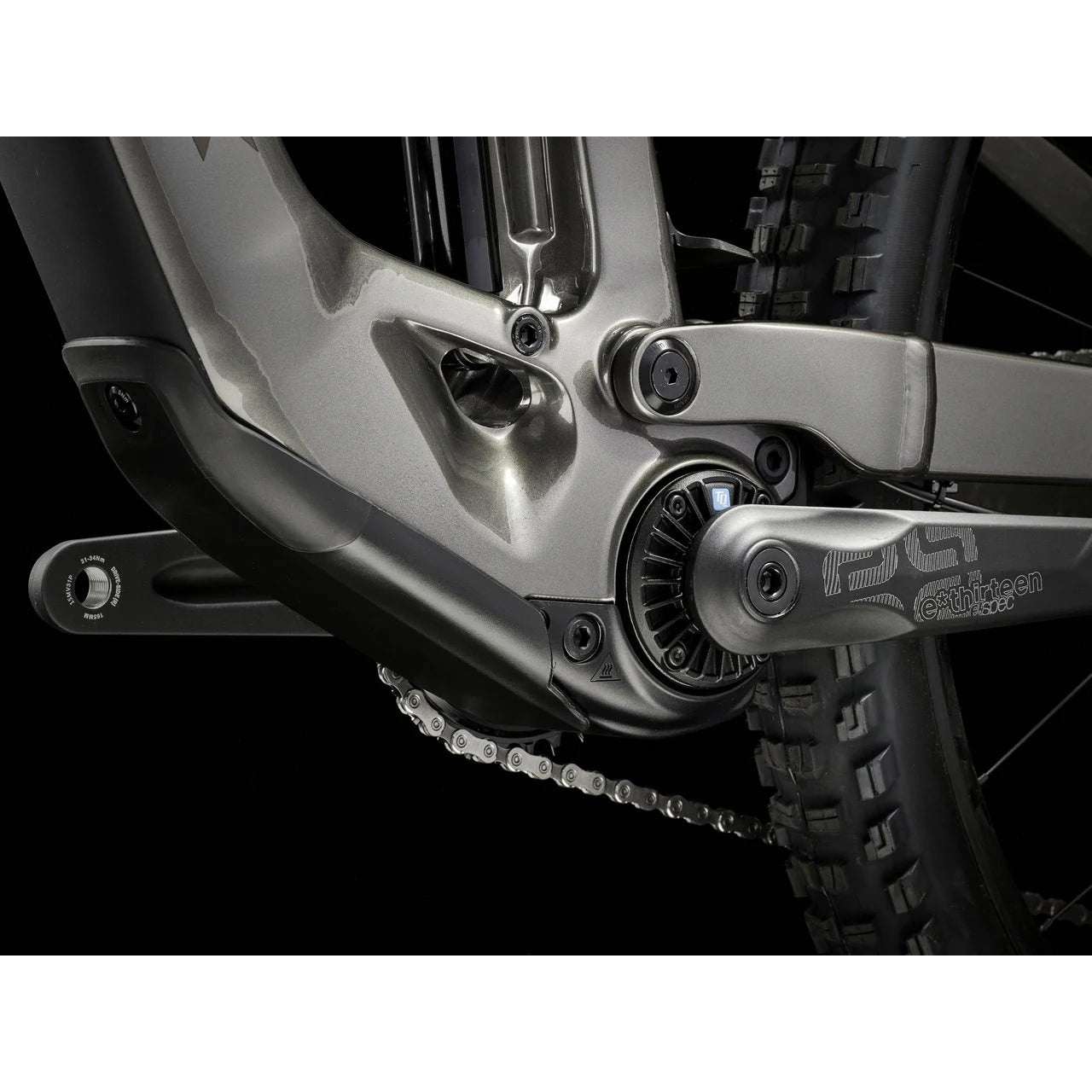

Motor

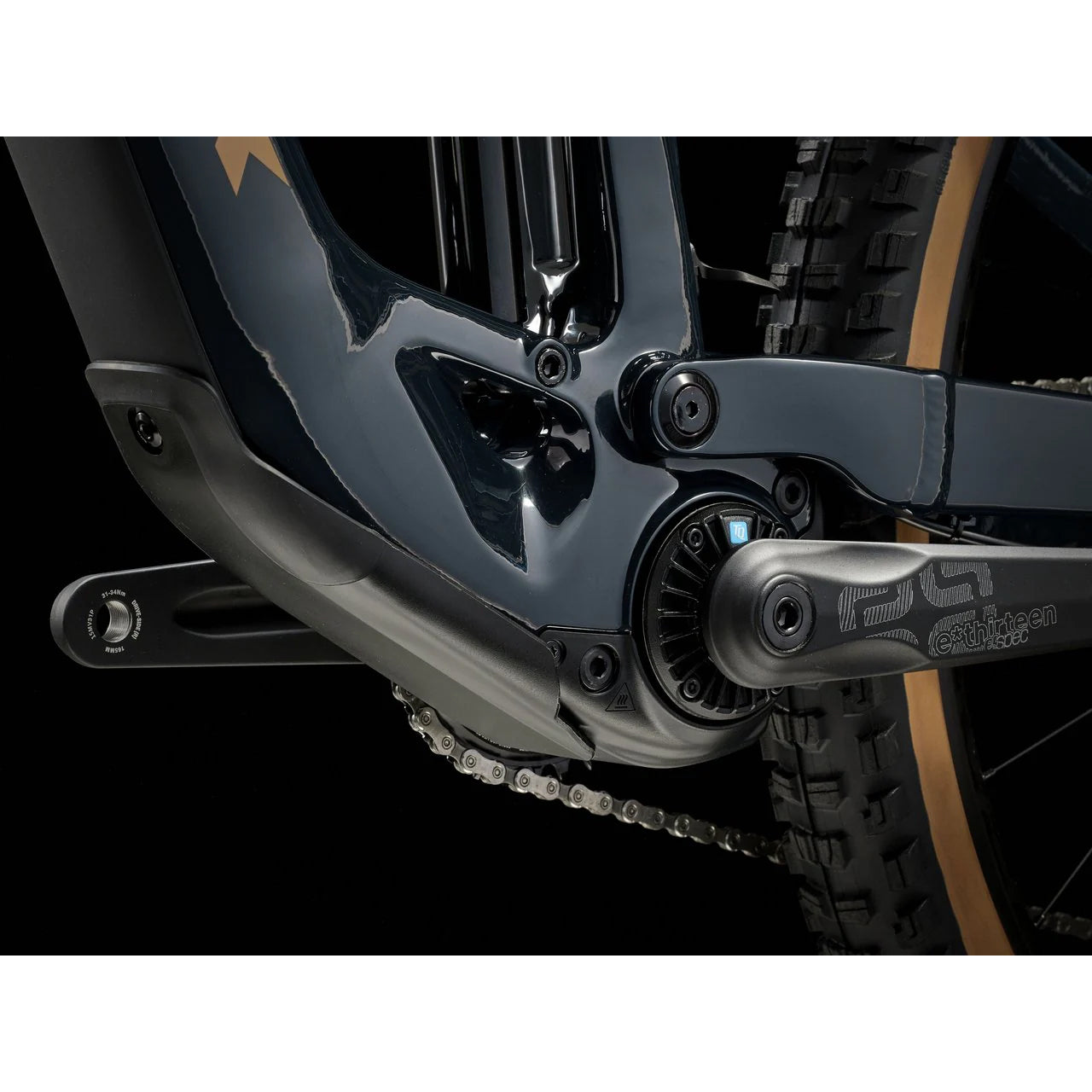

TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Share this product
Description
Description

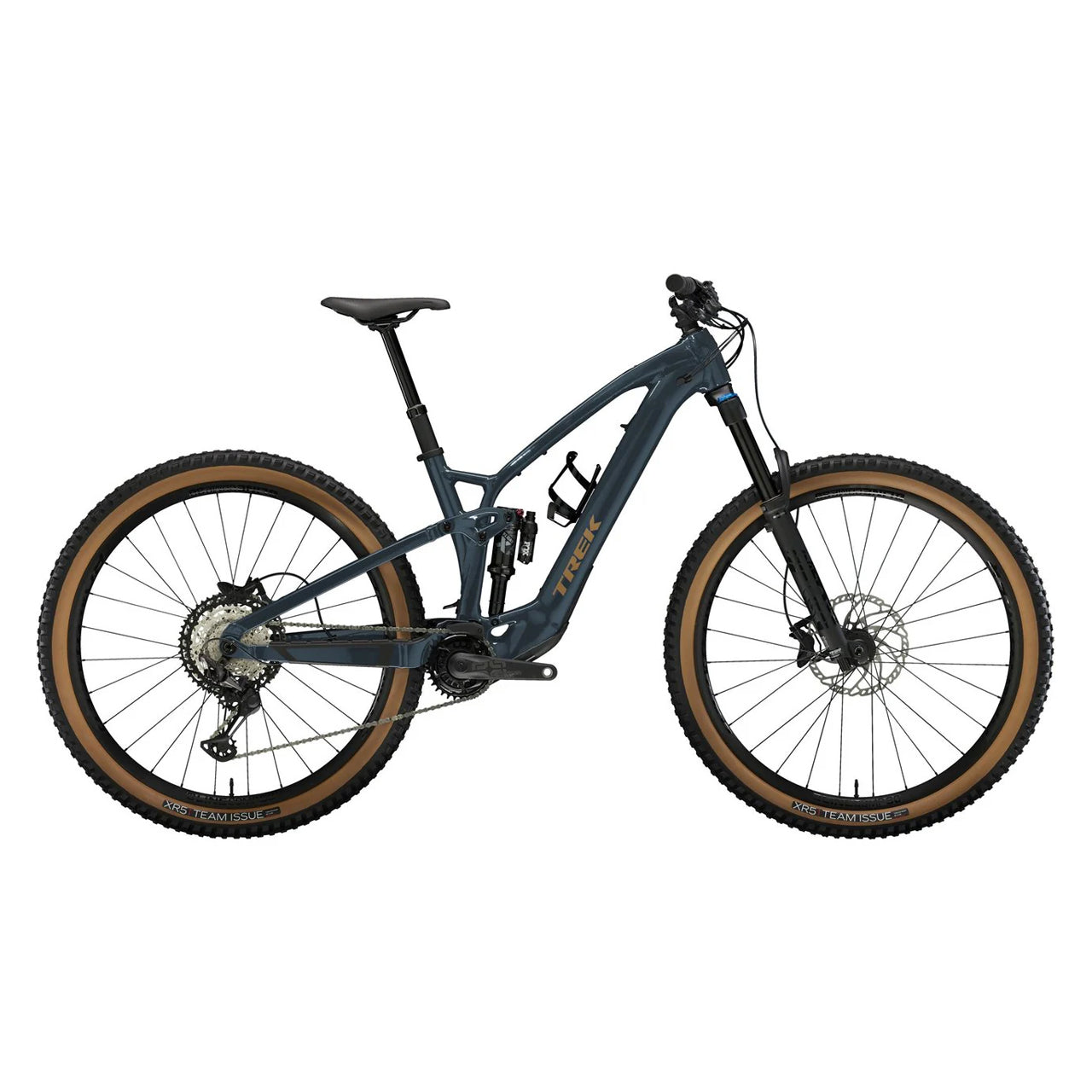

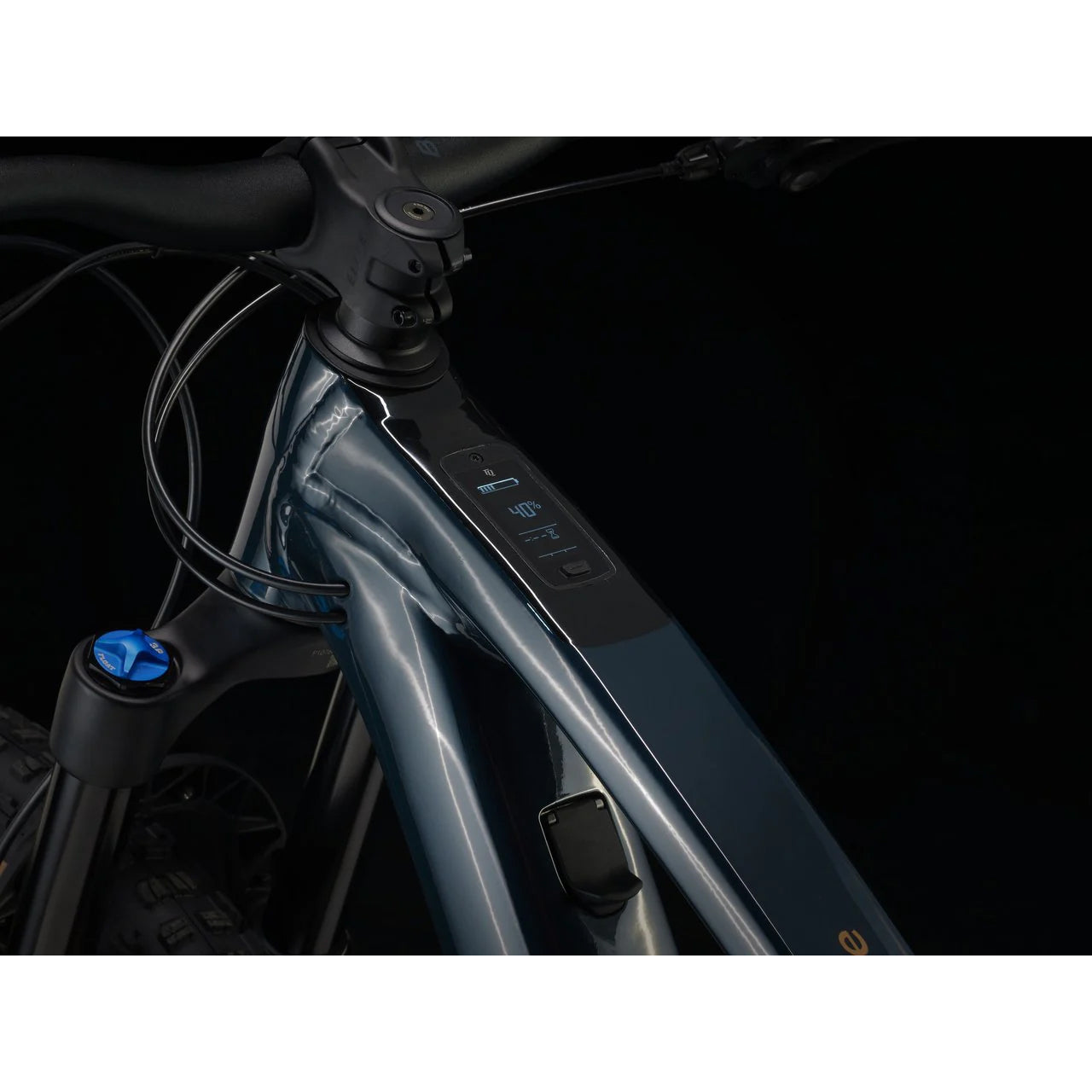

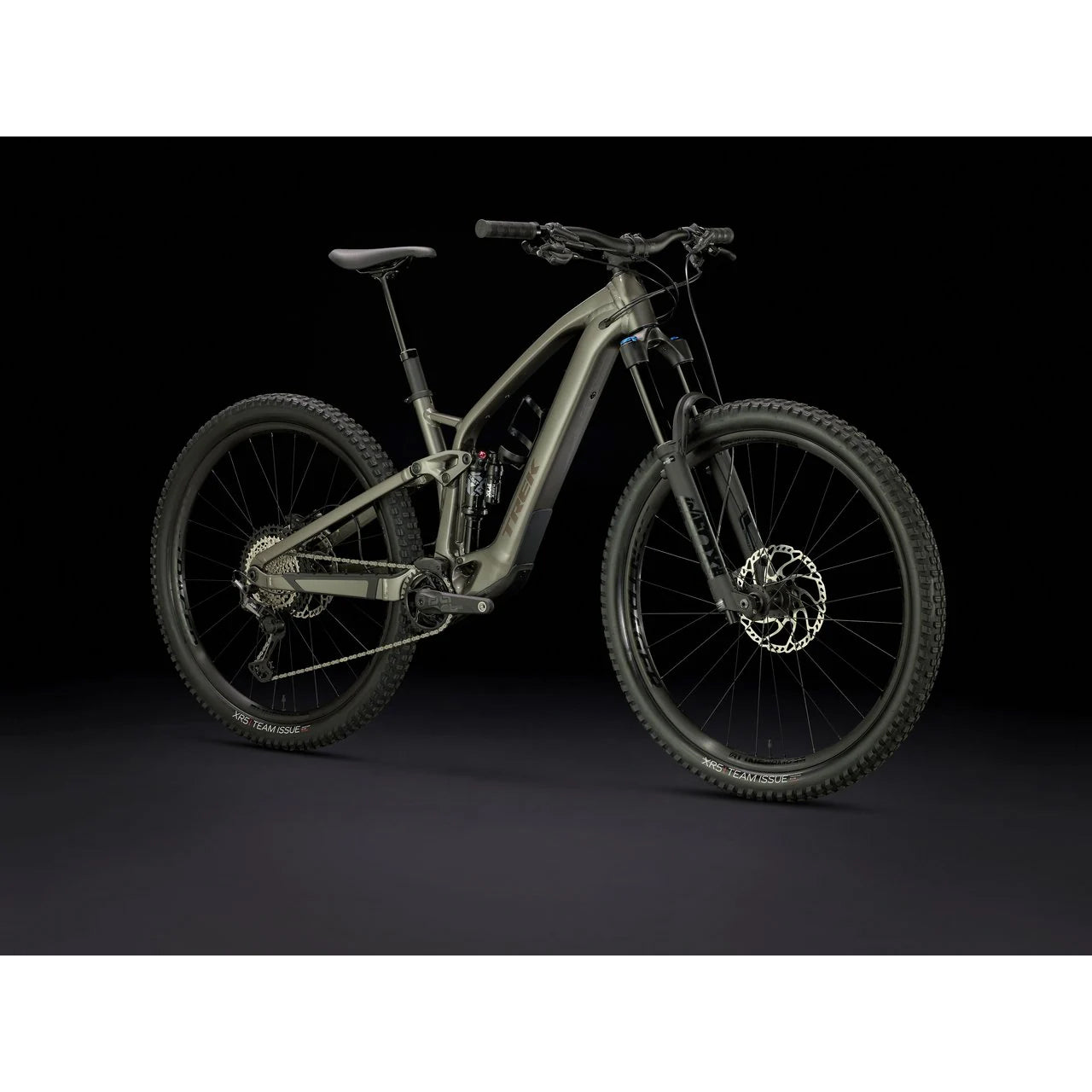

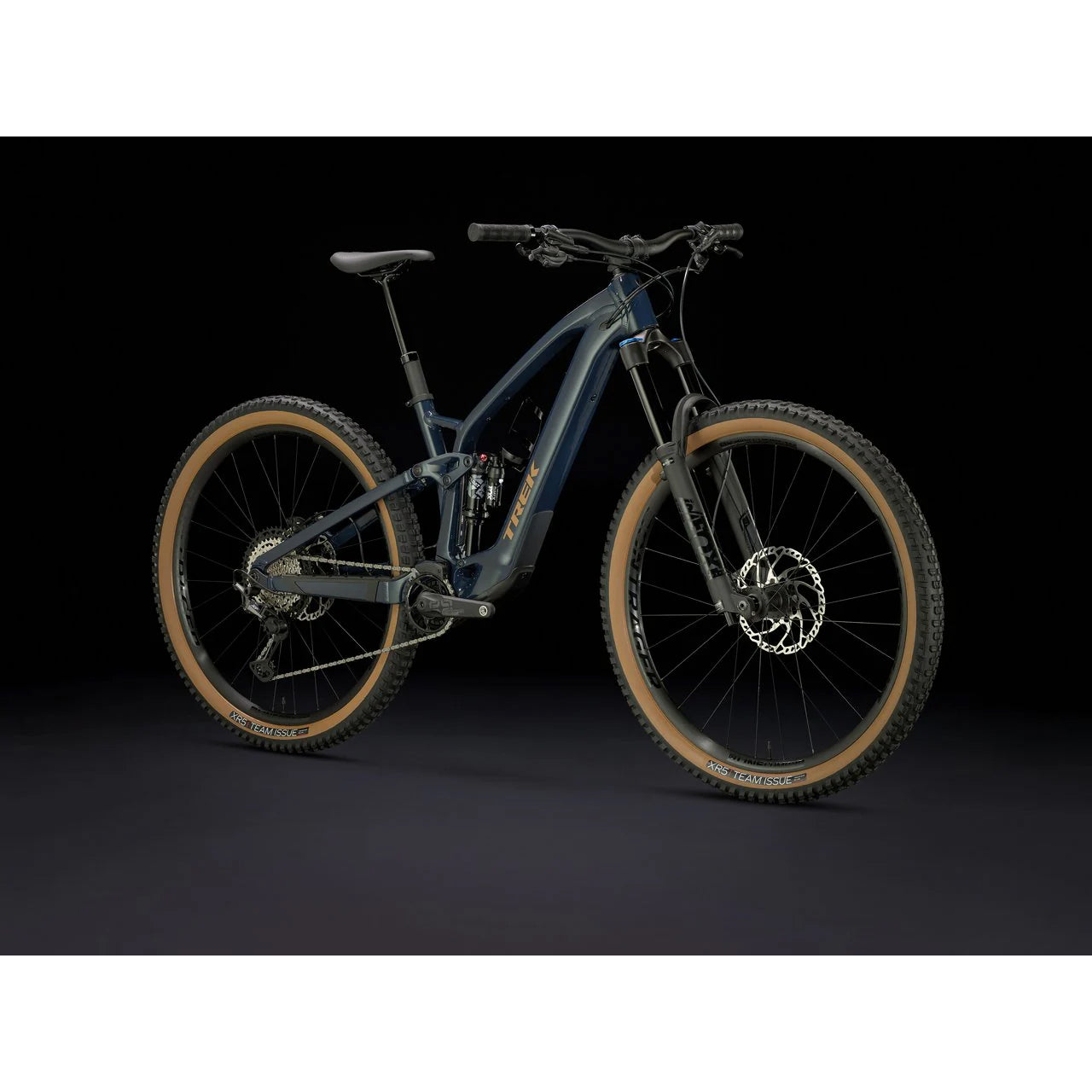

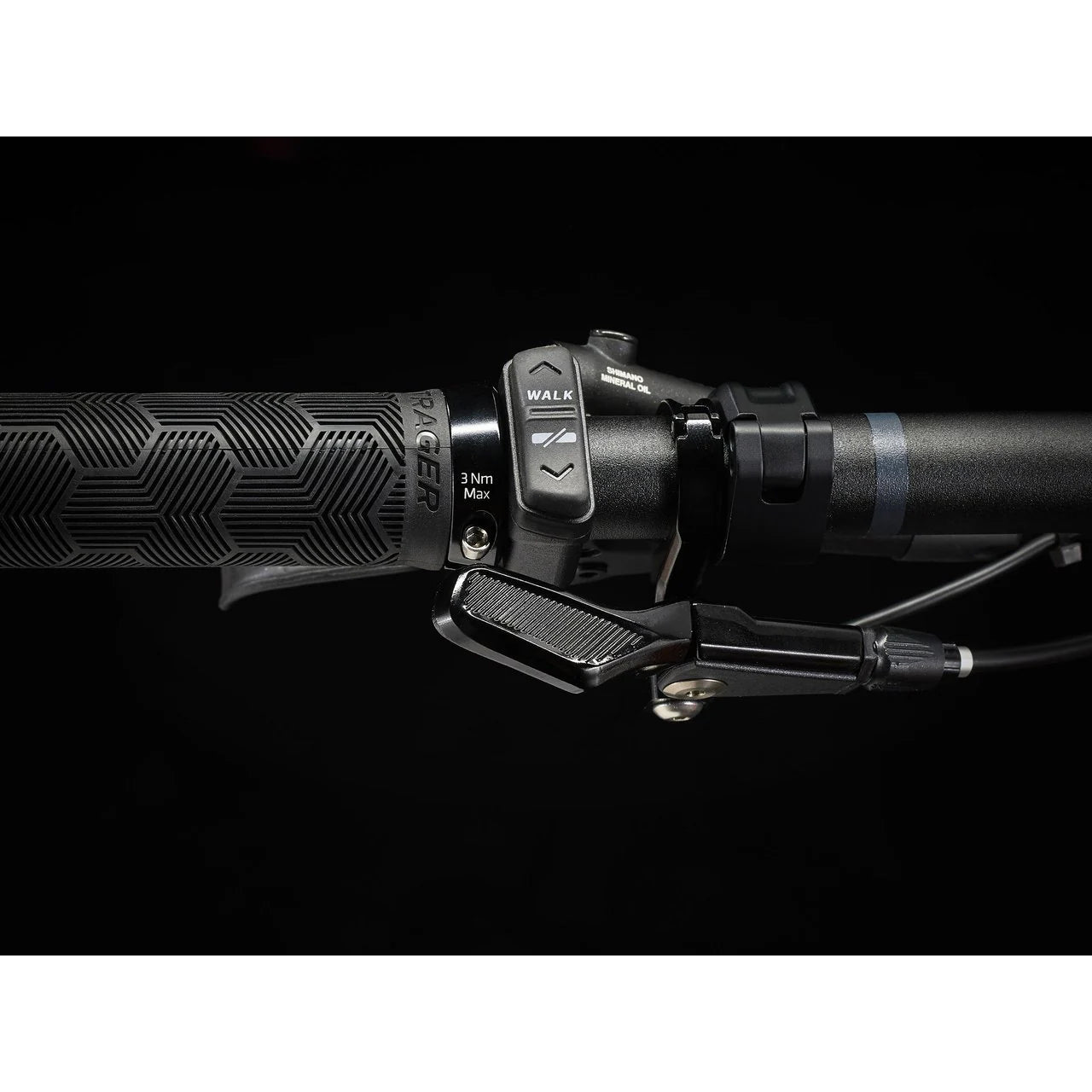

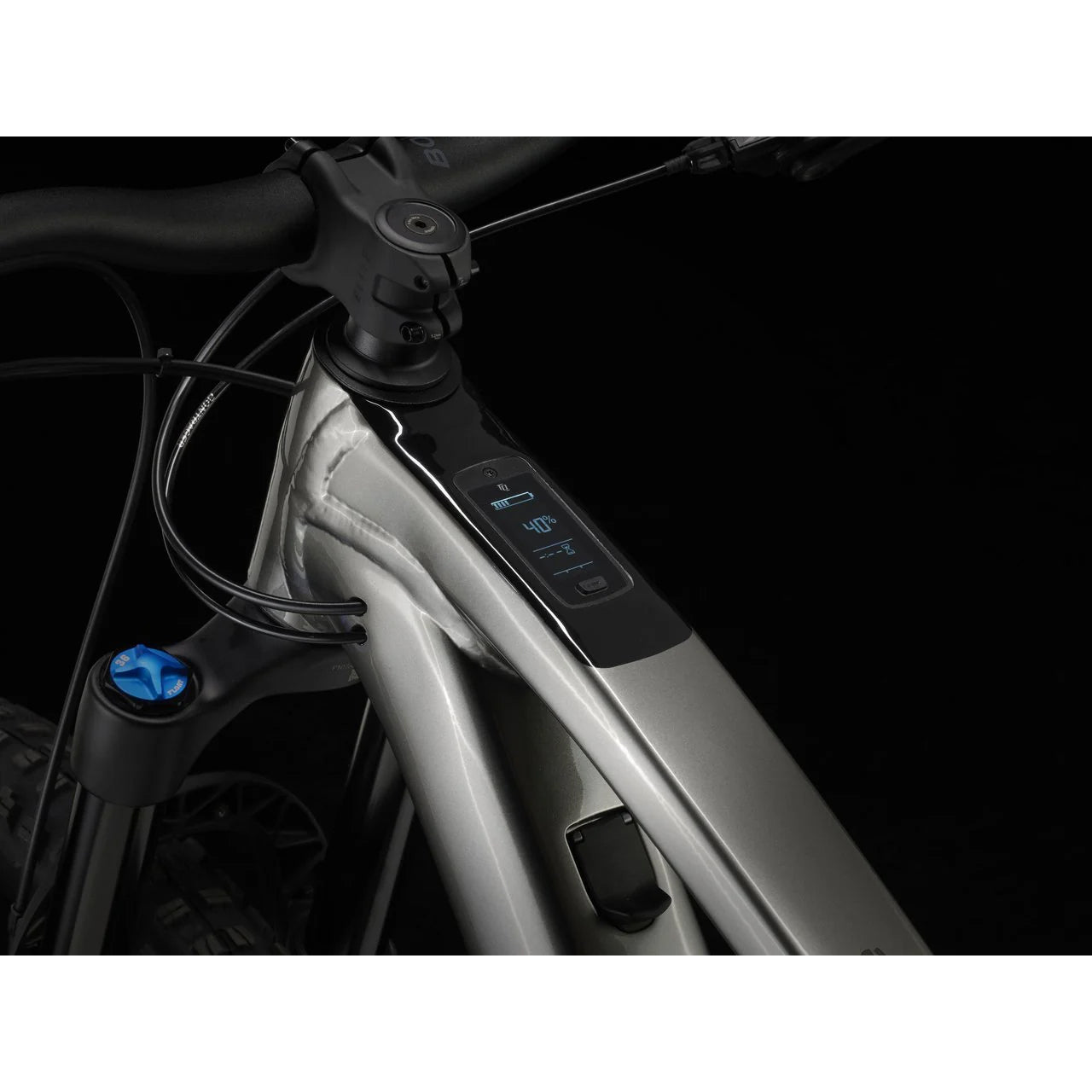

Fuel EXe 8 is a trail-ready aluminum electric mountain bike that quietly assists you on the climbs so you've got all the power you need on descents. Like its carbon counterpart, it looks and handles like a traditional trail bike, but with the added support of a tiny-but-mighty harmonic pin ring drive system with sleek top-tube display unit and compact remote. It comes ready to rip with upgraded parts where they matter most, like a FOX suspension package, wide Bontrager Line Comp Tubeless Ready wheels, and a Shimano XT 12-speed drivetrain.
Geometry Chart
Geometry Chart
| Measurement | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Reach (mm) | 434 | 459 | 489 | 514 |
| Stack (mm) | 616 | 625 | 625 | 634 |
| Head Tube Angle (°) | 65.3° | 65.3° | 65.3° | 65.3° |
| Seat Tube Angle (°) | 69.3° | 69.8° | 70.8° | 71.3° |
| Wheelbase (mm) | 1187 | 1216 | 1246 | 1276 |
| Chainstay Length (mm) | 438 | 438 | 438 | 438 |
| Head Tube Length (mm) | 100 | 110 | 110 | 120 |
| Seat Tube Length (mm) | 380 | 410 | 435 | 470 |
| BB Drop (mm) | 32 | 32 | 32 | 32 |
| BB Height (mm) | 341 | 341 | 341 | 341 |
| Rake (mm) | 44 | 44 | 44 | 44 |
| Trail (mm) | 12 | 12 | 12 | 12 |
| Axle to Crown (mm) | 616 | 625 | 625 | 634 |
Part Numbers
Part Numbers
| Size | Satin Mercury | Supernova | Nautical Navy |
|---|---|---|---|
| Small |
SKUTRE33792321Y
VPNTrek_5300089
UPC768682609422
MPN5300089
|
SKUTRE3010633A
VPNTrek_5321995
UPC197216037606
MPN5321995
|
— |
| Medium |
SKUFUE25984008Y
VPNTrek_5300090
UPC768682609620
MPN5300090
|
SKUTRE30279294A
VPNTrek_5321996
UPC197216037613
MPN5321996
|
— |
| Large |
SKUFUE2548434Y
VPNTrek_5300091
UPC768682609583
MPN5300091
|
SKUTRE30302804A
VPNTrek_5321997
UPC197216037620
MPN5321997
|
SKUFUE25725417Y
VPNTrek_5300095
UPC768682609729
MPN5300095
|
| X-Large |
SKUTRE3475859Y
VPNTrek_5300092
UPC768682609460
MPN5300092
|
SKUTRE31842045A
VPNTrek_5321998
UPC197216037637
MPN5321998
|
SKUFUE26276906Y
VPNTrek_5300096
UPC768682609569
MPN5300096
|
Size Chart
Size Chart
Trek | Mountain
| Size | Rider height (in) | Rider height (cm) | Inseam (in) | Inseam (cm) |
|---|---|---|---|---|
| X-Small | 4'9" - 5'1" | 145 - 155 cm | 27" - 29" | 69 - 73 cm |
| Small | 5'1" - 5'5" | 155 - 165 cm | 29" - 31" | 74 - 78 cm |
| Medium | 5'5" - 5'10" | 165 - 177 cm | 31" - 33" | 79 - 83 cm |
| Medium/Large | 5'8" - 5'11" | 173 - 180 cm | 32" - 34" | 81 - 86 cm |
| Large | 5'10" - 6'2" | 177 - 188 cm | 33" - 35" | 84 - 89 cm |
| X-Large | 6'2" - 6'5" | 188 - 195 cm | 35" - 36" | 89 - 91 cm |
| XX-Large | 6'5" - 6'8" | 195 - 203 cm | 36" - 38" | 91 - 97 cm |
Range Extender
Removable battery
