Sold out
Trek
2025 | Marlin+ 6
2025 | Marlin+ 6
Regular price
$3,599.99
Sale price
$3,599.99
Regular price
Shipping calculated at checkout.
SKU:TRE34905118K
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.
Canadian shipping charges:
- Sale bikes: $200
- Standard pedal bikes over $1250: Free
- Standard pedal bikes under $1250: $100
- Electric bikes: $200
- Fat bikes: $200
- Kid's bikes: $60
Insurance charge: 1.5% insured value
We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details
Bike Specifications
Bike Specifications
Specifications are subject to change without notice
Drivetrain
Cassette
Shimano LINKGLIDE LG300, 11-46, 9 speed
Chain
Shimano LG500
Chainring
FSA, 32T, steel
Rear derailleur

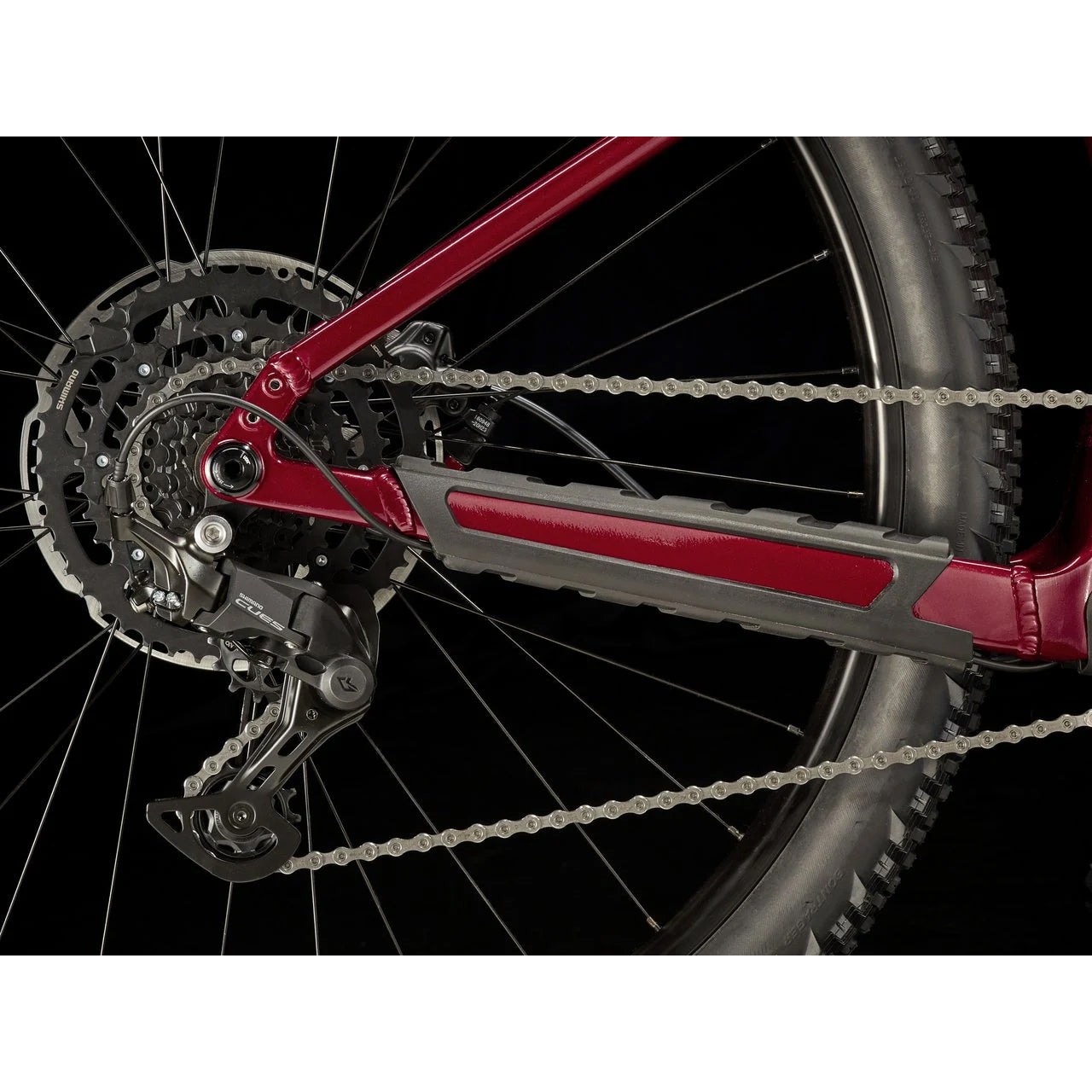

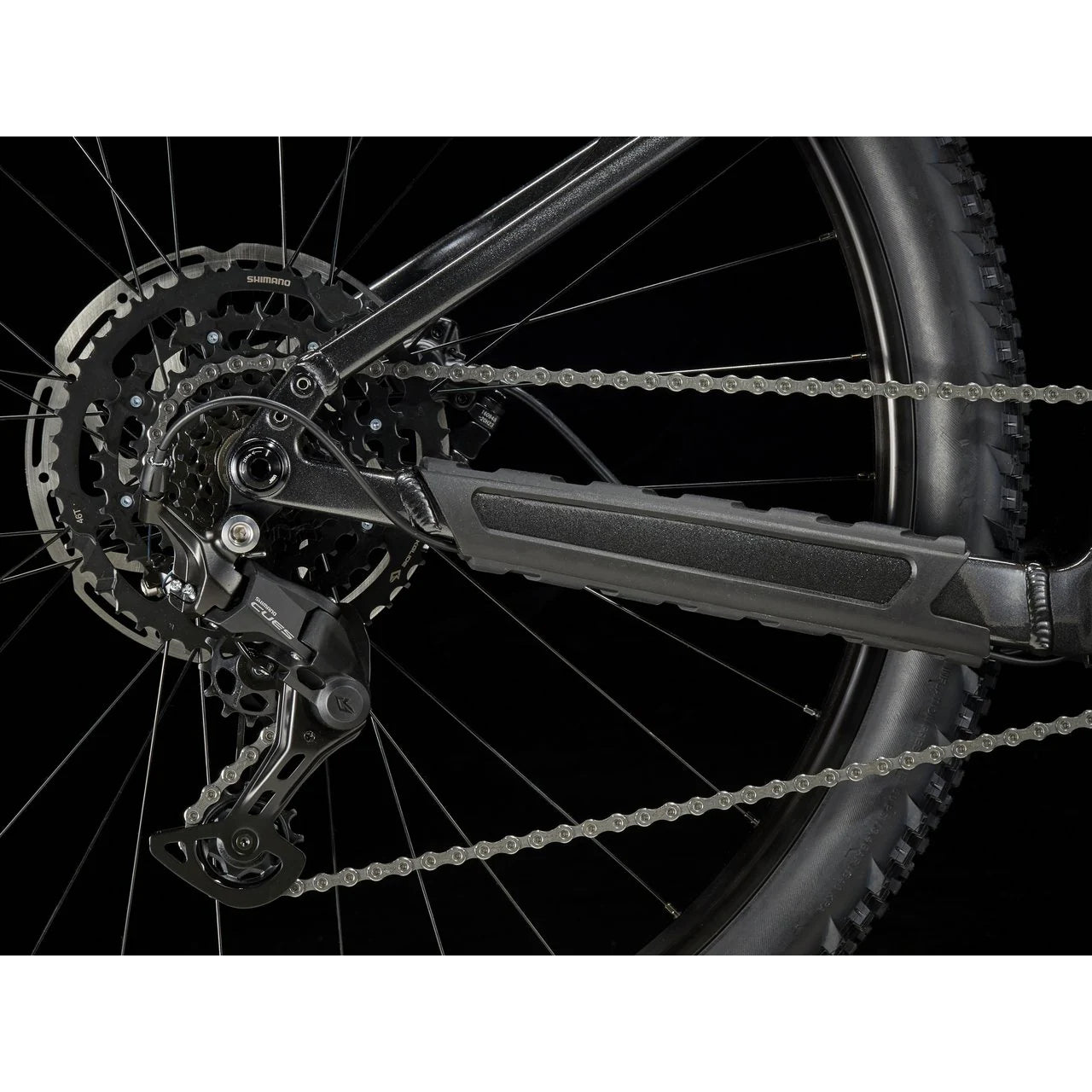

Shimano CUES U4000
Shifter
Shimano U4000, 9 speed
Brakes
Brake rotor
Tektro, centerlock, 203mm
Brake type
Hydraulic disc
Cockpit
Grips tape

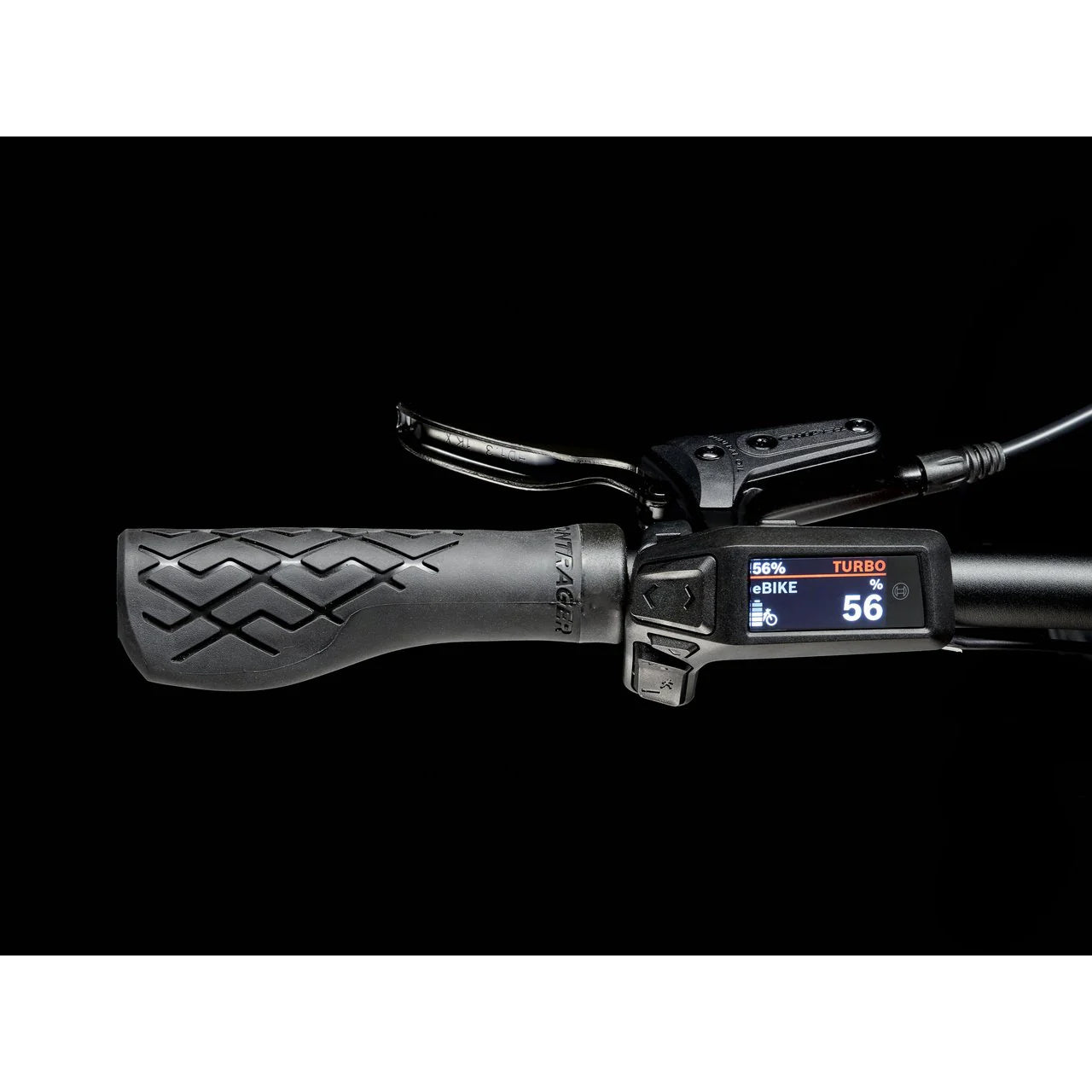

Bontrager XR Endurance Comp, lock-on
Handlebars
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Pedals
VP-536 nylon platform
Saddle

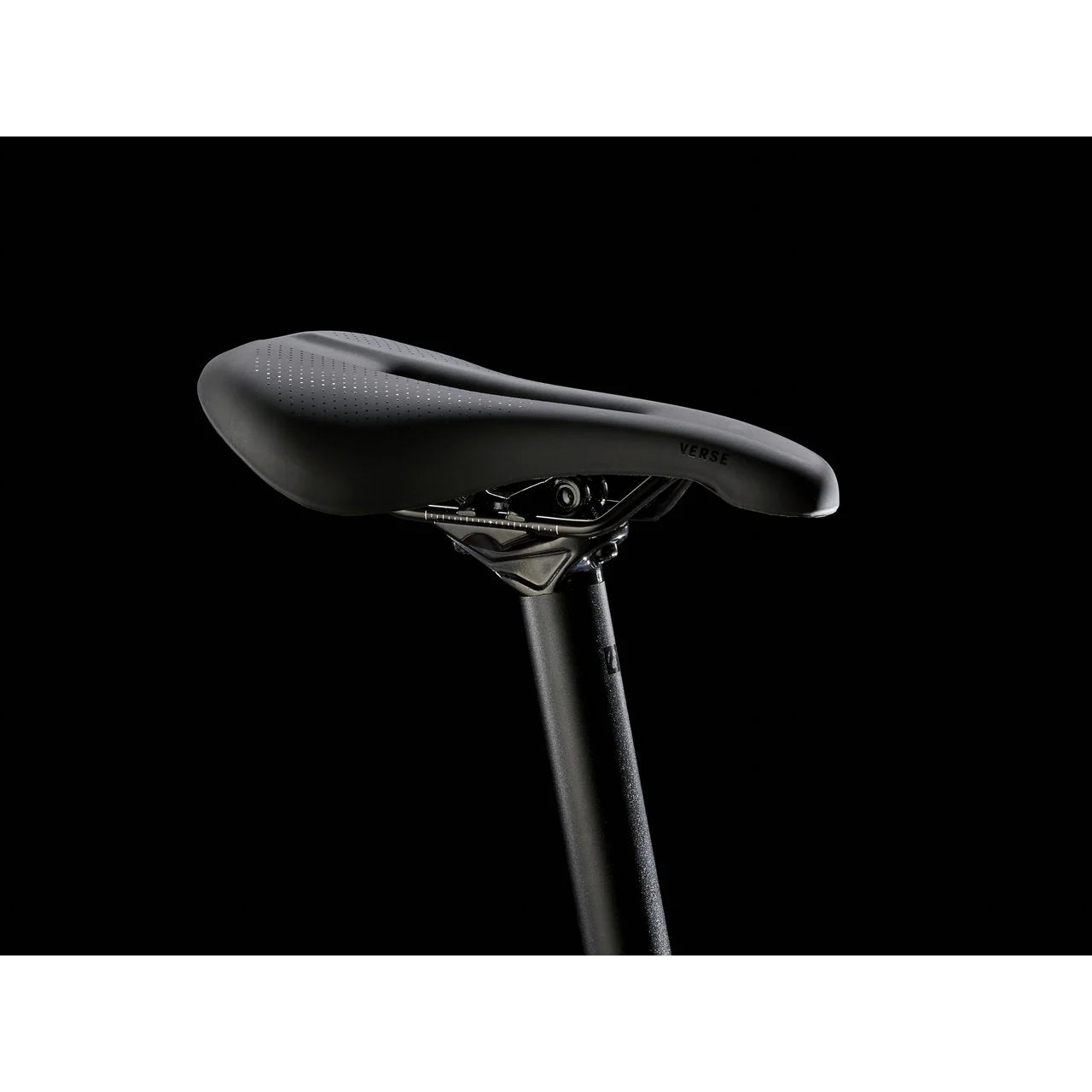

Bontrager Verse P3, steel rails
Seatpost
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
Stem
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Wheels
Front hub
Shimano TC500 alloy, centerlock, 110x15mm thru axle
Rear hub
Shimano TC500 alloy, centerlock, 148x12mm thru axle
Rims
Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Tires
Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40'
Wheel size
Size Specific
Suspension
Fork

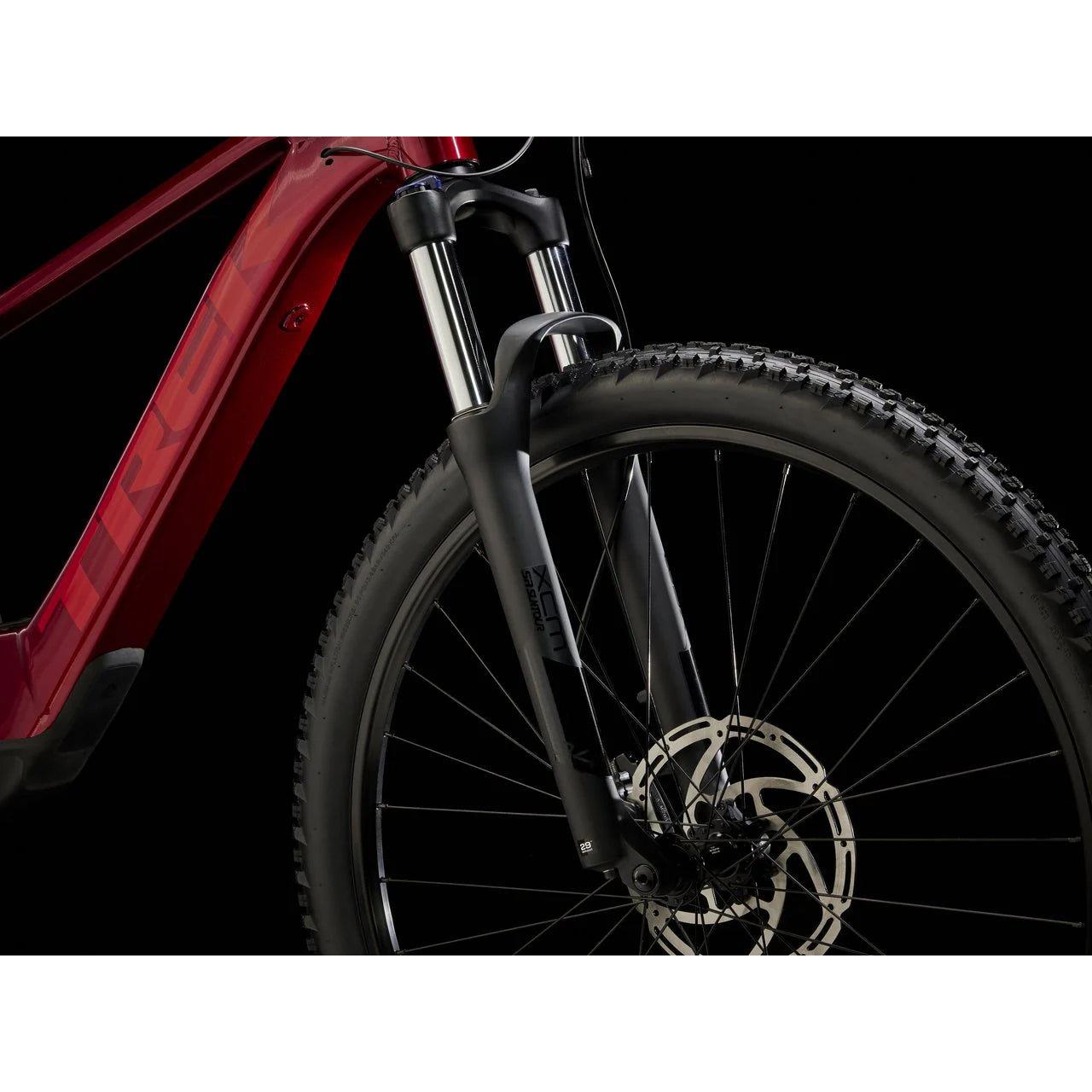

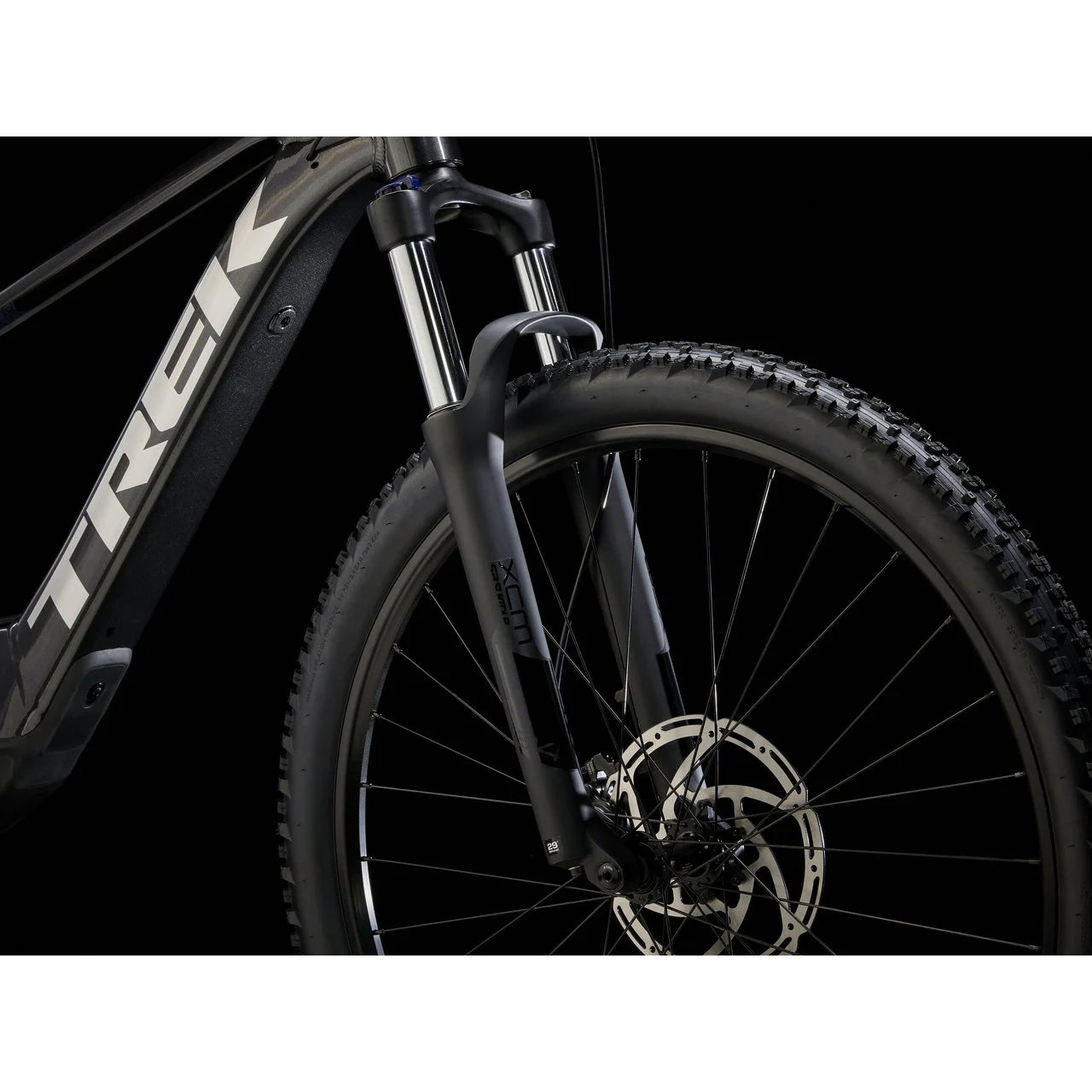

SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44mm offset, Boost110, 15mm thru axle, 120mm travel
Fork brand
SR Suntour
Frame
Frame

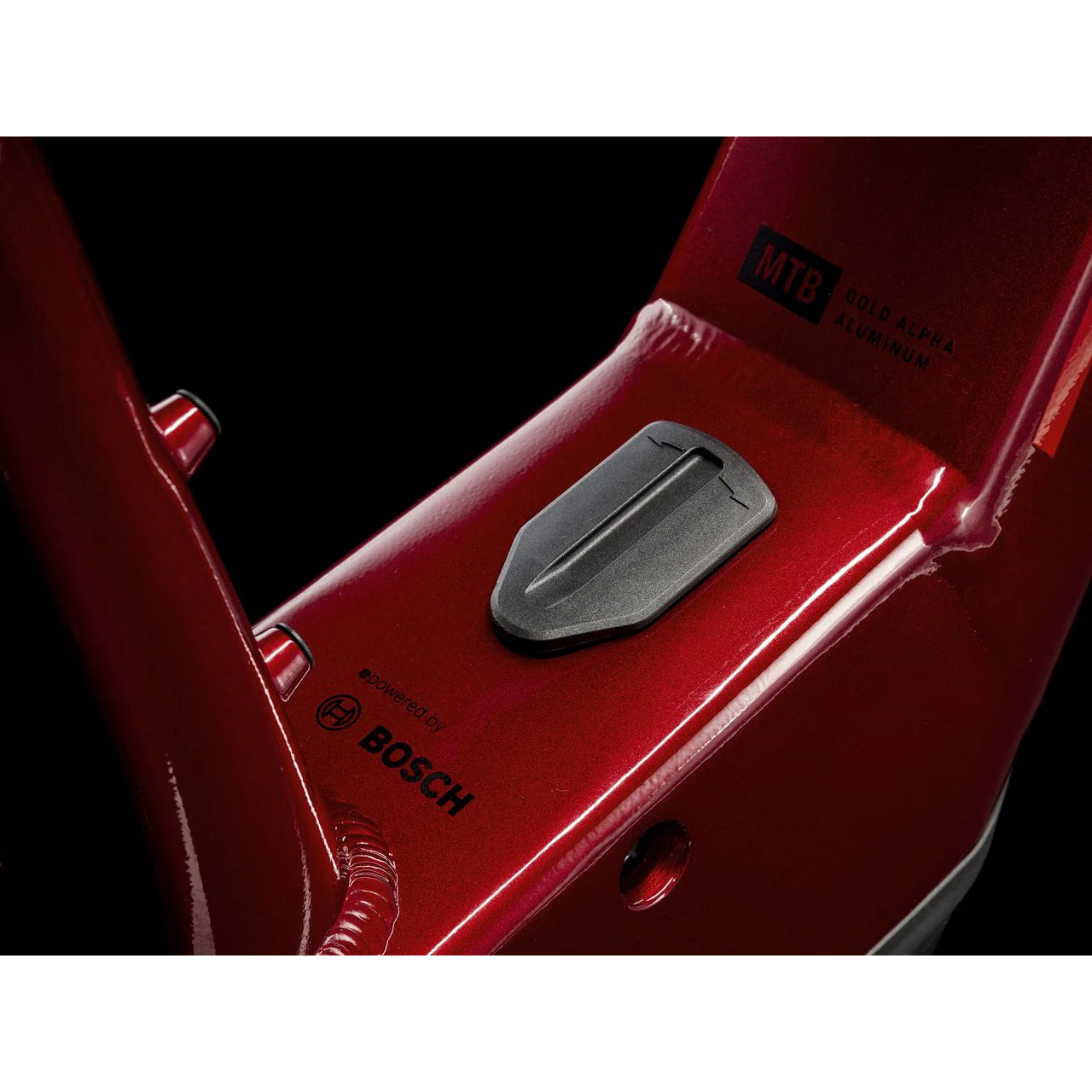

Alpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle
Frame material
Aluminum
Headset
Semi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom
Platform wheel size
27.5" - (XS-S) | 29" - (M-XXL)
Seatpost
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
Weight as spec d
M - 22.45 kg / 49.5 lbs (with tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
E-Bike System
Battery
Bosch CompactTube 400Wh
Battery type
400WH
Motor

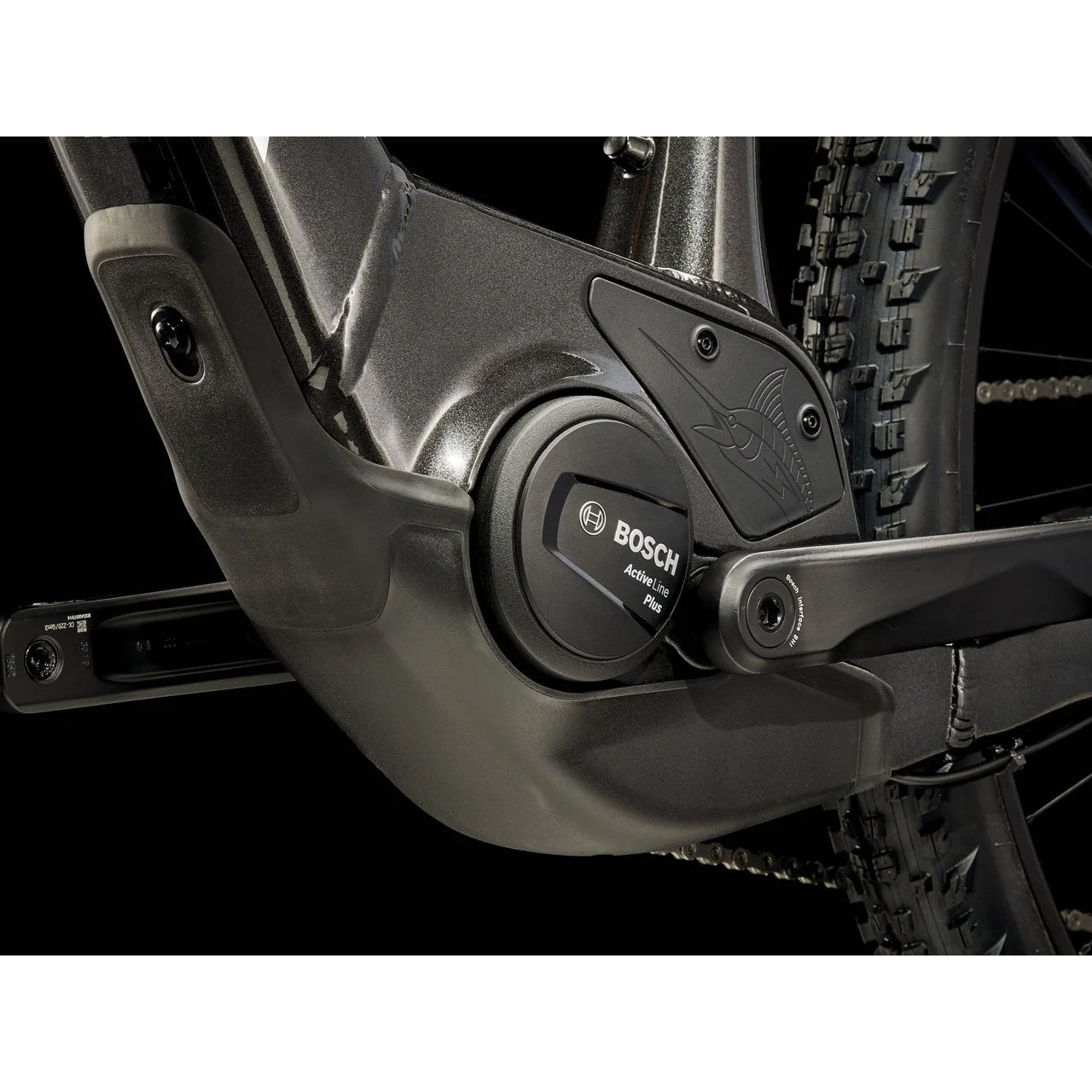

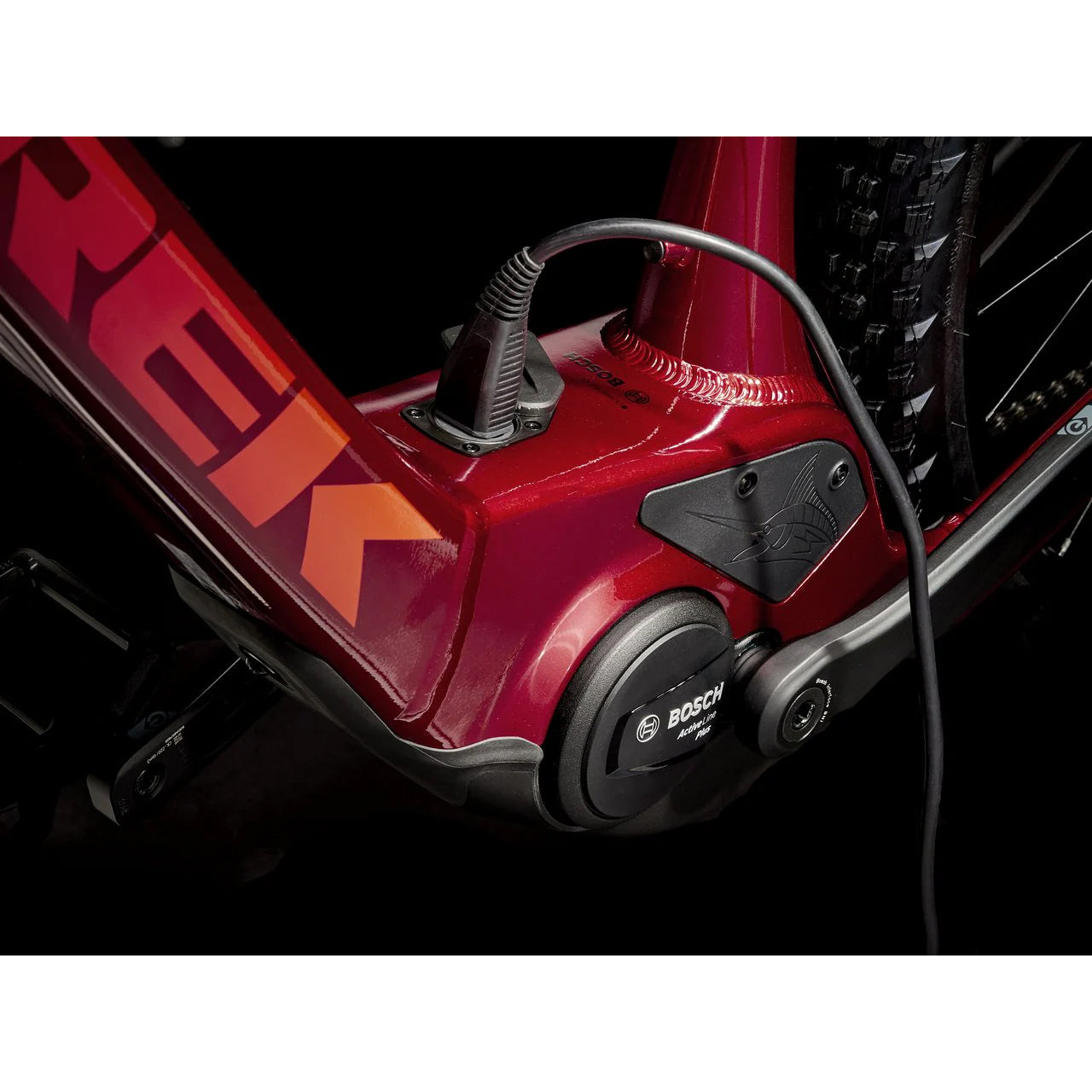

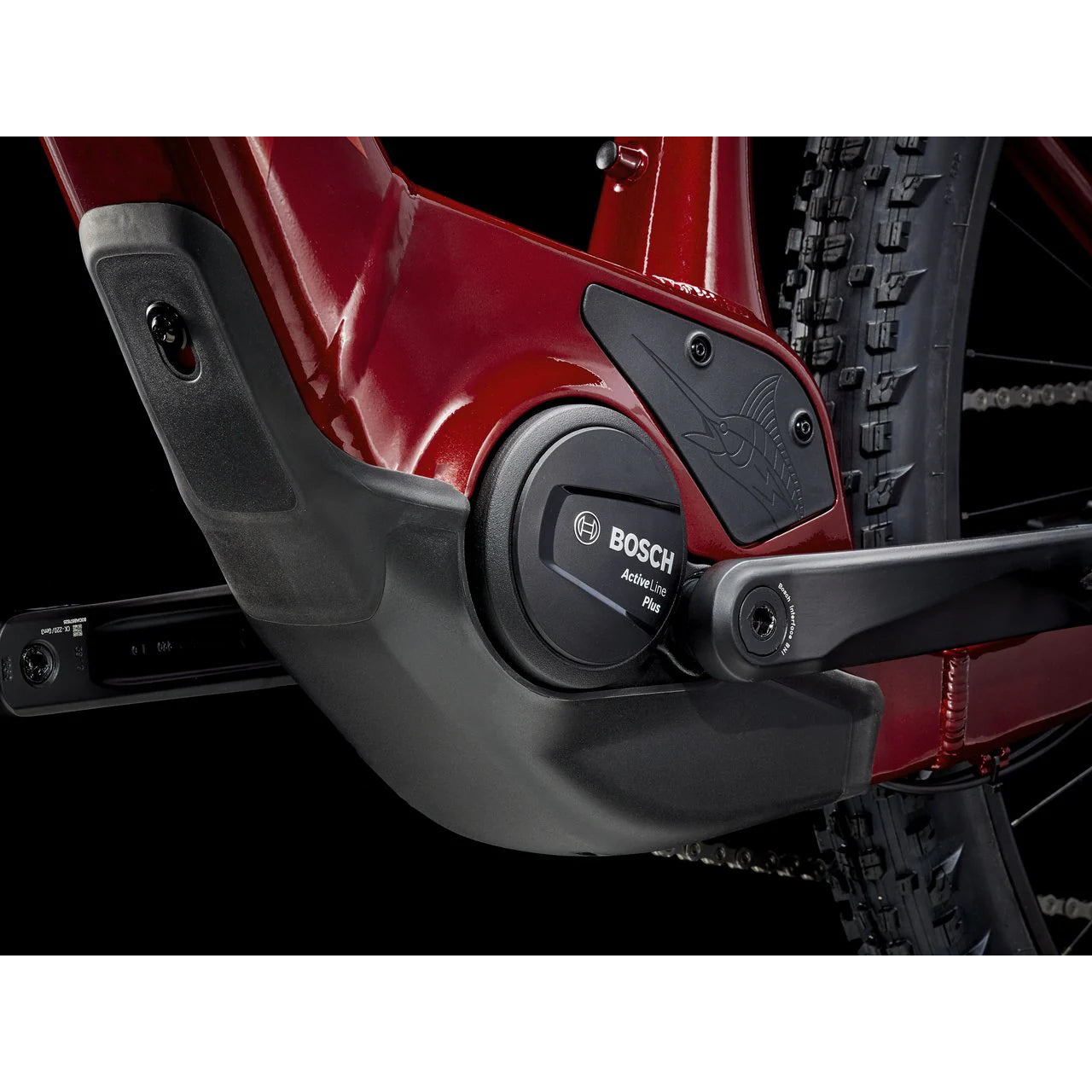

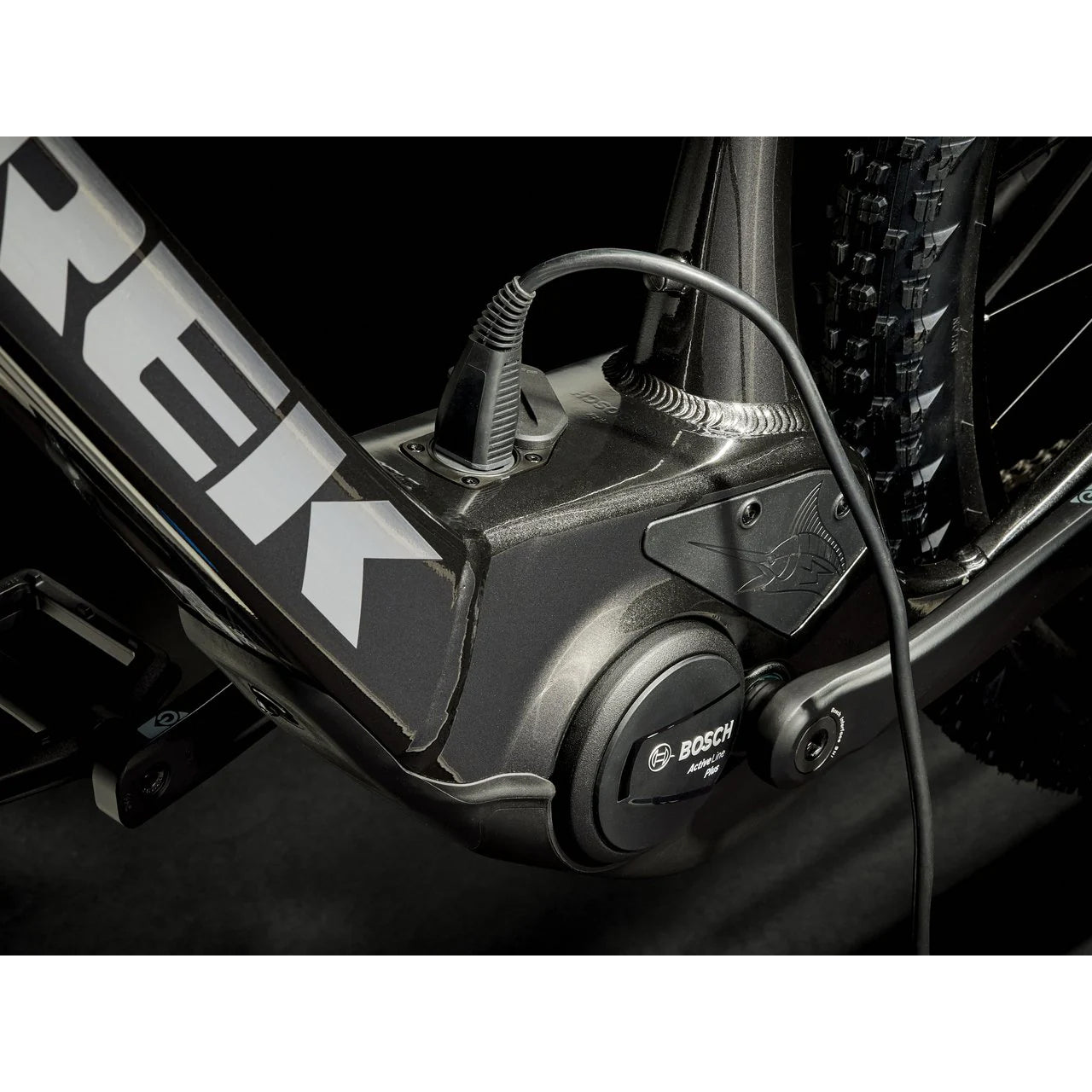

Bosch Active Line Plus, 50 Nm
Share this product
Description
Description

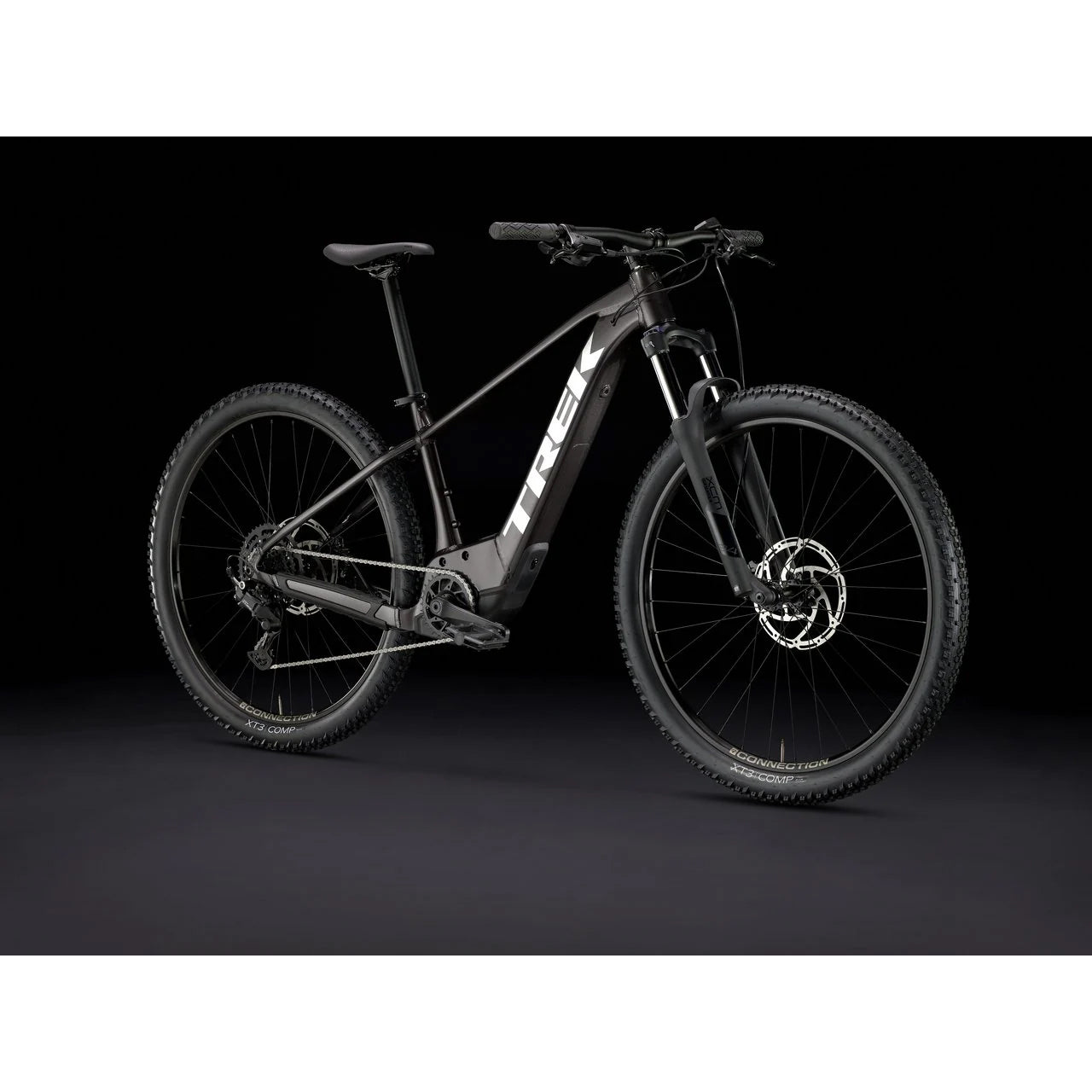

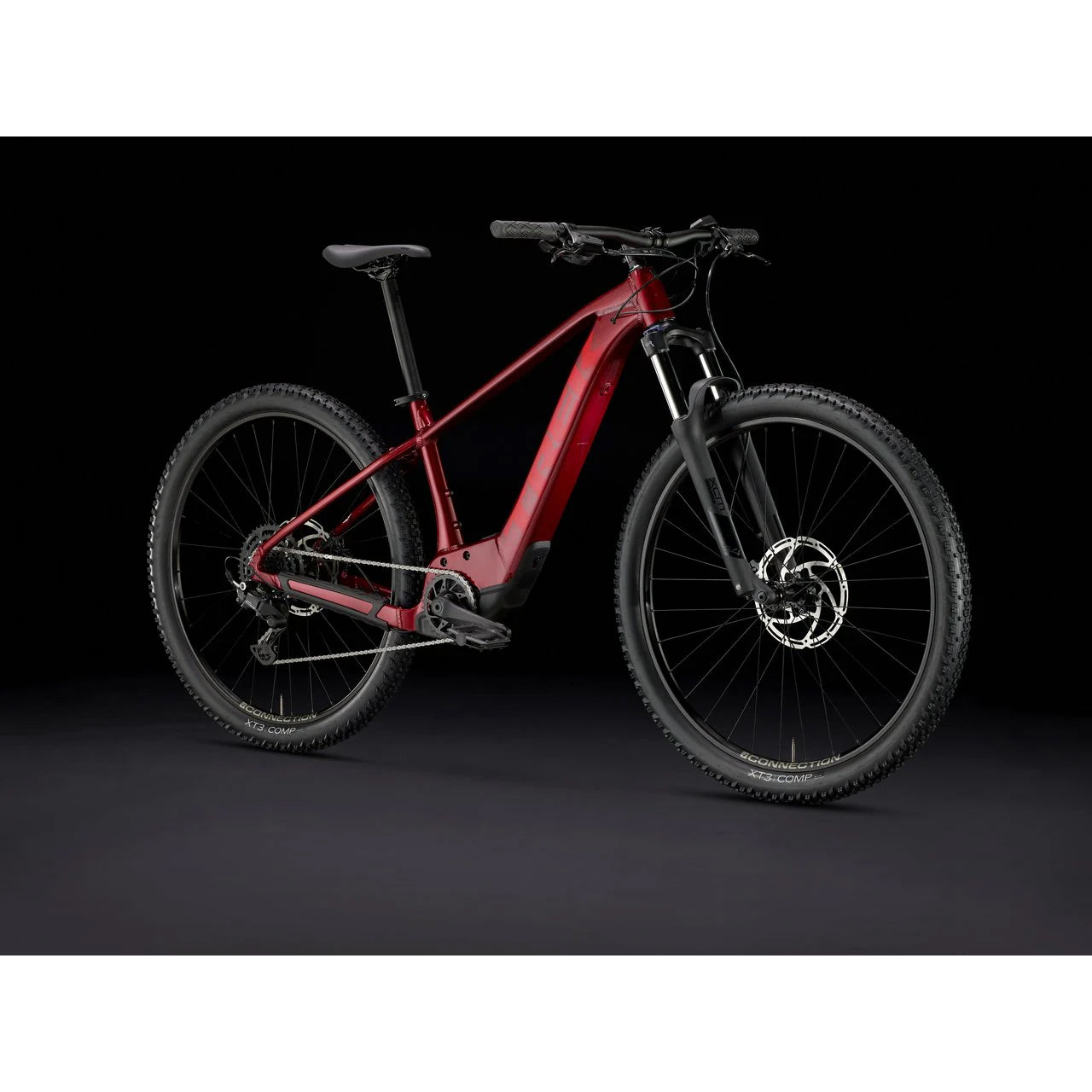

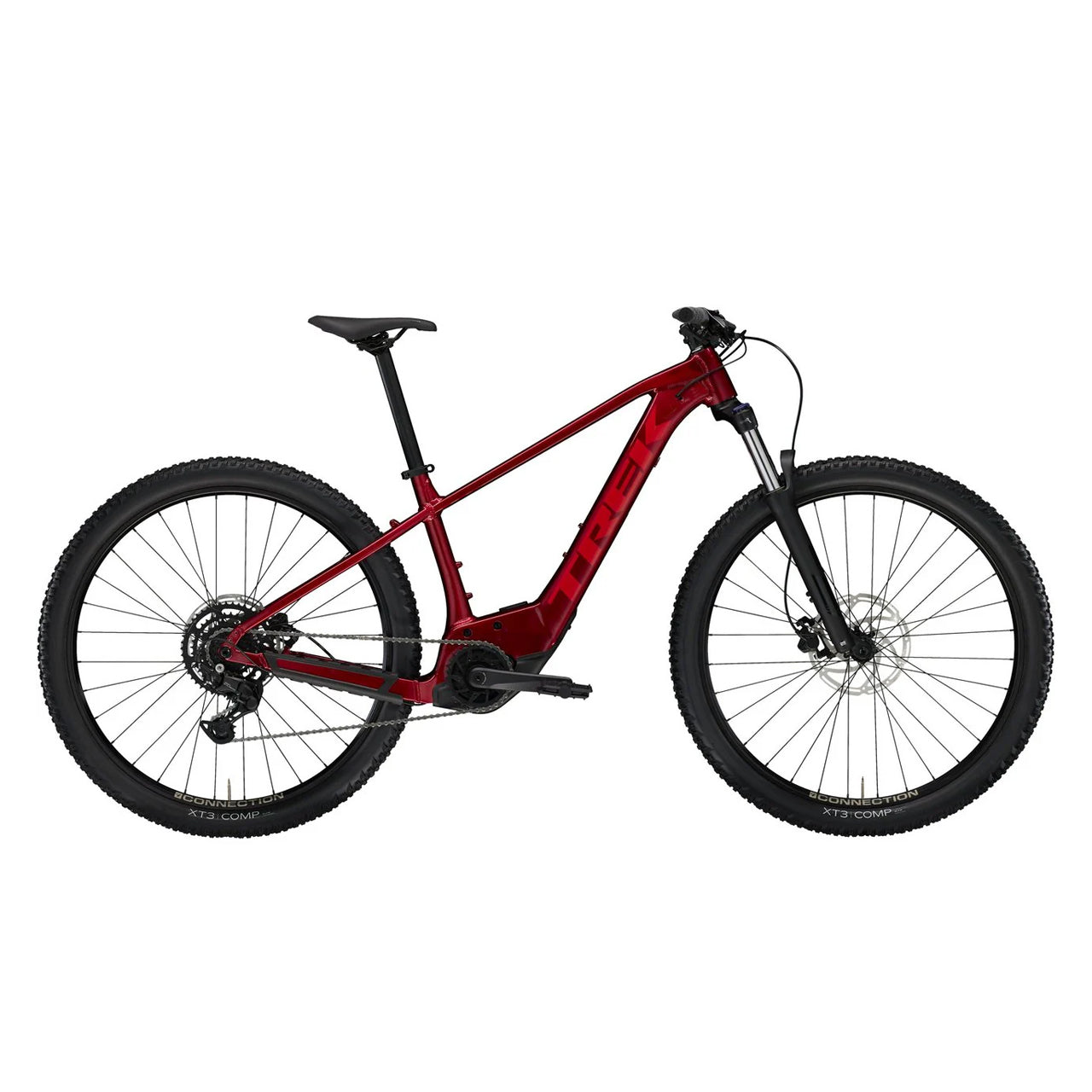

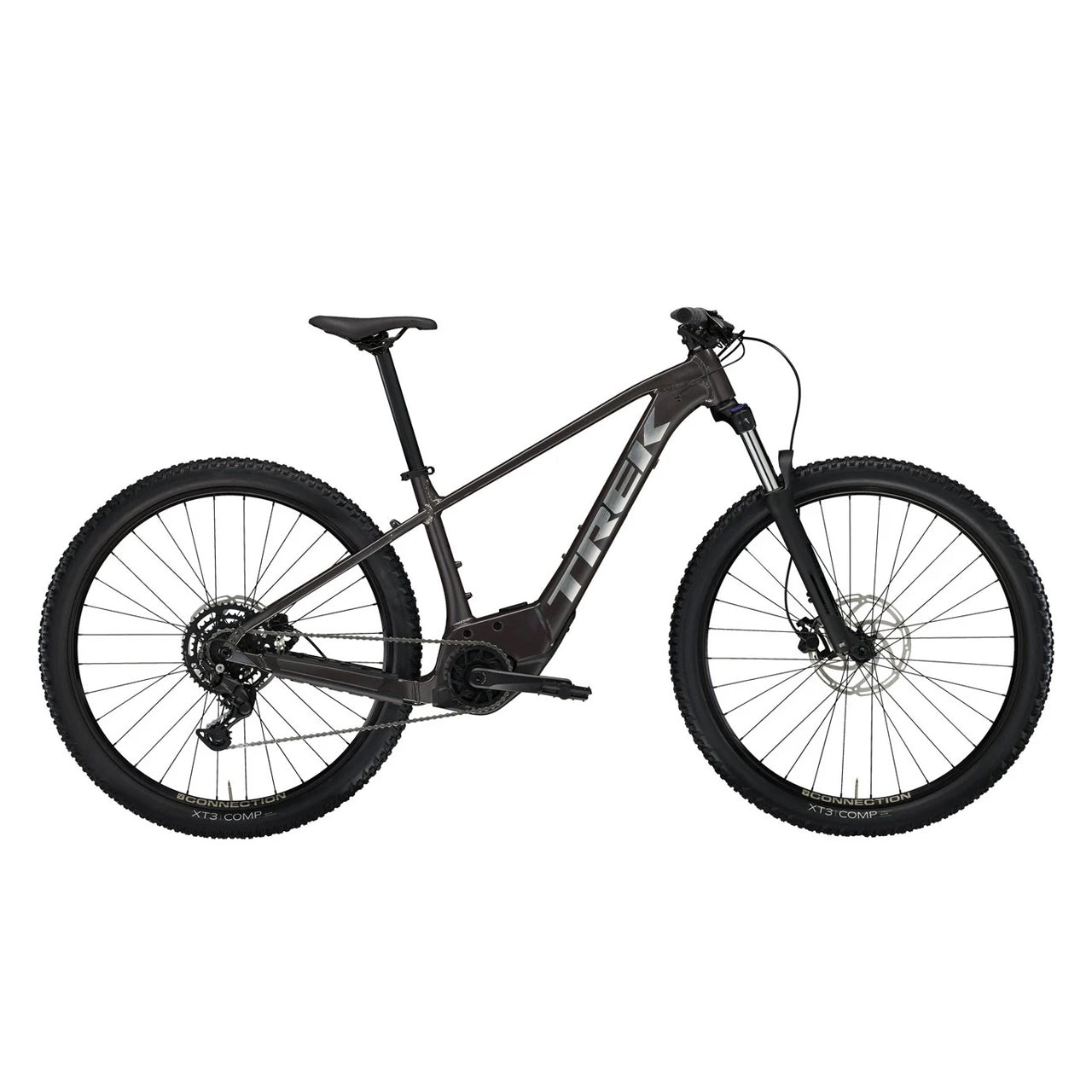

Marlin+ 6 is an electric mountain bike that's ready to power up your trail rides without breaking the bank. It's equipped with the same fun and confident geometry as the non-electric Marlin, with the added boost of Bosch's Active Line Plus drive system. A 120mm suspension fork soaks up rocks, roots, and potholes on your ride, while 9-speed Shimano CUES is durable and reliable for wherever you roll.
Geometry Chart
Geometry Chart
| Measurement | Small | Medium | Large | X-Large | X-Small |
|---|---|---|---|---|---|
| Reach (mm) | 415 | 440 | 470 | 495 | 390 |
| Stack (mm) | 590 | 626 | 635 | 653 | 563 |
| Head Tube Angle (°) | 66.5° | 66.5° | 66.5° | 66.5° | 66.5° |
| Seat Tube Angle (°) | 73.8° | 73.8° | 73.8° | 73.8° | 73.8° |
| Wheelbase (mm) | 1166 | 1218 | 1251 | 1284 | 1129 |
| Chainstay Length (mm) | 470 | 485 | 485 | 485 | 470 |
| Head Tube Length (mm) | 100 | 105 | 115 | 135 | 90 |
| Seat Tube Length (mm) | 370 | 420 | 450 | 500 | 340 |
| BB Drop (mm) | 45 | 60 | 60 | 60 | 45 |
| BB Height (mm) | 313 | 318 | 318 | 318 | 313 |
| Rake (mm) | 46 | 42 | 42 | 42 | 46 |
| Trail (mm) | 11 | 11 | 11 | 11 | 11 |
| Axle to Crown (mm) | 590 | 626 | 635 | 653 | 563 |
Part Numbers
Part Numbers
| Size | Dnister Black | Crimson |
|---|---|---|
| X-Small |
SKUTRE34905118K
VPNTrek_5294454
UPC745889469356
MPN5294454
|
SKUTRE29144899N
VPNTrek_5294459
UPC768682692127
MPN5294459
|
| Small |
SKUTRE33899335K
VPNTrek_5294455
UPC745889469318
MPN5294455
|
SKUTRE28988900N
VPNTrek_5294460
UPC768682691960
MPN5294460
|
| Medium |
SKUTRE3255781K
VPNTrek_5294456
UPC745889469073
MPN5294456
|
SKUTRE27456093N
VPNTrek_5294461
UPC768682692103
MPN5294461
|
| Large |
SKUTRE32459214K
VPNTrek_5294457
UPC745889469097
MPN5294457
|
SKUTRE27396155N
VPNTrek_5294462
UPC768682692363
MPN5294462
|
| X-Large |
SKUTRE33737329K
VPNTrek_5294458
UPC745889469134
MPN5294458
|
SKUTRE28486625N
VPNTrek_5294463
UPC768682692349
MPN5294463
|
Size Chart
Size Chart
Trek | Mountain
| Size | Rider height (in) | Rider height (cm) | Inseam (in) | Inseam (cm) |
|---|---|---|---|---|
| X-Small | 4'9" - 5'1" | 145 - 155 cm | 27" - 29" | 69 - 73 cm |
| Small | 5'1" - 5'5" | 155 - 165 cm | 29" - 31" | 74 - 78 cm |
| Medium | 5'5" - 5'10" | 165 - 177 cm | 31" - 33" | 79 - 83 cm |
| Medium/Large | 5'8" - 5'11" | 173 - 180 cm | 32" - 34" | 81 - 86 cm |
| Large | 5'10" - 6'2" | 177 - 188 cm | 33" - 35" | 84 - 89 cm |
| X-Large | 6'2" - 6'5" | 188 - 195 cm | 35" - 36" | 89 - 91 cm |
| XX-Large | 6'5" - 6'8" | 195 - 203 cm | 36" - 38" | 91 - 97 cm |
