Sold out
Trek

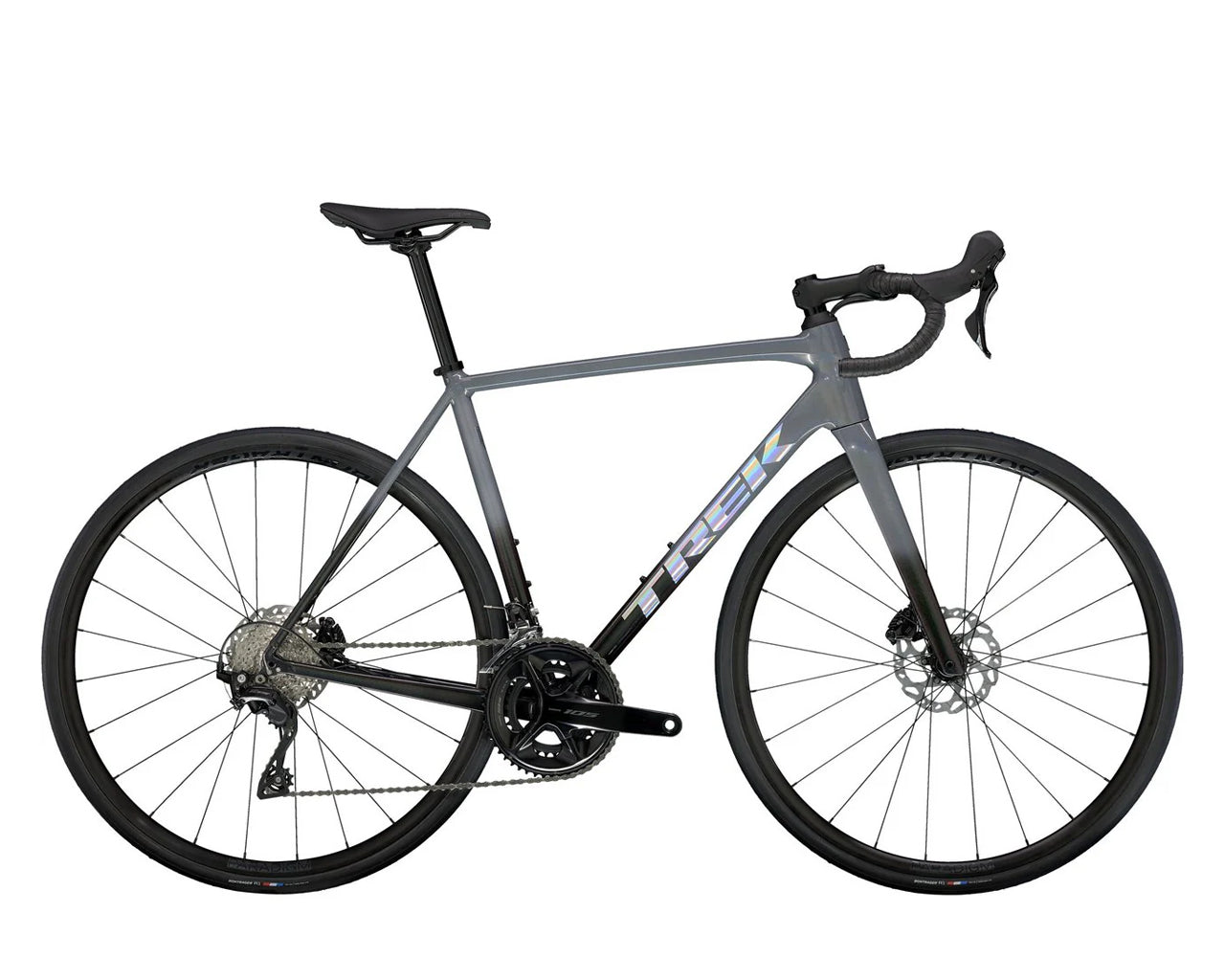

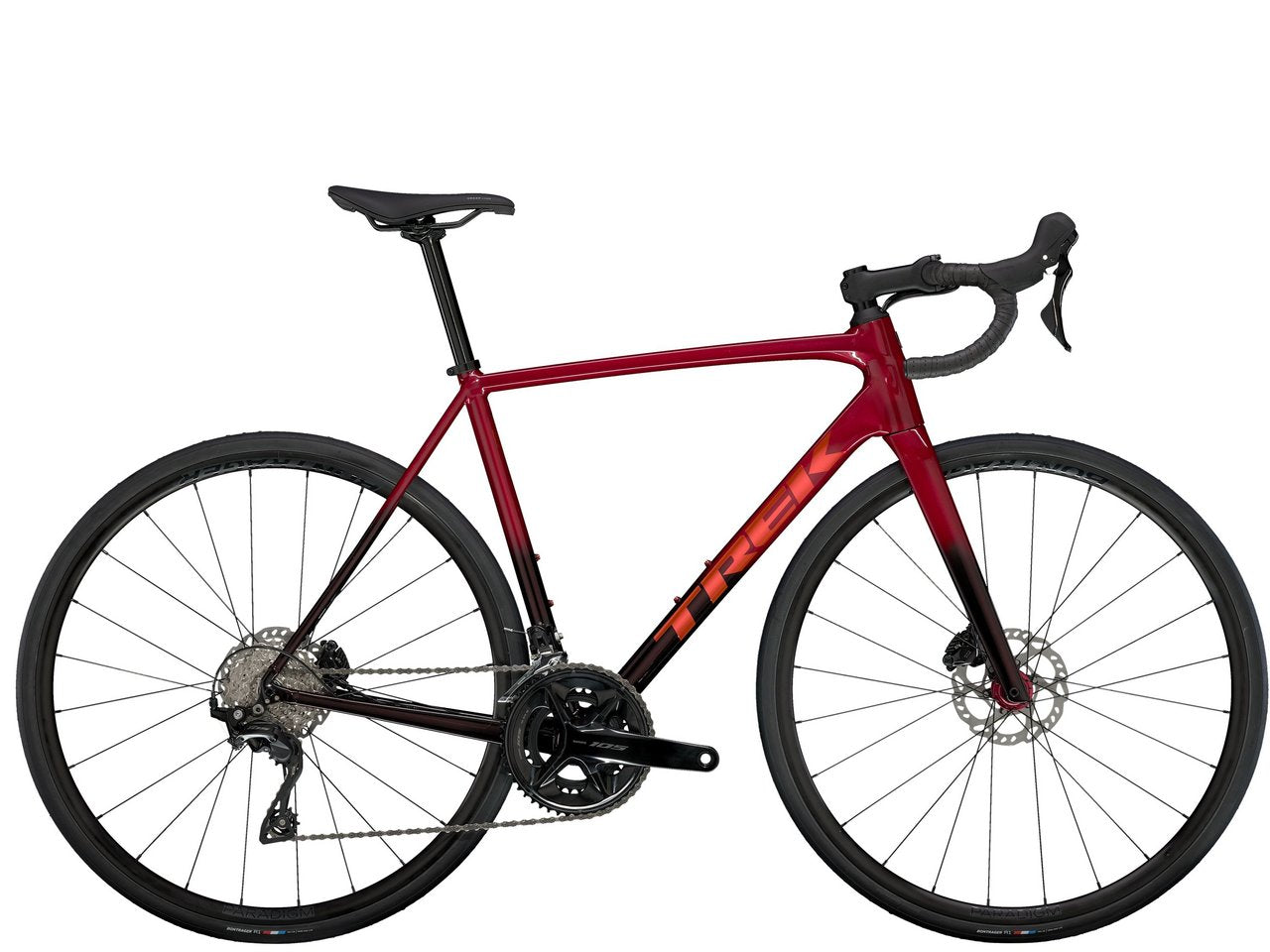

2025 | Émonda ALR 5
2025 | Émonda ALR 5
Regular price
$2,799.99
Sale price
$2,799.99
Regular price
Shipping calculated at checkout.
SKU:TRE52675497E
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.
Canadian shipping charges:
- Sale bikes: $200
- Standard pedal bikes over $1250: Free
- Standard pedal bikes under $1250: $100
- Electric bikes: $200
- Fat bikes: $200
- Kid's bikes: $60
Insurance charge: 1.5% insured value
We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details
Bike Specifications
Bike Specifications
Specifications are subject to change without notice
Drivetrain
Cassette
Shimano 105 7101, 11-34, 12 speed
Chain
Shimano SLX M7100, 12 speed
Front derailleur
Shimano 105 R7100, braze-on, down swing
Rear derailleur
Shimano 105 R7100, 36T max cog
Shifter
Shimano 105 R7120, 12 speed // Shimano 105 R7120, 12 speed
Brakes

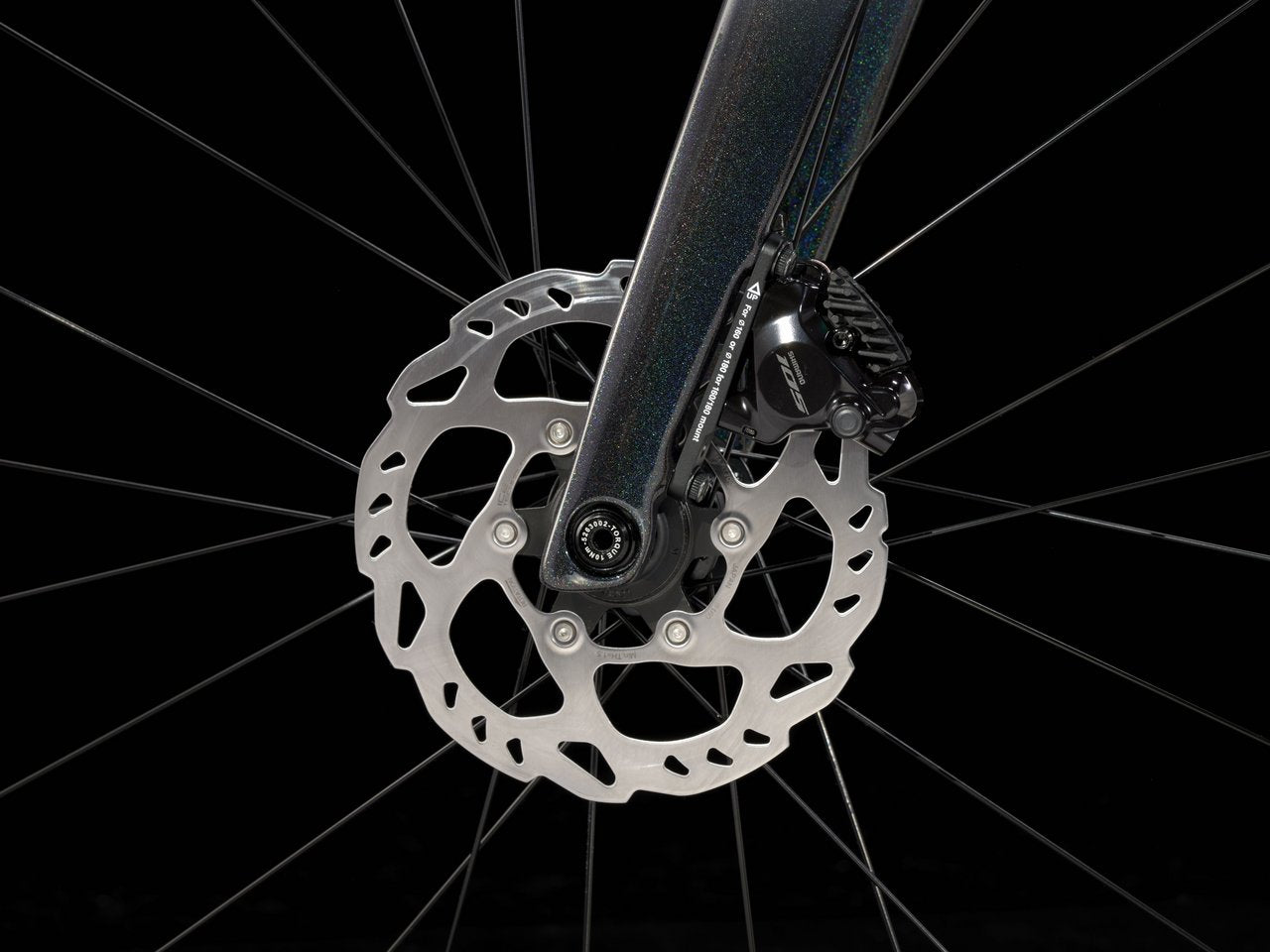

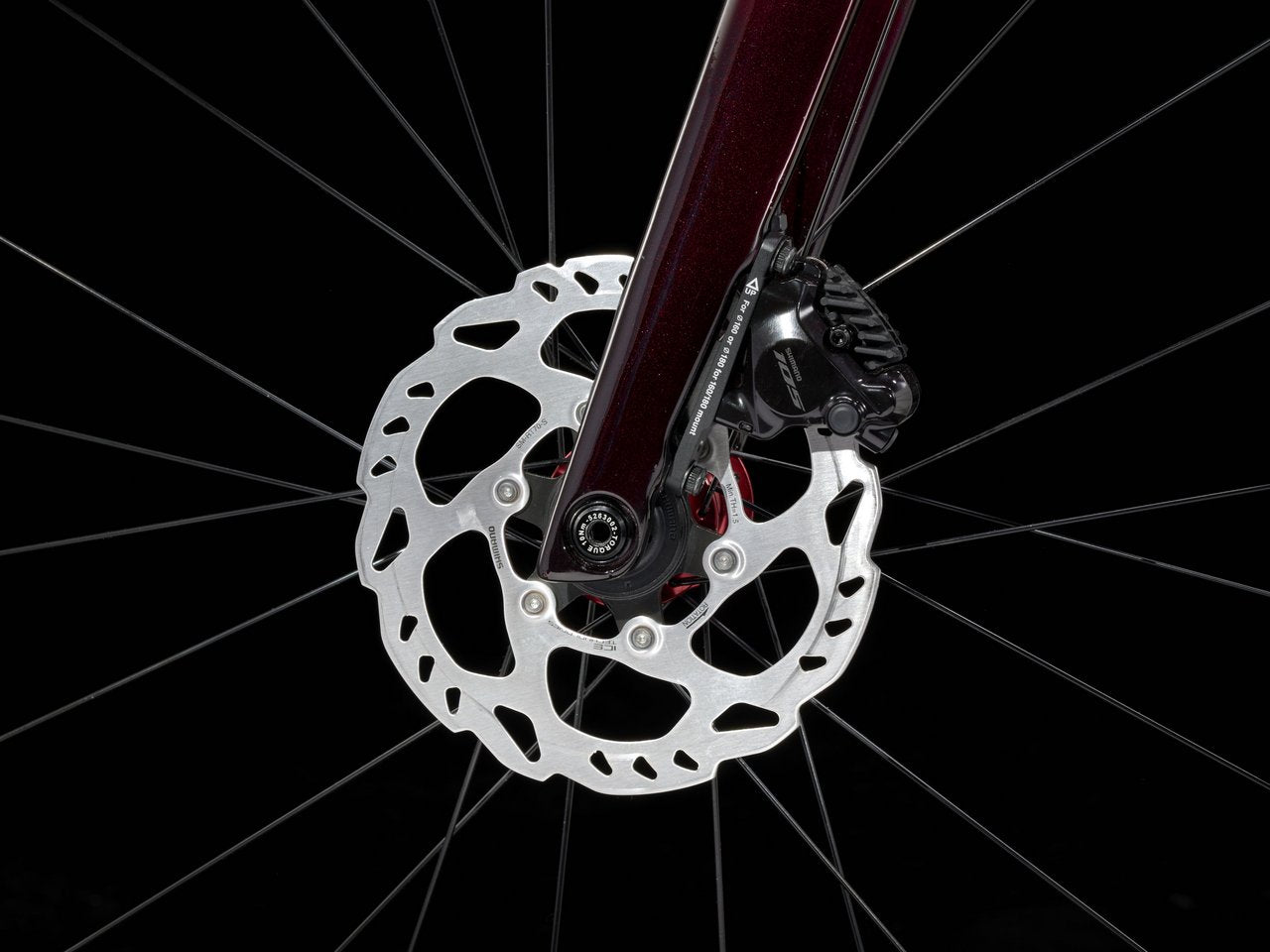

Brake rotor
Shimano RT70, centerlock, 160mm
Brake type
Hydraulic disc
Caliper
Shimano 105 hydraulic disc, flat mount
Cockpit

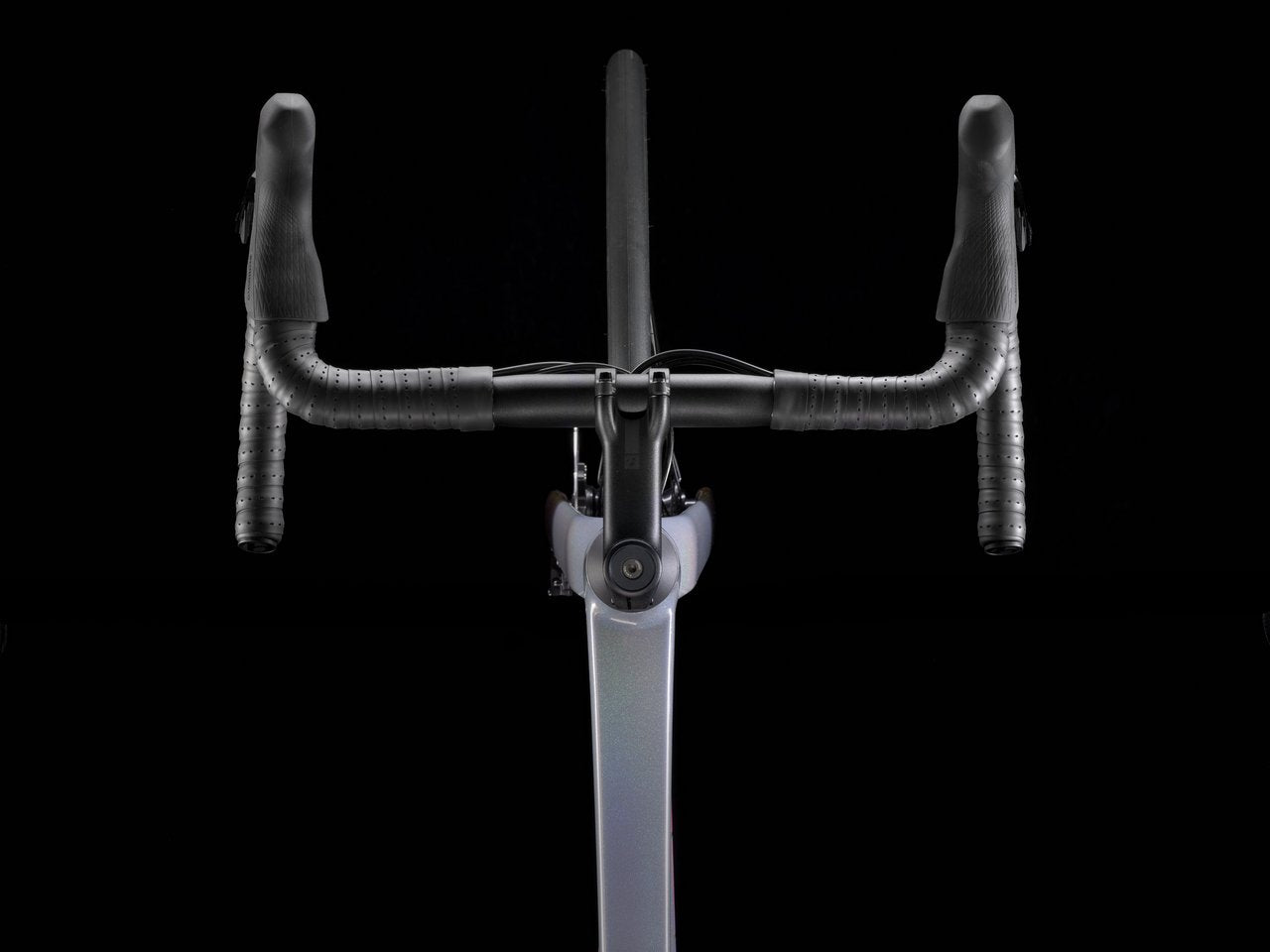

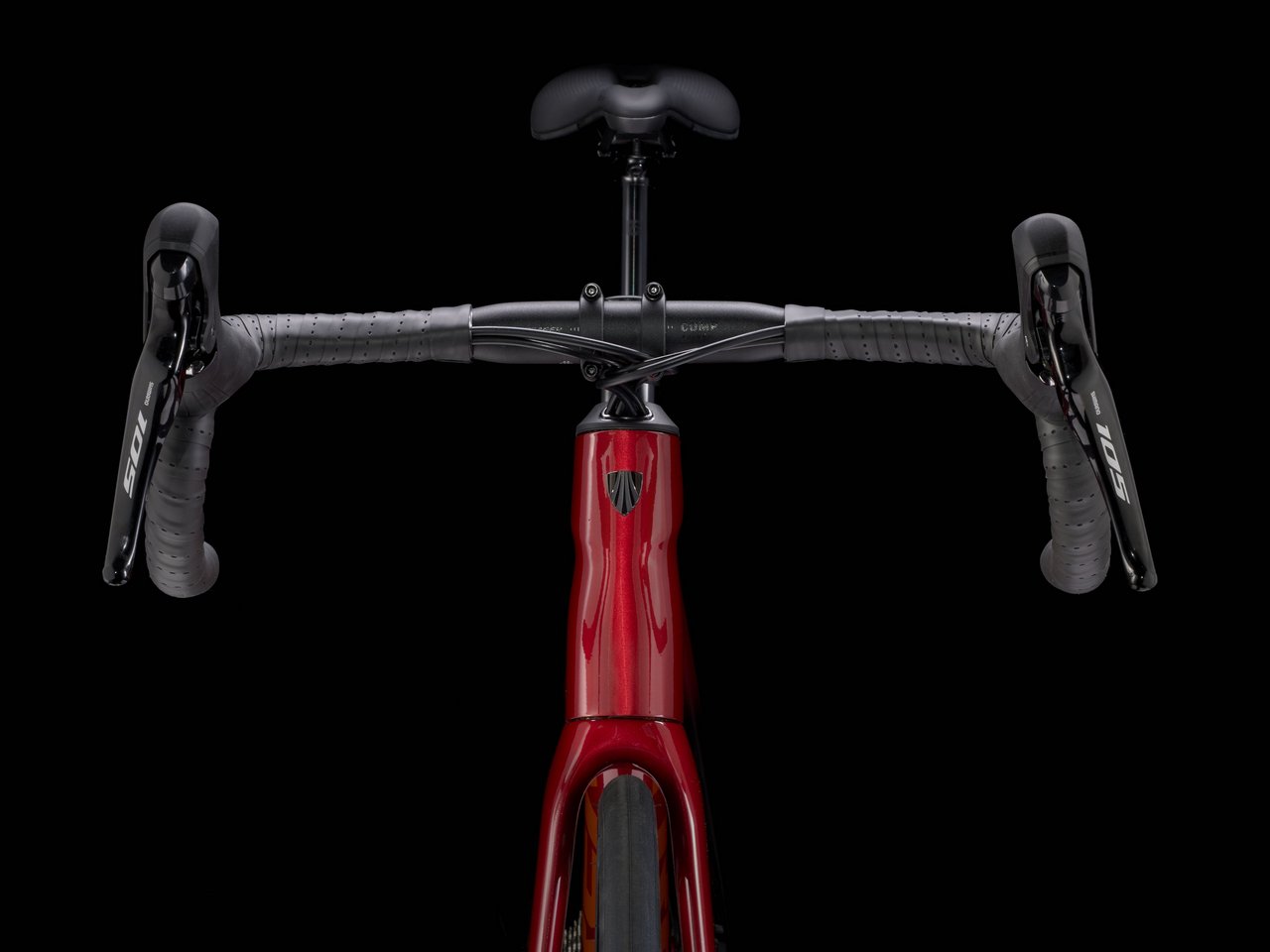

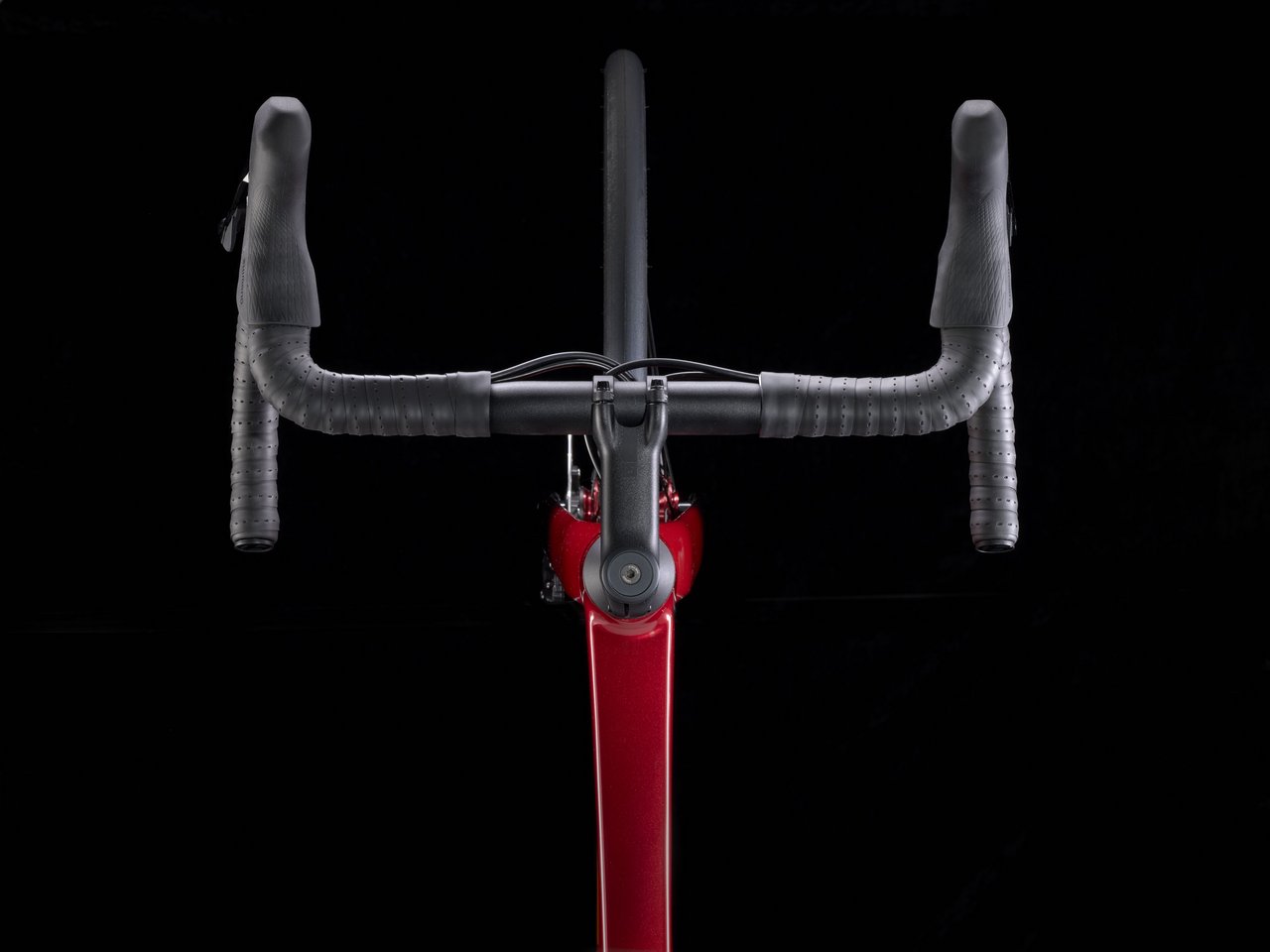

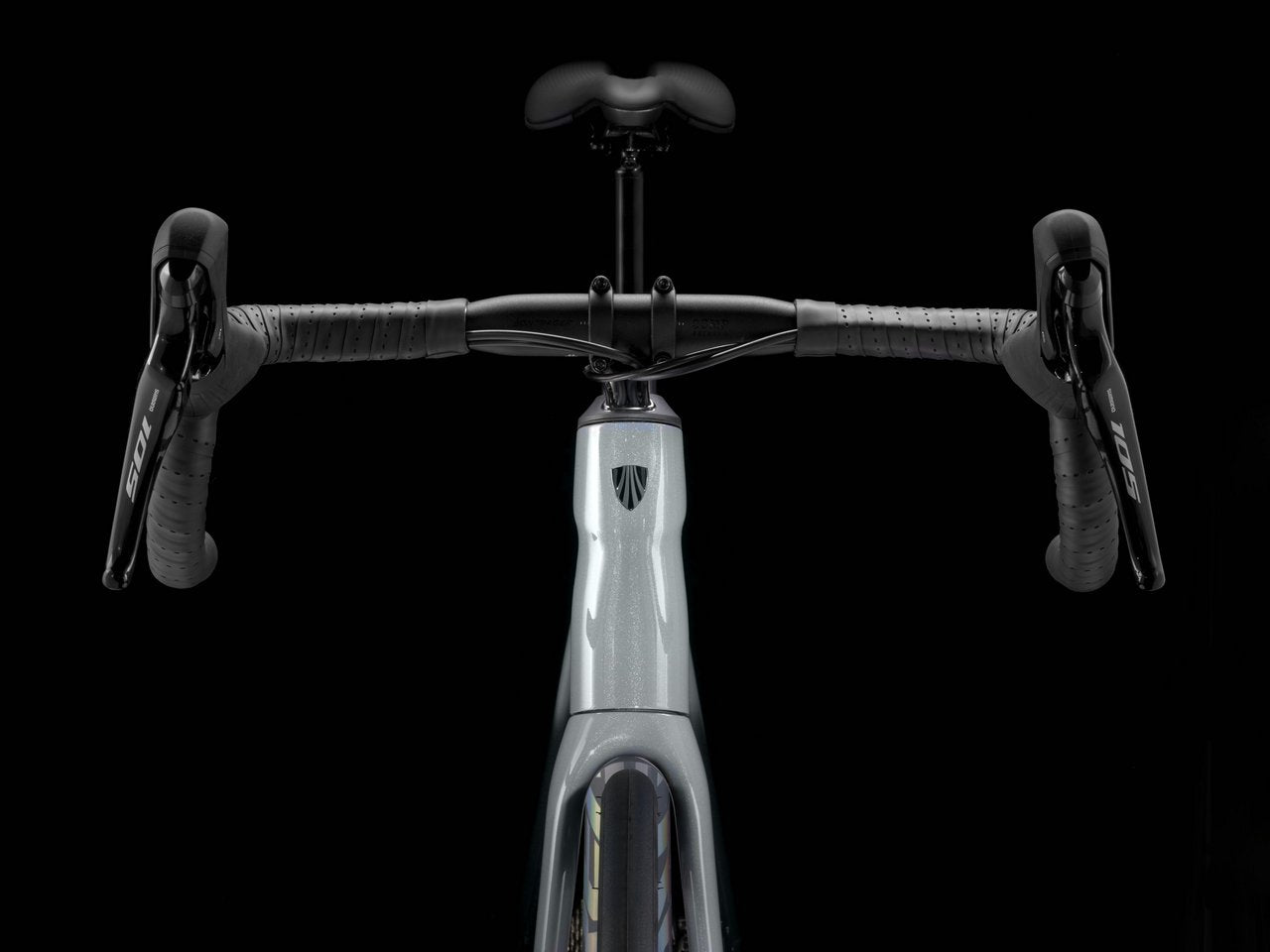

Handlebars

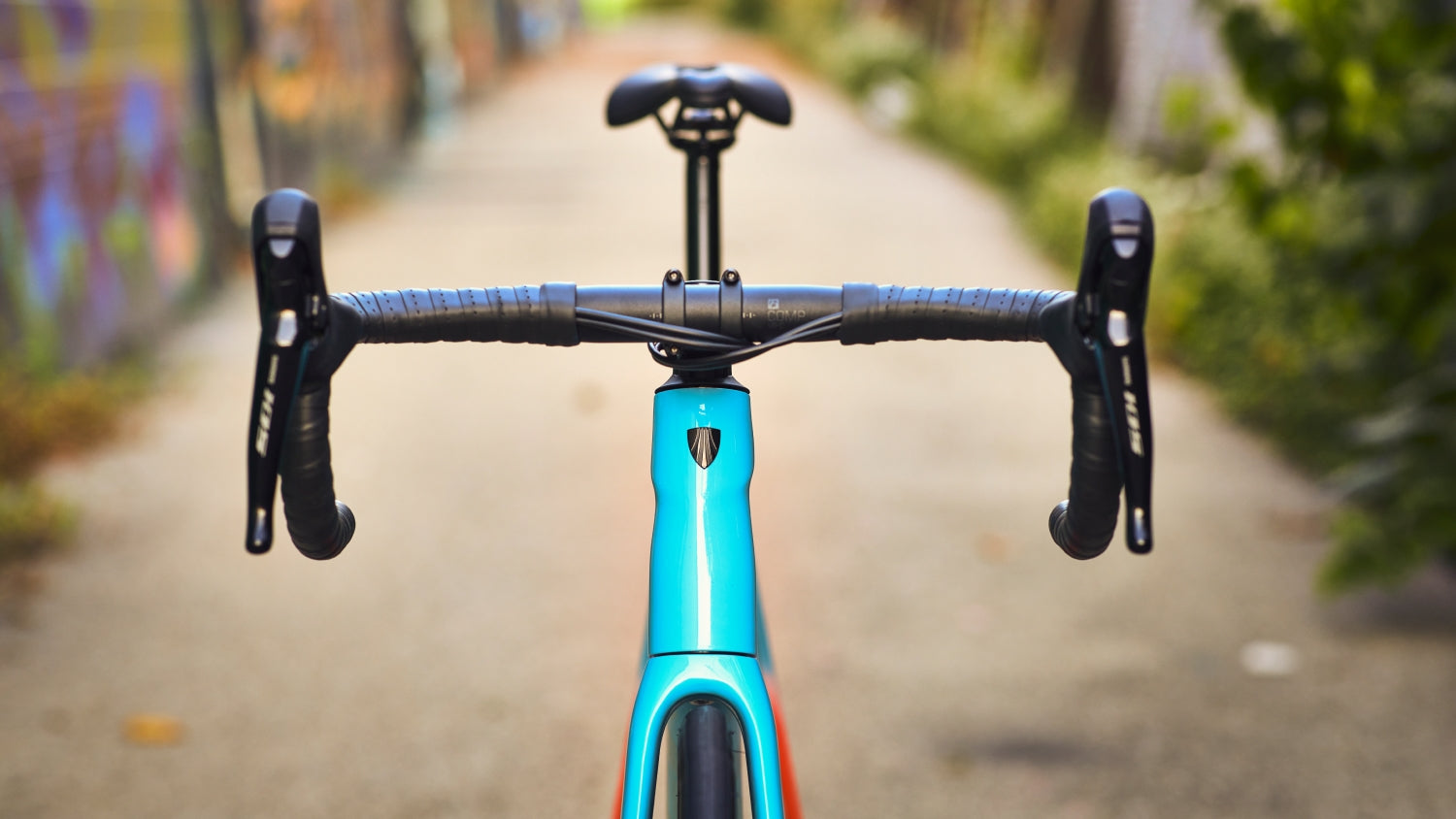

Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 44cm control width, 48cm drops width
Saddle
Verse Short Comp, steel rails, 145mm width
Seatpost
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length

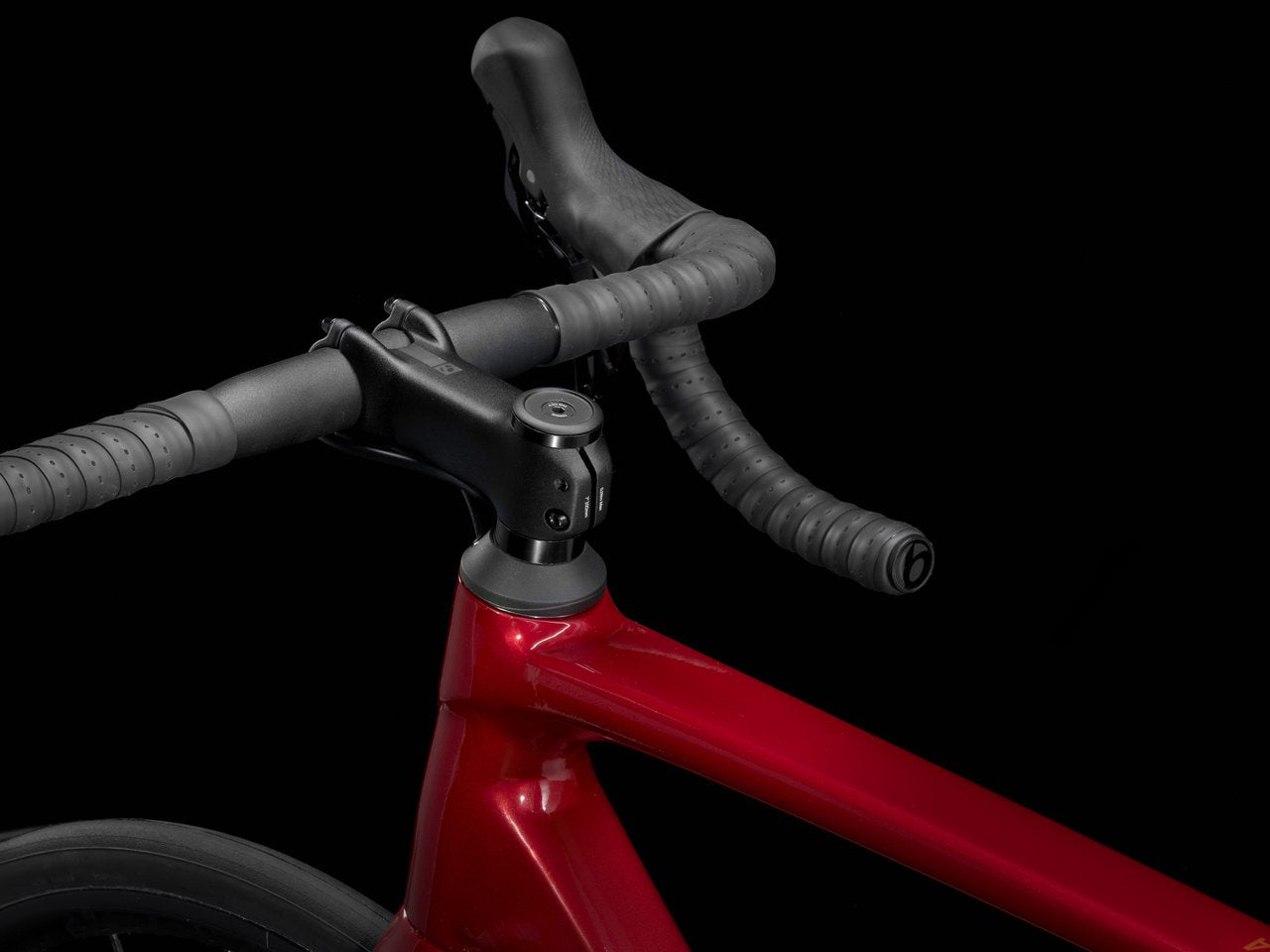

Stem

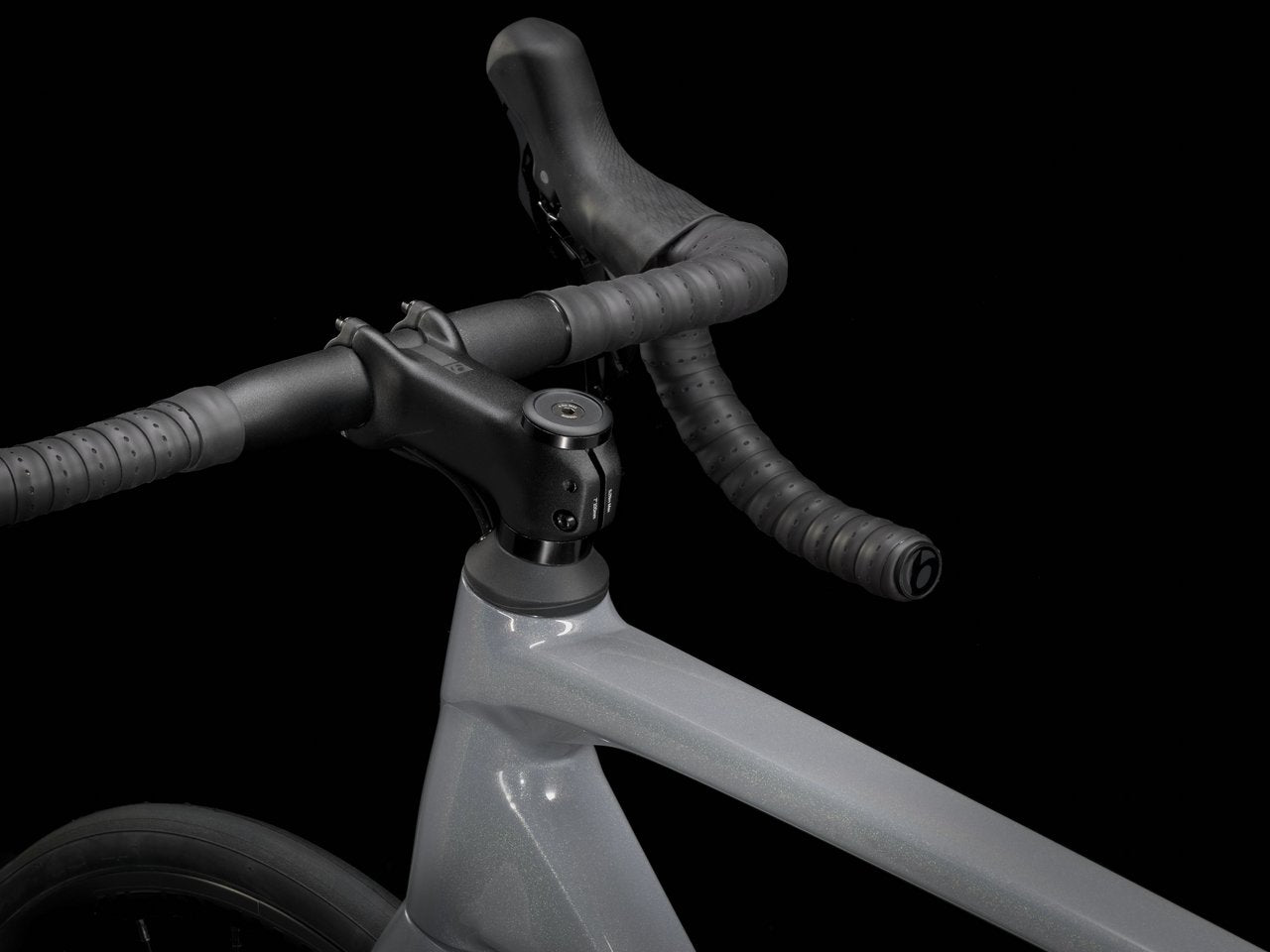

Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Wheels
Front hub
Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Rear hub
Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Rims
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Tires
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28mm
Wheel size
700c
Suspension
Fork
Émonda ALR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle
Fork brand
Trek
Frame
Bottom bracket
Praxis, T47 threaded, internal bearing
Frame

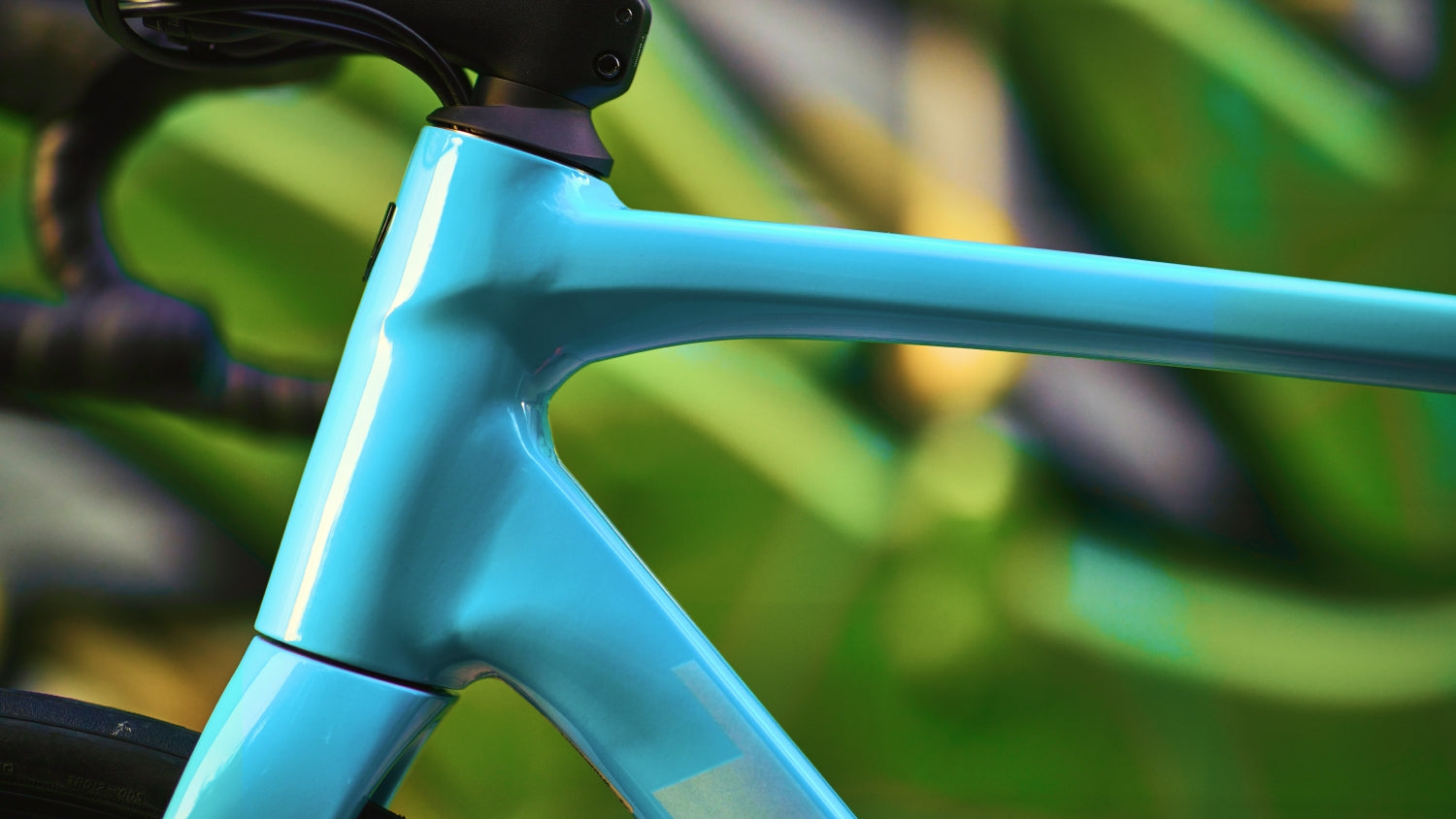

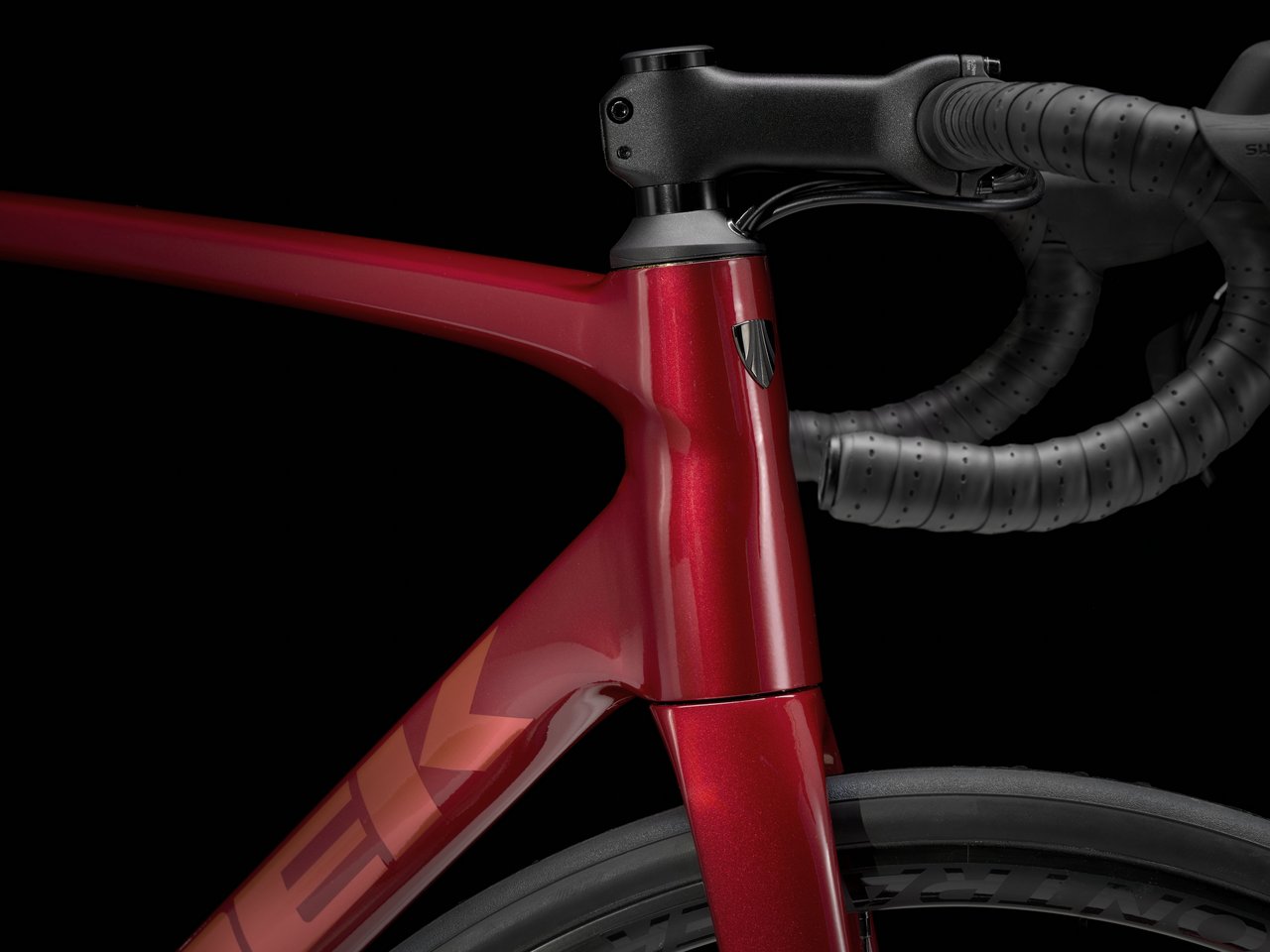

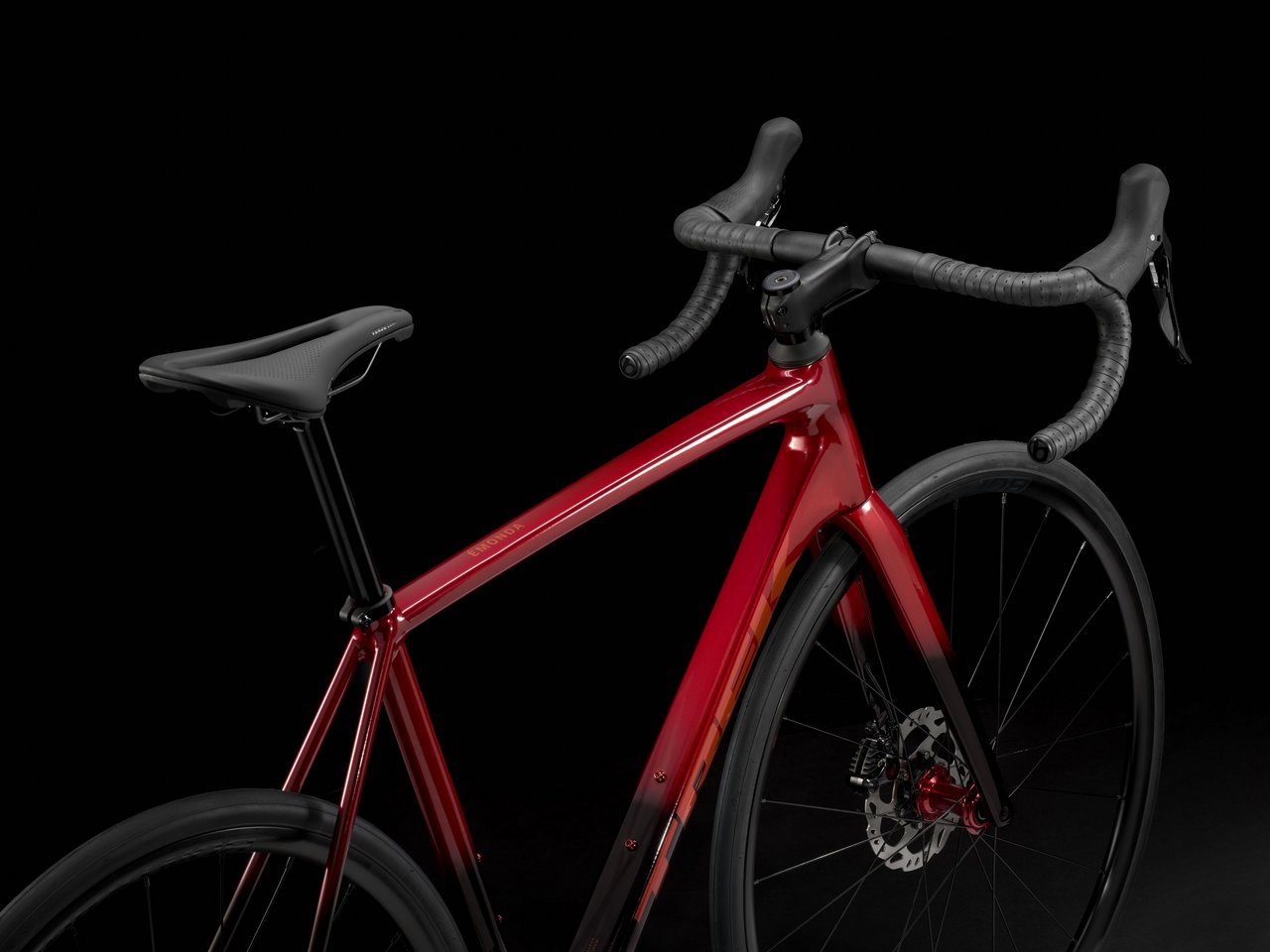

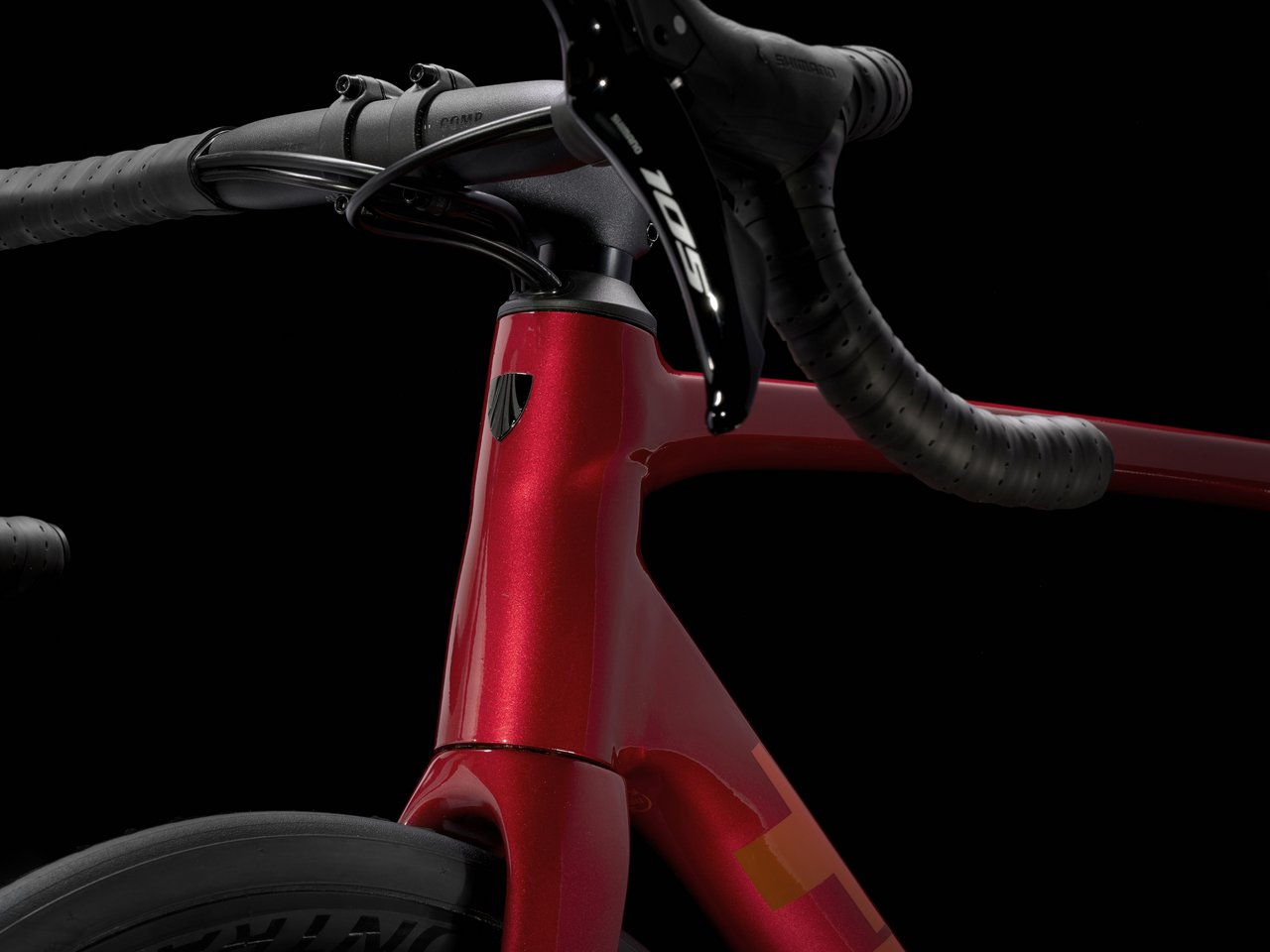

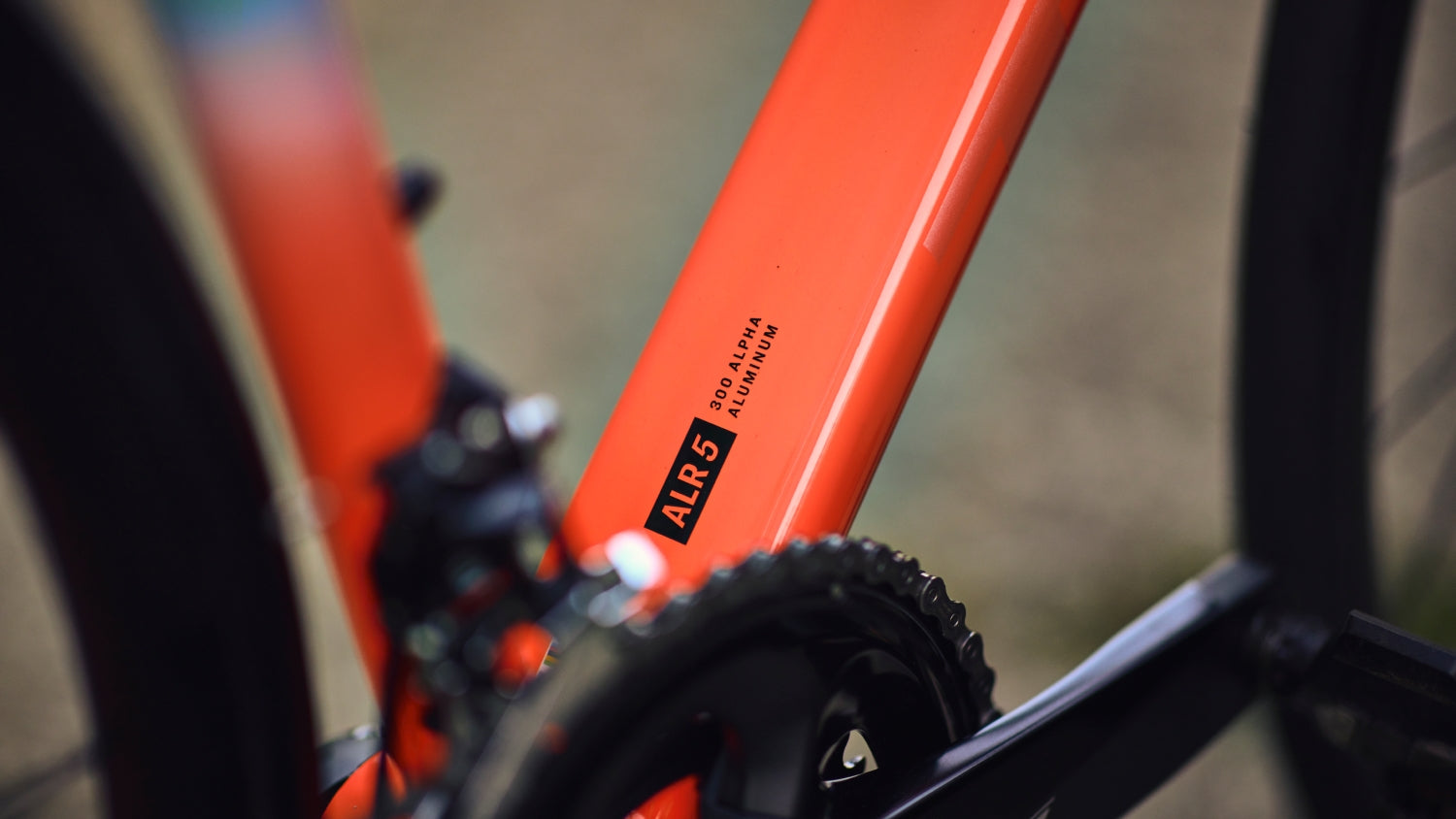

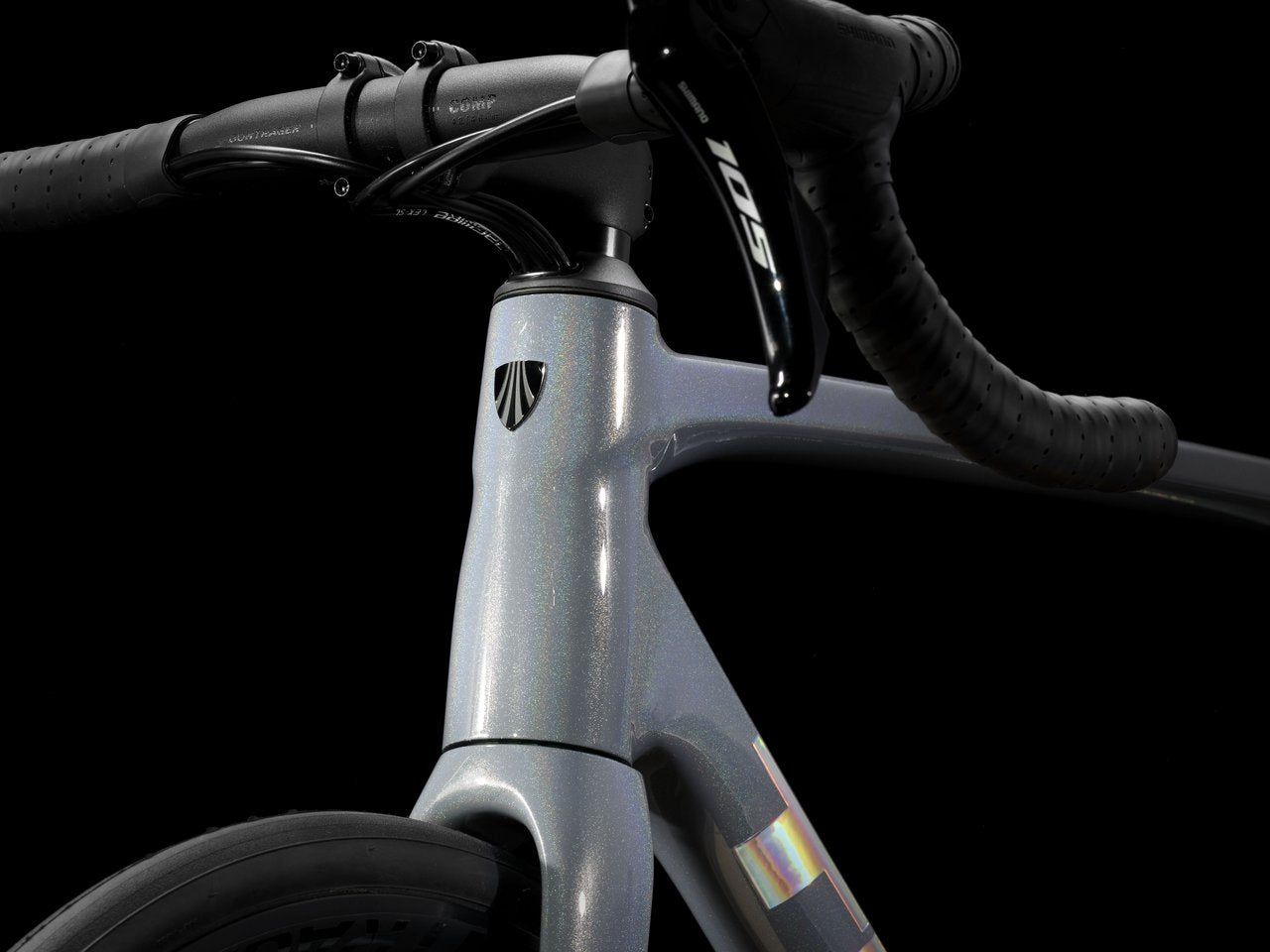

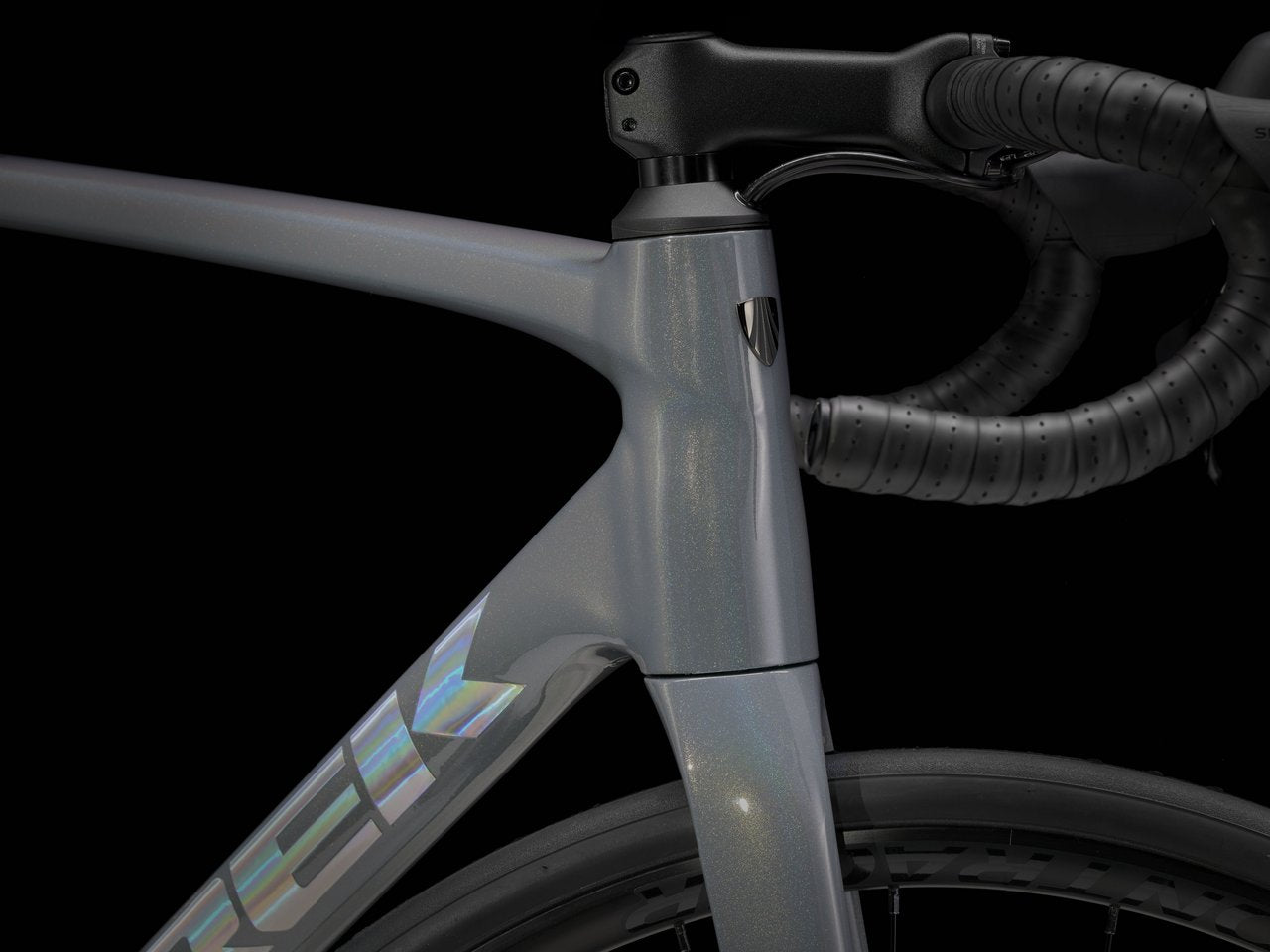

Ultralight 300 Series Alpha Aluminum, Invisible Weld technology, tapered head tube, internal cable routing, flat mount disc, 142x12mm thru axle
Frame material
Aluminum
Platform wheel size
700C
Seatpost
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
Weight as spec d
56 - 9.17 kg / 20.22 lbs (with tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
Share this product
Description
Description

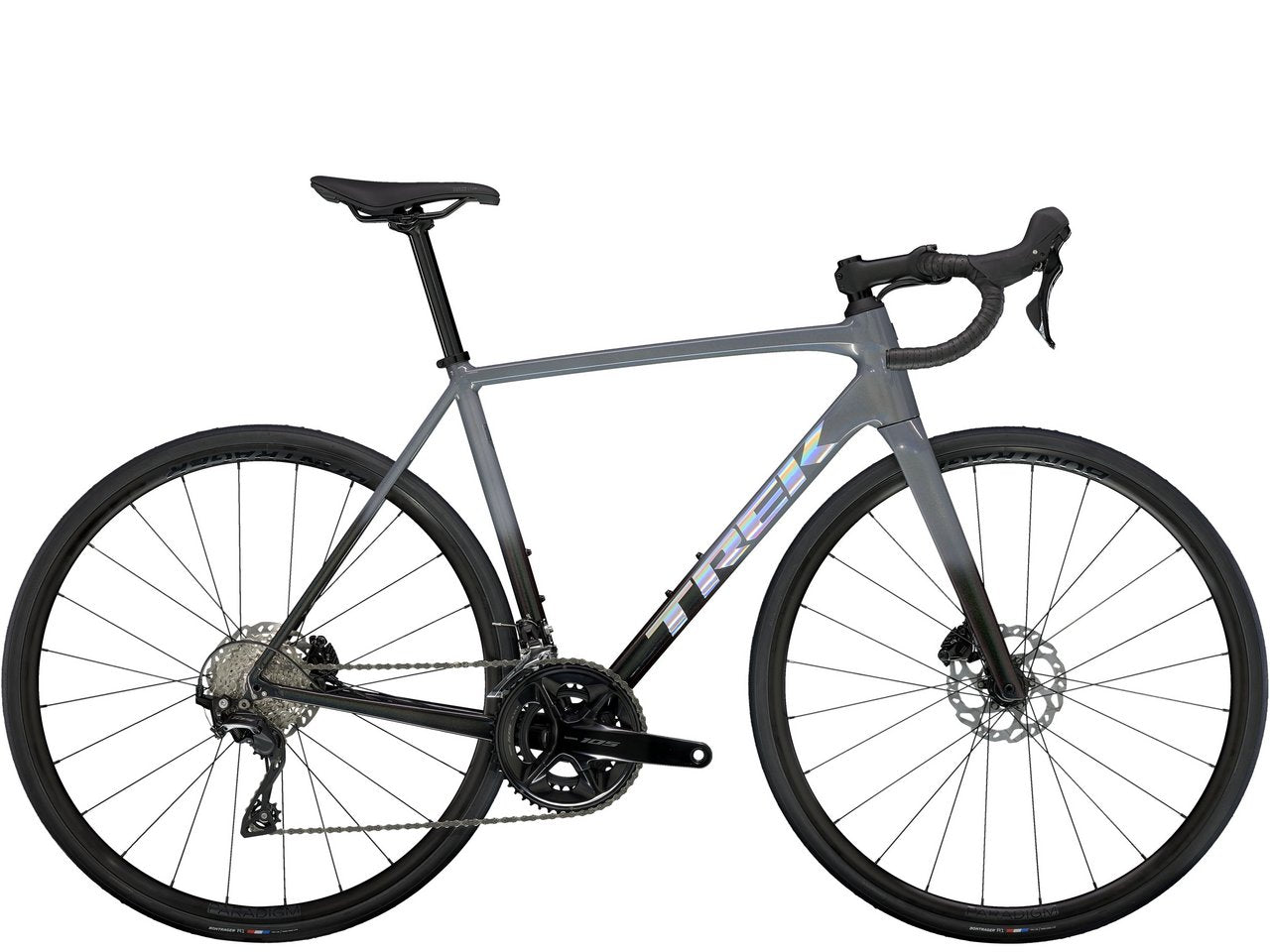

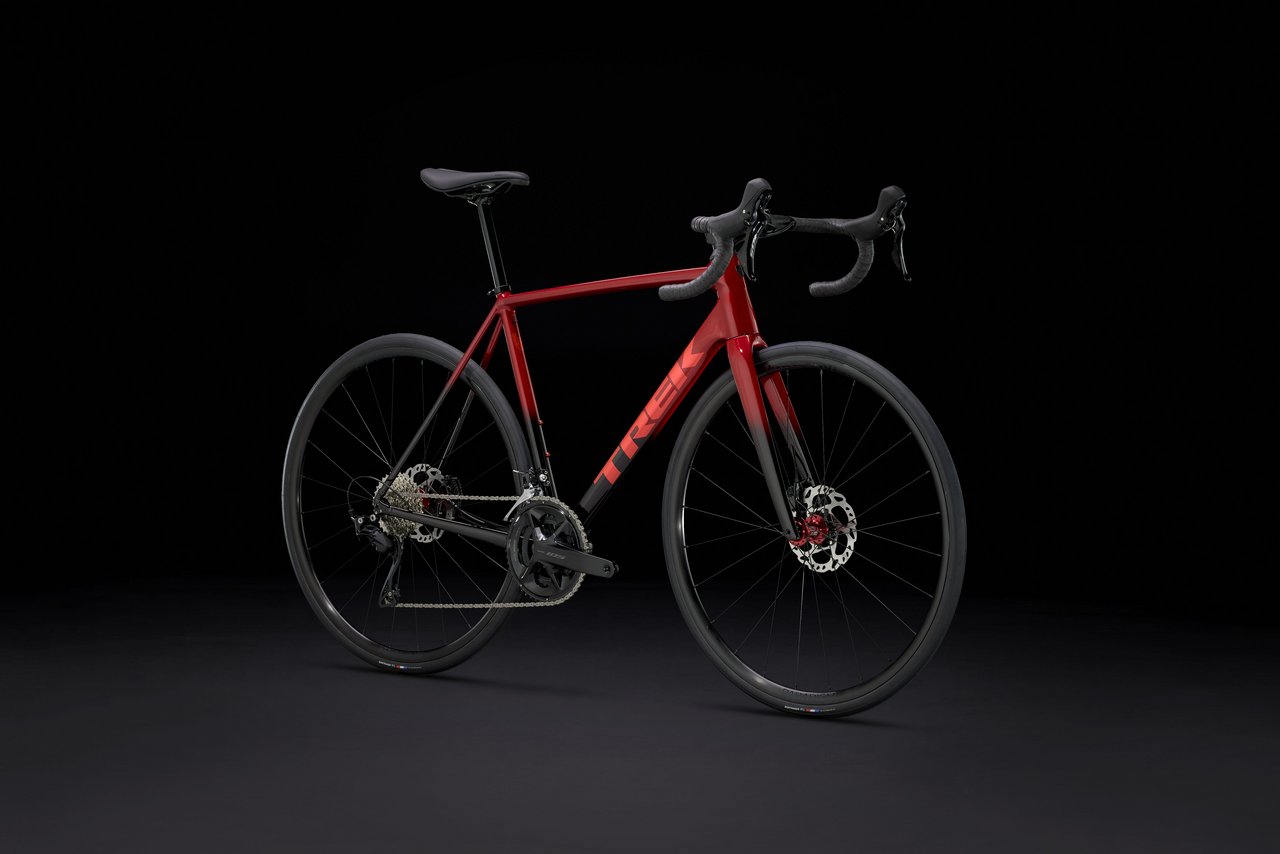

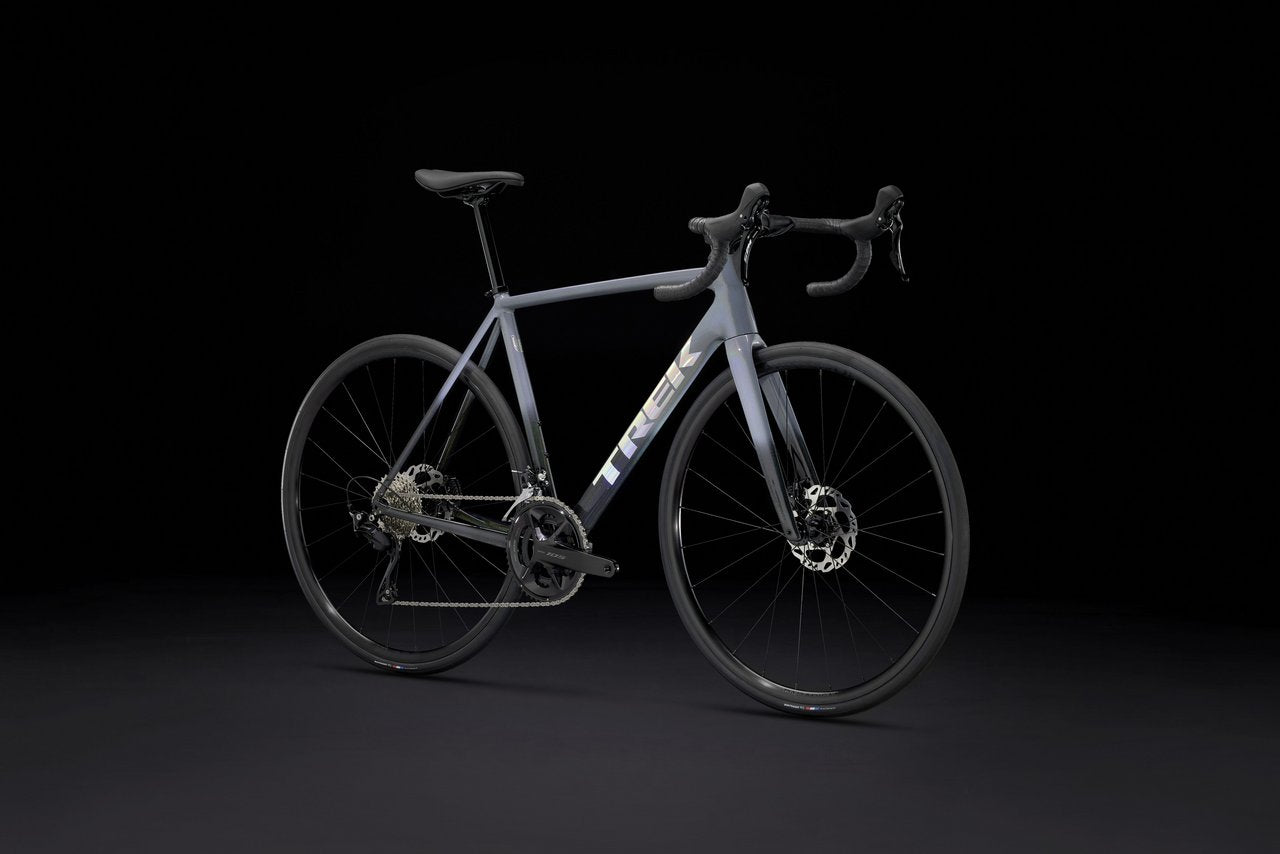

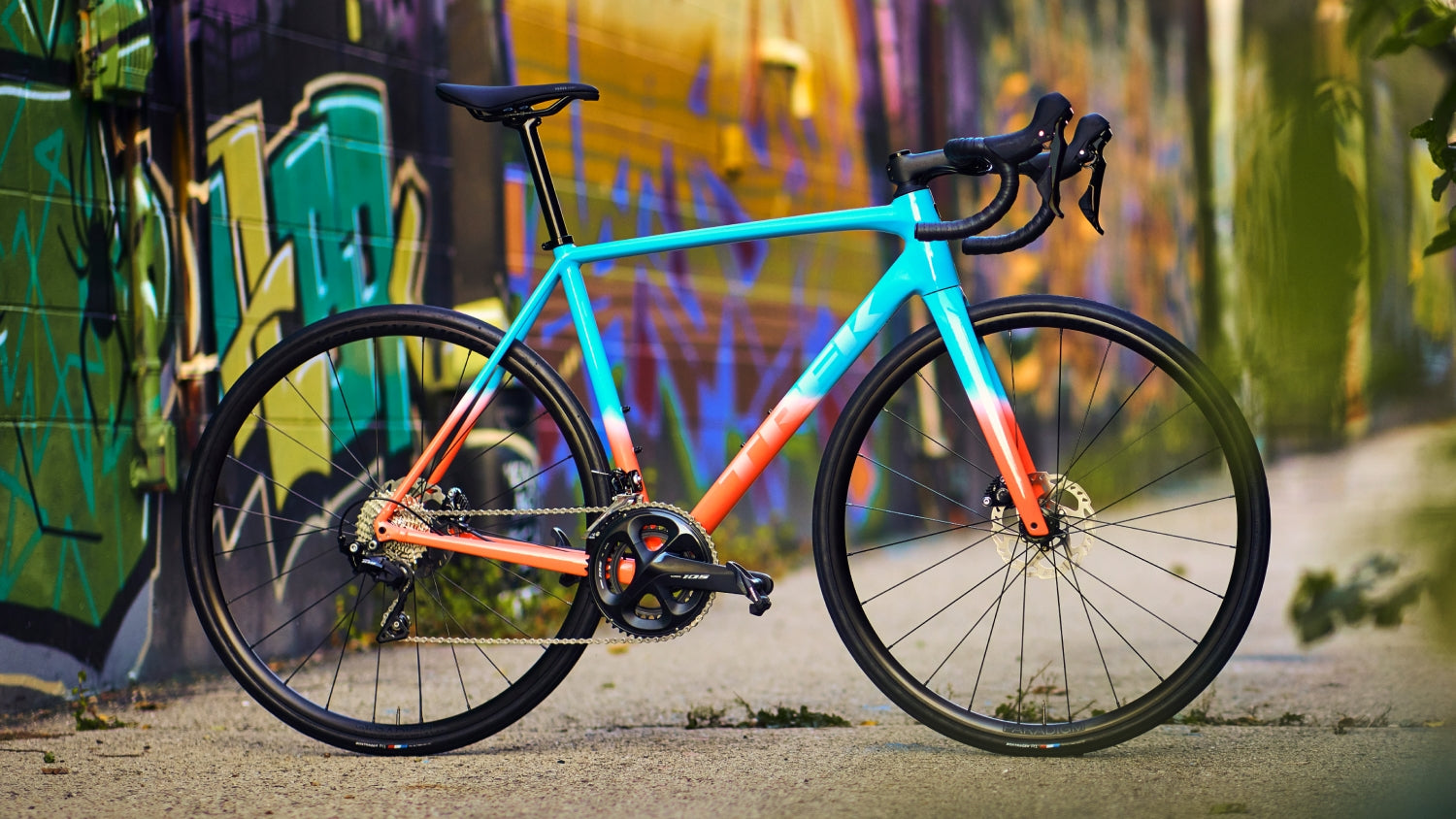

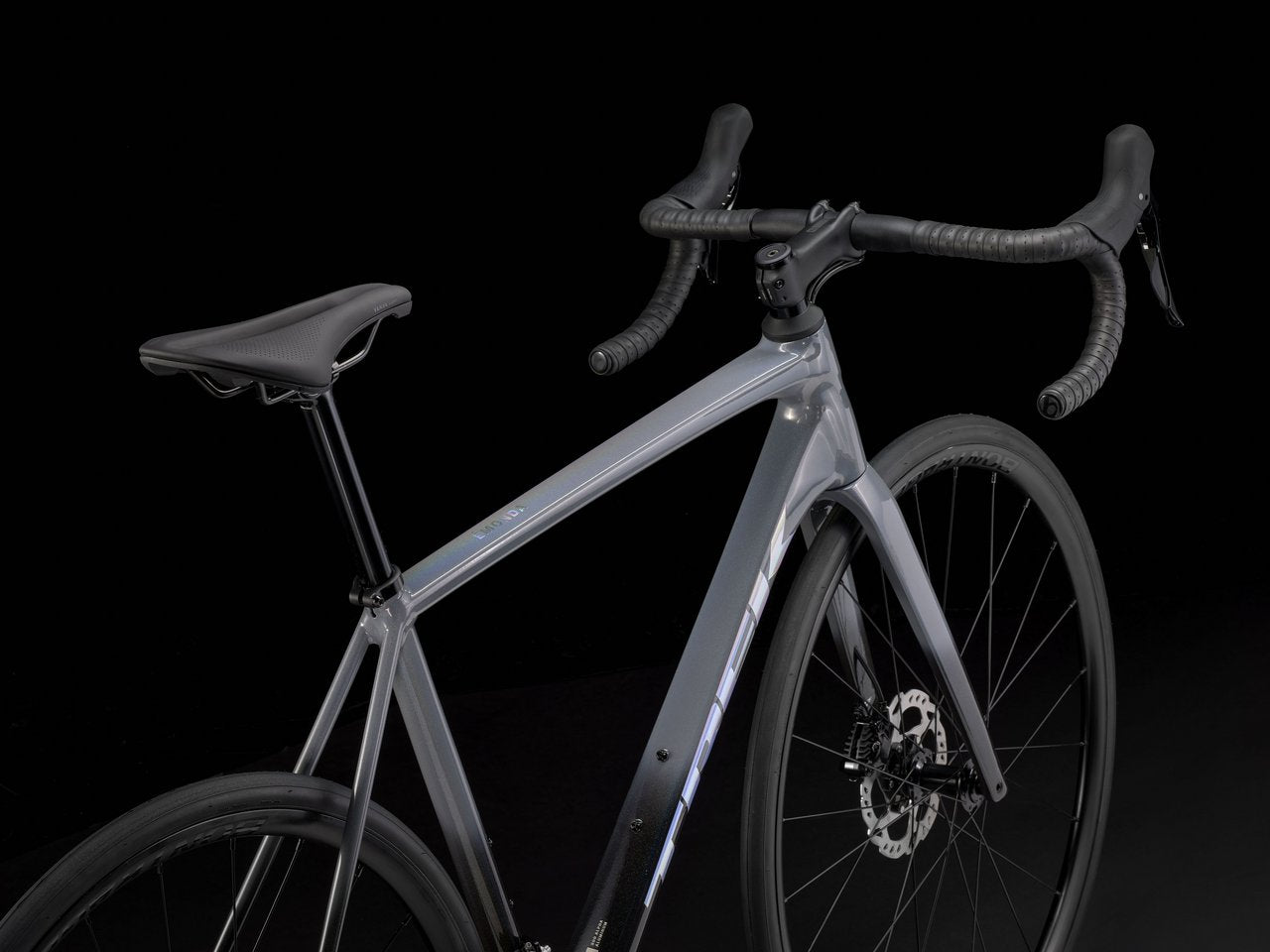

Émonda ALR 5 Disc is a super light and responsive alloy road race bike. Its advanced Kammtail alloy tube shapes and H1.5 race geometry give it the sleek looks and handling of a carbon bike and place it at an alloy price point. Paired with big upgrades on parts, like a dependable Shimano 105 drivetrain and powerful hydraulic disc brakes that stop in any weather, this bike is built to perform on club rides and races alike.
Geometry Chart
Geometry Chart
| Measurement | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Reach (mm) | 373 | 378 | 383 | 386 | 391 | 396 | 399 | 403 |
| Stack (mm) | 507 | 521 | 533 | 541 | 563 | 581 | 601 | 620 |
| Head Tube Angle (°) | 72.1° | 72.1° | 72.8° | 73.0° | 73.5° | 73.8° | 73.9° | 73.9° |
| Seat Tube Angle (°) | 74.6° | 74.6° | 74.2° | 73.7° | 73.3° | 73.0° | 72.8° | 72.5° |
| Wheelbase (mm) | 972 | 974 | 977 | 981 | 983 | 992 | 1001 | 1010 |
| Chainstay Length (mm) | 410 | 410 | 410 | 410 | 410 | 411 | 411 | 412 |
| Head Tube Length (mm) | 100 | 111 | 121 | 131 | 151 | 171 | 191 | 211 |
| Seat Tube Length (mm) | 424 | 453 | 483 | 496 | 525 | 553 | 573 | 593 |
| BB Drop (mm) | 72 | 72 | 72 | 70 | 70 | 68 | 68 | 68 |
| Rake (mm) | 45 | 45 | 45 | 45 | 40 | 40 | 40 | 40 |
| Trail (mm) | 7 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Axle to Crown (mm) | 507 | 521 | 533 | 541 | 563 | 581 | 601 | 620 |
Part Numbers
Part Numbers
| Size | Slate Prismatic/Black Prismatic Fade | Crimson to Dark Carmine Fade |
|---|---|---|
| 47cm |
SKUTRE52675497E
VPNTrek_5298258
UPC768682464649
MPN5298258
|
SKUTRE44258579E
VPNTrek_5298250
UPC768682230633
MPN5298250
|
| 50cm |
SKUTRE52965891E
VPNTrek_5298259
UPC768682464441
MPN5298259
|
SKUTRE44213726E
VPNTrek_5298251
UPC768682230435
MPN5298251
|
| 52cm |
SKUTRE52268517E
VPNTrek_5298260
UPC768682464281
MPN5298260
|
SKUTRE44573028E
VPNTrek_5298252
UPC768682230732
MPN5298252
|
| 54cm |
SKUTRE52960031E
VPNTrek_5298261
UPC768682464380
MPN5298261
|
SKUTRE44235983E
VPNTrek_5298253
UPC768682230671
MPN5298253
|
| 56cm |
SKUTRE52887538E
VPNTrek_5298262
UPC768682464540
MPN5298262
|
SKUTRE44260212E
VPNTrek_5298254
UPC768682230718
MPN5298254
|
| 58cm |
SKUTRE52473208E
VPNTrek_5298263
UPC768682464205
MPN5298263
|
SKUTRE44203800E
VPNTrek_5298255
UPC768682464304
MPN5298255
|
| 60cm |
SKUTRE52653538E
VPNTrek_5298264
UPC768682464601
MPN5298264
|
SKUTRE44558458E
VPNTrek_5298256
UPC768682464588
MPN5298256
|
| 62cm |
SKUTRE5280782E
VPNTrek_5298265
UPC768682464403
MPN5298265
|
SKUTRE44223096E
VPNTrek_5298257
UPC768682464762
MPN5298257
|
Size Chart
Size Chart
Trek | Road
| Size | Size (cm) | Rider height (in) | Rider height (cm) | Inseam (in) | Inseam (cm) |
|---|---|---|---|---|---|
| — | 47cm | 5'0" - 5'2" | 152 - 158 cm | 28" - 30" | 71 - 75 cm |
| — | 50cm | 5'2" - 5'4" | 158 - 163 cm | 29" - 30" | 74 - 77 cm |
| — | 52cm | 5'4" - 5'6" | 163 - 168 cm | 30" - 31" | 76 - 79 cm |
| — | 54cm | 5'6" - 5'9" | 168 - 174 cm | 31" - 32" | 78 - 82 cm |
| — | 56cm | 5'9" - 5'11" | 174 - 180 cm | 32" - 33" | 81 - 85 cm |
| — | 58cm | 5'11" - 6'1" | 180 - 185 cm | 33" - 34" | 84 - 87 cm |
| — | 60cm | 6'1" - 6'3" | 185 - 190 cm | 34" - 35" | 86 - 90 cm |
| — | 62cm | 6'3" - 6'5" | 190 - 195 cm | 35" - 36" | 89 - 92 cm |
