Trek

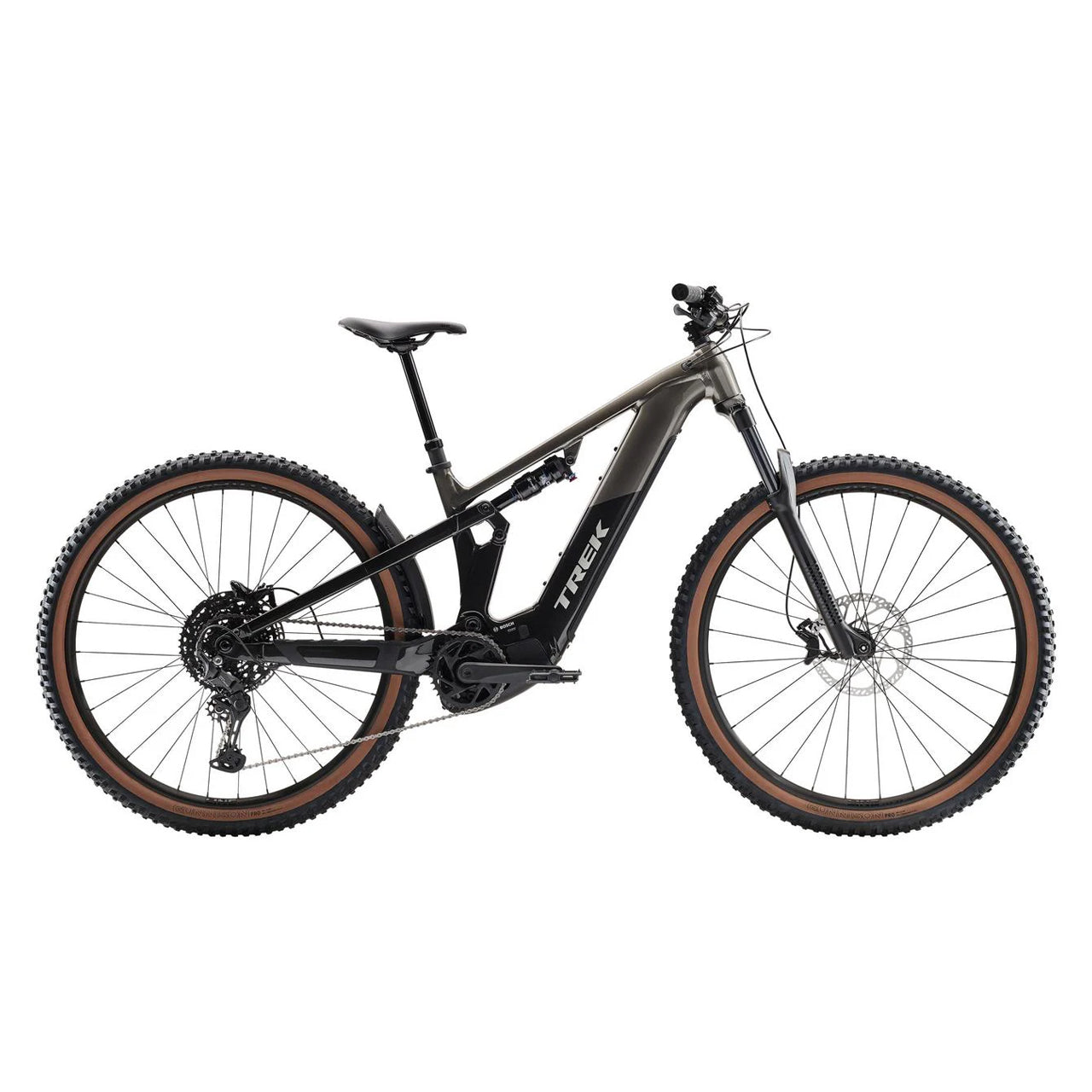

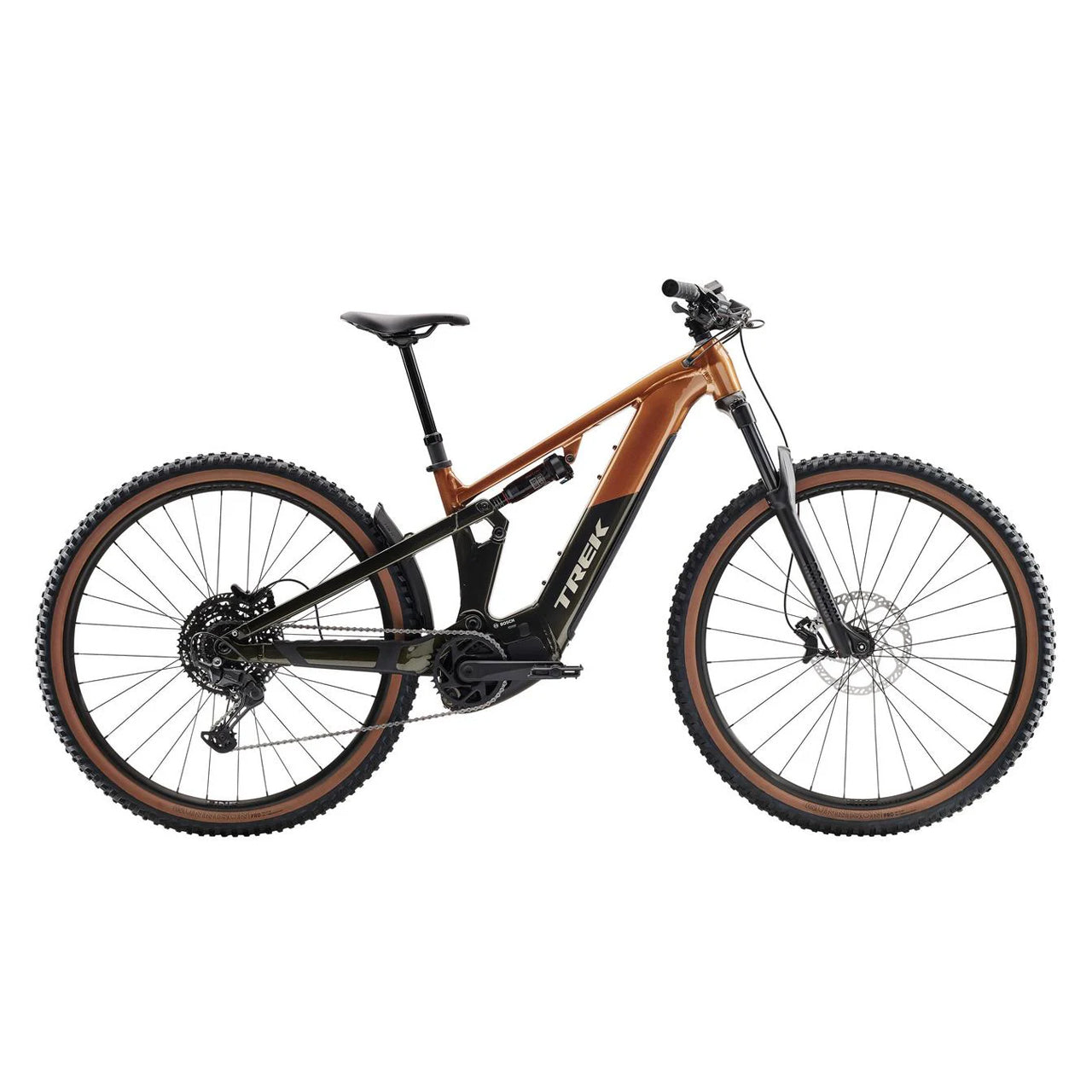

2025 | Powerfly FS+ 4
2025 | Powerfly FS+ 4
Regular price
$6,599.99
Sale price
$6,599.99
Regular price
Shipping calculated at checkout.
SKU:TRE48487816E
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.
Canadian shipping charges:
- Sale bikes: $200
- Standard pedal bikes over $1250: Free
- Standard pedal bikes under $1250: $100
- Electric bikes: $200
- Fat bikes: $200
- Kid's bikes: $60
Insurance charge: 1.5% insured value
We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details
Bike Specifications
Bike Specifications
Specifications are subject to change without notice
Drivetrain
Cassette
Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed
Chain
Shimano LG500
Chainring
FSA, 36T, steel
Rear derailleur
Shimano CUES U6000 GS
Shifter
Shimano U6000, 10 speed
Brakes
Brake rotor
Tektro, centerlock, 203mm
Brake type
Hydraulic disc
Caliper
Tektro Gemini SL 4 piston hydraulic brake // Tektro Gemini SL 4 piston hydraulic brake
Cockpit
Grips tape
Bontrager XR Trail Comp, nylon lock-on
Handlebars
Bontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width
Pedals
VP-536 nylon platform
Saddle
Bontrager Verse P3, steel rails
Seatpost
Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 31.6mm, 4500mm length
Seat collar
Bolt-on, 36.4mm
Stem
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Wheels
Front hub
Shimano TC500 alloy, centerlock, 110x15mm thru axle
Rear hub
Shimano TC500 alloy, centerlock, 148x12mm thru axle
Rims
Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve // Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve
Tires
Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40'
Valves
Bontrager TLR sealant, 180 ml/6 oz
Wheel size
29"
Suspension
Fork
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 130mm travel
Fork brand
RockShox
Shock
RockShox Deluxe Select R, 210x50mm
Shock brand
RockShox
Frame
Frame
Alpha Platinum Aluminum, Removable Integrated Battery (RIB 2.0), tapered headtube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9mm seat tube, ABP, UDH, rack and mudguard mounts, Boost 148, 120 mm travel
Frame material
Aluminum
Headset
FSA IS-2, 1-1/8" top, 1.5" bottom
Platform wheel size
29"
Seatpost
Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 31.6mm, 4500mm length
Weight as spec d
M - 24.58 kg / 54.19 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
E-Bike System
Battery
Bosch PowerTube 600Wh, smart system
Battery type
600WH
Motor
Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
Share this product
Description
Description
Powerfly FS+ 4 is a full-power full suspension electric mountain bike for taking on alpine adventures. It features 120mm of rear and 130mm of front trail-smoothing travel and a powerful Bosch Performance Line CX motor with a PowerMore compatible Removable Integrated Battery 2.0 (RIB 2.0) for getting way, way out there.
Geometry Chart
Geometry Chart
| Measurement | Medium | Large | X-Large |
|---|---|---|---|
| Reach (mm) | 450 | 475 | 500 |
| Stack (mm) | 629 | 647 | 666 |
| Head Tube Angle (°) | 66.0° | 66.0° | 66.0° |
| Seat Tube Angle (°) | 71.3° | 71.2° | 72.4° |
| Wheelbase (mm) | 1223 | 1257 | 1290 |
| Chainstay Length (mm) | 461 | 461 | 461 |
| Head Tube Length (mm) | 110 | 130 | 150 |
| Seat Tube Length (mm) | 400 | 420 | 450 |
| BB Drop (mm) | 45 | 45 | 45 |
| BB Height (mm) | 335 | 335 | 335 |
| Rake (mm) | 44 | 44 | 44 |
| Trail (mm) | 13 | 13 | 13 |
| Axle to Crown (mm) | 629 | 647 | 666 |
Part Numbers
Part Numbers
| Size | Pennyflake/Black Olive | Mercury/Dark Web |
|---|---|---|
| Small |
SKUTRE49371046E
VPNTrek_5329717
UPC197216109365
MPN5329717
|
SKUTRE43329086B
VPNTrek_5329721
UPC197216109402
MPN5329721
|
| Medium |
SKUTRE48487816E
VPNTrek_5329718
UPC197216109372
MPN5329718
|
SKUTRE42907110B
VPNTrek_5329722
UPC197216109419
MPN5329722
|
| Large |
SKUTRE48679341E
VPNTrek_5329719
UPC197216109389
MPN5329719
|
SKUTRE42669719B
VPNTrek_5329723
UPC197216109426
MPN5329723
|
| X-Large |
SKUTRE49117341E
VPNTrek_5329720
UPC197216109396
MPN5329720
|
SKUTRE43949467B
VPNTrek_5329724
UPC197216109433
MPN5329724
|
Size Chart
Size Chart
Trek | Mountain
| Size | Rider height (in) | Rider height (cm) | Inseam (in) | Inseam (cm) |
|---|---|---|---|---|
| X-Small | 4'9" - 5'1" | 145 - 155 cm | 27" - 29" | 69 - 73 cm |
| Small | 5'1" - 5'5" | 155 - 165 cm | 29" - 31" | 74 - 78 cm |
| Medium | 5'5" - 5'10" | 165 - 177 cm | 31" - 33" | 79 - 83 cm |
| Medium/Large | 5'8" - 5'11" | 173 - 180 cm | 32" - 34" | 81 - 86 cm |
| Large | 5'10" - 6'2" | 177 - 188 cm | 33" - 35" | 84 - 89 cm |
| X-Large | 6'2" - 6'5" | 188 - 195 cm | 35" - 36" | 89 - 91 cm |
| XX-Large | 6'5" - 6'8" | 195 - 203 cm | 36" - 38" | 91 - 97 cm |
