Sold out
Trek

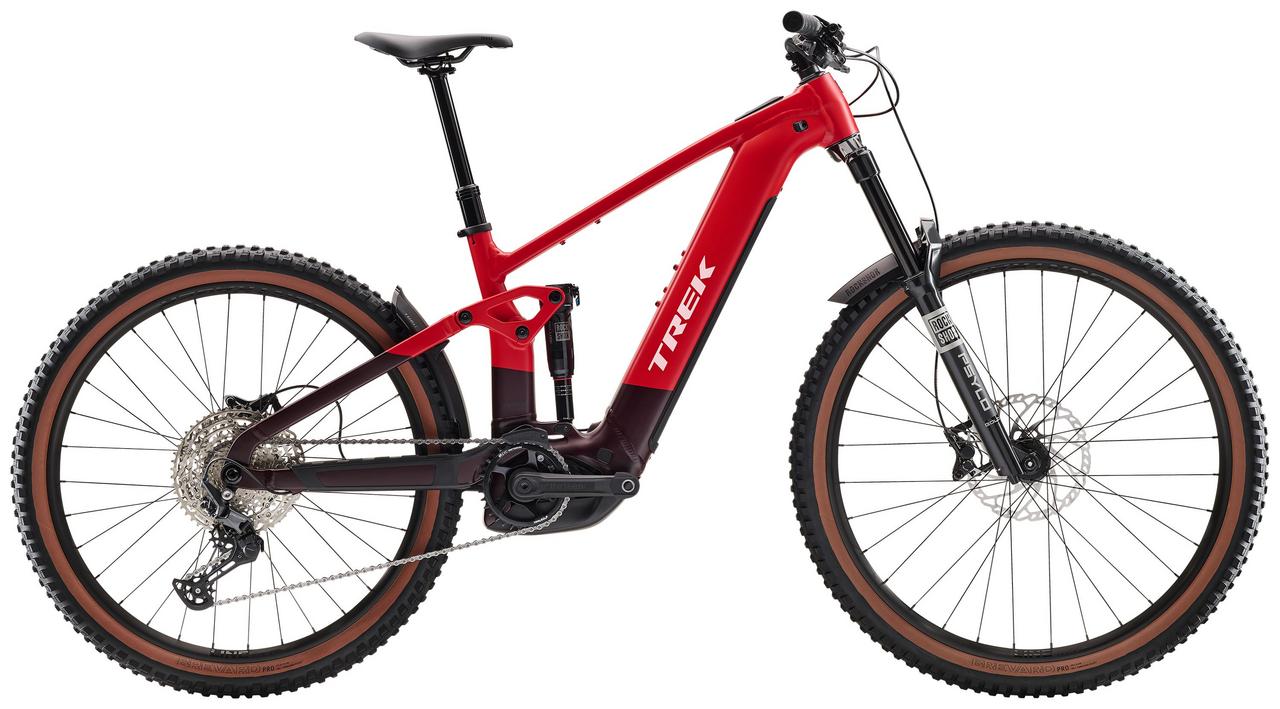

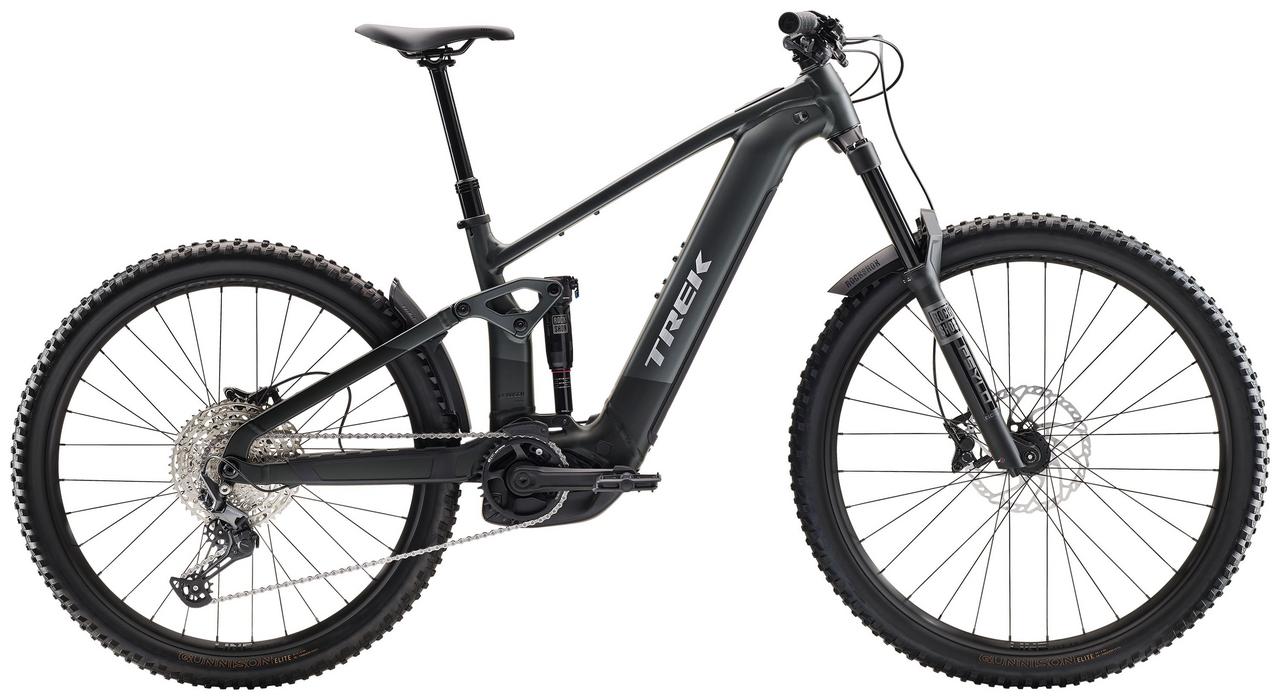

2025 | Rail+ 5 Gen 5
2025 | Rail+ 5 Gen 5
Regular price
$7,599.99
Sale price
$7,599.99
Regular price
Shipping calculated at checkout.
SKU:TRE28682978D
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.
Canadian shipping charges:
- Sale bikes: $200
- Standard pedal bikes over $1250: Free
- Standard pedal bikes under $1250: $100
- Electric bikes: $200
- Fat bikes: $200
- Kid's bikes: $60
Insurance charge: 1.5% insured value
We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details
Bike Specifications
Bike Specifications
Specifications are subject to change without notice
Drivetrain
Cassette
Shimano Deore M6100, 10-51, 12 speed
Chain
Shimano Deore M6100, 12 speed
Crank length
E*thirteen E*spec Plus, 160mm length
Rear derailleur
Shimano Deore M6100, long cage
Shifter
Shimano Deore M6100, 12 speed
Brakes
Brake rotor
Shimano RT66, 6-bolt, 203mm
Brake type
Hydraulic disc
Caliper
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper // Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
Cockpit
Grips tape
Bontrager XR Trail Comp, nylon lock-on
Handlebars
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Pedals
VP-536 nylon platform
Saddle
Bontrager Verse P3, steel rails
Seatpost
TranzX JD-YSI34, 170mm travel, internal routing, 34.9mm
Stem
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Wheels
Front hub
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
Rear hub
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Rims
Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve // Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve
Tires
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" // Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"
Valves
Bontrager TLR sealant, 180 ml/6 oz
Wheel size
29"/27.5" MX
Suspension
Fork
RockShox Psylo Gold RC, DebonAir spring, Isolator RC damper, tapered steerer, 44mm offset, Boost 110, 15mm Maxle Stealth, 160mm travel
Fork brand
RockShox
Shock
RockShox Deluxe Select+ RT, 205mm x 65mm
Shock brand
RockShox
Frame
Frame

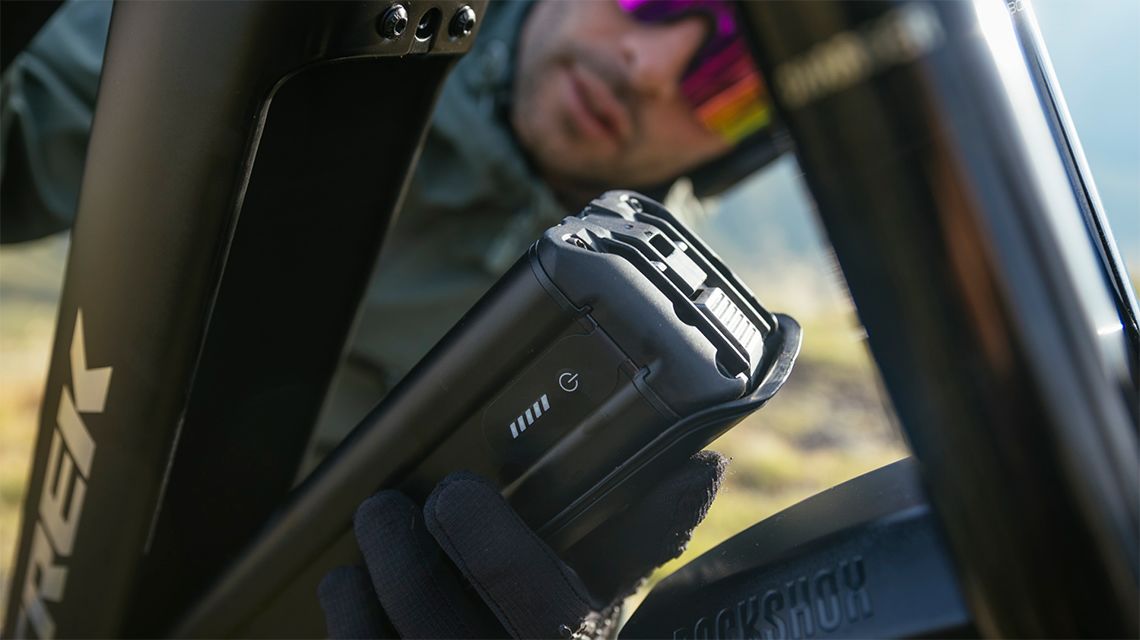

Alpha Platinum Aluminum, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Control Freak internal routing, Motor Armor, Boost148, 12mm thru axle, 160mm travel
Frame material
Aluminum
Headset
Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
Platform wheel size
29"/27.5" MX
Seatpost
TranzX JD-YSI34, 170mm travel, internal routing, 34.9mm
Weight as spec d
M - 25.28 kg / 55.74 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
E-Bike System
Battery
Bosch PowerTube 800Wh, smart system
Battery type
800WH

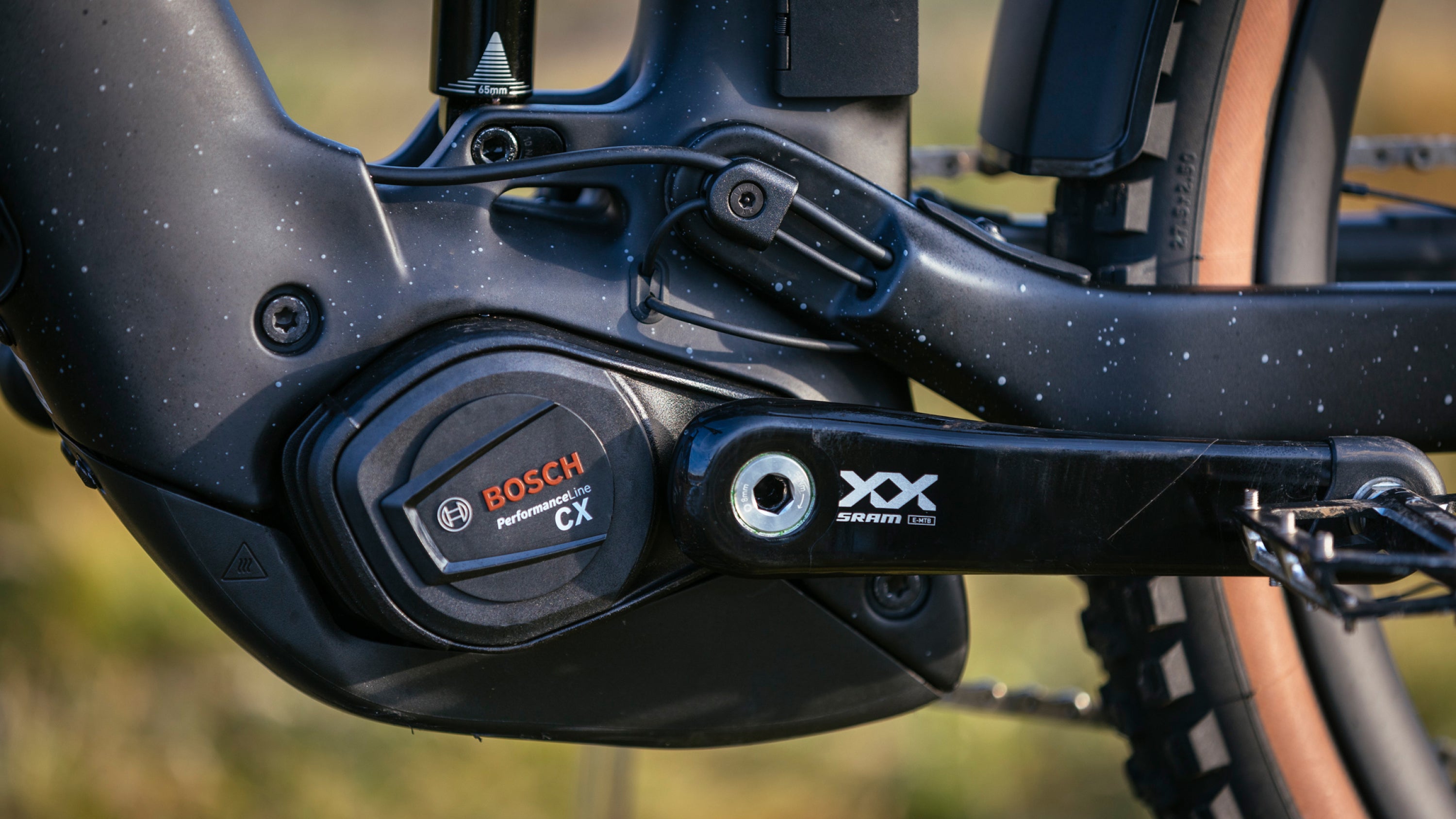

Motor
Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)
Motor controller

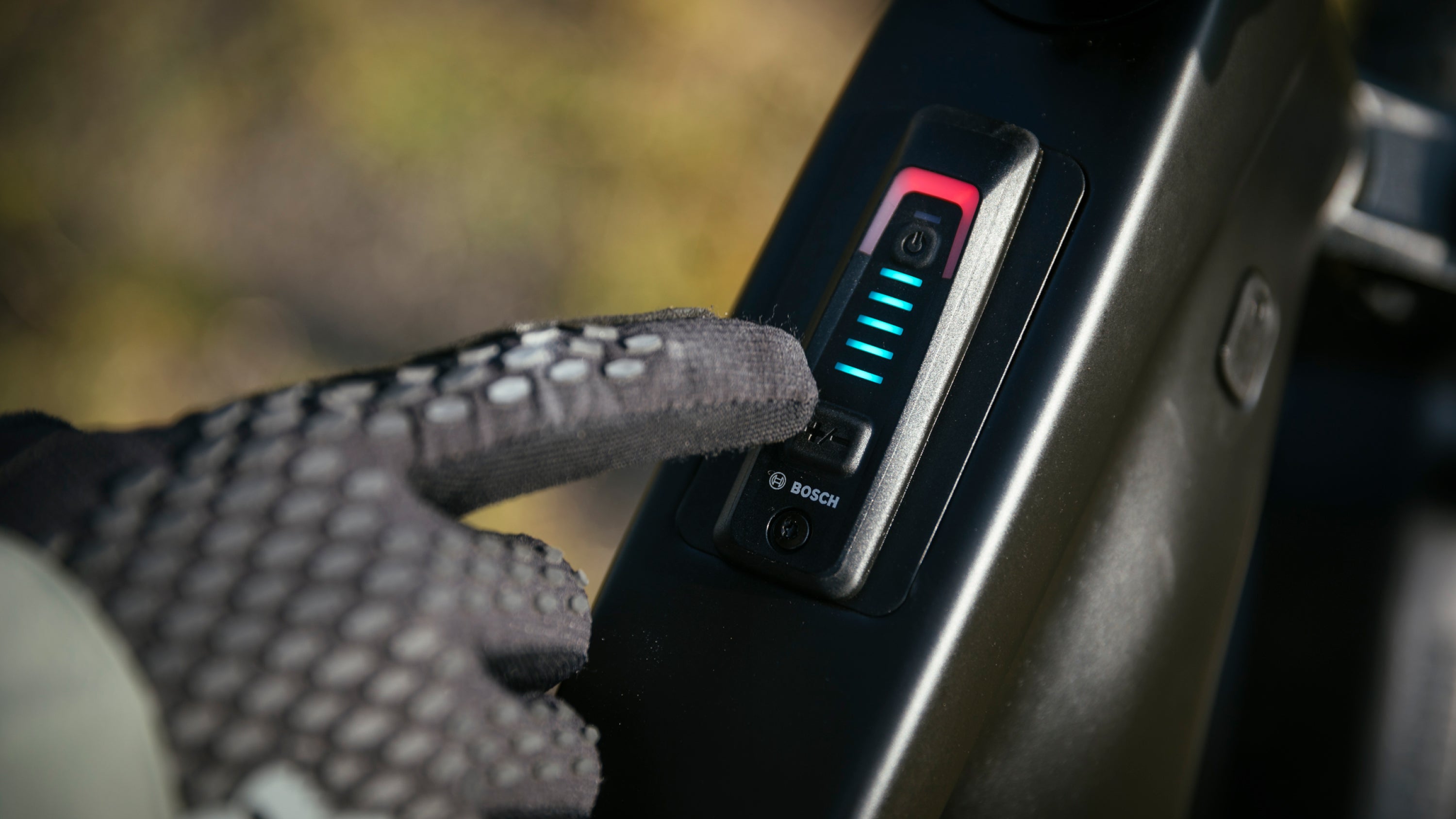

Bosch System Controller BRC3100, smart system
Share this product
Description
Description
Rail+ 5 is an alloy enduro e-bike that delivers huge value for big adventures. It comes equipped with a Bosch Performance CX drive system with full power for crushing laps and big climbs while its massive battery takes you the distance. 160mm of front and rear travel make Rail+ super capable in the rough and rowdy, and adjustable geometry lets you customize it for how and where you ride.
Geometry Chart
Geometry Chart
Part Numbers
Part Numbers
| Size / Wheel Size | Viper Red | Lithium Grey |
|---|---|---|
| Medium / 29"/27.5" MX |
SKUTRE28682978D
VPNTrek_5329147
UPC197216109815
MPN5329147
|
SKUTRE31753890Y
VPNTrek_5329143
UPC197216109778
MPN5329143
|
| Medium / 27.5" | — | — |
| X-Large / 29"/27.5" MX |
SKURAI214296395
VPNTrek_5329149
UPC197216109839
MPN5329149
|
SKUTRE32363704Y
VPNTrek_5329145
UPC197216109792
MPN5329145
|
| X-Large / 27.5" | — | — |
| Large / 29"/27.5" MX |
SKUTRE28823107D
VPNTrek_5329148
UPC197216109822
MPN5329148
|
SKUTRE31931698Y
VPNTrek_5329144
UPC197216109785
MPN5329144
|
| Large / 27.5" | — | — |
| Small / 29"/27.5" MX | — | — |
| Small / 27.5" |
SKUTRE2891454D
VPNTrek_5329146
UPC197216109808
MPN5329146
|
SKUTRE3147784Y
VPNTrek_5329142
UPC197216109761
MPN5329142
|
