Trek

2026 | CheckOUT SL 5

$7,499.99

Shipping calculated at checkout.

Color: Dark Star/Dark Web

Size: Medium

Small Medium Medium/Large

SKU:CHE317272491

Shipping & Returns

We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.

Canadian shipping charges:

Sale bikes: $200
Standard pedal bikes: $100
Electric bikes: $200
Fat bikes: $200
Kid's bikes: $60

Insurance charge: 1.5% insured value

Visit our shipping page for more details

Bike Specifications

Specifications are subject to change without notice

Drivetrain

Cassette Shimano XT M8200, 10-51, 12 speed

Chain Shimano XT M8100, 12 speed

Rear derailleur Shimano GRX RX822, 51T max cog

Shifter Shimano GRX RX820, 12 speed

Brakes

Brake rotor Shimano CL800, centerlock, 160mm

Rotor size Max | 180mm front & rear

Cockpit

Grips tape Bontrager Supertack Perf tape

Handlebars Bontrager GR Checkout | S = 42cm | M = 44cm | ML,L = 46cm | XL = 48cm

Saddle Verse Short Comp, steel rails, 145mm width

Stem Bontrager Elite, 31.8mm, Blendr compatible, 7 degree | S,M = 60mm | ML,L = 70mm | XL = 80mm

Wheels

Tires Bontrager Betasso RSL GX, Tubeless ready, aramid bead, 60 tpi, 700x50mm

Wheel size 700C

Suspension

Fork RockShox Rudy XL Ultimate, Charger Race Day 2 Solo Air spring, tapered steerer, 45mm offset, 12x100mm thru axle, 60mm travel

Shock RockShox SIDluxe Ultimate 3P, 170mmx27.5mm

Frame

Bottom bracket Praxis, T47 threaded, internal bearing

Frame material Carbon

Platform wheel size 700C

Weight as spec d ML - 12.74 kg / 28.09 lbs (with TLR sealant, no tubes)

Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Description

Get lost Wildly fun, freakishly capable. The all-new CheckOUT is the best bike for everything from road-to-gravel-to-singletrack adventures to bikepacking the 2,745-mile Tour Divide. Designed to be faster than a mountain bike on paved roads and more capable than a rigid gravel bike on singletrack, this is the ideal rig for real adventurers who aren’t afraid to go way, way, way out there. CheckOUT SL 5 is an adventure-ready full suspension gravel bike for getting way, way out there. Its carbon frame delivers 55mm of rear travel from a RockShox SIDluxe IsoStrut shock, while a RockShox Rudy XL fork smooths rowdy roads and trails with 60mm of travel. It comes ready to explore with Bontrager Paradigm Comp wheels, a 12-speed Shimano GRX drivetrain, and TranzX dropper post.

Geometry Chart

Part Numbers

Size	Dark Star/Dark Web
Small	SKU197216264415 VPN5338095 UPC197216264415 MPN5338095
Medium	SKUCHE317272491 VPN5338096 UPC197216264422 MPN5338096
Medium/Large	SKUCHE325592271 VPN5338097 UPC197216264439 MPN5338097

Size Chart

Trek | Gravel

Size	Size (cm)	Rider height (in)	Rider height (cm)	Inseam (in)	Inseam (cm)
X-Small	N/A	4'8" - 5'2"	143 - 158 cm	26" - 29"	67 - 74 cm
Small	49cm	5'2" - 5'5"	158 - 164 cm	29" - 30"	74 - 77 cm
Medium	52-54cm	5'5" - 5'10"	164 - 177 cm	30" - 33"	77 - 83 cm
Medium/Large	56cm	5'10" - 6'2"	177 - 188 cm	33" - 35"	83 - 88 cm
Large	58cm	6'2" - 6'4"	188 - 194 cm	35" - 36"	88 - 91 cm
X-Large	61cm	6'4" - 6'8"	194 - 203 cm	36" - 37"	91 - 95 cm

Ride-it-all suspension

CheckOUT smooths rough gravel roads and singletrack trails with 55mm rear travel and a new CheckOUT-specific 60mm Rudy XL suspension fork designed in collaboration with RockShox.

The ultimate off-road drop bar

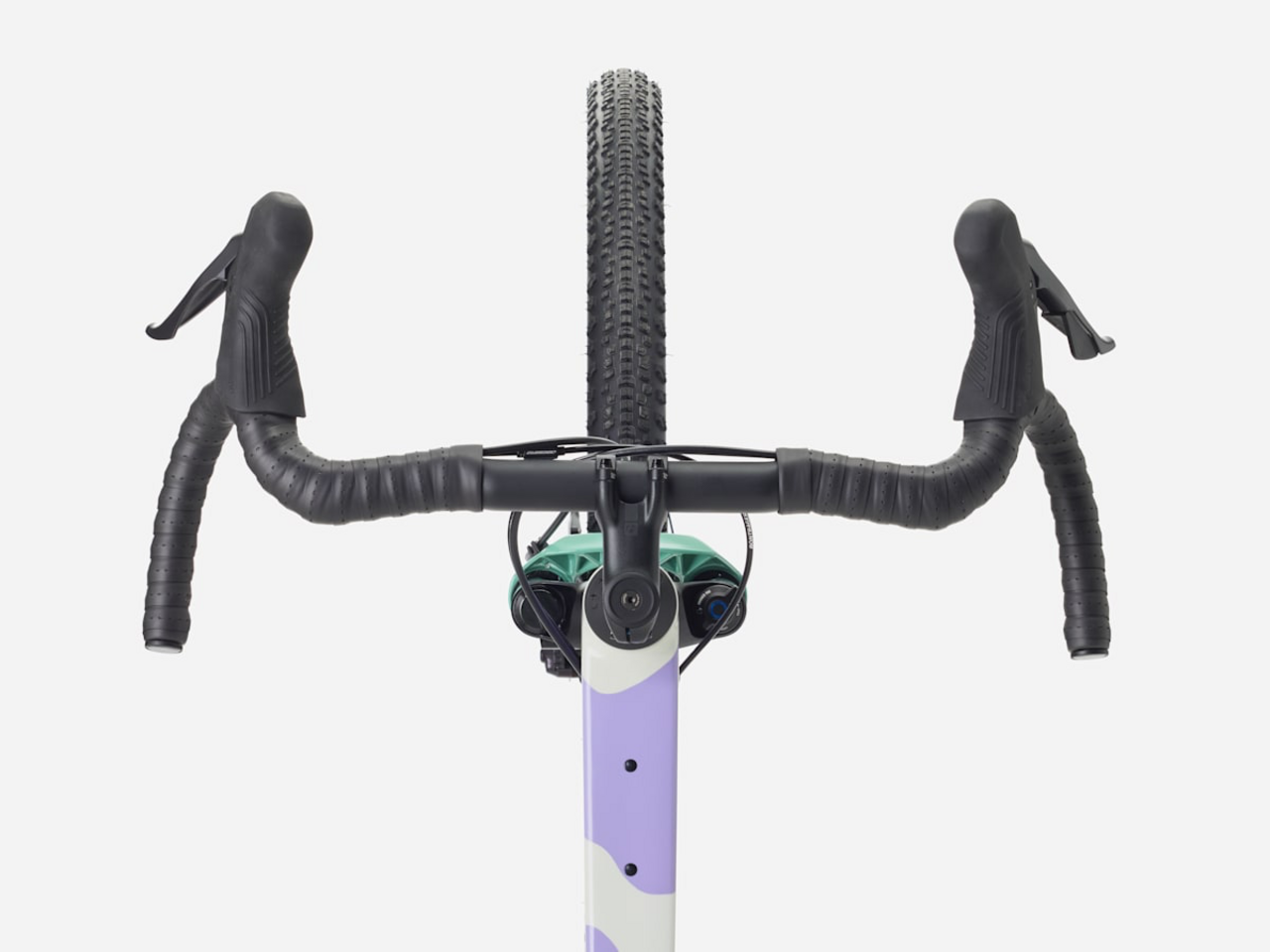

CheckOUT is designed to be faster than a mountain bike on paved roads and champagne gravel thanks to a new GR CheckOUT drop bar that’s quick on the hoods and has an extra wide flare and ergonomic back sweep for more comfort and control.

Big ol’ tire clearance

Room for up to 56mm/2.2″ tires (as measured) let your customers tackle the gnarly stuff with confidence.

Confidence-inspiring geometry

CheckOUT’s all-new Gravel Adventure geo has a longer reach and higher stack to increase stability and comfort on  multi-surface, multi-day adventures.
