Trek

2026 | Checkpoint+ SL 5

$6,999.99

Shipping calculated at checkout.

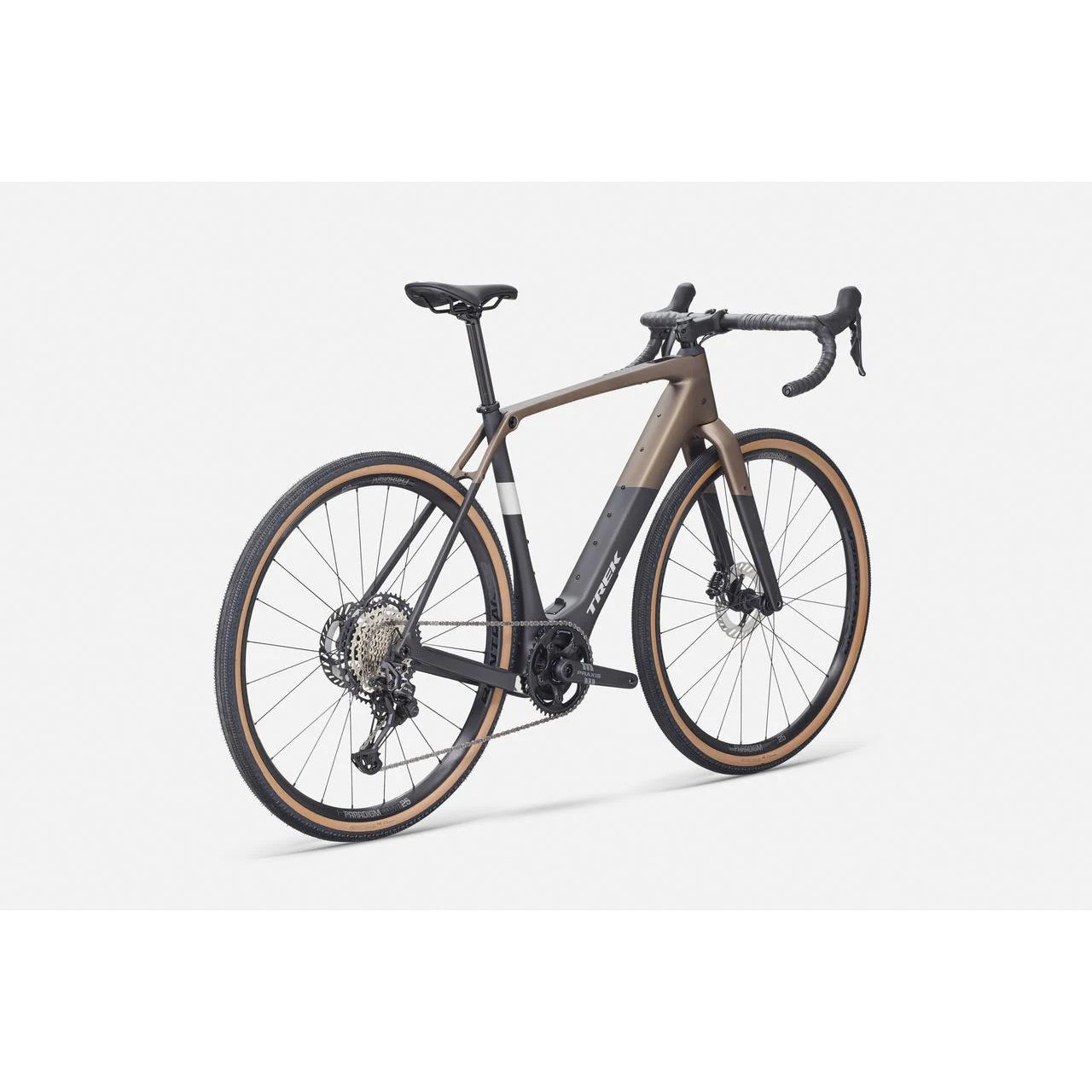

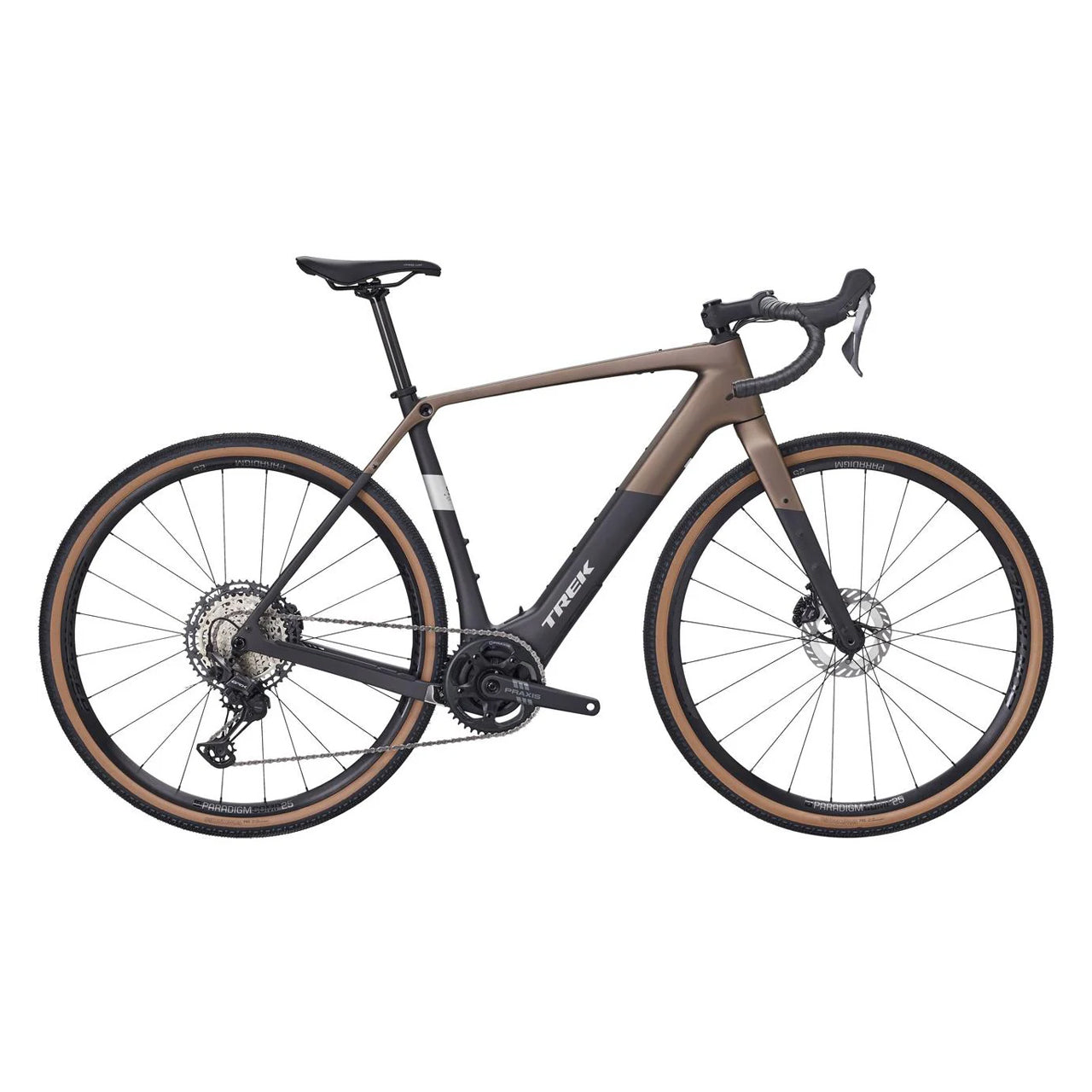

Color: Matte Bronze Age/Dark Web

Size: Small

X-Small Small Medium Medium/Large Large X-Large

SKU:TRE49624140B

Shipping & Returns

We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.

Canadian shipping charges:

Sale bikes: $200
Standard pedal bikes over $1250: Free
Standard pedal bikes under $1250: $100
Electric bikes: $200
Fat bikes: $200
Kid's bikes: $60

Insurance charge: 1.5% insured value

We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details

Bike Specifications

Specifications are subject to change without notice

Drivetrain

Cassette Shimano XT M8100, 10-51, 12 speed

Chain Shimano XT M8100, 12 speed

Rear derailleur Shimano GRX RX822, 51T max cog

Shifter Shimano GRX RX820, 12 speed

Brakes

Brake rotor Shimano CL800, centerlock, 160mm // Shimano CL800, centerlock, 160mm

Brake type Hydraulic disc

Lever Shimano GRX RX820, 12 speed

Rotor size Max brake rotor sizes: 180mm front & rear

Cockpit

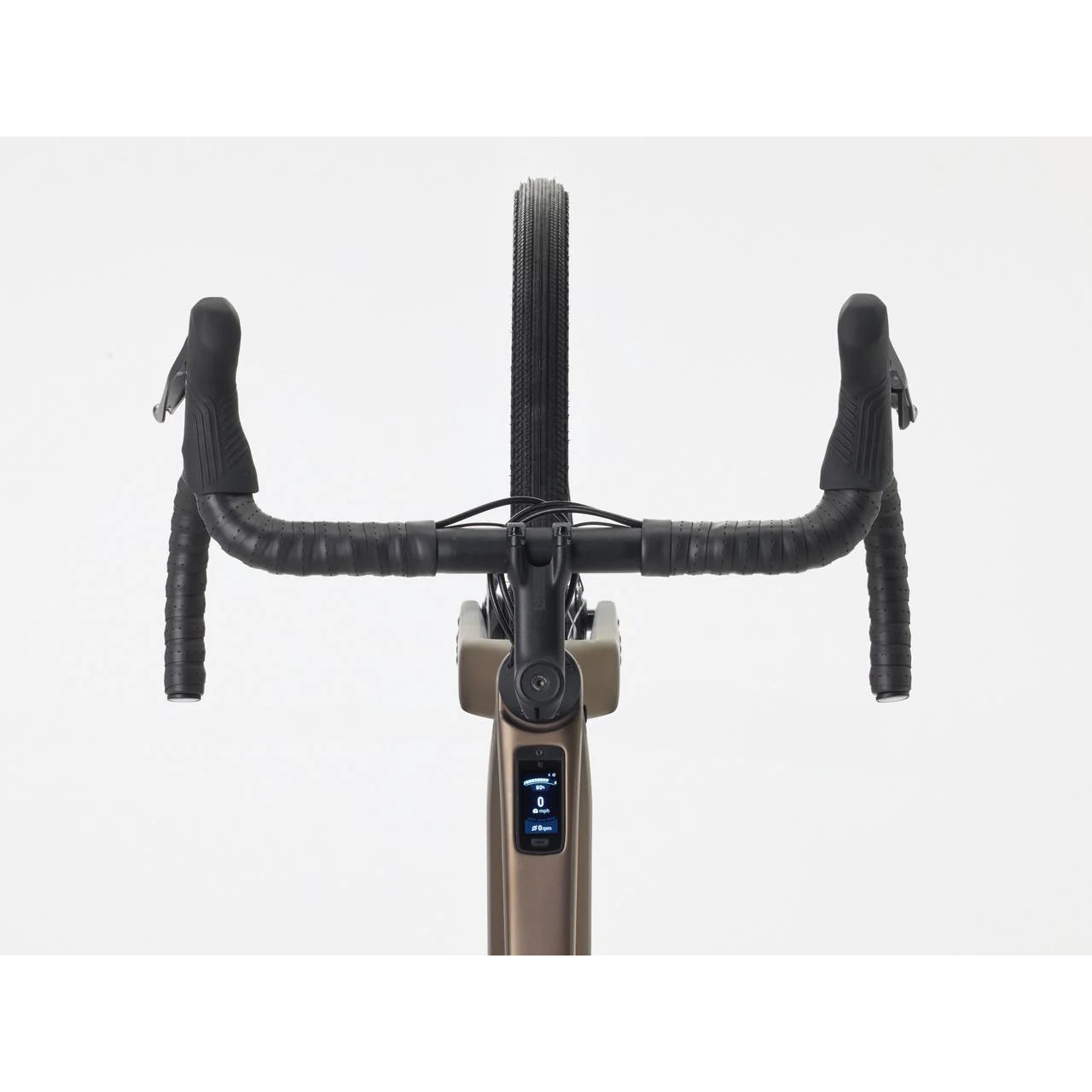

Handlebars Bontrager Elite Gravel, alloy, 40cm width

Saddle Verse Short Comp, steel rails, 145mm width

Seatpost Bontrager carbon, 27.2mm, 8mm offset, 330mm length

Stem Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length

Wheels

Tires Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm

Valves Bontrager TLR sealant, 180 ml/6 oz

Wheel size 700c

Suspension

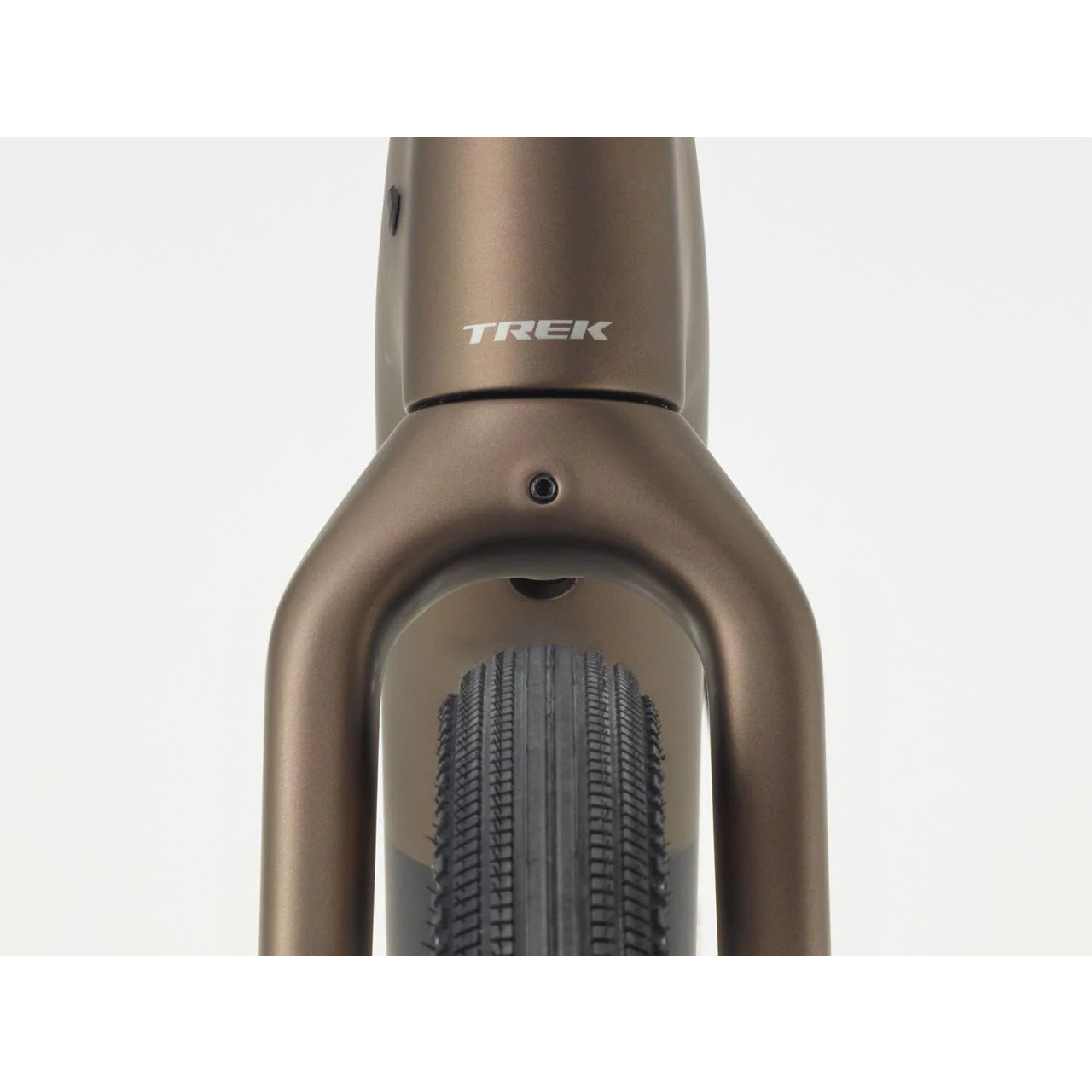

Fork Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle

Fork brand Trek

Fork travel 40 mm (XS: compatible with rigid fork only)
See Checkpoint SL Gen 3 FAQ for compatible options

Frame

Frame 500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle

Frame material Carbon

Platform wheel size 700C

Seatpost Bontrager carbon, 27.2mm, 8mm offset, 330mm length

Weight as spec d ML - 13.81 kg / 30.45 lbs (with TLR sealant, no tubes)

Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-Bike System

Battery TQ 360Wh

Battery type 360WH

Motor TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power

Description

Checkpoint+ SL 5 is an electric gravel bike built to take you the distance. You get a TQ HPR60 motor with a smooth and quiet boost and a 360Wh battery that keeps going on your biggest rides. It comes ready to roll with an OCLV Carbon frame, durable alloy wheels, 12-speed Shimano GRX 1x shifting, and endurance geometry to keep you comfortable for the long haul.

Geometry Chart

Measurement	Small	Large	Medium / Large	X-Large	X-Small
Head Tube Angle (°)	—	72.1°	72.0°	72.4°	71.0°
Seat Tube Angle (°)	—	73.3°	73.3°	73.3°	74.0°

Part Numbers

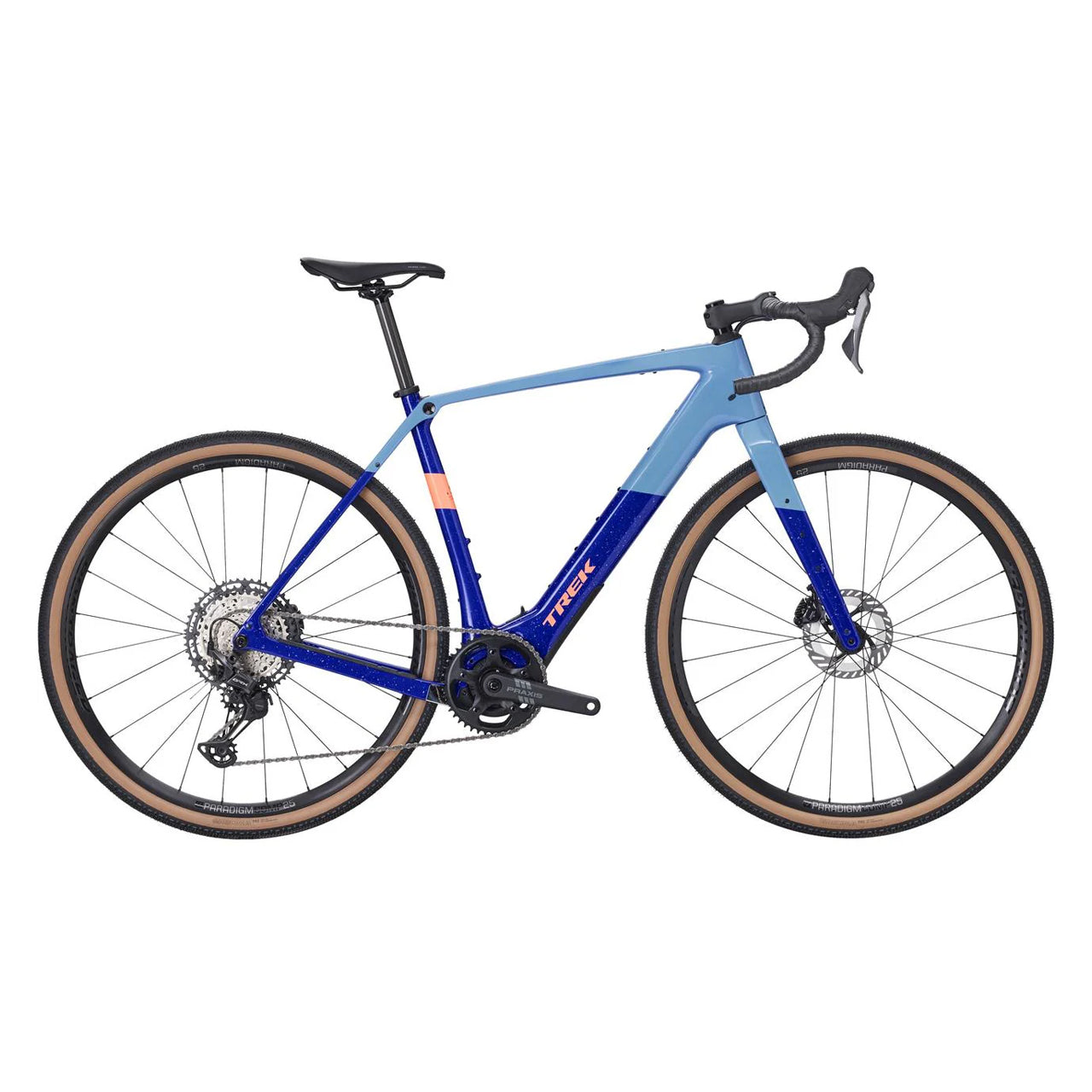

Size	Matte Bronze Age/Dark Web	Fjord Blue/Cobalt Blue
X-Small	SKUTRE50771925B VPNTrek_5338647 UPC197216262008 MPN5338647	SKUTRE48105563E VPNTrek_5338653 UPC197216262060 MPN5338653
Small	SKUTRE49624140B VPN5338648 UPC197216262015 MPN5338648	SKUTRE41144821E VPNTrek_5338654 UPC197216262077 MPN5338654
Medium	SKUTRE43791376B VPNTrek_5338649 UPC197216262022 MPN5338649	SKUTRE4188264E VPNTrek_5338655 UPC197216262084 MPN5338655
Medium/Large	SKUTRE44573313B VPNTrek_5338650 UPC197216262039 MPN5338650	SKUTRE48116429E VPNTrek_5338656 UPC197216262091 MPN5338656
Large	SKUTRE43209732B VPNTrek_5338651 UPC197216262046 MPN5338651	SKUTRE47670217E VPNTrek_5338657 UPC197216262107 MPN5338657
X-Large	SKUTRE50659385B VPNTrek_5338652 UPC197216262053 MPN5338652	SKUTRE48271951E VPNTrek_5338658 UPC197216262114 MPN5338658

Size Chart

Trek | Gravel

Size	Size (cm)	Rider height (in)	Rider height (cm)	Inseam (in)	Inseam (cm)
X-Small	N/A	4'8" - 5'2"	143 - 158 cm	26" - 29"	67 - 74 cm
Small	49cm	5'2" - 5'5"	158 - 164 cm	29" - 30"	74 - 77 cm
Medium	52-54cm	5'5" - 5'10"	164 - 177 cm	30" - 33"	77 - 83 cm
Medium/Large	56cm	5'10" - 6'2"	177 - 188 cm	33" - 35"	83 - 88 cm
Large	58cm	6'2" - 6'4"	188 - 194 cm	35" - 36"	88 - 91 cm
X-Large	61cm	6'4" - 6'8"	194 - 203 cm	36" - 37"	91 - 95 cm

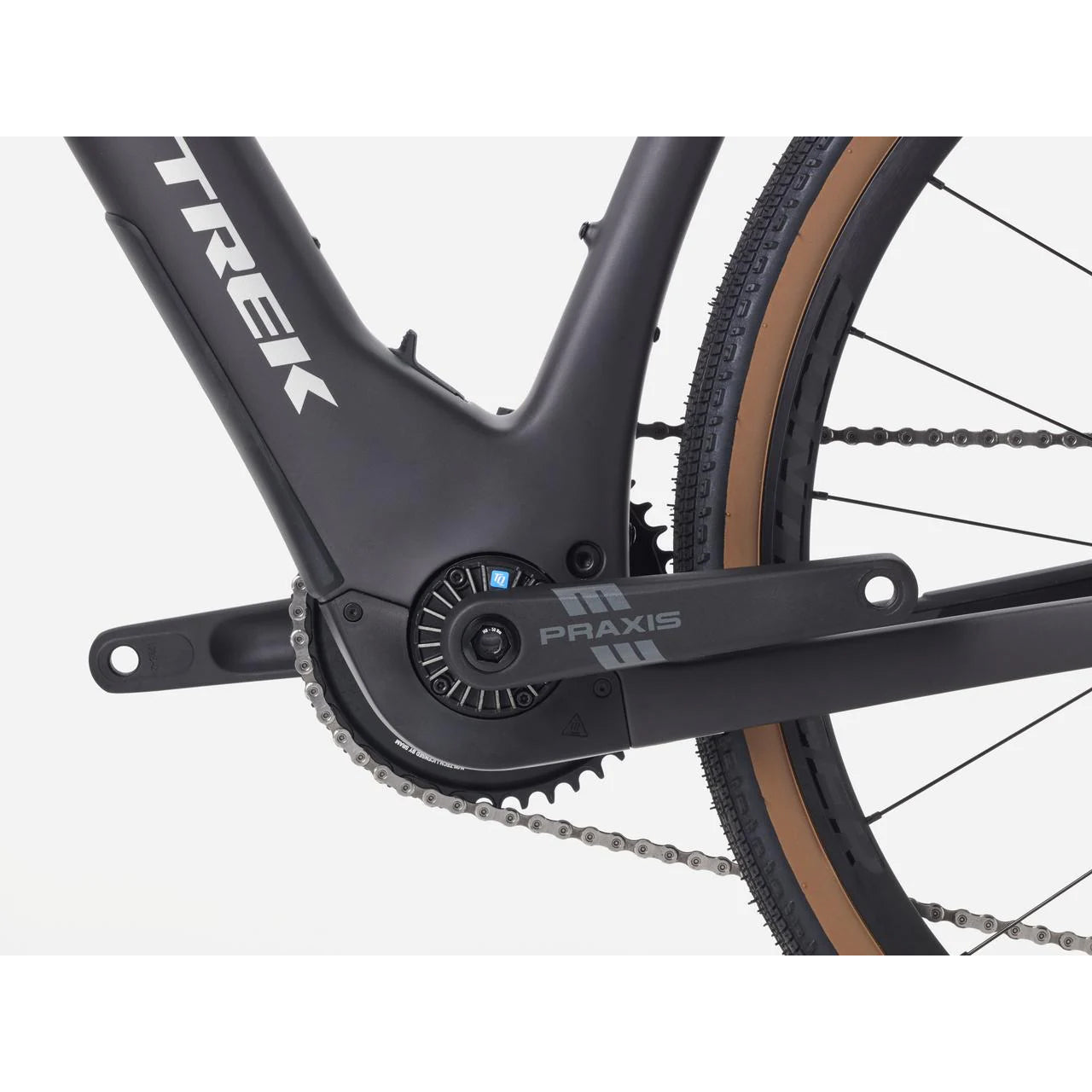

Powerful and discreet e-system

The industry-leading TQ HPR 60 harmonic pin ring motor is super efficient with an amazing range-to-weight-to-speed ratio. It's ultra-compact, whisper-quiet, and offers a natural-feeling assist up to 32 km/h with 80 kilometers of range (in eco mode). Plus, choose how much boost you get and when you get it with three assist modes.

Optional Range Extender

Explore even farther with an optional 160Wh Range Extender that fits neatly in your bottle cage and gives you an extra 44% more range.

Road-smoothing IsoSpeed

IsoSpeed technology soaks up fatiguing bumps in the road so you can ride stronger longer.

Relaxed Gravel Endurance geometry

Confident and comfortable Gravel Endurance geometry puts you in a more relaxed upright riding position to tackle even the most epic, all-day adventures.
