Sold out

Trek

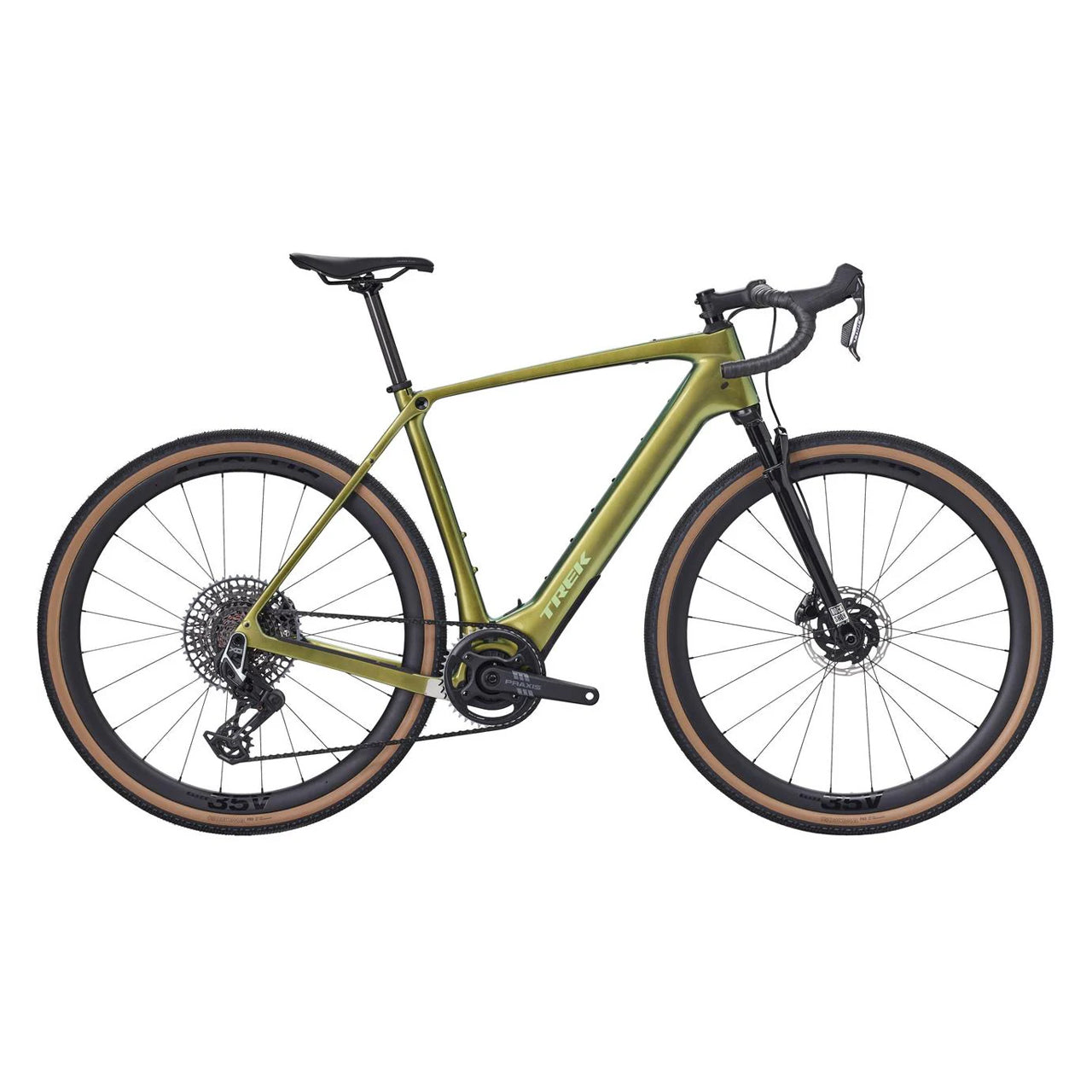

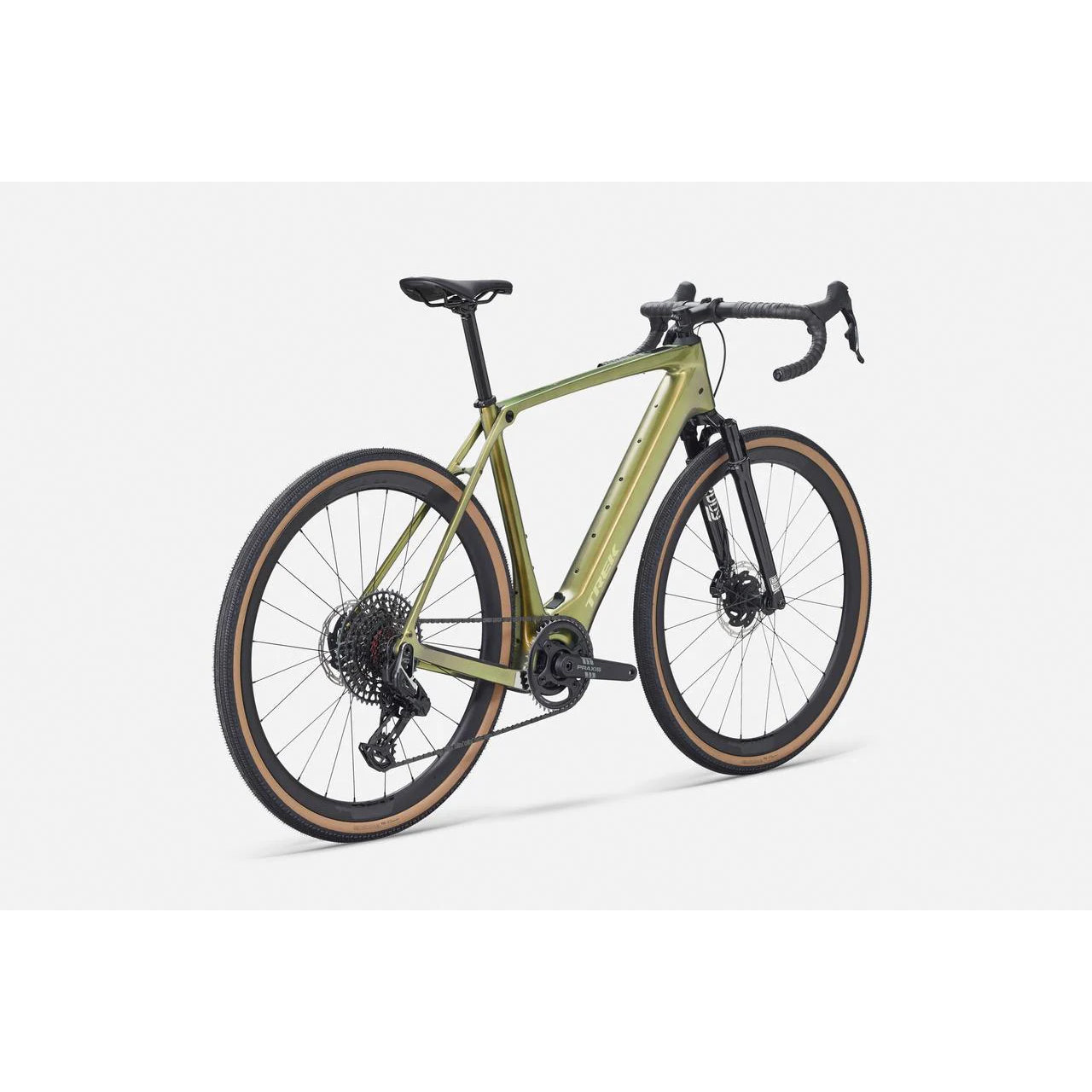

2026 | Checkpoint+ SL 7 AXS

$9,999.99

Shipping calculated at checkout.

Color: Chameleon Green

Size: Medium

Medium

SKU:TRE45639790N

Shipping & Returns

We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.

Canadian shipping charges:

Sale bikes: $200
Standard pedal bikes over $1250: Free
Standard pedal bikes under $1250: $100
Electric bikes: $200
Fat bikes: $200
Kid's bikes: $60

Insurance charge: 1.5% insured value

We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details

Bike Specifications

Specifications are subject to change without notice

Drivetrain

Cassette SRAM Eagle XS-1295, T-Type, 10-52, 12 speed

Chain SRAM X0 Eagle, T-Type, 12 speed

Rear derailleur SRAM X0 Eagle AXS, T-Type

Shifter SRAM Force AXS E1 // SRAM Force AXS E1

Brakes

Brake rotor SRAM CenterLine X, centerlock, round edge, 160mm

Brake type Hydraulic disc

Rotor size Max brake rotor sizes: 180mm front & rear

Cockpit

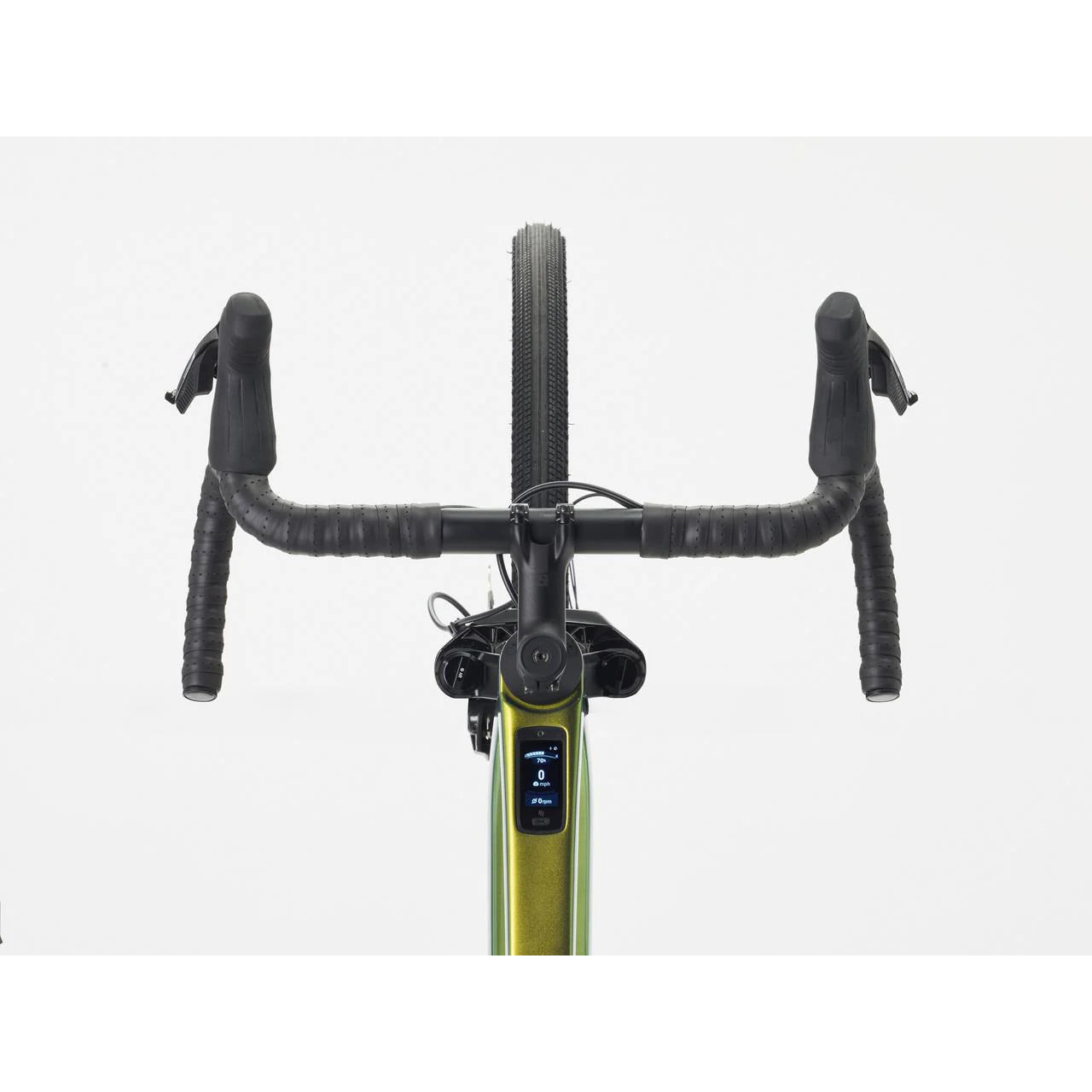

Handlebars Bontrager Pro Gravel, 42cm width

Saddle Verse Short Elite, hollow magnesium rails, 145mm width

Seatpost Bontrager carbon, 27.2mm, 8mm offset, 330mm length

Stem Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length

Wheels

Tires Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm

Valves Bontrager TLR sealant, 180 ml/6 oz

Wheel size 700c

Suspension

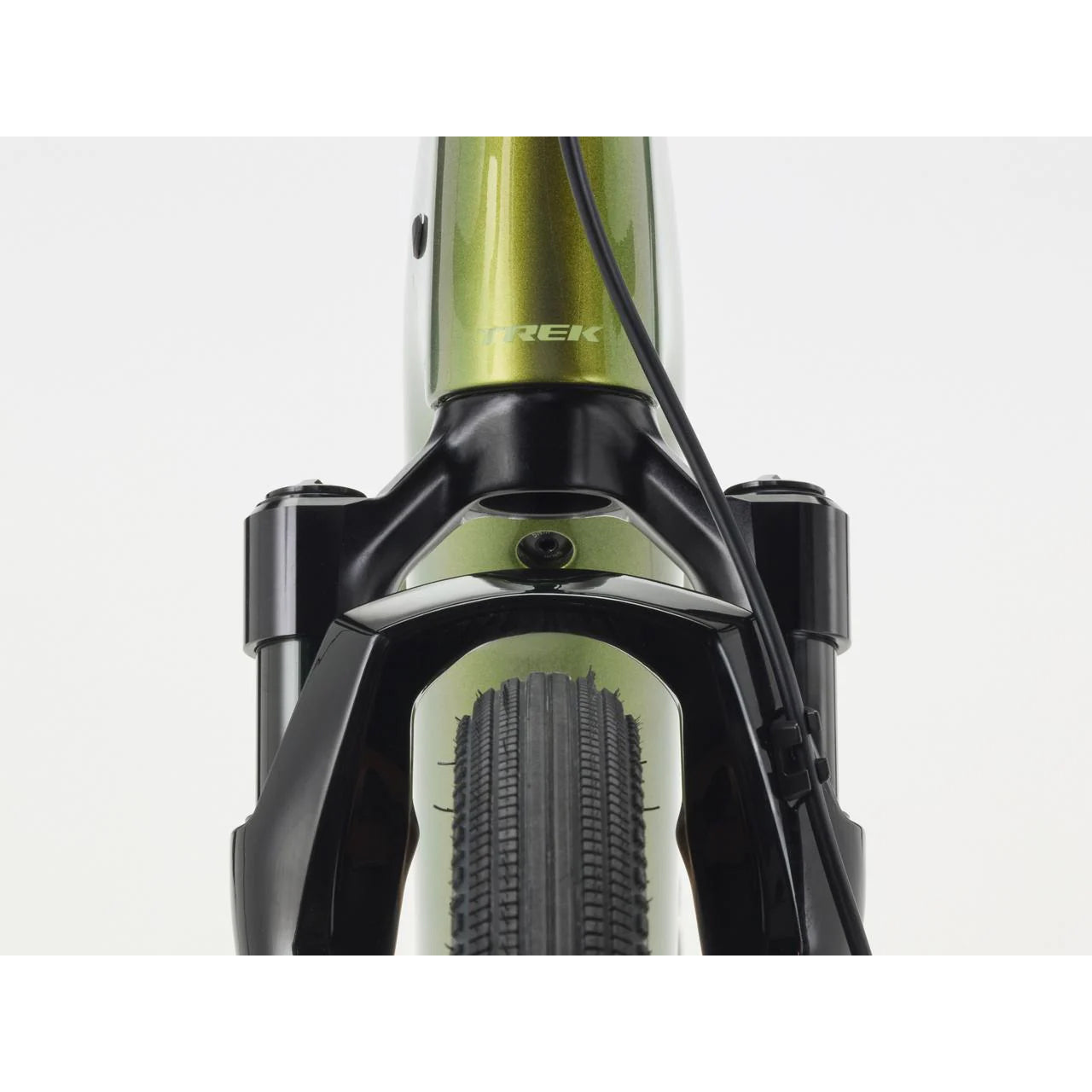

Fork RockShox Rudy XPLR, Solo Air spring, tapered steerer, 45mm offset, 12x100mm thru axle, 40mm travel

Fork brand RockShox

Fork travel 40 mm (XS: compatible with rigid fork only)
See Checkpoint SL Gen 3 FAQ for compatible options

Frame

Frame 500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle

Frame material Carbon

Platform wheel size 700C

Seatpost Bontrager carbon, 27.2mm, 8mm offset, 330mm length

Weight as spec d ML - 14.05 kg / 30.98 lbs (with TLR sealant, no tubes)

Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-Bike System

Battery TQ 360Wh

Battery type 360WH

Motor TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power

Motor controller TQ color LED display with Bluetooth & ANT+ connectivity

Description

Checkpoint+ SL 7 AXS is an electric gravel bike built to take you on your most far-out adventures. An OCLV Carbon frame keeps things light, a TQ HPR60 motor provides a smooth boost, while a 40mm RockShox Rudy XPLR suspension fork keeps handling confident and relaxed on the roughest roads. SRAM's Force AXS 12-speed drivetrain delivers smooth, wireless shifting, and OCLV Carbon Bontrager Aeolus Elite 35V wheels and a carbon seatpost damp vibrations while keeping the weight down.

Geometry Chart

Part Numbers

SKUTRE45639790N

VPNTrek_5338791

UPC197216253532

MPN5338791

Size Chart

Trek | Gravel

Size	Size (cm)	Rider height (in)	Rider height (cm)	Inseam (in)	Inseam (cm)
X-Small	N/A	4'8" - 5'2"	143 - 158 cm	26" - 29"	67 - 74 cm
Small	49cm	5'2" - 5'5"	158 - 164 cm	29" - 30"	74 - 77 cm
Medium	52-54cm	5'5" - 5'10"	164 - 177 cm	30" - 33"	77 - 83 cm
Medium/Large	56cm	5'10" - 6'2"	177 - 188 cm	33" - 35"	83 - 88 cm
Large	58cm	6'2" - 6'4"	188 - 194 cm	35" - 36"	88 - 91 cm
X-Large	61cm	6'4" - 6'8"	194 - 203 cm	36" - 37"	91 - 95 cm

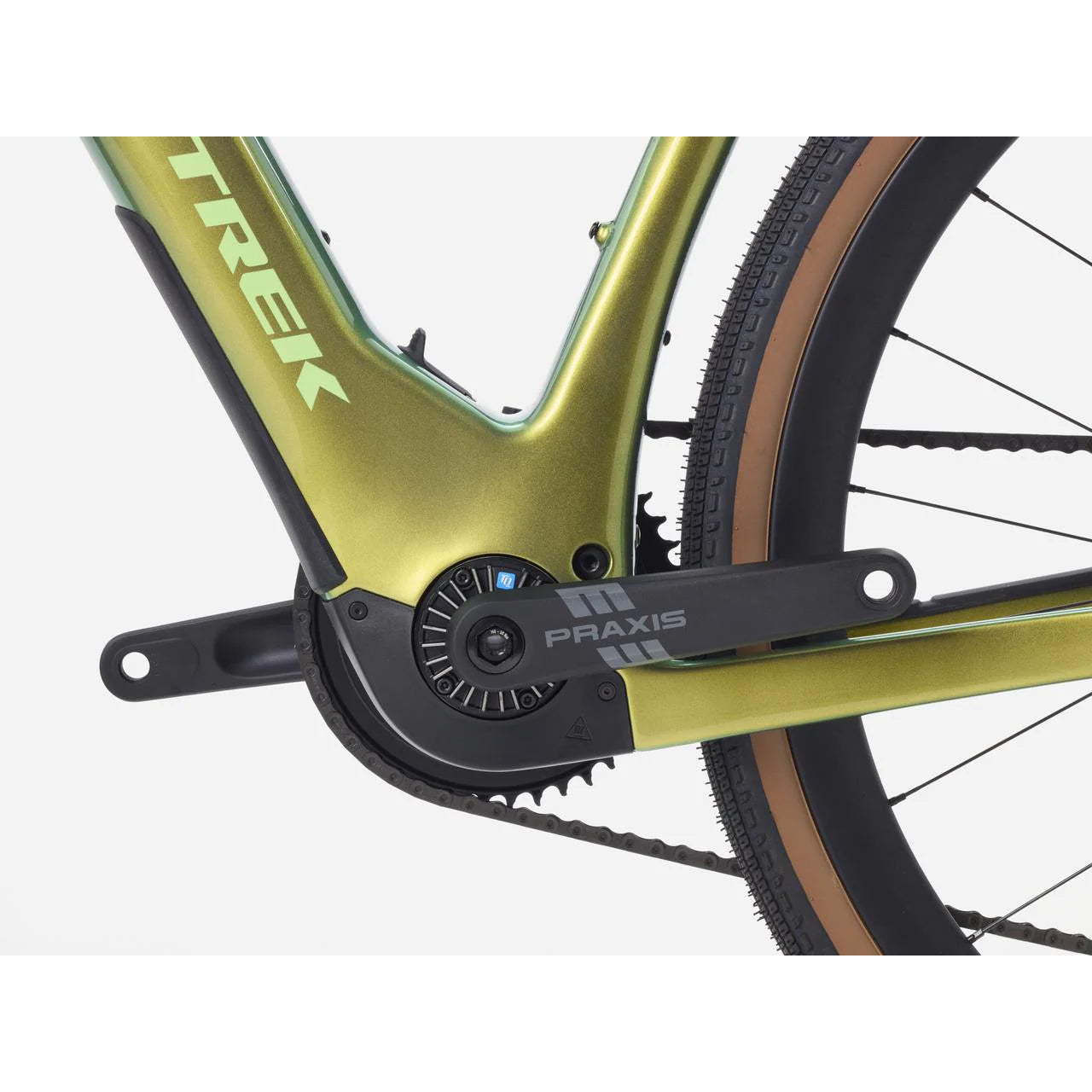

Powerful and discreet e-system

The industry-leading TQ HPR 60 harmonic pin ring motor is super efficient with an amazing range-to-weight-to-speed ratio. It's ultra-compact, whisper-quiet, and offers a natural-feeling assist up to 32 km/h with 80 kilometers of range (in eco mode). Plus, choose how much boost you get and when you get it with three assist modes.

Optional Range Extender

Explore even farther with an optional 160Wh Range Extender that fits neatly in your bottle cage and gives you an extra 44% more range.

Road-smoothing IsoSpeed

IsoSpeed technology soaks up fatiguing bumps in the road so you can ride stronger longer.

Relaxed Gravel Endurance geometry

Confident and comfortable Gravel Endurance geometry puts you in a more relaxed upright riding position to tackle even the most epic, all-day adventures.

2026 | Checkpoint+ SL 7 AXS
