Trek

2026 | Checkpoint SL 7 AXS Gen 3

$7,999.99

Shipping calculated at checkout.

Color: Dark Red/Carbon Red Smoke Splatter

Size: Medium

Medium Medium/Large X-Large Large Small X-Small

SKU:TRE54642957A

Shipping & Returns

We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.

Canadian shipping charges:

Sale bikes: $200
Standard pedal bikes over $1250: Free
Standard pedal bikes under $1250: $100
Electric bikes: $200
Fat bikes: $200
Kid's bikes: $60

Insurance charge: 1.5% insured value

We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details

Bike Specifications

Specifications are subject to change without notice

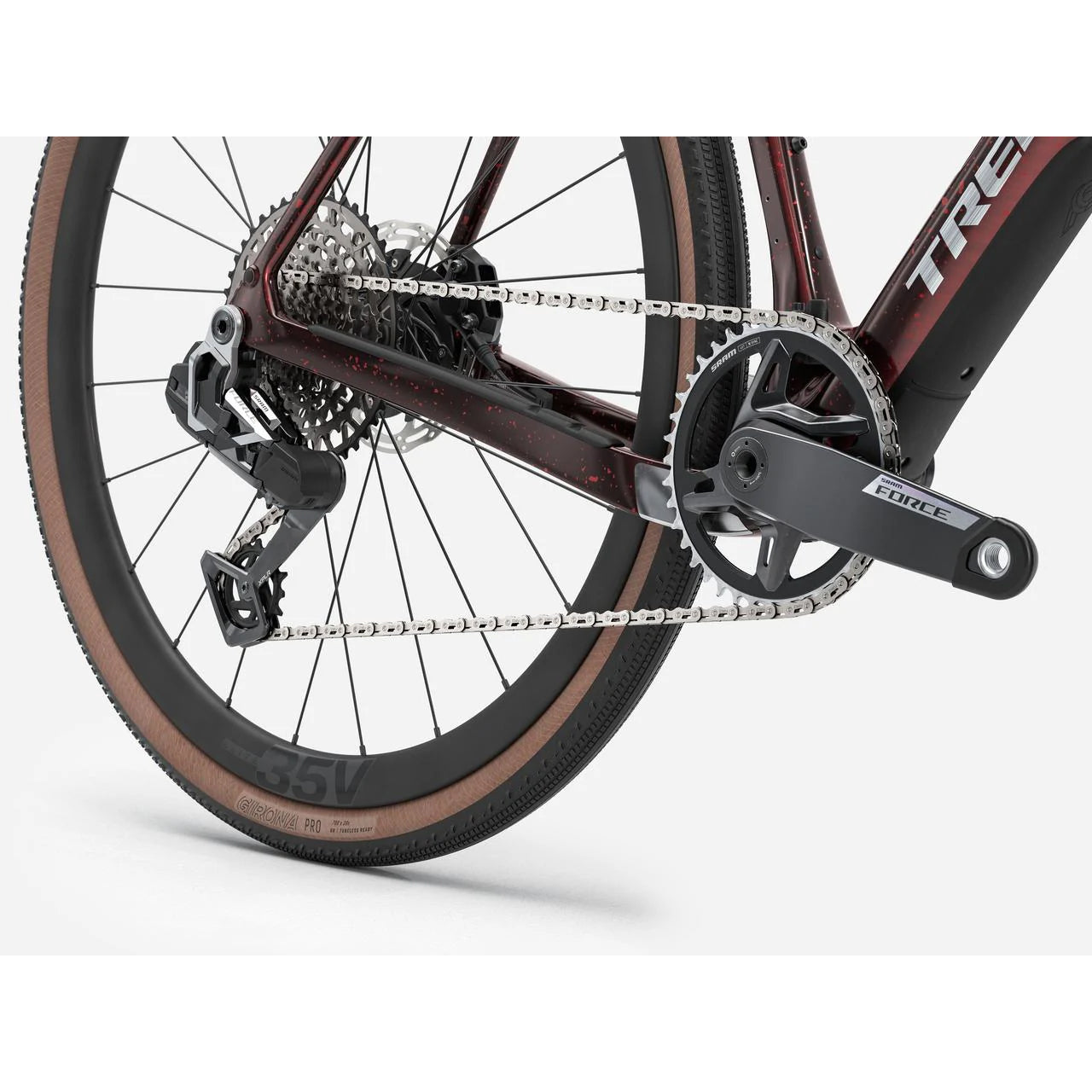

Drivetrain

Cassette SRAM XG-1271, 10-44, 12 speed // SRAM Force XPLR XG-1371, 10-46, 13 speed

Chain SRAM Force E1, 12/13 speed

Rear derailleur SRAM Force XPLR AXS, 46T max cog

Shifter SRAM Force AXS, 13 speed

Brakes

Brake rotor SRAM CenterLine X, centerlock, round edge, 160mm

Brake type Hydraulic disc

Caliper SRAM Force AXS hydraulic disc, flat mount

Rotor size Max brake rotor sizes: 180mm front & rear

Cockpit

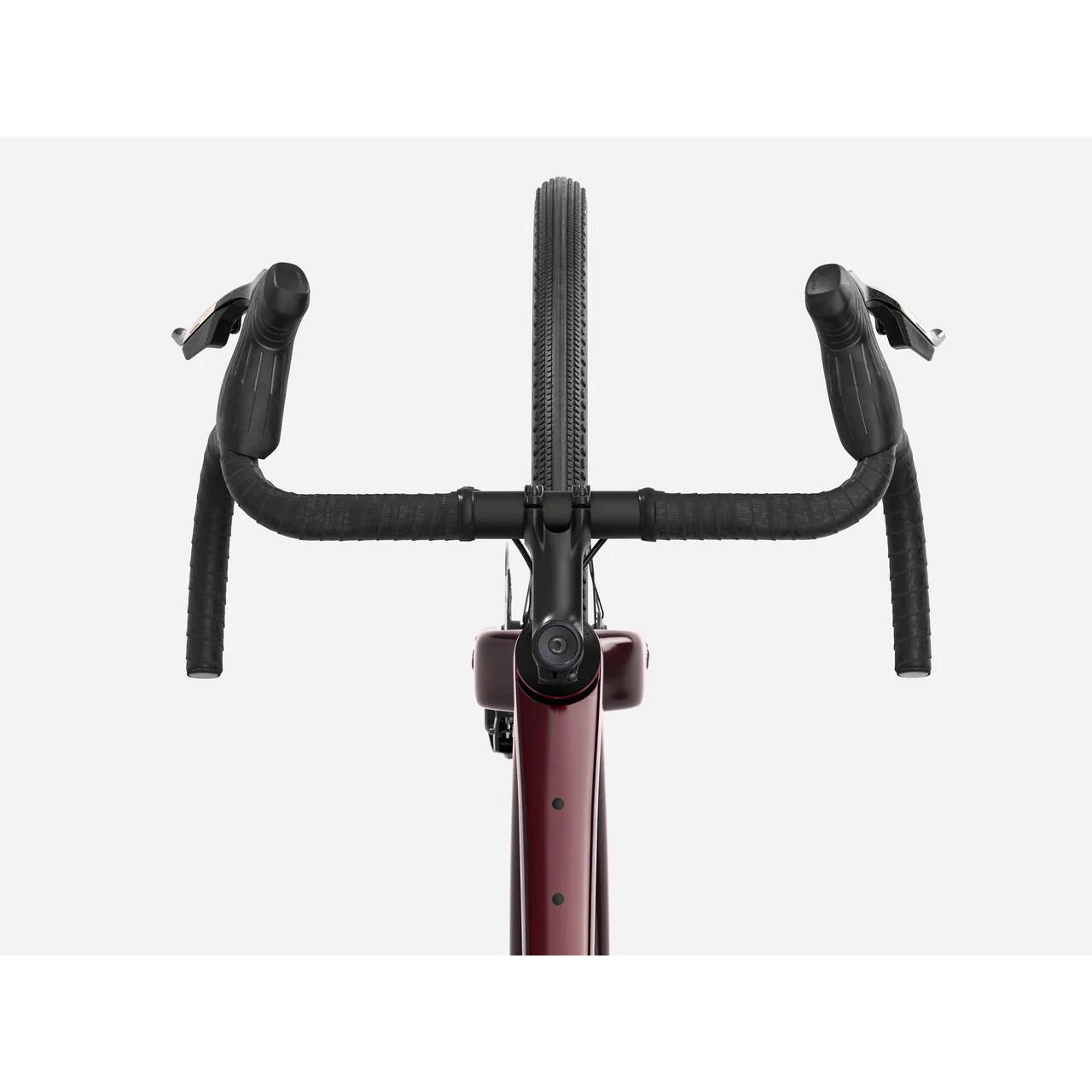

Handlebars Bontrager Pro Gravel, 44cm width

Saddle Verse Short Elite, hollow magnesium rails, 145mm width

Seatpost Bontrager carbon, 27.2mm, 8mm offset, 330mm length

Stem Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length

Wheels

Front hub Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle

Tires Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm

Valves Bontrager TLR sealant, 180 ml/6 oz

Wheel size 700c

Suspension

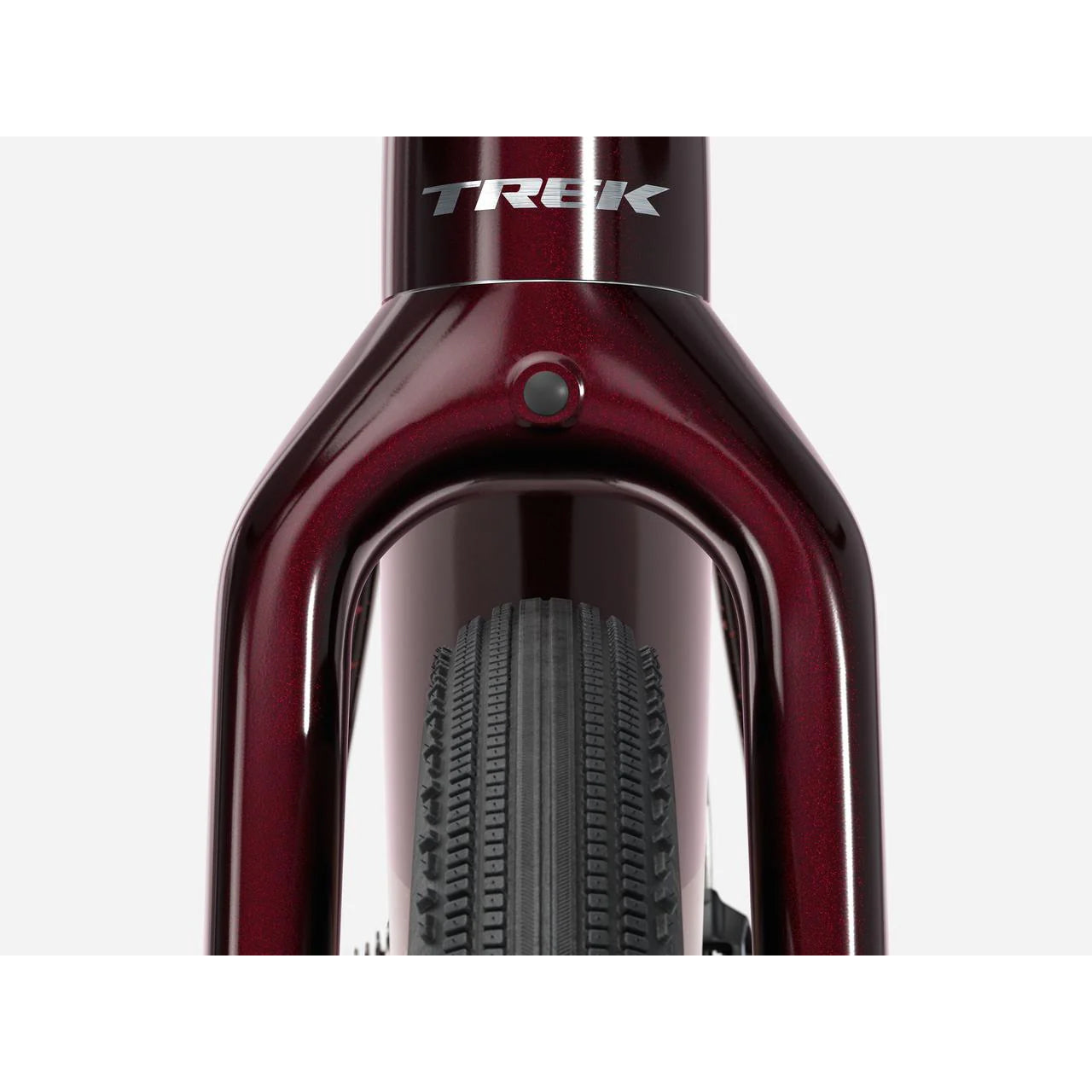

Fork Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle

Fork brand Trek

Fork travel 40 mm (XS: compatible with rigid fork only)
See Checkpoint SL Gen 3 FAQ for compatible options

Frame

Bottom bracket SRAM DUB Wide, T47 threaded, internal bearing

Frame 500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle

Frame material Carbon

Platform wheel size 700C

Seatpost Bontrager carbon, 27.2mm, 8mm offset, 330mm length

Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-Bike System

Battery SRAM eTap battery pack (with charger)

Battery type Li-Ion 300mAh 7.4 Volt

Description

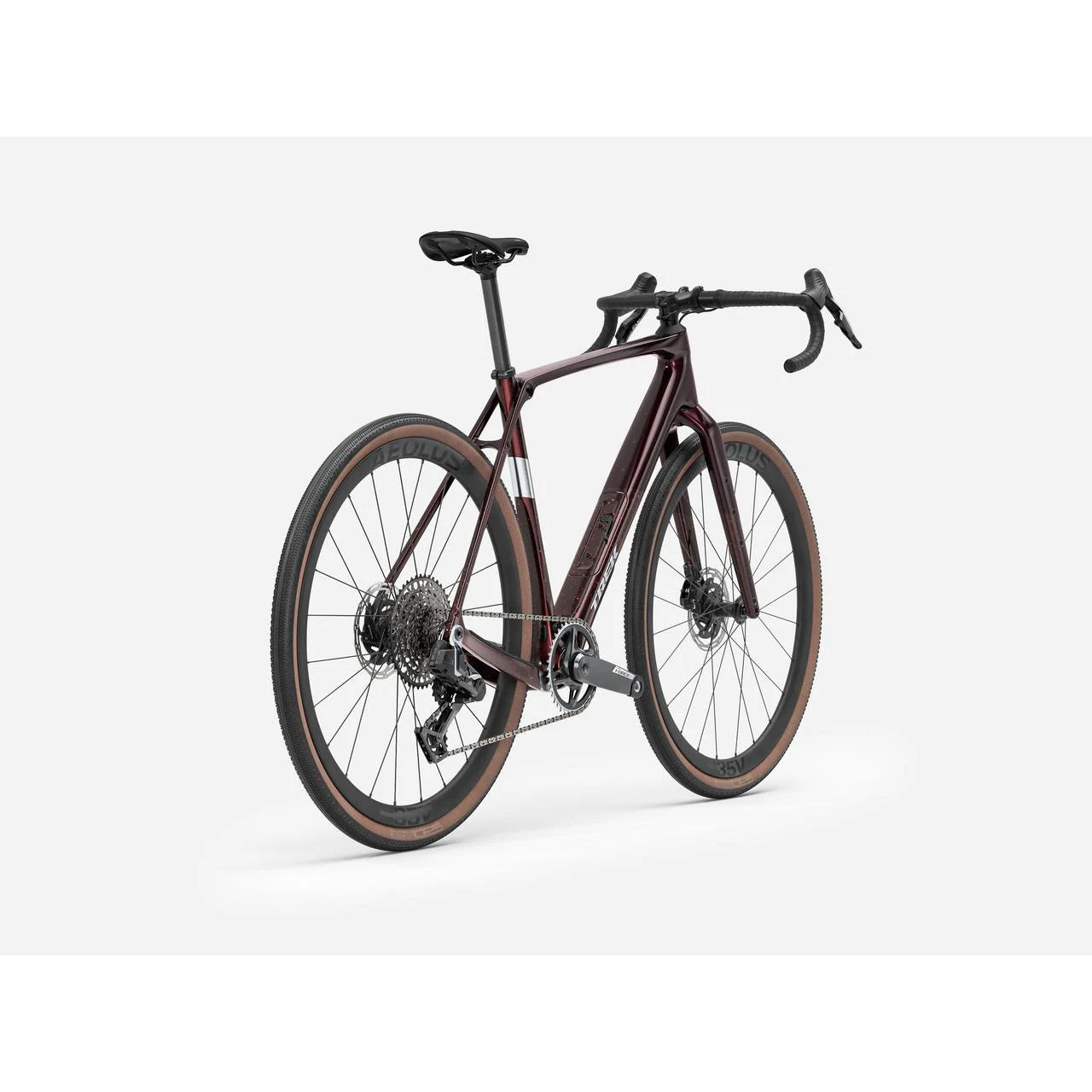

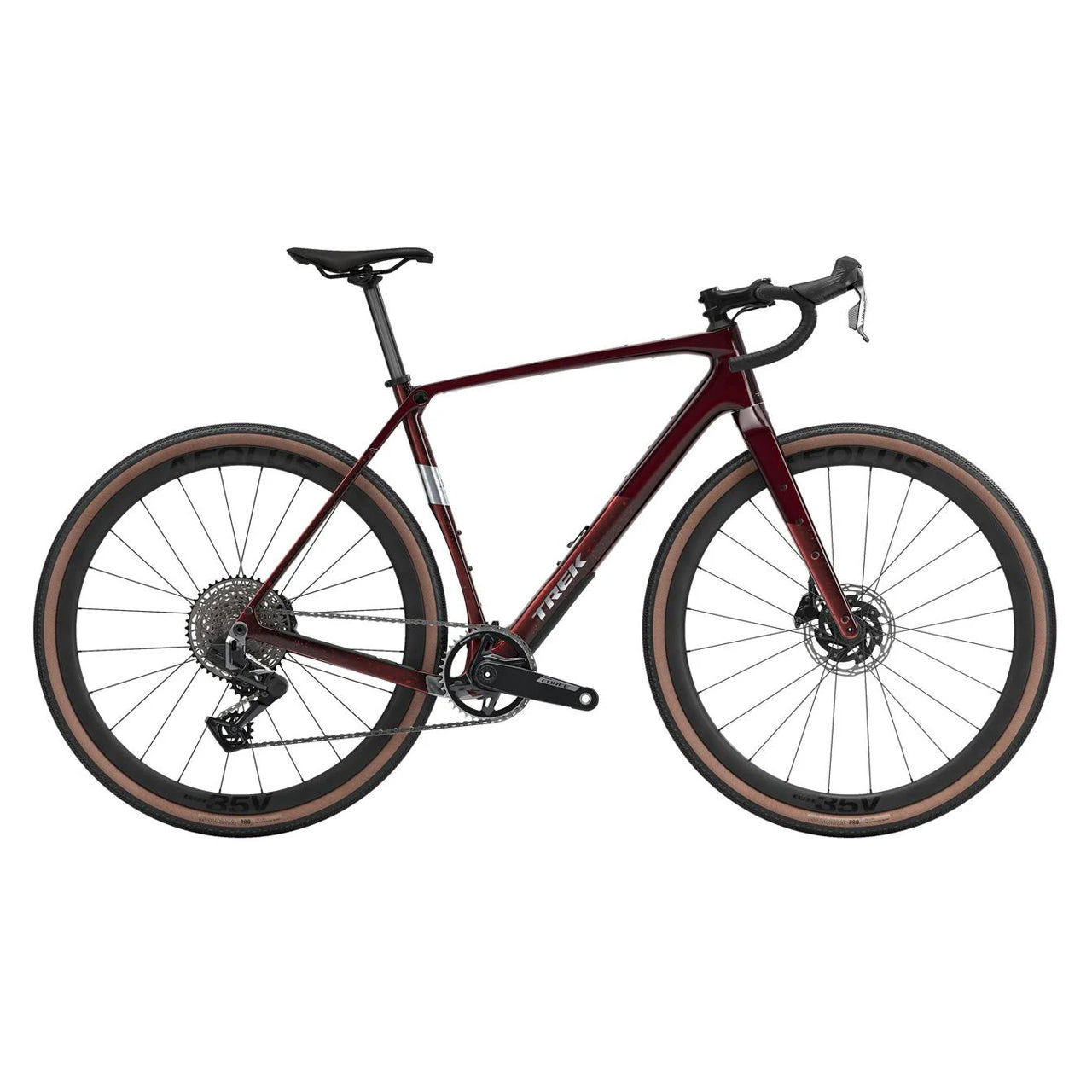

Checkpoint SL 7 AXS Gen 3 is a carbon gravel bike built to explore the beyond. Its lightweight carbon frame is designed with a Gravel Endurance geometry, tons of mounts, and clearance for up to 50mm tires (as measured). Plus, IsoSpeed comfort tech helps soak up jarring vibrations so you can float over chatter and potholes. It's decked out with upgrades where you want them most, like carbon wheels and seat post, and a wireless SRAM Force AXS XPLR E1 drivetrain.

Geometry Chart

Measurement	Medium
Reach (mm)	391
Stack (mm)	579
Head Tube Angle (°)	71.6°
Seat Tube Angle (°)	73.3°
Wheelbase (mm)	1034
Chainstay Length (mm)	430
Head Tube Length (mm)	130
Seat Tube Length (mm)	505
BB Drop (mm)	76
Rake (mm)	49
Trail (mm)	7
Axle to Crown (mm)	579

Part Numbers

Size	Dark Red/Carbon Red Smoke Splatter
Medium	SKUTRE54642957A VPNTrek_5334685 UPC197216228301 MPN5334685
Medium/Large	SKUCHE514718193 VPNTrek_5334686 UPC197216228318 MPN5334686
X-Large	SKUTRE5532726A VPNTrek_5334688 UPC197216228332 MPN5334688
Large	SKUTRE54210574A VPNTrek_5334687 UPC197216228325 MPN5334687
Small	SKUTRE54553359A VPNTrek_5334684 UPC197216228295 MPN5334684
X-Small	SKUTRE55488523A VPNTrek_5334683 UPC197216228288 MPN5334683

Size Chart

Trek | Gravel

Size	Size (cm)	Rider height (in)	Rider height (cm)	Inseam (in)	Inseam (cm)
X-Small	N/A	4'8" - 5'2"	143 - 158 cm	26" - 29"	67 - 74 cm
Small	49cm	5'2" - 5'5"	158 - 164 cm	29" - 30"	74 - 77 cm
Medium	52-54cm	5'5" - 5'10"	164 - 177 cm	30" - 33"	77 - 83 cm
Medium/Large	56cm	5'10" - 6'2"	177 - 188 cm	33" - 35"	83 - 88 cm
Large	58cm	6'2" - 6'4"	188 - 194 cm	35" - 36"	88 - 91 cm
X-Large	61cm	6'4" - 6'8"	194 - 203 cm	36" - 37"	91 - 95 cm

IsoSpeed comfort tech

IsoSpeed comfort tech smooths potholes and fatiguing bumps in the road so you can ride stronger longer.

New Gravel Endurance geometry

A new confident and comfortable Gravel Endurance geometry puts you in a more relaxed upright riding position so you can stay comfortable on even your most epic adventures.

Big ’ol tire clearance

Roll over the rough stuff with room to fit gravel tires up to 50mm wide (as measured).

Bigger in-frame storage

More internal frame storage and a bigger storage door lets you fit all your flat tools inside your bike so you're always ready for whatever the gravel road throws at you.
