Save 7%

Trek

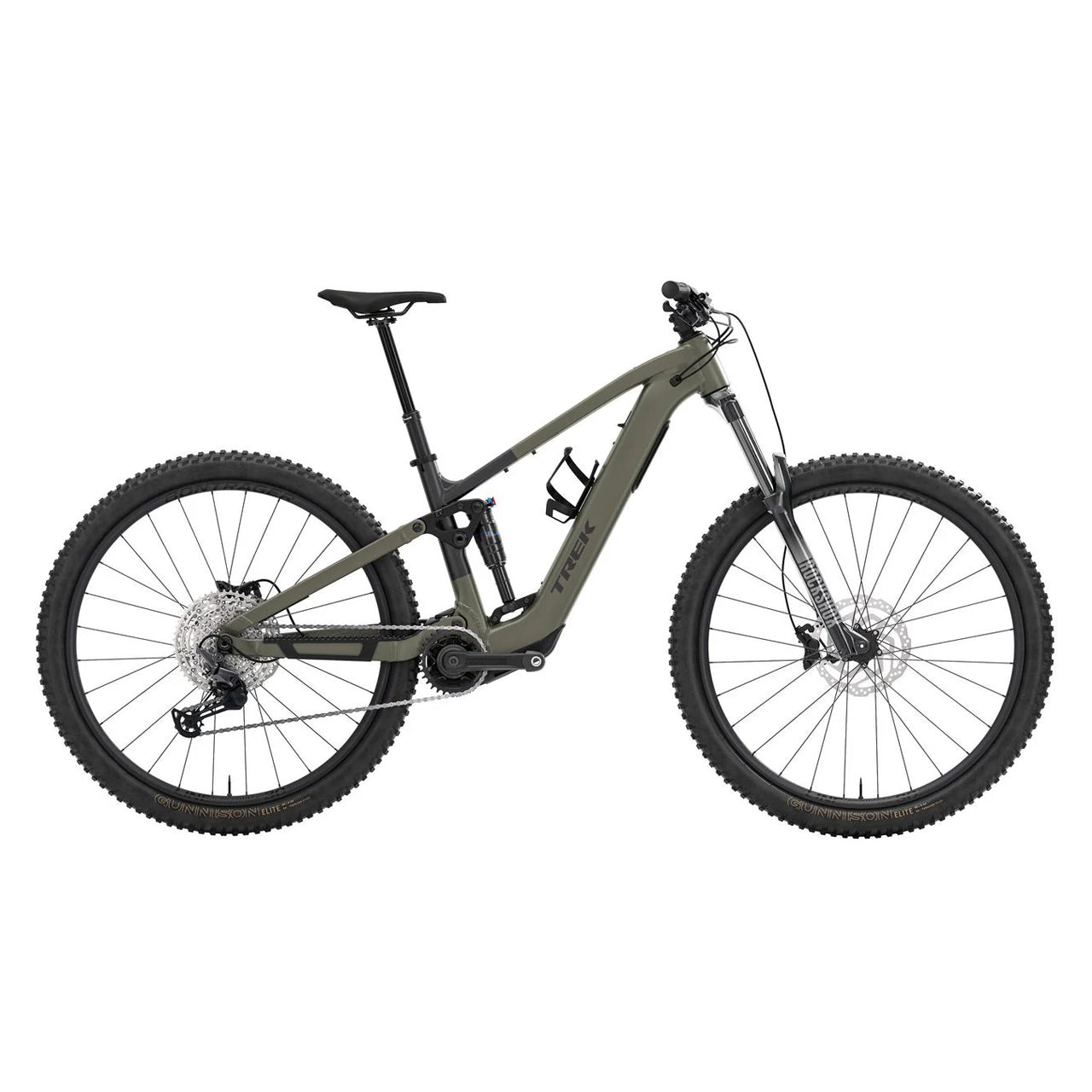

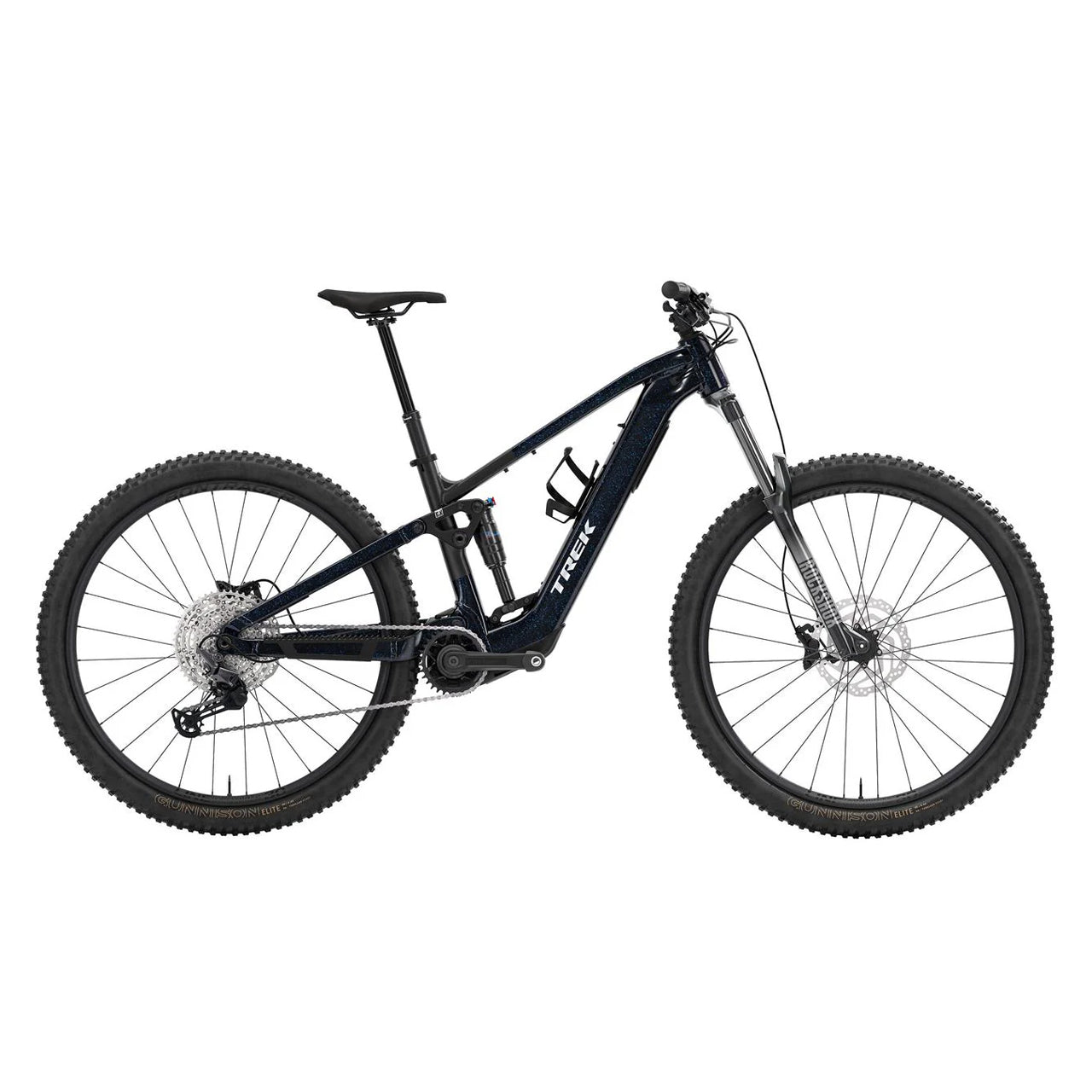

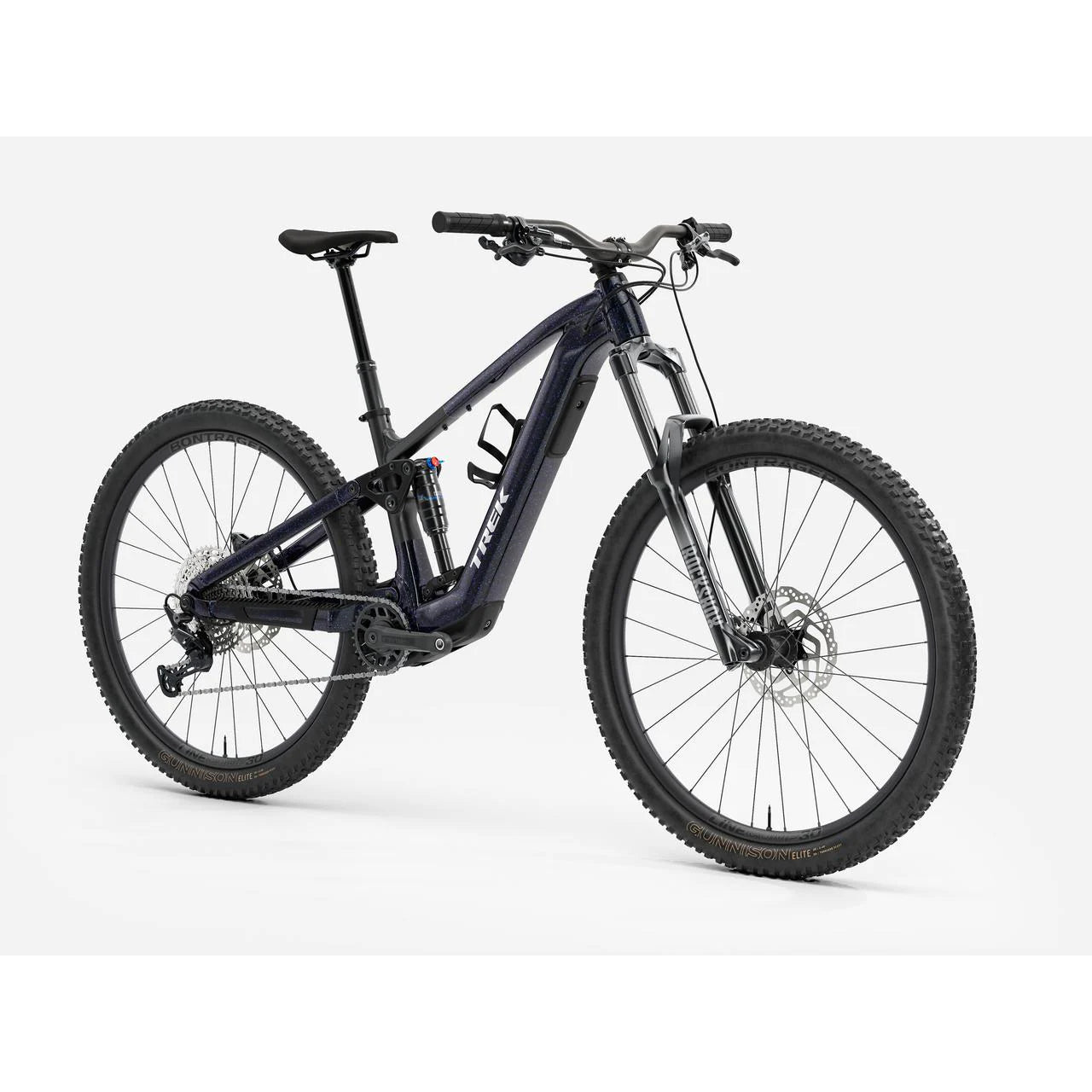

2026 | Fuel+ EX 5 Gen 2

$6,999.95

$6,999.95 ~~$7,599.99~~

Shipping calculated at checkout.

Color: Matte Olive Grey/Trek Black

Size: Small

Small Medium Large X-Large

SKU:FUE33265990K

Why Buy a Bike From The Bike Shop?

15% off Parts & Accessories
When you buy a bike at The Bike Shop, you get 15% off of parts and accessories for the first 30 days following your bike purchase. The discount will automatically apply in the checkout at the time of purchase with your bike. This excludes items already marked down and some brands.

Service Plan
If you're local to Calgary or Canmore, you also get one complimentary complete tune-up within the first 16 months of owning the bike. Also included is a lifetime of unlimited service checks to keep you informed on the overall condition of your bike.

After Purchase Support
You're not on your own after you buy a bike from us. We have a dedicated e-comm team that is here to assist if you need help with anything. We also created video tutorials on how to unbox your bike when it arrives and get it ready to read.

Shipping & Returns

We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.

Canadian shipping charges:

Sale bikes: $200
Standard pedal bikes over $1250: Free
Standard pedal bikes under $1250: $100
Electric bikes: $200
Fat bikes: $200
Kid's bikes: $60

Insurance charge: 1.5% insured value

We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details

Cargo bikes:
Due to the size of the box that cargo bikes ship in, we are unable to ship cargo bikes directly to your address. Cargo bikes are shipped to a Manitoulin Depot for you to pick-up. For more detail, visit our shipping page.

Bike Specifications

Specifications are subject to change without notice

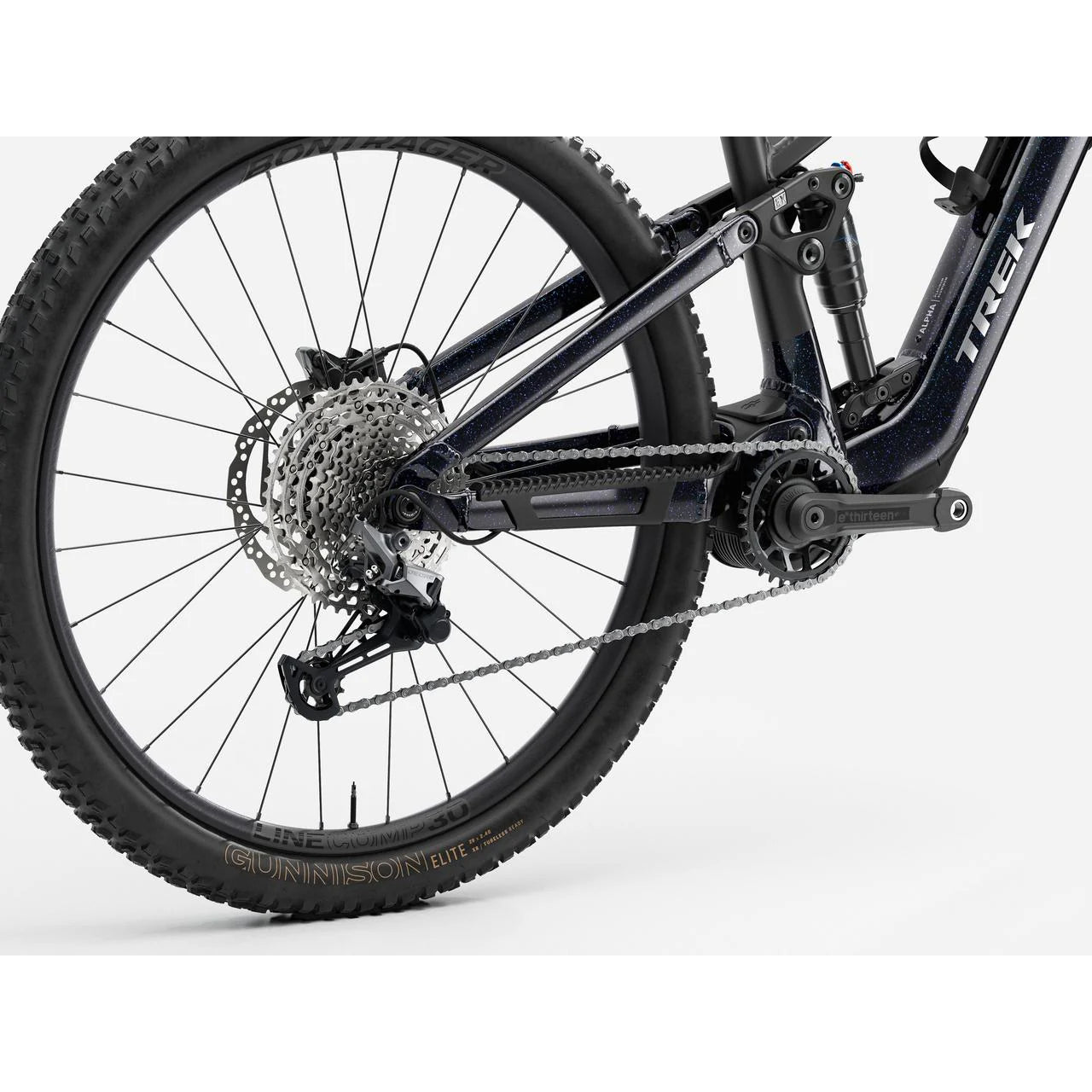

Drivetrain

Cassette Shimano Deore M6100, 10-51, 12 speed

Chain Shimano Deore M6100, 12 speed

Chainring E*Thirteen Helix Core Steel 32t steel, 55mm chainline

Crank length E*thirteen E*spec Plus, 160mm length

Rear derailleur Shimano Deore M6100, long cage

Shifter Shimano Deore M6100, 12 speed

Brakes

Brake rotor Shimano RT64, centerlock, 203mm // Shimano RT64, CentreLock, 203 mm

Brake type Hydraulic disc

Caliper Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper // Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper

Rotor size Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer

Cockpit

Grips tape Trek Line Comp, nylon lock-on

Handlebars Bontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width

Saddle Bontrager Verse Short, stainless steel rails

Seatpost TranzX JD-YSI34, 150mm travel, internal routing, 34.9mm

Stem Bontrager Comp, 31.8mm, 7 degree, 35mm length

Wheels

Front hub Shimano TC500 alloy, centerlock, 110x15mm thru axle

Rear hub Shimano TC500 alloy, centerlock, 148x12mm thru axle

Rims Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve // Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve

Valves Bontrager TLR sealant, 180 ml/6 oz

Wheel size Size Specific

Suspension

Fork Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15mm Maxle Stealth, 150mm travel

Fork brand RockShox

Shock X-Fusion Pro 2, 2-position damper, 205mm x 60mm

Shock brand X-Fusion

Frame

Frame Alpha NEXT Platinum aluminum, removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mm

Frame material Aluminum

Headset FSA Orbit, sealed cartridge bearing, 1-1/8' top, 1.5' bottom, 1.5 crown

Seatpost TranzX JD-YSI34, 150mm travel, internal routing, 34.9mm

Weight as spec d M - 21.92 kg / 48.33 lbs (with TLR sealant, no tubes)

Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

E-Bike System

Battery TQ 580Wh

Battery type 360WH

Motor TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power

Description

Fuel+ EX 5 is a quiet and capable electric mountain bike that's up for any trail, any time. Its Alpha NEXT Platinum aluminum frame delivers a smooth boost from a compact TQ HPR-60 motor, while a RockShox fork and X-Fusion shock (145mm rear, 150mm front) provide trail-smoothing confidence. A Shimano Deore drivetrain gives you plenty of gears for steep climbs, and 4-piston Shimano M4100 hydraulic brakes provide reliable stopping power.

Geometry Chart

Measurement	Small	Medium	Large	X-Large
Reach (mm)	431	460	485	510
Stack (mm)	624	624	638	651
Head Tube Angle (°)	64.6°	64.5°	64.5°	64.5°
Seat Tube Angle (°)	72.7°	72.6°	72.6°	72.6°
Wheelbase (mm)	1200	1232	1258	1298
Chainstay Length (mm)	441	444	444	447
Head Tube Length (mm)	110	110	125	140
Seat Tube Length (mm)	370	400	420	455
BB Drop (mm)	34	35	35	35
BB Height (mm)	339	339	339	339
Rake (mm)	44	44	44	44
Trail (mm)	13	13	13	13
Axle to Crown (mm)	624	624	638	651

Part Numbers

Size	Matte Olive Grey/Trek Black	Trek Black/Purple Flip Splatter
Small	SKUFUE33265990K VPNTrek_5335646 UPC197216226284 MPN5335646	SKUFUE37611294R VPNTrek_5335642 UPC197216226246 MPN5335642
Medium	SKUFUE3371887K VPNTrek_5335647 UPC197216226291 MPN5335647	SKUFUE37398104R VPNTrek_5335643 UPC197216226253 MPN5335643
Large	SKUFUE33195193K VPNTrek_5335648 UPC197216226307 MPN5335648	SKUFUE37224385R VPNTrek_5335644 UPC197216226260 MPN5335644
X-Large	SKUFUE34564314K VPNTrek_5335649 UPC197216226314 MPN5335649	SKUFUE38118657R VPNTrek_5335645 UPC197216226277 MPN5335645

Size Chart

Trek | Mountain

Size	Rider height (in)	Rider height (cm)	Inseam (in)	Inseam (cm)
X-Small	4'9" - 5'1"	145 - 155 cm	27" - 29"	69 - 73 cm
Small	5'1" - 5'5"	155 - 165 cm	29" - 31"	74 - 78 cm
Medium	5'5" - 5'10"	165 - 177 cm	31" - 33"	79 - 83 cm
Medium/Large	5'8" - 5'11"	173 - 180 cm	32" - 34"	81 - 86 cm
Large	5'10" - 6'2"	177 - 188 cm	33" - 35"	84 - 89 cm
X-Large	6'2" - 6'5"	188 - 195 cm	35" - 36"	89 - 91 cm
XX-Large	6'5" - 6'8"	195 - 203 cm	36" - 38"	91 - 97 cm

Adapt, rip, repeat

Only you can define your perfect trail bike — that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX, or charge through it all with LX.

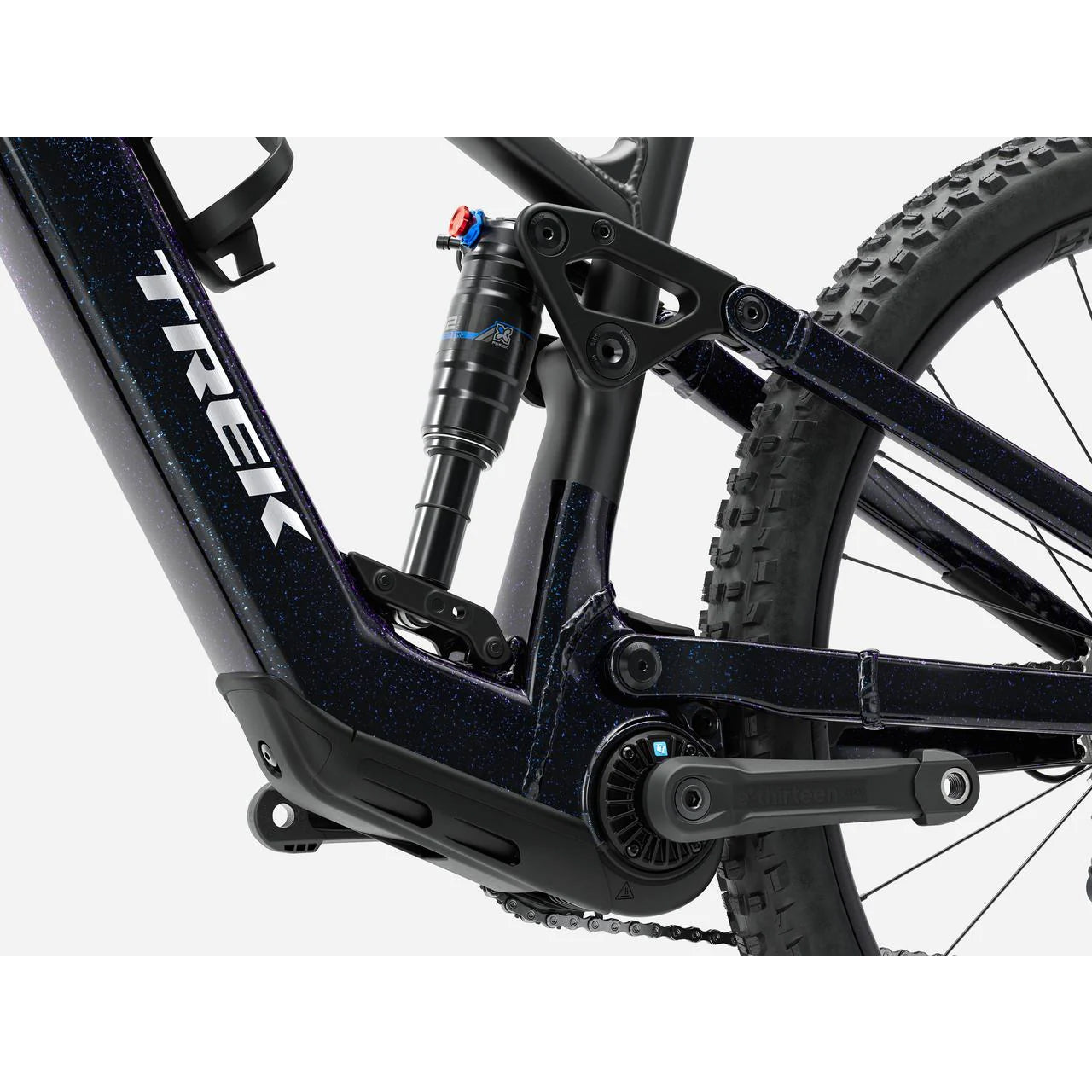

Adjustable leverage rate

Want more bottom-out resistance without giving up small-bump sensitivity? Flip the chip in the lower shock mount for a more progressive leverage rate.

Zero stack integrated headset

With a ZS standard headset, you've got tons of options for aftermarket upgrades, including angle adjust or anodized colors.

Storage and accessory mounts

Stash ride essentials with in-frame storage on all Fuel models — both carbon and alloy. Plus, top tube accessory mounts let you load up even more.

2026 | Fuel+ EX 5 Gen 2
