Trek

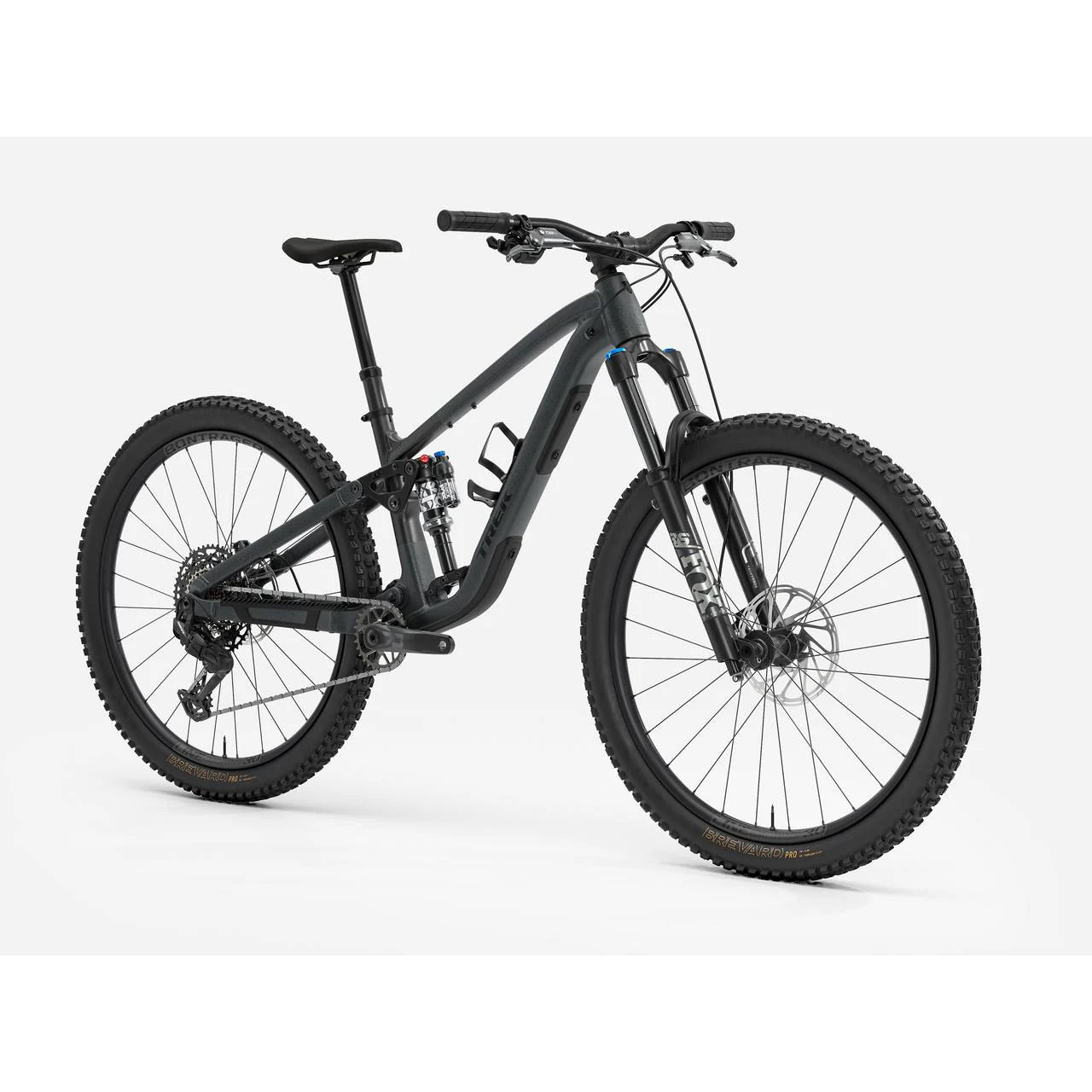

2026 | Fuel EX 8 Gen 7
2026 | Fuel EX 8 Gen 7
Regular price
$5,299.99
Sale price
$5,299.99
Regular price
Shipping calculated at checkout.
SKU:FUE407252696
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.
Canadian shipping charges:
- Sale bikes: $200
- Standard pedal bikes over $1250: Free
- Standard pedal bikes under $1250: $100
- Electric bikes: $200
- Fat bikes: $200
- Kid's bikes: $60
Insurance charge: 1.5% insured value
We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details
Bike Specifications
Bike Specifications
Specifications are subject to change without notice

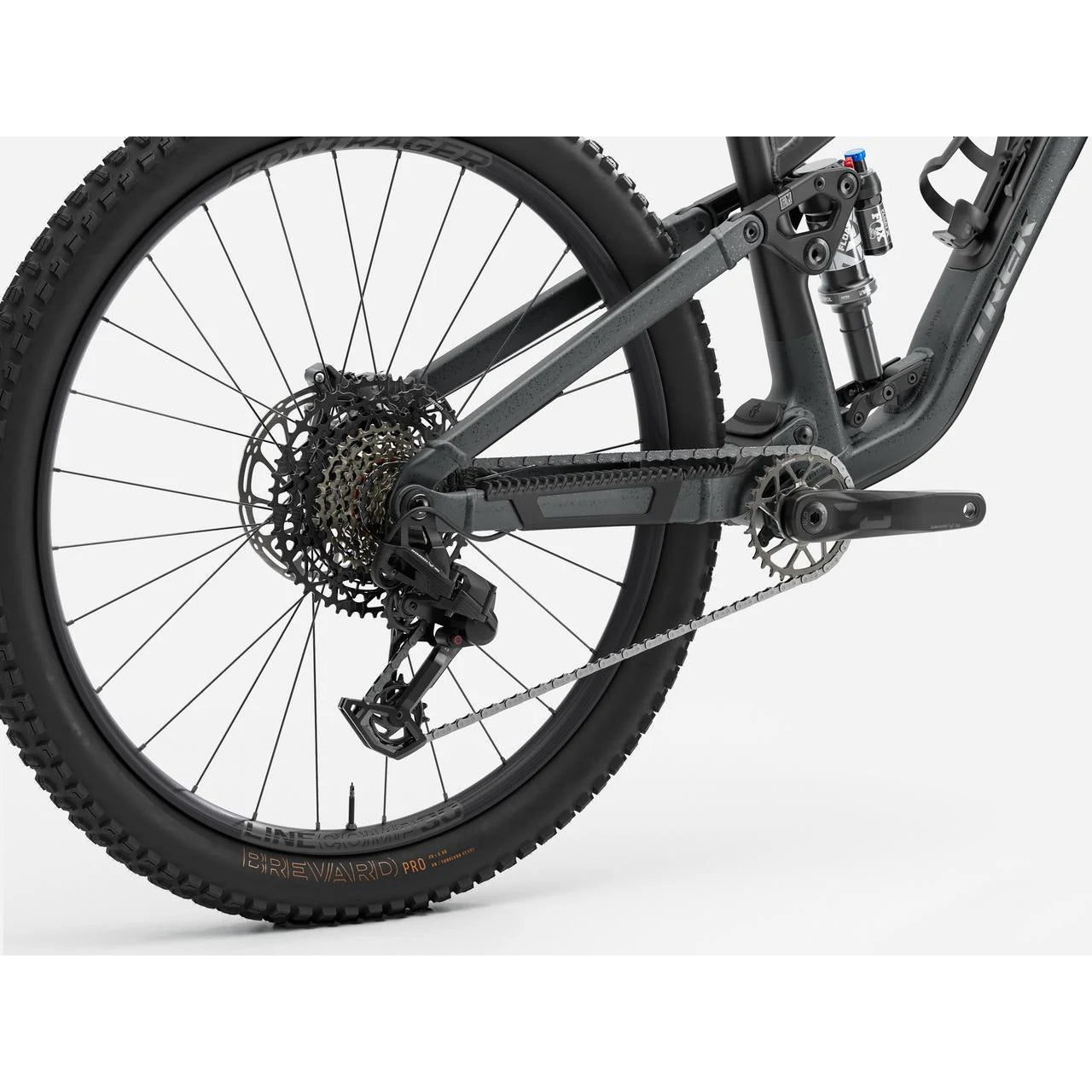

Drivetrain
Cassette
SRAM Eagle XS-1270, T-Type,10-52, 12 speed
Chain
SRAM Eagle 70, T-Type, 12 speed
Rear derailleur
SRAM Eagle 70, T-Type
Shifter
SRAM Eagle 70, 12 speed
Brakes
Brake rotor
SRAM Centerline 2.0, 6-bolt, 180mm // SRAM Centerline 2.0, 6-bolt, 200mm
Brake type
Hydraulic disc
Caliper
SRAM DB 8 4-piston hydraulic disc // SRAM DB 8 4-piston hydraulic disc
Rotor size
Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
Cockpit
Grips tape
Trek Line Comp, nylon lock-on
Handlebars
Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width
Saddle
Bontrager Verse P3, chromoly rails
Seatpost
Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length
Stem
Bontrager Elite, 35mm, 0 degree, 45mm length
Wheels
Front hub
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Rear hub
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12mm thru axle
Rims
Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve // Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve
Tires
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" // Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"
Valves
Bontrager TLR sealant, 180 ml/6 oz
Wheel size
Size Specific
Suspension
Fork
Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel
Fork brand
Fox

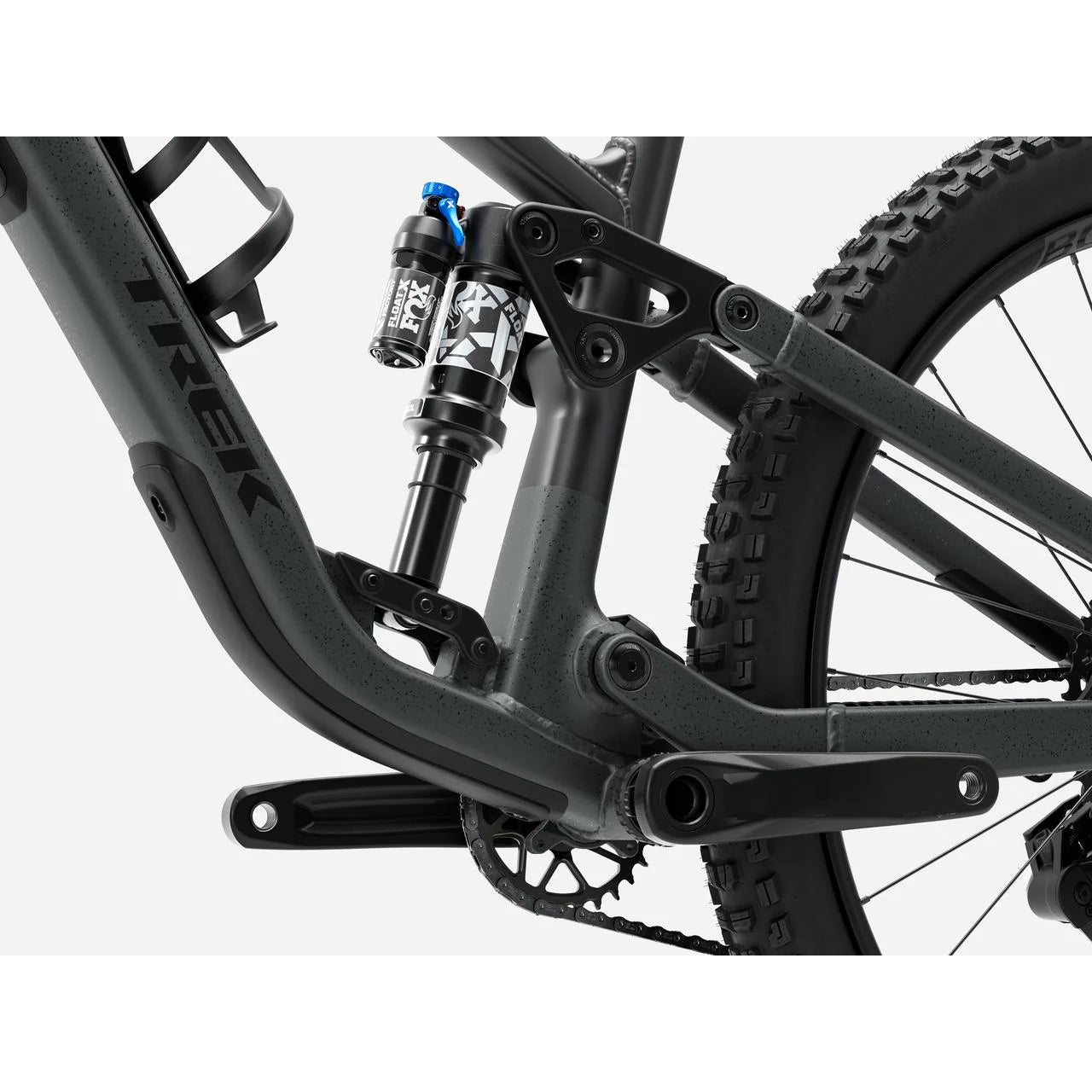

Shock
Fox Performance Float X, 2-position damper, 205mm x 60mm
Shock brand
Fox
Frame
Bottom bracket
SRAM DUB MTB Wide, 73mm, BSA threaded
Frame
Alpha NEXT Platinum aluminum, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145mm-160mm
Frame material
Aluminum
Headset
FSA Orbit, sealed cartridge bearing, 1-1/8' top, 1.5' bottom, 1.5 crown
Platform wheel size
27.5" - (XS-S) | 29" - (M-XL)
Seatpost
Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length
Weight as spec d
M - 16.89 kg / 37.24 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
Share this product
Description
Description
Fuel EX 8 is a confident and versatile trail bike built to get after it. It comes ready to rip with an Alpha NEXT Platinum frame, Fox performance suspension package with 145mm/150mm travel (rear, front), alloy Bontrager Line wheels, and a SRAM Eagle 70 transmission that keeps shifts smooth, even under load. It's topped off with 4-piston SRAM DB 8 hydraulic disc brakes to keep you stopping on a dime.
Geometry Chart
Geometry Chart
| Measurement | Medium | Large | X-Large |
|---|---|---|---|
| Reach (mm) | 460 | 485 | 510 |
| Stack (mm) | 624 | 638 | 651 |
| Head Tube Angle (°) | 64.5° | 64.5° | 64.5° |
| Seat Tube Angle (°) | 72.6° | 72.6° | 72.6° |
| Wheelbase (mm) | 1225 | 1262 | 1298 |
| Chainstay Length (mm) | 437 | 442 | 447 |
| Head Tube Length (mm) | 110 | 125 | 140 |
| Seat Tube Length (mm) | 400 | 420 | 455 |
| BB Drop (mm) | 35 | 35 | 35 |
| BB Height (mm) | 339 | 339 | 339 |
| Rake (mm) | 44 | 44 | 44 |
| Trail (mm) | 13 | 13 | 13 |
| Axle to Crown (mm) | 624 | 638 | 651 |
Part Numbers
Part Numbers

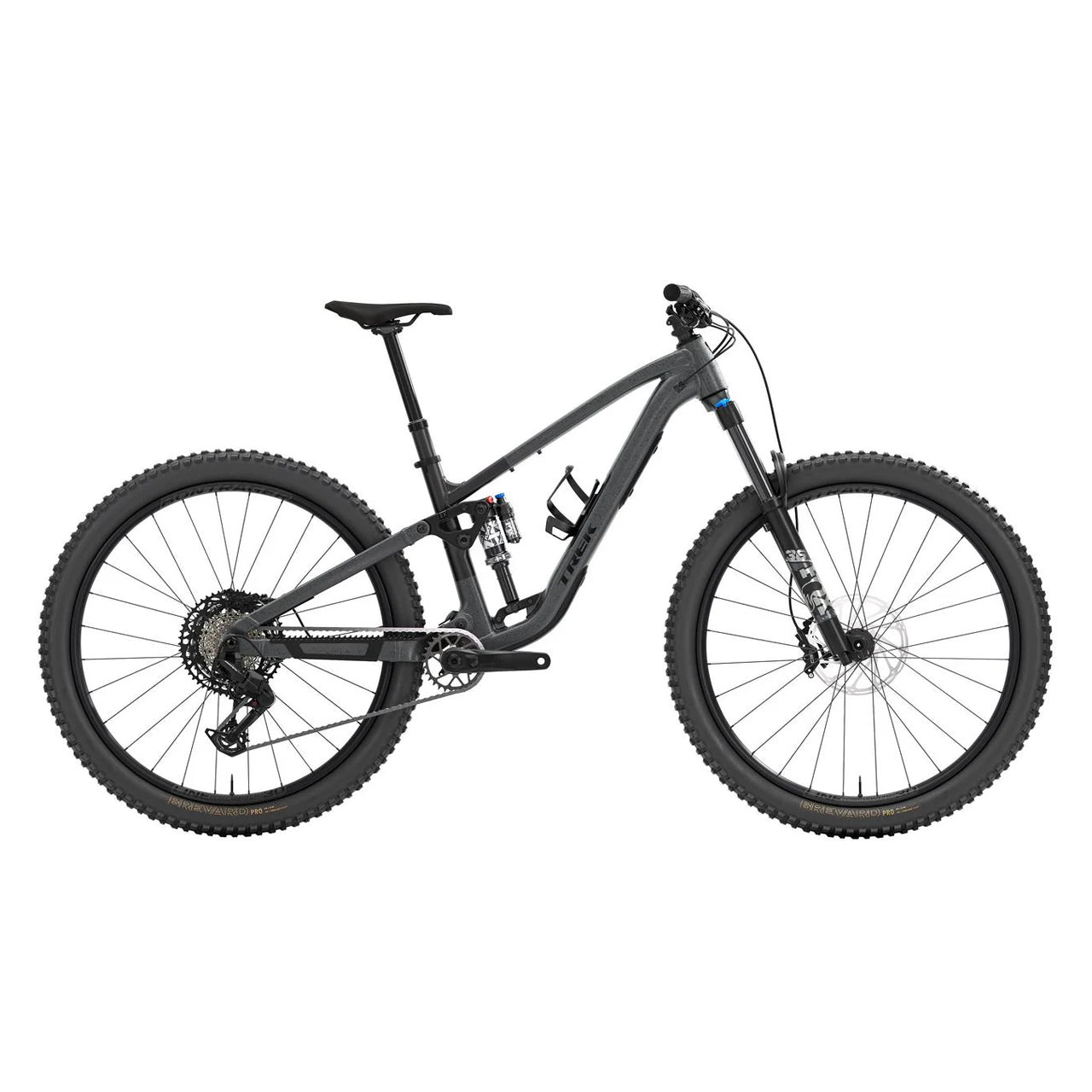

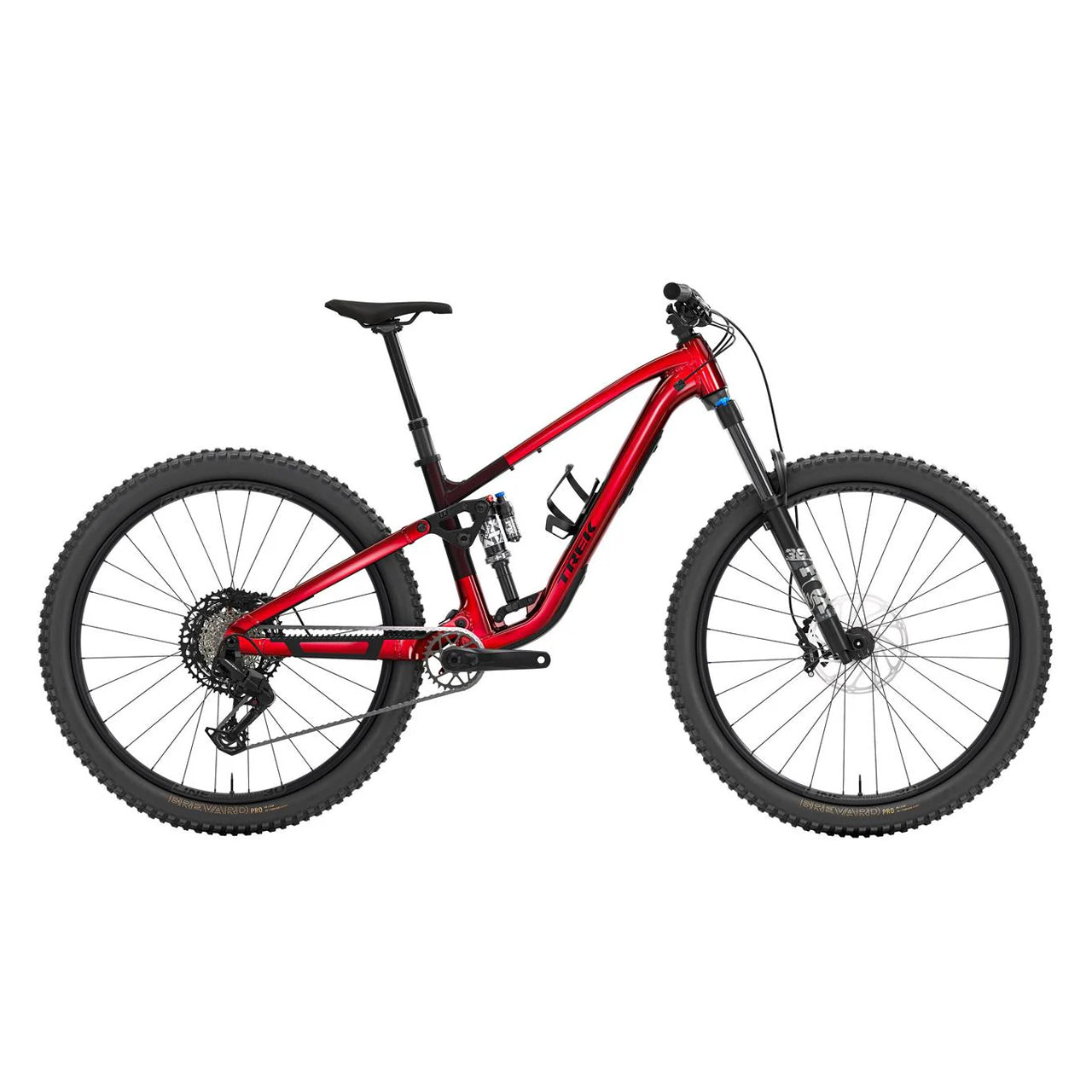

| Size / Wheel Size | Gloss Fury Red/Matte Dark Carmine | Lithium Grey/Trek Black Splatter |
|---|---|---|
| Medium / 29" |
SKUFUE402113616
VPNTrek_5335738
UPC197216226215
MPN5335738
|
SKUTRE46510674T
VPNTrek_5335734
UPC197216226178
MPN5335734
|
| Medium / 29"/27.5" MX | — | — |
| Large / 29" |
SKUFUE407252696
VPNTrek_5335739
UPC197216226222
MPN5335739
|
SKUTRE46113757T
VPNTrek_5335735
UPC197216226185
MPN5335735
|
| Large / 29"/27.5" MX | — | — |
| X-Large / 29" |
SKUFUE417776586
VPNTrek_5335740
UPC197216226239
MPN5335740
|
SKUTRE47612787T
VPNTrek_5335736
UPC197216226192
MPN5335736
|
| X-Large / 29"/27.5" MX | — | — |
| Small / 29" | — | — |
| Small / 29"/27.5" MX |
SKUFUE403587496
VPNTrek_5335737
UPC197216226208
MPN5335737
|
SKUTRE46131613T
VPNTrek_5335733
UPC197216226161
MPN5335733
|
Size Chart
Size Chart
Trek | Mountain
| Size | Rider height (in) | Rider height (cm) | Inseam (in) | Inseam (cm) |
|---|---|---|---|---|
| X-Small | 4'9" - 5'1" | 145 - 155 cm | 27" - 29" | 69 - 73 cm |
| Small | 5'1" - 5'5" | 155 - 165 cm | 29" - 31" | 74 - 78 cm |
| Medium | 5'5" - 5'10" | 165 - 177 cm | 31" - 33" | 79 - 83 cm |
| Medium/Large | 5'8" - 5'11" | 173 - 180 cm | 32" - 34" | 81 - 86 cm |
| Large | 5'10" - 6'2" | 177 - 188 cm | 33" - 35" | 84 - 89 cm |
| X-Large | 6'2" - 6'5" | 188 - 195 cm | 35" - 36" | 89 - 91 cm |
| XX-Large | 6'5" - 6'8" | 195 - 203 cm | 36" - 38" | 91 - 97 cm |
