Trek

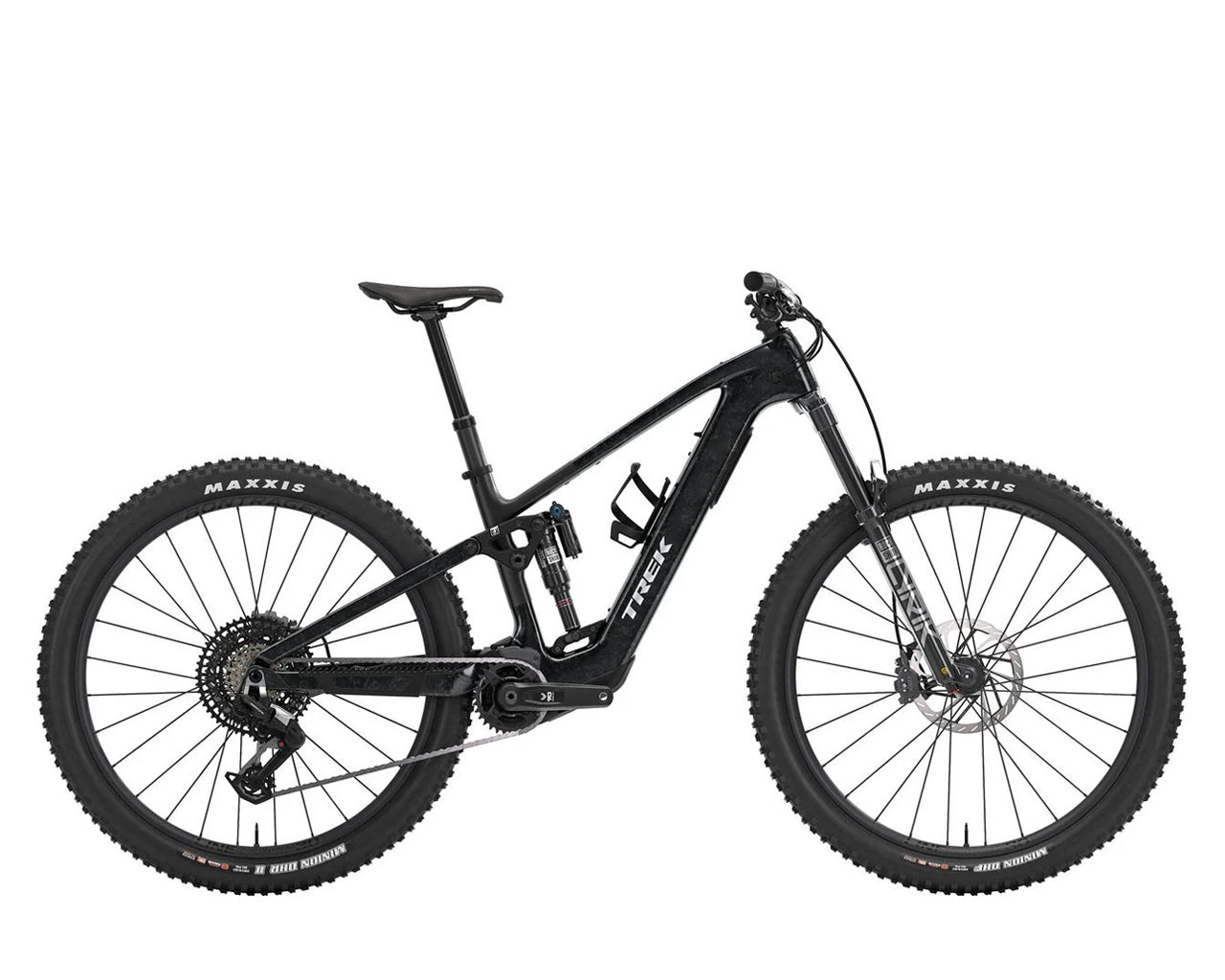

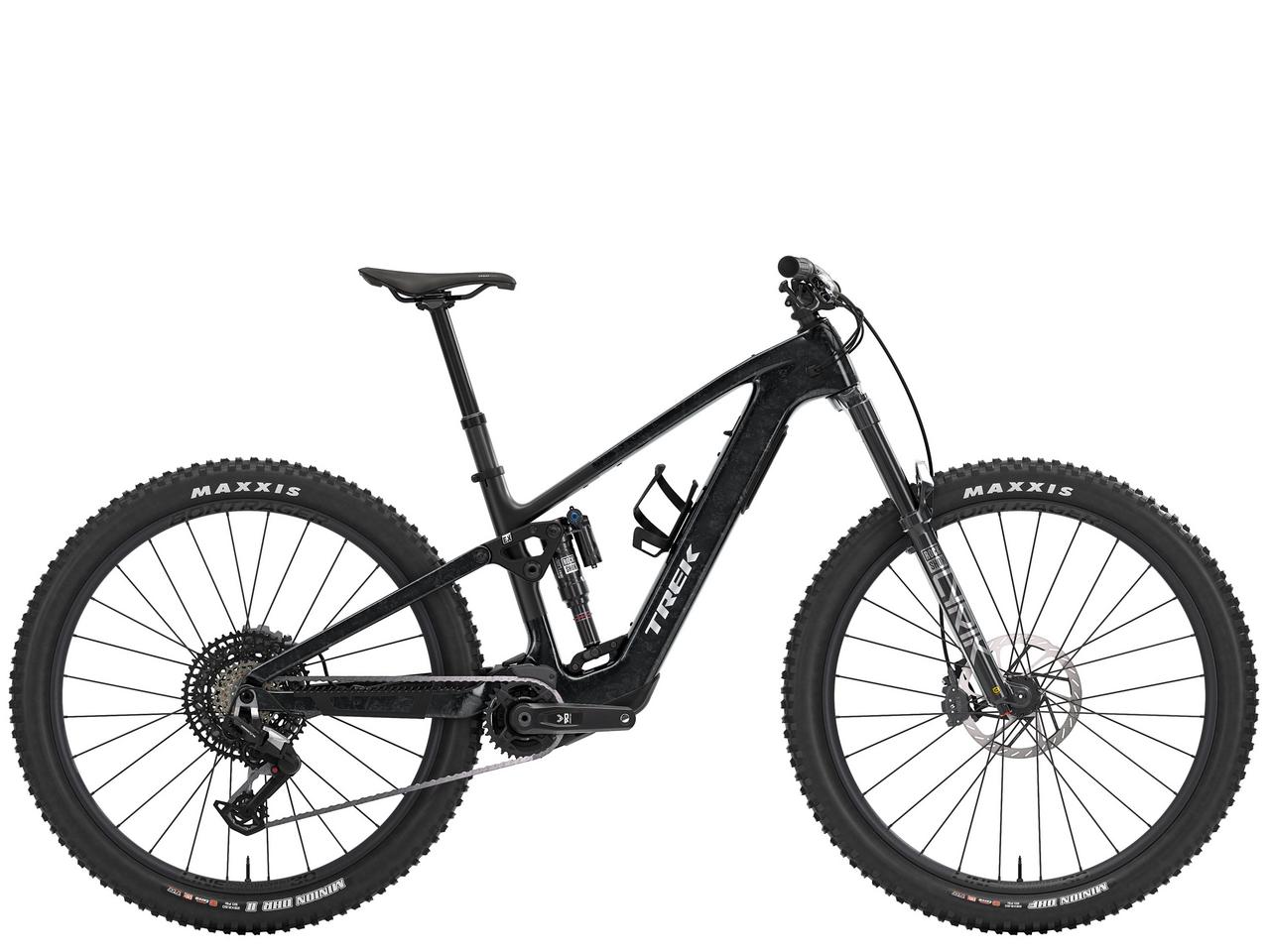

2026 | Fuel+ EX 9.8 Eagle 90 Gen 2

$12,499.99

Shipping calculated at checkout.

Color: Carbon Smoke/Lithium Grey Marble

Size: Small

Small Medium Large X-Large XX-Large

SKU:FUE476583302

Shipping & Returns

We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.

Canadian shipping charges:

Sale bikes: $200
Standard pedal bikes over $1250: Free
Standard pedal bikes under $1250: $100
Electric bikes: $200
Fat bikes: $200
Kid's bikes: $60

Insurance charge: 1.5% insured value

We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details

Bike Specifications

Specifications are subject to change without notice

Drivetrain

Cassette SRAM Eagle XS-1275, T-Type, 10-52, 12 speed

Chain SRAM GX Eagle, T-Type, 12 speed

Chainring SRAM T-Type, 32T, alloy

Crank length Premium Alpha Platinum Aluminum frame, top-load PowerPack, integrated cockpit routing, 135x5mm QR

Rear derailleur SRAM Eagle 90, T-Type

Shifter SRAM Eagle 90, 12 speed

Brakes

Brake rotor SRAM HS2, 6-bolt, 200mm

Brake type Hydraulic disc

Caliper SRAM Maven Bronze 4-piston hydraulic disc // SRAM Maven Bronze 4-piston hydraulic disc

Rotor size Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer

Cockpit

Grips tape Trek Line Elite, lock-on

Handlebars Race Face ERA, carbon, 35mm, 27.5mm rise, 800mm width

Saddle Verse Short Comp, steel rails, 145mm width

Seatpost Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 5150mm length

Stem Bontrager Elite, 35mm, 0 degree, 45mm length

Wheels

Tires Maxxis Minion DHF, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5' // Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5'

Valves Bontrager TLR sealant, 180 ml/6 oz

Wheel size 29"

Suspension

Fork RockShox Lyrik Ultimate, DebonAir+ w/ ButterCups, Charger 3.1 RC damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel

Fork brand RockShox

Shock RockShox Deluxe Ultimate RC2T, 205mm x 60mm

Shock brand RockShox

Frame

Frame OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mm

Frame material Carbon

Seatpost Bontrager Line Dropper, 200mm travel, MaxFlow, internal routing, 34.9mm, 5150mm length

Weight as spec d M - 20.38 kg / 44.94 lbs (with TLR sealant, no tubes)

Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

E-Bike System

Battery TQ 580Wh

Battery type 360WH

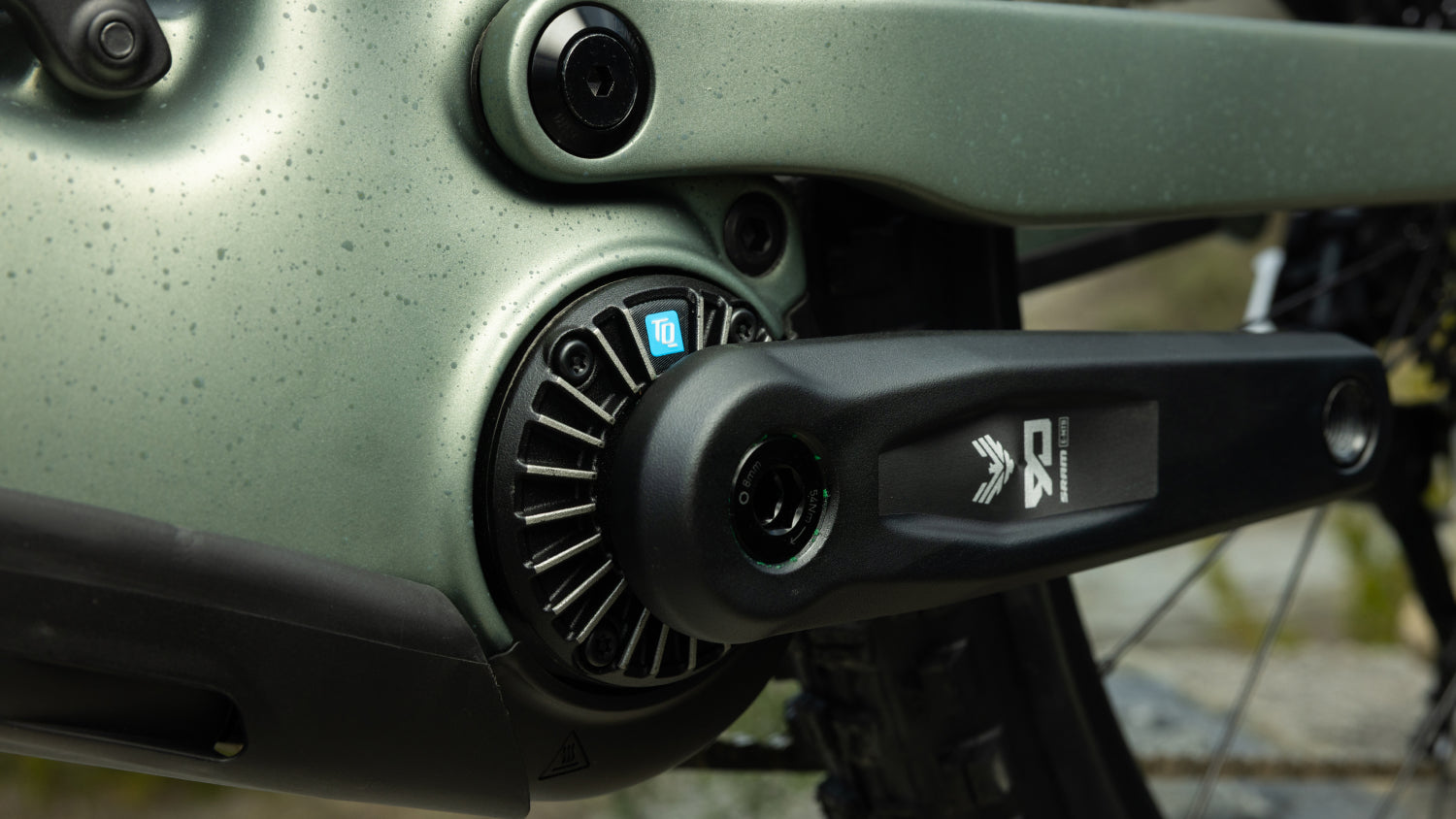

Motor TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power

Motor controller TQ color LED display with Bluetooth & ANT+ connectivity

Description

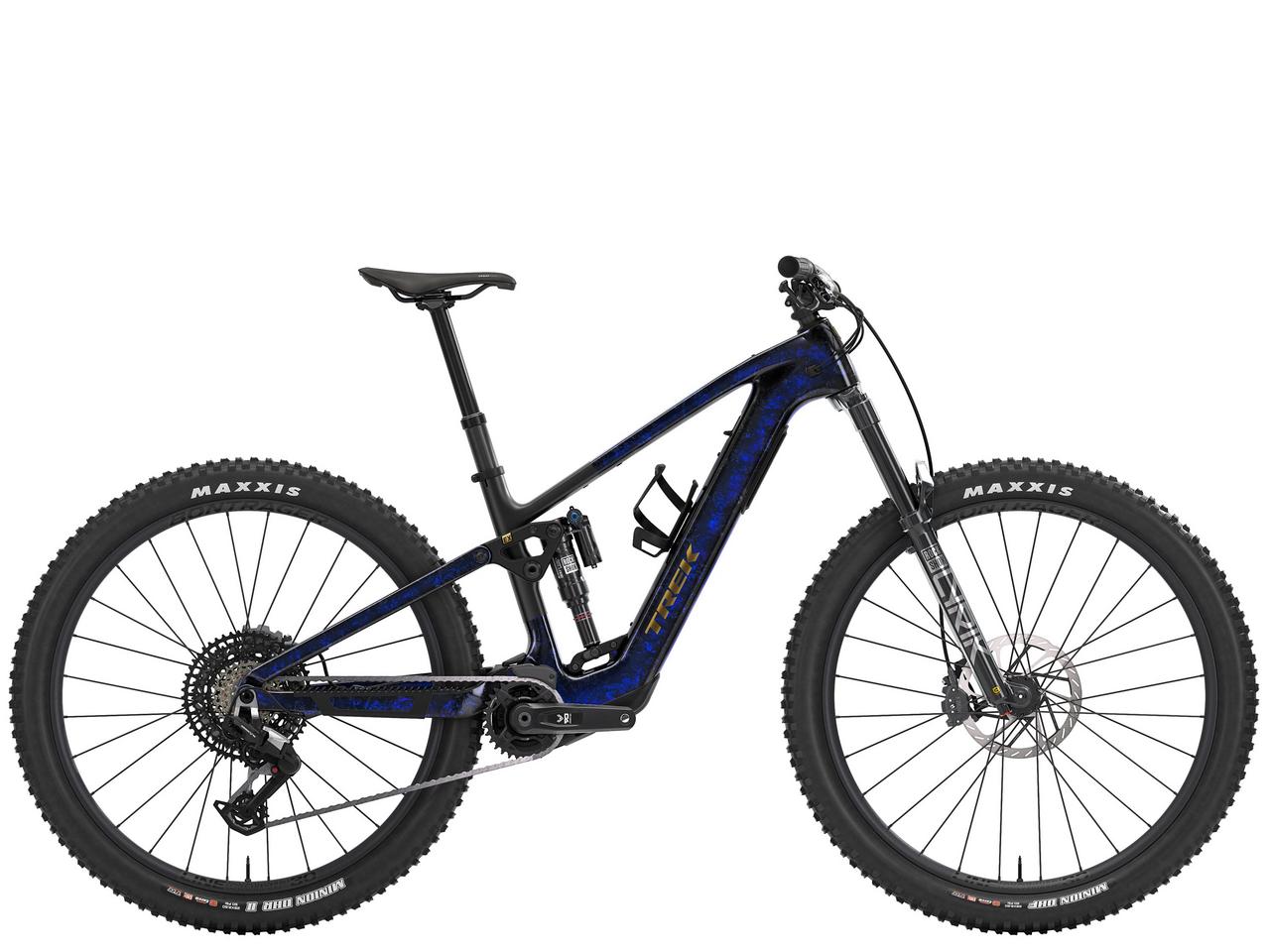

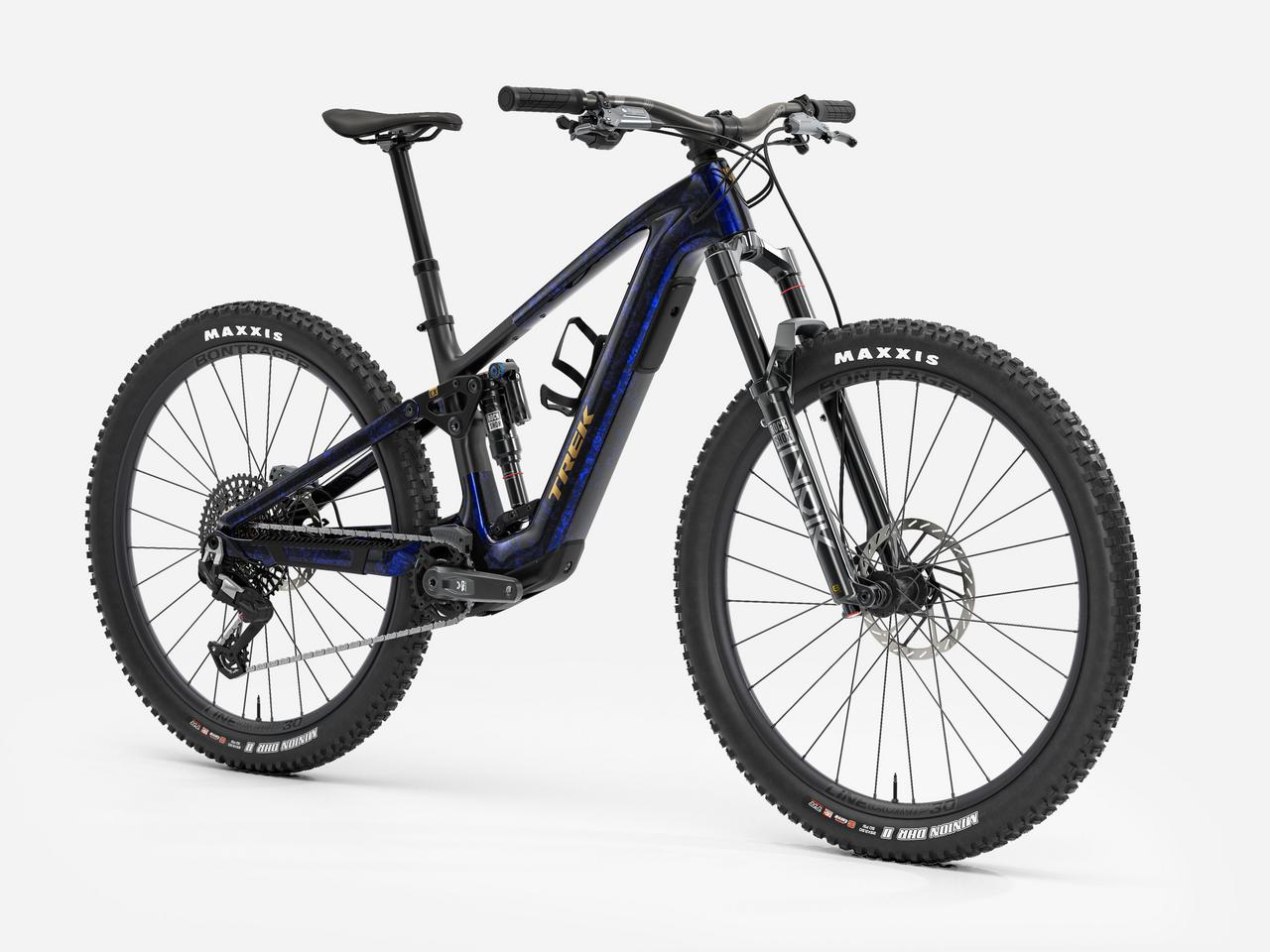

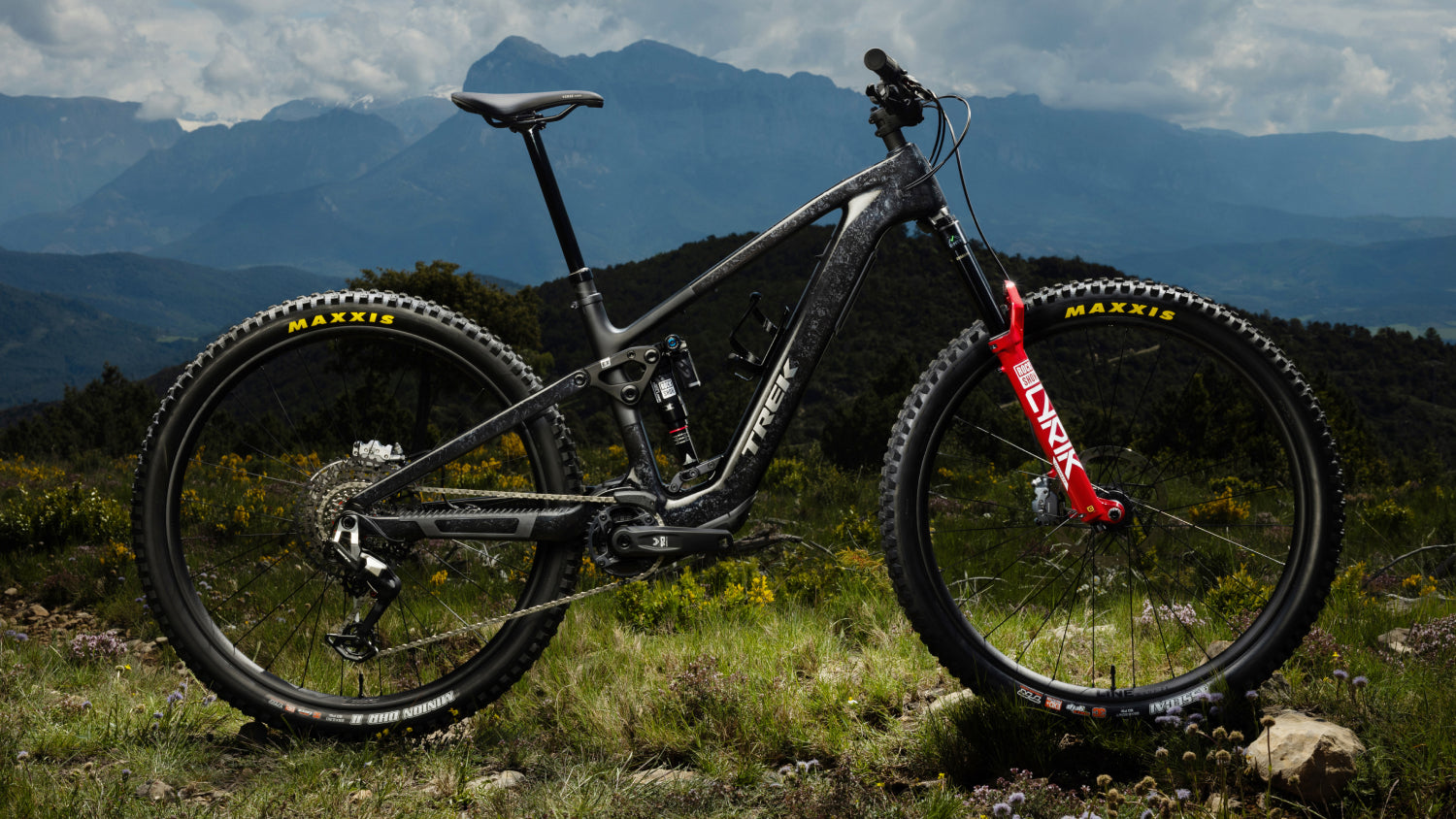

Fuel+ EX 9.8 Eagle 90 is an adaptable carbon e-MTB ready for sky-high climbs and dreamy descents. Its OCLV Mountain Carbon frame delivers a smooth boost from TQ's HPR-60 motor, while a RockShox Ultimate suspension package (145mm rear, 150mm front) gives you smooth control through the rough. SRAM's Eagle 90 transmission delivers ultra-smooth shifting, even under load, while SRAM Maven Bronze 4-piston brakes provide powerful control.

Geometry Chart

Measurement	Small	Medium	Large	X-Large	XX-Large
Reach (mm)	431	460	485	510	530
Stack (mm)	624	624	638	651	665
Head Tube Angle (°)	64.6°	64.5°	64.5°	64.5°	64.5°
Seat Tube Angle (°)	72.7°	72.6°	72.6°	72.6°	72.6°
Wheelbase (mm)	1200	1232	1258	1298	1330
Chainstay Length (mm)	441	444	444	447	452
Head Tube Length (mm)	110	110	125	140	155
Seat Tube Length (mm)	370	400	420	455	475
BB Drop (mm)	34	35	35	35	35
BB Height (mm)	339	339	339	339	339
Rake (mm)	44	44	44	44	44
Trail (mm)	13	13	13	13	13
Axle to Crown (mm)	624	624	638	651	665

Part Numbers

Size	Carbon Smoke/Lithium Grey Marble	Lichen Green/Keswick Green Splatter	Gloss Navy Smoke/Matte Trek Black
Small	SKUFUE476583302 VPNTrek_5340808 UPC197216279174 MPN5340808	SKUFUE506073782 VPNTrek_5340813 UPC197216279228 MPN5340813	SKUFUE47562842 VPNTrek_5340818 UPC197216279273 MPN5340818
Medium	SKUFUE474564572 VPNTrek_5340809 UPC197216279181 MPN5340809	SKUFUE501478032 VPNTrek_5340814 UPC197216279235 MPN5340814	SKUFUE474772582 VPNTrek_5340819 UPC197216279280 MPN5340819
Large	SKUFUE47754062 VPNTrek_5340810 UPC197216279198 MPN5340810	SKUFUE507187002 VPNTrek_5340815 UPC197216279242 MPN5340815	SKUFUE47617052 VPNTrek_5340820 UPC197216279297 MPN5340820
X-Large	SKUFUE484119922 VPNTrek_5340811 UPC197216279204 MPN5340811	SKUFUE516984232 VPNTrek_5340816 UPC197216279259 MPN5340816	SKUFUE489955662 VPNTrek_5340821 UPC197216279303 MPN5340821
XX-Large	SKUFUE491823322 VPNTrek_5340812 UPC197216279211 MPN5340812	SKUFUE526056952 VPNTrek_5340817 UPC197216279266 MPN5340817	SKUFUE499749962 VPNTrek_5340822 UPC197216279310 MPN5340822

Size Chart

Trek | Mountain

Size	Rider height (in)	Rider height (cm)	Inseam (in)	Inseam (cm)
X-Small	4'9" - 5'1"	145 - 155 cm	27" - 29"	69 - 73 cm
Small	5'1" - 5'5"	155 - 165 cm	29" - 31"	74 - 78 cm
Medium	5'5" - 5'10"	165 - 177 cm	31" - 33"	79 - 83 cm
Medium/Large	5'8" - 5'11"	173 - 180 cm	32" - 34"	81 - 86 cm
Large	5'10" - 6'2"	177 - 188 cm	33" - 35"	84 - 89 cm
X-Large	6'2" - 6'5"	188 - 195 cm	35" - 36"	89 - 91 cm
XX-Large	6'5" - 6'8"	195 - 203 cm	36" - 38"	91 - 97 cm

Adapt, rip, repeat

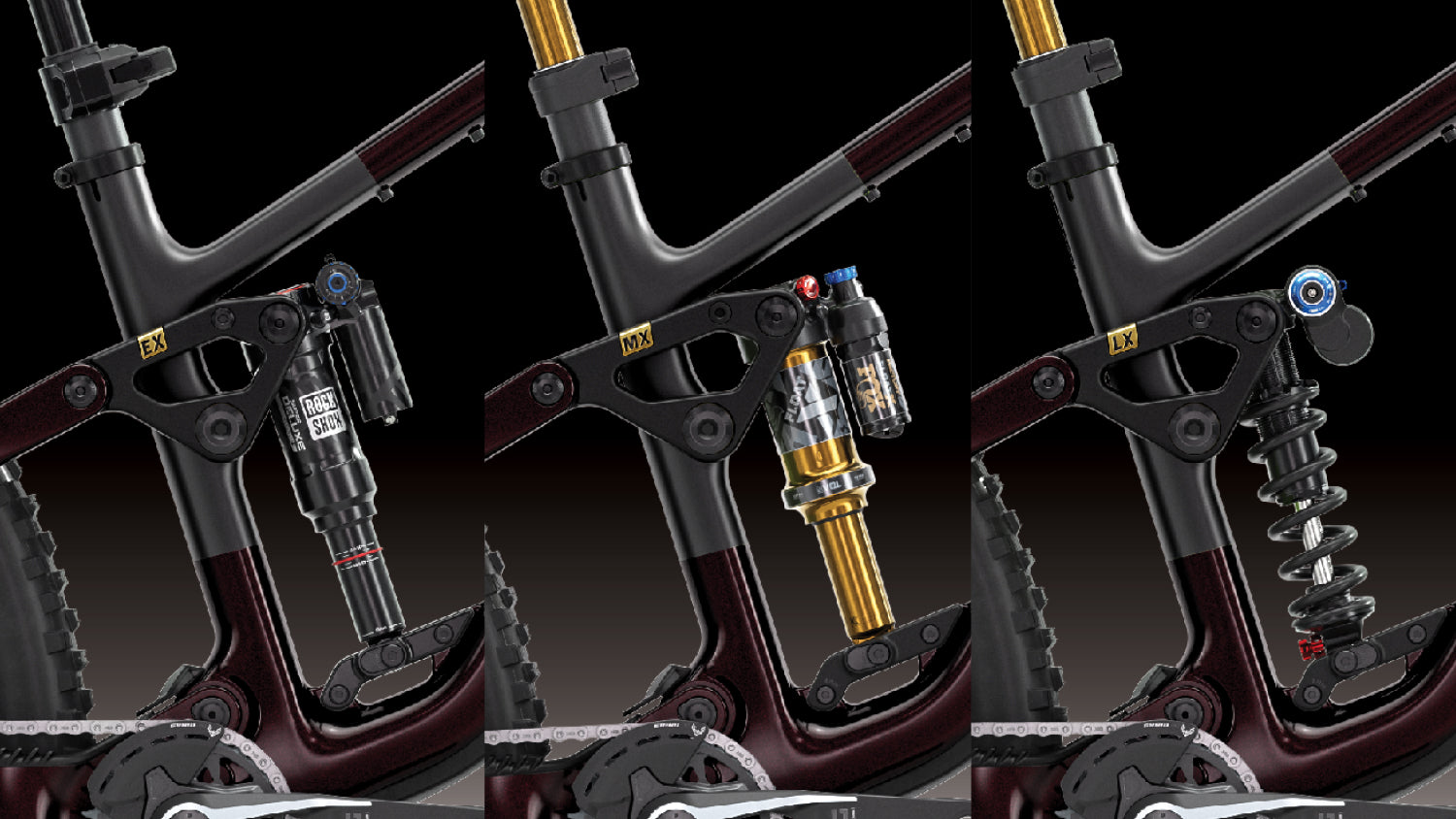

Only you can define your perfect trail bike — that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX, or charge through it all with LX.

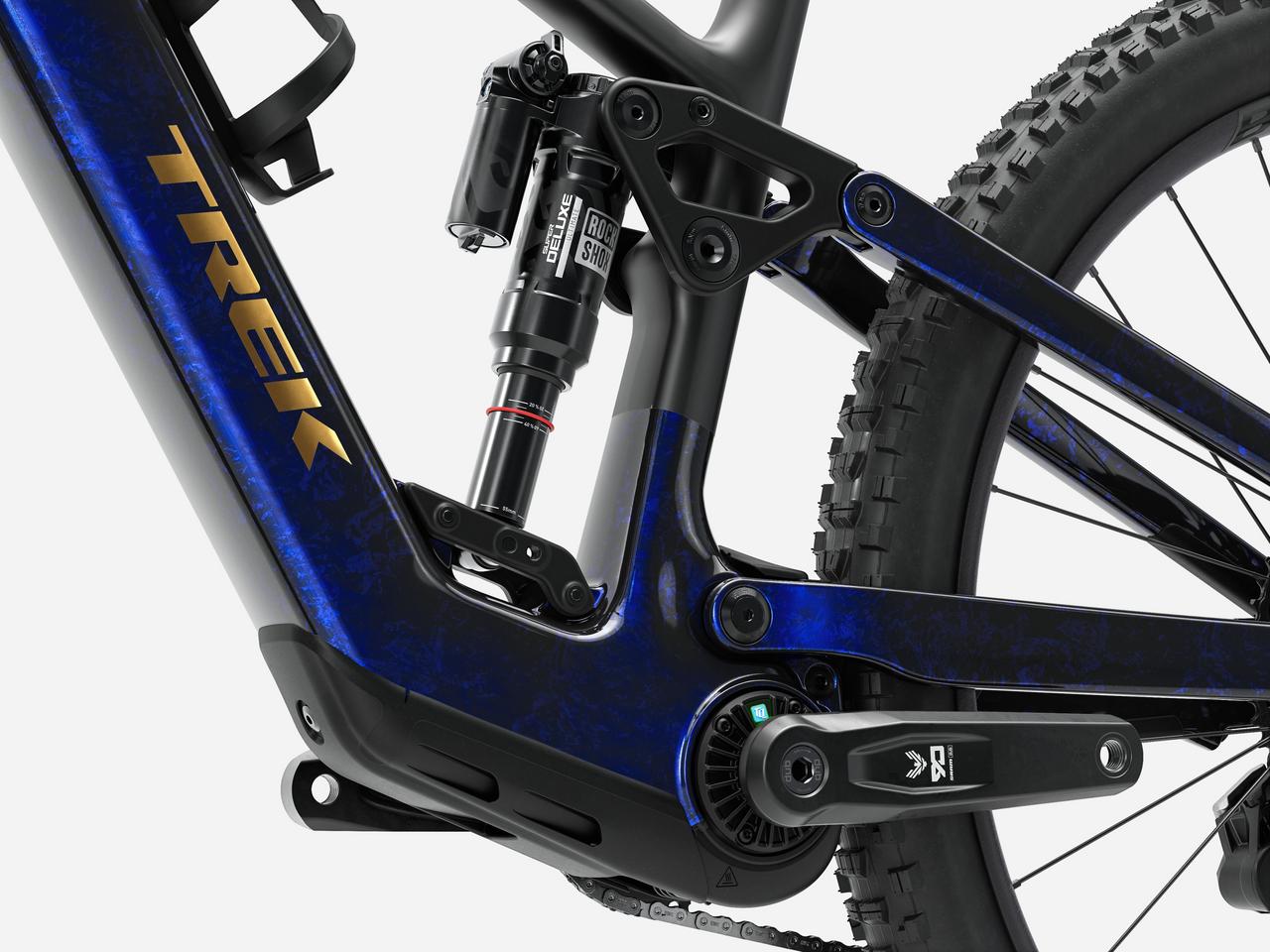

Adjustable leverage rate

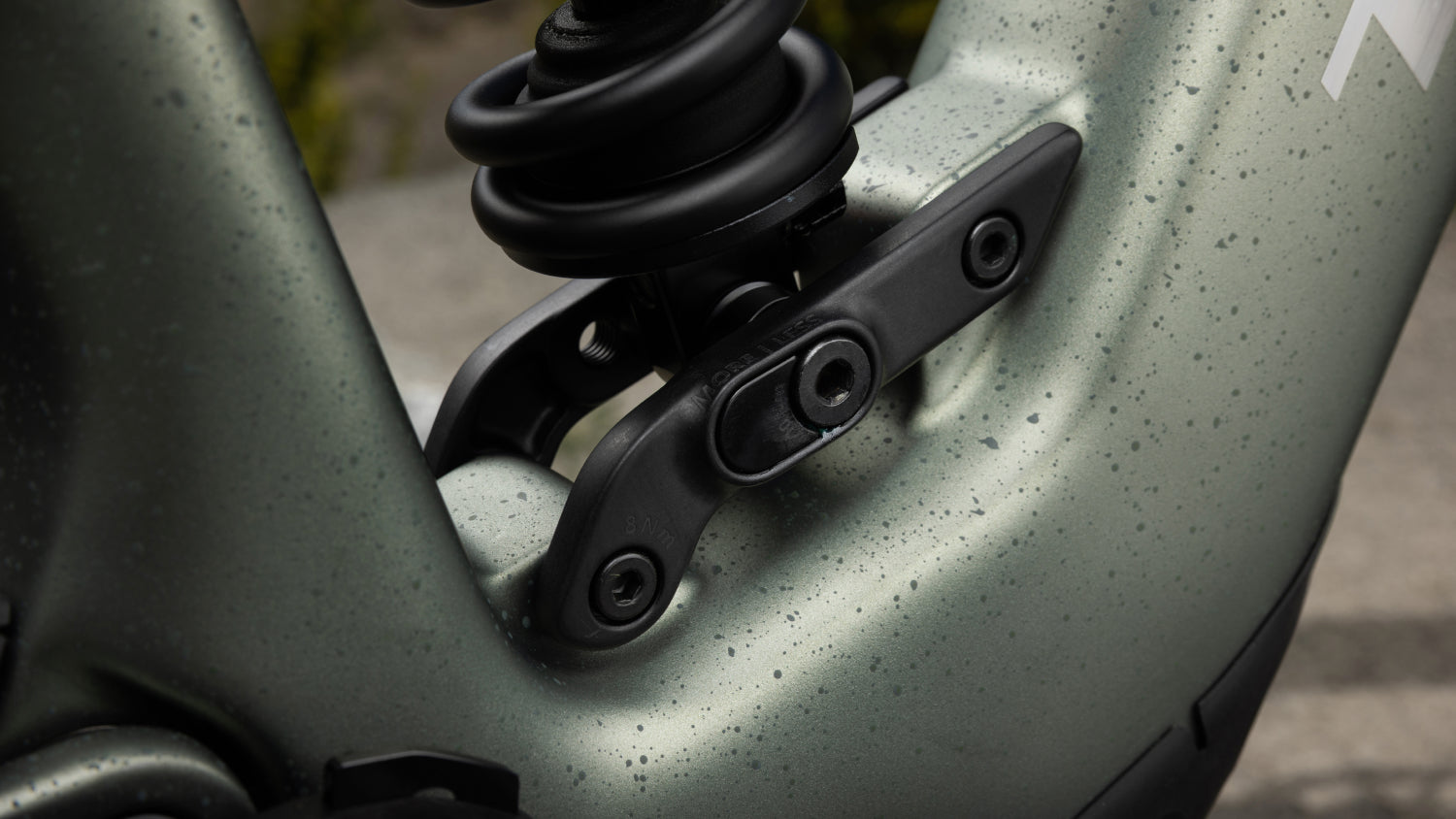

Want more bottom-out resistance without giving up small-bump sensitivity? Flip the chip in the lower shock mount for a more progressive leverage rate.

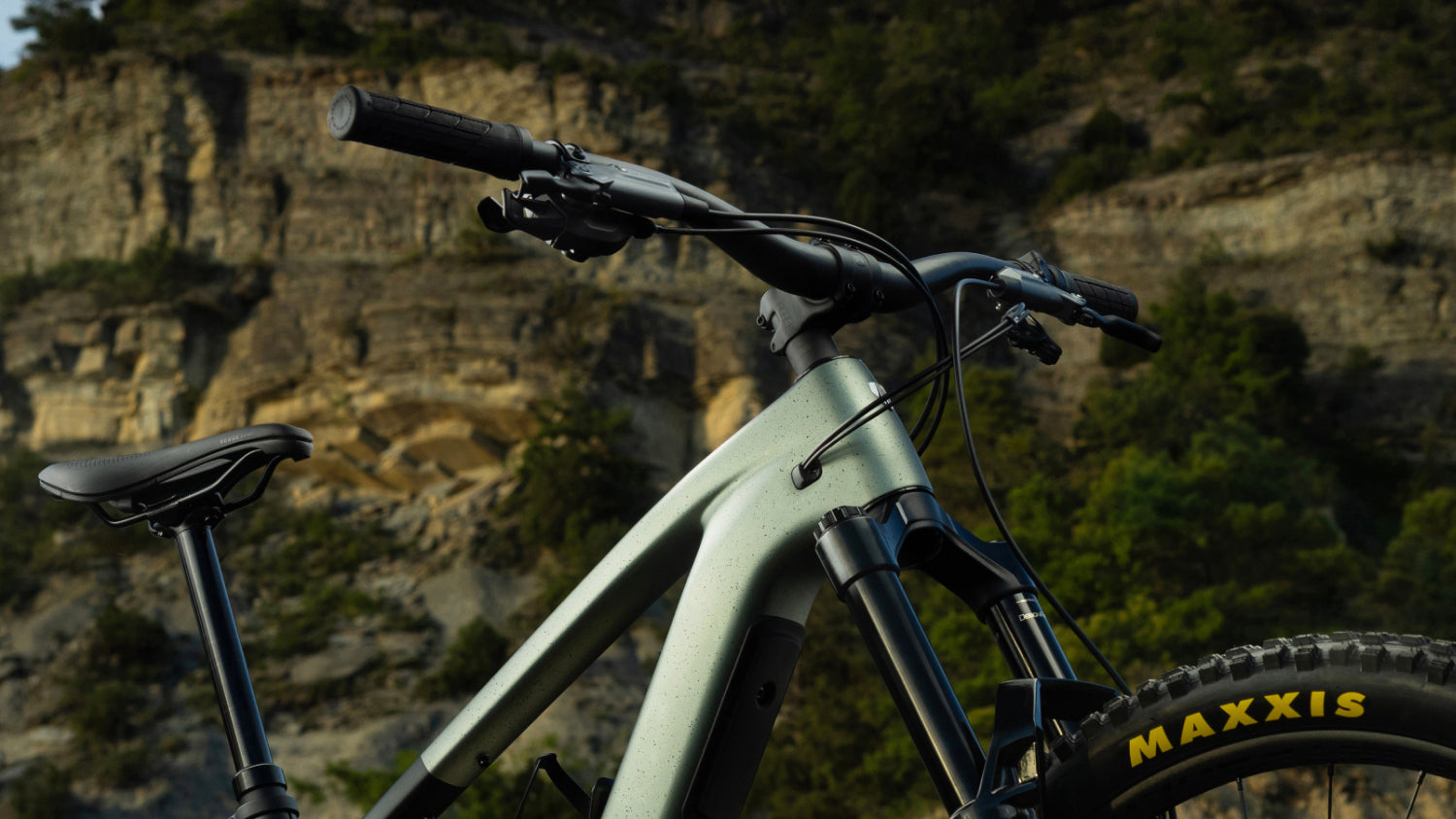

Zero stack integrated headset

With a ZS standard headset, you've got tons of options for aftermarket upgrades, including angle adjust or anodized colors.

Storage and accessory mounts

Stash ride essentials with in-frame storage on all Fuel models — both carbon and alloy. Plus, top tube accessory mounts let you load up even more.
