Sold out

Trek

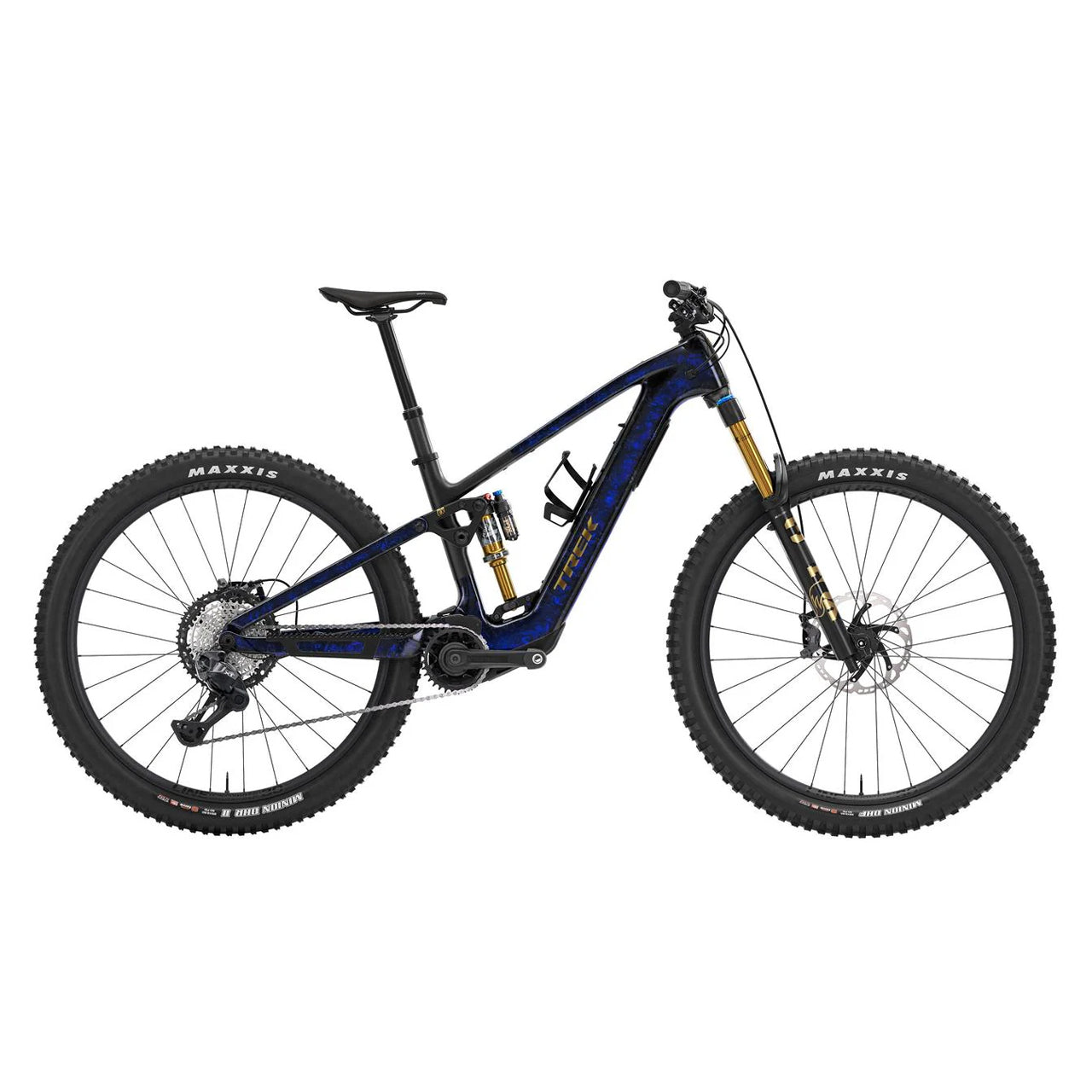

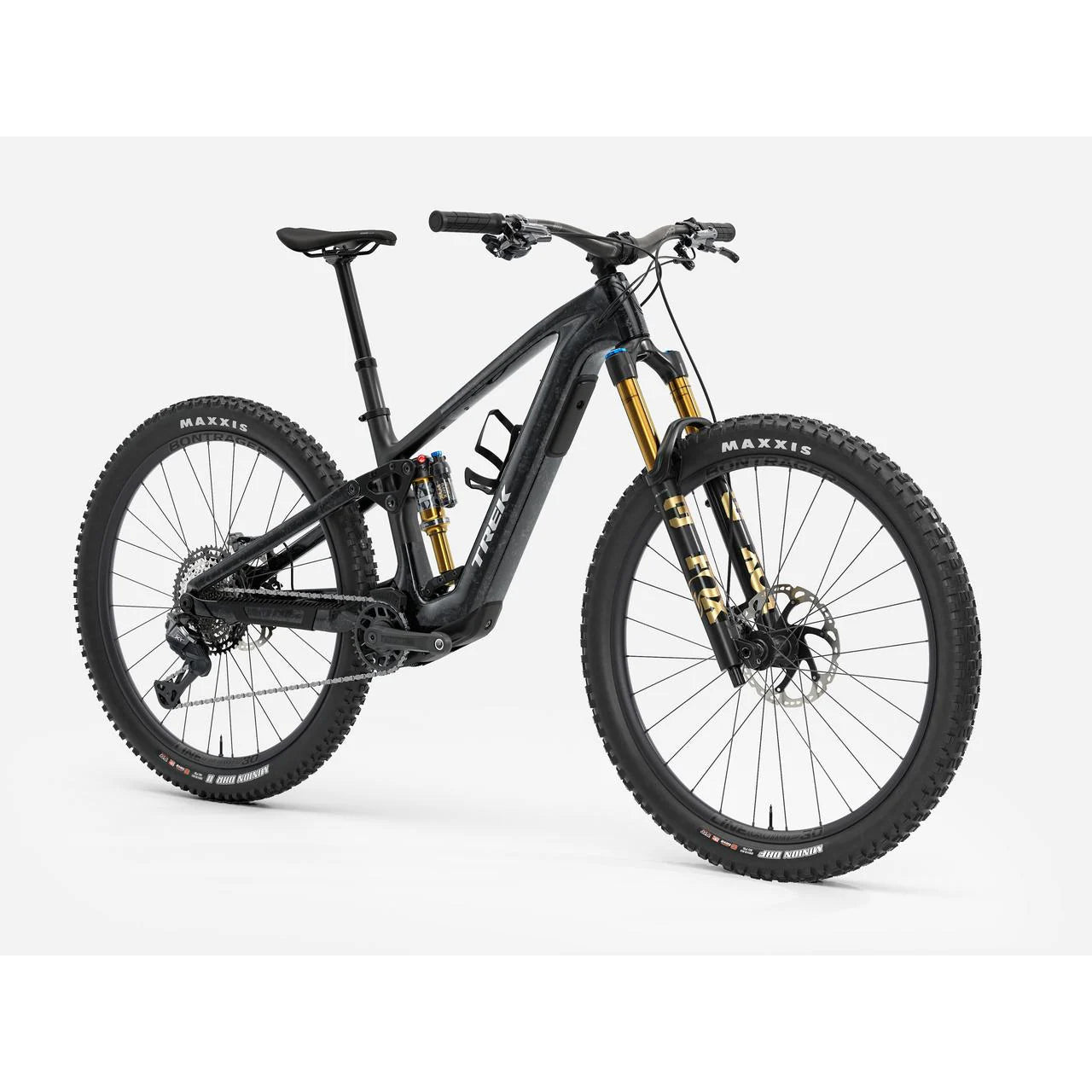

2026 | Fuel+ EX 9.8 XT Di2 Gen 2

$12,999.99

Shipping calculated at checkout.

Color: Gloss Navy Smoke/Matte Trek Black

Size: Small

Small Medium Large X-Large XX-Large

SKU:FUE486363902

Why Buy a Bike From The Bike Shop?

15% off Parts & Accessories
When you buy a bike at The Bike Shop, you get 15% off of parts and accessories for the first 30 days following your bike purchase. The discount will automatically apply in the checkout at the time of purchase with your bike. This excludes items already marked down and some brands.

Service Plan
If you're local to Calgary or Canmore, you also get one complimentary complete tune-up within the first 16 months of owning the bike. Also included is a lifetime of unlimited service checks to keep you informed on the overall condition of your bike.

After Purchase Support
You're not on your own after you buy a bike from us. We have a dedicated e-comm team that is here to assist if you need help with anything. We also created video tutorials on how to unbox your bike when it arrives and get it ready to read.

Shipping & Returns

We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.

Canadian shipping charges:

Sale bikes: $200
Standard pedal bikes over $1250: Free
Standard pedal bikes under $1250: $100
Electric bikes: $200
Fat bikes: $200
Kid's bikes: $60

Insurance charge: 1.5% insured value

We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details

Cargo bikes:
Due to the size of the box that cargo bikes ship in, we are unable to ship cargo bikes directly to your address. Cargo bikes are shipped to a Manitoulin Depot for you to pick-up. For more detail, visit our shipping page.

Bike Specifications

Specifications are subject to change without notice

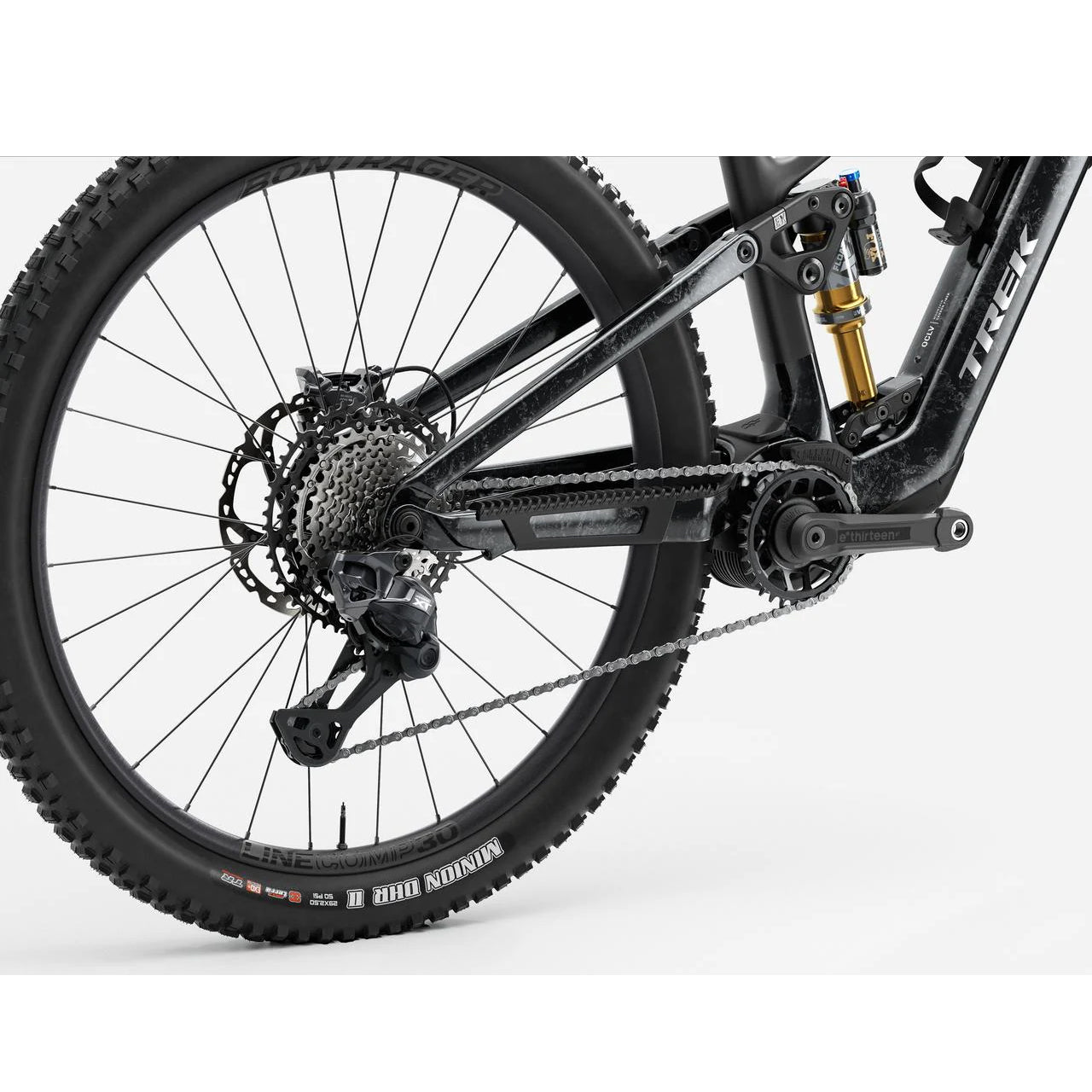

Drivetrain

Cassette Shimano XT M8200, 10-51, 12 speed

Chain Shimano Ultegra/XT M8100, 12 speed

Chainring E*Thirteen Helix Core Steel 32t steel, 55mm chainline

Crank length E*thirteen E*spec Plus, 160mm length

Rear derailleur Shimano XT Di2 M8260, 12 speed

Shifter Shimano XT Di2 M8250, 12 speed

Brakes

Brake rotor Shimano RT86, 6-bolt, 203mm

Brake type Hydraulic disc

Caliper Shimano XT M8200 4-piston hydraulic disc // Shimano XT M8200 4-piston hydraulic disc

Rotor size Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer

Cockpit

Grips tape Trek Line Elite, lock-on

Handlebars Race Face ERA, carbon, 35mm, 27.5mm rise, 800mm width

Saddle Verse Short Comp, steel rails, 145mm width

Seatpost Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length

Stem Bontrager Elite, 35mm, 0 degree, 45mm length

Wheels

Tires Maxxis Minion DHF, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5' // Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5'

Valves Bontrager TLR sealant, 180 ml/6 oz

Wheel size 29"

Suspension

Fork Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 150mm travel

Fork brand Fox

Shock Fox Factory Float X, 205mm x 60mm

Shock brand Fox

Frame

Frame OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mm

Frame material Carbon

Seatpost Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length

Weight as spec d M - 20.18 kg / 44.49 lbs (with TLR sealant, no tubes)

Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

E-Bike System

Battery TQ 580Wh

Battery type 360WH

Motor TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power

Motor controller TQ color LED display with Bluetooth & ANT+ connectivity

Description

Fuel+ EX 9.8 XT Di2 is an adaptable carbon e-MTB ready for sky-high climbs and dreamy descents. Its OCLV Mountain Carbon frame delivers a smooth boost from TQ's HPR-60 motor, while a Fox Factory suspension package (145mm rear, 150mm front) gives you buttery-smooth control through the rough. A wireless Shimano XT Di2 12-speed drivetrain gives you clean, customizable shifting and 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-dime power.

Geometry Chart

Measurement	Small	Medium	Large	X-Large	XX-Large
Reach (mm)	431	460	485	510	530
Stack (mm)	624	624	638	651	665
Head Tube Angle (°)	64.6°	64.5°	64.5°	64.5°	64.5°
Seat Tube Angle (°)	72.7°	72.6°	72.6°	72.6°	72.6°
Wheelbase (mm)	1200	1232	1258	1298	1330
Chainstay Length (mm)	441	444	444	447	452
Head Tube Length (mm)	110	110	125	140	155
Seat Tube Length (mm)	370	400	420	455	475
BB Drop (mm)	34	35	35	35	35
BB Height (mm)	339	339	339	339	339
Rake (mm)	44	44	44	44	44
Trail (mm)	13	13	13	13	13
Axle to Crown (mm)	624	624	638	651	665

Part Numbers

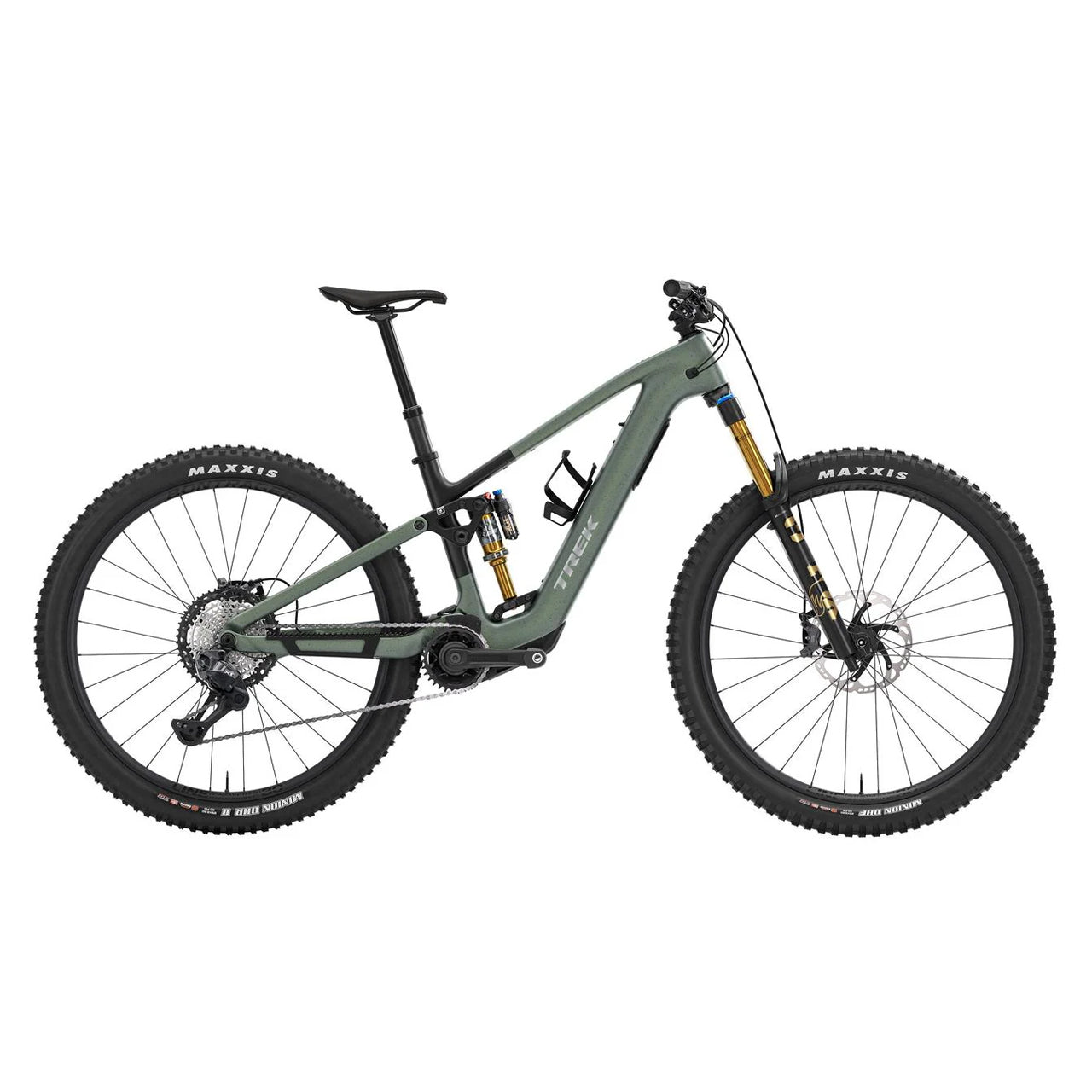

Size	Gloss Navy Smoke/Matte Trek Black	Lichen Green/Keswick Green Splatter	Carbon Smoke/Lithium Grey Marble
Small	SKUFUE486363902 VPNTrek_5340346 UPC197216279570 MPN5340346	SKUFUE516398892 VPNTrek_5340341 UPC197216279525 MPN5340341	SKUFUE483494932 VPNTrek_5340336 UPC197216279471 MPN5340336
Medium	SKUFUE481596512 VPNTrek_5340347 UPC197216279587 MPN5340347	SKUFUE514530162 VPNTrek_5340342 UPC197216279532 MPN5340342	SKUFUE486843962 VPNTrek_5340337 UPC197216279488 MPN5340337
Large	SKUFUE486566752 VPNTrek_5340348 UPC197216279594 MPN5340348	SKUFUE514422762 VPNTrek_5340343 UPC197216279549 MPN5340343	SKUFUE48340962 VPNTrek_5340338 UPC197216279495 MPN5340338
X-Large	SKUFUE491092472 VPNTrek_5340349 UPC197216279600 MPN5340349	SKUFUE523202072 VPNTrek_5340344 UPC197216279556 MPN5340344	SKUFUE499987372 VPNTrek_5340339 UPC197216279501 MPN5340339
XX-Large	SKUFUE508432622 VPNTrek_5340350 UPC197216279617 MPN5340350	SKUFUE536527012 VPNTrek_5340345 UPC197216279563 MPN5340345	SKUFUE509006192 VPNTrek_5340340 UPC197216279518 MPN5340340

Size Chart

Trek | Mountain

Size	Rider height (in)	Rider height (cm)	Inseam (in)	Inseam (cm)
X-Small	4'9" - 5'1"	145 - 155 cm	27" - 29"	69 - 73 cm
Small	5'1" - 5'5"	155 - 165 cm	29" - 31"	74 - 78 cm
Medium	5'5" - 5'10"	165 - 177 cm	31" - 33"	79 - 83 cm
Medium/Large	5'8" - 5'11"	173 - 180 cm	32" - 34"	81 - 86 cm
Large	5'10" - 6'2"	177 - 188 cm	33" - 35"	84 - 89 cm
X-Large	6'2" - 6'5"	188 - 195 cm	35" - 36"	89 - 91 cm
XX-Large	6'5" - 6'8"	195 - 203 cm	36" - 38"	91 - 97 cm

Adapt, rip, repeat

Only you can define your perfect trail bike — that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX, or charge through it all with LX.

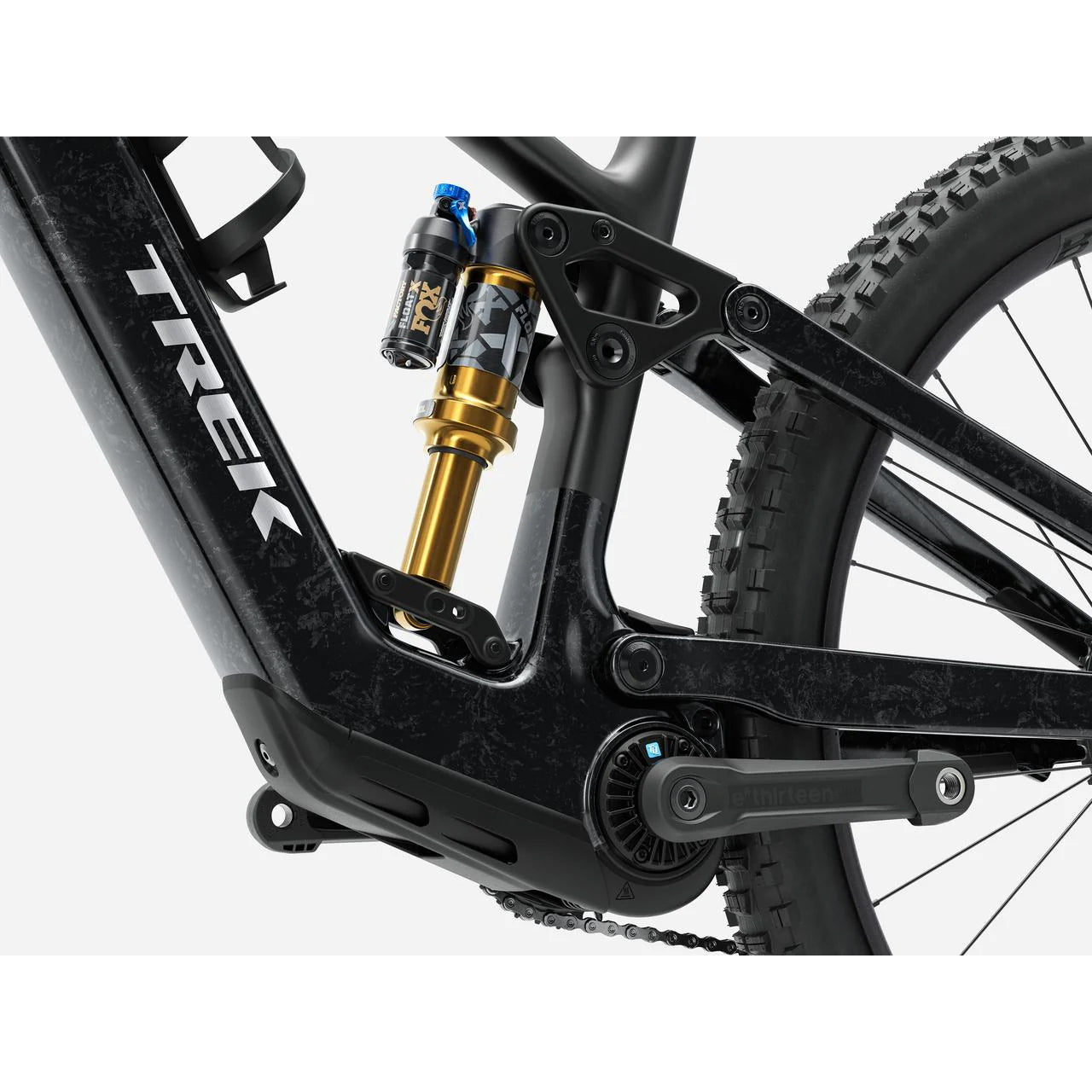

Adjustable leverage rate

Want more bottom-out resistance without giving up small-bump sensitivity? Flip the chip in the lower shock mount for a more progressive leverage rate.

Zero stack integrated headset

With a ZS standard headset, you've got tons of options for aftermarket upgrades, including angle adjust or anodized colors.

Storage and accessory mounts

Stash ride essentials with in-frame storage on all Fuel models — both carbon and alloy. Plus, top tube accessory mounts let you load up even more.
