Trek

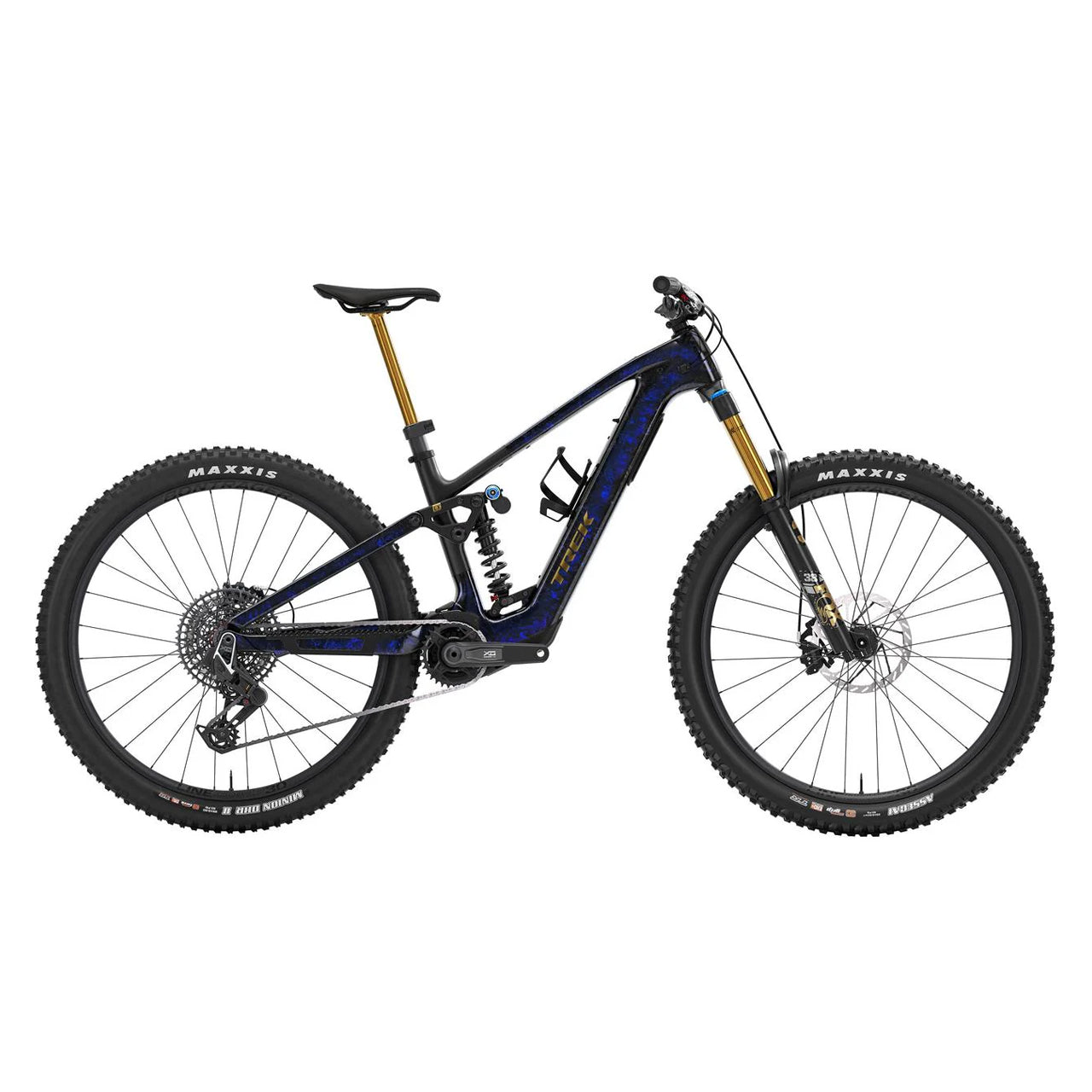

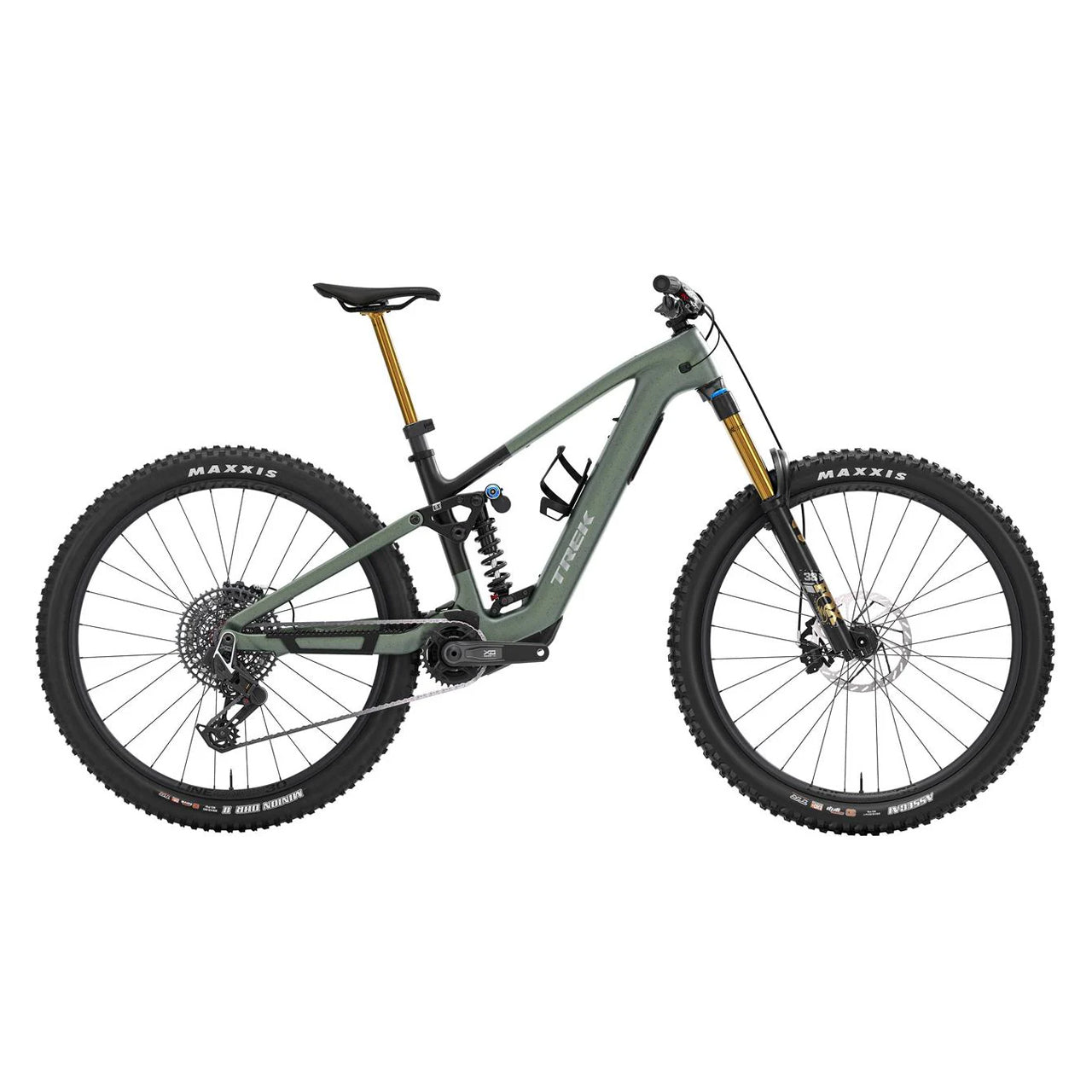

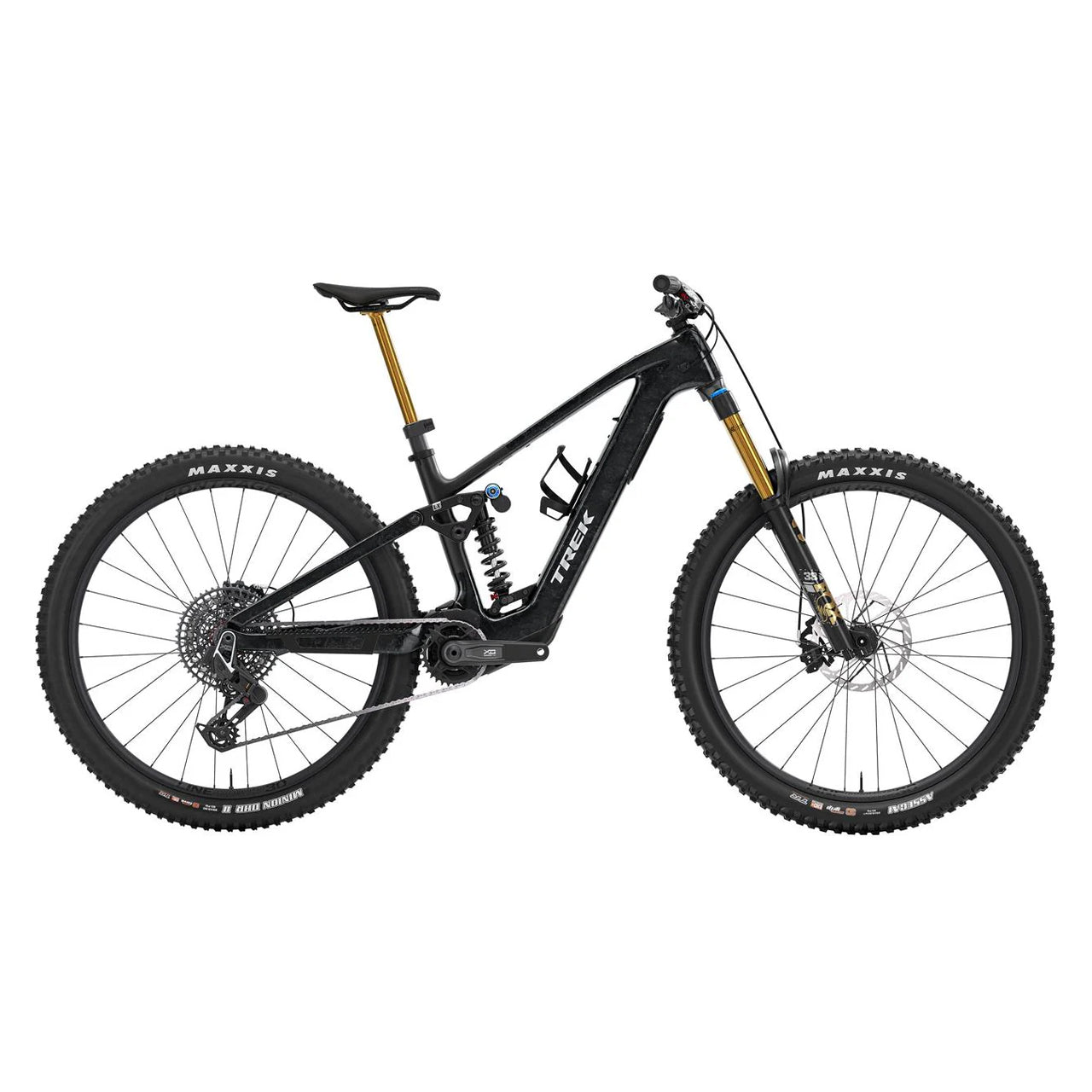

2026 | Fuel+ LX 9.9 X0 AXS Gen 2

$16,799.99

Shipping calculated at checkout.

Color: Carbon Smoke/Lithium Grey Marble

Size: Small

Small Medium Large X-Large XX-Large

SKU:TRE54868053B

Why Buy a Bike From The Bike Shop?

15% off Parts & Accessories
When you buy a bike at The Bike Shop, you get 15% off of parts and accessories for the first 30 days following your bike purchase. The discount will automatically apply in the checkout at the time of purchase with your bike. This excludes items already marked down and some brands.

Service Plan
If you're local to Calgary or Canmore, you also get one complimentary complete tune-up within the first 16 months of owning the bike. Also included is a lifetime of unlimited service checks to keep you informed on the overall condition of your bike.

After Purchase Support
You're not on your own after you buy a bike from us. We have a dedicated e-comm team that is here to assist if you need help with anything. We also created video tutorials on how to unbox your bike when it arrives and get it ready to read.

Shipping & Returns

We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.

Canadian shipping charges:

Sale bikes: $200
Standard pedal bikes over $1250: Free
Standard pedal bikes under $1250: $100
Electric bikes: $200
Fat bikes: $200
Kid's bikes: $60

Insurance charge: 1.5% insured value

We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details

Cargo bikes:
Due to the size of the box that cargo bikes ship in, we are unable to ship cargo bikes directly to your address. Cargo bikes are shipped to a Manitoulin Depot for you to pick-up. For more detail, visit our shipping page.

Bike Specifications

Specifications are subject to change without notice

Drivetrain

Cassette SRAM Eagle XS-1295, T-Type, 10-52, 12 speed

Chain SRAM X0 Eagle, T-Type, 12 speed

Chainring SRAM T-Type, 32T, alloy

Rear derailleur SRAM X0 Eagle AXS, T-Type

Shifter SRAM AXS pod

Brakes

Brake rotor SRAM HS2, 6-bolt, 200mm

Brake type Hydraulic disc

Caliper SRAM Maven Silver 4-piston hydraulic disc // SRAM Maven Silver 4-piston hydraulic disc

Rotor size Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer

Cockpit

Grips tape Trek Line Elite, lock-on

Handlebars Race Face ERA, carbon, 35mm, 27.5mm rise, 800mm width

Saddle Verse Short Pro, carbon rails, 145mm width

Stem Race Face Turbine R, 35mm, 0 degree, 40mm length

Wheels

Tires Maxxis Assegai, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5' // Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5'

Valves Bontrager TLR sealant, 180 ml/6 oz

Wheel size 29"

Suspension

Fork Fox Factory 38, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 170mm travel

Fork brand Fox

Shock Fox DHX2, 205mm x 65mm

Shock brand Fox

Frame

Frame OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mm

Frame material Carbon

Weight as spec d M - 20.31 kg / 44.78 lbs (with TLR sealant, no tubes)

Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

E-Bike System

Battery TQ 580Wh

Battery type 360WH

Motor TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power

Motor controller TQ color LED display with Bluetooth & ANT+ connectivity

Description

Fuel+ LX 9.9 X0 AXS is the cream-of-the-crop rowdy e-MTB, delivering smooth assist for chasing more hair-raising descents. Its OCLV Mountain Carbon frame partners with TQ's HPR60 motor for a smooth boost, while a Fox Factory suspension package with a coil shock (160mm rear, 170mm front) keeps you feeling confident in the roughest terrain. It comes ready for anything with top-tier components, like a SRAM X0 AXS transmission, SRAM Maven Silver brakes, carbon wheels, and a Fox Transfer Neo dropper post.

Geometry Chart

Measurement	X-Large
Reach (mm)	498
Stack (mm)	661
Head Tube Angle (°)	63.5°
Seat Tube Angle (°)	71.6°
Wheelbase (mm)	1310
Chainstay Length (mm)	447
Head Tube Length (mm)	140
Seat Tube Length (mm)	455
BB Drop (mm)	27
BB Height (mm)	346
Rake (mm)	44
Trail (mm)	14
Axle to Crown (mm)	661

Part Numbers

Size	Carbon Smoke/Lithium Grey Marble	Gloss Navy Smoke/Matte Trek Black	Lichen Green/Keswick Green Splatter
Small	SKUTRE54868053B VPNTrek_5335119 UPC197216207924 MPN5335119	SKUTRE53597278L VPNTrek_5335129 UPC197216208020 MPN5335129	SKUTRE54190693L VPNTrek_5335124 UPC197216207979 MPN5335124
Medium	SKUTRE54189512B VPNTrek_5335120 UPC197216207931 MPN5335120	SKUTRE53768832L VPNTrek_5335130 UPC197216208037 MPN5335130	SKUTRE54885517L VPNTrek_5335125 UPC197216207986 MPN5335125
Large	SKUTRE54418152B VPNTrek_5335121 UPC197216207948 MPN5335121	SKUTRE53291647L VPNTrek_5335131 UPC197216208044 MPN5335131	SKUTRE54503587L VPNTrek_5335126 UPC197216207993 MPN5335126
X-Large	SKUFUE495511482 VPNTrek_5335122 UPC197216207955 MPN5335122	SKUTRE54372282L VPNTrek_5335132 UPC197216208051 MPN5335132	SKUTRE55128258L VPNTrek_5335127 UPC197216208006 MPN5335127
XX-Large	SKUTRE5636827B VPNTrek_5335123 UPC197216207962 MPN5335123	SKUTRE55835218L VPNTrek_5335133 UPC197216208068 MPN5335133	SKUTRE56845247L VPNTrek_5335128 UPC197216208013 MPN5335128

Size Chart

Trek | Mountain

Size	Rider height (in)	Rider height (cm)	Inseam (in)	Inseam (cm)
X-Small	4'9" - 5'1"	145 - 155 cm	27" - 29"	69 - 73 cm
Small	5'1" - 5'5"	155 - 165 cm	29" - 31"	74 - 78 cm
Medium	5'5" - 5'10"	165 - 177 cm	31" - 33"	79 - 83 cm
Medium/Large	5'8" - 5'11"	173 - 180 cm	32" - 34"	81 - 86 cm
Large	5'10" - 6'2"	177 - 188 cm	33" - 35"	84 - 89 cm
X-Large	6'2" - 6'5"	188 - 195 cm	35" - 36"	89 - 91 cm
XX-Large	6'5" - 6'8"	195 - 203 cm	36" - 38"	91 - 97 cm
