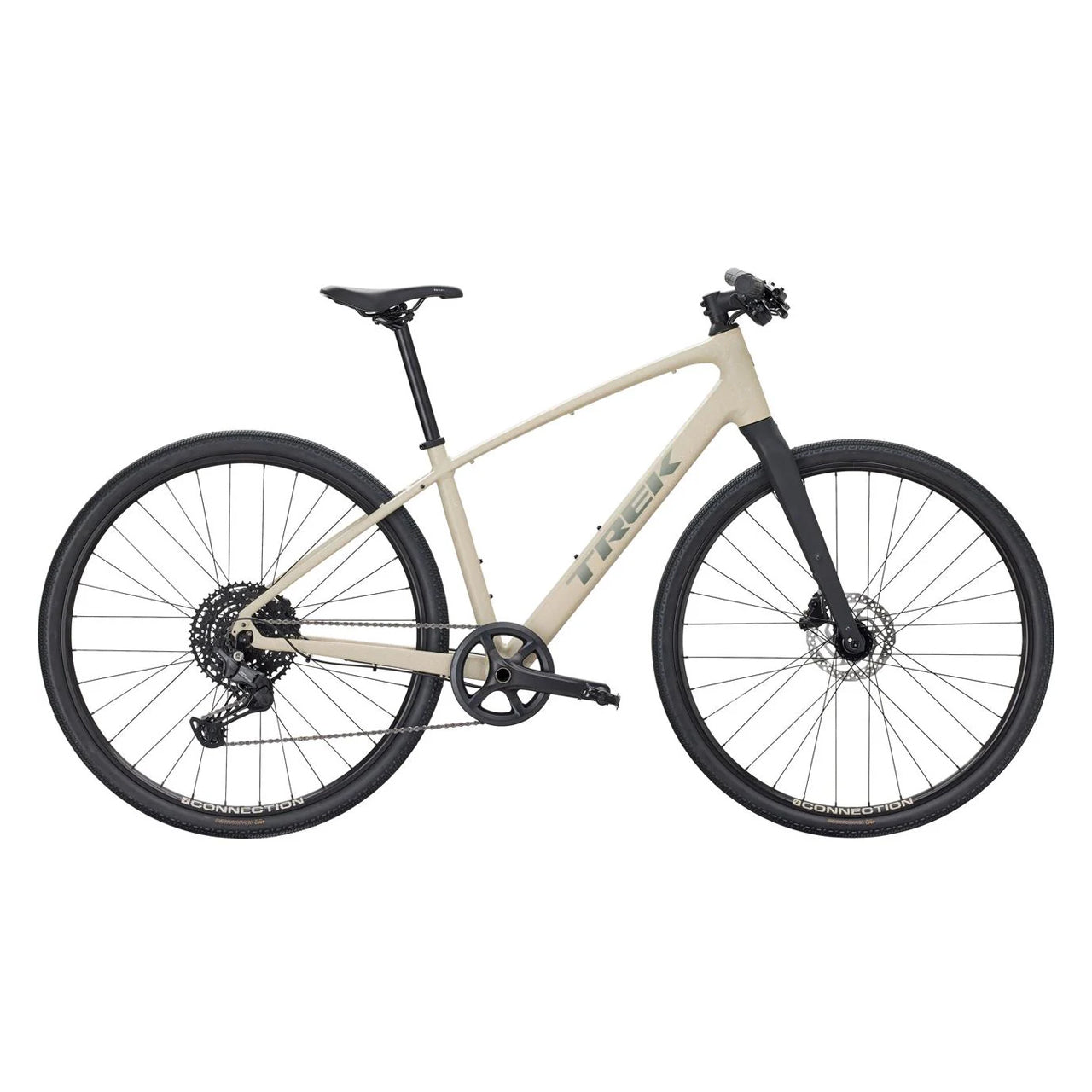

2026 | FX Sport AL 3

Drivetrain ▾

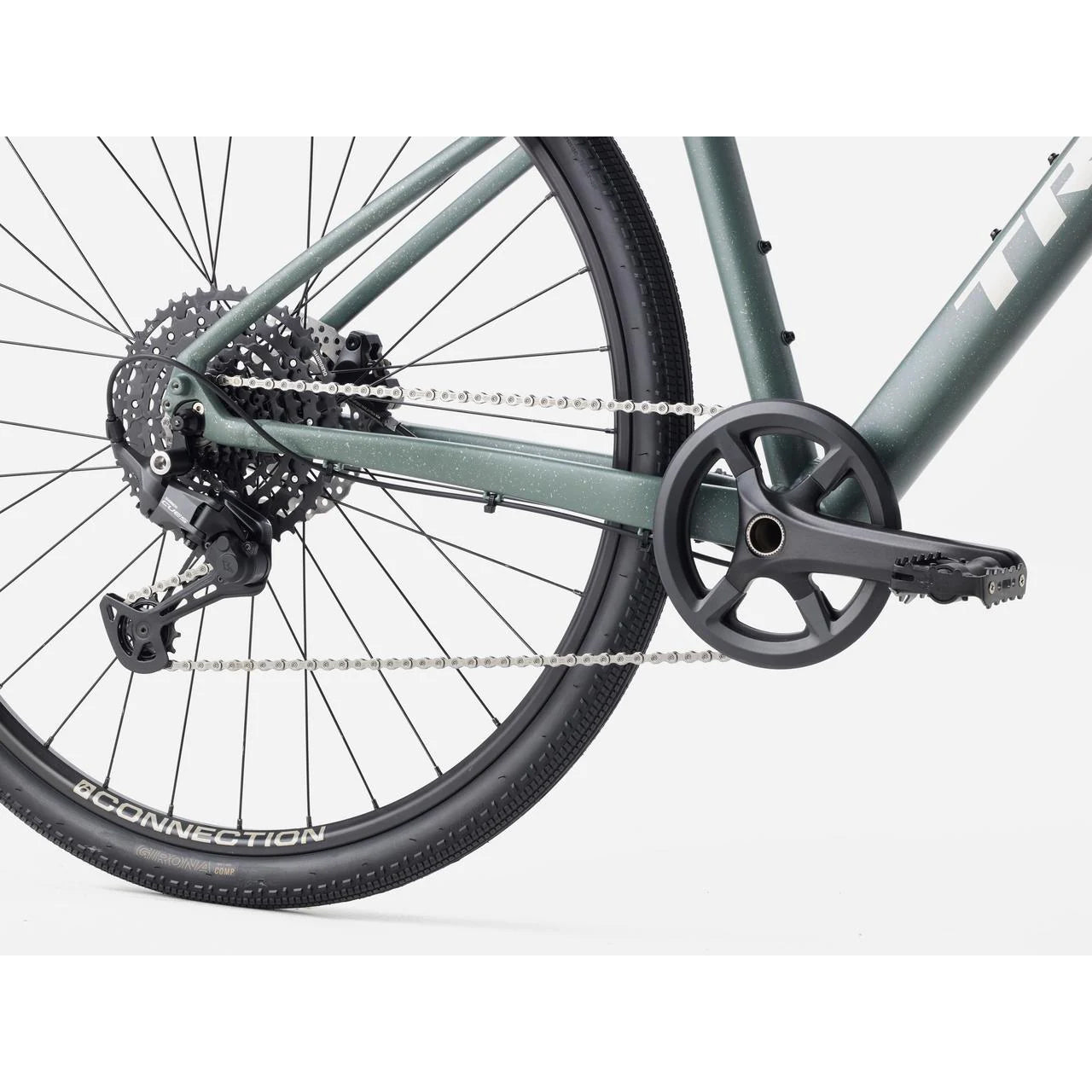

Cassette Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed

Chain Shimano LG500

Rear derailleur Shimano CUES U6000 GS

Shifter Shimano CUES U6000 w/optical gear display, 10 speed

Brakes ▾

Brake rotor Shimano RT26, 6-bolt, 160mm

Brake type Hydraulic disc

Caliper Shimano hydraulic disc, MT201 lever, UR300 caliper // Shimano hydraulic disc, MT201 lever, UR300 caliper

Cockpit ▾

Grips tape Trek Line Comp, nylon lock-on

Handlebars Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 660mm width

Pedals Wellgo nylon body, alloy cage

Saddle Verse Short, chromoly rails, 145mm width

Seatpost Bontrager alloy, 27.2mm, 12mm offset, 330mm length

Stem Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length

Wheels ▾

Front hub Formula DC-20, alloy, 6-bolt, 100x5mm

Rear hub Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm

Rims Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve

Tires Bontrager Girona Comp, wire bead, 60 tpi, 700x42mm

Wheel size 27.5"

Suspension ▾

Fork Dual Sport carbon, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR

Fork brand Trek

Frame ▾

Frame Alpha Gold Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR

Frame material Aluminum

Seatpost Bontrager alloy, 27.2mm, 12mm offset, 330mm length

Weight as spec d M - 11.10 kg / 24.48 lbs

Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
