Trek

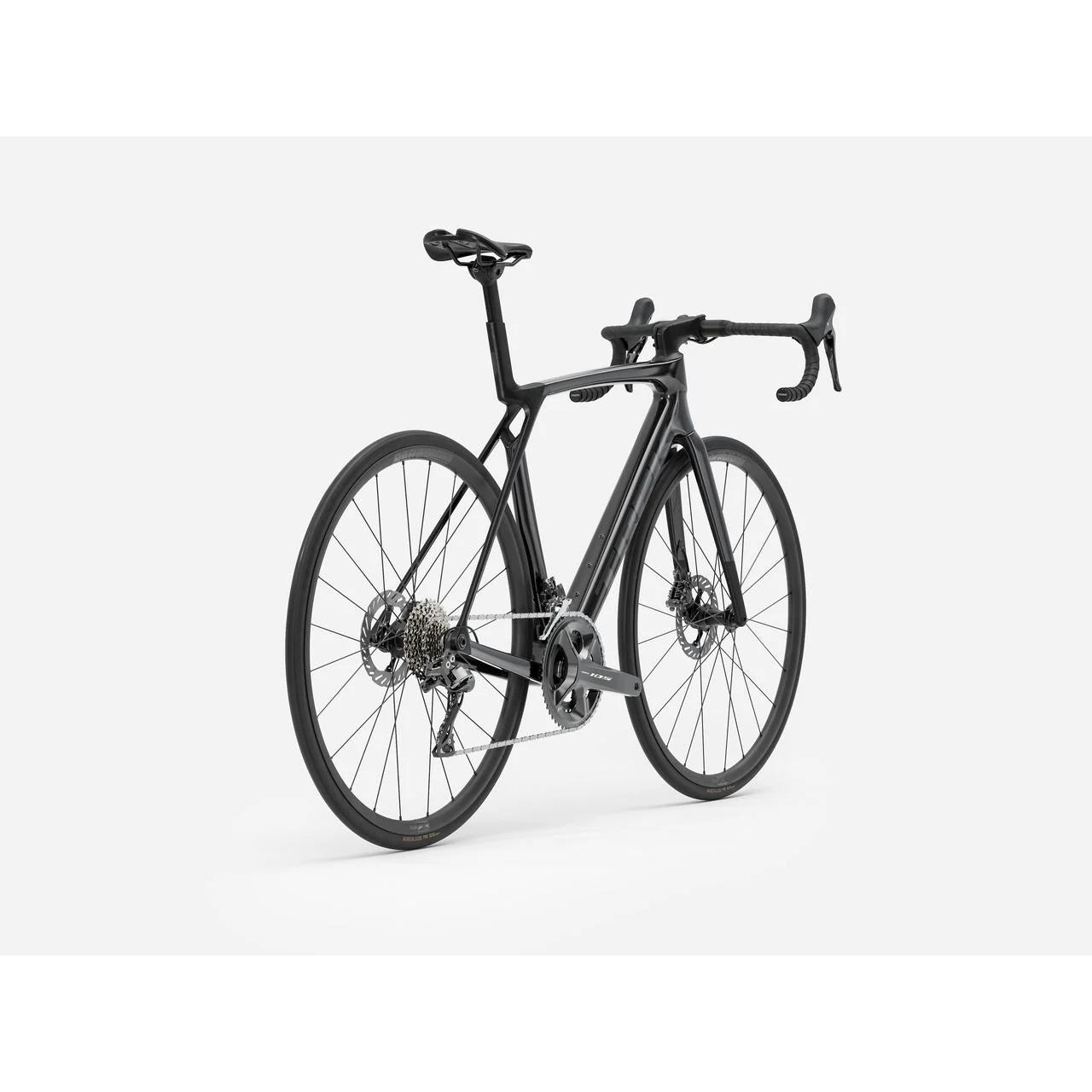

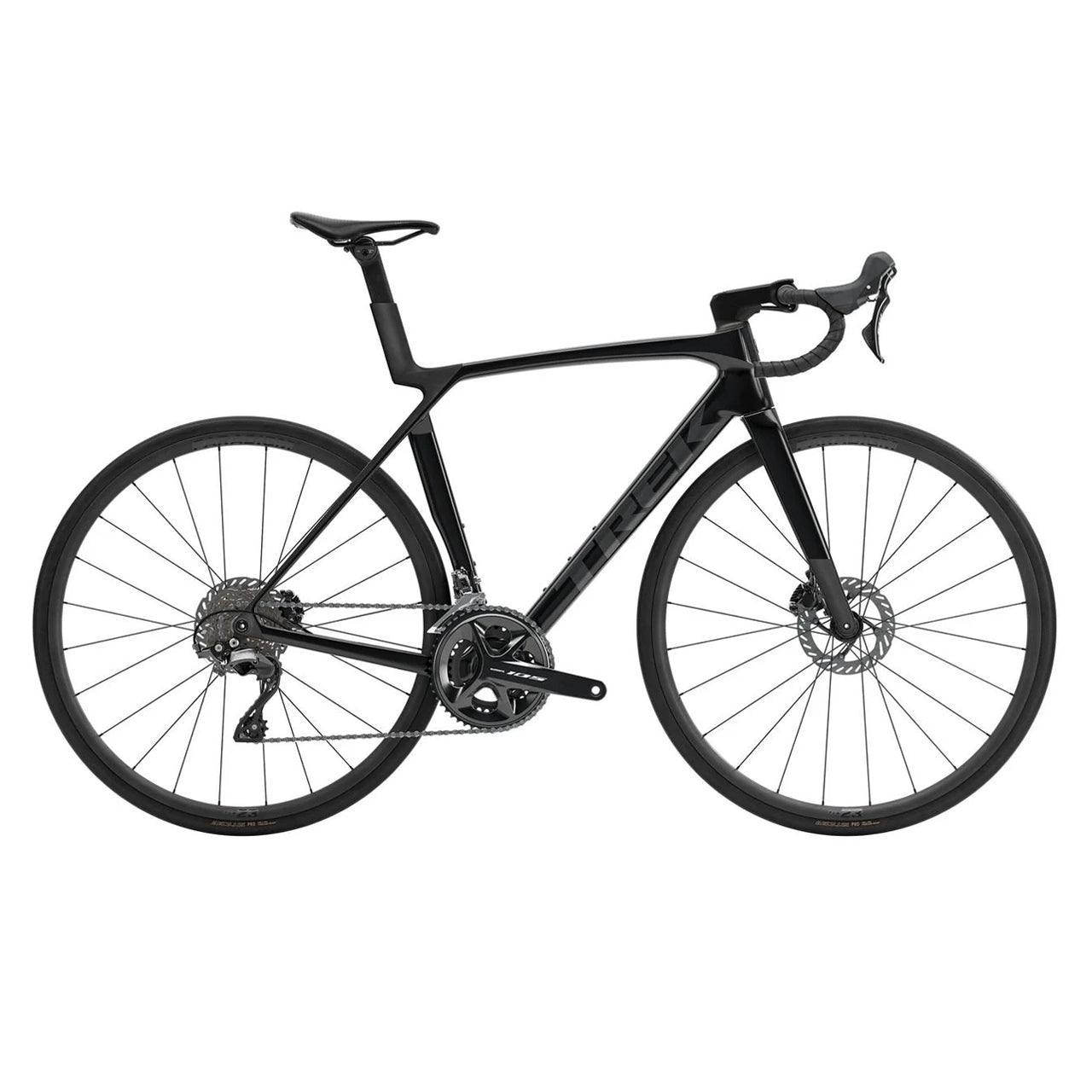

2026 | Madone SL 5 Gen 8

$3,999.99

Shipping calculated at checkout.

Color: Gloss Dark Star/Matte Deep Smoke

Size: Medium/Large

Small Medium Medium/Large X-Small X-Large Large

SKU:TRE48952241O

Shipping & Returns

We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.

Canadian shipping charges:

Sale bikes: $200
Standard pedal bikes over $1250: Free
Standard pedal bikes under $1250: $100
Electric bikes: $200
Fat bikes: $200
Kid's bikes: $60

Insurance charge: 1.5% insured value

We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details

Bike Specifications

Specifications are subject to change without notice

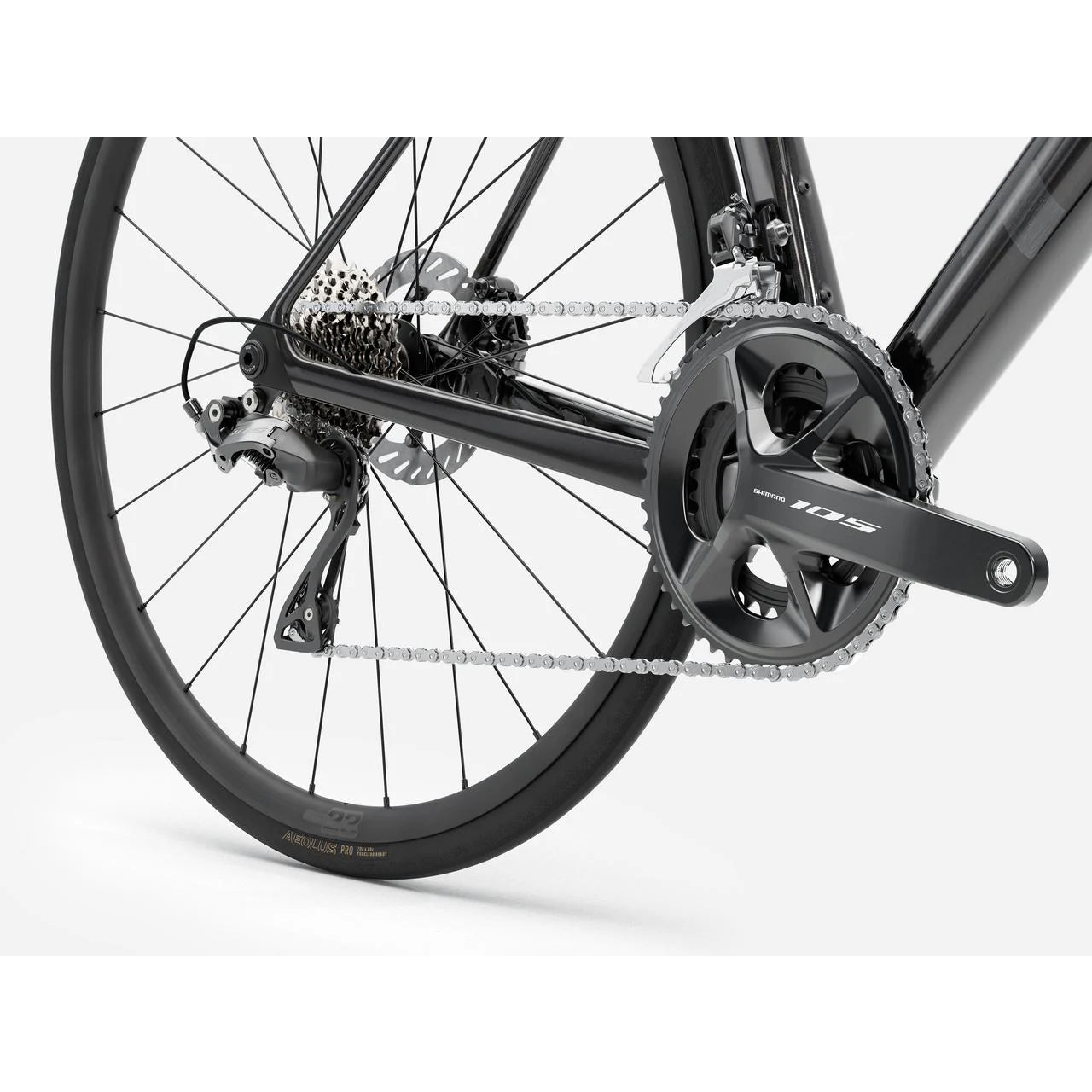

Drivetrain

Cassette Shimano 105 7101, 11-34, 12 speed

Chain Shimano SLX M7100, 12 speed

Front derailleur Shimano 105 R7100, braze-on, down swing

Rear derailleur Shimano 105 R7100, 36T max cog

Shifter Shimano 105 R7120, 12 speed // Shimano 105 R7120, 12 speed

Brakes

Brake rotor Shimano CL700, centerlock, 160mm

Brake type Hydraulic disc

Caliper Shimano 105 hydraulic disc, flat mount

Rotor size Max brake rotor sizes: 180mm front, 160mm rear

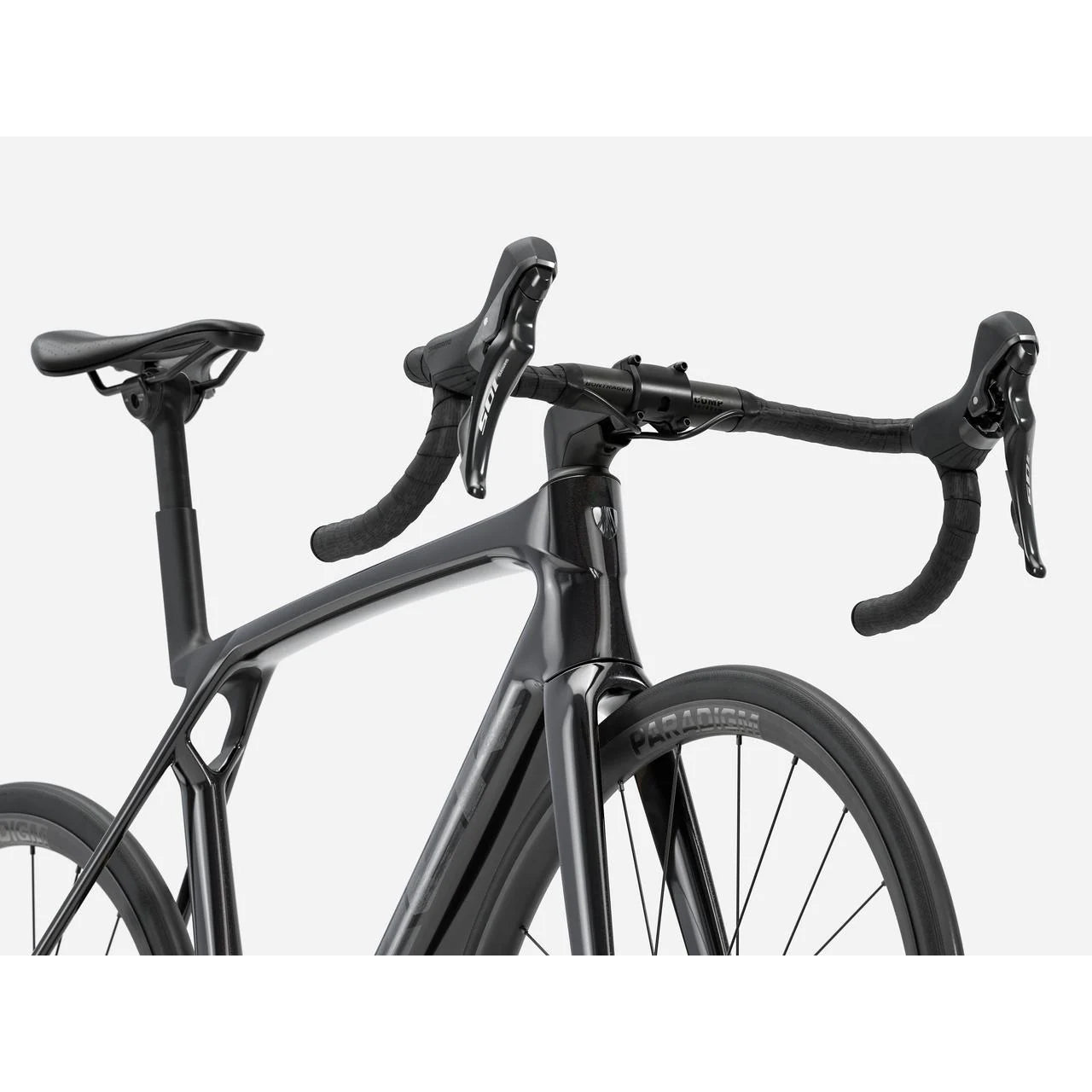

Cockpit

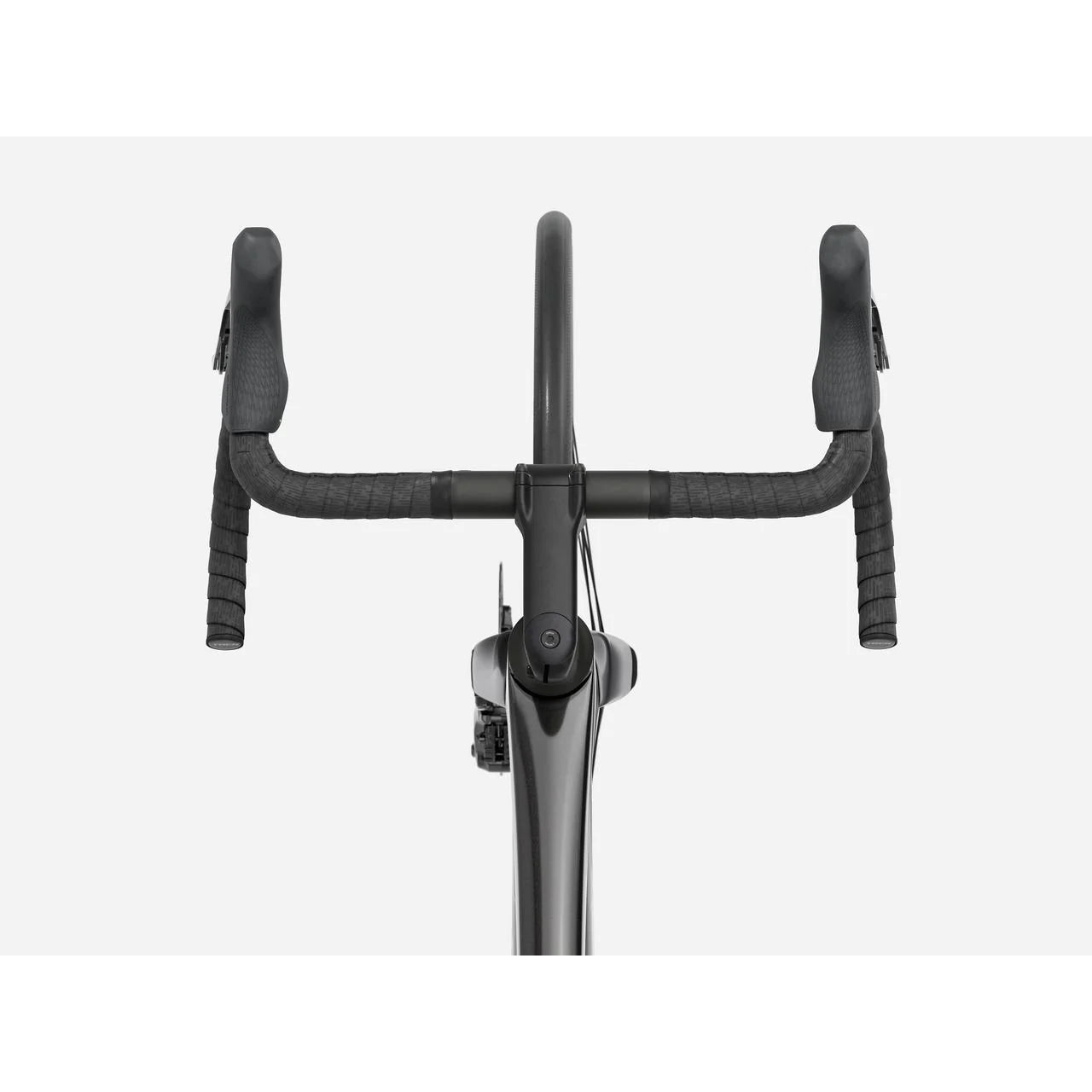

Handlebars Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width

Saddle Bontrager Aeolus Elite, austenite rails, 145mm width

Seatpost Madone aero carbon seatpost, 0mm offset, short length

Stem Trek RCS Pro, -7 degree, 110mm length

Wheels

Front hub Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle

Rear hub Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle

Rims Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve

Tires Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120tpi, 700x28mm

Valves Bontrager TLR sealant, 180 ml/6 oz

Wheel size 700c

Suspension

Fork Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Fork brand Trek

Frame

Bottom bracket Praxis, T47 threaded, internal bearing

Frame 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle

Frame material Carbon

Platform wheel size 700C

Seatpost Madone aero carbon seatpost, 0mm offset, short length

Weight as spec d ML - 8.64 kg / 19.05 lbs (with tubes)

Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Description

Madone SL 5 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8 models, but with a more economical OCLV 500 Carbon layup and two-piece cockpit with hidden cable routing. A Shimano 105 groupset, alloy handlebars, and alloy wheels keep the price down while still delivering clean mechanical shifting you can trust.

Geometry Chart

Part Numbers

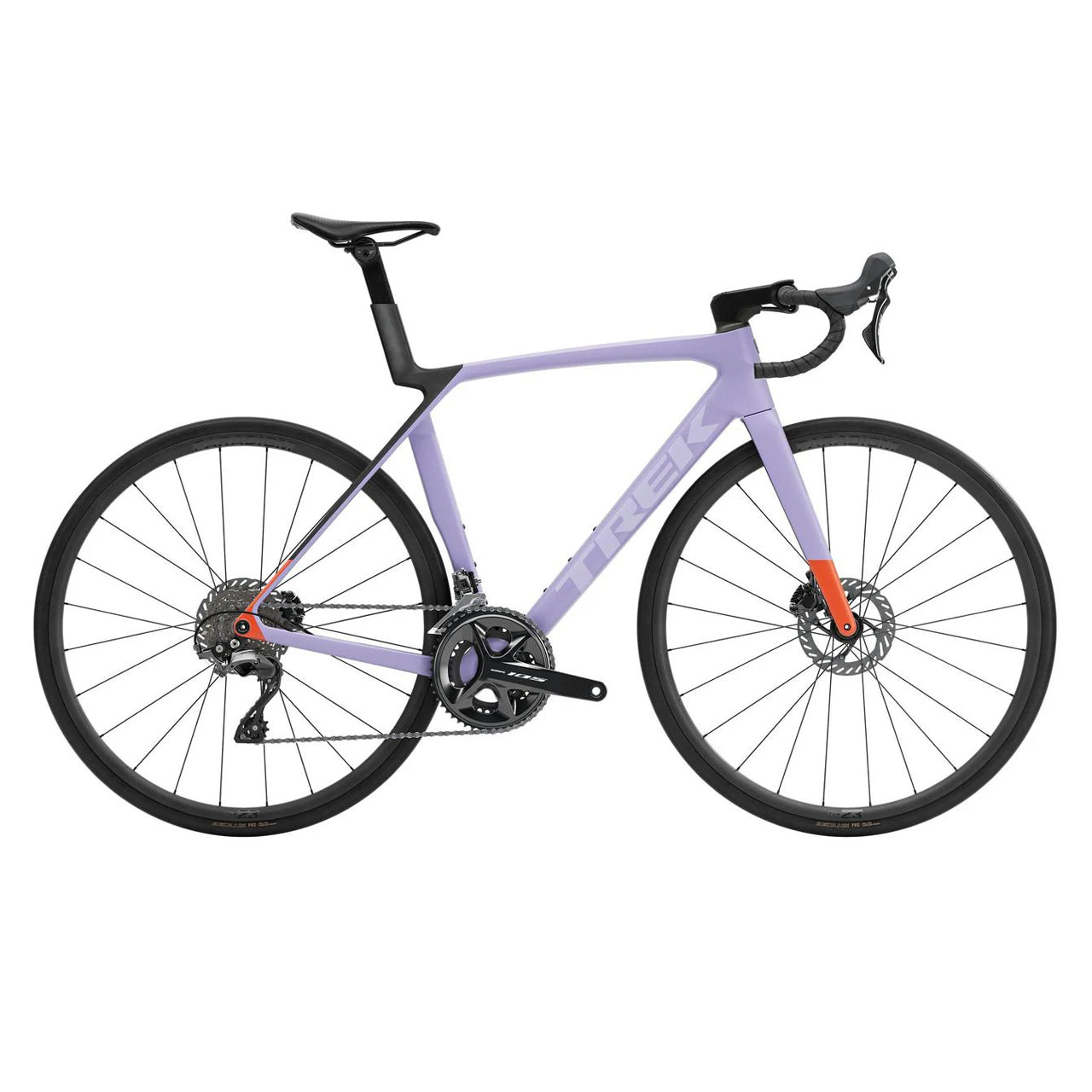

Size	Gloss Dark Star/Matte Deep Smoke	Matte Lavender Haze/Deep Smoke
Small	SKUTRE47784789O VPNTrek_5337861 UPC197216237501 MPN5337861	SKUTRE48206521E VPNTrek_5338934 UPC197216237686 MPN5338934
Medium	SKUTRE47987207O VPNTrek_5337862 UPC197216237518 MPN5337862	SKUTRE48894805E VPNTrek_5338935 UPC197216237693 MPN5338935
Medium/Large	SKUTRE48952241O VPNTrek_5337863 UPC197216237525 MPN5337863	SKUTRE49394816E VPNTrek_5338936 UPC197216237709 MPN5338936
X-Small	SKUTRE48524274O VPNTrek_5337860 UPC197216237495 MPN5337860	SKUTRE49436432E VPNTrek_5338933 UPC197216237679 MPN5338933
X-Large	SKUTRE48454382O VPNTrek_5337865 UPC197216237549 MPN5337865	SKUTRE49982629E VPNTrek_5338938 UPC197216237723 MPN5338938
Large	SKUTRE47562983O VPNTrek_5337864 UPC197216237532 MPN5337864	SKUTRE48100637E VPNTrek_5338937 UPC197216237716 MPN5338937

Size Chart

Trek | Road

Size	Size (cm)	Rider height (in)	Rider height (cm)	Inseam (in)	Inseam (cm)
—	47cm	5'0" - 5'2"	152 - 158 cm	28" - 30"	71 - 75 cm
—	50cm	5'2" - 5'4"	158 - 163 cm	29" - 30"	74 - 77 cm
—	52cm	5'4" - 5'6"	163 - 168 cm	30" - 31"	76 - 79 cm
—	54cm	5'6" - 5'9"	168 - 174 cm	31" - 32"	78 - 82 cm
—	56cm	5'9" - 5'11"	174 - 180 cm	32" - 33"	81 - 85 cm
—	58cm	5'11" - 6'1"	180 - 185 cm	33" - 34"	84 - 87 cm
—	60cm	6'1" - 6'3"	185 - 190 cm	34" - 35"	86 - 90 cm
—	62cm	6'3" - 6'5"	190 - 195 cm	35" - 36"	89 - 92 cm

Our lightest Madone SL Disc ever

New light and fast aero tube shaping paired with light-yet-economical 500 Series OCLV Carbon makes Gen 8 our lightest Madone SL Disc f/s ever and the ideal climbing bike.

Redefines what fast looks like

Revolutionary new Full System Foil aero tube shapes improve airflow over the whole bike while maintaining the lightness climbers crave. Plus, the bike’s entire rider system was meticulously designed and rigorously tested to be faster everywhere.

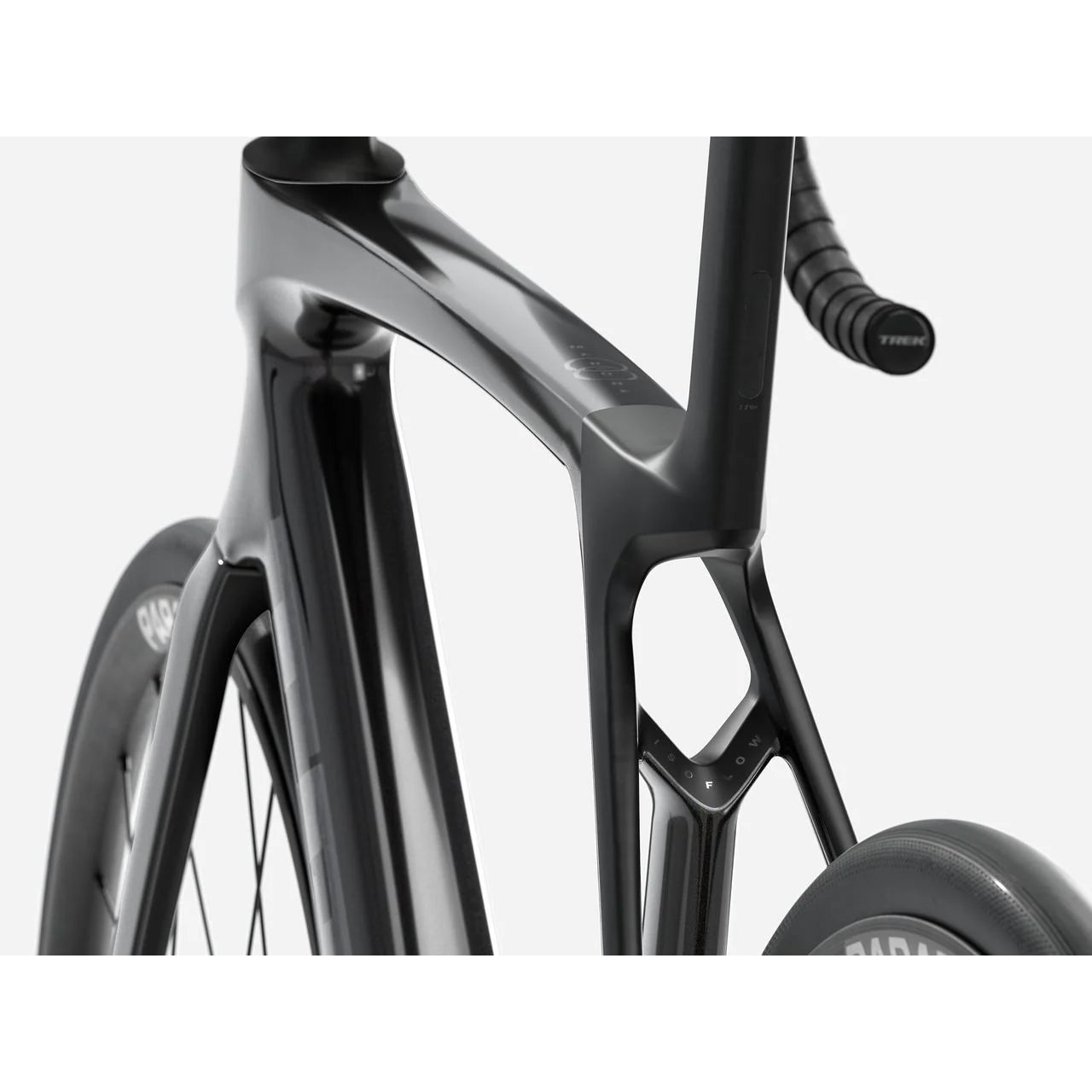

80% more vertically compliant IsoFlow

We refined our race-focused comfort tech to be lighter and have nearly double the vertical compliance so you can ride stronger longer.

Rooted in racing

Madone SL was informed by feedback from Lidl-Trek's fastest sprinters and climbers.

2026 | Madone SL 5 Gen 8
