Trek
2026 | Top Fuel C Frameset Gen 4
2026 | Top Fuel C Frameset Gen 4
SKU:TRE384846404
Couldn't load pickup availability
Why Buy a Bike From The Bike Shop?
Why Buy a Bike From The Bike Shop?
15% off Parts & Accessories
When you buy a bike at The Bike Shop, you get 15% off of parts and accessories for the first 30 days following your bike purchase. The discount will automatically apply in the checkout at the time of purchase with your bike. This excludes items already marked down and some brands.
Service Plan
If you're local to Calgary or Canmore, you also get one complimentary complete tune-up within the first 16 months of owning the bike. Also included is a lifetime of unlimited service checks to keep you informed on the overall condition of your bike.
After Purchase Support
You're not on your own after you buy a bike from us. We have a dedicated e-comm team that is here to assist if you need help with anything. We also created video tutorials on how to unbox your bike when it arrives and get it ready to read.
Shipping & Returns
Shipping & Returns
We care about your bike. We understand the excitement of unboxing a brand new bike and make sure you get the best experience when receiving your new bike.
Canadian shipping charges:
- Sale bikes: $200
- Standard pedal bikes over $1250: Free
- Standard pedal bikes under $1250: $100
- Electric bikes: $200
- Fat bikes: $200
- Kid's bikes: $60
Insurance charge: 1.5% insured value
We are currently offering gift cards to partially offset the price of shipping a bike! Visit our shipping page for more details
Cargo bikes:
Due to the size of the box that cargo bikes ship in, we are unable to ship cargo bikes directly to your address. Cargo bikes are shipped to a Manitoulin Depot for you to pick-up. For more detail, visit our shipping page.
Bike Specifications
Bike Specifications
Specifications are subject to change without notice
Wheels
Suspension
Frame
Share this product
Description
Description

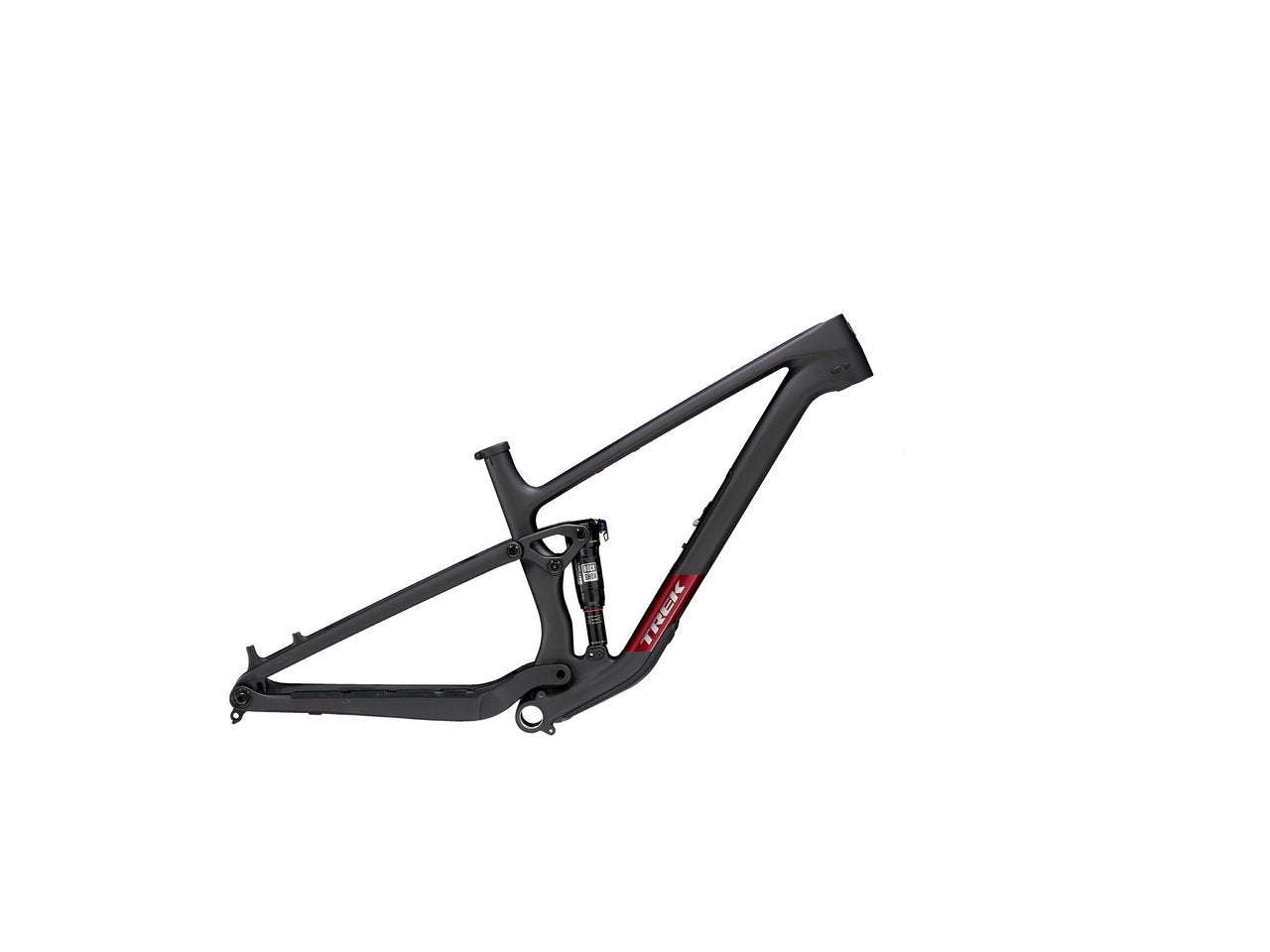

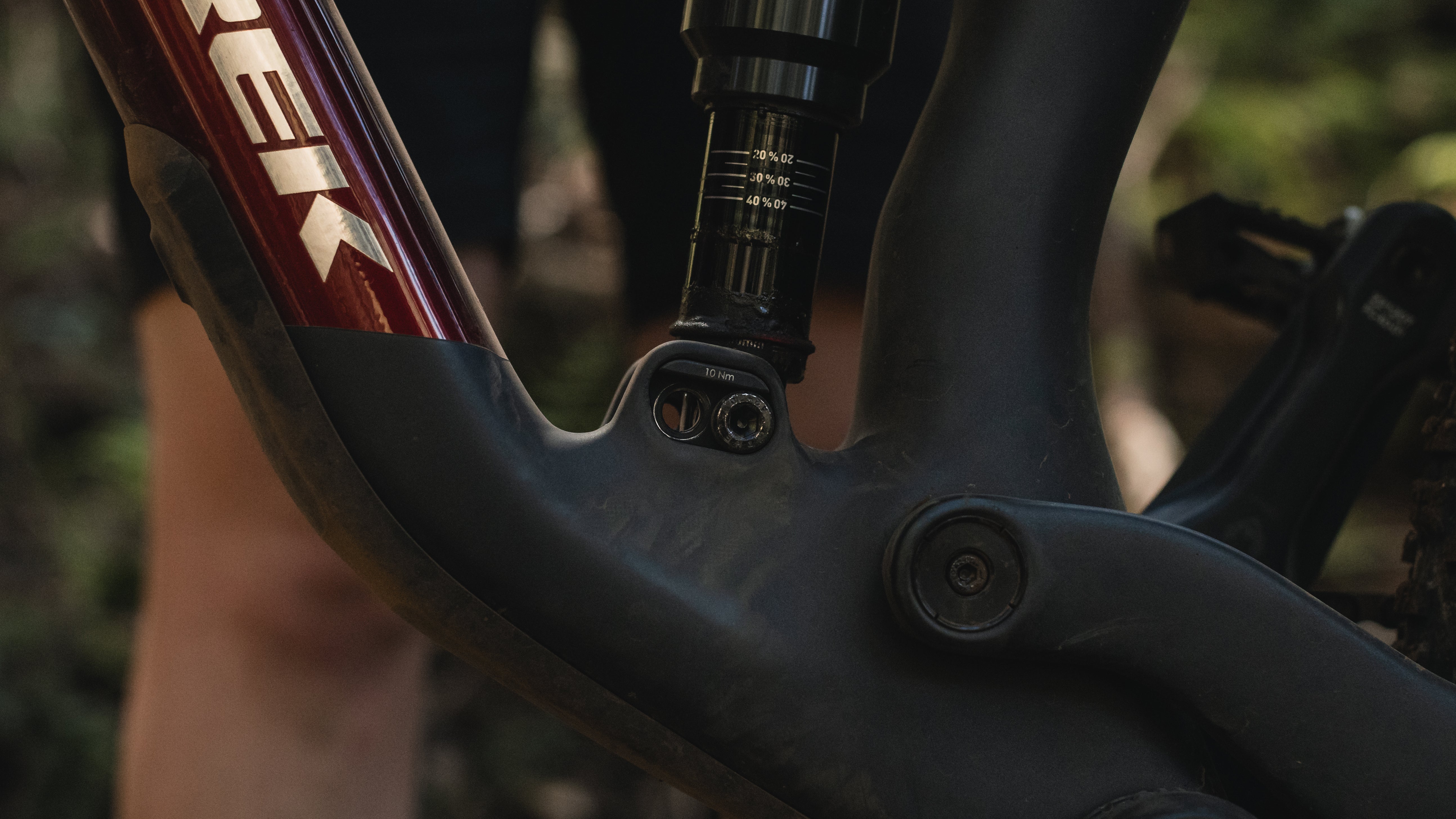

Top Fuel C Frameset Gen 4 is a carbon trail frame with 120mm of rear travel that's ready for your dream build. It takes the do-anything geometry of Top Fuel and leaves the rest to your imagination – build it up as a lightweight ride for soaring up climbs with a 120 or 130mm fork or go all-mountain with a 140mm fork. Go 29er or MX it up. The world is your oyster. Its 4-position Mino Link means you can tune it to how you ride and however you want to build it.
Geometry Chart
Geometry Chart
| Measurement | Small | Medium | Medium / Large | X-Large |
|---|---|---|---|---|
| Reach (mm) | 422 | 452 | 467 | 512 |
| Stack (mm) | 566 | 599 | 604 | 626 |
| Head Tube Angle (°) | 65.9° | 65.9° | 65.9° | 65.9° |
| Seat Tube Angle (°) | 69.5° | 70.5° | 70.5° | 70.5° |
| Wheelbase (mm) | 1150 | 1188 | 1210 | 1270 |
| Chainstay Length (mm) | 434 | 434 | 439 | 444 |
| Head Tube Length (mm) | 105 | 105 | 110 | 135 |
| Seat Tube Length (mm) | 360 | 410 | 420 | 470 |
| BB Drop (mm) | 10 | 26 | 26 | 26 |
| Rake (mm) | 43 | 43 | 43 | 43 |
| Trail (mm) | 11 | 12 | 12 | 12 |
| Axle to Crown (mm) | 566 | 599 | 604 | 626 |
Part Numbers
Part Numbers
| Size | Matte Dark Web |
|---|---|
| Small |
SKUTRE384846404
VPNTrek_5320969
UPC197216016793
MPN5320969
|
| Medium |
SKUTRE355909534
VPNTrek_5320970
UPC197216016809
MPN5320970
|
| Medium/Large |
SKUTRE369369364
VPNTrek_5320971
UPC197216016816
MPN5320971
|
| X-Large |
SKUTRE366784994
VPNTrek_5320973
UPC197216016830
MPN5320973
|
| Large |
SKUTRE355807984
VPNTrek_5320972
UPC197216016823
MPN5320972
|
Size Chart
Size Chart
| Size | Rider height (in) | Rider height (cm) | Inseam (in) | Inseam (cm) |
|---|---|---|---|---|
| X-Small | 4'9" - 5'1" | 145 - 155 cm | 27" - 29" | 69 - 73 cm |
| Small | 5'1" - 5'5" | 155 - 165 cm | 29" - 31" | 74 - 78 cm |
| Medium | 5'5" - 5'10" | 165 - 177 cm | 31" - 33" | 79 - 83 cm |
| Medium/Large | 5'8" - 5'11" | 173 - 180 cm | 32" - 34" | 81 - 86 cm |
| Large | 5'10" - 6'2" | 177 - 188 cm | 33" - 35" | 84 - 89 cm |
| X-Large | 6'2" - 6'5" | 188 - 195 cm | 35" - 36" | 89 - 91 cm |
| XX-Large | 6'5" - 6'8" | 195 - 203 cm | 36" - 38" | 91 - 97 cm |
